Redgum RG30KW User manual

Knee Walker -
Owners manual.
RG30KW
Features: Aluminum powder coated frame
Compact & Easy to fold
Multi height adjustable platform
Adjustable handle bar height
Quick adjust for left or right leg
Dual locking brakes
8” wheels / Carry basket

Operating Instructions
About
The Knee Walker is a steerable mobility device that provides
Support and Mobility to the user with injuries below the knee.
Body weight is distributed evenly across the knee pad (which is fully adjustable) and
allows the user to support and propel themselves with their good leg.
The "walker" has a cushioned molded knee pad to support both the injured leg and ankle
to make certain that no stress is placed on the damaged limb.
The knee walker is designed for easy steering and maneuverability with handlebars.
Brakes are also featured on this knee walker for precise speed control , movement and
safety.
Operating the Knee Walker
•Place injured leg (left or right) on the knee pad;
Centre the leg and position yourself forward to cover the full length of the pad.
•With the injured leg on the pad, stand as straight as possible and adjust the height
of the Knee Walker by loosening the quick release handle and repositioning the pin to
the correct height. -REFER ADJUSTING THE KNEE PAD HEIGHT-
•With the injured foot pointing down commence pushing yourself with the uninjured
leg. When propelling the knee walker always ensure that you keep your leg close to the
walker to maintain control and balance.
•With uninjured foot push back on the ground starting out with small steps to start
forward motion. Concentrate on small steps that give you stability and ease of control.
•Hands should always be on the handlebars to maintain control. Brakes need to be
applied as required to ensure that you have full control when moving and turning the
knee walker.

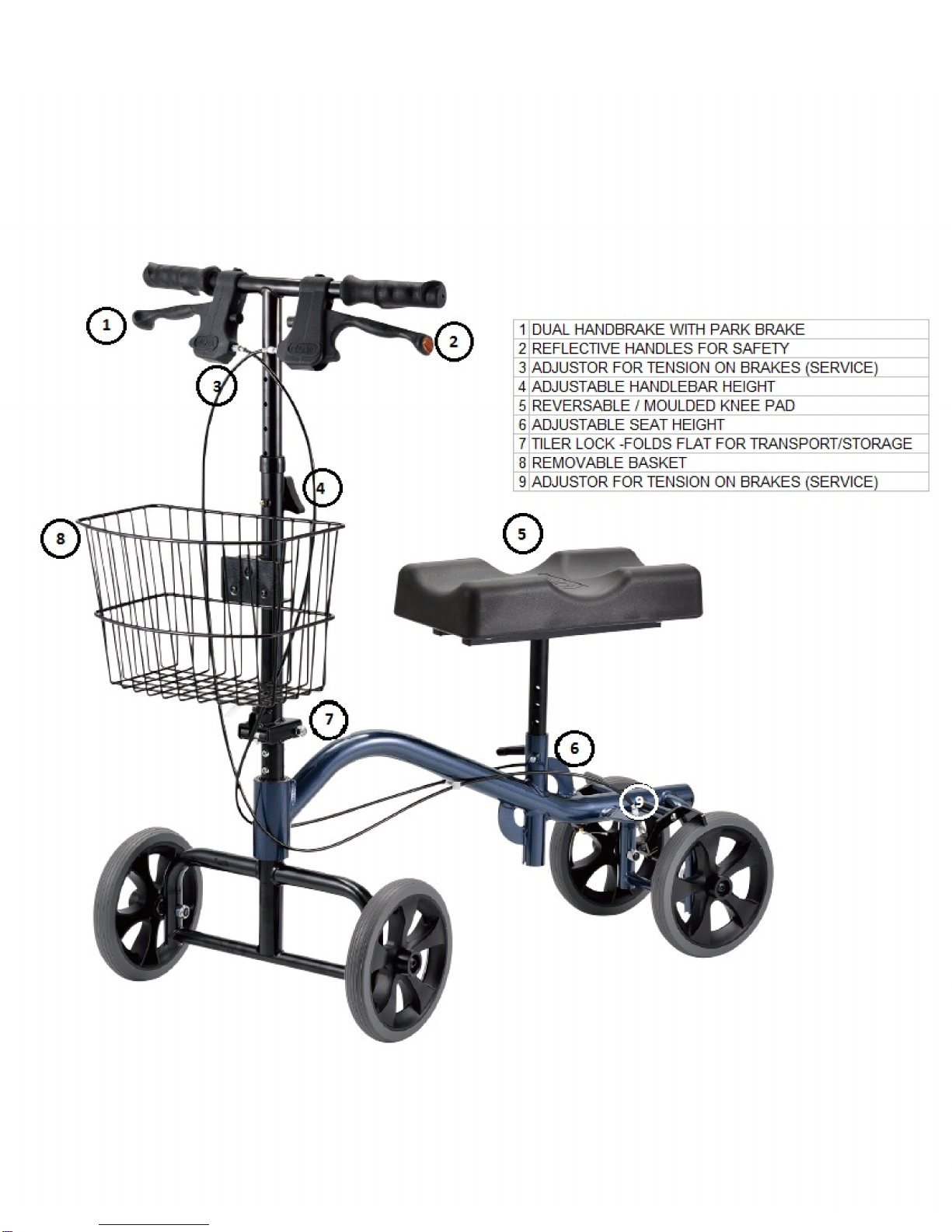

Using the Hand Brake
The Knee Walker's brakes is similar in design to a bicycle and also has a locking feature
(items 1 and 2).
To use the brakes, simply pull the levers with your finger tips toward the handle bar.
To lock the park brakes, push the brake levers away from the handle bar until they
click into place.
*Do not use the Knee Walker if the brake system is not
working properly or poorly adjusted*
Adjusting the Hand Brake
For minor brake adjustments, the brake adjusters and lock nuts are located between
the handbrakes & the brake cables.
To adjust the tension on the brake lever loosen the lock nut and turn the brake adjuster
clockwise or anti clockwise as appropriate. Retighten the lock nut after adjustment.
If further adjustment is required, apply the same method of adjustment to the lower
brake adjusters & lock nuts.
If the brakes cannot be suitably adjusted by the operator please return the knee walker to
your place of purchase for servicing.
*Do not use the Knee Walker if the brake system is not
working properly or poorly adjusted*
Adjusting the Handle Bar Height
To adjust the handle height, turn the hand wheel (Item 4) in an anticlockwise direction
to release the lock. Move the bar to the desired height. To lock the handle bar at the new
height tighten the hand wheel in a clockwise direction. Ensure that the hand wheel has
been tightened to secure the handlebar before use.

Adjusting the Knee Pad Height
To adjust the knee pad height, turn the knee pad handle (Item 6) located under the
pad counter-clockwise until free of the frame. Set the pad to the desired height notch
and return the adjustment knob. Turn clockwise to tighten.
To Fold The Tiller
(For transporting in the car or for storage)
To fold the tiller, pull the tiller lock lever (Item 7) away from the knee walker until the
lock is disengaged. While holding the lock lever in the down position, fold the tiller
down until it rests on the pad.
To Reduce the Risk of Accident
Follow the instructions provided by your healthcare professional.
Before using the Knee Walker practice bending, reaching, ambulating and
transferring on and off the Knee Walker.
DO NOT use the Knee Walker by yourself until you feel confident and can
maneuver independently.
The use of the Knee Walker is different for each individual. Always ensure your
safety and the safety of others when operating the knee walker.
NEVER attempt to maneuver on unstable, uneven or steep surfaces that may
cause the operator to loose control.
Be aware of your surroundings when operating the Knee Walker. Look for
obstacles and hazards and avoid these areas.
Do not transverse hills or sloping gradients. Maintain a slow speed to keep the
Knee Walker balanced at all times
Do not use on stairs or step style escalators.
Always be aware of other pedestrians and motor vehicles. While operating the
knee walker you are considered to be a pedestrian.
Never carry more than 2kgs of items in the front carry basket.
Be extra careful during wet weather as moisture will affect the braking
performance.
Dimensions
Seat height 430 - 585mm
Handle height 790—1000mm
Unit weight 12kg
Max user weight 130kg

Warranty
warrants that the other parts will be free from defects under
normal use, for a period of twelve (12) months from the date of purchase by the original
customer.
All parts claimed under warranty must be returned to in their
present condition.
Only an authorized “Warranty Dealer” of can undertake warranty
work.
Always contact the selling ® dealer to arrange all work and
assess if warranty applies.
Please Note:
Our goods come with guarantees that cannot be excluded under the
Australian Consumer law. You are entitled to a replacement part for
major failure and for compensation for any other reasonable foreseeable
loss or damage. You are entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and failure does not amount to
a major failure.
