INSTALLATION INSTRUCTIONS Product No.
58079
You can take it with you. SMALL PARTS
PACKAGE 30553
ELKHART, IN., OAKVILLE, ONT.
BALL MOUNT
GOOSENECK TRAILER HITCH
For Installation Assistance or Technical Help, Call 1-888-521-0150
1. Place base rails across truck bed. Place ball mount on base rails to establish spread between rails and install base rail mounting
kit 30439 or 30035 per kit instructions. Drill holes and add additional bolts (supplied with the gooseneck ball mount) at center
holes in base rails using the hole closest to the truck bed channel.
2. Install pull pins and lock in place with spring cotter pins.
3. When safety chains are used, place chain link in slot.
30029IN-7 JULYE PCN13787 © 1994 REESE PRODUCTS, INC. Litho in USA
WARNING!
DO NOT EXCEED THE
MANUFACTURERS GVWR
FOR YOUR VEHICLE.
Note!
Block rear of trailer when loading
and unloading trailer to prevent
negative trailer tongue load when
using this product.

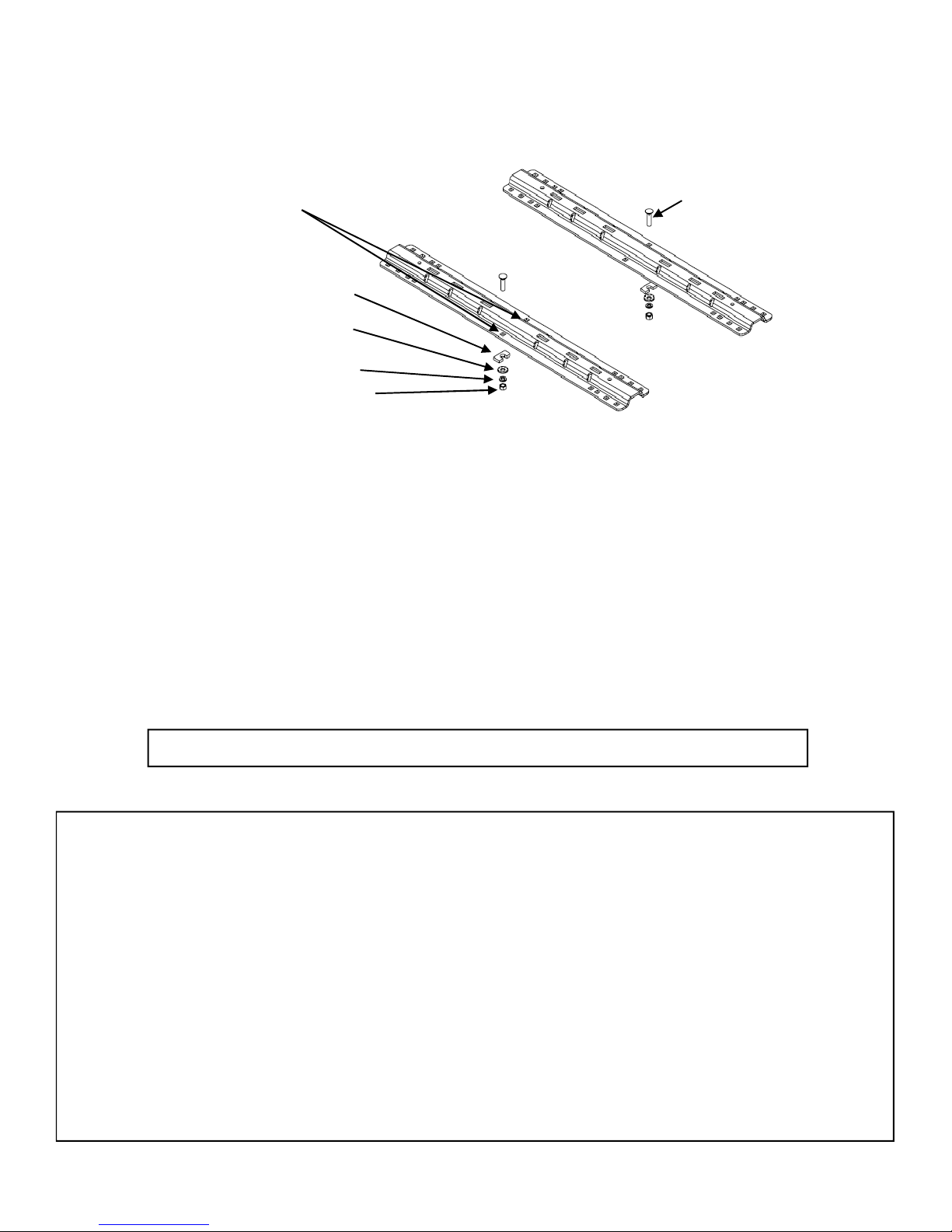

½” CARRIAGE BOLT (29)
SPACER (30)
SERRATED WASHER (31)
LOCK WASHER (32)
½” HEX NUT (33)
INSTALL BOLT IN EITHER POSITION. WHICHEVER IS
CLOSEST TO UNDER BED SUPPORT.
ADDITIONAL MOUNTING INSTRUCTIONS:
Install base rails as instructed in base rail instructions. The instruction below is for the
addition of the 2 center bolts for applications using 30095.
1. Place base rails in accordance with base rail mounting instructions.
2. BEFORE DRILLING ANY HOLES, CHECK FOR CLEARANCE AROUND THE GAS TANK.
3. Using the center hole in the base rail as a guide, drill a ½” hole through the truck bed.
4.
Insert ½” carriage bolt (29) into the hole. Install ½” serrated washer (31), ½” lock washer (32) and ½”
SUPPLEMENT TO 30095N
For Installation Assistance or Technical Help, Call 1-888-521-0510
Towing Products warrants its Gooseneck Ball Assembly from date of purchase against defects in material and workmanship under normal use and
service, ordinary wear and tear excepted, for 5 years of ownership to the original consumer purchaser when a Towing Products mounting kit is
used.
Towing Products will replace free of charge any part which proves defective in material or workmanship when presented to any Towing Products
dealer (consult local telephone directory) or Towing Products warehouse, or when returned to the factory, TRANSPORTATION CHARGES
PREPAID, at the address below. THIS WARRANTY IS LIMITED TO DEFECTIVE PARTS REPLACEMENT ONLY. LABOR CHARGES AND/OR
DAMAGE INCURRED IN INSTALLATION OR REPLACEMENT AS WELL AS INCIDENTAL AND CONSEQUENTIAL DAMAGES CONNECTED
THEREWITH ARE EXCLUDED.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to
you.
Any damage to the Gooseneck Ball Assembly as a result of misuse, abuse, neglect, accident, improper installation, or any use in violation of the
instruction furnished by us WILL VOID THE WARRANTY.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. In the event of a problem with
warranty service or performance, you may be able to go to a small claims court, a state court, or a federal district court.
5-YEAR LIMITED WARRANTY
30029IN-17DEC08 E PCN11574 © 1994 REESE PRODUCTS, INC. Litho in USA
Towing Products
47774 Anchor Court West
Plymouth, MI 48170 USA
4.
Insert ½” carriage bolt (29) into the hole. Install ½” serrated washer (31), ½” lock washer (32) and ½”
nut (33).
5. Insert spacer (30) between the truck bed and the base rail. It will go in between at the corrugation of the
bed. To keep bed from crushing when the bolt is tightened.
6. Repeat for the other base rail.
7. Torque the ½” nuts to 75 ft/lbs.
