ReFleX Wireless RX901a User manual

RX901a
Secured Base Station
www.reflexicare.com

Base Station
Power Input Ethernet Connection
WAN LED Indicator
LAN LED Indicator Network Cable
Power AdapterReset Button
TM
reflexciare

Before using
1 Broadband Internet Service
2 Operation Environment
The operation of the Base Station requires a broadband internet access via cable, ADSL or Cellular
A broadband internet router with spare ethernet port is required. The router needs to
be configured to assign IP address via DHCP (this is usually enabled by default)
Boradband internet router is not available in your area. In this case, please contact
us at [email protected]. We can assist you to set up a 3G cellular access
If you are uncertain of your current setup please email us at [email protected].
Place “Help me understand my network configuration” in the subject line and leave your
preferred contact method in the body of the email.
TM
reflexciare

Setting up the Base Station

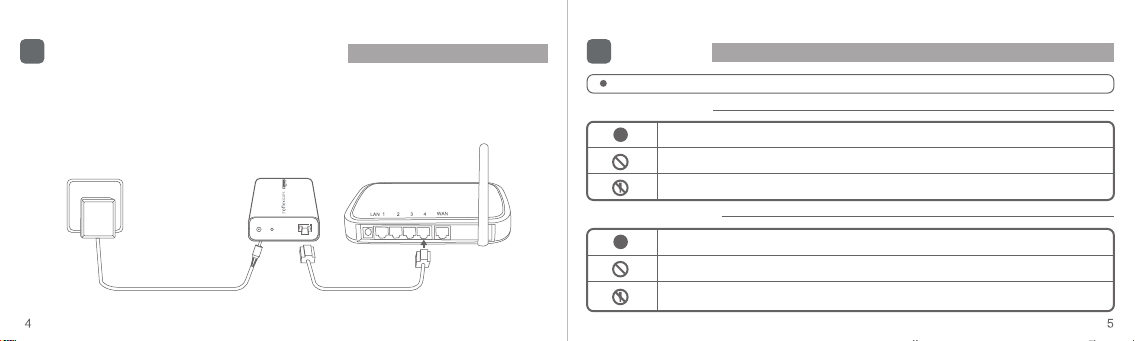

1 Connect the power adapter to the Base Station as illustrated below.
2 Connect the Base Station to one of the LAN ports on your internet router.
3 Both WAN and LAN LEDs will remain lit when network connection is successfully established
Please follow the operation guidelines carefully to ensure your safety and the longevity of the Base Station
Caution
Symbol Meaning
About battery use
Disassemble forbidden
Regular instruction
Forbidden
Operating the Base Station in a dry environment and keep dust off the device
Discontinue using the power adapters if the external casing is broken
Disassembly of the power adapter is strickly forbidden
TM
reflexciare
TM
reflexciare

Please ensure that your hands are dry prior installing the Base Station.
Untransmitted data will be stored in the Base Station in case of network failure
Please disconnect the power input and network connection during a lightning storm.
Please only connect the prescribed power adapter to the Base Station
Disassembly of the Base Station is strictly forbidden
Please place the Base Station at cool and dry place.
Please do not immerse in water or liquid.
Product Instruction
Daily Maintenance
Disassembly of the Base Station is strictly forbidden

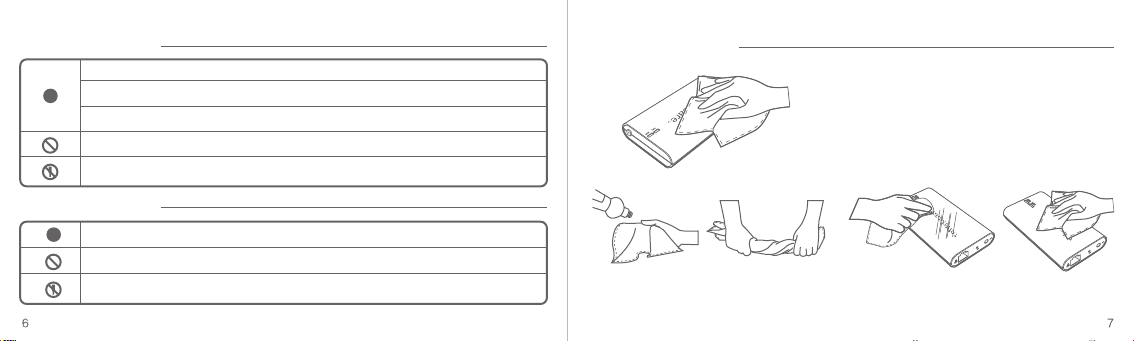

1 Use the wet cloth to remove the dirt on the product.
2 Wet the cloth with cleaning agent, use it to remove the dirt on the device surface, and
wipe with dry cloth.
Cleaning Instruction

1) Check if DHCP function on router is enabled
and press reset button for a moment on bridge
to make it reset to factory defaults
2) If DHCP function on router is not enabled,
please refer to step 3 of page 10.
Troubleshooting
Symptom
Power connecting error
Possible connection
problems between the
Base Station and the
Router
LAN LED on,
WAN is flashing
Fault cause Solution
LAN and WAN remain on,
data was successfully
sent from device, but no
online reports are
available
Your computer has
connection to the
Broadband Router but
no access to the Internet
Device not link to online
user account
Please check the power connection to Base
Station
Please add the device to the user account via
the online user account.
Only for the body fat weight scale. Please
manage you data via the online user account.
1) Please check the power connection to the
router
2) Please check the network cable connection
between Base Station and Router
LAN and WAN LEDs are
flashing
LAN and WAN LEDs
not on
Data can’t automatically
distinguish between users
Advanced Setting
(Assigning a Static IP Address to your Base Station)
1 Press reset button, and hold until both
LAN and WAN LED lights begin to flash
at the same time.
2 Connect the Base Station directly
to a personal computer.

3 Configure your network adaptor to the
configuration illustrated on the right
5 If setting up is successful, the window on the right will pop-up.
And the fixed IP address network configuration will take effect
immediately.
6 If the pop-up window indicates the setup failed, Please try step 3 and 4 again or
contact [email protected].
4 Visit http://192.168.1.2/ using a web
browser and enter the network
configuration illulstrage on the right

Specifications
Item Description
Product name
Product dimension
Product Weight
Display
Network cable
Power
RF distance
Registration distance
RX901a
100 x 58 x 24mm
62g
2 green LED lights
1m, with RJ45 socket
DC 5.0V
≤30m
≤1m
Normal working condition
Storage & transportation condition
Working atmospheric pressure
Storage & transportation atmospheric pressure
Temperature: Humidity:
Temperature: Humidity:
80kPa ~ 105kPa
80kPa ~ 105kPa
TM
reflexciare

ReFleX Wireless Inc.
1400 - 1055 West Hastings Street
Vancouver, British Columbia
Canada V6E 2E9
email : [e-mail]
tel : [phone]
