Regency 510-994 User manual

P33 Zero Clearance Direct Vent Gas Fireplace
Model P33-NG4 P33-LP4
Fuel Type Natural Gas Propane
Minimum Supply Pressure 5” W.C. (1.25 kPa) 12” W.C. (3.00 kPa)
Manifold Pressure - High 3.8” W.C. (0.95 kPa) 11” W.C. (2.74 kPa)
Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 3.3” W.C. (0.82 kPa)
Orifice Size #44 DMS - 0-2000ft
#45 DMS - 2000-4500ft #54 DMS
Minimum Input
Altitude 0-2000 ft. (0-610m)
12,500 BTU/h
(3.66 kW) 10,500 BTU/h
(3.07 kW)
Minimum Input
Altitude 2000-4500 ft. (610-1372m)
10,500 BTU/h
(3.07 kW)
Maximum Input
Altitude 0-2000 ft. (0-610m)
22,500 BTU/h
(6.59 kW) 21,500 BTU/h
(6.30 kW)
Maximum Input
Altitude 2000-4500 ft. (610-1372m)
21,000 BTU/h
(6.15 kW)
Vent Sizing 4” Inner / 6 5/8” Outer 4” Inner / 6 5/8” Outer
A
B
A
DC F
E

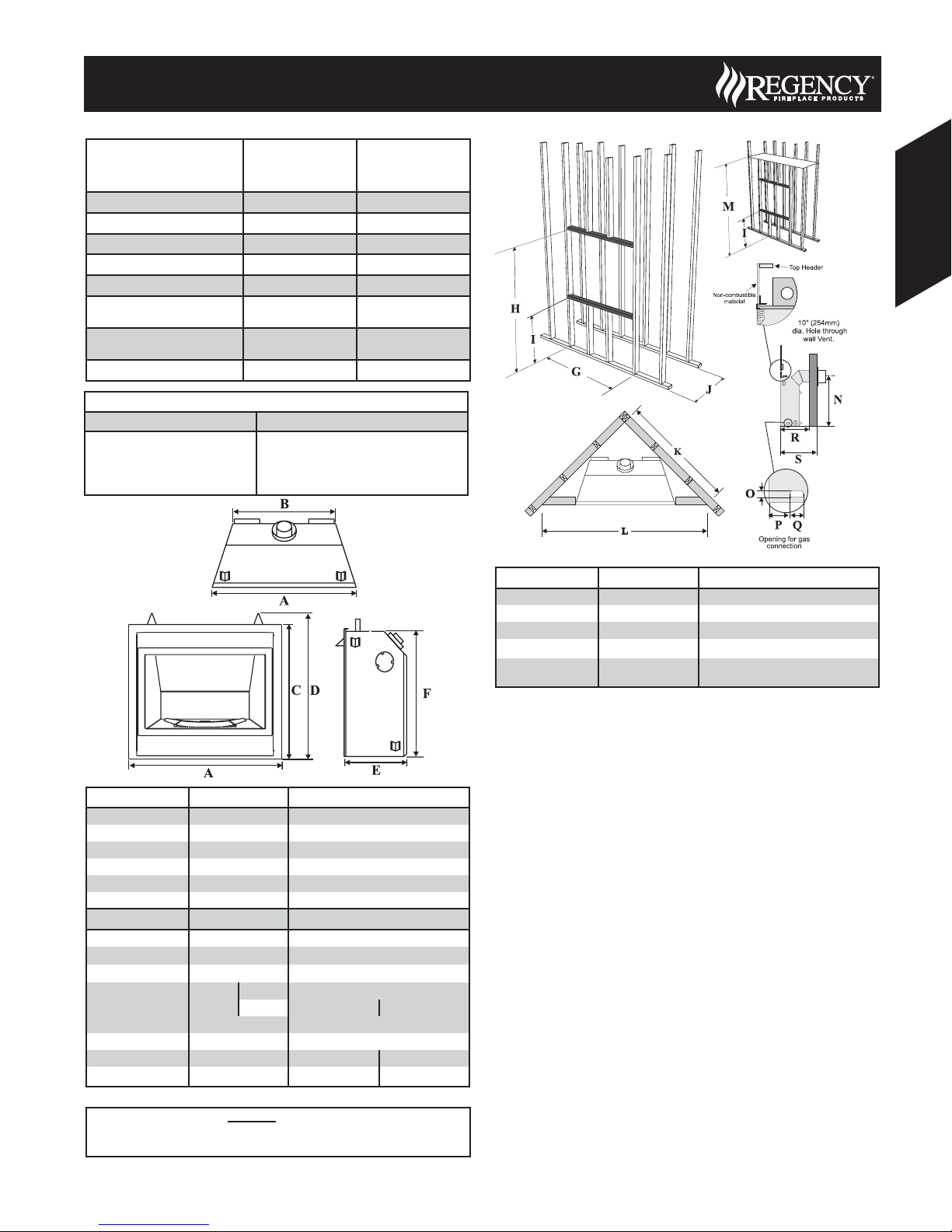

Unit Dimensions Description P33
A Front Face Width 33” (838mm)
B Rear Firebox Width 23” (584mm)
C Front Face Height 29” (737mm)
D Height w/ Standoff 31 1/2” (800mm)
E Unit Depth 12-3/4” (324mm)
F Firebox Height 28 1/2” (724mm)
Framing Dimensions Description P33
G Framing Width 33-1/4” (845mm)
H*** Framing Height*** 31-3/4” (806mm)***
IFraming
Depth
Vertical 19 1/2” (495mm) Vertical Rise
16 1/2” (419mm) Rigid 12-3/4” (324mm) Flex
Horizontal
J Corner Wall Length 37 1/2” (953mm)
K Corner Facing Wall Width 53-1/4” (1353mm)
L Framed Chase Ceiling 36” (914mm) Rigid 32” (813mm) Flex
M Vent Centerline Height 30” (762mm) Rigid 26” (660mm) Flex
G
H
I
K
J
L
Q
O
P
N
M
10" (254mm)
dia. Hole through
wall Vent.
Opening for gas
connection
Top Header
Drywall
(or other
facing)
R
Dimension Description P33
N Gas Connection Height 1 1/2” (38mm)
O Gas Connection Inset 4” (102mm)
P Gas Connection Width 3” (76mm)
Q Minimum Framing Depth 16 1/2” (419mm) Rigid / 12-3/4” (324mm) Flex
RMaximum Framing Depth
(including wall thickness) 40 1/2” (419mm) Rigid / 36-3/4” (324mm) Flex
P33 Gas Fireplace
Approved Venting Systems
Flex Vent Systems: FPI AstroCap™ Flex Vent
Rigid Pipe Vent Systems: Simpson Direct Vent Pro®
American Metal Products® Amerivent Direct
Security Secure Vent®
Selkirk Direct-Temp™
Metal-Fab® Sure Seal
***Important: Framing height requires consideration of the hearth
depth. Dimension H = H + the thickness of installed hearth.
Please refer to Exterior Vent Terminations for
additional guidelines on vent locations.
P33 WITH THE FLUSH OR BAY FRONT
28 August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces

Model
P33-NG4 w/
Contemporary
Faceplate
P33-LP4 w/
Contemporary
Faceplate
Fuel Type Natural Gas Propane
Minimum Supply Pressure 5” W.C. (1.25 kPa) 12” W.C. (3.00 kPa)
Manifold Pressure - High 3.8” W.C. (0.95 kPa) 11” W.C. (2.74 kPa)
Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 3.3” W.C. (0.82 kPa)
Orifice Size #47 DMS #56 DMS
Minimum Input
Altitude 0-4500 ft. (0-1372m)
9,800 BTU/h
(2.87 kW)
9,000 BTU/h
(2.64 kW)
Maximum Input
Altitude 0-4500 ft. (0-1372m)
17,500 BTU/h
(5.13 kW)
15,500 BTU/h
(4.54 kW)
Vent Sizing 4” Inner / 6 5/8” Outer 4” Inner / 6 5/8” Outer
P33 Gas Fireplace
Approved Venting Systems
Flex Vent Systems: FPI AstroCap™ Flex Vent
Rigid Pipe Vent Systems: Simpson Direct Vent Pro®
American Metal Products® Amerivent Direct
Security Secure Vent®
Selkirk Direct-Temp™
Metal-Fab® Sure Seal
Unit Dimensions Description P33 with Contemporary Faceplate
A Front Face Width 33” (838mm)
B Rear Firebox Width 23” (584mm)
C Front Face Height 29” (737mm)
D Height w/ Standoff 31 1/2” (800mm)
E Unit Depth 12-3/4” (324mm)
F Firebox Height 29” (737mm)
Framing Dimensions Description P33 with Contemporary Faceplate
G Framing Width 33-1/4” (845mm)
H** Framing Height** 31-3/4” (806mm)**
I*Framing Rise from Floor 1” (25mm) minimum*
JFraming
Depth
Vertical 19 1/2” (495mm) Vertical Rise
16 1/2” (419mm) Rigid 12-3/4” (324mm) Flex
Horizontal
K Corner Wall Length 37 1/2” (953mm)
L Corner Facing Wall Width 53-1/4” (1353mm)
M*** Framed Chase Ceiling*** 36” (914mm) Rigid*** 32” (813mm) Flex***
N Vent Centerline Height 30” (762mm) Rigid 26” (660mm) Flex
* The unit must be raised a minimum of 1” above the finished floor.
** Dimension H = H + I (minimum)
*** Dimension M = M + I (minimum)
Dimension Description P33S
O Gas Connection Height 1 1/2” (38mm)
P Gas Connection Inset 4” (102mm)
Q Gas Connection Width 3” (76mm)
R Minimum Framing Depth 16 1/2” (419mm) Rigid / 12-3/4” (324mm) Flex
S Maximum Framing Depth
(including wall thickness) 40 1/2” (1028mm) Rigid / 36-3/4” (933mm) Flex
Important:
If the Contemporary Faceplate is used on the P33-NG4/P33-
LP4 Gas Fireplace, the burner orifice (Both NG/LP supplied in
package) must be replaced and an overlay decal (also supplied
with kit) must be affixed to the current serial number decal
supplied with unit.
Note: Also see framing dimensions for this optional front if
installed on the P33-4 unit.
Note: Unit must be raised up by 1' to allow for faceplate
installation.
NG LP
Current P33-4 orifice size: #44 #54
Must replace with: #47 #56
Warning: Fire hazard is an extreme risk if these changes are
not adhered to.
29August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces

Framing and Finishing
1) Determine the total thickness of facing material (e.g. drywall plus
ceramic tiles) to allow the finished surface to be flush with the front
of the unit. Total facing thickness can vary from 1/2” (13mm) to 1-¼”
(32mm) thick.
2) Frame in the enclosure for the unit with framing material.
3) For exterior walls, insulate the enclosure to the same degree as
the rest of the house, apply vapor barrier and drywall, as per local
installation codes. (Do not insulate the fireplace itself.)
4) The top of the unit must not be closer than 30” (762mm) to the
ceiling.
5) Combustible material may be brought up to the top and
sides of the unit and be covered with ceramic tiles, bricks,
rock or other suitable combustible finishing materials.
Note: The unit does not have to be completely enclosed in a
chase. The clearance on top of the unit is 0” to the standoffs
so combustible building materials can be laid directly on top
of the standoffs. You must maintain proper clearances from
the vent to combustible materials (See Below).
6) Use metal studs for framing where the minimum clearance from
the vent to combustible material cannot be maintained.
P33 Gas Fireplace

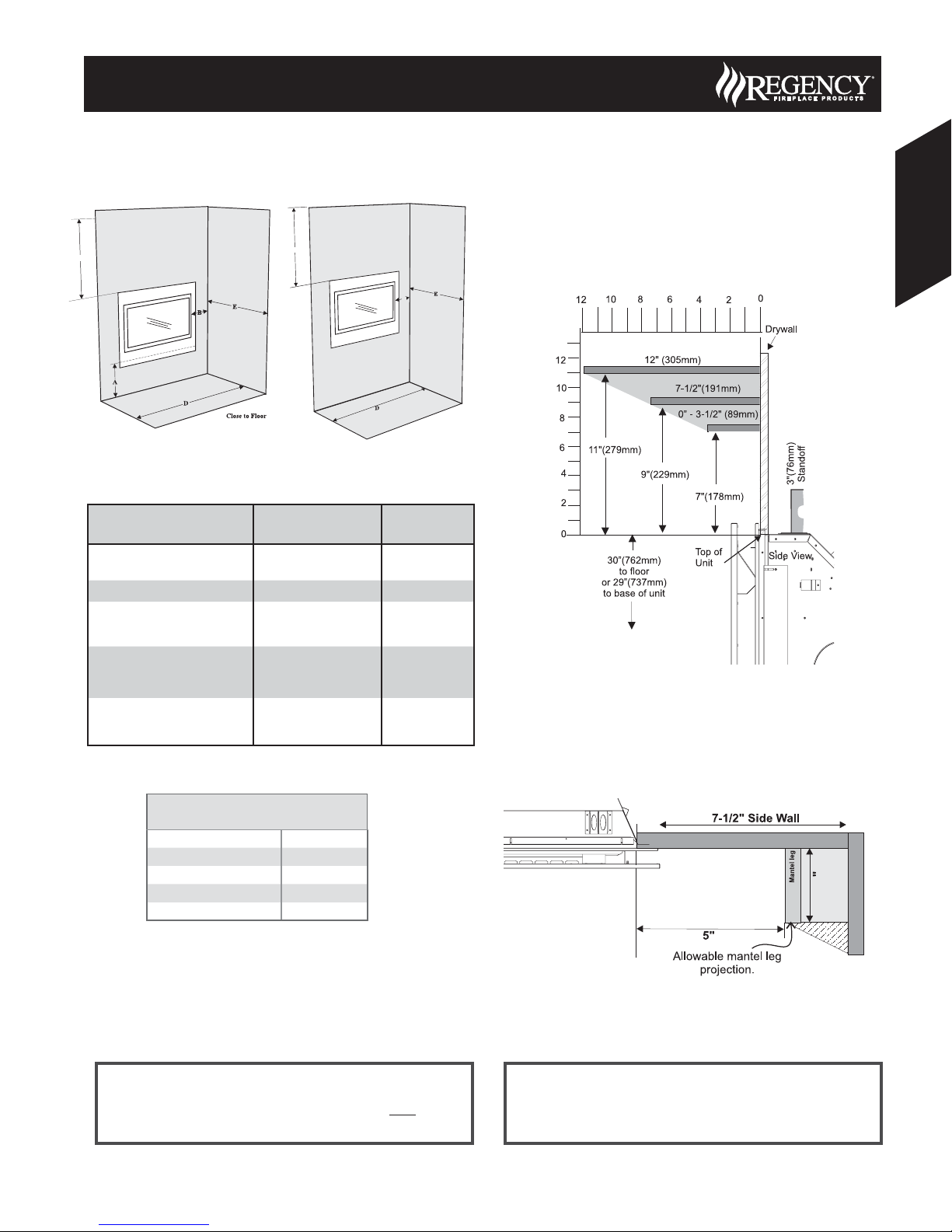

Combustible Mantels
Because of the extreme heat this fireplace emits, the mantel
clearances are critical. Combustible mantel clearances from top of
the louvers are shown in the diagram below. Mantel may be installed
anywhere in the shaded area or higher.
Drywall
Mantel Clearances
2
0
12 64
810
0
Side View
Top of
Unit
12"(305mm)
3-1/2"(89mm)
7-1/2"(191mm)
A
3” (76mm)
Standoff
BC
D
Note: If desired a non-combustible mantel may be installed at a
lower height.
Note: Ensure the paint that is used on the mantel and the facing
is “heat resistant” or the paint may discolour.
Mantel Leg Clearances
Combustible mantel leg clearances as per diagram below:
Clearances are from the finished edge of the unit or an installed front.
Maximum
1-1/2” projection at 2”
minimum clearance.
Mantel Clearances ABCD
Front 29” (737mm) 11” (279mm) 9” (229mm) 7” (178mm)
WARNING
Failure to maintain required clearances is a major cause of
chimney related fires. Installation of this fireplace must comply
with these clearances.
Clearance: Dimension Measured From:
A: Mantel Height 7” (178mm) Minimum (Additional on this page)
B: Sidewall 7-1/2” (191mm) Side of installed front
C: Ceiling 30” (762mm) Top of installed unit
D: Mantel Depth 12” (305mm) Maximum (Additional on this page)
E: Alcove Width 48” (1219mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36” (914mm) Front to back wall (Maximum)
Top of Hearth must not be higher than the base of the firebox.
Vent Clearances Clearance Dimension
Horizontal - Top 2-1/2” (64mm)
Horizontal - Side 1-1/2” (38mm)
Horizontal - Bottom 1-1/2” (38mm)
Vertical - Flex 1-1/2” (38mm)
Vertical - Rigid 1-1/4” (32mm)
E
B
B
A
C
D
F
Clearance Requirements
30 August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces

P33 Gas Fireplace
Combustible Mantels with
Contemporary Faceplate
Because of the extreme heat this fireplace emits, the mantel
clearances are critical. Combustible mantel clearances from top of
the louvers are shown in the diagram below. Mantel may be installed
anywhere in the shaded area or higher.
Mantel Leg Clearances with
Contemporary Faceplate
Combustible mantel leg clearances from side of unit as per diagram
below:
Clearances are from the finished edge of the unit or an installed front.
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.
Clearance: Dimension Measured
From:
A: *Front Floor Clearance
(min.)
1" (25mm) Underside of
Unit
B: *Sidewall 7-1/2" (241mm) Side of Unit
C: *Ceiling
(room and/or alcove) 30" (889mm) Top of Unit
D: Alcove Width 48" (1219mm) Sidewall to
Sidewall
(Minimum)
E: Alcove Depth 36" (914mm)
Front to
Back Wall
(Maximum)
Flue Clearances to
Combustibles
Horizontal - Top 2-1/2"
Horiztonal - Side 1-1/2"
Horiztonal - Bottom 1-1/2"
Vertical (Flex Vent) 1-1/2"
Vertical (Rigid) 1-1/4"
*Note: All measurements are from the top/side
of the unit, not optional front.
Clearance Requirements with
Contemporary Faceplate
Top View
0-3
WARNING
Failure to maintain required clearances is a major cause of chimney related fires.
Installation of this fireplace must comply with these clearances
Please note: Due to ongoing product development, product appearance and specifications
are subject to change without notice.
C
B
C
Close to Ceiling
31August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces

6-7/8"
(173mm)
dia. Flue pipe
4" (102mm)
dia. flue pipe
Wall Thimble (2 pc)
Termination Cap
(Part# 946-523/P)
AstroCapTM
spring
spacer

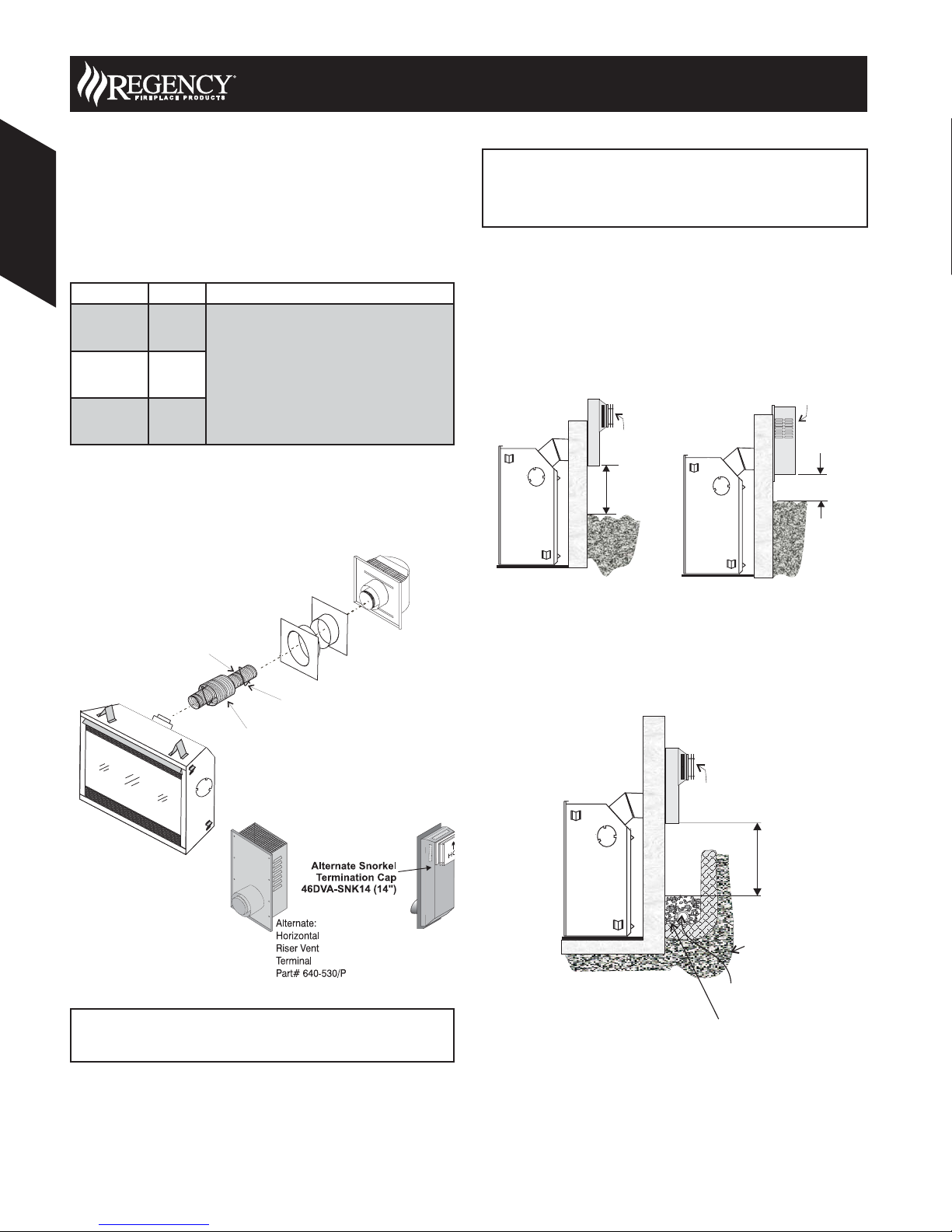

FPI Direct Vent System (Flex)
Horizontal Terminations Only
This venting system, in combination with the P33 Direct Vent Gas
Fireplace, have been tested and listed as a direct vent heater system by
Warnock Hersey. The location of the termination cap must conform to the
requirements in the Vent Terminal Locations diagram, see manual.
FPI Direct Vent (Flex) System Termination Kits include all the parts
needed to install the P33 using a flexible vent.
FPI Kit # Length Contains:
#946-513 2 Feet 1) 6-5/8” flexible liner (Kit length)
2) 4” flexible liner (Kit length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) S.S. screws #8 x 1-1/2” drill point, (4)
#946-515 4 Feet
#946-516 10 Feet
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency may be used for Flex
installations.
3) Horizontal sections must be supported every 3 feet.
If required by the external termination location the listed
alternate termination caps may be used.
Important
When installing Cabinet Mantels: the wall thimble must be secured
first and venting must be attached to unit before sliding into final
position.
Alternate Horizontal
Termination Caps
Snorkel Terminations
Snorkel Terminations:
For installations requiring a vertical rise on the exterior of the building,
14-inch and 36-inch tall Snorkel Terminations and the Riser Vents are
available. Follow the same installation procedures as used for standard
Horizontal Termination. NEVER install the snorkel upside down.
Min. 12"*
(305mm)
Dura-Vent
Snorkel
Riser Vent
Termination
Min. 6-1/4"*
(159mm)
Below Grade Snorkel Installation (Dura-Vent Only)
If the Snorkel Termination must be installed below grade, i.e. basement
application, proper drainage must be provided to prevent water from
entering the Snorkel Termination. Refer to Rigid Pipe Installation
instructions for details. Do not attempt to enclose the Snorkel within the
wall, or any other type of enclosure.
Min. 12"*
(305mm)
Adequate
drainage
Window
Well
Gravel
Dura-Vent
Snorkel
P33 Gas Fireplace
32 August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces

Rigid Pipe Venting
Horizontal or Vertical Terminations
Venting Arrangements - Vertical
Terminations
Rigid Pipe System
(Propane & Natural Gas)
The P33 is approved for a maximum 40 ft. straight vertical, with Rigid
Pipe vent systems for Propane and Natural Gas.
The lightly shaded area,
68
2
0
410
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
12
, in the diagram shows allowable venting
configurations with a maximum two 45° elbows.
The darker shaded area,
68
2
0
410
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
12
, in the diagram shows allowable venting
configurations using one 45° and one 90° elbow.
• Vent must be supported at offsets.
• Horizontal sections must be supported every 3 feet.
• Firestops are required at each floor level and whenever
passing through a wall.
• Maintain clearances to combustible materials.
• Minimum of 1’ pipe section between elbows.
Note: Must use optional rigid pipe adapter when using Rigid Pipe
(Part # 510-994).
* Unit must be raised by 1” when using Contemporary Faceplate
Maximum: 40 ft. (12.2m)
Minimum 9’6” (2.9m)
Minimum 8’6” (2.6m)
Max. 10’ (3m)(centerline to centerline)
Minimum 12” (305mm)
Maximum: 27 ft. (8.2m)
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
Vertical Height (Feet)
32
34
36
38
68
2
0
410 12
12 16 18
14
20 26 28
22 24 30
P33 Gas Fireplace
If required by the external termination location the listed
alternate termination caps may be used. (Refer to Page 11)
Alternate Horizontal
Termination Caps
33August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces

Vertical Venting with Two (2) 90° Elbows
- Initial vertical section.
Two 45° elbows = One 90° elbow
Option V H V+ V1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
A) 1’ Min. 4’ Max. 2’ Min.
B) 2’ Min. 5’ Max. 3’ Min.
C) 3’ Min. 6’ Max. 4’ Min.
D) 4’ Min. 7’ Max. 5’ Min.
E) 5’ Min. 8’ Max. 6’ Min.

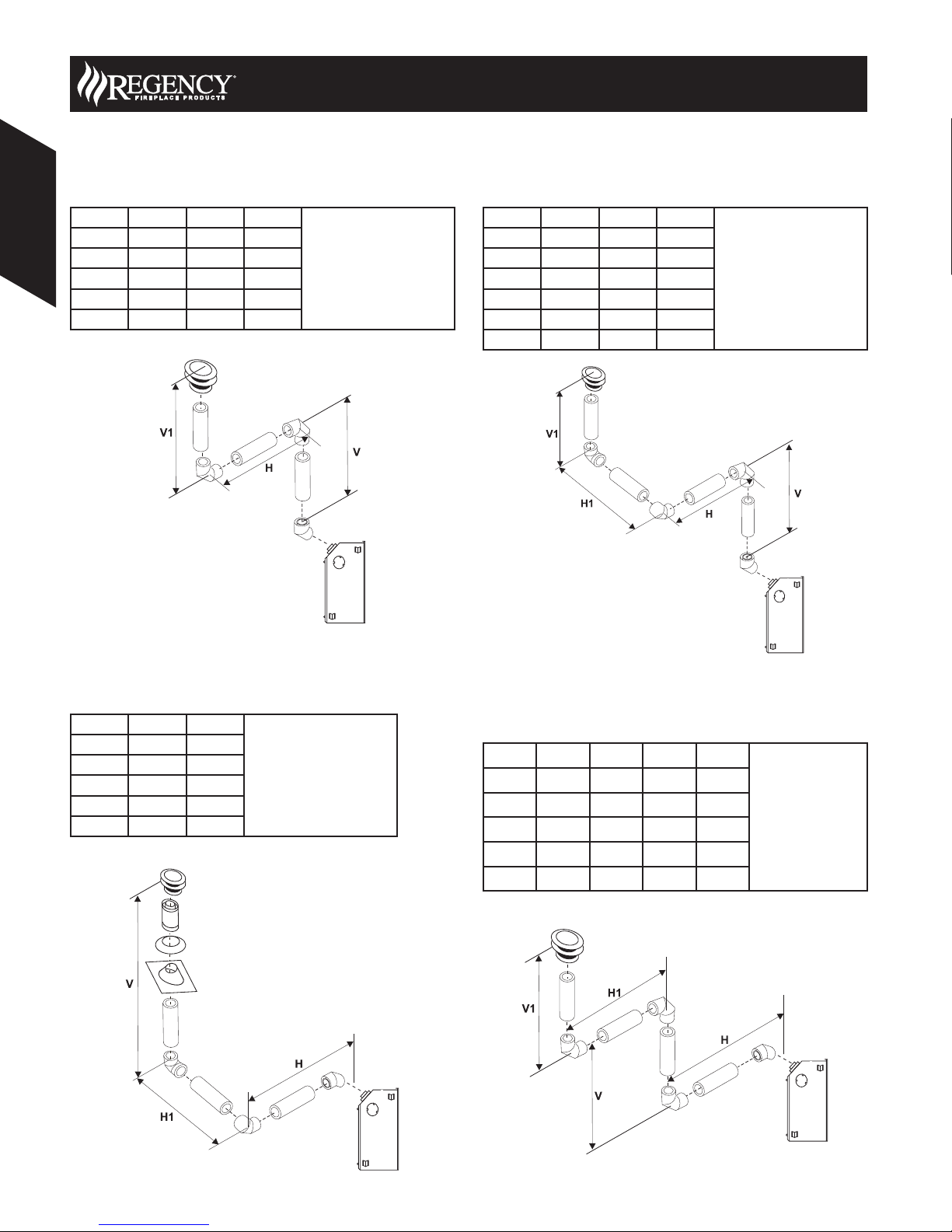

Vertical Venting with Two (2) 90° Elbows
- Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H + H1 V Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 6 feet.
Minimum of 1 foot between
90° elbows is required.
A) 2’ Max. 2’ Min.
B) 3’ Max. 3’ Min.
C) 4’ Max. 4’ Min.
D) 5’ Max. 5’ Min.
E) 6’ Max. 6’ Min.
Vertical Venting with Three (3) 90°
Elbows - Initial vertical section.
Two 45° elbows = One 90° elbow
Option V H + H1 V+ V1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
A) 2’ Min. 3’ Max. 4’ Min.
B) 3’ Min. 4’ Max. 6’ Min.
C) 4’ Min. 5’ Max. 7’ Min.
D) 5’ Min. 6’ Max. 8’ Min.
E) 6’ Min. 7’ Max. 9’ Min.
F) 7’ Min. 8’ Max. 10’ Min.
Vertical Venting with Three (3) 90°
Elbows - Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H V H + H1 V+ V1 Maximum total pipe:
length, of all sections,
must not exceed 30
feet.
Total horizontal sections
must not exceed 7
feet.
Minimum of 1 foot
between 90° elbows
is required.
A) 1’ Max. 1’ Min. 3’ Max. 3’ Min.
B) 2’ Max. 2’ Min. 4’ Max. 5’ Min.
C) 3’ Max. 3’ Min. 5’ Max. 7’ Min.
D) 4’ Max. 4’ Min. 6’ Max. 9’ Min.
E) 5’ Max. 5’ Min. 7’ Max. 11’ Min.
P33 Gas Fireplace
34 August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces

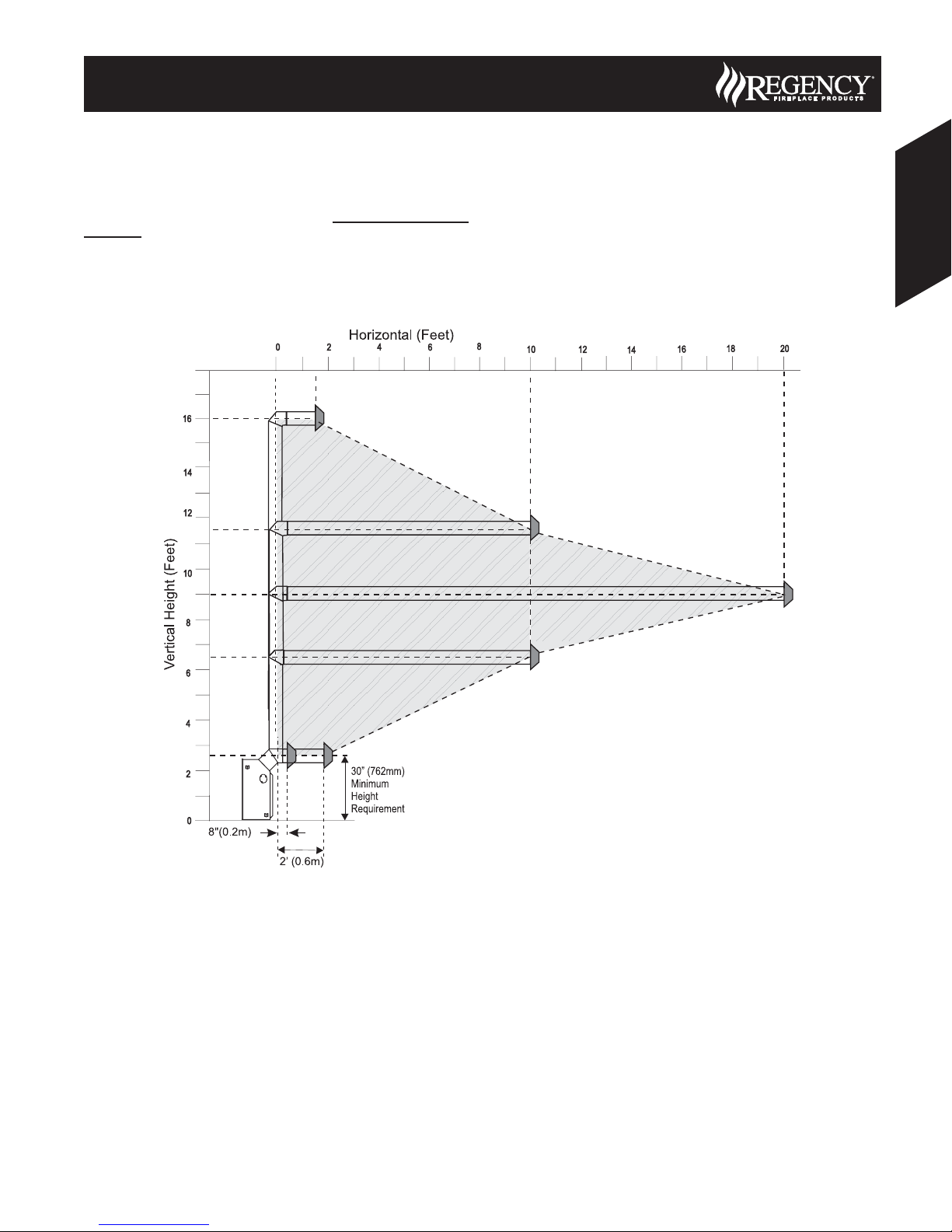

Venting Arrangements - Horizontal
Terminations
This lightly shaded area of the diagram shows allowable combinations
of vertical runs with horizontal terminations, using one 45° and one
90° elbow (two 45º elbows equal one 90° elbow).
Note: Must use optional rigid pipe adapter (Part # 510-994) when
using Rigid Pipe.
• Maintain clearances to combustibles.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing
through a wall.
A vent guard may be required as per local codes, refer to Exterior
Vent Termination Locations.
Note: FPI Direct Vent System (Flex) is only approved for horizontal
terminations.
P33 Gas Fireplace
* Unit must be raised by 1” when using
Contemporary Faceplate
Please refer to Exterior Vent Terminations for
additional guidelines on vent locations.
35August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces

Horizontal Venting with Two (2) 90°
Elbows - Initial vertical section.
Two 45° elbows = One 90° elbow
Option V H+ H1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
A) 1’ Min. 3’ Max.
B) 2’ Min. 4’ Max.
C) 3’ Min. 5’ Max.
D) 4’ Min. 6’ Max.
E) 5’ Min. 7’ Max.
F) 6’ Min. 8’ Max.
Horizontal Venting with Two (2) 90°
Elbows - Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H V H + H1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
A) 1’ Max. 1’ Min. 3’ Max.
B) 2’ Max. 2’ Min. 5’ Max.
C) 3’ Max. 4’ Min. 6’ Max.
D) 4’ Max. 6’ Min. 7’ Max.
E) 5’ Max. 8’ Min. 8’ Max.
Horizontal Venting with Three (3) 90°
Elbows - Initial vertical section.
Two 45° elbows = One 90° elbow
Option V H V+ V1 H + H1 Maximum total
pipe: length, of
all sections, must
not exceed 30
feet.
Total horizontal
sections must not
exceed 8 feet.
Minimum of 1
foot between
90° elbows is
required.
A) 2’ Min. 1’ Max. 3’ Min. 4’ Max.
B) 3’ Min. 2’ Max. 4’ Min. 5’ Max.
C) 4’ Min. 3’ Max. 6’ Min. 6’ Max.
D) 5’ Min. 4’ Max. 8’ Min. 7’ Max.
E) 6’ Min. 5’ Max. 10’ Min. 8’ Max.
F) 7’ Min. 6’ Max. 12’ Min. 9’ Max.
Horizontal Venting with Three (3) 90°
Elbows - Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H V H + H1 + H2 Maximum total pipe:
length, of all sections,
must not exceed 30
feet.
Total horizontal sections
must not exceed 7
feet.
Minimum of 1 foot
between 90° elbows
is required.
A) 1’ Max. 1’ Min. 3’ Max.
B) 2’ Max. 3’ Min. 5’ Max.
C) 3’ Max. 5’ Min. 6’ Max.
D) 4’ Max. 7’ Min. 7’ Max.
E) 5’ Max. 9’ Min. 8’ Max.
F) 6’ Max. 11’ Min. 9’ Max.
P33 Gas Fireplace
36 August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces

Flex Liner
Exhaust
Flue
A maximum
of two certified
joiner kits
may be used
per length.
#948-305
35 ft (11m)
Air Intake
Co-linear DV
Vertical Termination
Cap # 946-529
Co-Linea
Flex
Adapter
with Kit#
946-563
Outer
Pipe
with Kit#
946-563
Inner Pipe
Adapter
with Kit#
946-563
Rigid Pipe Adapter
# 510-994
Pipe Length
45 Elbow
o
Vertical termination with co-linear
flex system
The appliance must not be connected to a chimney flue
serving a separate solid fuel burning appliance.
Masonry chimneys may take various contours which the flexible liner
will accommodate. However, keep the flexible liner as straight as
possible, avoid unnecessary bending.
The Air Intake pipe must be attached to the inlet air collar of the
termination cap.
This appliance is designed to be attached to two 3” (76mm) co-linear
aluminium flex running the full length of the chimney. See the Venting
Arrangements for minimum and maximum heights.
Required Parts:
Part # Description
946-529 Co-linear DV Vertical Termination Cap
948-305 3” Flex - 35 ft.
946-563 Coaxial to Co-linear Adapter Kit
510-994 Rigid Pipe Adapter
58dva-E45 45º Elbow
Alternate Approved Caps
46dva-VC Vertical Termination Cap
46dva-VCH High Wind Cap
46dva-GK 3” Co-linear Adapter with flashing
The shaded area in the diagrams show the allowable vertical
terminations.
8' (2.4m) Min.
30”
(762mm)
30' (9.1m) Max.
30
Horizontal Distance (Feet)
Vertical Height (feet)
2’ (51mm) max.
Please refer to Exterior Vent Terminations for
additional guidelines on vent locations.
P33 Gas Fireplace
37August 2008 Product Specifications Book
Gas Fireplaces
Gas Fireplaces
