Regency I43-NG1 Quick start guide

Models: I43-NG1
I43-LPG1
Vienns
Owners &
Installation
Manual
09/12/12
LISTINGS AND CODE APPROVALS
Thesegasapplianceshavebeentestedin
accordancewithAS4553-2000,NZS5262
andhavebeencertifiedbytheAustralian
GasAssociationforinstallationandopera-
tionasdescribedintheseInstallationand
Operating Instructions.
Your unit should be serviced annually
by an authorised service person.
908-058b
I43-1 Gas Inbuilt
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any ap-
pliance
Do not touch any electri-
cal switch: do not use any
phone in your building.
Immediately call your gas
supplier from a neigh-
bour's phone. Follow the
gas supplier's instruc-
tions.
If you cannot reach your
gas supplier, call the fire
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorised installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flam-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
by an authorised installer, service agency or
the gas supplier.

2Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
Note: Oversize faceplate 1124mm x 791mm
Extra Oversize Faceplate 1276mm x 892mm
TO THE NEW OWNER
Congratulations!
You are the owner of a state-of-the-art Gas Inbuilt Fireplace by FPI FIREPLACE PRODUCTS
INTERNATIONAL LTD. The Regency ULTIMATE Gas Fireplace Series of hand crafted appli-
ances has been designed to provide you with all the warmth and charm of a fireplace, at the
flick of a switch. The models I43-NG1 and I43-LPG1 of this series have been approved by
Warnock Hersey for both safety and efficiency. As it also bears our own mark, it promises to
provide you with economy, comfort, and security for many trouble free years to follow. Please
take a moment now to acquaint yourself with these instructions and the many features of your
REGENCY
GAS INBUILT FIREPLACE

3Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
TABLE OF CONTENTS
SAFETY LABEL
Safety Labels................................................... 4
INSTALLATION REQUIREMENTS
For your safety.................................................. 5
Gas Pipe Testing .............................................. 5
Specifications ................................................... 5
Before You Start ............................................... 5
Installation Checklist......................................... 6
Materials Required ........................................... 6
Clearances
-Minimum Fireplace Clearances................. 6
-Clearances to Combustibles ..................... 7
-Clearances to Combustible Mantels............7
INSTALLATION INSTRUCTIONS
System Data Table .............................................8
Gas Connection................................................ 8
Draft Diverter Connection................................. 9
Flueing..................................................................
9
Combustion & Ventilation Air.......................... 10
Gas Pressure Test............................................10
Aeration System...............................................10
Test For Flue Spillage.......................................11
Faceplate & Trim Installation............................12
Brick Panels .....................................................13
Log Installation .................................................13
Door Installation & Door Latches......................14
Optional Wall Thermostat Installation...............14
Optional Remote Control Installation................15
Final Check.......................................................15
Wiring Diagram............................................... 15
OPERATING INSTRUCTIONS
Operating Instructions ......................................16
Lighting Procedure ...........................................16
Shutdown Procedure........................................16
Copy of Lighting Plate Instructions...................17
First Fire ...........................................................18
Automatic Convection Fan Operation...............18
Normal Operating Sounds of
Gas Appliances...........................................18
MAINTENANCE
Maintenance.....................................................19
Log Replacement .............................................20
Gold Plated Doors............................................20
Door Gasket and Glass Gasket........................20
Latch Adjustment..............................................20
Glass Replacement..........................................20
Fan Maintenance..............................................21
Troubleshooting Guide.....................................22
Parts List...........................................................23
WARRANTY
Warranty...........................................................27

4Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
DATA BADGE
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLE MATERIALS
SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IN OPERATION.
OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
DO NOT MODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NOT
908-602a
(Australia Only)
This is a copy of the label that accompanies each Regency
ULTIMATE Gas Inbuilt Fireplace. We have printed a copy of
the contents here for your review. The safety label is located
on the right side door panel.
DATA BADGE NOTE: Regency units are constantly being
improved. Check the label on the unit and if there is a differ-
ence, the label on the unit is the correct one.
Gas Type NG LPG NG LPG
Model
Gas Consumption 40 . 39 . 33 . 33 .
Manifold Pressure .85 2.55 .80 2.38
Injector Size 1x 31 1x 56 1x 36 1x 52
I43-NG I43-LPG F33-NG F33-LPG
mj mj mj mj
kPa kPa kPa kPa
# ###
Electrical: 240VAC 50Hz 1.0 amp max.
Serial
Number
918-092e
Model
N2134
Regency Gas Fireplace
3.0mm 1.15mm 2.7mm 1.6mm
AGA 5810G / 5613G
AS4553
227
Distributed by:
Western Australia:
To be installed by an authorised person in
accordance with installation instructions
provided with the appliance.
Air Group Australia
28 Division St
Welshpool WA 6106
Fireplace Products
Australia Pty. Ltd.
21-23 South Link Blvd.
Dandenong, VIC 3175
Eastern Australia:

5Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
INSTALLATION REQUIREMENTS
IMPORTANT:
SAVE THESE INSTRUCTIONS
The Regency I43-1 Gas Fireplace must be installed in
accordancewiththeseinstructions.Carefullyreadallthe
instructions in this manual first. Consult the "authority
having jurisdiction" to determine the need for a permit
prior to starting the installation.
Note: Failure to follow these instructions could cause
a malfunction of the heater which could result in death,
seriousbodily injury, and/orproperty damage. Failureto
followtheseinstructionsmayalsovoidyourfireinsurance
and/or warranty.
FOR YOUR SAFETY
Thisappliancerequiresairforpropercombustion.Always
provideadequate combustionandventilationair.Follow
instructionsandinformationin thecurrentAS5601-2004
or local codes.
GAS PIPE TESTING
Theappliance must be isolatedfrom the gas supplypip-
ing system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than
1/2 psig. (3.45 kPa).
SPECIFICATIONS
Fuel: NG or LPG
Electrical: 240 volt. system
Fan: 2 speed, 75/125 CFM
Log Sets: Ceramic fibre, 3 per set
BEFORE YOU START
Installation is to be carried out ONLY by an authorised
person.
1) The appliance shall be installed in accordance with
themanufacturer'sinstallationinstructions,localgas
fitting regulations, municipal building codes, water
supply regulations, electrical wiring regulations,
withAS5601-2004 (AGAgas installation code) NZS
5261(New Zealand)
2) Installation and repair should be done ONLY by
an authorised person.
3) The appliance should be inspected before use and
at least annually by an authorised service person.
More frequent cleaning may be required due to ex-
cessive lint from carpeting, bedding material, etc. It
isimperativethatcontrolcompartments,burnersand
circulatingairpassagewaysoftheappliancebykept
clean and free from excessive lint from carpeting.
4) See general construction and assembly instruc-
tions. This appliance may only be installed in a
flued noncombustible fireplace. The appliance and
flue should be enclosed when installed or passing
through a living area, where children may come in
contact with it.
5) Alwaysconnectthisfireplacetoa fluetotheoutside
ofthebuildingenvelope.Neverfluetoanotherroom.
Make sure that the flue is properly sized and is of
adequate height to provide the proper draft.
6) Inspect the flue system annually for blockage and
any signs of deterioration.
7) Any safety glass removed for servicing must be
replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is unfa-
miliar with the operation to use the fireplace.
9) Installer must mechanically attach the supplied label to
the inside of the firebox of the fireplace into which the gas
fireplace insert is installed.
“WARNING: This fireplace has been converted for use with a
gas fireplace insert only and cannot be used for burning wood
or solid fuels unless all original parts have been replaced, and
thefireplacere-approvedbytheauthorityhavingjurisdiction.”.

6Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
INSTALLATION CHECKLIST
The Regency Gas Inbuilt is installed as listed below.
1) UnitLocation-checkClearancestoCombustiblesonpage
7.
2) Make the gas connections and electrical connection for
fan and flue spill switch. See page 8.
3) Installtheflueorlinertotheslidingdraftdiverter.Seepage
9.
4) InstallFlueing,page9.Slidethe unitintothe fireplaceand
level. Attach draft diverter to the inbuilt.
5) Test gas pressure, page 10. Check aeration, page 10.
6) Test for flue spillage, page 11.
7) Assembleandinstall thefaceplateandtrim. See page12.
8) Install the optional brick panels. See page 13.
9) Install the 3 logs and embers. See page 13.
10) Install Doors. See page 14.
11) Install Optional Remote Control and Optional Wall Ther-
mostat, pages 14 and 15.
12) Explain controls to the homeowner.
13) Final check: Before leaving this unit with the customer,
the installer must ensure that the appliance is firing cor-
rectly. This includes:
a) Clocking the appliance to ensure the correct firing
rate.
b) Adjusting the primary air, if required, to ensure that
the flame does not carbon. See page 10.
c) Ensuring that the appliance is flueing correctly. See
page 11.
MATERIALS REQUIRED
No electrical power supply is required for the gas control to
operate. A 240 Volt AC power cord is hooked up to the fan
switchandfan. Plug 3wirecordinto asuitablereceptacle. Do
not cut the ground terminal off under any circumstances.
When connected with 240 volts, the appliance must be elec-
trically grounded in accordance with local codes, or in the
absence of local codes with the current version of National
Code AS 3100.
INSTALLATION REQUIREMENTS
Note: Thisunitisequippedwithaheatsensor thermodisc
which will prevent the fan from operating until the
unit reaches the correct temperature.
CLEARANCES
Minimum Fireplace Clearances
The minimum fireplace clearances for the Regency gas inbuilt
fireplace are shown in the following diagrams:

7Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
INSTALLATION REQUIREMENTS
I
G
J
H
A
D
B
E
F
C
Clearances to Combustibles
From Unit
Sides A7.5" / 190 mm
Ceiling B35" / 890 mm
Mantel C(My) 11 / 280 mm
From Surround
Sides D2" / 50 mm
Ceiling E25.5" / 650 mm
Mantel F3" / 75 mm
Min. Alcove Width J48" / 1120 mm
Mantel Depth G(Mx) 7.5" / 190 mm
Facing (Mantel Leg)
Side* K1" / 25 mm
Top L1" / 25 mm
*Max. width of 25mm at 25mm from surround, calculate
Top View
Note: A non-combustible mantel may be installed at a lower height if the framing
is made of metal studs covered with a non-combustible board.
Mantle Clearances (mm)
Width (Mx) 140 152 165 178 190 203 216 229 241
Clearance (My) 279 289 298 311 317 321 324 327 330
Non-combustible Hearth Extension (mm)
Height (Hy) 0 16 32 48 60 70 79 89 95 101
Depth (Hx) 635 610 584 559 533 508 483 457 432 406
depth at 45oas shown in the
diagram.

8Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
INSTALLATION
GAS CONNECTION
For minimum and maximum supply pressure see the System
Data table on page 8.
Note: Prior to any pressure testing of the gas supply
piping system that exceeds test pressures of 1/2
psig (3.45 kPa), this appliance and its individual
shut-offvalvemustbedisconnectedfromthepiping
system. If test pressures equal to or less than 1/2
psig (3.45 kPa) are used then this appliance must
be isolated from the piping system by closing its
individualmanualshut-offvalveduringthetesting.
Valve Access: Loosen and remove the wingnuts on the both
sides of the bottom louvre and then remove the louvre.
GAS CONNECTION WARNING:
Only persons licensed to work with gas piping may make the
necessary gas connections to this appliance.
1) If the appliance is to be installed into an existing chimney
system, thoroughly clean the masonry fireplace and have
the chimney swept.
2) The gas connection is a 1/2" BSP male pipe on the
rear left side of the unit. The gas line can be rigid
pipe or to make installation easier use a listed flex-
ible connector and
manual shut-off valve
if allowed by local
building codes.A1/2"
gas supply pipe must
be brought near this inlet hole.
3) Locate the center point where the flue will pass through
the chimney above the appliance. Move the appliance
into the exact location where it is to be installed. Ensure
that the Inbuilt is level.
4) Thegascontrol valve is provided with two "IN" and "OUT"
pressure taps, and are easily accessible for a test gauge
connection (see diagram on page 10).
5) Once the gas has been connected ensure that the pilot
valve is in line with burner.
CAUTION: If the door is removed or opened for servicing,
it must be replaced and closed prior to operating the appli-
System Data
For 0 to 610 metres altitude*
Burner Inlet Orifice Sizes:
NG LPG
Rear Burner n/a #54(1.4mm)
Front Burner #31(3.0mm) #56(1.15mm)
Input Rating - NG 40 mj
- LPG 39 mj
Supply Pressure:
NG min. 1.13 kPa
LPG min. 2.75 kPa
Manifold Pressure
NG .85 kPa
LPG 2.55 kPa
ance. The glass must be fixed in the door when operating.

9Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
FLUEING
THE APPLIANCE MUST NOT BE CONNECTED TO A CHIM-
NEY FLUE SERVING A SEPARATE SOLID FUEL BURNING
APPLIANCE.
Thisappliance is designed to attach toa100mm diameter flue
or approved aluminum flex liner running the full length of the
chimney. A minimum flue height of 3.6 m is recommended.
B-Vent must be supported by a flue support - supplied by flue
manufacturer. There must be at least 0.9 m of chimney above
the roof level.
Stack the pipe onto your finish support to a minimum height
of 0.9m above the roof penetration, or 0.6m above any point
within 3m measured horizontally. B-Vent chimneys require a
25mm clearance to combustibles.
TheRegencyInbuiltincorporatesitsowninternaldraftdiverter,
so no additional external draft diverter is required. Periodically
check that the flue is unrestricted and an adequate draft is
present when the unit is in operation. (See page 11 for spill-
age test.)
Before installing flue system ensure that the damper plate is
lockedintotheopenpositionandsecuretopreventthedamper
plate from falling down and crushing the liner.
INSTALLATION
DRAFT DIVERTER CONNECTION
1) Attach the flue to the flue collar on the detachable draft
diverter. The flue collar of the appliance will fit inside a
standard 100mm flue and may be fastened directly to the
flue by sheet metal screw.
2) Before pushing the appliance into position inside the
fireplace, align the draft diverter with the guides on the
inbuilt top and push forward. While pushing the unit back
into place keep pulling the draft diverter forward until the
screwhole in the spill tube-rear alignswith the screw hole
in the spill tube-front. (If screw holes do not line up then
draft diverter is not positioned correctly.) Secure the two
spill tubes with a screw.
Note: Finalgasconnectionshouldbeafterunitisinplace
toavoid damage toline when pushingthe unit into
position.

10 Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
6) When finished reading the manometer, turn off the gas
valve, disconnect the hose and tighten the screw (clock-
wise) with a 3mm wide screwdriver closing torque: 9 in.
lbs.
Note: Use the same manner to check the inlet pressure.
AERATION SYSTEM
The burner aeration is factory set but may need adjusting due
to either the local gas supply, air supply or altitude.
NG: 13mm (rear) and 9.5mm (front)
LPG: Fully Open (rear) and Fully Open (front)
Anaerationadjustmentrodisattachedtotheairshutteroneach
burner. The rod is used to adjust the aeration on the burner
without having to take the appliance apart. This adjustment is
performedbyanauthorisedinstaller.Thefactorysettingshould
INSTALLATION
be sufficient for most installations.
Note: Any damage due to carboning resulting from
improperly setting the aeration controls is NOT
covered under warranty.
TEST FOR FLUE SPILLAGE
A “spillage” test must be made before the installed unit is left
with the customer. Follow the procedure below:
1) Startall exhaustfansinthehomeandthenclose alldoors
and windows in the room.
2) Light the unit and set controls to maximum. Turn fan off.
3) After five minutes, test that there is a “pull” on the flue by
placing a smoke match, cigarette or similar device which
gives off smoke, in front of the spill tube. To ensure a
valid test, place a scrap piece of sheet metal (or other
non-combustible material) between the spill tube and the
upperlouvre,thiswillpreventthenaturalconvectionofthe
unit from interfering with the test. See diagrams below.
The smoke should be drawn into the spill tube, if it does not,
leave the unit for a further five minutes and retest as above. If
the smoke is still not drawn into the spill tube, turn the unit off
andcheckforthecauseofthelackofdraft.Ifnecessary,rectify.
For wind turbulent sites, a wind cap may remedy the problem.
Note: The thermally activated safety switch will sense
the change in temperature and shut down the gas
valve in the event of a severe downdraft of air or a
blocked or disconnected flue. The switch acts as
a safety shut-off to prevent a build up of carbon
monoxide. If the flue is blocked or has no "draw",
the switch will automatically shut off the supply of
gaswithin5-10minutes.Tamperingwiththeswitch
canresultincarbonmonoxide (CO)poisoningand
possible death.
If the heater turns off because of lack of draft dur-
ing the spillage test, check for the cause and if
necessary, rectify.
Thethermallyactuatedsafetyswitchwillautomati-
cally reset after it has reduced in temperature. The
switchwillcontinuetocycleuntilthedraftproblem

11Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
COMBUSTION & VENTILATION AIR
WARNING: This appliance needs fresh air for safe opera-
tion and must be installed with provisions for adequate
combustion and ventilation air available to the room in
which it is to be operating.
This appliance installation must conform with local codes or in
the absence of local codes, with AS5601-2004 or NZS 5261.
Airforcombustionisdrawninthroughthefrontoftheunit,there-
fore,thefrontoftheunitmustbekeptclearofany obstructions.
GAS PRESSURE TEST
Themanifoldpressureis controlled byaregulatorbuiltinto the
gas control, and should be checked at the pressure test point.
normal
draft downdraft
or blocked
flue
Spill Tube
Non-combustible
Scrap
Note: To properly check gas pressure, both inlet and
manifold pressures should be checked using the
valve pressure ports on the valve.
1) Make sure the valve is in the off position.
2) Loosen the screw at the outlet pressure test point, turn
captured screw counterclockwise 2 or 3 turns and then
placing tubing to gauge over test point.
3) Attach tubing to a manometer using a 8mm I.D. hose.
4) Light the pilot and turn the valve to "ON" position.
5) The pressure check should be carried out with the unit
burning and the setting should be within the limits speci-
fied on the safety label.
INSTALLATION
is corrected. DO NOT BYPASS OR DISCONNECT
THIS SWITCH.

12 Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
Trim Clips
tighten top
screw only
Rear View
INSTALLATION
Tabs
Screws
Right
Side
Top
Hinged
Louvers
FACEPLATE & TRIM INSTALLATION
Hint: Before doing the faceplace installation, leave the
inbuiltoutapproximately4"sowiresmaybehooked
up easier.
1) Laythefaceplatepanelsflat,facedownonsomethingsoft
so they don't scratch.
2) Take the top faceplate and align the holes in it with the
holesinthesidepanels.
Attach,usingthescrews
provided. See diagram
1.
Note: The holes
in the top
panel are
slightly
larger
than the holes in
the side panel to
facilitate
easier installation.
Hint: Don't tighten the screws
down completely at this point, first
do a trial fit to the unit. Make any
necessary adjustments and when
it fits properly then tighten down
the screws.
3) Using the trim clips provided,
join the left side gold trim (the one with the ON/OFF switch and FAN switch) to the top gold trim. See diagram 2. Repeat
this step for right side.
Diagram 4
Diagram 1
Diagram 2
4) Placethetrimontheassembledfaceplatepanels,aligning
the wires from the switches with the notch in the left side
faceplate panel.
5) FAN switch wires: Hookup the 3 Fan Switch wires to the
fan switch on the left side trim.
6) BurnerON/OFFwires:Hookupthe2BurnerON/OFFwires
to the Burner switch on the left side trim. Diagram 3.
7) Thepowercord shouldberunbehind the faceplatepanel.
8) Push the logo plate into the two holes in the bottom left
corner of the left side faceplate panel.
Diagram 5
Diagram 3
9) Secure the gold trim to the faceplate by drilling a
1/8"holethroughintothefaceplateside
flange, using the hole in the trim as a
guide. Now fasten with the two brass
plated screws provided.
10) Lift the assem-
bled faceplate
upandoverthe
topoftheinbuilt
andthenlower
it down so the
faceplate tabs
are in line with
the faceplate
brackets. See
WARNING: The 3 wires are to the Fan and the 2 wires
are to the Burner ON/OFF switch. DO NOT connect
to the wrong switch.
diagram 4. Once everything is properly lined up you
can tighten the 4 screws on the faceplate brackets. See
diagram 5.
Note: If you are making custom faceplates, you must
use the faceplate louvres. Failure to do so will void the
certification on your unit. The faceplate louvres can be
purchased separately, part #: 610-909.

13Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
Diagram 2
Diagram 1
Diagram 3
BRICK PANEL INSTALLATION
1) Unwrapthebrickpattern panels from the protectivewrap-
ping.
2) Openthedoorandpositionthesidebrickpanelsintoplace
from the front of the firebox. There are two tabs to the
panels in place, on on each side. Carefully bend the tabs
down with a screwdriver until panels are held securely in
place.
Note: Usecautionwhenputtingthesidepanelsinasthey
can easily be scratched by the hard component
parts.

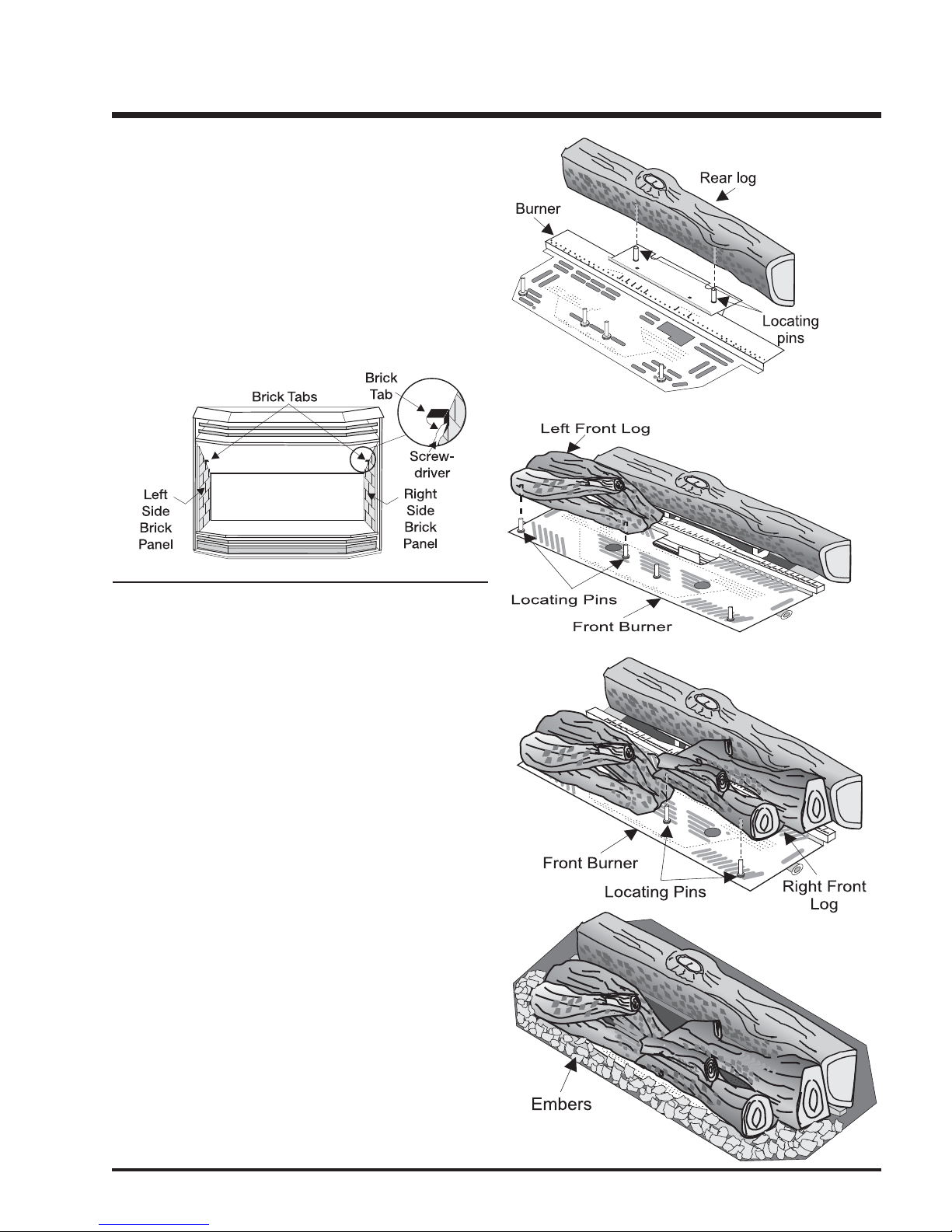

LOG INSTALLATION
WARNING: Dangerous operating conditions may occur
if these logs are not positioned in their approved loca-
tions. Read the instructions below carefully and refer to
the diagrams. If logs are broken do not use the unit until
they are replaced. Broken logs can interfere with the pilot
and burner operation.
The gas log kit contains the following:
a) Front Right Log - Part # 902-192
b) Front Left Log - Part # 902-193
c) Rear log - Part # 902-194
d) Embers - Part # 902-151 (1 bag)
(Part # 650-933 for the set of three logs)
1) Removethelogsfromtheboxandcarefully unwrapthem.
The logs are fragile, handle with care - DO NOT FORCE
into position.
2) Place the rear log, carefully sliding it down onto the pins,
with the flat side of the log facing the back of the unit. See
diagram 1.
3) Place the left front log, carefully sliding it down onto the
left pins of the front burner. See diagram 2.
4) Place the right front log, carefully sliding it down onto the
right pins of the front burner. See diagram 3.
5) Distribute the embers along the front burner but do not
cover the burner ports and around the logs. See diagram
4.
Note: Do not force
logs down.
INSTALLATION
Diagram 4

14 Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
INSTALLATION
DOOR INSTALLATION
1) Open the two side doors.
2) Slide the door onto the two hinge pins making sure the
two pieces are flush together. See diagram 1.
3) Close the door. The latch plate must be centered around
the alignment pin. See diagram 2. If the latch plate inter-
feres with the corner of the stove you may want to angle
the plate slightly so the door closes more easily.
4) The latches should already be at the proper setting. If
they are too hard or too easy to close, you may want to
adjust them by turning the latch. See diagram 3.
5) Remove the blue plastic protective coating.
Diagram 1
Diagram 3
Diagram 2
6) Test the seal around the door by placing a piece of paper
between the unit and the door, close the door and try to
pull the paper out. If it slips out easily, then the door is
not properly sealed. Turn the adjustable catch to tighten
or loosen the latch. See diagram 3.
Note: Thedoorlatchmayrequire adjustmentasthe door
gasket material compresses after a few fires and
after glass replacement. Turn the latch to tighten
or loosen the latch.
Thermostat Wire Table
Recom-
mended
Maximum
Lead
Length
(Two-Wire)
When Us-
ing Wall
Ther-
mostat
(CP-2
System)
Wire Size Max. Length
14 GA.
16 GA.
CAUTION
Do not connect the millivolt wall
thermostat wires to the 240V wires.
OPTIONAL WALL THERMOSTAT
Awallthermostatmaybeinstalledifdesired.Connectthewires
asperthewiringdiagrams.Notethatthe wiresare connected
to the "TH" on the gas valve. Use chart below to determine
the maximum wire length:
Note: Preferable if the thermostat is installed on an in-
terior wall.
RegencyoffersaprogrammablethermostatbutanyCSA,ULC
or UL approved millivolt thermostat, 250-750 millivolt rated
non-anticipator type thermostat may be used.

15Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
INSTALLATION
OPTIONAL REMOTE CONTROL
Use the Regency Remote Control Kits approved for this unit.
Use of other systems may void your warranty.
The remote control kit comes with a hand held transmitter, a
receiver and a wall mounting plate.
1) Choose a convenient location on the wall to install the
receiver and the receptacle box (protection from extreme
heat is very important). Run wires from the fireplace to
that location. Use Thermostat Wire Table.
2) Connect the wires as per the wiring diagram on page 15.
CAUTION
Do not connect the millivolt remote
control wires to the 240V wires.
3) Installalkaline batteriesinboththereceiverandthetrans-
mitter. Install the receiver and its cover in the wall. Switch
the hand held remote transmitter to "remote" mode. The
remote control is now ready for operation.
FINAL CHECK
Beforeleavingthisunitwiththecustomer,theinstallermustensure
that the appliance is firing correctly. This includes:
1) Check operating pressure (see Data Badge for operating
pressure settings).
2) Ifrequired,adjustingtheprimary air to ensure that the flame
does not carbon. First allow the unit to burn for 15 min. to
stabilize.
NG: 8mm
LPG Full open
3) Check for proper draft.
CAUTION
Any alteration to the product that causes sooting or carbon-
ing that results in damage to the exterior facia is not the
responsibility of the manufacturer.
WIRING DIAGRAM

16 Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
OPERATING INSTRUCTIONS
Before operating this appliance, proceed through the
following check list.
1) Readand understand these instructions beforeoperating
this appliance.
2) Clean the burner and control compartment of lint and
house dust by brushing and vacuuming regularly. At
least once a year.
3) Neveroperatetheappliancewithanyoftheglassremoved
or with the door open.
4) Verifylogplacement.Ifthepilotcannotbeseenwhenlight-
ing the unit - the logs or the embers have been incorrectly
positioned.
5) The unit should never to turned off and on without a mini-
mum of a 60 second wait.
6) Do not operate with primary guard removed. See below.
LIGHTING PROCEDURE

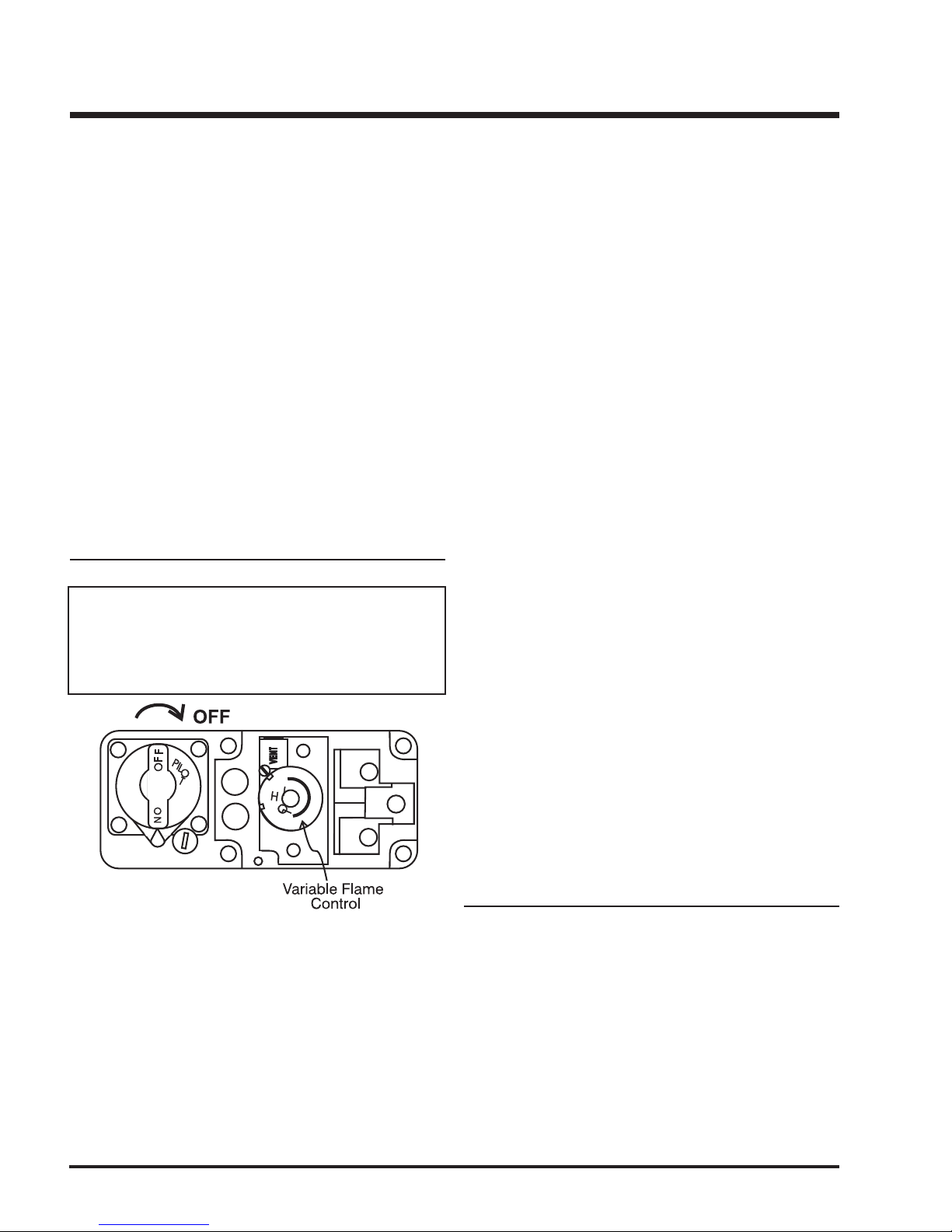

IMPORTANT: Gas cock knob cannot be turned from "PI-
LOT" to "OFF" unless it is partially depressed.
1) Open the left side door when lighting the pilot, but once
thepilotislit, DO NOToperatethe unit with thefrontglass
door open.
2) Open the bottom louvre assembly by turning the wing nut
and swinging the louvres out. (See page 8 for diagram.)
3) Ifthecontrol knob isinthe"OFF" position proceedtoStep
5.
4) Push in gas control knob slightly and turn clockwise to
"OFF". Knob cannot be turned from "PILOT" to "OFF"
unless knob is pushed in slightly. Do not force.
5) Waitfiveminutestoallowgas,thatmayhaveaccumulated
inthemainburnercompartment,toescape.Ifyoudosmell
gas, follow the instructions on the front of this manual. If
you don't smell gas continue on to the next step.
6) Turn the gas control counterclockwise to "PILOT".
7) Push in control knob all the way and hold in. Immediately
pushblackbuttononsparkigniteruntilpilotlights.Continue
to hold the control knob in for approximately one minute,
then release the gas control knob. The pilot flame should
continue to burn. If the pilot does not remain lit, repeat
operation allowing a longer period before releasing gas
control knob.
8) Turn gas control knob counterclockwise to "ON".
9) Use rocker switch to operate main burner.
10) Rotatethevariableflamecontroltoadjusttheflameheight
higher or lower.
11) Closethebottomlouvreassemblyandtightenthewingnut.
12) The door must be closed when operating the unit.
SHUTDOWN PROCEDURE
1) Use the rocker switch to turn off the main burner.
2) Open the bottom louvre assembly by turning the wing nut
and swinging the louvres out.
3) Push in the gas control knob slightly and turn clockwise
to "OFF". Do not force.
4) Disconnect all electric power to the appliance if service is
to be performed.
OPERATING INSTRUCTIONS
THE GUARD IS FITTED TO THISAPPLIANCE TO REDUCE
THE RISK OF INJURY FROM BURNS AND NO PART OF
IT SHOULD BE PERMANENTLY REMOVED.
FOR PROTECTION OF YOUNG CHILDREN OR THE INFIRM,
A SECONDARY GUARD IS REQUIRED.

17Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
OPERATING INSTRUCTIONS
COPY OF THE LIGHTING PLATE INSTRUCTIONS
A T 
  

 
EFORE LIGHTING 



HAT TO O IF YOU SELL GAS
 
 

I
F

 I

CU

NI

F

 
I



CAUTIONH
  



S  


ARNING I

 
I



R
   

F



    
T

 
T

CAN11ANSI 1AAG1
NNS1
FOR YOUR SAFETY
REAEFORELIGHTING
LIGHTING INSTRUCTIONS
2) Wait five (5) minutes to clear out any gas. If you
then smell gas ST P! follow B in the safety
information above on this label. If you dont
smell gas, go to the next step.
3) Turn knob on gas control counterclockwise
to PIL T.
4) Push in control knob all the way and hold in.
Immediately push black button on spark igniter
until pilot lights. Continue to hold the control
knob in for about 1/2 minute after the pilot is lit.
Release knob and it will pop back up. Pilot should
remain lit. If it goes out, repeat steps 3) and 4).
If knob does not pop up when released, stop and
immediately call your service technician or gas
supplier.
If the pilot will not stay lit after several tries, turn
the gas control knob to  FF and call your
service technician or gas supplier.
5) Turn gas control knob counterclockwise to
 N.
6) Use rocker switch to operate main burner.
TO TURN OFF GAS APPLIANCE
ST P! Read the safety information above on this
label.
1) Push in gas control knob slightly and turn clock-
wise to  FF. Knob cannot be turned from
PIL T to  FF unless knob is pushed in
slightly. Do not force.
1) Push in the gas control knob slightly and turn
clockwise to  FF. Do not force.
2) Turn off all electric power to the appliance if
service is to be performed.
DO NOT REMOVE THIS
INSTRUCTION PLATE
Made in Canada 908-099a

18 Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
FIRST FIRE
The first fire in your heater is part of the paint curing process.
To ensure that the paint is properly cured, it is recommended
that you burn your fireplace for at least four (4) hours the first
timeyouuseit withthefanon.Whenfirstoperated,theunit will
releasean odourcausedby thecuringofthepaint,theburning
offofanyoilsremaining frommanufacturing.Smokedetectors
in the house may go off at this time. Open a few windows to
ventilate the room for a couple of hours.
The glass panel may require cleaning after the unit has
cooled down.
DO NOT ATTEMPT TO CLEAN THE GLASS WHILE
IT IS HOT.
Note: When the glass is cold and the appliance is lit, it
may cause condensation and fog the glass. This
condensationisnormalandwill disappearina few
minutes as the glass heats up.
DO NOT BURN THE APPLIANCE WITHOUT THE
GLASS FRONT IN PLACE.
AUTOMATIC CONVECTION FAN
OPERATION
The fan operates automatically, set the fan switch on the side
of the faceplate to the desired speed. The fan will turn on as
the stove comes up to operating temperature.
After the unit has been turned off and the unit cooled to below
a useful heat output range the fan will shut off automatically.
NORMAL OPERATING SOUNDS OF
GAS APPLIANCES
It is possible that you will hear some sounds from your gas
appliance. This is perfectly normal due to the fact that there
are various gauges and types of steel used within your ap-
pliance. Listed below are some examples. All are normal
operating sounds and should not be considered as defects
in your appliance.
Fan:
Regency gas appliances use high tech fans to push heated
air farther into the room. It is not unusual for the fan to make
a "whirring" sound when ON. This sound will increase or
decrease in volume depending on the speed setting of your
fan speed switch.
Burner Tray:
The burner tray is positioned directly under the burner tube(s)
andlogsandismadeofadifferentgaugematerialfromtherest
of the firebox and body. Therefore, the varying thicknesses of
steel will expand and contract at slightly different rates which
can cause "ticking" and "cracking" sounds. You should also
be aware that as there are temperature changes within the
unit these sounds will likely re-occur. Again, this is normal for
steel fireboxes.
Fan Thermodisc:
When this thermally activated switch turns ON it will create
a small "clicking" sound. This is the switch contacts closing
and is normal.
Pilot Flame:
While the pilot flame is on it can make a very slight "whisper"
sound.
Gas Control Valve:
As the gas control valve turns ON and OFF, a dull clicking
sound may be audible, this is normal operation of a gas
regulator or valve.
Unit Body/Firebox:
Different types and thicknesses of steel will expand and con-
tractatdifferentratesresultinginsome"cracking"and"ticking"
sounds will be heard throughout the cycling process.
OPERATING INSTRUCTIONS
WARNING:
Do not spray aerosols in the vicinity
of this appliance.

19Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
Top View of pilot flame
MAINTENANCE
Top View of pilot flame.
IMPORTANT
MAINTENANCE INSTRUCTIONS
SERVICE ANNUALLY ONLY BY AN
AUTHORISED PERSON
1) Clean the burner and control compartment of lint and
house dust by brushing and vacuuming at least once
a year. When cleaning the logs, use a soft clean brush
as the logs are fragile and easily damaged.
During the annual service the burners should be re-
moved from the burner tray and cleaned. Replace logs
and embers as per instructions on page 13.
2) Clean glass (never when unit is hot), appliance, door and
louvreswithadampcloth. Neveruseanabrasivecleaner.
Thegoldlouvres(andoptionalgolddoor)maybescratched
if abrasives are used to clean them.
The heater is finished in a heat resistant paint and should
only be refinished with heat resistant paint (not with wall
paint). Regency uses Stove Brite Paint - Metallic Black
#6309.
3) Make a periodic check of burner for proper position and
condition.Visuallychecktheflameoftheburnerperiodically,
making sure the flames are steady; not lifting or floating.
If there is a problem, call an authorised service person.
4) The appliance and flueing system must be inspected
before use, and at least annually, by an authorised field
service person, to ensure that the flow of combustion and
ventilation air is not obstructed.
5) Keep the area near the appliance clear and free from
combustiblematerials,gasoline,aerosols,andotherflam-
mable vapours and liquids.
7) Periodically check the pilot flames. Correct flame
patflames, not coming into proper contact with the rear
burner or thermopile or thermocouple. tern has three
strong blue flames: 1 flowing around the thermopile,
1 around the thermocouple and 1 flowing across the
burner (it does not have to be touching the burner).
Incorrect flame pattern will have small, probably yellow
flames that do not come into proper contact with the rear
burner of the thermopile or thermocouple.
Note: Ifyouhaveanincorrectflamepattern,contactyour
Regency dealer for further instructions.
CHILDREN AND ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE TEMPERATURES,
ESPECIALLY THE FIREPLACE GLASS, AND SHOULD
STAY AWAYTO AVOID BURNS OR CLOTHING IGNITION.
CLOTHING OR OTHER FLAMMABLE MATERIAL
SHOULD NOT BE PLACED ON OR NEAR THE
APPLIANCE.
CAUTION: ANY SAFETY SCREEN OR GUARD REMOVED
FOR SERVICING AN APPLIANCE MUST BE REPLACED
PRIOR TO OPERATING THE APPLIANCE.
6) Each time the appliance is lit, it may cause condensation
and fog the glass. This condensation and fog is normal
and will disappear in a few minutes as the glass heats up.
Never operate the appliance without the glass properly
secured in place or with the door open.

20 Regency I43-1 ULTIMATE Gas Inbuilt Fireplace
MAINTENANCE
GLASS REPLACEMENT
Your Regency stove is supplied with high temperature, 5 mm
Neoceram ceramic glass that will withstand the highest heat
that your unit will produce. In the event that you break your
glassbyimpact,purchaseyourreplacementfromanauthorised
Regency dealer only, and follow our step-by-step instructions
for replacement.
Removing Glass
Note: Wearing gloves will protect your hands while han-
dling glass.
1) Remove the safety screen (Australia only). Remove the
door from the unit and place on a soft surface to prevent
scratching.
2) Pull out the door gasket.
3) Remove the 24 nuts holding the glass retainers in place.
Do not remove the nuts underneath the retainers.
4) Remove the door catch plate.
5) Remove glass retainers on sides first (3 each side) then
remove two center retainers.
Note: Center glass retainers are glued to center glass.
6) Remove glass from extrusions. When removing center
glass, leave white insulation in place.
Note: Safety
screen in Aus-
tralia only.
LOG REPLACEMENT
The unit should never be used with broken logs. Turn off the
gas valve and allow the unit to cool before opening door to
carefully remove the logs. The pilot light generates enough
heat to burn someone. If for any reason a log should need
replacement, you must use the proper replacement log. The
position of these logs must be as shown in the diagram under
Log Installation.
NOTE: Improper positioning of logs may create
carbon build-up and will alter the unit’s performance
which is not covered under warranty.
GOLD-PLATED DOORS
The 24 carat gold plated finish on the door requires little main-
tenance, and need only be cleaned with a damp cloth. DO
NOTuseabrasivematerialsorchemicalcleaners,astheymay
harmthefinishandvoidthewarranty.Cleananyfingerprintsoff
before turning the unit on. If gasket seal is not tight - door
may discolour.
DOOR GASKET AND
GLASS GASKET
If the door gasket requires replacement use 7/8" diameter oval
door gasket . The glass requires 7/8" flat glass gasket. See
your Regency Dealer.
LATCH ADJUSTMENT
The door latch may require adjustment as the door gasket
material compresses after a few fires and after glass replace-
ment. Turn the adjustable latch to tighten or loosen the latch.
