Regency Gi29L Series User manual

Gi29L Gas Insert | 1
Minimum Fireplace Dimensions
The minimum replace clearances and dimensions for the Regency gas insert are shown in the following diagrams.
Regency®Gi29L Gas Insert
MODEL Gi29L-NG Gi29L-LP
Fuel Type Natural Gas Propane
Minimum Supply Pressure 5” W.C. (1.25 kPa) 11” W.C. (2.74 kPa)
Manifold Pressure - High 3.8” W.C. (0.94 kPa) 10.5” W.C. (2.62 kPa)
Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 2.9” W.C. (0.72 kPa)
Orice Size -Altitude 0-4500 ft #38 DMS (0-2000 ft.)
#39 DMS (2000 - 4500 ft.) #52 DMS
Min. Input (0-2000 ft.)
Min. Input (2000-4000 ft.)
17,000 Btu/h (4.98 kW)
16,500 Btu/h (4.83 kW) 17,000 Btu/h (4.98 kW)
Maximum Input (0-2000 ft.)
Maximum Input (2000-4500 ft.)
31,500 Btu/h (9.22 kW)
30,500 Btu/h (8.93 kW) 31,500 Btu/h (9.22 kW)
Vent Sizing 3” (76 mm) x 3” (76 mm)
Co-linear (Standard)
3” (76 mm) x 3” (76 mm)
Co-linear (Standard)
CPA P.4.1 63.88% 62.33%
Letter Description Dimensions
(inches)
Dimensions
(mm)
AWidth 29-3/4" 756 mm
B Outerbox Width 28-5/16" 719 mm
C Outerbox Height 20-1/4" 514 mm
D Outerbox Depth 17-7/8" 454 mm
EOuterbox Rear Width 20" 508 mm
FFront to Top Taper 8-3/8" 213 mm
G Front to Side Taper 3-13/16" 97 mm
H Rear to Side Taper 14-1/16" 357 mm
IGas Inlet Height 1-1/4" 32mm
JGas Inlet Rear Depth 5-1/2" 140 mm
KGas Inlet Front Depth 12-7/16" 316 mm
LElectrical Access Height 1-1/8" 29 mm
M Electrical Access Rear Depth 7-1/2" 191 mm
NElectrical Access Front Depth 10-3/8" 264 mm
OGlass Viewing Area Width 24-1/8" 613 mm
PGlass Viewing Area Height 15" 381 mm
QFront to Intake 15-1/16" 383 mm
R Front to Exhaust 14" 356 mm
S Intake Diameter 3" 76 mm
TExhaust Diameter 3" 76 mm
O
P
E
H
D
S T
R
Q
A
G
B
F
C
M
L
N
J
I
K
O
P
E
H
D
S T
R
Q
A
G
B
F
C
M
L
N
J
I
K
O
P
E
H
D
S T
R
Q
A
G
B
F
C
M
L
N
J
I
K
O
P
E
H
D
S T
R
Q
A
G
B
F
C
M
L
N
J
I
K

2 | Gi29L Gas Insert
A
B
C
D
B
A
C
Faceplate Dimensions
Three-Sided Faceplate
Four-Sided Faceplate
Faceplate
Dimensions
Width
(A)
Height
(B)
Depth
(C)
Bottom Height
(D)
Regular Faceplate 40-3/16" (1021 mm) 26" (660 mm) 1-1/4" (32 mm) -
Regular Faceplate w/ Premium
Surround
40-13/16" (1021 mm) 26-3/8" (670 mm) 1-11/16" (43
mm)
-
Flush Faceplate 40-3/16" (1021 mm) 26" (660 mm) 1/8" (3 mm) -
Flush Faceplate w/ Traditional
Surround
45-3/4" (1162 mm) 28-3/4" (730 mm) 2-1/4" (57 mm) -
4-Sided Flush Faceplate 40-3/16" (1021 mm) 29-1/4" (743 mm) 1/8" (3 mm) 4-3/16" (106 mm)
Finishing Trim 31-7/8" (810 mm) 21-7/8" (556 mm) 1/16" (2 mm) -
4-Sided Finishing Trim 31-7/8" (810 mm) 23-1/8" (587 mm) 1/16" (2 mm) 1-1/8" (29 mm)
Oversized Backing Plate 47-1/2" (1207 mm) 31-1/2" (800 mm) 1/8" (3 mm) -
3-Sided Custom Backing Plate 33-7/8" - 56-7/8"
(860 mm - 1445 mm)
22-7/8" - 44-7/8"
(581 mm - 1118 mm)
1/8" (3 mm) -
4-Sided Custom Backing Plate 33-7/8" - 69"
(860 mm - 1753 mm)
25-1/8" - 45"
(638 mm - 1143 mm)
1/8" (3 mm) 2-1/8" minimum (54 mm min.)

Gi29L Gas Insert | 3
Diagram 1
Minimum Clearances to Combustibles
The clearances listed below are minimum distances unless otherwise stated.
A major cause of res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this decorative
gas appliance is installed only in accordance with these instructions.
A
B
E
K
D
L
J***
Clearance: Dimension Measured From:
A: Sidewall 8" / 203 mm ***From inside edge of faceplate / doors
B: Ceiling 63-3/4" / 1873 mm From base of unit
D: Min. Hearth Depth 12" / 305 mm Not required if unit raised 3" (76 mm) o the oor.
E: Min. Hearth Length 36"/ 914 mm Not required if unit raised 3" (76 mm) o the oor.
J*** 27-1/4" / 692 mm inside edge of the faceplate/doors - reference only.
K: Min. Alcove Width 54" / 1372 mm
L: Max. Alcove Depth 36" / 914 mm From the front of the unit.
M: Mantel Deector 2-1/2"/ 89 mm*
NOTES
• A 36” (914 mm) wide x 12” (305 mm) deep, non-combustible hearth
is required in front of the appliance unless the unit is raised 3” (76 mm) o the oor.
• *An optional 2-1/2" (64 mm) mantel deector reduces the mantel height to 13" (330 mm) from top of the unit @ 1" (25 mm) depth.
• (J): *** Measurement from the faceplate edge or doors - for reference only: 27-1/4’’ (692 mm)

4 | Gi29L Gas Insert
D
B
0"
2"
4"
6"
8"
10"
12"
14"
16"
18"
20"
22"
24"
0" 2" 4" 8" 6" 12" 10"
26"
28"
30"
A
C
E
F
H
G
Top of
fireplace
opening
A12" (305 mm)
B 22-1/2" (572 mm)
C 19-1/2" (495 mm)
D 6" (152 mm)
Mantel Clearances Without Mantel Deector
Diagram 2
E1-1/2 " (38 mm)
F16-1/2" (419 mm)
G Non Combustible Materials
H 19-3/4" (451 mm) to base of unit
WARNING
• Although this appliance passes safety certication, the hearth
in front of the replace becomes very hot when the replace
heats. Do not use the hearth as a seat or shelf.

Gi29L Gas Insert | 5
Diagram 3
Mantel Clearances with 2-1/2" (64 mm) Mantel Deector
NOTES
• A 2-1/2" (64 mm) mantel deector reduces mantel height to 13" (330 mm)
from the bottom of the unit at 1" (25 mm) depth.
• A noncombustible mantel may be installed at a lower height if the framing is
made of metal studs covered with a non-combustible board. The noncombustible
mantel, when installed at a lower overall height, may not be lower than 6"
(152 mm) from the top of the replace opening.
• All material used must be non-combustible.
A12" (305 mm)
B 22" (559 mm)
C 17-1/2" (445 mm)
D 6" (152 mm)
E1" (25 mm)
F13" (330 mm)
G Non Combustible
H 19-3/4" (451 mm) to base of unit
0"
2"
4"
6"
8"
10"
12"
14"
16"
18"
20"
22"
24"
0" 2" 4" 6" 8" 10" 12"
26"
28"
30"
D
B
A
C
E
F
H
G
Top of
fireplace
opening
Deflector

6 | Gi29L Gas Insert
A
B
C
D
E

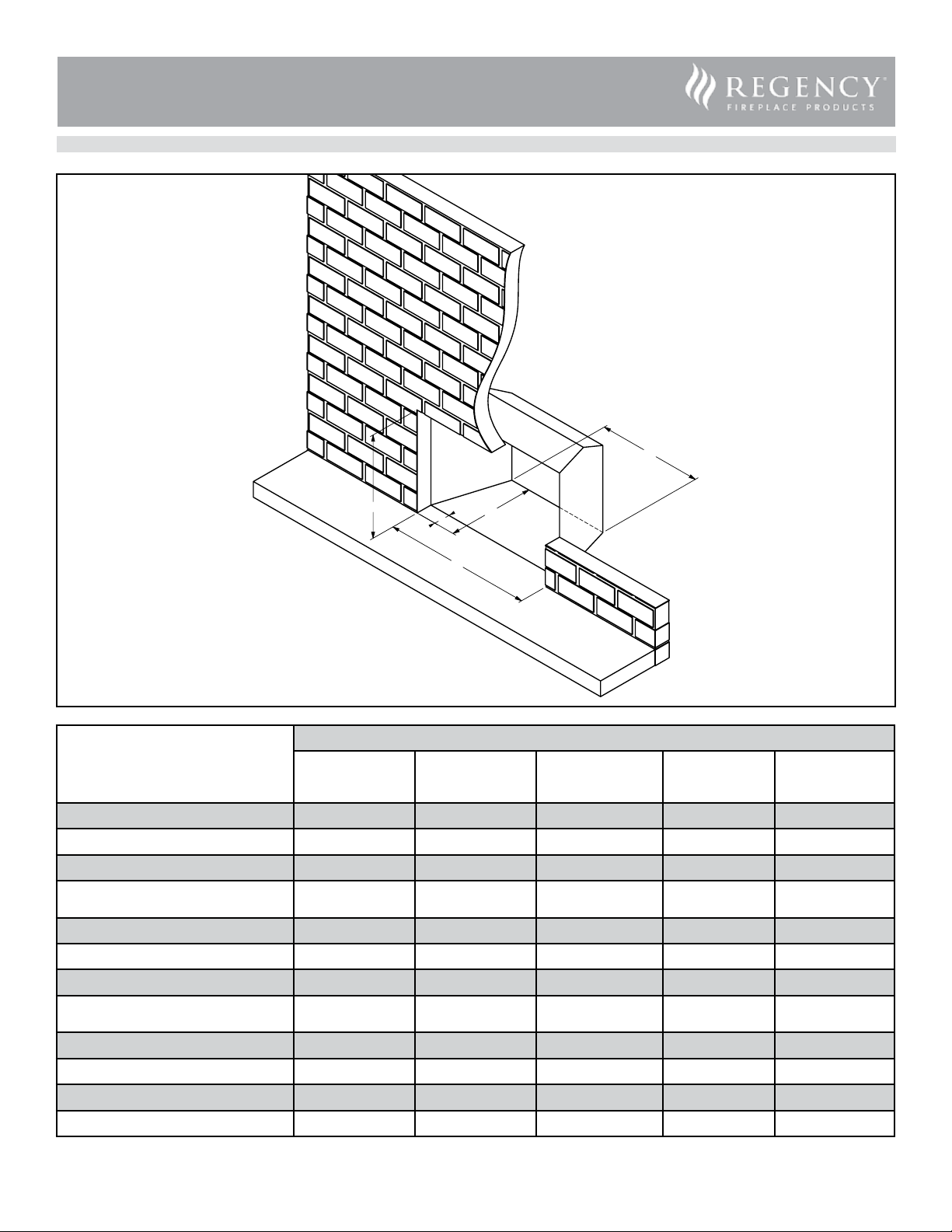

Minimum Fireplace Opening Sizes with Varying Faceplate/Backing Plate Options
Faceplate
Dimensions
Minimum Install
Width
(A)
Minimum Install
Height
(B)
Minimum Install
Depth
(C)
Minimum Rear
Width
(D)
Taper
Depth
(E)
Regular Faceplate 28-7/16" (722 mm) 20-1/4" (514 mm) 16-11/16" (424 mm) 20" (508 mm) 2-13-16" (71 mm)
Regular Faceplate w/ Backing Plate 30-7/8" (784 mm) 21-7/16" (545 mm) 16-3/4" (425 mm) 20" (508 mm) 2-11/16" (68 mm)
Regular Faceplate w/ Premium Surround 28-7/16" (722 mm) 20-1/4" (514 mm) 16-5/8" (422 mm) 20" (508 mm) 2-9/16" (65 mm)
Regular Faceplate w/ Premium Surround
and Backing Plate
30-7/8" (784 mm) 21-7/16" (545 mm) 16-1/2" (419 mm) 20"(508 mm) 2-7/16" (62 mm)
Flush Faceplate 30" (762 mm) 21-1/16" (535 mm) 17-15/16" (456 mm) 20" (508 mm) 3-7/8" (98 mm)
Flush Faceplate w/ Backing Plate 30-7/8" (784 mm) 21-7/16" (545 mm) 17-13/16" (452 mm) 20" (508 mm) 3-3/4" (95 mm)
Flush Faceplate w/ Traditional Surround 28-7/16" (722 mm) 20-1/4" (514 mm) 15-15/16" (405 mm) 20" (508 mm) 1-7/8" (48 mm)
Flush Faceplate w/ Traditional Surround
and Backing Plate
30-7/8" (784 mm) 21-7/16" (545 mm) 15-13/16" (402 mm) 20" (508 mm) 1-3/4" (45 mm)
4-Sided Flush Faceplate 30" (762 mm) 21-5/16" (541 mm) 17-15/16" (456 mm) 20" (508 mm) 3-7/8" (98 mm)
Finishing Trim 30" (762 mm) 21-1/16" (535 mm) 18" (457mm) 20" (508 mm) 3-15/16" (100 mm)
Finishing Trim w/ Backing Plate 30-7/8" (784 mm) 21-7/16" (545 mm) 17-7/8" (454 mm) 20" (508 mm) 3-7/8" (98 mm)
4-Sided Finishing Trim 30" (762 mm) 21-5/16" (541 mm) 18" (457 mm) 20" (508 mm) 3-15/16" (100 mm)

Gi29L Gas Insert | 7
Using Steel Studs and Concrete Board Over Masonry Brick Fireplace
The masonry front brick facing can be removed and replaced with non-combustible materials such as steel studs and concrete board/durarock/micor
board as per diagram 1, only if safe to do so. Steel stud may also be placed in front of the masonry brick if left in place. This is the preferred method
depending on the condition of the masonry brick replace.
The opening between the front of the masonry rebox and non-combustible materials such as steel studs must be sealed so heat cannot run between
the face of the wood replace and the refacing materials. Only nishing materials such as tile, stone, brick, or similar materials that are non-combustible
may be used. Use materials that are uniform so that when the unit is positioned, there are no visible gaps on the sides or top of the surround.
B
A
A
C
D
NONCOMBUSTIBLE FACING OVER
COMBUSTIBLE FRAMING
DIMENSIONS
HORIZONTAL CLEARANCE - A 5"
VERTICAL CLEARANCE - B 23"
OPENING WIDTH - C 30 1/4" MIN
OPENING HEIGHT - D 21 1/2" MIN
NONCOMBUSTIBLE FACING OVER
NONCOMBUSTIBLE FRAMING
DIMENSIONS
A - Horizontal clearance 8" (203 mm)
B - Vertical clearance 23" (584 mm)
C - Opening Width 30-1/4" min. (768 mm)
D - Opening Height 21-1/2" min. (546 mm)
E - Minimum Total Width 46-1/4'' (1175 mm)
F - Minimum Total Height 41-3/4'' (1060 mm)
Combustible Facing Over
Combustible Framing
Non-Combustible Facing Over
Non-Combustible Framing
Diagram 1
Existing Masonry Fireplace
Combustible material permitted
Non-combustible
material only
E
F

8 | Gi29L Gas Insert
Gas Connection
Vertical Venting
THE APPLIANCE MUST NOT BE CONNECTED TO A
CHIMNEY FLUE SERVING A SEPARATE SOLID FUEL
BURNING APPLIANCE.

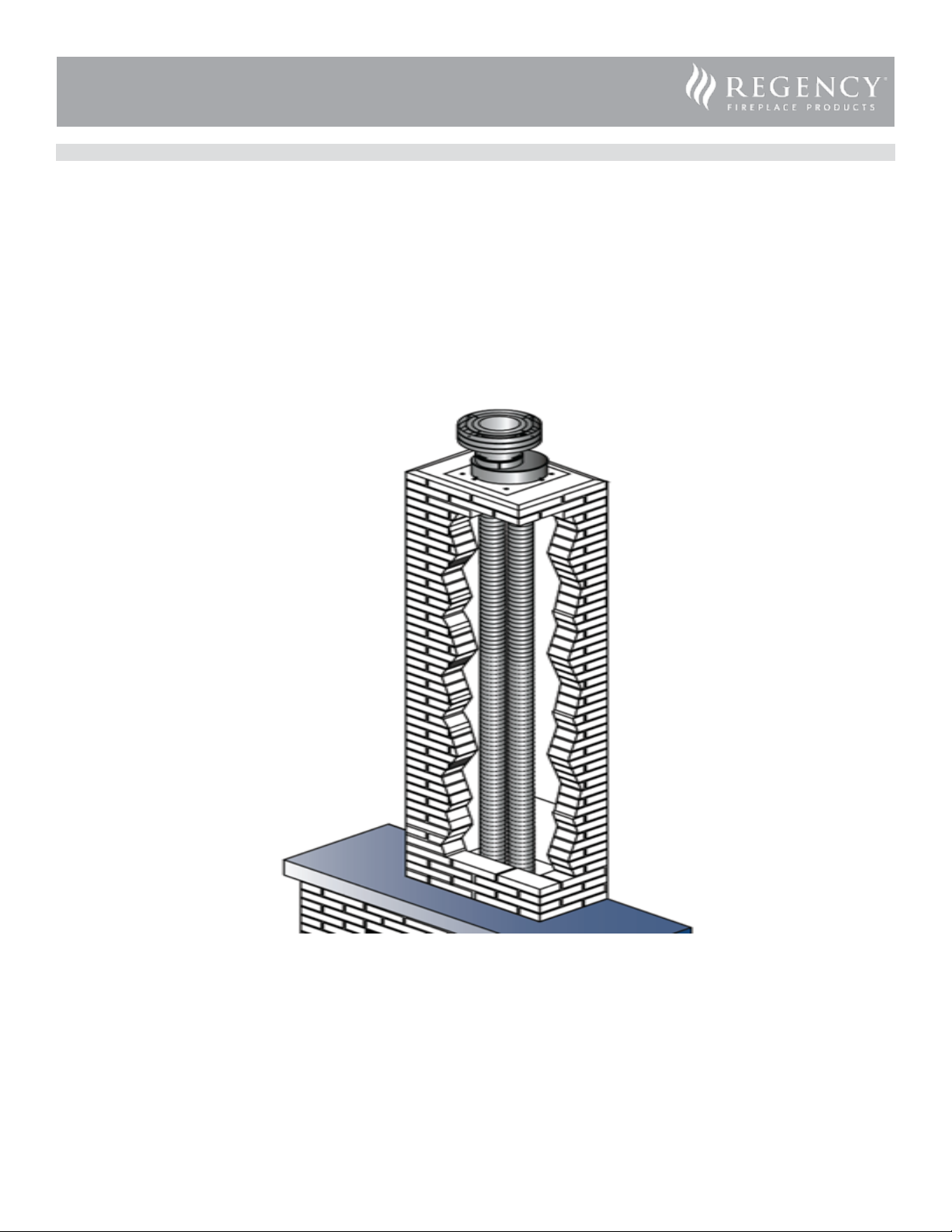

This appliance is designed to attach to two 3" (76 mm) co-linear aluminium
ex running the full length of the chimney. The ue length must be a
minimum of 8' (2.44 m) and a maximum of 35' (10.7 m) long. See the

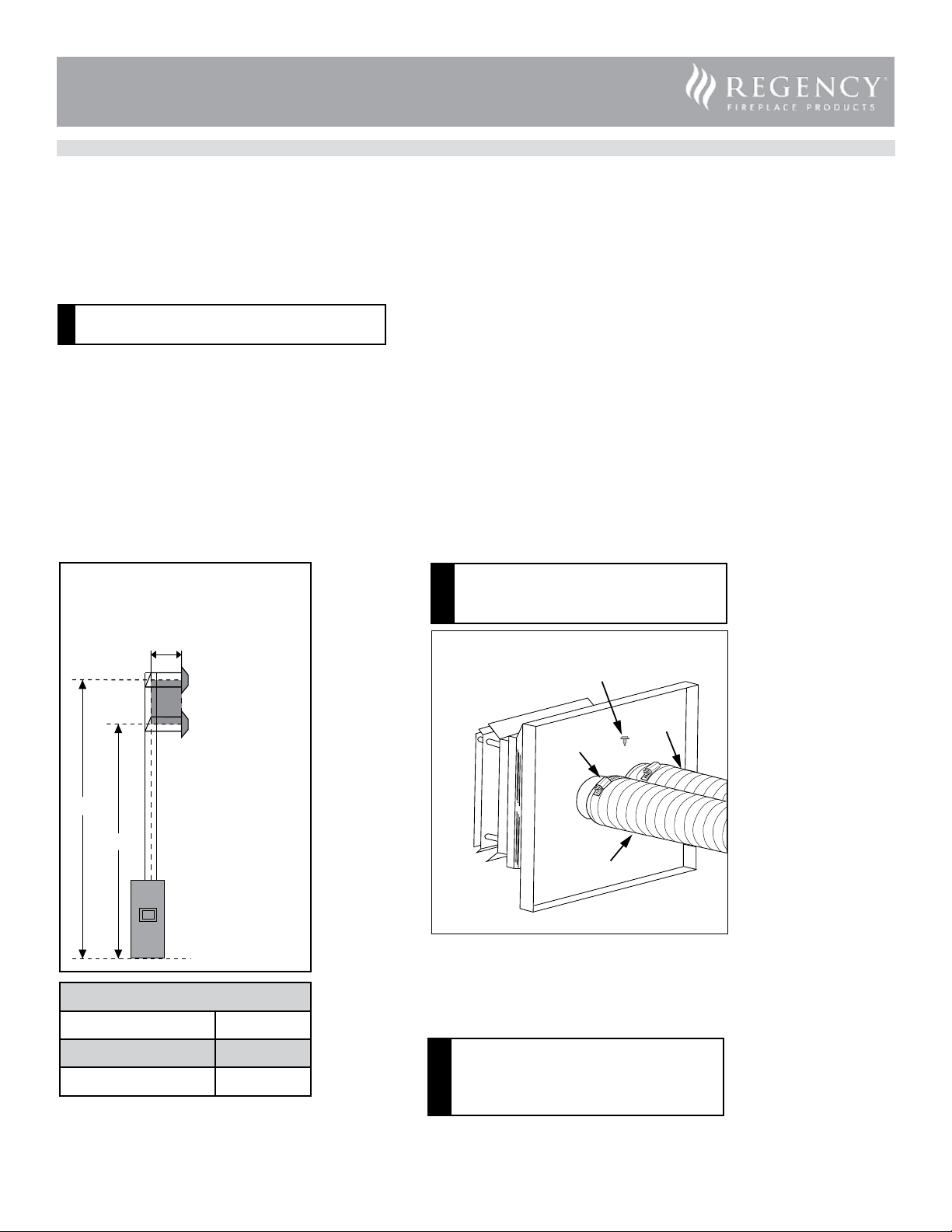

chart below for minimum distances from the roof. Periodically check that
the vent is unrestricted.
Masonry chimneys may take various contours which the exible liner will
accommodate. However, keep the exible liner as straight as possible (avoid
unnecessary bending).
Attach both the exhaust and intake ue liners to both the termination cap
& ue collar at the appliance with a minimum of three self-tapping screws.
Use Mil-Pac sealant to seal the pipes.
The air intake pipe must be attached to the inlet air collar of the termination
cap.
1. If the appliance is installed into an existing chimney system, thoroughly
clean the masonry or factory-built replace.
2. The appliance has an opening on the left side of the control compartment.
A 3/8" NPT gas supply pipe must be brought near the opening.
3. Locate the centerpoint where the vent will pass through the chimney,
above the appliance. Move the appliance to the installation location.
Ensure that the insert is level.
4. Do not cut any sheetmetal parts of the replace into which the gas
insert will be installed.
5. If the factory-built replace has no gas access hole(s), drill one of 1-1/2"
(37-1/2 mm) or less though the lower sides or bottom of the rebox.
The access hole must be plugged with non-combustible insulation after
the gas supply line is installed.
Gas & Electrical Connections
NOTES
• When attaching the two 3 inch (51-76 mm) liners to the
termination cap and prior to sliding them down the chimney,
it is good practice to mark the liners "exhaust" & "air intake".
This prevents mixing up the liners at the ue collar connection
of the appliance. If facing the appliance from the front, the air
intake is located on the left and the exhaust ue on the right.
Part # Description
948-305 3" Flex - 35 ft.
946-529 Co-linear DV Vertical Termination Cap
Air
Intake Exhaust
Flue
• This appliance was tested and certied as a com-
plete system with the noted termination caps and
ex liner. Only the listed termination caps/ex liner
noted below can be used. Use of termination caps
or ex liners not listed in this manual will void the
warranty and certication of this appliance. It is
also important not to enclose the termination cap
inside of a masonry chimney rain cap, or similar.
The termination must be exposed on all four sides
and above to exhaust and draw air into the rebox.
IMPORTANT
• Only persons licensed to work with gas piping may
make the gas connections to this appliance.
WARNING

Gi29L Gas Insert | 9
Alternate Approved Vertical Termination Caps/Adaptor
Alternate Approved Caps
46DVA-VC Vertical Termination Cap
OR
46DVA-VCH High Wind Cap
AND
46DVA-GK 3" Co-linear Adaptor with ashing
In areas with consistently high winds, we recommend using the Simpson Dura-Vent System (46DVA-GK adapter and 46DVA-VCH high-wind cap).
The air intake pipe must be attached to the inlet air collar of the termination cap.

10 | Gi29L Gas Insert
7
9
11
13
15
17
19
21
23
25
27
29
31
33
0
1
3
5
35
37
7
9
11
13
15
17
19
21
23
25
27
29
31
33
0
1
3
5
35
37
Vertical Venting / Restrictor Settings for NG and LP
LPNG
7
9
11
13
15
17
19
21
23
25
27
29
31
33
0
1
3
5
35
37
7
9
11
13
15
17
19
21
23
25
27
29
31
33
0
1
3
5
35
37
Vertical Height (Feet) Vertical Height (Feet)
Setting #1
Setting #2
Setting #4
Setting #3
2" open
2-1/2" open
1" open Setting #2
2-1/2" open
4-1/2" open

Gi29L Gas Insert | 11
Horizontal Co-Linear Vent Kit (Masonry Fireplaces Only)
APPLICATION
This instruction applies to the DuraVent DirectVent Pro termination system and is intended as a supplement to the applicable DirectVent Pro instructions.
This termination and venting system and the gas appliance were tested and listed by an accredited test agency.
Kit # 46DVA-HCL33 includes:
1 Horizontal Termination Cap
2 x 10' (3 m) long x 3" (76 mm) round liners and hardware.
The 948-128 Mil-Pac sealant must be purchased seperately.
NOTE
The intake and the exhaust are 3” (76 mm).
INSTALL INFORMATION
The ue damper must be fully blocked open or removed if safe to do so for installation of the unit. The smoke shelves, shields, and baes may be
removed if attached by mechanical fasteners. Ensure the replace and chimney are clean and in good working order, and that all chimney cleanouts are
tight-tting and not permitting air into the chimney. Install a sealed vent cap and metal ashing at the top of the masonry chimney to prevent leaks and
air movement within the cavity. A vent restrictor is not required when terminating horizontally, as shown below.
This appliance is only certied for use with NG when terminating horizontally (LP is not permitted). Make the hole on the outer portion of the masonry
replace by boring it or removing bricks. Ensure that the masonry structure is safe and brick can be removed without damage to the chimney prior to
proceeding. Minimum and maximum vent heights are noted below.
For complete instructions follow this link:
https://duravent.com/wp-content/uploads/2020/06/L954-SUP_820018997-DirectVent-Pro-Horizontal-Vent-Kit_03-20-20_V1.pdf [duravent.com]
DIMENSIONS
A - Min. Height 9 ft. (2.7 m)
B - Max. Height 10 ft. (3 m)
C - Max. Horizontal 18" (457 mm)
NG
DIMENSIONS
MAX HEIGHT - A
9’ (2.7m)
MIN HEIGHT - B 10’ (3m)
MAX HORIZONTAL - C
18” (45cm)
B
A
C
NG Only
*Restrictor Set 4
4-1/2" Open
*See page 17 for instructions on setting the
restrictor.
Air
Intake
Exhaust
Hose
Clamp
3 screws per each
end of length
NOTE
The exhaust is located on the left side and the
air intake on the right when facing the back of
the termination as shown below. Seal the 3" (76
mm) ex with Mil-Pac, purchased separately.
Installers must mechanically attach the supplied label
to the inside of the rebox of the replace into which
the gas replace insert is installed.
NOTE
This replace has been converted for use with
a gas replace insert only. It cannot be used for
burning wood or solid fuels unless all original
parts are replaced and the replace re-approved
by the authority having jurisdiction.
