Regency Zero Clearance Direct Vent Gas Fireplace... Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-522b 05/04/11
P36D-1 Zero Clearance
Direct Vent Gas Fireplace
Owners & Installation Manual
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODELS: P36D-NG1 Natural Gas P36D-LP1 Propane
WARNING:
If the information in these instructions are not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss
of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Installationandservicemustbeperformedbyaqualifiedinstaller,service
agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch: do not
use any phone in your building.
Immediately call your gas supplier from a
neighbour's phone. Follow the gas
supplier's instructions.
Ifyou cannotreachyourgassupplier,call
the fire department.

2Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY® FIREPLACE PROD-
UCTS The P36D-1 is a hand crafted appliance and has been designed to provide you with
all the warmth and charm of a wood fireplace at the flick of a switch. The model P36D-1
has been approved by Warnock Hersey for both safety and efficiency. As it also bears our
own mark, it promises to provide you with economy, comfort and security for many trouble
free years to follow. Please take a moment now to acquaint yourself with these instructions
and the many features of your REGENCY®Fireplace.

Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace 3
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
ThisREGENCY®producthasbeentestedandlistedbyWarnockHerseytothefollowingstandards: VENTEDGASFIREPLACEHEATERSANSIZ21.88a-2007/
CSA 2.33a-2007 and GAS-FIRED APPLIANCES FOR USE AT HIGH ATLITUDES CAN/CGA 2.17-M91.
This Direct Vent SystemAppliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities
ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current
National Fuel Gas Code,ANSI Z223.1 and the current National Electrical CodeANSI/NFPA 70 in the U.S.A., and the current CAN/CGAB149 Gas Installation
Code and the current Canadian Electrical Code CSA C22.1 in Canada.
ThisFPI Mobile/ManufacturedHomeListedappliancecomes
factory equipped with a means to secure the unit.
ThisFPI Mobile/ManufacturedHomelistedappliancecomes

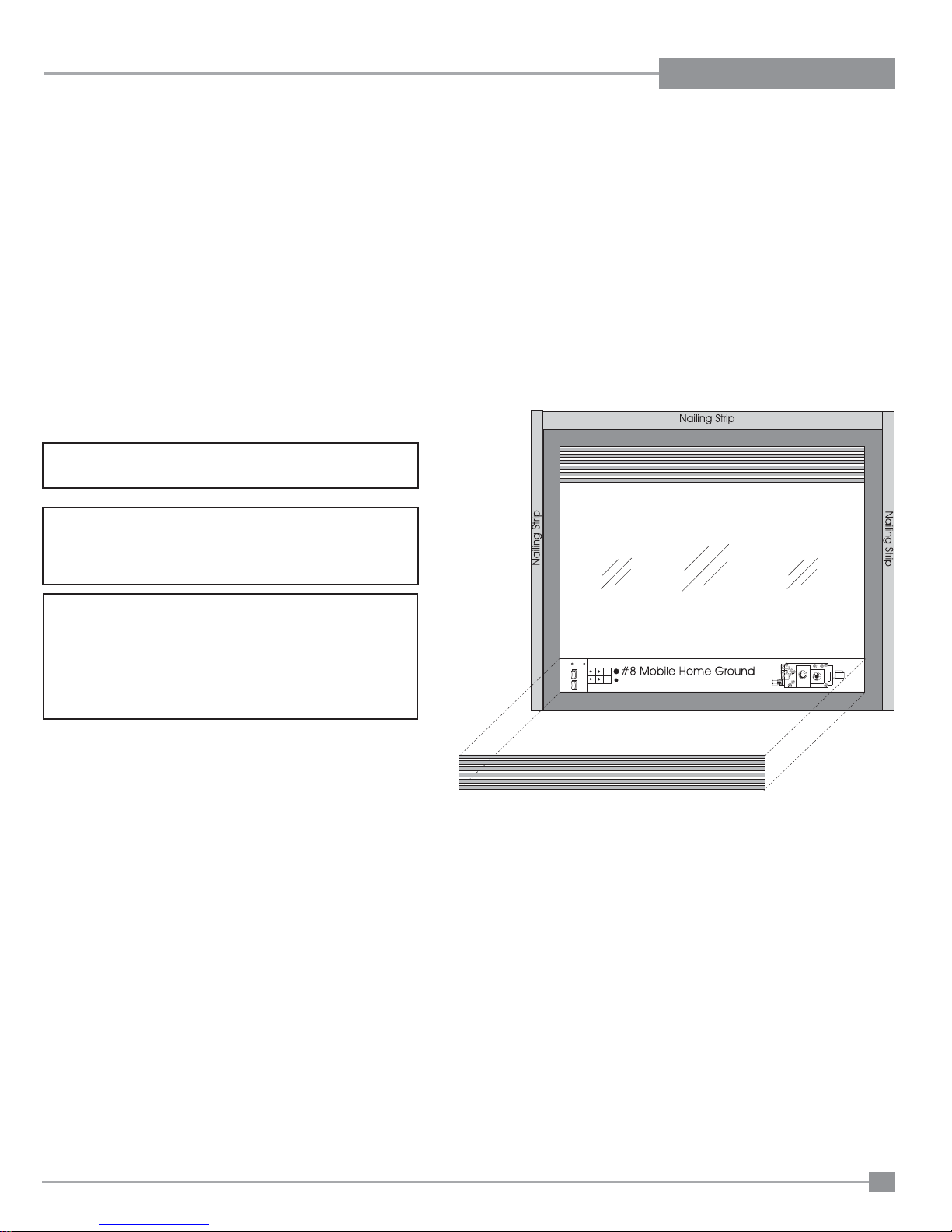

equipped with a dedicated #8 ground lug to which an 18
gauge copper wire from the steel chassis ground must be
attached.
This appliance may only be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only use with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.

4Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
TABLE OF CONTENTS
Horizontal Termination.................................................26
Venting Arrangements Vertical Termination.................27
Horizontal Venting with Two (2) 90oElbows................29
Horizontal Venting with Three (3) 90oElbows .............29
Vertical Venting with Two (2) 90oElbows.....................30
Vertical Venting with Three (3) 90oElbows..................30
Vertical Termination With Co-linear Flex System.........31
Venting Arrangement - Vertical Terminations ..............32
Unit installation with Horizontal termination.................33
Unit installation with Vertical Termination ....................34
Direct Vent System (Flex)
Installation Procedures................................................35
P36D-NG1 System Data ............................................36
P36D-LP1 System Data .............................................36
High Elevation .............................................................36
Gas Line Installation....................................................36
Pilot Adjustment...........................................................36
Gas Pipe Pressure Testing..........................................36
S.I.T. Valve Description................................................36
Conversion from NG to LP ..........................................37
Optional Brick Panels..................................................40
Log Set Installation......................................................42
Standard Flush Door ...................................................45
Remote Control (Optional)...........................................46
Wall Switch (Optional) .................................................46
Wall Thermostat (Optional) .........................................46
Wiring Diagrams .........................................................47
Optional Fan Installation..............................................49
Optional Fan Removal.................................................49
SAFETY LABEL
Copy of Safety Decal for P36D-1 ..................................6
REQUIREMENTS
MA Code - CO Detector.................................................7

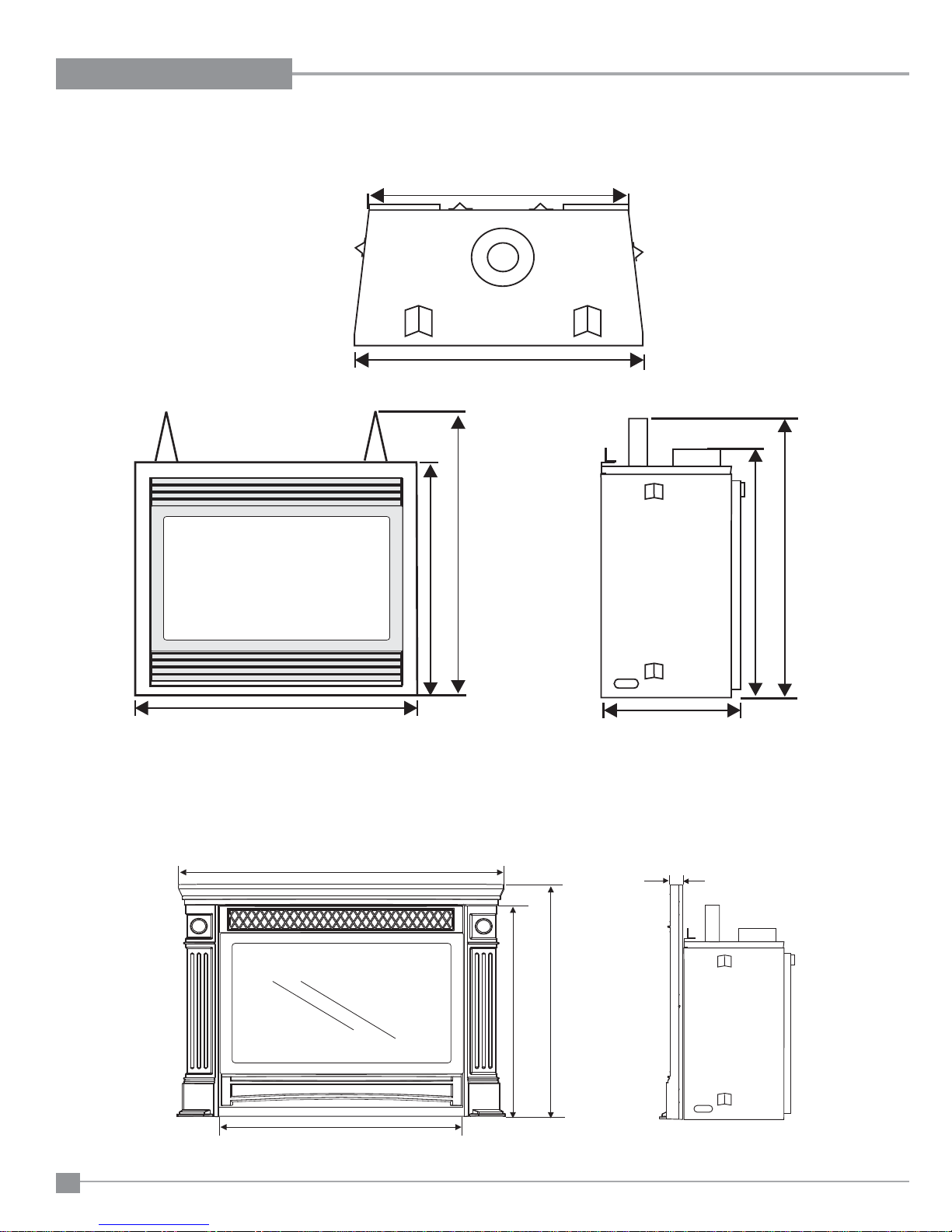

Unit Dimensions ............................................................8
Hampton Faceplate Dimensions ...................................8
Before You Start ............................................................9
Important Message .....................................................10
General Safety Information..........................................10
Installation Checklist...................................................10
Locating Your
Gas Fireplace..............................................................11
Manufactured Mobile Home Additional Requirements 11
Heatwave Duct System (Optional) .............................11
Heat Release kit (Optional) ........................................11
Clearances ..................................................................12
Regency®Clearances..........................................13
Tripoli Arch Door Clearances...............................13
Hampton®Clearances .........................................13

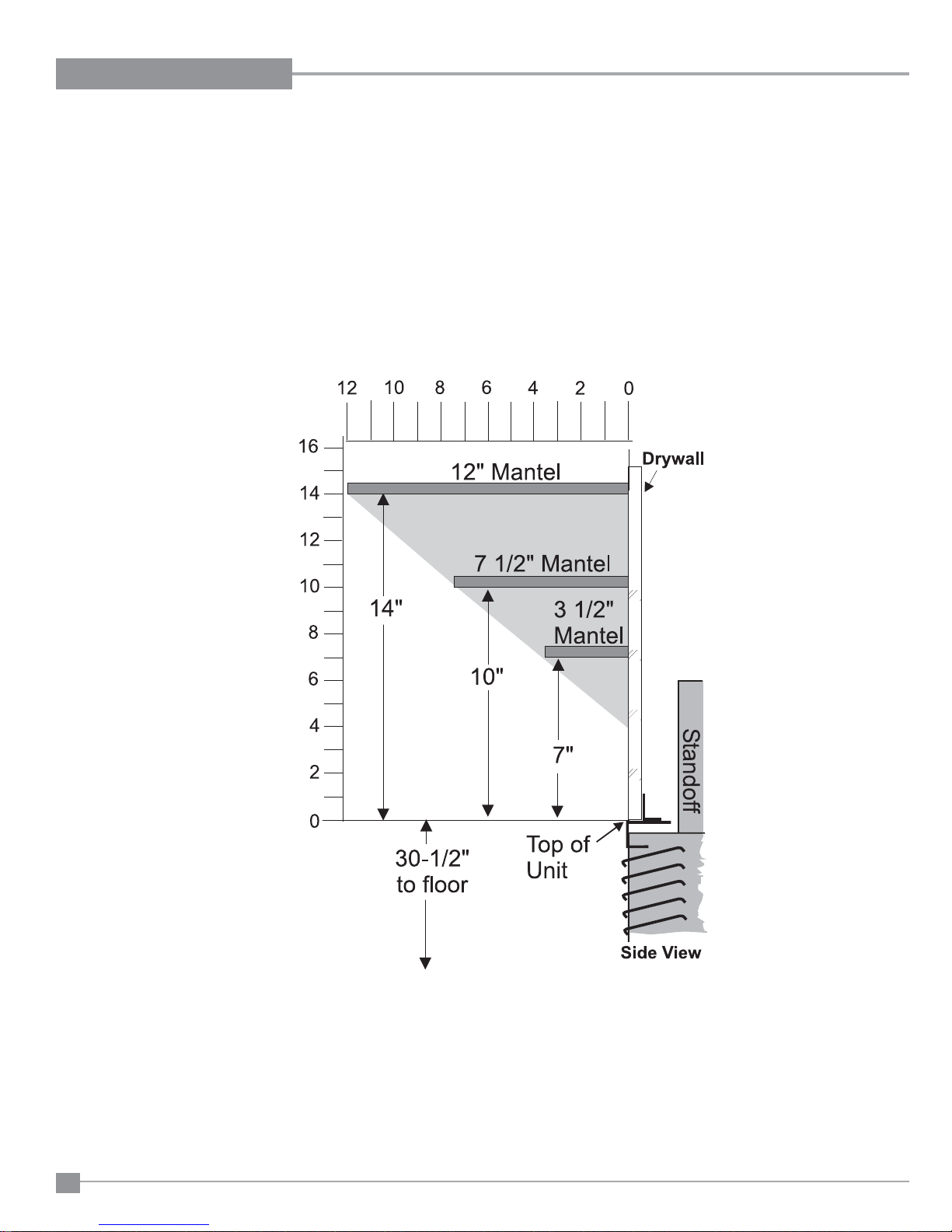

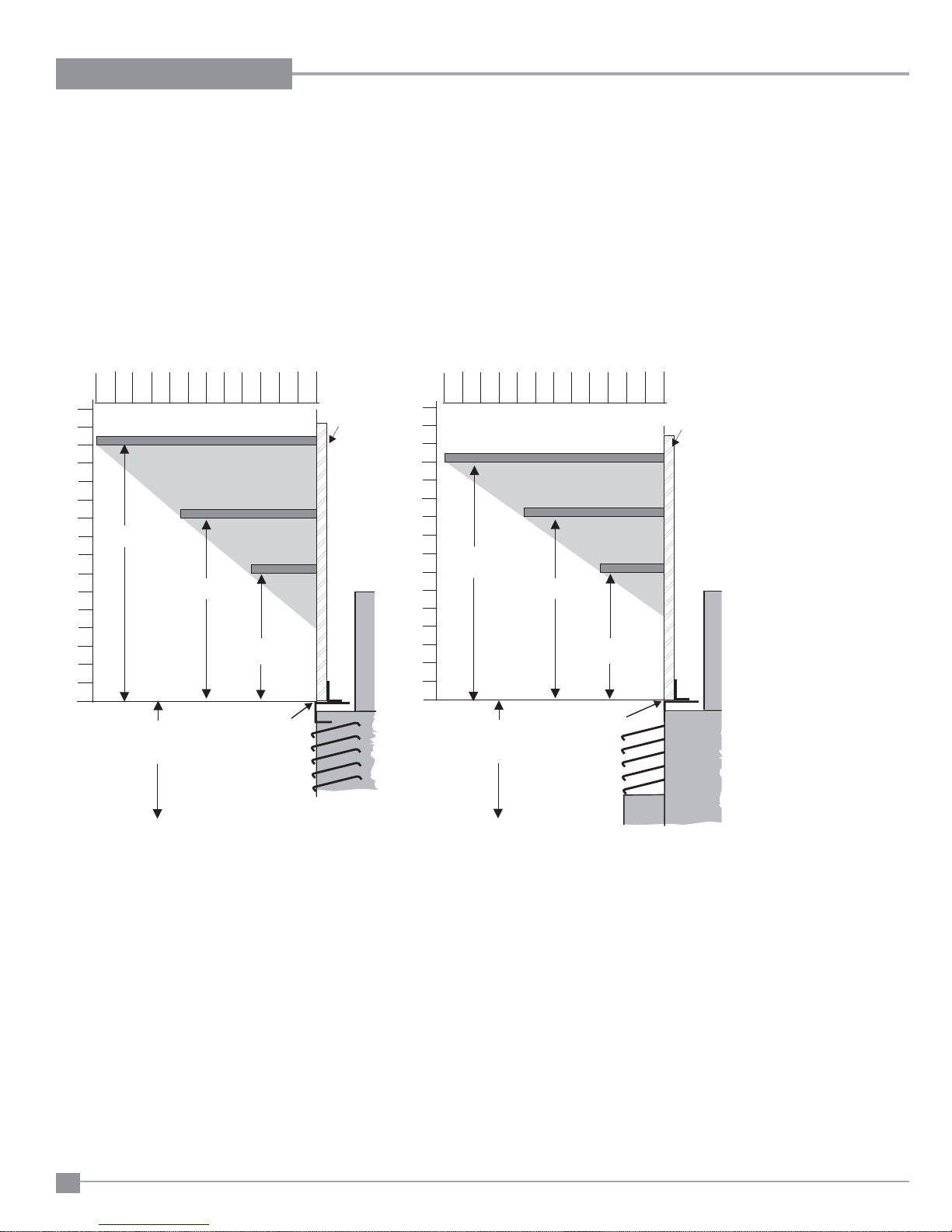

Regency®Combustible Mantel Clearances................14
Hampton®Combustible Mantel Clearances ...............16
Regency®Mantel Leg Clearances...............................17
Hampton®Trim
Mantel Leg Clearances................................................17
Framing And Finishing.................................................18

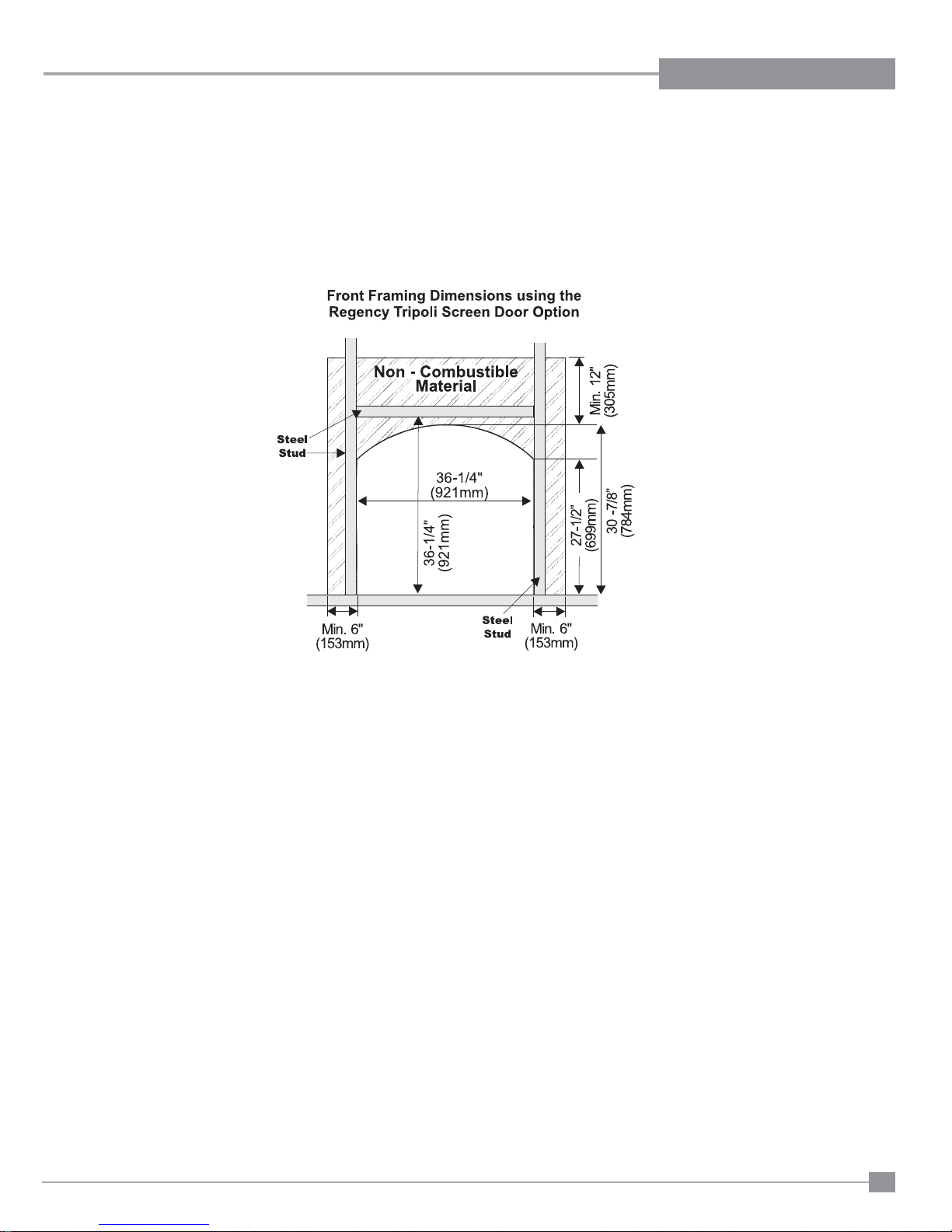

tripoli Arch Door Framing Note....................................19
Unit Assembly Prior To Installation..............................20

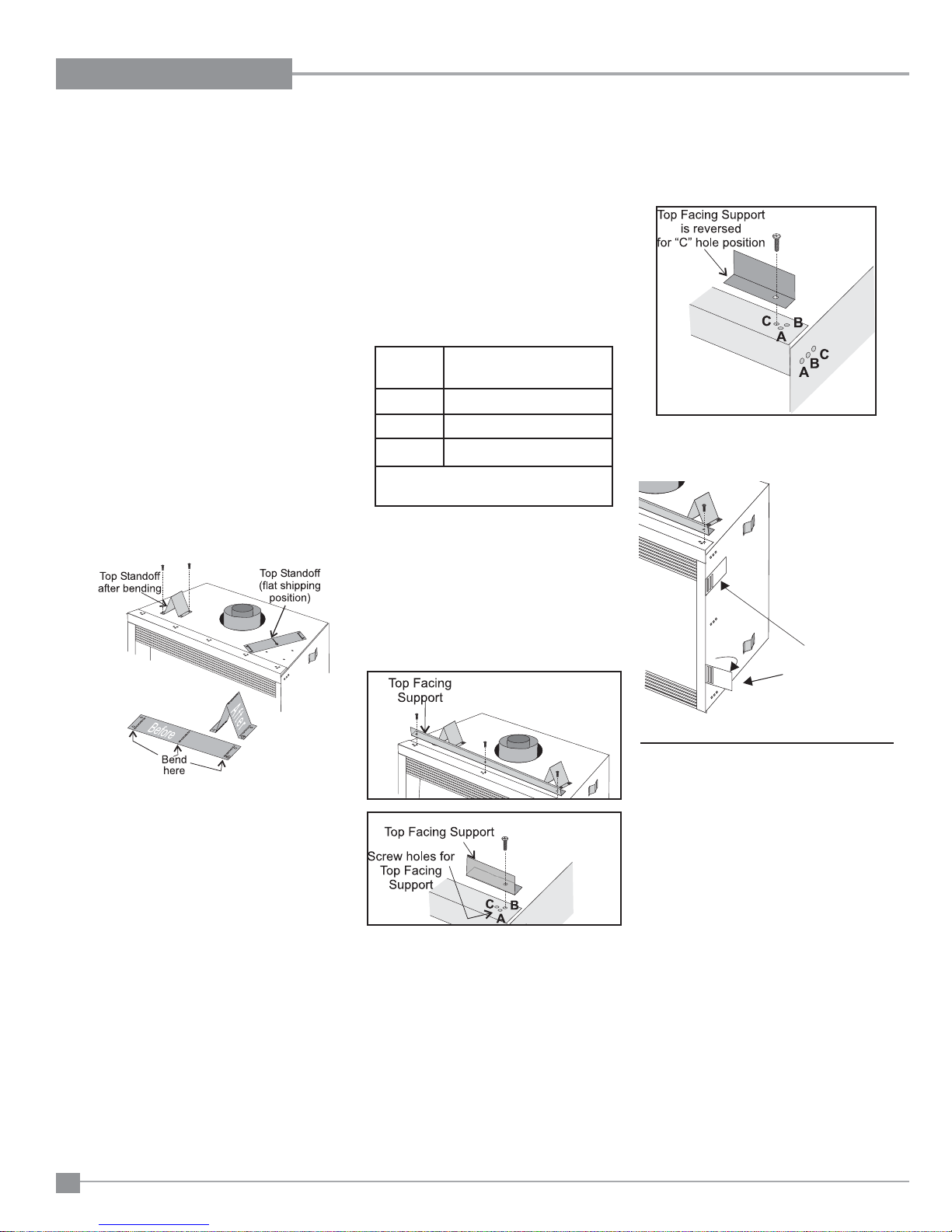

Top Standoff Assembly........................................20
Top Facing Support &
Side Nailing Strips ...............................................20
Venting Introduction.....................................................20
Exterior Vent Termination Locations............................21
Venting.........................................................................22
Direct Vent System (Flex) ..................................22
4” x 6-5/8” Rigid Pipe Cross Reference Chart.............23
Rigid Pipe Venting Systems.................................25
Venting Arrangements
NOTE: All installation instructions apply to
Regency®& Hampton®Series unless otherwise specified.

Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace 55
TABLE OF CONTENTS
OPERATING INSTRUCTIONS
Operating Instructions .................................................50
Shutdown Procedure...................................................50
First Fire ......................................................................50
Lighting Procedure ......................................................50
Aeration Adjustment ....................................................50
Normal Operating Sounds Of Gas Appliances............50
Copy of the Lighting Plate Instructions........................51
MAINTENANCE
Maintenance Instructions.............................................51
General Vent Maintenance..........................................52
Gold or Brass...............................................................52
Louvers & Trim ............................................................52
Log Replacement ........................................................52
Thermopile/Thermocouple...........................................52
Glass Gasket...............................................................52
Door Glass...................................................................52
Flush Glass Replacement....................................52
Bay Glass Replacement......................................52
Removing Valve...........................................................53
Installing Valve.............................................................53
Flush Trim....................................................................54
Flush Louvers..............................................................54
Bay Door......................................................................55
Bay Trim ......................................................................55
Bay Louvers.................................................................55
Full Screen door Installation.....................................56
Tripoli screen door.......................................................58
Hampton®Cast Faceplate...........................................61
Hampton®Cast Grills...................................................62
PARTS LIST
Main Assembly ............................................................63
Burner Assembly & Log Set.........................................64
Regency®Bay Front Assembly....................................65
Regency®Flush Front Assembly .................................66
Hampton®Cast
Faceplate & Grill Assembly..........................................67
WARRANTY
The Warranty: Limited Lifetime ...................................71

6Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
SAFETY LABEL
This is a copy of the label that accompanies each P36D-1 Zero Clearance Direct Vent Gas Fireplace. We have printed a copy of the contents here for your
review. The safety label is located on the front inside base of the unit, visible when the bottom louver is open.
NOTE: FPI units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
COPY OF SAFETY DECAL FOR P36D-1
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
306
306
DOOR SEAL: Please
check that the door is
properly sealed
Minimum Clearances to Combustibles /
Degagement Minimum De Materiaux Combustibles
Serial No./ No de serie
918-500a
The "Bay Louvers" be
used with the Bay Glass option
MUST
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Duplicate S/N
BB
32"
Ceiling
Wall
Wall
A
(See Instruction Manual for
detailed instructions)
Electrical supply / Électrique 115VAC, 1.13 A, 60Hz.
VENTED GAS FIREPLACE HEATER -NOT FOR USE WITH SOLID FUELS.
NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.FOYER AU GAZ À ÉVACUATION -
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United
States, or when such a standard is not applicable,ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard orANSIA119.2 ou NFPA501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See owner's manual
for details.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installationANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard. Si ces
normes ne sont pas pertinentes, utilisez la normeANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ouANSIA119.2 ou NFPA501C Standard for Recreational Vehicles.
For use with glass doors certified with the appliance only
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
Fan (Part # 432-917) Optional Bay Window (Part #510-930) Option: HeatWave Kit # 946-556
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlements
locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.
Pour utilisation uniquement avec les portes en verre certifiées avec l'appareil Made in Canada/
Fabrique au Canada
FPI Fireplace Products International Ltd.Delta, BC, Canada
Listed:
Certified for/Certifi e pour:
Tested to:
WN# 16462
CANADA and U.S.A.
CGA-2-17-M91, ANSI Z21.88a-2007 / CSA 2.33a-2007
VENTED GAS FIREPLACE HEATER / FOYER AU GAZ À ÉVACUATION
é
APPAREIL FONCTIONNANT AU GAZ PROPANE
CONCU POUR ETRE POELE:
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit minimum selon
D bit maximum selon
l'altitude
Calorifique
Calorifique
Modéle P36D-LP1
ééé
é
é
é
NATURAL GAS:
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
Model P36D-NG1
L
PROPANE:
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
Model P36D-LP1
L
5" WC(1.25 kPa)
3.8" WC(0.95 kPa)
1.1" WC(0.27 kPa)
# 37 DMS
15,500 Btu/h (4.54 kW)
0-4500 ft/pi(0-1372 m)
30,000 Btu/h (8.79 kW)
12" WC(3.00 kPa)
11" WC(2.74 kPa)
2.9" WC(0.72 kPa)
# 52 DMS
15,000 Btu/h (3.96 kW)
0-4500 ft/pi(0-1372 m)
30,000 Btu/h (7.91 kW)
APPAREIL FONCTIONNANT AU NATURAL GAZ
CONCU POUR ETRE POELE:
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit minimum selon
D bit maximum selon
l'altitude
Calorifique
Calorifique
Modéle P36D-NG1
ééé
é
é
é
Model/Modele:
P36D-NG1
Model/Modele:
P36D-LP1
0" Clearance to
combustibles from:
Mantel Clearances from Top:
Side Wall Clearance
from Side Facing
Alcove Clearances:
Minimum Vent Clearances:
Top, sides, bottom and rear of unit
(A) Min. 7" (177mm)
B) 6" with Flush or Bay Front
B) 8" with Barcelona Trim
Alcove approved for
Bay & Flush Louvers.
Max. Depth 36" (914mm)
Min. Width 48" (1219mm),
Min. Height 72" (1229mm)
Horizontal Top 2-1/2" (64mm)
Horizontal Side
Horizontal Bottom 1-1/2" (38mm)
1-1/2" (38mm)
FortheStateofMassachusetts,installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordancewithNFPA720andaCOalarm
withbatterybackupinthesameroomwhere
the gas appliance is installed.

Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace 7
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

8Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
36" (914mm)
33"(838mm)
36"(914mm)
30-1/2"(775mm)
37"(940mm)
17-1/8"(435mm)
32-1/2"(826mm)
37"(940mm)
UNIT DIMENSIONS
43-1/4” (1099mm)
32-1/4” (819mm)
29-1/2” (749mm)
31-1/4” (794mm)
1-1/4” (32mm)
HAMPTON FACEPLATE DIMENSIONS

Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace 9
INSTALLATION
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC. IT IS IMPERATIVETHAT
CONTROL COMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
BEFORE YOU START
Safe installation and operation of this appliance
requirescommonsense,however,wearerequired
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:

10 Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
TheP36D-NG1orP36D-LP1DirectVentFireplace
must be installed in accordance with these
instructions. Carefully read all the instructions in
this manual first. Consult the "authority having
jurisdiction"todeterminetheneedforapermitprior
to starting the installation. It is the responsibility of
the installer to ensure this fireplace is installed in
compliance with manufacturer's instructions and
all applicable codes.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform with
localcodesor,intheabsenceoflocalcodes,with
the current Canadian or National Gas Codes,
CAN1-B149orANSIZ223.1InstallationCodes.
2) The appliance when installed, must be
electrically grounded in accordance with local
codes,orintheabsence of local codeswiththe
currentNationalElectricalCode,ANSI/NFPA70
or CSA C22.1 Canadian Electrical Code.
3) See general construction and assembly
instructions. The appliance and vent should be
enclosed.
4) This appliance must be connected to the
specifiedventandterminationcaptotheoutside
of the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5) Inspecttheventingsystemannuallyforblockage
and any signs of deterioration.
6) Venting terminals shall not be recessed into a
wall or siding.
7) Anysafetyglassremovedforservicingmustbe
replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliarwiththeoperationtousethefireplace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in walls
andceilingswhencutting holes fortermination.
11) Under no circumstances should this appliance
be modified. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
12) Installation and any repairs to this appliance
should be done by a qualified service person.
Aprofessional service person should be called
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Roomlocation(Referto"LocatingYourGas
fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) MantleClearances(Referto"Combustible
Mantel Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
2) Assemble Top Standoffs and Top Facing
Support and Side Nailing Strips (Refer to "Unit
AssemblyPriortoInstallation"Section). NOTE:
Must be done before installing unit into place.
3) Install vent (Refer to "Venting" sections).
4) Make gas and electrical connections. Test the
pilot. Must be as per diagram (Refer to "Pilot
Adjustment " section).
Convert to propane if desired (Refer to "Gas
Line Installation" and "Conversion Kit from NG
to LPG" sections).
5) Install standard and optional features. Refer
to the following sections:
a. Optional Brick Panels
b. Log Set Installation
c. Standard Flush Door
d. Regency®Flush or Bay Fronts
e. Hampton®Cast Faceplate
f. Remote Control (Optional)
g. Wall Switch (Optional)
h. Wall Thermostat (Optional)
i. Optional Fan Installation
6) Final check.
toinspectthisapplianceannually.Makeitapractice
to have all of your gas appliances checked
annually.
13) Do not slam shut or strike the glass door.
14) Undernocircumstancesshouldanysolidfuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
15) The appliance area must be kept clear and
freeofcombustiblematerials,(gasesandother
flammable vapours and liquids).

Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace 11
INSTALLATION
Diagram 1
This includes:
1) Clockingtheappliancetoensurethecorrect
firingrate(ratenotedonlabel30,000Btu/h)
after burning appliance for 15 minutes.
2) Ifrequired,adjustingtheprimaryairtoensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION:Anyalterationtothe productthat
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
GAS FIREPLACE
1) Whenselectingalocationforyourfireplace,
ensure that the clearances outlined on this
page are met.
2) Provide adequate clearances for
servicing.
3) The appliance must be installed on a flat,
solid,continuoussurface(e.g.wood,metal,
concrete).Thismaybethefloor,orraisedup
on a platform to enhance its visual impact.
If the appliance is going to be installed
on carpeting, combustible linoleum tile or
othercombustiblematerialotherthanwood
flooring, the appliance must be installed on
a metal or wood panel extending the full
width and depth of the appliance.
4) The P36D-1 Direct Vent Gas Fireplace
can be installed in a recessed position or
framed out into the room as in A, B, C, D.
See Diagram 1.
5) This appliance is Listed for bedroom
installationswhenusedwithaListedMillivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) The P36D-1 Direct Vent Gas Fireplace is
approvedforalcoveinstallations,whichmeet
the clearances listed on the next page.
7) Werecommendthatyouplanyourinstallation
on paper using exact measurements for
clearances and floor protection before
actually installing this appliance. Have a
qualifiedinspector,dealer,orinstallerreview
your plans before installation.
Note: For vent terminations see "Exterior
Vent Termination Location" section.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
HEATWAVE
DUCT SYSTEM
(OPTIONAL)
#946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing
warmairfromthefireplacetoremotelocationsin
the same room or other rooms in your home.
Upto twokitsmaybeinstalledonthefireplace.
Please Note: Only 1 HeatWave kit may be
operatedatonetime.Thisincludes the internal
blower option as well.
HEAT RELEASE KIT
(OPTIONAL)
#946-570
The Heat Release Kit expels warm air from
the fireplace to the outside of the building,
allowing the fireplace to be operated with less
heat entering the room. The kit may be used
on either the left or right side.
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut
or weakened during installation.
2) Ensure proper grounding using the #8
groundlugprovided. See"WiringDiagram"
section.

12 Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
The HeatWave Duct Kit and the Heat
Release Kit have different clearance
and framing requirements, check the
HeatWave and Heat Release manual
for details.
Heat Release Kit
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest
importance that this fireplace and vent system be installed only in accordance with these instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum floor clearance must be maintained from the top surface of the carpeting, tile, etc.
Minimum Clearance from Top of Unit to:
Ceiling from top of unit. 32" (1016mm)
Side Wall Clearances:
Bay or Flush Front 6"* (152mm)
Hampton Cast Faceplate 6"* (152mm)
Full Screen Doors 6"* (152mm)
* Measured from Surround or Front. See Regency®Clearances section for dimensions.
Horizontal Vent Clearances:
Top 2" (51mm)
Side 1-1/2" (38mm)
Bottom 1-1/2" (38mm)
Vertical Vent Clearances 1-1/4" (32mm)
Alcove Clearances**:
Max. Depth 36" (914mm)
Min. Width 48" (1219mm)
Min. Height 72" (1829mm)
WARNING: Fire hazard is an extreme risk if these clearances are not adhered to.
CLEARANCES

Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace 13
INSTALLATION
Clearances for Bay Front, Flush Front
& Full Screen Doors
REGENCY®CLEARANCES
HAMPTON®CLEARANCES
TRIPOLI ARCH DOOR CLEARANCES

14 Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
Drywall
12" Mantel
7 1/2" Mantel
3 1/2"
Mantel
Mantel Clearances with
Flush Glass / Full Screen Doors
14"
7"
10"
30-1/2"
to floor
2
0
12 64
810
2
0
12
6
16
4
14
8
10
Side View
Top of
Unit 30-1/2"
to floor
2
0
12 64
810
12" Mantel
7 3/4“ Mantel
3 1/2"
Mantel
Mantel Clearances
with Bay Option
13"
2
0
12
6
16
4
14
8
10
Drywall
Top of
Unit
7"
10"
Side View
6" Standoff
6" Standoff
Because of the extreme heat this fireplace emits, the mantel clearances are critical.
Combustible mantel clearances from top of unit are shown in Diagrams 1 & 2.
REGENCY®COMBUSTIBLE MANTEL CLEARANCES
These drawings are to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
Note: A non-combustible mantel may be installed at a lower height if the framing
is made of metal studs covered with a non-combustible board.
Diagram 1
Diagram 2

Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace 15
INSTALLATION
REGENCY®SERIES COMBUSTIBLE MANTEL CLEARANCES
Because of the extreme heat this fireplace emits, the mantel clearances are critical.
Combustible mantel clearances from top of unit are shown in the diagram below.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.
These drawings are to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

16 Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
These drawings are to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
HAMPTON®COMBUSTIBLE MANTEL CLEARANCES
Mantel Clearances with
Hampton Cast Faceplate
®
7"
Because of the extreme heat this fireplace emits, the mantel clearances are critical.
Combustible mantel clearances from top of unit are shown in the diagram below.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace 17
INSTALLATION
REGENCY®MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
Maximum 1-1/2" projection
at 2" minimum clearance.
HAMPTON®TRIM
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
5"
2"
6" Min.
Mantel leg
Mantel leg
P36D
Fireplace
Allowable mantel leg
projection.
3"
1-1/2"
Hampton
Cast Faceplate
Measure from
edge of Faceplate.
Maximum 1-1/2" projection
at 2" minimum clearance.
Hampton®Cast Faceplate Width: 43-1/4"

18 Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
Framing Dimensions
A B C D
36-1/4" 37-1/4" 17-3/8" 46-1/2"*
921mm 946mm 441mm 1181mm*
*'D'isMinimumheighttocombustiblematerials
including the Minimum 2-1/2" (64mm) Top
clearance to the Horizontal Vent.
1) Determine the total thickness of facing
material (e.g. drywall plus ceramic tiles) to
allow the finished surface to be flush with
the front of the unit. Total facing thickness
canvaryfrom1/2"(13mm)to1-1/4"(32mm)
thick.
3) For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per
local installation codes. (Do not insulate
the fireplace itself.)
4) The top of the unit must not be closer than
32" (813mm) to the ceiling.
2) Frame in the enclosure for the unit with
framing material. The framed opening is
37-1/4" high x 36-1/4" wide x 17-3/8" deep
(946mmhighx921mmwidex441mmdeep).
FRAMING AND FINISHING
Note: 40-1/2" (1029mm) is the minimum
height for both flex termination or
Simpson Dura-Vent venting.
Note: Theunitdoesnothavetobecompletely
enclosedinachase.The clearanceon
topoftheunitis0"tothestandoffsso
combustible building materials can
belaiddirectlyontopofthestandoffs.
You must maintain clearance from
thevent tocombustiblematerialsfor
flex, see Vent Clearances.
5) Use steel studs for framing where the
1-1/2" (38mm) clearance from the vent to
combustiblematerialcannotbemaintained,
e.g. front top header.
NOTE: See next page for important
Barcelona™ Series framing note.
Install Side Nailing Strips, Top Facing
Support, and Top Standoffs before unit is
slipped into position. See "Unit Assembly
Prior to Installation" section for assembly
details.

Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace 19
INSTALLATION
When installing the optional Tripoli Arch Door, a non-combustible material 12" (305mm) above the unit and 6" (153mm) on each side must be used. See
diagram 2. For complete framing dimensions - see page 57 in this manual.
The Tripoli Arch Door also requires steel stud framing above and on each side of the unit, see diagram 2.
TRIPOLI ARCH DOOR FRAMING NOTE
Diagram 2

20 Regency®P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
Side
Nailing Strips
"C" Screw Position:
For a facing material depth of 1-1/4" (32mm),
the top facing support must be reversed.
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
TheTopFacingSupport,theSideNailingStrips
and the 2 Top Standoffs must be correctly
positioned and attached to the top before unit
is slipped into position.
Top Standoff Assembly
The top standoffs are shipped in a flat position
and must be folded into shape and attached.
1) Removethestandoffsfromthefireplacetop.
2) Takeeachstandoffandbendintothecorrect
shape. Bend up at the bend lines until the
screw holes in the standoff and the pre-
punched screw holes on the fireplace top
line up.
3) Attach the standoff securely to the top with
2screwsperstandoff(onoppositecorners).
VENTING
INTRODUCTION
The P36D-1 uses the "balanced flue"
technology Co-Axial system. The inner liner
ventsproductsofcombustiontotheoutsidewhile
theouterlinerdrawsoutsidecombustionairinto
thecombustionchambertherebyeliminatingthe
needtouseheatedroomairforcombustionand
losing warm room air up the chimney.
Note: These flue pipes must not be
connected to any other appliance.
The gas appliance and vent system must be
vented directly to the outside of the building,
and never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Eachdirectventgasappliancemustuseit'sown
separate vent system. Common vent systems
are prohibited.
Top Facing Support &
Side Nailing Strips
Determine the total thickness of facing material
(e.g. drywall plus ceramic tiles) to allow the
finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2"
(13mm) to 1-1/4" (32mm) thick.
The Top Facing Support can be mounted in 3
different positions depending on the thickness
of the facing material.
2) Fold out the two nailing strips on each side.
1) Mount Top Facing Support using the 3
suppliedscrewsinto thethreepre-punched
screwholes on the top front of the unit. Use
holepositionsA, B, or C depending on your
facing depth.
Screw
Position Facing Material Depth
A 1/2" / 13mm
B 7/8" / 22mm
C*1-1/4" / 32mm
*For "C" screw position the top facing
support is reversed.
