Regency G51-NG UltraGlow Quick start guide

Models: G51-NG
G51-ULPG
Owners &
Installation
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Manual
02/16/06
LISTINGS AND CODE APPROVALS
These gas appliances have een tested in
accordance with AS4553-2000, NZS 5262
and have een certified y the Australian
Gas Association for installation and
operation as descri ed in these Installation
and Operating Instructions.
Your unit should be serviced annually
by an authorised service person.
918-236
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
information consult an authorised installer,
service agency or the gas supplier.
F R Y UR SAFETY
Do not store or use gasoline or other
flammable vapours and liquids in the vicinity
of this or any other appliance.
Installation and service must be performed
by an authorised installer, service agency or
the gas supplier.
G51 UltraGlow
F R Y UR SAFETY
What to do if you smell gas:
Do not try to light any appli-
ance
Do not touch any electrical
switch: do not use any
phone in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas sup-
plier's instructions.
If you cannot reach your
gas supplier, call the fire
department.

Regency G51 UltraGlow
2
TO THE NEW OWNER:
Congratulations!
You are the owner of a state-of-the-art Gas Stove by FPI FIREPLACE PR DUCTS INTERNATI NAL LTD.
The G51 has been designed to provide you with all the warmth and charm of a wood fireplace at the flick of
a switch.
The G51 has been approved by the Australian Gas Association for both safety and efficiency. As it also bears
our own mark, it promises to provide you with economy, comfort and security for many trouble free years to
follow. Please take a moment now to acquaint yourself with these instructions and the many features of your
Regency Fireplace.

Regency G51 UltraGlow 3
TABLE OF CONTENTS
Safety Label
Safety Label ............................................................... 4
Installation
Unit Dimensions ......................................................... 5
Important Message .................................................... 6
For Your Safety .......................................................... 6
Gas Pipe esting ....................................................... 6
Before You Start ........................................................ 6
Installation Checklist .................................................. 6
Materials Required ..................................................... 6
Minimum Fireplace Dimensions ................................. 7
Minimum Clearances to Combustibles ....................... 7
Gas Connection ......................................................... 7
Flueing ..................................................................... 8
Gas Pressure est ..................................................... 8
est for Flue Spillage ................................................. 8
Gas Aeration Setting .................................................. 8
Installation of Flue Gather .......................................... 8
ULPG Conversion ....................................................... 9
Valve ray Installation ............................................... 10
Burner Installation ..................................................... 11
Log Set Installation ................................................... 12
Finishing rim (Optional) ........................................... 15
Brick Panels (Optional) ............................................. 15
Screen Installation (Optional) .................................... 16
Wiring ....................................................................17
perating Instructions
Operating Instructions ............................................... 18
Lighting Procedure ....................................................18
Shutdown Procedure .................................................18
First Fire ...................................................................18
Normal Operating Sounds of
Gas Appliances .................................................. 18
Lighting Plate Instructions ......................................... 19
Maintenance
Maintenance Instructions .......................................... 20
Log Replacement ...................................................... 20
Fan Replacement ...................................................... 21
Replacement Parts List .............................................22
Warranty
Warranty ...................................................................23

Regency G51 UltraGlow
4

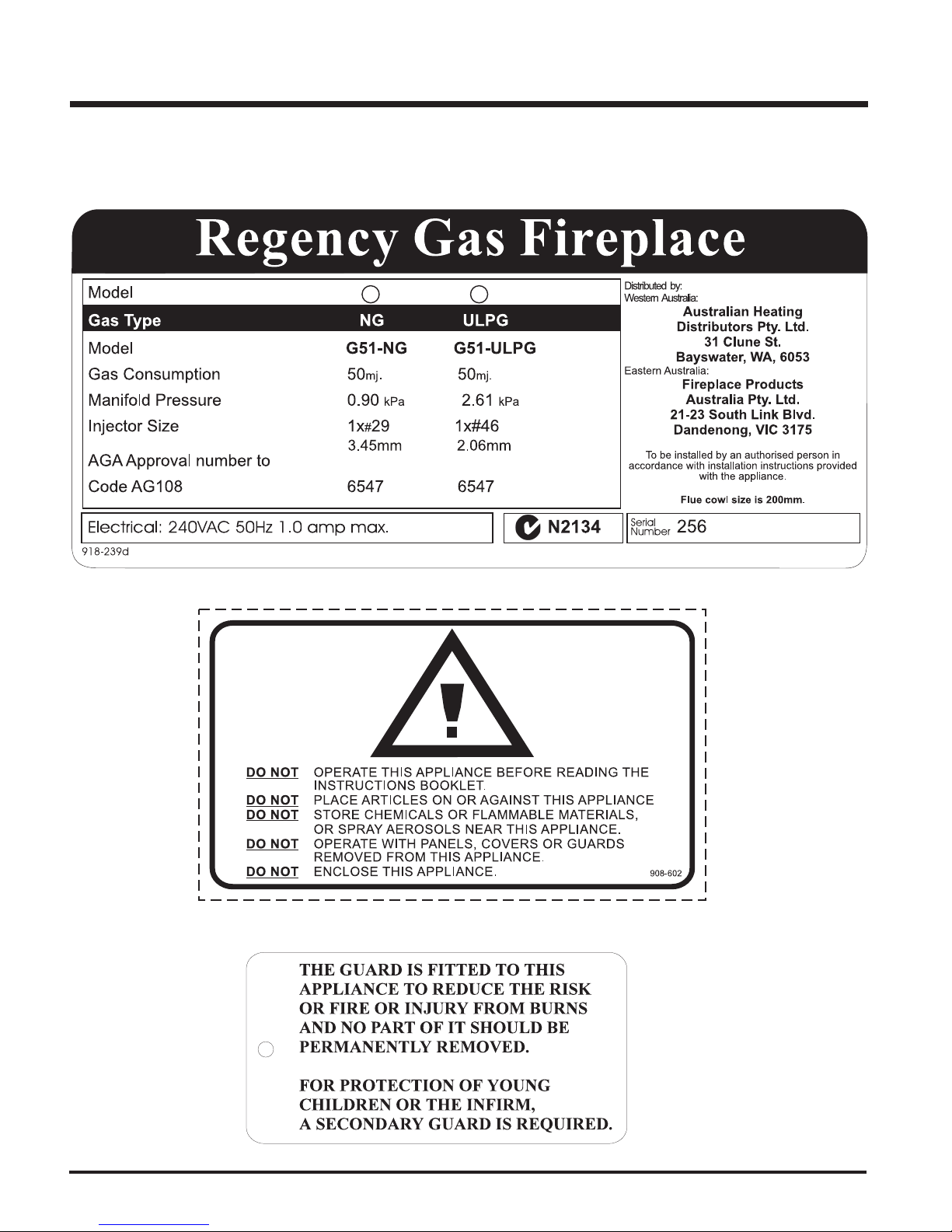

SAFETY LABEL
(Australia Only)
NOTE: Regency units are constantly eing
improved. Check the la el on the unit and if there
is a difference, the la el on the unit is the correct
one.
This is a copy of the la el that accompanies
each G51 Zero Clearance Room Sealed Gas
Fireplace.

Regency G51 UltraGlow 5
UNIT DIMENSIONS

Regency G51 UltraGlow
6
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The Regency Gas Fireplace must e installed in
accordance with these instructions. Carefully
read all the instructions in this manual first.
Note: Failure to ollow these instructions
could cause a mal unction o the
heater which could result in death,
serious bodily injury, and/or prop-
erty damage. Failure to ollow these
instructions may also void your
ire insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper com us-
tion. Always provide adequate com ustion
and ventilation air. Follow instructions and in-
formation in the current AS5601-2004, NZS
5261 or local codes. Consult the "authority
having jurisdiction" to determine the need for a
permit prior to starting the installation.
GAS PIPE TESTING
The appliance must e isolated from the gas
supply piping system y closing its individual
manual shutoff valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 3.45 kPa.
Speci ications:
Fuel: NG or ULPG
Electrical: 240 volt 50 hz system
Fan/Blower: 2-speed, 127 CFM
Log Sets: Ceramic fi re
BEFORE YOU START
Installation is to be carried out ONLY by an
authorised person.
1) The appliance shall e installed in accord-
ance with the manufacturer's installation
instructions, local gas fitting regulations,
municipal uilding codes, water supply reg-
ulations, electrical wiring regulations, with
AS5601-2004. (AGA gas installation code)
NZS 5261 (New Zealand)
2) Installation and repair should be done
ONLY by an authorised person.
3) The appliance should e inspected efore
use and at least annually y an authorised
service person. More frequent cleaning
may e required due to excessive lint from
carpeting, edding material, etc. It is imper-
ative that control compartments, urners
and circulating air passageways of the
appliance e kept clean and free from
excessive lint from carpeting.
4) See general construction and assem ly
instructions. This appliance may only e
installed in a flued, non-com usti le fire-
place. The appliance and flue should e
enclosed when installed or passing through
a living area, where children may come in
contact with it. For combustible enclo-
sure use zero clearance Kit # 390-900.
5) Always connect this space heater to a
chimney and flue to the outside of the
uilding envelope. Never flue to another
room. Make sure that the flue is properly
sized and is of adequate height to provide
the proper draft.
6) Inspect the flueing system annually for
lockage and any signs of deterioration.
7) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
INSTALLATION
CHECKLIST
The Regency Gas Insert is installed as listed
elow.
1) Unit Location - check Clearances to Com-
usti les on page 7.
2) Make the gas connections, see page 7.
3) Install flue gather to unit, see page 8.
4) Install flue pipe to gather collar.
5) Install valve tray and urner, see pages 10-
11.
5) Test gas pressure, page 8. Check aeration,
page 8.
6) Test for flue spillage, page 8.
7) Install the optional rick panels. See page
15.
8) Install the log set. See page 12.
9)Final check: Before leaving this unit with
the customer, the installer must ensure that
the appliance is firing correctly. This in-
cludes:
a) Clocking the appliance to ensure the
correct firing rate.
b) Adjusting the primary air, if required, to
ensure that the flame does not car on.
c) Ensuring that the appliance is flueing
correctly.
MATERIALS REQUIRED
No electric power supply is required for the gas
control to operate. A 240 Volt AC power cord
is hooked up to the fan switch and lower. Plug
3 wire cord into a suita le receptacle. Do not
cut the ground terminal off under any circum-
stances.
When connected with 240 volts, the appliance
must e electrically grounded in accordance
with local codes.

Regency G51 UltraGlow 7
INSTALLATION
GAS CONNECTION
2004.
3) Locate the center point where the flue will
pass through the chimney a ove the appli-
ance. Move the appliance into the exact
location where it is to e installed. Ensure
that the Insert is level.
GAS C NNECTI N WARNING:
nly persons licensed to work with
gas piping may make the necessary
gas connections to this appliance.
1) If the appliance is to e installed into an
existing chimney system, thoroughly clean
the masonry or factory uilt fireplace.
2) The gas line should e rigid pipe. Copper
may also e used if approved y AS5601-
MINIMUM FIREPLACE
DIMENSIONS
The minimum fireplace dimensions for the Re-
gency gas space heater are shown in the
following diagrams:
NOTE: A non-combustible mantel may be
installed at a lower height i the
raming is made o metal studs
covered with a non-combustible
board.
MINIMUM
CLEARANCES TO
COMBUSTIBLES
The minimum fireplace clearances for the Re-
gency gas space heater are shown in the
following diagrams:
From Unit
Sides A 305 mm
Ceiling B 914 mm
Mantel C 204mm
Floor H 100mm
Min. Alcove Width K 1435 mm
Max. Alcove Depth L 915 mm
Mantle D 305mm
SPECIFICATIONS
NG ULPG
INJECTOR #29 #46
SIZE 3.45mm 2.06mm
INPUT Min. 25 mj/h Min. 23 mj/h
RATING Max. 50 mj/h Max. 50 mj/h
SUPPLY Min. 1.13k Pa Max. 2.75 kPa
PRESSURE
REGULATOR
TEST POINT Max. 0.90 kPa Max. 2.61 kPa
PRESSURE

Regency G51 UltraGlow
8
INSTALLATION
TEST FOR FLUE
SPILLAGE
A "spillage" test must be made be ore
the installed unit is le t with the custom-
er. Follow the procedure below:
1) Start all exhaust fans in the home and then
close all external doors and windows in the
house.
2) Light the unit and set controls to maximum.
Turn fan off.
3) After five minutes, test that there is a pull
on the flue y placing a smoke match,
cigarette or similar device which gives off
smoke, in position as shown.
Light a match close to centre. Check
i smoke is drawn inside lue.
Diagram 1
GAS AERATION
SETTING
The urner aeration is factory set ut may need
adjusting due to either the local gas supply, air
supply or altitude. This adjustment is per-
formed y the installer.
NG: 5 mm open
ULPG 10 mm open
Note: Any damage due to carboning re-
sulting rom improperly setting
the aeration controls is NOT cov-
ered under warranty.
FLUEING
THE APPLIANCE MUST NOT BE CONNECTED
TO A CHIMNEY FLUE SERVING A SEPARATE
SOLID FUEL BURNING APPLIANCE.
This appliance is designed to attach to a 200 mm
diameter type B-Vent or listed gas fuel type vent
liner running the full length of the chimney. A flue
height of 3.6 m. is recommended, the minimum
eing 1.53 m.
Periodically check that the flue is unrestricted
and an adequate draft is present when the unit
is in operation.
Before installing flue system ensure that the
damper plate is open and secure to prevent the
damper plate from falling down and crushing
the liner.
Install to AS5601-2004, (Australia) NZS 5261
(New Zealand).
Combustion and Ventilation Air
WARNING: This appliance needs fresh
air for safe operation and must be in-
stalled with provisions for adequate
combustion and ventilation air available
to the room in which it is to be operating
Air for com ustion is drawn in through the front
of the unit, therefore, the front of the unit must
e kept clear of any o structions.
GAS PRESSURE TEST
The unit is preset to give the correct gas input
rate. The pressure setting at the test point is:
NG 0.90 kPa
ULPG 2.61 kPa
and is measured at the adjusta le pressure
regulator with the appliance operating on "high".
The pressure check should e carried out with
the unit urning and the setting should e within
the limits specified.
INSTALLATION OF
FLUE GATHER
1) Line up flue gather with the holes on the
fire ox.
2) Secure in place with 16 screws.
Outlet Pressure
Test Point: Factory Set
Do Not Measure or Adjust.

Regency G51 UltraGlow 9
CONVERSION KIT FROM NATURAL GAS TO ULPG #390-969
FOR G 1 USING SIMPLOSIT GAS VALVE
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION !!
Conversion Kit Contains:
Qty. Part # Description
1 390-526 ULPG Burner
1 390-511 ULPG Valve Tray
1 918-272 Decal "Converted to ULPG"
1 918-271 Instruction Sheet
1) Shut off the gas supply.
2) Remove logs.
3) Open valve cover.
8) Install the ULPG Valve Tray. See instruc-
tions on page 10.
9) Check gas aeration setting on ULPG urner.
10) Install the ULPG Burner. See instructions on
page 11.
11) Re-install logs.
12) Close valve cover.
13) Light the urner.
14) Check for gas leaks.
15) Check the pressure of the regulator test
point:
NG 0.90kPa
ULPG 2.61 kPa
16) Check operation of flame control.
17) Check for proper flame appearance and
glow on logs.
18) Attach the clear la el "This unit has een
converted to ULPG" near or on the serial #
decal.
4) Remove the NG urner y removing the
screw which secures the urner to the
valve tray.
Remove Scre
5) Remove the valve shield y removing the
screw.
Valve Shield Scre
6) Disconnect the unit to the gas line from the
flex pipe.
Flex Pipe Gas Line
7) Remove the 4 screws which secure the
valve tray to the fire ox and remove.
Remove valve tray.
INSTALLATION
Regulator
Test point

Regency G51 UltraGlow
10
VALVE TRAY
INSTALLATION
1) Line up valve tray with 4 holes in fire ox and secure with screws.
Secure valve tray
ith 4 scre s.
2) Connect the unit to the gas line using a flex pipe.
Flex Pipe Gas Line
3) Place the valve shield over the valve and secure with screw.
Valve Shield Scre
INSTALLATION
4) Install the valve cover y aligning it with the 3 holes in the fire ox
and secure with screws.
Valve Cover

Regency G51 UltraGlow 11
INSTALLATION
BURNER
INSTALLATION
Burner Tube Orifice
1) Fit urner tu e into orifice.
2) Secure urner to the valve tray using one screw.
Scre location
in valve tray.
Secure burner to
valve tray.
3) Close valve cover.
Valve Cover

Regency G51 UltraGlow
12
Care ully read the instructions below and re er to the diagrams.
I logs are broken do not use the unit until they are replaced.
Broken logs can inter ere with the pilot operation.
The gas log kit (Part #390-930) contains the following pieces:
a) 02-55 Middle Left Log 902-237
) 02-52 Middle Right Log 902-240
c) 02-51 Front Bottom Log 902-241
d) 02-50 Front Left Log 902-242
e) 02-95 Rear Log 902-375
f) 02-96 Center Left Log 902-376
g) 02-97 Center Right Log 902-377
i) Em ers Lava 902-156
02-51
02-96
02-50
02-55
02-95
02-97
02-52
The "02" reference numbers (i.e. 02-55) are
moulded into the rear/bottom of each log.
LOG SET
INSTALLATION
1) Carefully remove the logs from the ox and unwrap them. The logs are
fragile, handle with care - do not orce into position.
2) Place Log 02-95 on the 2 rear log support pins with the flat side of the
log to the ack.
Pins
02-95
02-95
3) Place Log 02-51 on the front right side of the urner. Push the ack
of the log against the 2 rackets with the notch on the ottom right
side of the log fitting onto the side of the grate.
02-51
02-95
Brackets
Rest notch on right
side of grate.
4) Position Log 02-96 across the cutouts in Logs 02-95 and 02-51 with
the notch on the ottom left side of the log fitting into the 2nd grate
ta .
02-95
02-51
02-96
Cutouts
INSTALLATION

Regency G51 UltraGlow 13
Front Brackets
02-50
02-95
02-51
02-96
Fit notch into 2nd grate tab.
5) Place the ottom left front edge of Log 02-55 against the rear racket
on the urner tray and rest the log on the cutout in Log 02-96.
02-96
02-55
Rear Bracket
02-96
02-55
6) Sit Log 02-50 on the front left side of the urner. Push the ack of the
log against the 2 front rackets with the notch on the ottom of the log
fitting onto the side of the grate.
02-50
Fit notch onto left side of grate.
7) Position Log 02-97 across the cutouts in Logs 02-51 and 02-96.
Fit the notch in the ottom right end of the log against the 5th grate
ta .
02-97
Cutouts
02-97
8) Place Log 02-52 ehind Logs 02-51 and 02-97 and rest the top end
of the log on the cutout in Log 02-97. The ottom right end of the log
goes ehind the racket at the ack of the grate.
Bracket to ards
back of grate.
hoto shows rear of
grate.
Log 02-51 was removed
to show bracket.
02-97
Cutout
02-96 02-51
INSTALLATION
Fit notch into 5th grate tab.

Regency G51 UltraGlow
14
INSTALLATION
Log 02-51 was removed to show
placement of Log 02-52.
BracketCutout
02-52
02-97
9) Place the em ers lava on the front of the urner tray as shown in
the circled areas in the picture elow.
Ensure not to block the burner ports.
Embers Lava
02-95
02-50 02-55
02-52
02-97
02-51
02-96
10) Test fire to ensure proper light off (make sure flame flows smoothly
from one end of urner to the other). If there is any flame hesitation,
check that area for any lockage of the urner ports.
11) Install screen door as per instructions in this manual.

Regency G51 UltraGlow 15
OPTIONAL
BRICK PANELS
1) Remove screen door, if used.
2) Carefully unwrap the rick panels from the
protective wrapping.
NOTE: The logs must not be in the unit.
3) Insert the ack rick panel first y carefully
slipping it etween the ack wall of the
fire ox and rear log rackets.
4) Slide the side panels in from the front and
push them flat up against the wall. Be very
careful not to scratch them on the fire ox
hardware.
5) Install the rick retaining clips, one on each
side to secure the side rick panels in
place.
INSTALLATION
OPTIONAL
FINISHING TRIM
1) Fit the left side finishing trim onto the fire ox
y sliding the cut-outs on the finishing trim
through the screws on the side of the
fire ox.
Once trim is fitted in place, secure y
tightening the 2 screws. Repeat for right
side.
2) Fit top finishing trim onto fire ox. Ensure
cut-outs in trim lineup with screws on
fire ox.
Secure in place y tightening the 3 screws
once fitted in place.
Left Side
Finishing
Trim
Top Finishing Trim
6) Re-install screen door, if used.

Regency G51 UltraGlow
16
INSTALLATION
OPTIONAL SCREEN
INSTALLATION
1) Install the top right racket to the top right
side of the louver using 2 screws.
2) Install the ottom right racket to the ottom
right side of the fire ox using 2 screws.
Top Louver
Top Right
Bracket
3) Install the side trim to the left side of the
fire ox using 2 screws.
The top screw gets secured to the top
louver and the ottom screw is secured to
the side of the fire ox.
Firebox Bottom Right
Bracket
Pin in ScreenTop Right
Bracket Spring Loaded Pin
Bottom Right
Bracket
Side Trim
Scre loca-
tions.
Top Right
Bracket
Location
Bottom Right
Bracket
Location
4) Fit the pin on top of the screen into the pin
hole located in the top right racket.
Pull up the spring loaded pin at the ottom of
the screen and rest it in the pin hole of the
ottom right racket.
Side Trim

Regency G51 UltraGlow 17
INSTALLATION
WIRING
CAUTI N: Label all wires prior to
disconnection when servicing con-
trols. Wiring errors can cause im-
proper and dangerous operation.
This heater does not require a 240V A.C. supply
for the gas control to operate. A 240V A.C.
power supply is needed for the fan/ lower
operation.
Caution: Ensure that the wires do
not touch any hot surfaces and are
away from sharp edges.
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged (grounding) plug for your
protection against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle Do not cut or remove the grounding prong
from this plug

Regency G51 UltraGlow
18
OPERATING INSTRUCTIONS
4) Fully press the ignition utton and ignite the
pilot urner y continously depressing the
piezo ignitor. Once the pilot has lit, continue
holding in the ignition utton for approxi-
mately 10 seconds to ensure the pilot stays
on. If it goes out, wait 1 minute and repeat
the ignition operations.
Normal Operation:
Depress the ignition utton again to ignite the
urner.
Flame Selection:
Press the flame utton for the flame adjustment.
For minimum flame, depress the utton. For
maximum flame, release the utton.
Pilot Position:
Depress the ignition utton to turn off the urner
flame. The indicator should show the ignition
sym ol.
5) Close valve cover.
6) Close screen door.
SHUTDOWN
PROCEDURE
Turn OFF the shut off valve to shut down the pilot
and urner.
Always install screen door during operation to
reduce risk of injury.
FIRST FIRE
The first fire in your stove is part of the paint
curing process. To ensure that the paint is
properly cured, it is recommended that you urn
your fireplace for at least four (4) hours the first
time you use it with the fan on. When first
operated, the unit will release an odour caused
y the curing of the paint, the urning off of any
oils remaining from manufacturing. Smoke de-
tectors in the house may go off at this time. Open
a few windows to ventilate the room for a
couple of hours.
NORMAL OPERATING
SOUNDS OF
GAS APPLIANCES
It is possi le that you will hear some sounds
from your gas appliance. This is perfectly
normal due to the fact that there are various
gauges and types of steel used within your
appliance. Listed elow are some examples. All
are normal operating sounds and should
not e considered as defects in your appliance.
Blower:
Regency gas appliances use high tech low-
ers to push heated air farther into the room. It
is not unusual for the fan to make a "whirring"
sound when ON. This sound will increase or
decrease in volume depending on the speed
setting of your fan speed control.
Burner Tray:
The urner tray is positioned directly under the
urner tu e(s) and logs and is made of a
different gauge material from the rest of the
fire ox and ody. Therefore, the varying thick-
nesses of steel will expand and contract at
slightly different rates which can cause "tick-
ing" and "cracking" sounds. You should also e
aware that as there are temperature changes
within the unit these sounds will likely re-occur.
Again, this is normal for steel fire oxes.
Pilot Flame:
While the pilot flame is on it can make a very
slight "whisper" sound.
Gas Control Valve:
As the gas control valve turns ON and OFF, a
dull clicking sound may e audi le, this is normal
operation of a gas regulator or valve.
Unit Body/Firebox:
Different types and thicknesses of steel will
expand and contract at different rates resulting
in some "cracking" and "ticking" sounds will e
heard throughout the cycling process.
OPERATING
INSTRUCTIONS
Before operating this appliance, proceed
through the following check list.
1) Read and understand these Instructions
efore operating this appliance.
2) Check to see that all wiring is correct and
enclosed to prevent possi le shock.
3) Check to ensure there are no gas leaks.
4) Verify that all flueing and the cap is uno -
structed.
5) Verify log placement. If the pilot cannot e
seen when lighting the unit - the logs or the
em ers have een incorrectly positioned.
6) The unit should never e turned off and on
again without a minimum wait of 60 sec-
onds.
LIGHTING
PROCEDURE
1) Open screen door.
2) Open valve cover.
3) Turn ON the shut off valve.
Shut off Valve

Regency G51 UltraGlow 19
OPERATING INSTRUCTIONS
COPY OF LIGHTING PLATE INSTRUCTIONS
ANY SERVICING OR REPAIRS
SHOULD BE CARRIED OUT ONLY BY AN
AUTHORISED PERSON.
A) This appliance has a pilot which must be lighted by
hand. When lighting the pilot, ollow these in-
structions exactly.
B) BEFORE LIGHTING smell all around the appliance
area or gas. Be sure to smell next to the loor
because some gas is heavier than air and will
settle on the loor.
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance
- Do not touch any electric switch, do not use any
phone in your building
- Immediately call your gas supplier rom a neigh-
bours phone. Follow the gas suppliers instruc-
tions.
- I you cannot reach your gas supplier, call the ire
department.
C) Use only your hand to push in or turn the gas
control knob. Never use tools. I the knob will not
push in or turn by hand, dont try to repair it, call a
quali ied Service technician. Force or attempted
repair may result in a ire or explosion.
D) Do not use this appliance i any part has been
under water. Immediately call a quali ied service
technician to inspect the appliance and to replace
any part o the control system and any gas control
which has been under water.
This appliance needs resh air or sa e operation and
must be installed so there are provisions or ad-
equate combustion and ventilation air.
CAUTION: Hot while in operation. Do not touch. Severe
Burns may result. Due to high sur ace temperatures
keep children, clothing and urniture, gasoline and
other liquids having ammable vapors away. Keep
burner and control compartment clean. See installa-
tion and operating instructions accompanying appli-
ance.
F R Y UR SAFETY READ
BEF RE LIGHTING
This appliance must be installed in accordance with local
codes, i any; i not, ollow current CAN1-B149/ANSI
Z223.1 Australia: AS5601-2004/New Zealand: NZS 5261.
WARNING: I you do not ollow these instructions exactly,
a ire or explosion may result causing property damage,
personal injury or loss o li e. Improper installation,
adjustment, alteration, service or maintenance can cause
injury or property damage. Re er to the owners in orma-
tion manual provided with this appliance. For assistance
or additional in ormation consult a quali ied installer,
service agency or gas supplier.
LIGHTING INSTRUCTI NS
1) Open screen door, i used.
2) Open valve cover.
3) Turn ON the shut o valve.
4) Fully press the ignition button and ignite the
pilot burner by continously depressing the
peizo ignitor. Once the pilot has lit, continue
holding in the ignition button or approximately
10 seconds to ensure the pilot stays on. I it
goes out, wait 1 minute and repeat the ignition
operations.
STOP! Read the sa ety in ormation above on this label.
Normal Operation:
Press and release the ignition utton again to ignite the urner.
Flame Selection:
Press the flame utton for the flame adjustment. For minumum
flame, depress the utton. For maximum flame, release the
utton.
Pilot Position:
Press and release the ignition utton to turn off the urner
flame. The indicator should show the ignition sym ol.
5) Close valve cover.
6) Close screen door, i used.
T TURN FF GAS APPLIANCE
918-249
DO NOT REMOVE THIS INSTRUCTION PLATE
You may shut off the pilot during prolonged
non use periods to conserve fuel.
Turn OFF the shut o valve to shut down the pilot and
burner.
Always install screen door during operation to reduce
risk o injury.

Regency G51 UltraGlow
20
MAINTENANCE
Top Vie of pilot flame
Correct lame pattern has two strong
blue lames: 1 lowing around the ther-
mocouple and 1 reaching towards the
rear burner (it does not have to be touch-
ing the burner).
Top Vie of pilot flame
Incorrect lame pattern will have small,
probably yellow lames, not coming into
proper contact with the rear burner or
thermocouple.
CL THING R THER FLAMMA-
BLE MATERIAL SH ULD N T BE
PLACED N R NEAR THE APPLI-
ANCE.
6) Verify proper operation after servicing.
7) Periodically check the pilot flames, there
should e two strong lue flames approx.
3/4" long - 1 flame to the front urner, and
1 to the thermocouple. See diagrams e-
low.
WARNING
Do not spray aerosols in the
vicinity of this appliance while in
operation.
If you have an incorrect flame pattern, contact
your Regency dealer for further instructions.
LOG REPLACEMENT
The unit should never e used with roken logs.
Turn off the gas valve and allow the unit to cool,
carefully remove the logs. The pilot light gener-
ates enough heat to urn someone. If for any
reason a log should need replacement, you
must use the proper replacement log. The po-
sition of these logs must e as shown in the
diagrams under Log Set Installation.
NOTE: Improper positioning o logs may
create carbon build-up and will al-
ter the units per ormance which
is not covered under warranty.
MAINTENANCE
INSTRUCTIONS
1) Always turn the gas valve off efore clean-
ing. For relighting, refer to lighting instruc-
tions. Keep the urner and control compart-
ment clean y rushing and vacuuming at
least once a year.
When cleaning the logs, use a clean soft
paint rush as the logs are fragile and easily
damaged.
2) Clean (never when unit is hot) appliance,
door and louvres with a damp cloth. Never
use an a rasive cleaner.
The heater is finished in a heat resistant
paint and should only e refinished with
heat resistant paint (not with wall paint).
Regency uses StoveBrite Paint - Metallic
Black #6309.
3) Make a periodic check of urner for proper
position and condition. Visually check the
flame of the urner periodically, making
sure the flames are steady; not lifting or
floating. If there is a pro lem, call an author-
ised service person.
4) The appliance and flueing system must e
inspected efore use, and at least annual-
ly, y an authorised field service person, to
ensure that the flow of com ustion and
ventilation air is not o structed.
During the annual service call, the urners
should e removed from the urner tray
and cleaned. Replace the em ers ut do not
lock the pilot.
5) Keep the area near the appliance clear and
free from com usti le materials, gasoline
and other flamma le vapours and liquids.
WARNING: CHILDREN AND
ADULTS SH ULD BE ALERTED
T THE HAZARDS F HIGH SUR-
FACE TEMPERATURE AND
SH ULD STAY AWAY T AV ID
BURNS R CL THING IGNITI N.
Y UNG CHILDREN SH ULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME R M
AS THE APPLIANCE.
CAUTI N: ANY SAFETY SCREEN
R GUARD REM VED F R SERV-
ICING AN APPLIANCE MUST BE
REPLACED PRI R T PERAT-
ING THE APPLIANCE.
