Regency P33S-NG Quick start guide

WARNING:
If the information in these instructions are not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
918-803
Regency P33 Sunrise™
Gas Fireplace
07/08/09
Owners &
Installation Manual
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
LISTINGS AND CODE APPROVALS
These gas appliances have been
tested in accordance with AS4558,
NZS 5262 and have been certified
by the Australian Gas Association for
installationandoperationasdescribed
in these Installation and Operating
Instructions.
Your unit should be serviced
annually by an authorised service
person.
MODELS: P33S-NG
P33S-LP
P33S-ULPG
www.regency-fire.com.au

Regency P33 SunriseTM Gas Fireplace
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The P33 Sunrise™
has been designed to provide you with all the warmth and charm of a fire at the flick of a
switch. The model P33 Sunrise™ has been approved by AGA -Australian Gas Association
for both safety and efficiency. As it also bears our own mark, it promises to provide you with
economy, comfort and security for many trouble free years to follow. Please take a moment
now to acquaint yourself with these instructions and the many features of your Regency®
Fireplace.

Regency P33 SunriseTM Gas Fireplace 3
TABLE OF CONTENTS
DATA BADGE
Data Badge....................................................................4
DIMENSIONS
Unit Dimensions ............................................................5
INSTALLATION
Important Message ......................................................6
Before You Start ............................................................6
General Safety Information............................................6
Installation Checklist......................................................7
Locating Your Gas Fireplace .........................................7
Clearances ....................................................................8
Mantel Clearances.........................................................9
Mantel Leg Clearances..................................................9

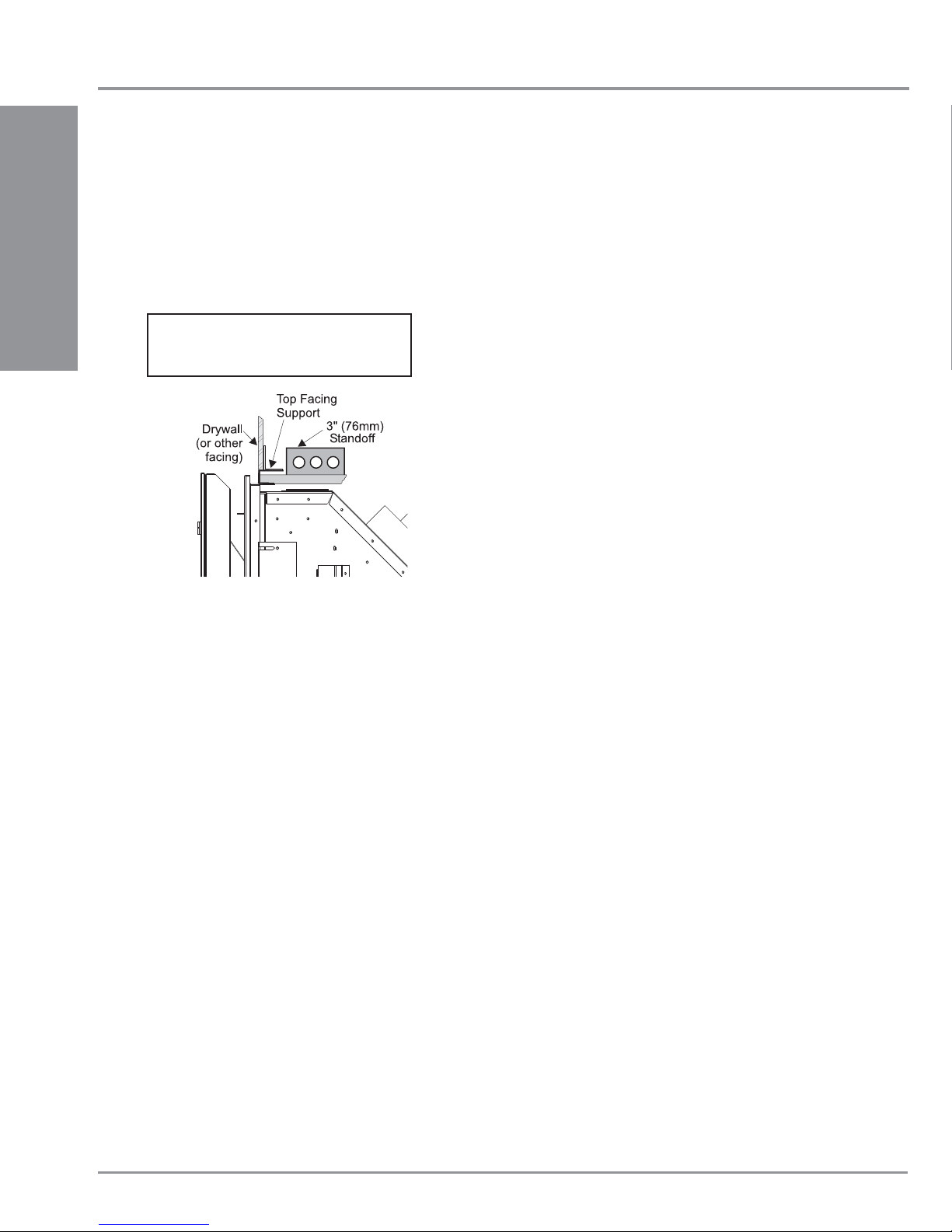

Framing & Finishing.....................................................10
Framing Dimensions....................................................11

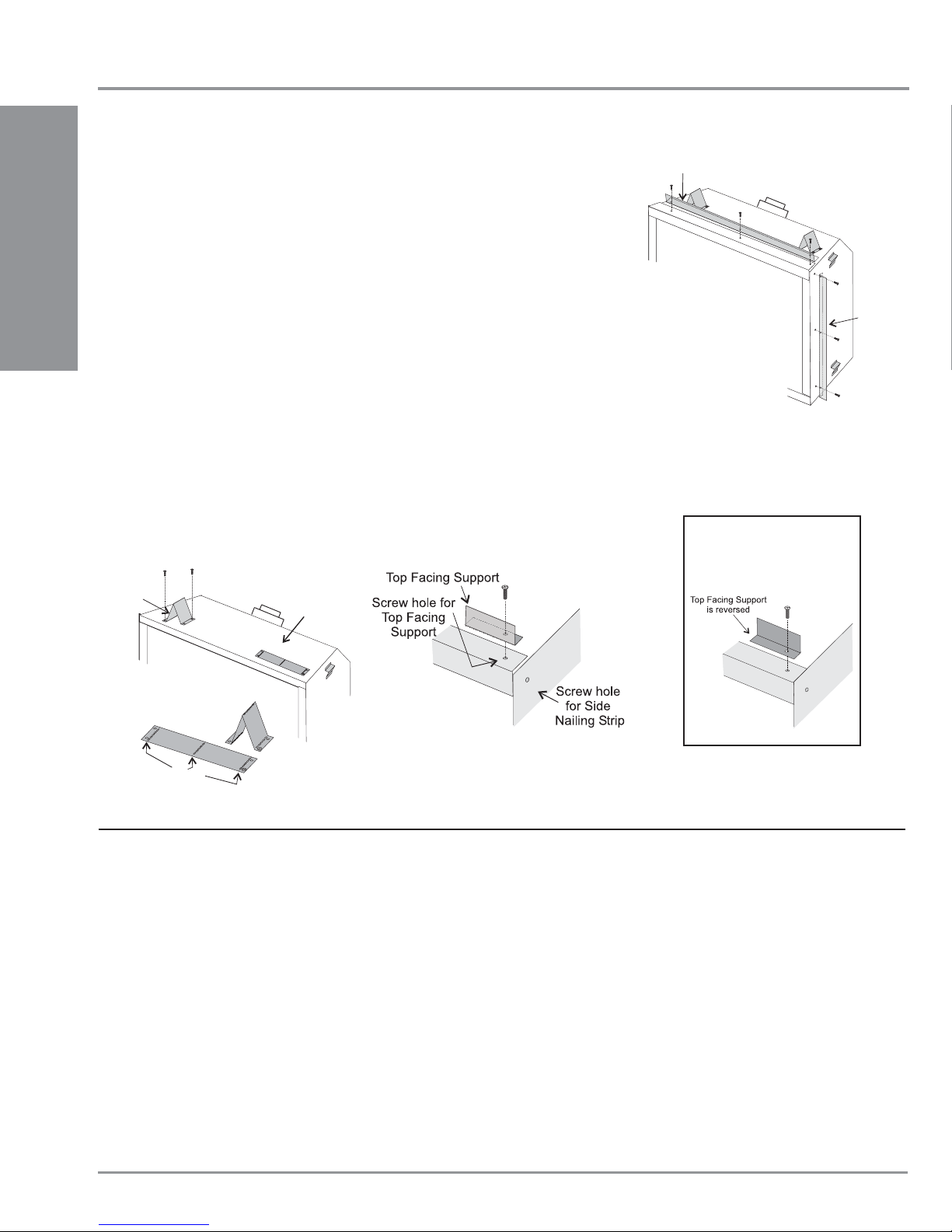

Unit Assembly Prior to Installation...............................12
Venting Introduction.....................................................12

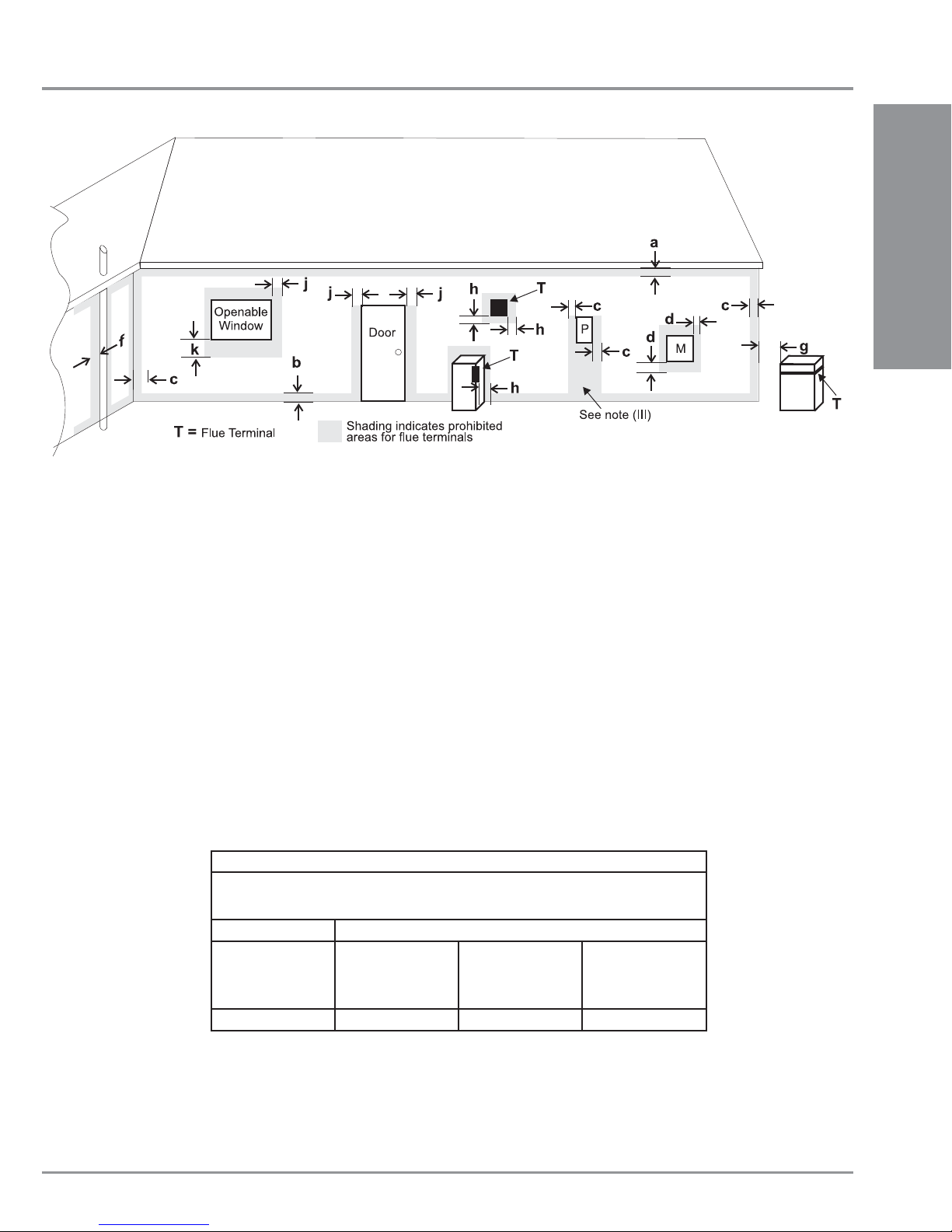

Exterior Flue Termination Locations............................13
Regency®Direct Vent flex System ..............................14
Rigid Pipe Venting Systems ........................................15
4" X 6-5/8" Rigid Pipe Cross Reference Chart............16
Rigid Pipe Venting Arrangements ...............................18
Venting Arrangements - Vertical Terminations ............19
Unit installation with Horizontal termination.................24
Unit installation with Vertical Termination ....................25
Gas Line Installation....................................................25
Pilot Adjustment...........................................................26
High Elevation .............................................................26
S.I.T. Valve Description................................................26
Gas Pipe Pressure Testing..........................................26
Conversion from NG to LPG........................................27
Conversion from NG to ULPG.....................................29
DC Spark Box Battery Replacement...........................31
DC Spark Box Replacement........................................31
Optional Wall Thermostat ...........................................32
Optional Remote Control.............................................32
Wall Switch..................................................................32
Aeration Adjustment ....................................................33
Wiring Diagram ...........................................................33
Optional Stainless Steel ..............................................34
Reflective Panel Installation ........................................34
Glass Crystal Installation On Burner ...........................35
Optional pebble Installation On firebox base...............35
Glass Door installation.................................................36
Standard Flush Door ...................................................36
Screen Installation.......................................................37
Faceplate Installation...................................................38
OPERATING INSTRUCTIONS
Operating Instructions .................................................40
First Fire ......................................................................40
Lighting Procedure ......................................................40
Shutdown Procedure...................................................40
Normal Operating Sounds of Gas Appliances.............40
Copy of Lighting Plate Instructions..............................41
MAINTENANCE
Maintenance Instructions.............................................42
General Vent Maintenance..........................................42
Thermopile / Thermocouple.........................................42
Glass Door...................................................................42
Glass Replacement .............................................42
Valve Tray Replacement..............................................43
Removing Valve...........................................................43
Installing Valve.............................................................43
Trouble shooting guide.................................................44
PARTS LIST
Main Assembly ............................................................46
WARRANTY
Warranty......................................................................47

Regency P33 SunriseTM Gas Fireplace
4
INSTALLATION
DATA BADGE
This is a copy of the label that accompanies each P33 Gas Fireplace.
We have printed a copy of the contents here for your review.
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLE MATERIALS
SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IN OPERATION.
OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
DO NOT MODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NOT
908-602a
(Australia Only)
DATA BADGE NOTE: Regency®units are constantly being improved.
Check the label on the unit and if there is a difference, the label on the
unit is the correct one.
N2134
Regency Gas Fireplace
349
Gas Type NG LPG ULPG
Model P33S-NG P33S-LPG P33S-ULPG
Gas Consumption 18.0 mj. 16.4 mj. 14.8 mj.
Manifold Pressure 0.88 kPa 2.49 kPa 2.49 kPa
Injector Size 1 x #47 1 x #56 1 x #57
1.99mm 1.18 mm 1.09 mm
Model
AGA Approval number to: # 7500
Code AS4558-NZ5262
Distributed by:
Western Australia:
Eastern Australia:
Air Group Australia
28 Division St
Welshpool WA 6106
To be installed by an authorised person in
accordance with installation instructions provided
with the appliance.
Fireplace Products
Australia Pty. Ltd.
21-23 South Link Blvd.
Dandenong, VIC 3175
909-133
“PRIMARILY A DECORATIVE
APPLIANCE NOT CERTIFIED
AS A SPACE HEATER”
WARNING:

Regency P33 SunriseTM Gas Fireplace 5
INSTALLATION
DIMENSIONS
UNIT DIMENSIONS

Regency P33 SunriseTM Gas Fireplace
6
INSTALLATION
11) Undernocircumstancesshouldthisappliance
be modified. Parts that have to be removed
for servicing should be replaced prior to
operating this appliance.
12) Installation and any repairs to this appliance
should be done by an authorized service
person.Aprofessionalservicepersonshould
be called to inspect this appliance annually.
Make it a practice to have all of your gas
appliances checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.) be
used in this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapours and liquids).
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The P33 Sunrise™ Fireplace must be installed
inaccordancewiththeseinstructions.Carefully
read all the instructions in this manual first.
Consult the "authority having jurisdiction" to
determinetheneed for a permit priortostarting
the installation. It is the responsibility of the
installer to ensure this fireplace is installed in
compliancewithmanufacturersinstructionsand
all applicable codes.
BEFORE YOU START
Safeinstallationandoperationofthisappliance
requires common sense, however, we are
required by the safety standards to make you
aware of the following:
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
CLOTHINGOROTHERFLAMMABLE
MATERIALSHOULDNOTBEPLACED
ON OR NEAR THE APPLIANCE.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLIANCE
BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE
A SERIOUS HOUSE FIRE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULDSTAYAWAYTOAVOIDBURNS
OR CLOTHING IGNITION.
GENERAL SAFETY
INFORMATION
1) a) The appliance installation must conform
with local codes or, in the absence of local
codes,withthecurrentCanadianorNational
Gas Codes, CAN1-B149 or ANSI Z223.1
Installation Codes AS5601/AG601.
b) Slight carbon deposition may be possible
on appliances incorporating live fuel effect
to operate with a luminous flame.
2) Theappliancewheninstalled,mustbeelec-
trically grounded in accordance with local
codes,or in theabsence of localcodes with
the current National Electrical Code,ANSI/
NFPA70orCSAC22.1Canadian Electrical
Code / AG5601/AG601.
3) See general construction and assembly
instructions.Theapplianceandventshould
be enclosed.
4) This appliance must be connected to the
specified vent and termination cap to the
outsideofthebuildingenvelope.Nevervent
to another room or inside a building. Make
sure that the vent is fitted as per Venting
instructions.
5) Inspect the venting system annually for
blockage and any signs of deterioration.
6) Ventingterminalsshallnotberecessedinto
a wall or siding.
7)Anysafetyglassremovedforservicingmust
bereplacedpriortooperatingtheappliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Wearglovesandsafetyglassesforprotection
while doing required maintenance.
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.

Regency P33 SunriseTM Gas Fireplace 7
INSTALLATION
INSTALLATION
This includes:
1) Clockingthe appliance toensure thecorrect
firingrate (rate notedonlabel), after burning
appliance for 15 minutes.
2) Ifrequired,adjustingtheprimaryairtoensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
GAS FIREPLACE
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Diagram 1
1) When selecting a location for your fireplace,
ensure that the clearances are met.
2) The appliance must be installed on a flat,
solid, continuous surface For example a
wood,metalorconcretefloororinaraised(on
thewall)application.Theappliance must be
installedonametalorwoodpanelextending
the full width and depth of the appliance.
3) The P33 Sunrise™ Gas Fireplace can be
installed in a recessed position or framed
out into the room as in A, B, C and D. See
Diagram 1.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location (Refer to "Locating Your
Gas fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantle Clearances (Refer to "Mantel
Clearances" section)
d) Framing&FinishingRequirements (Refer
to "Framing & Finishing" section)
e) VentingRequirements(Referto"Venting"
section)
2) Assemble Top and Side Standoffs (Refer to
"Unit Assembly Prior to Installation).
3) Slide unit into place.
4) Installvent(Referto"Venting Arrangement"
sections).
5) Make gas connections (Refer to "Gas Line
Installation section).
Adjust aeration setting depending on
location/fuel used.
6) Test the pilot (Refer to "Pilot Adjustment"
section).
7) TestGasPressure(Referto"GasPipePres-
sure Testing" section).
8) Install 1 AA battery in the DC Sparker
(see P 32).
9) Install standard and optional features.
Refer to the following sections:
a) Optional Stainless Steel Reflective
Panels
b) Glass Crystals or Optional Ceramic
Stones
c) Optional Firebox Base Pebbles
d) Remote Control or Wall Thermostat
e) Faceplate
10) Wall Mounted ON/OFF Switch:
Use the toggle wall switch supplied with the
manual package. Use of a “decor” switch
causeshigherresistancewhichisaproblem
on gas fireplaces.
11) Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.
4) This appliance is Listed for bedroom
installations when used with a listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
5) TheP33Sunrise™GasFireplaceisapproved
for alcove installations, see "Clearances"
section for details.
6) We recommendthatyouplanyourinstallation
on paper using exact measurements for
clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For vent terminations refer to
"ExteriorVent TerminationLocations"
section.

Regency P33 SunriseTM Gas Fireplace
8
INSTALLATION
INSTALLATION
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest
importance that this fireplace and vent system be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: *Front Floor Clearance (min.) 1" (25mm) Underside of Unit
B: *Sidewall (on one side) 7-1/2" (241mm) Side of Unit
C: *Ceiling
(room and/or alcove) 30" (889mm) Top of Unit
D: Alcove Width 48" (1219mm) Sidewall to Sidewall (Minimum)
E: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
B
C
Close to Ceiling
Flue Clearances
Horizontal - Top 2-1/2" 64mm
Horiztonal - Side 1-1/2" 38mm
Horiztonal - Bottom 1-1/2" 38mm
Vertical (Flex Vent) 1-1/2" 38mm
Vertical (Rigid) 1-1/4" 32mm
*Note: All measurements are from the top/side of the unit, not from facade.

Regency P33 SunriseTM Gas Fireplace 9
INSTALLATION
INSTALLATION
MANTEL CLEARANCES
Note: Ensurethepaintthatisusedonthemantel
and the facing is "heat resistant" or the
paint may discolour.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances from side of unit
as per diagram:
Drywall
Mantel Clearances
2
0
12 64
810
2
0
12
6
4
8
10
Top o f
Unit
12" (305mm)
0” - 3-1/2" (89mm)
7-1/2"(191mm)
11"(279mm)
7"(178mm)
9"(229mm)
41"(1041mm)
to floor
or 29”(737mm)
to base of unit
3"(76mm)
Standoff
Side View
Due to the extreme heat this fireplace emits, the
mantelclearancesarecritical.Combustiblemantel
clearances from top of front facing are shown in the
diagram on the right.
Note: A non-combustible mantel may be
installed at a lower height if the framing
is made of metal studs covered with a
non-combustible board.

Regency P33 SunriseTM Gas Fireplace
10
INSTALLATION
INSTALLATION
Note: When constructing the framed opening, please ensure there
is access to install the gas lines when the unit is installed.
3) For exterior walls, insulate the enclosure to the same degree as the
rest of the house, apply vapour barrier and drywall, as per local instal-
lation codes. (Do not insulate the fireplace itself.)
WARNING:Failuretoinsulateandaddvaporbarrierstotheinside
of the exterior wall will result in operational and performance
problems including, but not limited to: excessive condensation
on glass doors, poor flame package, carbon, blue flames etc.
These are not product related issues.
FRAMING & FINISHING
2) Frame in the enclosure for the unit with framing material.
The top of the glass door frame must not be closer than 35" (889mm)
to the ceiling.
Wood,
1) Determine the total thickness of facing material (e.g. drywall, wood
plus ceramic tiles) to allow the finished surface to be flush with the
front of the unit. Total facing thickness can vary from 1/2" (13mm) to
1-1/4" (32mm) thick.
NOTE: Facing material may not protrude beyond unit, otherwise the
optional accesories will not be able to be mounted to the unit.
Install Side Nailing Strips, and Top Facing
Supportbeforeunitisslippedintoposition.
See "Unit Assembly Prior to Installation"
Section
4) Combustible material may be brought up to the top and sides of
the unit and be covered with wood, drywall, ceramic tiles, bricks,
rock or other suitable combustible finishing materials.
Note: Theunitdoesnothavetobecompletelyenclosedinachase.
The clearance on top of the unit is 0" to the standoffs so
combustible building materials can be laid directly on top
ofthestandoffs.Youmustmaintainclearancefromthevent
to combustible materials for flex or for Rigid Vent (Refer
to "Clearances" Section).
5) Use steel studs for framing where the 1-1/2" (38mm) clearance
from the vent to combustible material cannot be maintained.

Regency P33 SunriseTM Gas Fireplace 11
INSTALLATION
INSTALLATION
Framing Dimensions Description P33S
G Framing Width 33-1/4"(845mm)
H Framing Height * 31-3/4" (806mm)
I Framing Rise from Floor 1" (25mm) Min.
J Framing Depth
Horizontal with rise /vertical
Horizontal without rise 19-1/2" (495mm)Vertical /Vertical Rise terminating horizontally 16-1/2" (419mm) Rigid / 12-3/4" (324mm) Flex
K Corner Wall Length 37-1/2" (953mm)
L Corner Facing Wall Width 53-1/4" (1353mm)
M Framed Chase Ceiling* 36" (914mm) Rigid 32" (812mm) Flex
NVent Centerline Height* 30" (762mm) Rigid 26" (660mm) Flex
OGas Connection Height* 1 1/2" (38mm)
P Gas Connection Inset* 4" (102mm)
Q Gas Connection Width* 3" (76mm)
FRAMING DIMENSIONS
NOTE: If this is an outside corner, the
minimum distance between the vent
and the outside corner is 6" (15cm)
with AstroCap termination cap or 12"
(30cm) with RigidVent termination cap.
(For example Dura-Vent)
* Measured from base of unit.
G
H
I
I
M
J
L
K
P
Q
O
N
10" (254mm)
dia. Hole through
wall Vent.
Opening for gas
connection
Top Header
.
Wood, drywall
or other facing
JI
Floor

Regency P33 SunriseTM Gas Fireplace
12
INSTALLATION
INSTALLATION
Before
After
Bend
here
Top Standoff
(flat shipping
position)
Top Standoff
after bending
TheTopFacingSupport,theSideNailingStrips
and the 2 Top Standoffs must be correctly
positioned and attached to the top before the
unit is put into position.
Top Standoff Assembly
The top standoffs are shipped in a flat position
and must be pulled up and bent into the correct
shape.
1) Remove the standoffs from on top of the
firebox by undoing the screws.
2) Takeeachstandoffandbendintothecorrect
shape. Bend up at the bend lines until the
screw holes in the standoff and the pre-
punched screw holes on the firebox top
line-up.
3) Attachthestandoffssecurelytothetopwith
4 screws per standoff.
Note: Secure the standoffs to the holes
closest to the edge of the firebox top.
Top Facing Support &
Side Nailing Strips
Determine the total thickness of facing material
(e.g. drywall, wood plus ceramic tiles) to allow
the finished surface to be flush with the front of
the unit. Total facing thickness can vary from
1/2" (13mm) to 1-1/4" (32mm) thick.
The Top Facing Support & Side Nailing Strips
canbe mounted in variouspositions depending
on the thickness of the facing material.
1) Mount Top Facing Support using the 3
suppliedscrewsinto the three pre-punched
screwholesonthetopfrontoftheunit.Adjust
support to desired facing material depth.
2) Mount Side Nailing Strip using the 3
suppliedscrewsinto the three pre-punched
screw holes at the front sides of the unit.
Adjust support to desired facing material
thickness.
UNIT ASSEMBLY PRIOR TO INSTALLATION
Side
Nailing
Strip
Top Facing
Support
VENTING INTRODUCTION
The P33 Sunrise™ uses the "balanced flue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the
outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing
warm room air up the chimney.
There are 5 vent systems approved for use with the P33S: the Regency®Direct Vent Flex System for Horizontal Terminations only and the Simpson
Dura-Vent, Selkirk Direct-Temp, Amerivent Direct Vent and Security Secure Vent Systems for Horizontal and Vertical Terminations (see following
"Venting" Sections for more details).
Note: These flue pipes must not be connected to any other appliance.
The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate
solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.
(See "Rigid Pipe Venting System" for more details and exceptions).
NOTE: Ensure compliance with the outside vent terminal location before cutting hole as both dimensions must be met.
For a facing material depth of
1-1/4"(32mm), the top facing
support must be reversed.

Regency P33 SunriseTM Gas Fireplace 13
INSTALLATION
INSTALLATION
EXTERIOR FLUE TERMINATION LOCATIONS
Minimum clearances required for balanced flue terminals or
the flue terminals of outdoor appliances
according to AS5601-2004 (AGA gas installation code) or NZS 5262 (New Zealand)
and local authorities having jurisdiction.
Minimum Clearance (mm)
a Below eaves, balconies or other projections:
- Appliances up to 50 MJ/h input 300
- Appliances over 50 MJ/h input 500
b From the ground or above a balcony 300
c From a return wall or external corner 500
d From a gas meter (M) 1000
e From an electricity meter or fuse box (P) 500
f From a drain or soil pipe 150
g Horizontal from any building structure (unless appliance is approved
for closer installation) or obstruction facing a terminal 500
h From any other flue terminal, cowl or combustion air intake 500
j Horizontally from an openable window, door, or non-mechanical air inlet, or
any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)):
- Appliances up to 150 MJ/h input 500
- Appliances over 150 MJ/h input 1500
k Vertically below an openable window, door, or non-mechanical air inlet,
or any other opening into a building, with the exception of sub-floor ventilation
(I) For mechanical air inlets, including spa blowers, the clearance 'j' and 'k' shall be 1500 mm in all cases.
(II) All distances shall be measured vertically or horizontally along the wall to a point in line with the nearest par to of the terminal.
(III)Prohibited area below electricity meter or fuse box extends to ground level.
(IV)A flue terminal of this type shall not be located under a roofed area unless the roofed area is fully open on at least two sides and a free flow of
air at the appliance is achieved.
(see also Note (I)): see table below
Clearance 'k' in mm
Space Heaters All Other Appliances
Up to 50 MJ/h
input
Up to 50 MJ/h Over 50 MJ/h input
to 150 MJ/h input
Over 150 MJ/h
input
150 500 1000 1500

Regency P33 SunriseTM Gas Fireplace
14
INSTALLATION
REGENCY®DIRECT VENT FLEX SYSTEM
Horizontal Terminations Only
This venting system, in combination with the P33S-4 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Austraiian
Gas Association. The location of the termination cap must conform to the requirements in the "Exterior Vent Terminal Locations" Section .
Regency®Direct Vent Flex Termination Kit (Part # 946-513) includes all the parts needed to install the P33S-4 with a maximum run of 2 feet
(0.6m). If installing the P33S-4 with a continuous vent length of more than 2 ft (.6m) to a maximum of 10 ft. (3.0m) use Kit # 946-515 (4 ft) or 946-
516 (10 ft) or see "Rigid Pipe Venting Systems" Section for alternate venting arrangements.
MINIMUM
FLEX KIT CENTER-LINE
MINIMUM
RIGID PIPE CENTER-LINE
AstroCap Flex Kits
16-7/8"(175mm) dia. flexible liner (kit length)
24"(102mm) dia. flexible liner (kit length)
3spring spacers (3)
4thimble (2)
5AstroCap termination cap (1)
6screws (12)
7tube of Mill Pac (1)
8plated screws (8)
9screws #8 x 1-1/2" drill point,
stainless steel (4)
Notes:
1) Liner sections should be continuous
without any joints or seams.
2) Only Flex pipe purchased from Regency®
may be used for Flex installations.
INSTALLATION
Note: - Unit must be raised by 1".

Regency P33 SunriseTM Gas Fireplace 15
INSTALLATION
INSTALLATION
Pipe Length
Vertical
Terminal
Flashing
Adj.Pipe Length
11" - 14-5/8”
90 Elbow
o
Horizontal
Termination Cap
# 946-523/P
Wall Thimble
Vinyl Siding
Standoff (Optional)
Rigid Pipe Adapter
# 510-994
45 Elbow
o
Pipe Length
Horizontal
Termination Cap
#946-523/P
Wall Thimble
Pipe Length
The minimum components required for a basic
horizontal termination are:
1 AstroCap Horizontal Termination Cap
1 45oElbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
For siding other than vinyl furring strips may
be used, instead of the vinyl siding standoff,
to create a level surface to mount the vent
terminal. The Terminal must not be recessed
into siding.
If a Vinyl Siding Standoff is required (it must
be used with vinyl siding), measure to outside
surface of wall without siding and add 2
inches.
16-1/2”
(419mm)
23-3/4”
(603mm)
7-1/4” (184mm)
max. Wall thicknes
with 6” (152mm)
vent length.
This product has been evaluated by AGA for
using a Rigid PipeAdaptor in conjunction with
Duravent Direct-Vent , Selkirk Direct-Temp,
AmeriVentDirectventingandSecuritySecure
Vent systems. Use of these systems with the
Rigid Pipe adaptor is deemed acceptable and
does not affect the listing of components.
WARNING:
Do not combine venting components from
different venting systems.
Exception:However,useofthetheAstroCapTM
is acceptable with all systems.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
Flat Wall Installation
Max. Wall Vent Length
Thickness (mm) Required (mm)
184mm 152mm
260mm 229mm
337mm 305mm
210mm 76mm to 178mm Slip
337mm 76mm to 368mm Slip
The FPI AstroCapTM is certified for installations using FPI venting systems as well as Simpson Dura-Vent®Direct Vent,
American Metal Products Ameri Vent Direct Vent, Security Secure Vent®, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark of FPI Fireplace
Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

Regency P33 SunriseTM Gas Fireplace
16
INSTALLATION
INSTALLATION
Description Simpson
Direct Vent Pro®
Selkirk
Direct Temp™
American Metal
Products®
Amerivent Direct
Metal-Fab™
Sure Seal
Security
Secure- Vent®
ICC Excel
Direct
6” Pipe Length-Galvanized 46DVA-06 4DT-6 N/A 4D6 SV4L6 TC-4DL6
6” Pipe Length-Black 46DVA-06B 4DT-6B N/A 4D6B SV4LB6 TC-4DL6B
7” Pipe Length-Galvanized N/A N/A 4D7 N/A N/A N/A
7” Pipe Length-Black N/A N/A 4D7B N/A N/A N/A
9” Pipe Length-Galvanized 46DVA-09 4DT-9 N/A N/A N/A N/A
9” Pipe Length-Black 46DVA-09B 4DT-9B N/A N/A N/A N/A
12” Pipe Length-Galvanized 46DVA-12 4DT-12 4D12 4D12 SV4L12 TC-4DL1
12” Pipe Length-Black 46DVA-12B 4DT-12B 4D12B 4D12B SV4LB12 TC-4DL1B
18” Pipe Length-Galvanized 46DVA-18 4DT-18 4D18 4D18 SV4LA TC-4DL18
18” Pipe Length-Black 46DVA-18B 4DT-18B 4D18B 4D18B SV4LA TC-4DL18B
24” Pipe Length-Galvanized 46DVA-24 4DT-24 4D24 4D24 SV4L24 TC-4DL2
24” Pipe Length-Black 46DVA-24B 4DT-24B 4D24B 4D24B SV4LB24 TC-4DL2B
36” Pipe Length-Galvanized 46DVA-36 4DT-36 4D36 4D36 SV4L36 TC-4DL3
36” Pipe Length-Black 46DVA-36B 4DT-36B 4D36B 4D36B SV4LB36 TC-4DL3B
48” Pipe Length-Galvanized 46DVA-48 4DT-48 4D48 4D48 SV4L48 TC-4DL4
48” Pipe Length-Black 46DVA-48B 4DT-48B 4D48B 4D48B SV4LB48 TC-4DL4B
60” Pipe Length-Galvanized 46DVA-60 4DT-60 N/A N/A N/A N/A
60” Pipe Length-Black 46DVA-60B 4DT-60B N/A N/A N/A N/A
Adjustable Length 3”-10”-Galvanized N/A N/A N/A 4DAL N/A TC-4DLT
Adjustable Length 3”-10”-Black N/A N/A N/A 4DALB N/A TC-4DLTB
Adjustable Length 7”-Galvanized N/A N/A 4D7A N/A N/A N/A
Adjustable Length 7”-Black N/A N/A 4D7AB N/A N/A N/A
Extension Pipe 8-1/2”-Galvanized 46DVA-08A N/A N/A N/A N/A N/A
Extension Pipe 8-1/2”-Black 46DVA-08AB N/A N/A N/A N/A N/A
Adjustable Length 12”-Galvanized N/A N/A 4D12A N/A SV4LA12 N/A
Adjustable Length 12”-Black N/A N/A 4D12A N/A SV4LBA12 N/A
Extension Pipe 16”-Galvanized 46DVA-16A N/A N/A N/A N/A N/A
Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A N/A N/A
45ºElbow-Galvanized 46DVA-E45 4DT-EL45 4D45L N/A N/A TE-4DE45
45ºElbow-Black 46DVA-E45B 4DT-EL45B 4DT-EL45B N/A N/A TE-4DE45B
45ºElbow Swivel-Galvanized See 46DVA-E45 N/A N/A 4D45L SV4E45 N/A
45ºElbow Swivel-Black See 46DVA-E45B N/A N/A 4D45LB SV4EB45 N/A
90ºElbow-Galvanized 46DVA-E90 4DT-EL90S 4DT-EL90S N/A N/A TE-4DE90
90ºElbow-Black 46DVA-E90B 4DT-EL90SB 4DT-EL90SB N/A SV4EBR90-1 TE-4DE90B
90ºElbow, Swivel-Galvanized See 46DVA-E90 N/A N/A 4D90L SV4E90-1 N/A
90ºElbow, Swivel-Black See 46DVA-E90B N/A N/A 4D90LB SV4EB90-1 N/A
90º Starter Elbow, Swivel-Galvanized N/A N/A N/A 4D90A N/A N/A
Adaptor* N/A N/A N/A 4D90L N/A N/A
Ceiling Support N/A 4DT-CS 4DFSP 4DSP SV4SD TE-4DE45
Cathedral Support Box 46DVA-CS 4DT-CSS 4DRSB 4DRS SV4CSB TE-4DE45B
Wall Support/Band 46DVA-WS 4DT-WS/B 4DWS 4DWS SV4BM N/A
Offset Support 46DVA-ES (N/A - FPI) 4DT-OS N/A N/A SV4SU N/A
Wall Thimble-Black 46DVA-WT 4DT-WT 4DWT 4DWT SV4RSM TE-4DE90
Wall Thimble Support/Ceiling Support 46DVA-DC N/A N/A N/A SV4PF TE-4DE90B
Firestop Spacer 46DVA-FS 4DT-FS 4DFSP 4DFS SV4BF N/A
Trim Plate-Black N/A 4DT-TP 4DFPB 4DCP SV4LA N/A
4" X 6-5/8" RIGID PIPE CROSS REFERENCE CHART
Components from different Manufacturers may not be mixed. Not all Rigid Pipe components are available directly from FPI.

Regency P33 SunriseTM Gas Fireplace 17
INSTALLATION
INSTALLATION
Description Simpson
Direct Vent Pro®
Selkirk
Direct Temp™
American Metal
Products®
Amerivent Direct
Metal-Fab™
Sure Seal
Security
Secure- Vent®
ICC Excel
Direct
Attic Insulation Shield 12” 46DVA-IS N/A@ FPI N/A 4DAIS12 N/A SV4RSA N/A
Attic Insulation Shield - Cold Climates 36” N/A N/A 4DAIS12 N/A N/A TM-4AS
High Wind Vertical Cap 46DVA-VCH N/A N/A N/A N/A TM-4VT
High Wind Horizontal Cap 46DVA-HC N/A N/A N/A N/A TM-4DHT
Horizontal Square Termination Cap See 46DVA-HC 4DT-HHC 4DHC 4DHT SV4CHC-1 TM-4HT
Vertical Termination Cap N/A 4DT-HVC 4DVC 4DVT SV4CGV-1 TM-4VT
Storm Collar 46DVA-08A 4DT-SC 4DSC 4DSC SV4FC TM-SC
Restrictor Disk 46DVA-RD N/A N/A N/A N/A TM-4DS
Extended Vertical Termination Cap 46DVA-VCE N/A N/A N/A N/A N/A
Chimney Conversion Kit A (USA only) 46DVA-KCA N/A N/A N/A N/A TM-4CA6
Chimney Conversion Kit B (USA only) 46DVA-KCB N/A N/A N/A N/A TM-4CA7
Chimney Conversion Kit C (USA only) 46DVA-KCC N/A N/A N/A N/A TM-4CA8
Chimney Conversion Kit Masonry
(USA only)
46DVA-KMC N/A N/A N/A N/A N/A
Wall Firestop 46DVA-WFS N/A N/A N/A N/A TM-4TR
Colinear Flex Connectors 46DVA-ADF N/A N/A N/A N/A N/A
Adjustable Flashing 0/12-6/12 N/A 4DT-ST14 4D12S 4DST14 SV4STC14 TF-4FA
Adjustable Flashing 6/12-12/12 N/A 4DT-ST36 4D36S 4DST36 SV4STC36 TF-4FB
Vinyl Siding Standoff 46DVA-VSS 4DT-VS N/A 4DVS SV4VS TM-VSS
Vinyl Siding Shield Plate N/A 4DT-VSP N/A N/A SV4VS N/A
Snorkel Termination 14” 46DVA-VCH N/A N/A N/A N/A TM-4ST14
Snorkel Termination 36” 46DVA-HC N/A N/A N/A N/A TM-4ST36
Basic Horizontal Termination Kit (A) Disc. 4DT-HKA 4DHTK2 4DHTKA SV-SHK N/A
Horizontal Termination Kit (B) 46DVA-KHA
(Changed Components)
4DT-HKB 4DHTK1 4DHTKB SV-HK N/A
Vertical Termination Kit Disc. 4DT-VKC 4DHTK 4DHTK SV-FK N/A
FPI
946-506/P Vent Guard (Optional) for AstroCap 946-205 Vinyl Siding Shield for Riser Vent Terminal
510-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal
640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap
946-605 Starter Collar Increaser 4” x 6-5/8” to 5” x 8” 946-206 Vinyl Siding Standoff for AstroCap
Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).
Note: Horizontal runs of vent must be level, or have a 1/4” rise for every 1 foot of run towards the termination.
Never allow the vent to run downward - this could cause high temperatures and may present a possible fire hazard.
Offset Pipe Selection: Use this table to determine offset pipe lengths.
Pipe Length
(L)
4” x 6-5/8” Venting For specific instructions on venting components - visit the
manufacturers website listed below.
Run (X) Rise (Y)
0” (0mm) 4-7/8” (124mm) 13-7/8” (340mm) Simpson Direct Vent Pro: www.duravent.com
6” (152mm) 8” (203mm) 16-1/2” (419mm) Selkirk Direct-Temp: www.selkirkcorp.com
9” (229mm) 10-1/8” (257mm) 18-5/8” (473mm) American Metal Products: www.americanmetalproducts.com
12” (305mm) 12-1/4” (311mm) 20-3/4” (527mm) Metal-Fab Sure Seal: www.mtlfab.com
24” (610mm) 20-5/8” (524mm) 29-1/8” (740mm) Security Secure Vent: www.securitychimneys.com
36” (914mm) 29” (737mm) 37-1/2” (953mm) Industrial Chimney Company: www.icc-rsf.com
48” (1219mm) 37-7/16” (951mm) 45-15/16” (1167mm)

Regency P33 SunriseTM Gas Fireplace
18
INSTALLATION
RIGID PIPE VENTING ARRANGEMENTS
Vertical Terminations
The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one 90oelbow, with
rigid pipe vent systems.
INSTALLATION
• Unit must be raised 1" (25mm).
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain clearances to combustibles.
• Vent must be supported at offsets.
Note: Must use optional rigid pipe adapter when using rigid vent systems (Part # 510-994).

Regency P33 SunriseTM Gas Fireplace 19
INSTALLATION
INSTALLATION
VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
with Co-linear Flex System for both
Residential & Manufactured Homes
into Masonry Fireplaces
The shaded area in the diagrams show the allowable vertical terminations.
"THIS UNIT MUST ALWAYS
TERMINATE / VENT
DIRECTLY TO THE OUTDOORS."
The shaded area in the diagrams show
the allowable vertical terminations.
8' (2.4m) Min.
30”
(762mm)
30' (9.1m) Max.
30
Horizontal Distance (Feet)
Vertical Height (feet)
8' (2.4m) Min.
30”
(762mm)
30' (9.1m) Max.
30
Horizontal Distance (Feet)
Vertical Height (feet)
2’ (51mm) max.
8' (2.4m) Min.
30”
(762mm)
30' (9.1m) Max.
30
Horizontal Distance (Feet)
Vertical Height (feet)

Regency P33 SunriseTM Gas Fireplace
20
INSTALLATION
INSTALLATION
16
2
4
6
8
10
12
14
2
0
0
12 20
614
30” (762mm) / 26” (660mm) when using flex
Minimum
Height
Requirement
4810
18
18
16
Vertical Height (Feet)
Horizontal (Feet)
8"(0.2m)
2’ (0.6m)
RIGID PIPE VENTING ARRANGEMENTS
Horizontal Terminations
REGENCY®DIRECT VENT SYSTEM (FLEX)
This diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45oand one 90oelbow (two 45o elbows
equal one 90oelbow).
Note: Must use optional rigid pipe adaptor (Part # 510-994) when using rigid pipe vent systems. (Refer "Rigid Pipe Venting Systems"
Section)
• Maintain clearances to combustibles.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
A vent guard should be used whenever the
terminationislowerthanthespecifiedminimum
or as per local codes.
Note: Regency®DirectVentSystem(Flex)
is only approved for horizontal
terminations.
Minimum
Simpson Dura-Vent Center-Line Minimum
Flex Kit Center-Line
2
0
6
4
8
2
0 6
48
Vertical Height (Feet)
Min. 26”
(660mm)
Horizontal (Feet)
Max. 24"(0.6m)
2
0
6
4
8
2
0 6
48
Vertical Height (Feet)
Min. 30"
(762mm)
Horizontal (Feet)
Max. 24"(0.6m)
"THIS UNIT MUST ALWAYS
TERMINATE / VENT
DIRECTLY TO THE OUTDOORS."
