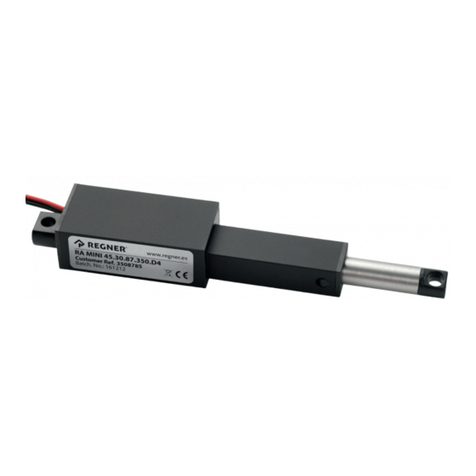

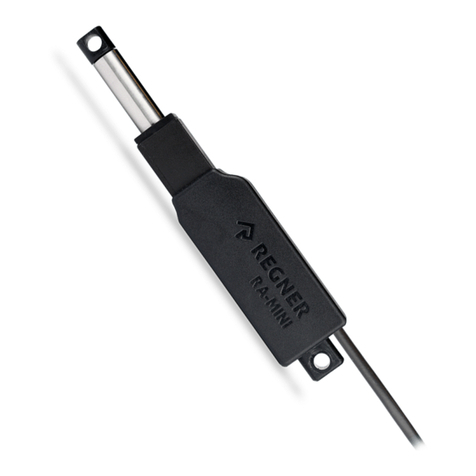

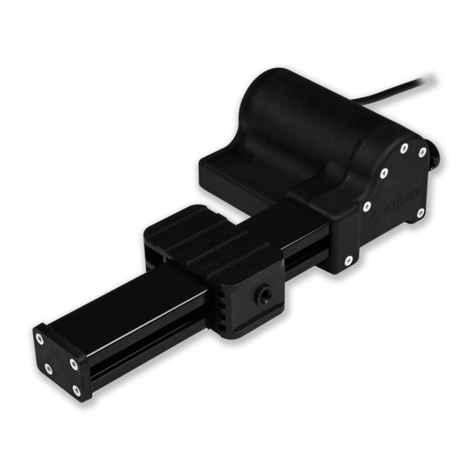

Regner RA MINI Series User manual

RA MINI
IN-LINE ACTUATOR SERIES
User Manual
www.regner.es

RA MINI IN-LINE ACTUATOR SERIES USER MANUAL
© SEPTEMBER 2018 | Regner Engineering SLU | All rights reserved
Specifications are subject to change without prior notice.
It is the responsibility of the product user to determine the suitability of REGNER® products for a specific application.
The product shown in this document is a component.
No part of this publication may be reproduced without written permission from Regner Engineering SLU

3
00. TABLE OF CONTENTS
01. FOREWORD ........................................................................................................................................04
02. SAFETY..................................................................................................................................................04
03. WARRANTY .........................................................................................................................................05
04. SPECIFICATIONS...............................................................................................................................06
05. INSTALLATION ...................................................................................................................................08
06. MAINTENANCE..................................................................................................................................10
07. TROUBLESHOOTING.......................................................................................................................10
08. APPLICATION POLICY ....................................................................................................................11
09. CONTACT..............................................................................................................................................11
RA MINI IN-LINE ACTUATOR SERIES

01. Foreword
Thank you for choosing a REGNER® electric linear
actuator. REGNER® actuators are high-end products,
carefully designed and manufactured with premium
raw materials in Europe. Our products are also
continuously improved to correspond better to the
demands of our customers.
This manual will familiarize you with operational,
maintenance and safety information about the
actuator. We urge you to read this manual carefully
and follow the recommendations to help assure the
highest performance and safe operation.
The REGNER® team
02. Safety
Please read the following safety information care-
fully and ensure that all the people who will use,
connect or install the actuator has the necessary
skills, information and access to this user manual.
02.01. Safety instructions
Please follow these safety guidelines:
• Only properly qualified personeel are permitted
to perform mechanical and electrical installation
of this product.
• Do not mount, dismount or perform mainte-
nance work when the actuator is in operation.
• Check the actuator is correctly mounted before
operation.
• Check the equipment can move freely through-
out the actuator’s whole working area before
operation.
• Check the actuator is connected to a power sup-
ply with the correct voltage and current before
operation.
• Ensure that the connection bolts can withstand
the wear and they are secured safely before
operation.
• Do not sideload the actuator.
• Only use the actuator within the specified work-
ing limits.
• Ensure that the usage temperature and duty
cycle for the actuator are respected.
• Ensure that the cable cannot be pressed upon,
pulled or subjected to any other stress.
• Never unplug any cables or connectors during
operation or with power on.
• Immediately stop using the actuator if it seems
faulty or broken.
RA MINI IN-LINE ACTUATOR SERIES
4

5
• Never try to open the actuator as that will
compromise the sealing and the function of the
actuator.
• Do not step on or kick the actuator.
• Switch off the main supply when the actuator
is not in use in order to prevent unintentional
operation when the actuator is not in use.
• Periodically check the actuator and joints for
extraordinary wear.
• Keep out of reach of children.
02.02. Symbols used
Important safety information is described under the
following two symbols:
WARNING!
Failing to follow these instructions can
cause accidents resulting in serious
personal injury.
CAUTION!
Failing to follow these instructions can result in the
actuator suffering damage or being destroyed.
03. Warranty
There is a warranty on REGNER® products against
manufacturing faults. The warranty period begins on
the purchasing date of the product. The seller is res-
ponsible for nonconformities that become apparent
within the time stipulated by the applicable law.
Warranty exclusions:
REGNER® is entitled to deny any warranty if:
• The actuator has not been correctly used or the
actuator usage specifications (load, temperature,
duty cycle, voltage, current, etc) have not been
respected.
• The actuator has not been correctly maintaned.
• The actuator has been tampered with.
• The actuator has been be exposed to violent or
abrasive treatment.
Nonconformities due to age of the actuator (for
example, discolouring of painting) are excluded
from warranty.
In case of doubt regarding the existence of a defect
or if an inspection is required, REGNER® reserves the
right to request the return of the product. Any addi-
tional warranty obligations for parts replaced free of
charge or for any service provided without charge
under this warranty shall be excluded. Warranty of
the replaced parts under warranty period will end
on the date of expiry of the warranty period of the
product concerned.
RA MINI IN-LINE ACTUATOR SERIES

04. Specications
04.01. Name plate
01. Product reference: RA MINI 45.30.87.350.D4
01.01. RA MINI: Actuator Type
01.02. 45: Max. Load (N)
01.03. 30: Stroke Length (mm)
01.04. 87: Min. Built-in Dimension (mm)
01.05. 350: Cable Length (mm)
01.06. D: Rod End (D=standard / H=clevis)
01.06. 4: Assembly Hole Diameter (mm)
02. Customer reference: XXXXXXX
Optional. Customer’s reference for the product.
03. Batch. No.: XXXXXX
Identification number assigned to a particular lot
of products that enables REGNER® to control the pro-
duct quality and tracing of the constituent parts.
04. Symbols.
The following symbols may be used on the label.
Symbol Norms Approvals
WEEE Directive 2002/96/EC Wheelie bin
Compilance to all relevant
CE directives CE
04.02. Terminology
1. Front rod end
2. Rod
3. Housing
5. Cable
6. Connector
7. Rear end
RA MINI IN-LINE ACTUATOR SERIES
6

7
04.03. Operation environment
The operation temperature range is between +5 to
+40º Celsius (+41 to +104 º Farenheit). The protec-
tion degree is IP54 (protection against water and
dust).
Min. 10 ºC
(+14 ºF)
Max. +40 ºC
(+104 ºF)
IP54
04.04. Specications
Max. Load
Max. Speed (no load)
Max. Current
Starting Current
Power Supply
IP Rating
Weight
Housing Material
Rod Material
Color
Operating Temperature
Storage Temperature
Duty Cycle
Strokes
Backlash
Lifetime
Max. Side Force
Overcurrent Protection
Internal Limit Switch
Lead
20, 45 or 70 N
14.7, 5.6 or 5.1 mm/s
114 mA
200 mA
12 VDC
IP54
45 g
Aluminum
Polished Stainless Steel
Anodized black
-10 ºC to +40 ºC
-30 ºC to +70 ºC
30 % (6 min out of 14 min)
10 - 100 mm
0.1 mm
1000 h at rated load
50 N at 30 mm
116 mA
At stroke endpoints
5 mm
04.05. Dimensions
Min. BID: 57.5 mm + Stroke
64 mm + Stroke
RA MINI IN-LINE ACTUATOR SERIES

04.06 Force curve
The name values below are typical values set with a
stable power supply.
Use in the dashed area is not recommended.
The above figures are with a room temperature of 20ºC.
High speed gearbox (100:1)
Standard gearbox (210:1)
High thrust gearbox (298:1)
Speed - Force Current - Force
Speed (mm/s)
Force (N)
0
3
6
9
12
15
0 10 20 30 8070605040
0
30
60
90
120
150
Current (mA)
Force (N)
0 10 20 30 8070605040
04.07. Overcurrent protection
Standard protection
In the event of an obstruction in the mechanism
or an excessive load, the overcurrent protection
feature will trip out the current thereby protecting
the actuator.
Actuator with Electronic Limit Switches (ELS)
Additionally, when the actuator arrives to its fully
extended or fully retracted positions, an electric limit
switch automatically trips out the current, preven-
ting the motor from any damage. In both stroke
endpoints, the actuator will only move in the opposi-
te direction. When it is separated from either of its
endpoints, it resumes its normal function, being able
to move freely in either direction.
05. Installation
05.01. Mechanical mounting
REGNER® actuators can be easy installed by slipping
pins through the holes on each end. Mounting pins
must be parallel to each other, otherwise actuator
may bend and result in damage.
It is recommended to install the actuator so the force
of the load acts in the center of the extension tube
and the rear end. Excessive off-centre loads may
cause bending and lead to premature failure.
RECOMMENDED OTHER OTHER
Make sure the mounting pins are supported in both
ends and the pins are solid and without excessive
free play to prevent premature wear. However, the
actuator must rotate around the pivot point in the
front and rear end, this will allow the actuator to
move freely over the full stroke length, both during
the development and daily operation. Check the
area around the housing and make sure no parts can
be trapped and cause damage to the application
and actuator.
RA MINI IN-LINE ACTUATOR SERIES
8

9
CAUTION!
Mechanical mounting precautions:
• The mounting pins must have the correct
dimension.
• The bolts and nuts must be made of a high
quality steel grade.
• No excessive free play in the pins.
• Do not use an excessive torque on the mounting
bolts to prevent from stressing the fixtures.
CAUTION!
The piston rod eye is only allowed to turn 0-90
degrees. It is not permitted to make excessive turns
on the piston rod.
WARNING!
If the actuator is used for pull in an application
where personal injury can occur, the following
is valid: It is the application manufacturer’s
responsibility to incorporate a suitable safety
arrangement, which will prevent personal in-
jury from occurring if the actuator should fail.
WARNING!
REGNER®’s actuators are not designed to be
used in the following applications: aircrafts and
aerospace, explosive environments, nuclear power
generation and offshore installations.
05.02. Electrical installation
Standard Actuator
• The actuator voltage must be switched off when
reaching the ends of stroke or during a mid-stroke
overload to avoid causing damage to the actuator.
• Make sure that the switch can handle the maximum
motor current.
Actuator with Electronic Limit Switches (ELS)
• The actuator will automatically switch off when
reaching the ends of stroke or if a mid-stroke
overload occurs.
ELECTRONIC
LIMIT
SWITCHES
Standard connector: MOLEX 39-01-3029
Standard connector MOLEX 39-01-3029
(View From Wire Insertion End)
RA MINI IN-LINE ACTUATOR SERIES

CAUTION!
Electric installation precautions:
• Make sure the leads/cables leading to the motor
can handle the maximum motor current.
• To increase the actuator’s protection use a fuse
between the actuator and the power source.
• Never work on the actuator or the wiring with
the power switched on!
Wire cross sections
To avoid malfunction due to voltage drop, the cross
section of the wires between the actuator motor and
the power source must be of sufficient size to avoid
voltage loss.
06. Maintenance
The actuator is a closed unit and requires no internal
maintenance. Furthermore, actuator is not to be
opened by unauthorised personnel. However, some
external maintenance must be performed:
• The actuator must be cleaned at regular intervals
with a dry cloth to remove dust and dirt, and
inspected for mechanical damages or wear.
• Inspect attachment points, cables, rod ends,
housing and connector, as well as check that the
actuator functions correctly.
07. Troubleshooting
Symptom Possible cause Action
No motor
sound or
movement of
piston rod.
1. The actuator
is not properly
connected
to the power
supply.
2. Customer
fuse burned.
3. Cable
damaged.
A. Check the
connection
to the power
supply or
the external
control unit (if
any).
B. Check wire
connection on
control unit.
C. Please
contact
REGNER®.
RA MINI IN-LINE ACTUATOR SERIES
10

11
Excessive
electricity
consumption.
1.
Misalignment
or overload in
application
A. Align or
reduce load.
B. Try to run
the actuator
without load.
C. Please
contact
REGNER®.
Motor runs but
spindle does
not move.
1. Gearing
system or
spindle
damaged.
A. Please
contact
REGNER®.
Actuator
cannot lift full
load.
1.
Misalignment
or overload in
application
2. Insufficient
power supply.
3. Current cut
off (overload
in the
application).
4. Motor is
damaged.
A. Wait 5
minutes to
reset the
overcurrent
protection
system.
A. Align or
reduce load.
B. Check the
power supply.
C. Please
contact
REGNER®.
Motor runs too
slowly, does not
run with full
force or runs in
smaller steps.
1. Load is
higher than
specified.
2. Voltage
drop in cable
(long cables
may affect the
performance).
3. Current cut
off (overload
in the
application).
A. Wait 5
minutes to
reset the
overcurrent
protection
system.
B. Reduce load.
C. Check
power supply.
Actuator(s)
cannot hold the
chosen load
1. The load is
higher than
specified.
A. Reduce
load.
08. Application policy
The purpose of the application policy is to define
areas of responsibilities in relation to applying a
REGNER® product related to a customer application.
REGNER® products are applicable for a wide range of
applications (including healthcare, household equi-
pment, and industrial areas). REGNER® cannot know
and check all the conditions under which REGNER®
products will be installed and used. So the suitability
and functionality of the REGNER® product and its
performance under different conditions can only be
verified by testing, and shall ultimately be the
responsibility of the REGNER® customer using any
REGNER® product.
REGNER® shall be responsible solely that REGNER®
products comply with the specifications set out
by REGNER® and it shall be the responsibility of
the REGNER® customer to ensure that the specific
REGNER® product can be used for the application in
question.
09. Contact
For technical assistance get in touch with the
REGNER® technical department through the
following e-mail: [e-mail].
RA MINI IN-LINE ACTUATOR SERIES

Ripollès, 4 | 17181 Aiguaviva (Girona) SPAIN | Tel. [phone] | Fax. [phone]
[e-mail] | www.regner.es
*RAMINIUSERMANUAL*
