Rego-fix powRgrip PGU 9500 Installation instructions

0361.00057 23/17
Translation of the
original operating Manual
powRgrip®

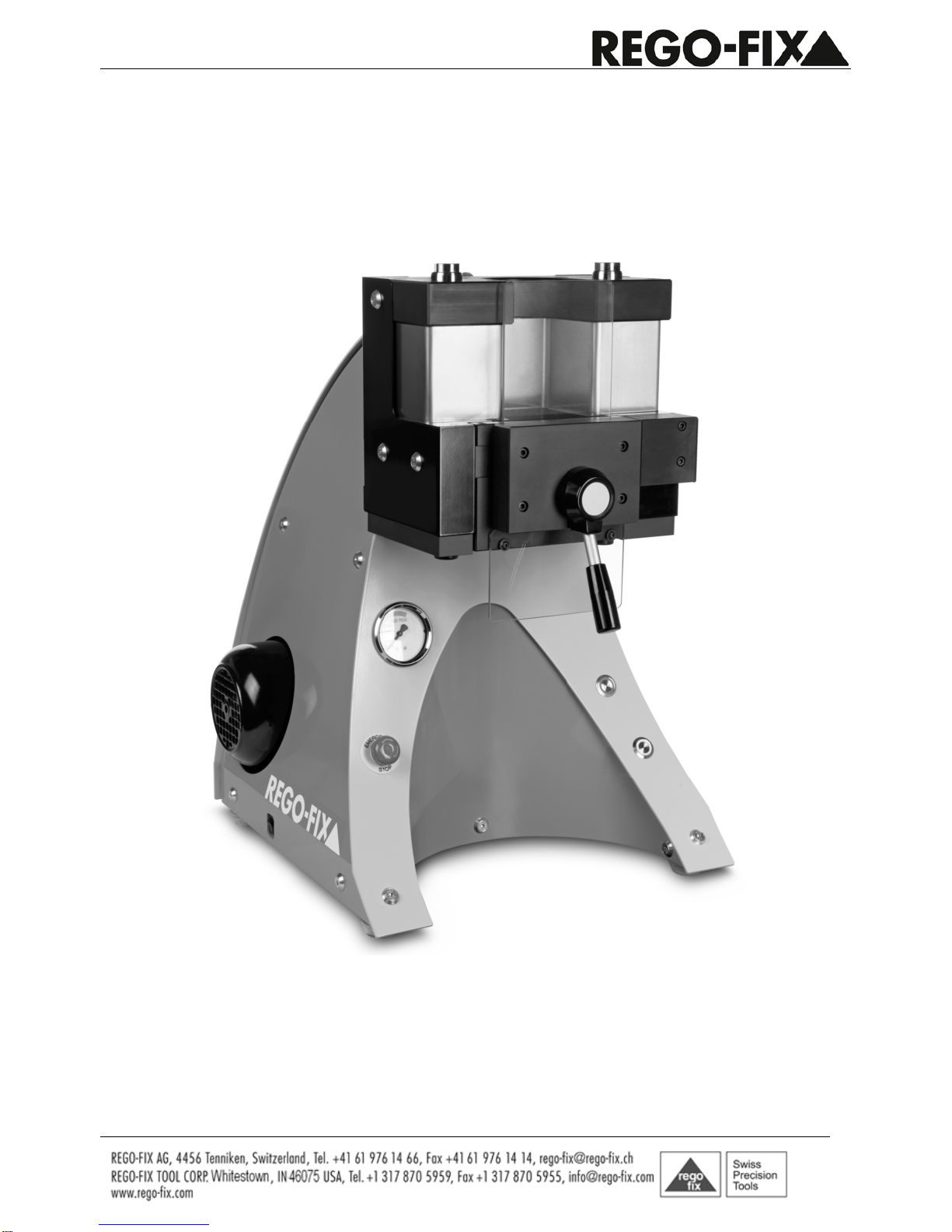

Clamping Unit PGU 9500

Validity of this original operating manual:
powRgrip®Clamping Unit PGU 9500 E
Art. Nr. 5680120 / 7610.95000
powRgrip®Clamping Unit PGU 9500 A
Art. Nr. 5680220 / 7610.95100
powRgrip® Clamping Unit PGU 9500 J
Art. Nr. 5680320 / 7610.95200
Name of this documentation: Betriebsanleitung PGU 9500 englisch
Version: 01
Date: 07.06.2017
Art. Nr.: 0004812 / 0361.00057
Language: English
Confirmation
We hereby confirm -as the end customer- that we read this operating and maintenance manual
and understood the content fully. Furthermore we confirm that all staff who works with the
device described below are instructed and examined:
Company stamp:
City and Date:
Signature:

Introduction
This Operating Manual is to introduce the powRgrip®clamping unit PGU 9500 E, A + J and its
accessories according to its intended purpose.
In this manual, important details about how to operate the system in a safe, appropriate and
economical way are explained. This manual will help to avoid danger, reduce the cost of repair,
as well as to reduce down-time and increase the functional time of the system.
Furthermore, the manual contains instructions regarding accident prevention and ecology, in
addition to those of the national regulations.
The complete technical documentation should be kept within reach of the clamping unit.
This manual must be read, understood and adhered to in all points by the personnel responsible
for the system, i.e.:
•Operation including setup, trouble-shooting, service, disposal of operations- and
accessories inclusive of hydraulic fluid
•Maintenance (service, inspection, assembly) and/or
•Transport and storage
In addition to this manual, the rules and regulations effective for accident prevention local
regulations as well as special national safety regulations must be observed.
Copyright
The copyright of this original operating manual remains with ABNOX Ltd. This operating
manual is intended for use by the customer and their operating personnel only.
•This operating Manual, or parts thereof, may not be
•copied
•distributed or
•communicated otherwise
to other persons than those stated above.
•powRgrip® is a registered trademark of REGO-FIX AG.
•The powRgrip® tool holding System is protected under international patents.
The addresses below serve as future reference source.
Distribution
REGO-FIX AG
Obermattweg 60
4456 Tenniken / Schweiz
Tel. [phone]
Fax [phone]
E-Mail: [e-mail]
Web: www.rego-fix.com

Table of Content
Safety.......................................................................................................11.1.1 General Safety Advises.................................................................................................1
1.2 Danger when Operating the System or Subassemblies ................................................1
1.3 Safety and Protective Devices.......................................................................................1
1.4 Personal Protection and Organizational Measures........................................................1
1.5 Appropriate Use.............................................................................................................2
1.6 Inappropriate Use..........................................................................................................2
1.7 Danger and Information Symbols ..................................................................................2
1.8 Danger by Hydraulic Energy..........................................................................................3
1.9 Maintenance, Repair, Fault Elimination.........................................................................3
1.10 Warranty and Liability....................................................................................................3
Overview of the System...........................................................................42.2.1 Use................................................................................................................................4
2.2 Functioning of powRgrip® Tool Holding System ...........................................................4
2.3 Overview Illustration / Components...............................................................................5
2.4 Identification Plate .........................................................................................................6
2.5 Scope of delivery...........................................................................................................6
2.6 Technical Data...............................................................................................................7
Packaging and Transport.........................................................................83.
System Installation / Assembly.................................................................84.
Definition of Interface...............................................................................95.
First installation......................................................................................106.6.1 Insert of the clamping inserts PG 06, PG 10, PG 15, PG 25 or PG 32........................11
Operating...............................................................................................127.7.1 Clamping a tool............................................................................................................12
7.2 Unclamping a Tool.......................................................................................................13
7.3 Exchange of clamping insert........................................................................................14
Shutting the System Down.....................................................................148.8.1 Short Shut Down..........................................................................................................14
8.2 Long Duration Shut Down............................................................................................14
8.3 Putting the System out of Operation............................................................................15
Trouble Shooting, Fault Elimination.......................................................159.
Operating- und Working Material (EU Safety Data Sheet).....................1610.
Maintenance and Service.......................................................................1711.
11.1 Maintenance Plan........................................................................................................17
11.2 Fuse.............................................................................................................................17
11.3 Service Instructions for powRgrip® Clamping Unit......................................................18
11.3.1 Safety ..........................................................................................................................18
11.3.2 General........................................................................................................................18
11.3.3 Control of oil level........................................................................................................18
Recycling Management..........................................................................1812.
Spare Parts............................................................................................1913.
Drawings and Diagrams.........................................................................2114.
14.1 Diagram powRgrip®clamping unit PGU 9500 E, A and J............................................21
14.2 Hydraulic Diagram powRgrip®clamping unit PGU 9500 E, A und J............................22
14.3 Electric Diagram powRgrip®clampin unit PGU 9500 E, A und J .................................23
Conformity..............................................................................................2515.
EU Safety data sheet.............................................................................2616.

1
Safety1.
1.1 General Safety Advises
The safety representative of the company has to guarantee the following conditions:
•Only qualified personnel are assigned to operate the machines and devices.
•The personnel should have the operating manual at their disposal inclusive of other
product documents at any time when working with the machine. These documents
should be regularly reviewed. Unskilled personnel is not to be allowed to operate the
machines and devices.
•In addition, the rules and regulations for the prevention of accidents at the site of
operation must be observed and inspection and maintenance work performed.
Only qualified personnel, who, due to their professional training, experience, instructions as well
as their knowledge of relevant standards, stipulations, rules for the prevention of accidents and
operating conditions, are responsible for the safety of the plant and are allowed to do the
necessary work and thereby to recognize and to avoid possible risks, may work on the machine.
The responsibilities of personnel are clearly defined for installation, commissioning, operating,
setup, transport, storage, maintenance and repair.
Personnel to be trained must only work on the system under the supervision of a qualified
operator.
The following pages describe the basic safety instructions and the safety regulations, with these
safety instructions no claim is made to the completeness.
1.2 Danger when Operating the System or Subassemblies
The machine or subassembly is constructed according to the latest state-of-the-art and the
recognised safety regulations. Danger to the operator or to others, or damage to the system or
other material damage through improper handling or use can however arise during its operation.
The system must only be operated:
•for the intended purpose.
•in a safe condition.
Faults which can affect safety must be eliminated immediately.
1.3 Safety and Protective Devices
•All protective devices must be properly mounted and be in working order each time
before starting the system.
•Protective devices may only be removed after the system has been shut-down and
secured against re-start.
•The lever of the door and the operating elements must be freely accessible.
1.4 Personal Protection and Organizational Measures
•The operator is responsible for personal protection devices.
•All safety devices must be checked regularly.

2
1.5 Appropriate Use
The system and components may only be used under the appropriate operating conditions. The
system is to be used exclusively for clamping and unclamping of tools for machine tools
according to the detailed specifications in the manual under section 2.1.
All other use is considered inappropriate. Consequently, the manufacturer does not take any
responsibility for damaged caused by inappropriate use.
Appropriate use means, among other things:
•To follow all recommendations mentioned in the Operating Instructions.
•To adhere to the inspection and maintenance requirements.
1.6 Inappropriate Use
We do not take any responsibility for damages caused by inappropriate use.
Inappropriate use includes, but is not limited to:
•Use of non-powRgrip® tooling systems or tools not meeting the required quality grades or
types.
•Connection and operation of other applications.
•All intentions of using the powRgrip® clamping unit on live items.
•Clamping or unclamping without using an APG clamping insert or without powRgrip®tool
holder, or powRgrip®collet without tool.
•Clamping or unclamping of the powRgrip®tool holder and powRgrip®collet without tool.
1.7 Danger and Information Symbols
All information concerning safety is highlighted by warning symbols "DANGER", "CAUTION" to
point out possible personal injury, or with "NOTE" symbols to point out possible mechanical
damage.
DANGER
Danger symbol: contains information about a hazard which leads to death or
serious personal injuries if not avoided.
CAUTION
Caution symbol: contains information about a situation which may lead to
personal injuries if not avoided.
NOTE
This recommendation symbol points at important notes for appropriate handling
of the system. If these recommendations are not followed, damage of the
system or its environment may be caused.

3
1.8 Danger by Hydraulic Energy
•Only specially trained personnel with a good knowledge of and experience in hydraulics
may only carry out working on the hydraulic equipment.
•The system works with a pressure of max. 155 bar. Parts of the system such as pressure
hoses and valves have to be depressurised before the start of any repairs. It is not safe
to have any pressure left in the system.
•Hydraulic flexible tubes should be replaced regularly, even if they show no obvious
defects (see chapter 11).
1.9 Maintenance, Repair, Fault Elimination
•The mandatory adjustment, maintenance and inspection work should be performed at
the specified intervals.
•Operating personnel must be informed before starting maintenance and repair work.
•Remove the main plug from the main electrical supply and secure it against unintentional
operation (place a warning sign to prevent operation).
•Check all released screw- and fitting connections for firm seating.
•Check safety devices for proper functioning after completing maintenance work.
1.10 Warranty and Liability
In principle, warranty and liability is based on our already signed written agreement. We do not
accept any warranty or any liability for damages caused to either persons or machinery which
can be attributed to one or several of the following causes:
•Inappropriate use of the system.
•Inappropriate repairs on the system, done by non-instructed personnel.
•Inappropriate transport, storage, assembly, commissioning, operation and maintenance
of the system.
•Operating of the system in spite of broken safety equipment or insufficiently mounted or
not functional safety and protective equipment.
•No attention to recommendations stated in the operating instructions concerning safety,
transport, storage, assembly, commissioning, maintenance and setup of the system.
•Constructive change of the system without permission.
•Change of the pressure ratio of the hydraulic pressure block without permission.
•Lack of control of the system parts, which may be subject to wear.
•Inappropriate repairs and use of spare parts from other suppliers.
•Catastrophic impacts, e.g. by external matters or force majeure risks.

4
Overview of the System2.
2.1 Use
The system is to be used exclusively to clamp and unclamp tools of the powRgrip® Tool Holding
System of the following trademark:
powRgrip® of REGO-FIX AG
WARNING
The system works with a pressure of max. 155 bar. Use this system only for
powRgrip® Tool Holding System which has been released by one of the
following companies:
•ABNOX Ltd. - Switzerland
•REGO-FIX AG - Switzerland
For any other application of
this system there is a danger of serious personal
injury as well as mechanical damage.

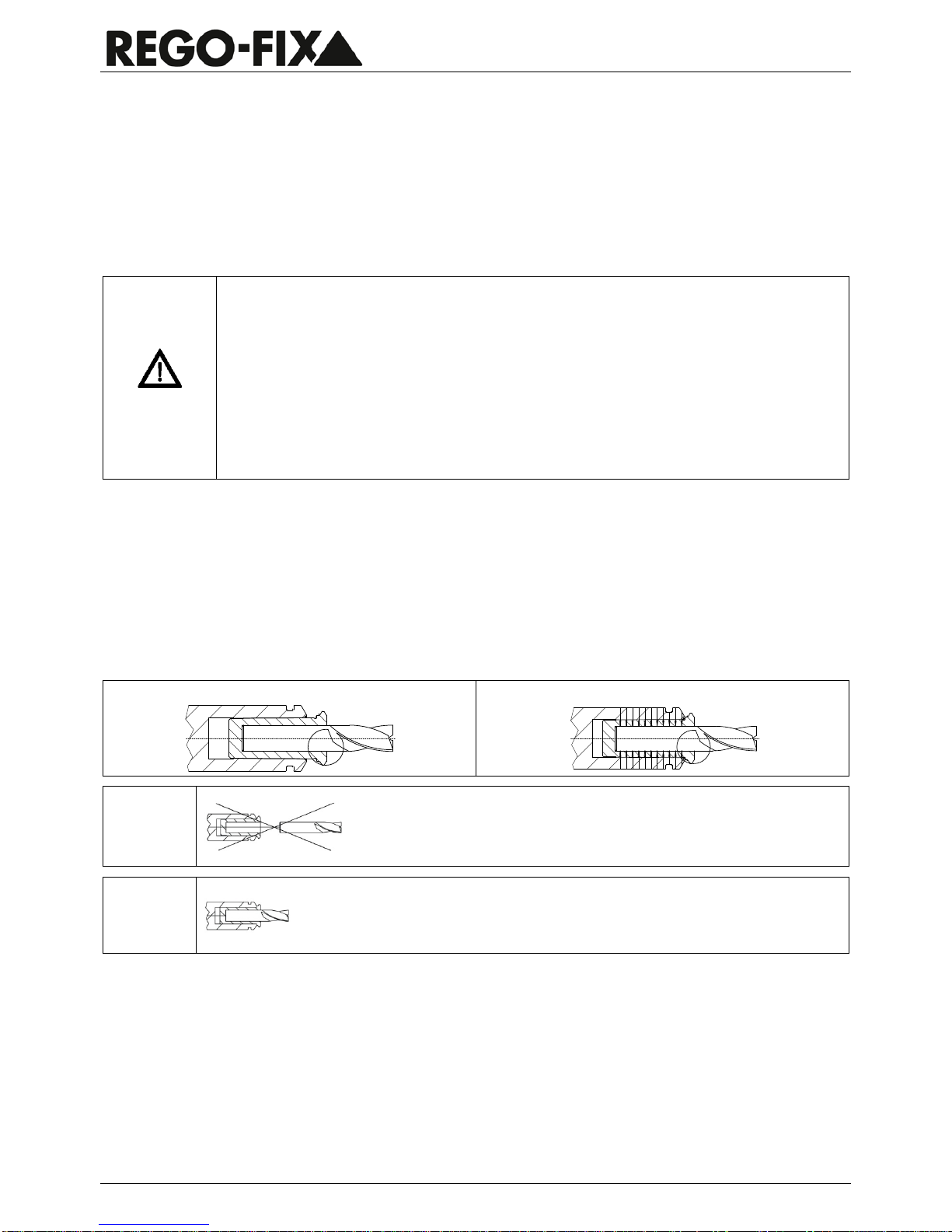

2.2 Functioning of powRgrip® Tool Holding System
The powRgrip® collet has a conical shank with a contact shoulder and a concentric bore for the
tool shank.
To be clamped, the collet and cutting tool are mounted and pressed in the powRgrip®tool
holder and pulled out for unclamping.
The press fit, which occurs through the taper, produces a radial force, which is transmitted
through the split collet to the tool shank. The tool is then gripped safely and concentrically.
Tool unclamped
Tool clamped
NOTE
Clamping a tool:
Clamping without a tool will result in damage of the collet!
NOTE
Take note of clamping length:
For min./max. clamping length of tool shank please refer to
technical data sheet.

5
2.3 Overview Illustration / Components
Pos. 1 Push button "unclamp"
With this push button, the process "unclamp" is activated and a light starts to flash. In
the start position "unclamp", the green light of the push button is steadily on.
Pos. 2 Push button "clamp"
With this push button, the process "clamp" is activated and the light will flash. In
the start position "clamp", the green light of the push button is steadily on.
Pos. 3 Door with lock lever
Pos. 4 Pressure gauge for hydraulic pressure
Clamping
insert
Pressure
gauge
Clamping
pressure in bar
APG 906
PG 06
21
APG 910
PG 10
51
APG 915
PG 15
76
APG 925
PG 25
100
APG 932
PG 32
143
Pos. 5 Air bleeding screw
Pos. 6 Hydraulic oil container / oil filler neck
The tank holds 1.0 litres of hydraulic oil. The filling is 1 liter (See chapter 10).
Pos. 7 Clamping module
This part produces enough force to clamp or unclamp the powRgrip®Tool
holding System.
Pos. 8 Emergency stop
With this switch the machine can be stopped anytime.
6
7
1
2
4
3
5
8

6
2.4 Identification Plate
A plate (1) is mounted on the back of the powRgrip® clamping unit. It contains important
information used to identify the system.
Information on the identification plate
Pos. 1 Type of the machine
Pos. 2 Article number with modification index
Pos. 3 Serial number
Pos. 4 Voltage
Pos. 5 Frequency
Pos. 6 Current
NOTE For spare parts orders as
well as for technical support, please supply the
information provided on the identification plate.
2.5 Scope of delivery
•1 powRgrip®clamping unit PGU 9500 E, A or J
•1 cable with connection plug Schuko CEE 7/ VII and connector type 12 (CH) or NEMA 5-
15 (see also chapter 5)
•1 Original operating manual in German
•1 Translation of the original operating manual in English
•1 Cleaning instruction (laminated) in German and English
•1 Technical data sheet (laminated) in German, English and French
•1 package
1
2
3
4
5
6
7
