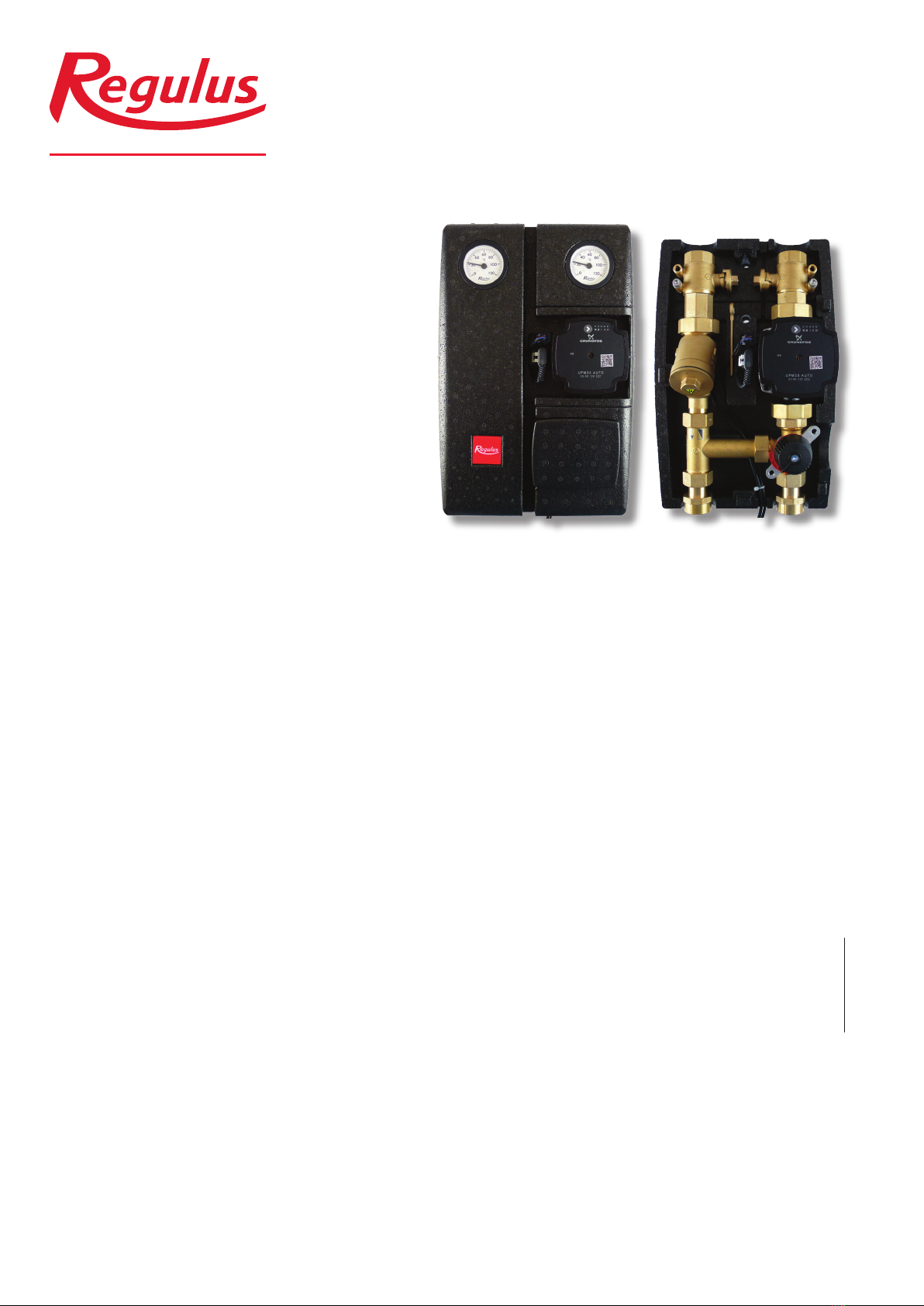

1. INTRODUCTION
CSE2 MIX-BP F W6 1F twin-line pump station is designed for mixed heating circuits. It
provides flow through the heating system, mixes to the outlet temperature. Since the mixing
valve is not fitted with an actuator, any actuator may be used that will meet the needs of the
particular system and control. The pump station includes a filter with magnet, so it is also
suitable for older steel pipe systems.
It can be easily mounted on a wall or on a manifold.
2. PUMP STATION DESCRIPTION AND DATA
Main Features
Description The twin-line pump station consists of:
● Wilo Para 25/6 SC pump
● 2 ball valves w. sensor sheath
● check valve
● filter with strainer&magnet
● LK 840 mixing valve
● thermometers, insulation
Working fluid water, antifreeze heat-transfer fluid for heating systems
Installation vertically on a wall or manifold (125 mm pitch)
Connections 4 x G 1“ F
Code 19111
Data for CSE2 MIX-BP F G60 1F Pump Station
Fluid working temperature 5 - 95 °C
Max. working pressure 10 bar
Min. working pressure 0.5 bar
Ambient temperature 5 - 40 °C
Max. relative humidity 80%, non condensing
Pump power supply 1 ~ 230 V, 50 - 60 Hz
Pump station max. power input 39 W
Mixing valve Kvs 6.3 m3/h
Max. pressure difference 5 m H2O (at mixing valve inlets)
Leak rate < 1% Kvs at 5 m H2O pressure difference (at mixing valve inlets)
Insulation material EPP RG 60 g/l
Overall dimensions 360 x 142 x 245 mm
Total weight 6.3 kg
Pump station pressure drop graph

│4
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu

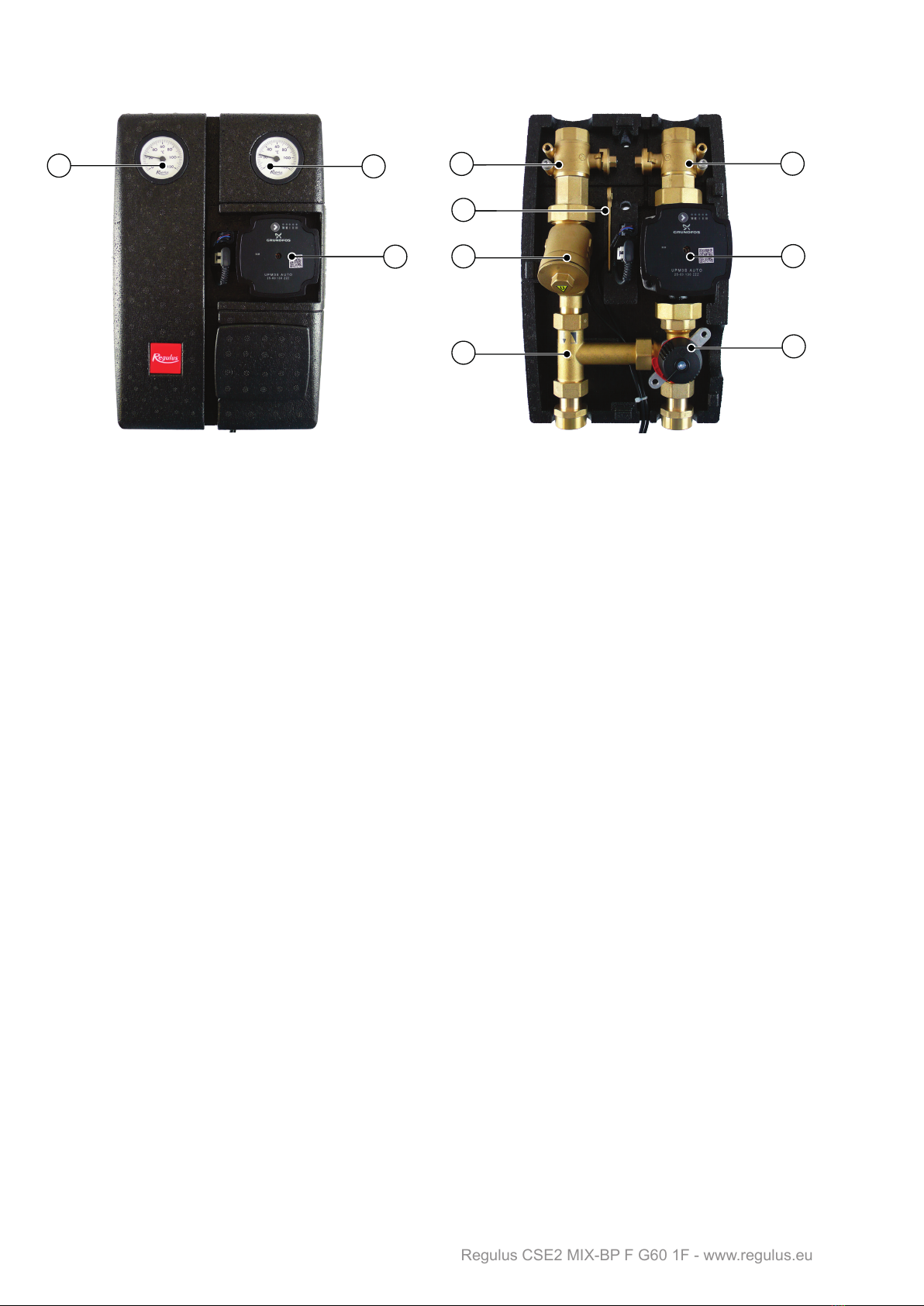

3. PUMP STATION COMPONENTS
1 – Thermometer of return water from heating circuit
2 – Thermometer of flow to heating circuit
3 – Grundfos UPM3 AUTO 25-60 circulation pump
4 – Mixing valve, no actuator
5 – T-piece with check valve
6 – Dirt filter with magnet
7 – Lever for ball valves
8 – Ball valve w. sheath for temperature sensor (at return piping from heating
circuit)
9 – Ball valve w. sheath for temperature sensor (at flow piping to heating circuit)
9
3
2
3
5
8
7
1
6
4

5 │
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
3.1. GRUNDFOS UPM3 AUTO 25-60 130 MM PUMP
Wet-running circulation pump with G 6/4“ M connections.
Pump Connection
socket for power supply (A)
and signal transmission (B)
- not used in this pump
power supply connector (A)
N (blue)
L (brown)
PE (yellow-green)
Pump Control
The circulation pump be controlled by selecting a suitable prole and a pump perfor-
mance curve.

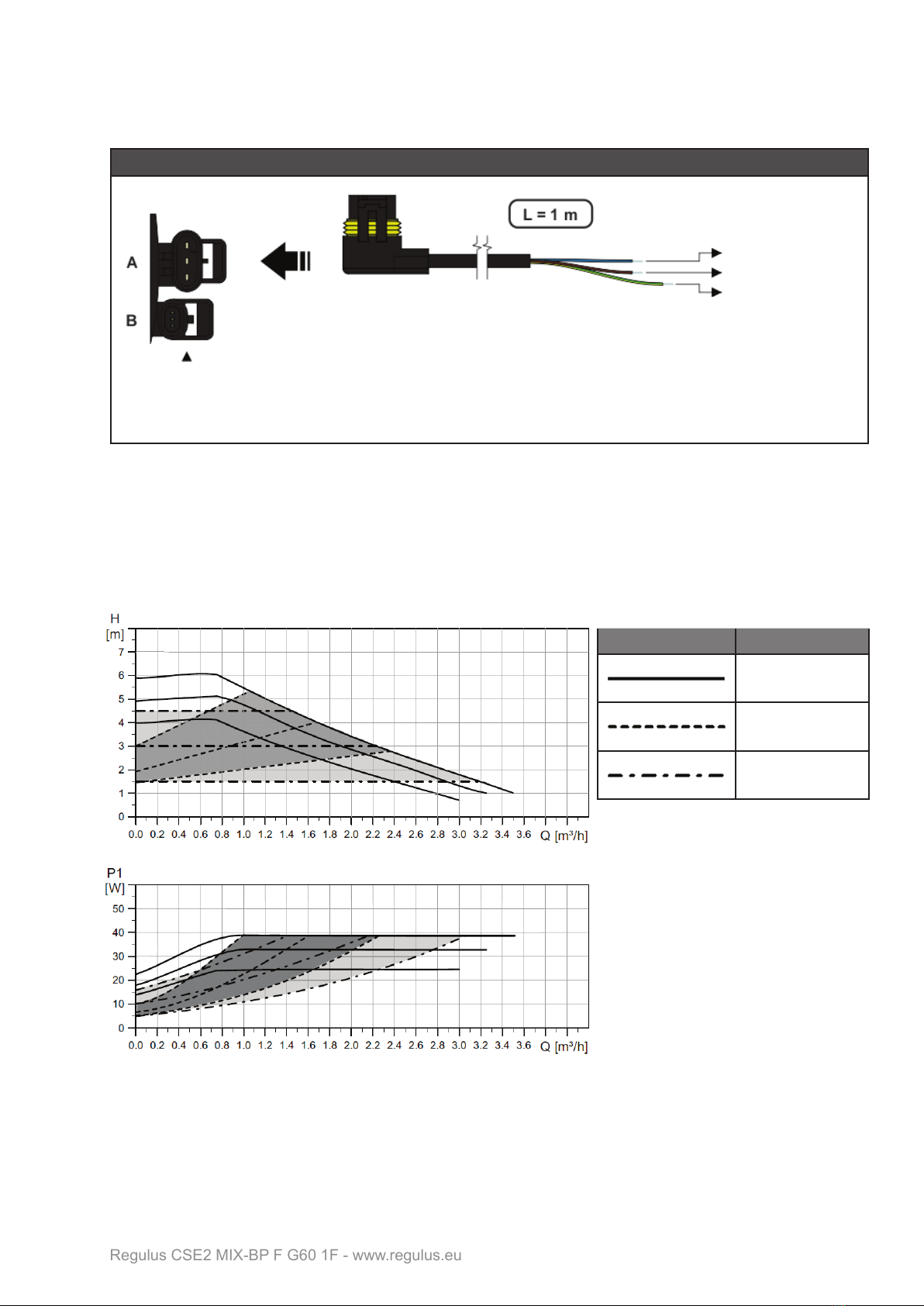

Pump Performance Curves
Line type Profile
Constant
speed
Proportional
pressure
Constant
pressure

│6
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
Description of Pump Frofiles
a) Proportional pressure
• This mode is suitable for use in heating systems with radiators to reduce noise caused
by liquid flow through thermostatic valves.
• Head (pressure) is reduced with sinking flow rate (growing system pressure drop).
• Pump operating point: moves up or down on the selected proportional pressure curve
depending on the current system pressure drop.
PROFILE DESCRIPTION
Proportional
pressure
I The lowest curve of proportional pressure
II The middle curve of proportional pressure
III The highest curve of proportional pressure
AUTOADAPT
Automatically controls performance in the range
from the highest to the lowest proportional
pressure curve
b) Constant pressure
• This mode is suitable for use with underoor heating or larger pipe sizes. It is also
suitable for all applications without variable characteristic (e.g. pumps for hot water
storage tanks or for a circuit with a heat exchanger).
• Head (pressure) is kept constant in the whole ow rate range (does not change with
the system pressure drop).
• Pump operating point: moves on the selected constant pressure curve depending on
the current system pressure drop.
PROFILE DESCRIPTION
Constant
pressure
I The lowest curve of constant pressure
II The middle curve of constant pressure
III The highest curve of constant pressure
AUTOADAPT
Automatically controls performance in the range
from the highest to the lowest constant pressure
curve
c) Constant speed
• This mode is suitable for utilising the maximum pump output or for use in systems
with constant resistance that require constant pumping capacity.
• Head (pressure) is growing with sinking ow rate (growing system pressure drop).
• Pump operating point: moves on the selected constant pressure curve depending on
the current system pressure drop.
PROFILE Max. H (upper graph) Max. P1(lower graph)
Constant
speed
I 4 m 25 W
II 5 m 33 W
III 6 m 39 W

7 │
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
DISPLAY CONTROL MODE
GREEN LED FLASHING INTERNAL
1Proportional pressure AUTOADAPT
2Constant pressure AUTOADAPT
3
Proportional pressure
I
4II
5III
6
Constant pressure
I
7II
8III
9
Constant speed
I
10 II
11 III
Settings Display
WARNING: LEDs may be turned by 90° or 180°, or mirrored, depending on the specific pump
type.
During operation the selected profile is indicated by green LEDs and the output stage by
yellow LEDs.
Setting selection
Pump profiles can be switched using the
ointegrated button. Profile switching follows
in a loop in the order shown in the table.
Error display
DISPLAY CONTROL MODE
Seized pump
Too low power supply voltage
Electric fault
push button

│8
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
3.2. MIXING VALVE
3.3. CHECK VALVE
The check valve downstream of the filter prevents natural circulation in the heating circuit.
3.4. FILTER WITH MAGNET
The filter located in the return line of the pump station is designed to collect particles from
heating water. It consists of a brass housing, removable stainless-steel strainer collecting
coarse dirt, and a brass lid with a magnet that attracts magnetic particles.
The filter should be checked regularly and cleaned if necessary. Switch off the circulation
pump, close the ball valve upstream of the filter. The water inlet downstream of of the filter is
shut off by a check valve. The filter cap needs to be unscrewed, the metal strainer removed
and rinsed thoroughly from any dirt. Dirt trapped on the magnet must be wiped off and then
reassembled by inserting the strainer, screwing in and tightening the cap.
valve member
position
D-shaft
knob arrow
The knob arrow points always to the middle
of the valve member. In this direction, the
valve is closed.

9 │
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
OPEN CLOSED
groove in the flow direction groove perpendicular to the flow direction
3.5. BALL VALVES
Ball valves are intended to isolate the pump station from the heating circuit. Then it is not
necessary to drain the heating circuit for servicing (incl. cleaning the filter). In order to have
a more solid hydraulic section of the pump station, they are fixed to the rear mounting plate.

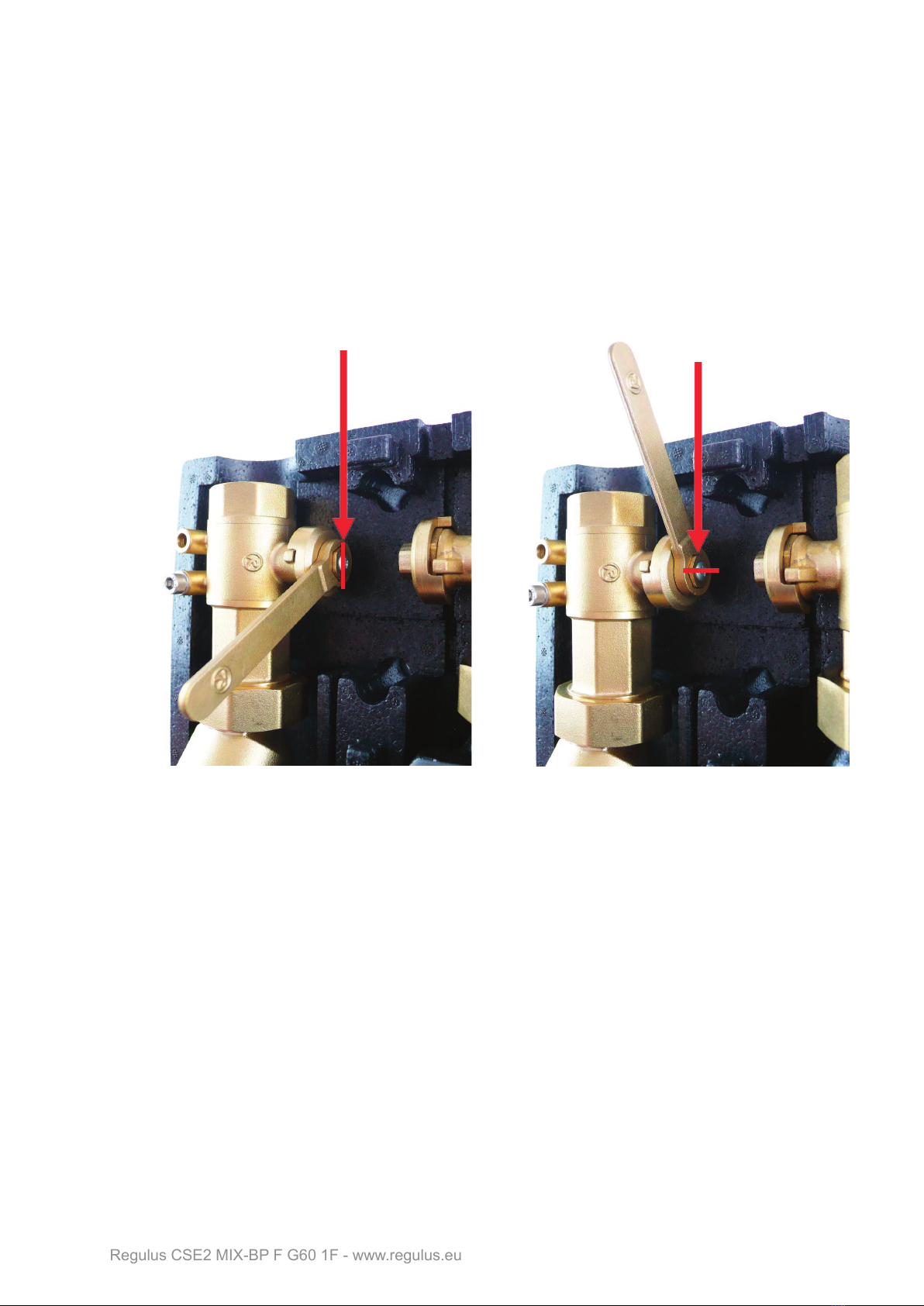

The ball valves are controlled by a lever that is placed inside the insulation. The valve is
closed / opened by turning the lever by 90°. The open / closed position on the ball valve is
indicated by a groove on the valve‘s control hexagon. For access to the ball valve, the top
section of the insulation shall be removed. As a result, unintentional closure of the system by
an unauthorized person is not possible.

│10
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
4. PUMP STATION CONNECTION EXAMPLES
KEY 1 – Regulus heat pump (RTC, CTC) 2 – heating system expansion vessel 3 – Regulus HSK 350 K P-B thermal store 4 – collector/manifold, HV 60/125-2 5 – pump station for heating system 2 - CSE2 MIX 6 – pump station for heating system 1 - CSE2 7 – pump station for DHW recirculation – CSE TVMIX ZV 8 – safety kit for HW storage tank 9 – DHW expansion vessel 10 – RegulusBOX indoor unit SV – cold water TV – hot water CV – hot water recirculation ÚT – central heating (heating system) KK – ball valve ZV – check valve AOV – automatic air vent valve PTR – pressure temperature relief valve REDV – pressure reducing valve (optional) VK – drain valve SVE – expansion vessel service valve PV-ÚT – safety valve for heating system MFB – Magnet Filterball
BRAIDED HOSE
COMPENSATOR

11 │
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
KEY 1 – manifold/collector HV 60/125-2 2 – hydraulic pressure balancer 3 – heating system expansion vessel 4 – HW storage tank (e.g. NBC 170 HP) 5 – DHW expansion vessel 6 – safety kit for HW storage tank 7 – pump station for DHW recirculation – CSE TV ZV 8 – boiler (natural gas, electric...) 9 – pump station for heating system 2 - CSE2 MIX 10 – pump station for heating system 1 - CSE2 SV – cold water TV – hot water CV – hot water recirculation ÚT – central heating (heating system) KK – ball valve ZV – check valve AOV – automatic air vent valve PTR – pressure temperature relief valve REDV – pressure reducing valve (optional) VK – drain valve SVE – expansion vessel service valve PV-ÚT – safety valve for heating system MFB – Magnet Filterball

│12
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
5. PUMP STATION INSTALLATION
The pump station is designed to be mounted on a wall or a manifold with 125 mm connection
pitch. In the rear section of the insulation there are two mounting holes for fixing the metal
plate to the wall. Mounting holes pitch is 80 mm.
The package includes a mounting kit that is used to fix the pump station to the
intended place. The mounting kit includes:
Screw 5x50, round head 2 pcs
6.4 stainless steel washer, DIN 9021/A2 2 pcs
Wall plug 8mm TX 2 pcs

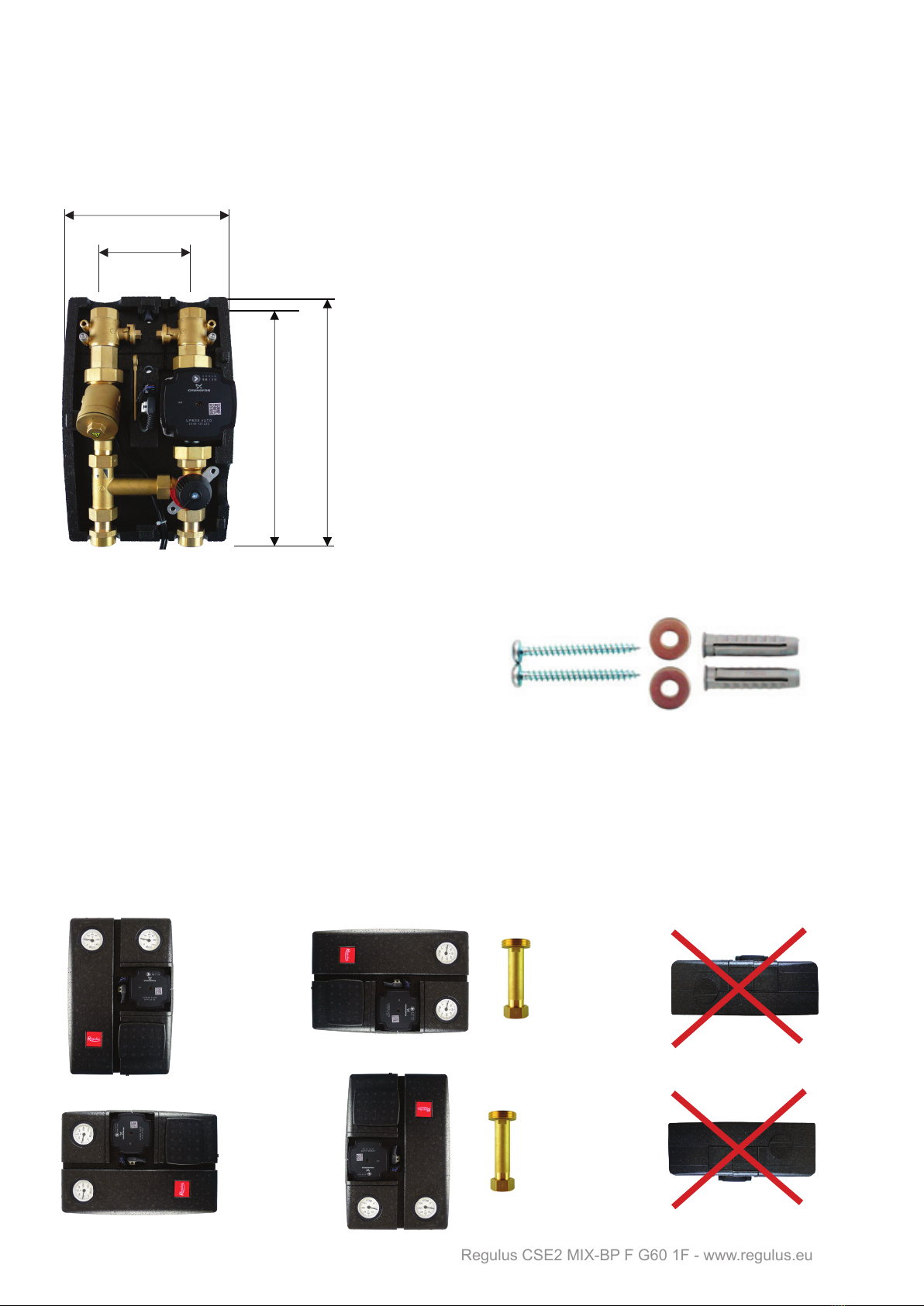

340 360
125
245
Pump station permitted and prohibited positions
Permitted positions Conditionally permitted positions Prohibited positions
(may be used if the filter is replaced by a filter
replacement section, code 19017)
Installation dimensions are shown in the figure.




+
+

13 │
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
6. TEMPERATURE SENSOR INSTALLATION

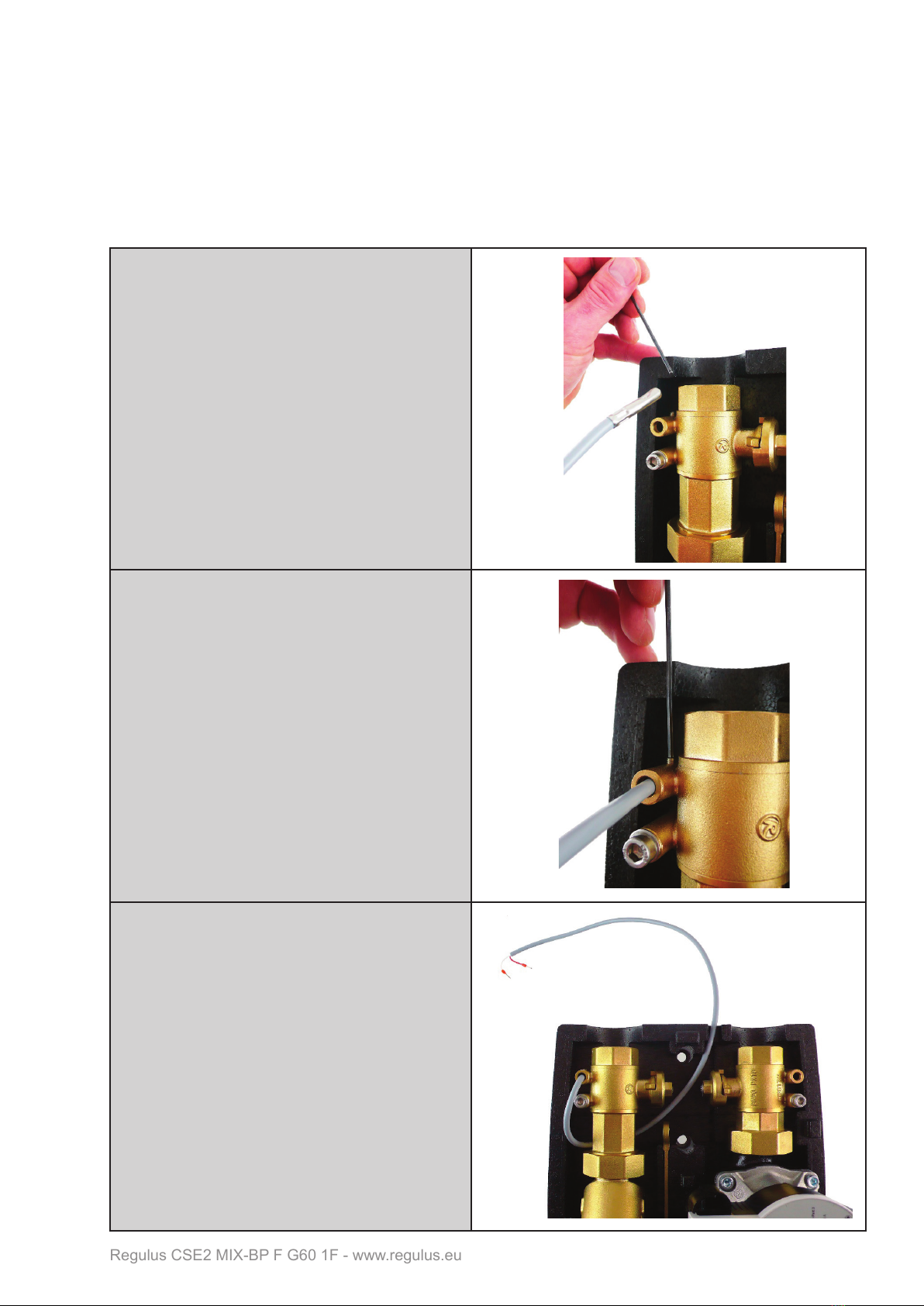

The ball valve housings are equipped with a sheath for the temperature sensor, where the
sensor can be inserted and secured by a fixing screw against being pulled out. In the top
and bottom section of the insulation there are passages to run the cables through, then it is
necessary to cut the appropriate part of the passage lock from the front part of the insulation
with a knife, so that the exiting cables are firmly wrapped around by the lock.
1.
Temperature sensor placement
2.
Securing the temperature sensor with
the screw
3.
Running the sensor cable through the
recess in the insulation

│14
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
4.
Trimming the cable passage lock
5.
Installed sensors

15 │
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
7. OPTIONAL ACCESSORIES
The following optional accessories are available for the pump station:

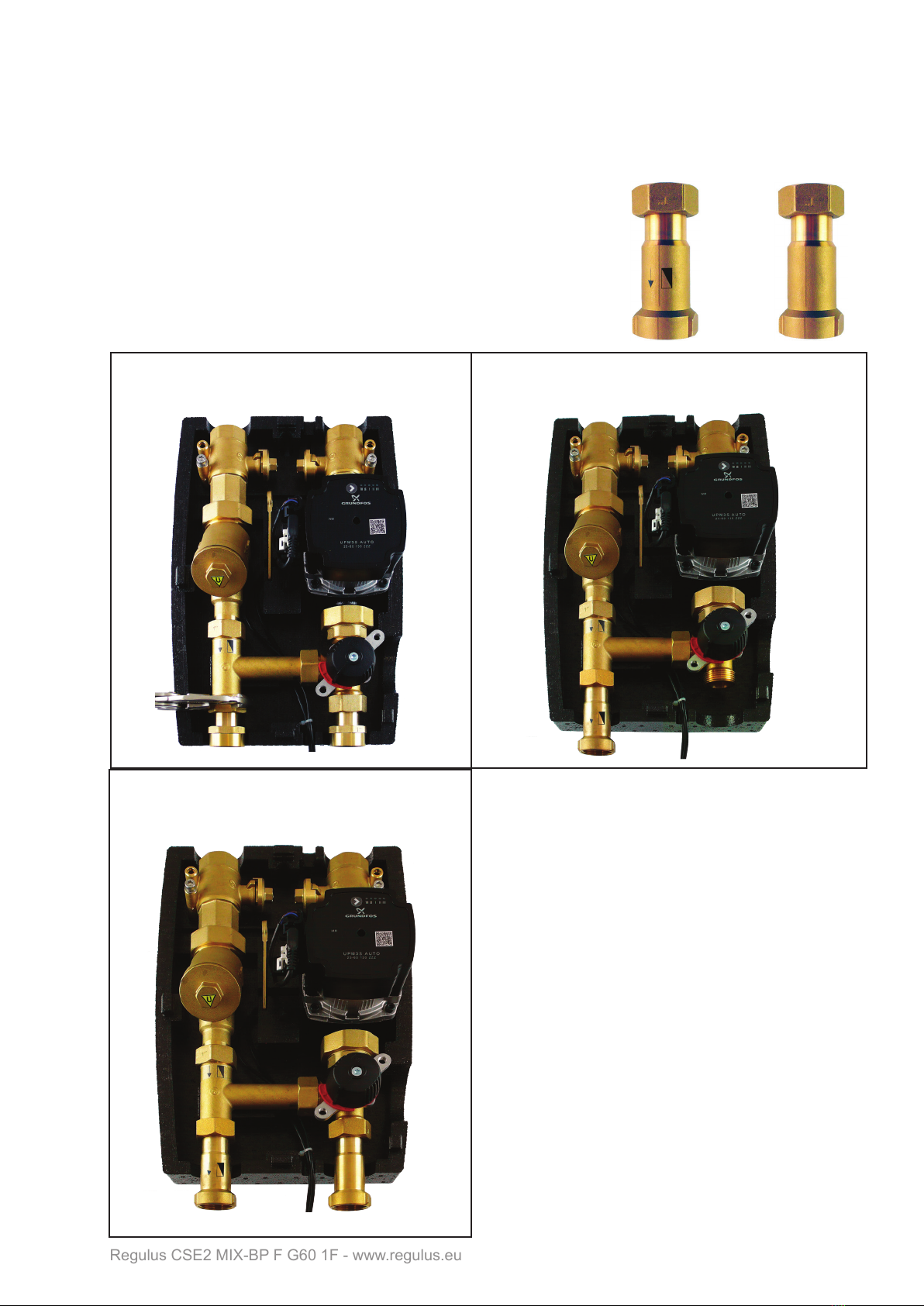

A – Filter replacement section for CSE2
Code 19017
Loosen the union nut above and below
the lter. Remove the lter and install the replacement piece 19017 in its place.

│16
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
B – Ball valve w. drain valve, 1“ Fu/F
Code 17415
and union 1“ Fu/M, incl. gasket
Code 15695
Remove both connecting ttings. Install the unions 15695 in their place and
the ball valve with drain valve 17415 onto
each of them.

17 │
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
C – Union, 1“ Fu/F, extended, with check valve incl. gaskets
(for return piping of CSE2 pump station)
Code 18653
and union, 1“ Fu/F, extended incl. gaskets
(for flow piping of CSE2 pump station)
Code 18797
Remove both connecting ttings. Install the extended union w. check valve,
code 18653, to the return pipe.
Install the extended union w. check
valve, code 18797, to the ow pipe.

│18
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
D – Union for connecting CSE2 to 5/4“ manifold - 1“x5/4“ Fu/F
Code 17920
Remove both connecting ttings. Install the union for connection to a
manifold, code17920, instead of the
original ttings.

19 │
Regulus CSE2 MIX-BP F G60 1F - www.regulus.eu
