1. Introduction
CSE TC W iPWM MFB pump station is designed to be installed on the return pipe to the heat pump,
where it ensures circulation through the heat pump circuit. The circulation pump is switched by an
external controller, the pump speed controlled by PWM signal. With no PWM signal the pump runs
at max. speed. The pump station includes 2 ball valves, one of them with integrated strainer and
magnet. The strainer can be easily removed and cleaned without any tools. The pump station is
designed for installation directly on a pipe with a min. pipe centre distance from a wall of 100 mm.
2. Description of the pump station

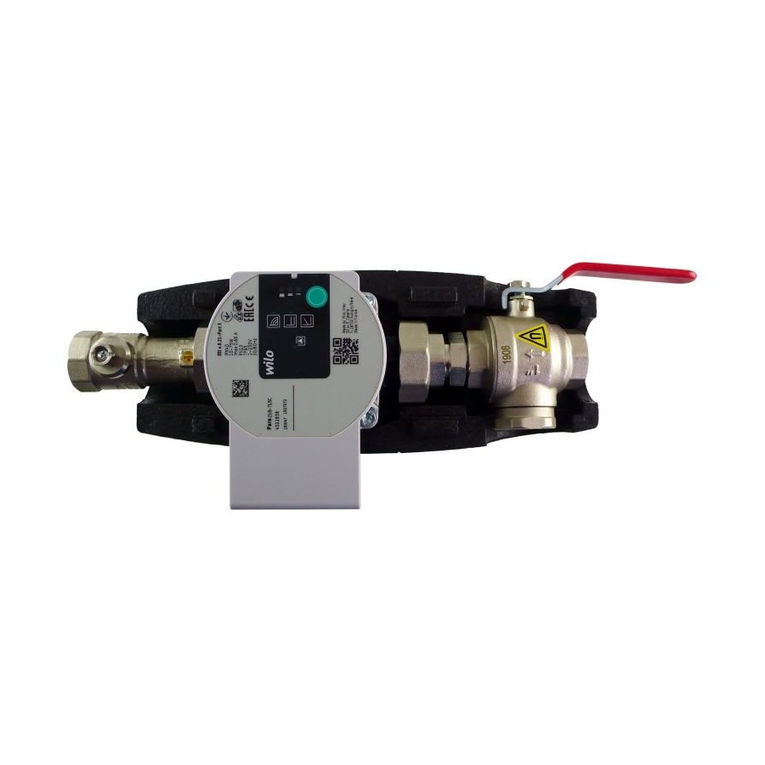

The pump station consists of aWilo PARA 25/8 iPWM1 130mm, ball valve w. filter and magnet,
thermometer, insulation.
Main features
Application heat pump circuit
Description consists of PARA 25/8 iPWM1 130 mm pump, 2 ball valves (one
with strainer and magnet), thermometer, insulation
Working fluid water, water-glycol mixture (max. 1:1) or water-glycerine mixture
(max. 2:1)
Installation return pipe of a heat pump, 100 mm min. pipe centre distance
from wall
Code 17868
Technical data of CSE TC W iPWM MFB pump station
Fluid working temperature 5 - 95 °C
Max. working pressure 10 bar
Max. ambient temperature 40 °C
Power supply 1 ~ 230 V, 50 - 60 Hz
Insulation material EPP RG 60 g/l
Overall dimensions 380 x 170 x 180 mm
Total weight 3.4 kg
Connections 2 x G 1" F
Technical Data of Ball Valve w. Filter and Magnet
Max. fluid temperature 100 °C
Max. working pressure 16 bar
Magnetic induction 1.2T (12000 Gs)
Filter mesh size: 0.6 mm
Connections G 1" F

3 │
3. Flow direction
SMĚR PROUDĚNÍ
4. Wilo-Para iPWM1 Pump
4.1. General Information
The Wilo Para 25/8 iPWM1 is a wet running
circulation pump. The pump speed is controlled
by the PWM signal. When the PWM signal is
disconnected, the pump runs at its maximum
speed. The operating status and possible faults
of the pump are indicated by LEDs directly on
the pump. The pump can send the current flow
rate electronically to an external controller. The
controller needs to be equipped with an iPWM
read input and a flow rate calculation function.
The high efficiency circulation pumps of the PARA
iPWM1 series are used exclusively for the circula-
tion of liquids in hot water heating systems. Ope-
rating the pump in other systems or in systems
containing too little water, air bubbles or not pres-
surized can lead to its rapid destruction.
FLOW DIRECTION

│4
4.2. Permitted and Prohibited
Pump Positions
4.3. Pump Wiring
The pump must be wired / disconnected by a qualified person in compliance with EN 50110-1!
Wilo PARA 25/8 iPWM1 pump wiring
L (brown)
N (blue)
PE (yellow-green)
PWM in (brown)
PWM GND (blue)
iPWM out (black)
1.POWER SUPPLY (1 ~ 230V, 50 Hz) 2.CONTROL (iPWM)

5 │
4.4. Technical Data
Wilo PARA 25/8 iPWM1
Electric Data
Electric Data 230 V, 50 Hz
Power input (min./max.) 2 / 75 W
Current (min./max.) 0.03 / 0.66 A
Max. speed 4800 pm
Speed control frequency converter
Energy Efficiency Index ≤ 0,21 by EN 16 297/3
IP rating IPX4D
Motor protection integrated
Min. pressure at the suction port to avoid cavitation
Min. pressure at the pump suction port 0.5 mH2O at 50 °C
4.5 mH2O at 95 °C
Operating Parameters
Fluid working temperature 0 - 95 °C
Max. static pressure 10 bar
Max. head 8.4 m
4.5. FAULTS AND THEIR REASONS
The LED light signals a defect. The pump will switch off (depending on the
defect type) and try to restart.
If the fault cannot be rectified, contact a qualified technician.
GREEN IS LIT
RED IS LIT
FLASHING RED
FLASHING RED AND GREEN
1 - pump is running in trouble-free operation
1 - rotor is blocked
2 - electric motor winding defect
1 - power supply lower/higher than 230 V
2 - electric short circuit in pump
3 - pump overheated
1 - unforced fluid circulation through the pump
2 - pump speed lower than desired
3 - air in pump
LED signals State description and possible fault reasons

│6
4.6. Performace curves for Wilo Para 25/8 iPWM1 pump

7 │
5. Ball Valve w. filter & magnet
5.1. Maintenance and cleaning
1. Close the ball valve by turning the lever clockwise by 90° (Fig. 1).
2. Unscrew the lid with magnet manually and take out the strainer (Fig. 2, 3).
3. Remove impurities from the strainer and magnet.
4. Return the clean strainer back to its place and screw on the lid with magnet.
3. Open the ball valve by turning the lever counter-clockwise by 90° (Fig. 4).
fig. 1 fig. 2
fig. 3 fig. 4
