REI HD5-600 User manual

1-10
User Manual
For
Digital Video Recorder
HD5-600

2-10
Notice
The information in this manual was current when published. The manufacturer reserves the right to
revise and improve its products. All specifications are therefore subject to change without any notice.
The purpose of this manual is to kindly aid the user for the operation for our MDVR. The user should
have a basic understanding of computer operation and basic knowledge of how to connect peripherals
and make some settings.
Guarantee & Warnings
1) Electrical Apparatus Safety
All installation and operation should comply with local electrical safety norms.
2) Transportation
In the process of transportation, storage and installation, please avoid heavy stress, violent vibration,
impact and water splashing.
3) Installation
Install the equipment in accordance with the requirements, handle carefully. Do not heavily press the
equipment before the MDVR installation is finished.
4) Requirements on Engineers & Technicians
All the work of checking and maintenance should be done by qualified technicians and engineers.
We do not undertake any responsibility caused by unauthorized modifications.
5) Requirements on Environment
The equipment should be installed and stored in a cool and dry place, away from direct sunlight,
flammable or explosive substances, etc. Keep gaps not less than 3cm around the device to facilitate
ventilation for cooling.
6) Accessories
Make sure to use accessories from the manufacturer recommended in the attachment.
Insulate circuit ground and metal shell for all the peripherals.
Before installation, please open the package and ensure that all parts are included.
If there are any problems, please contact us as soon as possible.

756
3-10
1.PRODUCT CHARACTERISTICS
1.1. OVERVIEW
HD5-600 is a functional Digital Video Recorder specially designed for vehicle video surveillance and
remote monitoring. It has a high-speed processor and embedded operating system, combining with the
most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning
technology, as well as WIFI. It supports not only video recording in 1080P, 720P, AHD, D1, HD1 and CIF
formats, but also vehicle travel information recording and wireless data upload. With center software it
also achieves alarm linkage central monitoring, remote management and playback analysis. It is easy to
use with simple design, multi-functions, HDD + SD card , superior anti-vibration, flexible installation and
high reliability.
1.2. SPECIFICATIONS
Function Overview Preview, Recording, Playback, Network, Locating
System OS Linux 3.0.8
Control Mode Easy Check, Network (3G/4G/WIFI), Mouse
Video
Input 4 channels AHD+2 channel IPC
Output 1 channel (RCA)
Total Resource
PAL: (4x25)FPS 720P(AHD)+2*1080P@30FPS(IPC)
or (4x12)FPS 1080P(AHD)+2*1080P@30FPS(IPC)
NTSC: (4x30)FPS 720P(AHD)+2*1080P@30FPS(IPC)
or (4x15)FPS 1080P(AHD)+2*1080P@30FPS(IPC)
Video Signal
Standard Electrical level: 1Vpp Impedance : 75ΩNTSC/PAL Optional
Audio
Input 6 channels (2 channel IPC audio input)
Output 1 channel (RCA)
Audio Signal
Standard Electrical level: 2Vpp Input impedance: 4.7kΩ
Display
Display Split 1/4/9
OSD GPS information, alarm, license plate, speed, date/time
Operation Interface Semi-transparent GUI
Recording
Video/Audio
Compression
Video: H.264
Audio: ADPCM
Image Resolution
PAL:
1080P(1920X1080), 720P(1280X720), WD1(928X576),
WHD1(928X288), WCIF(464X288), D1(704X576),
HD1(704x288), CIF(352x288);
NTSC:
1080P(1920X1080), 720P(1280X720), WD1(928X480),
WHD1(928X240), WCIF(464X240), D1(704x480),

756
4-10
HD1(704x240), CIF(352x240);
Digital:1080P(1920X1080);
720P(1280X720);
Image Quality 1-8 levels adjustable (1 is the best)
Recording Mode Boot up/Manual/Schedule/Alarm
Pre- recording 0-60minutes
Post-recording 0-30 minutes
Mirror/Dual
Recording Support
Playback Playback Channel 1 channel by local playback
Search Mode Date/time, channel, event
Network
3G/4G Support LE910 and MC7354 module
WIFI 802.11b/g/n/ac (2.4GHz and 5.8GHz)
IPC Ethernet(Back) 2 x10/100 M RJ45 ports(One connect CAM, the other One
connect extended 3G/4G Router)
IPC Ethernet(Front) 1 x10/100/1000M RJ45 port(Connect PC for only testing)
Locating GPS Location tracking, speed detection and time sync
Storage Hard disk + SD card 1 x HDD + 1 x SD card
Interface
USB 2 x USB2.0 (Type A) + 1 x USB2.0 (Type B)
SD 1 x SD slot
Sensor 8 inputs, 2 outputs
Panic 1 x Panic
RS232 1 x ACC
RS485 1 x Extend GPS interface
J1939 2 x CAN
12V Out 2 x DC12V/1A Out
ESATA 1 x ESATA
Power
Input DC8-30V
Max Power
Consumption 40W
Standby Power
Consumption ≈0W
Physical
Characteristic
Dimension
(L × W × H)(mm) 320.5 x 187.4 x 99mm
Weight 3.2 Kg (Without HDD)
Environment
Operating
Temperature -10℃~ +70℃; -40℃~ +70℃(With heater)
Operating Relative
Humidity 8%-90% (No Condense)

756
5-10

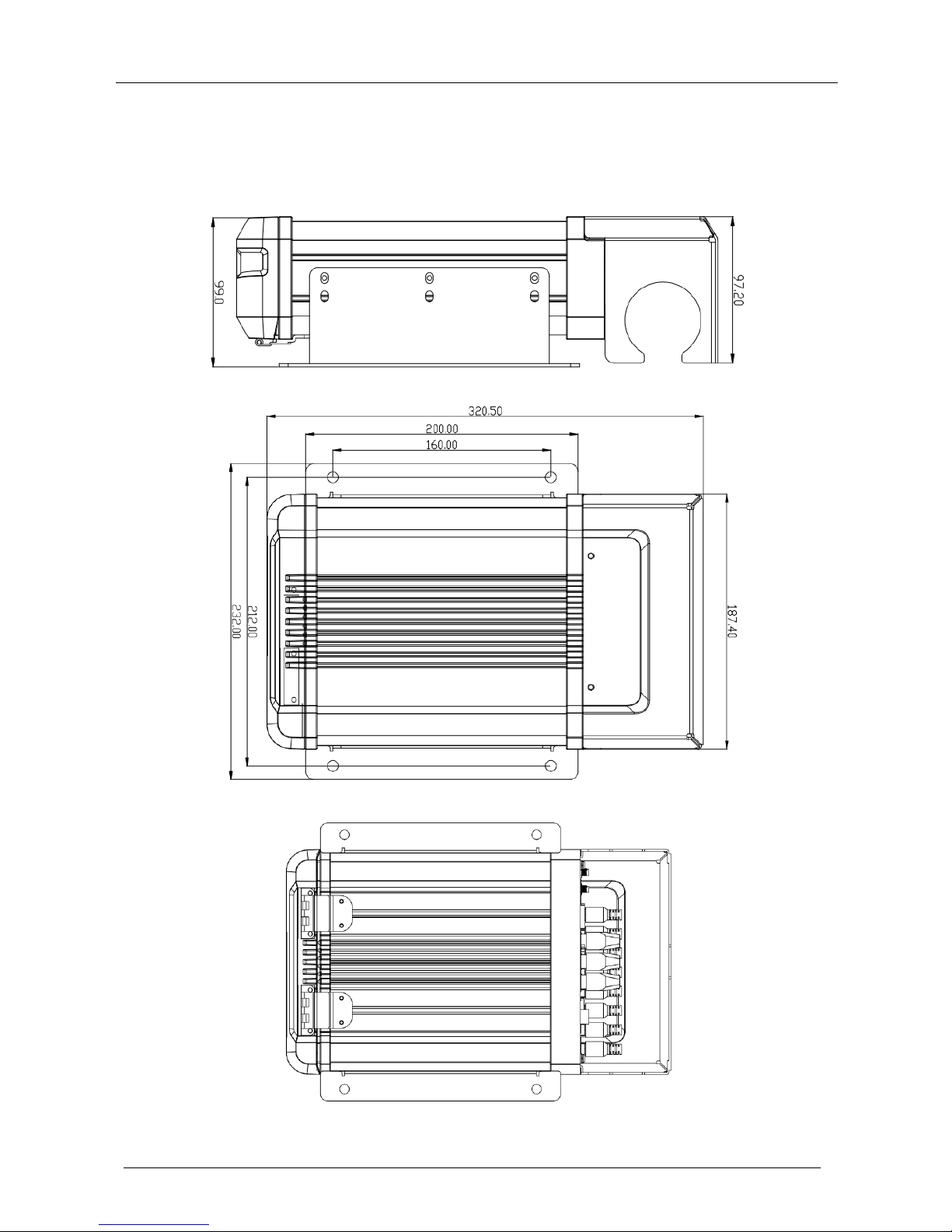

1.3. DIMENSION
Unit: mm

756
6-10
1.4. PANEL INTERFACE
Front panel










Serial No. Print Description
1 AUDIO Audio out
2 VIDEO Video out
3 PWR Power LED
4 HTR HTR LED
5 REC Recording LED
6 FLT FLT LED
7 ALM Alarm LED
8 VLOSS VLOSS LED
9 USB 2 x USB 2.0
10 RJ45 1 x 10/100/1000M RJ45
11 WAKE Wake Button

756
7-10
Rearpanel:


Serial No. Print Description
1 Power DC8-30V power input
2 CAM5-6 IP Camera input 5-6
3 WAN Connect extended 3G/4G Router
4 USB USB2.0 port (Type B/ to connect fire proof box)
5 EXT HDD ESATA Connector
6 CAMERAS AHD A/V input1~4
8 WIFI WIFI 1-2 antenna port(2.4GHz & 5.8GHz)
9 CELL 3G/4G antenna port
10 GPS GPS antenna port
11 INPUT Sensor input
12 J1939 2 x CAN Ports
13 AUX 2 x DC12V/1A Out Ports
14 PANIC 1 x Panic Port
15 ACC 1 x ACC Port
16 GPS 1 x Extended GPS Port


756
8-10
2.FREQUENTLY ASKED QUESTIONS
1) The system can’t start?
Usually this problem results from the incorrect power connection. Please follow below steps to
check the power connection:
1. Check the input power, whether the power wire is connected correctly, whether the ground wire is
connected back to the battery, and whether the fuse on the power wire is in good condition.
2. Check whether the ACC signal wire input to the power is with voltage higher than 7 V.
3. Check whether the device key is closed.
2) The MDVR restarts uninterruptedly?
Please follow below steps to check it:
1. Check whether the voltage of MDVR is insufficient. If the voltage is less than the start-up voltage of
the device, the device would always restart.
2. The problem in hard disk/SD card may cause the failure to start. Take off the storage part and check
whether it is broken down.
3) The device can’t record?
Usually this problem results from the storage disk or camera. Please follow below steps to check it:
1. Check whether the storage disk is installed, whether it is in good contact, and whether the disk can
be read normally in computer.
2. Check whether the storage disk is formatted. The storage disk should be formatted before normally
storing record files.
3. Check whether there is video signal input into the device from camera, and whether there is
video/image on the screen.
4) There is no voice in record file?
Please follow below steps to check it:
1. Check whether there is an external pickup, or whether the camera features with the function of
audio collection.
2. Access to Video Channel Settings, check if Audio is set on.
3. There must be video input into the channel for recording and it must record normally.
5) The GPS works abnormally?
Please follow below steps to check it:
1. Check whether the GPS antenna is installed correctly. There is a silk print logo on the GPS antenna
holder behind the host device.
2. Check whether the antenna receiver is sheltered. It should not be covered by any stuff, which may
cause it not to receive signals.
3. Environmental influence such as tree shades, being inside tunnel, driving near tall building or
elevated roads, thunderstorms or other weather influence, etc. can also cause signal loss or
receiving wrong signals.
6) The device can’t shutdown in ignition switch mode?
Please follow below steps to check it:
1. Check if the ACC line connection mode is correct; and check whether there is voltage on ACC
yellow line when the key is turned off.
2. If the device has been set with schedule recording, it can’t shutdown if it is still during recording time

756
9-10
of the task table.
7) How to install the WIFI antenna?
The antenna must be installed on unobstructed place of the roof, and be fixed with glue.
8) The device cannot be shut down when in ignition ON/OFF mode.
Check if the ACC signal wiring is correct and if there is voltage for ACC signal line after the key is
turned off .
If you have set timing recording, and at the current time it is still in task recording, the device may be
impossible to be shut down.
9) GPS anomaly.
Check if the GPS antenna is properly installed. There is silkscreen GPS identification on the GPS
antenna pedestal on the back of the MDVR device. Check if the antenna connector is blocked and
make sure the antenna connector not be covered by other things.
Trees block, being inside the tunnel, driving near tall buildings or viaduct, thunderstorms and other
environmental effects may also cause to receive no GPS signal or error signal.
10) No voice in video files.
See if there is an external microphone, or if the camera cannot capture audio;
Enter into the video channel settings, then check if the audio is open;
Ensure video input and normal recording, on which the audio recording channels must be based.
11) The device doesn’t record.
Make sure the storage part is installed and of fine contact, the data can be read on PC, and the
storage device is not formatted.
Check if there are video signal input to the main device, and whether there are video images in the
channel pictures.
12) Why has the MDVR device always been in a state of restart?
Check whether the MDVR device voltage is insufficient. If the device voltage does not reach the
start voltage, the device will restart.
Hard disk or SD card may cause the MDVR device unable to start. You need to remove the storage
device and then boot up to verify whether it is caused by the storage device.
13) Why the MDVR device cannot start?
Check the device input power to see if the power wiring is correct, if there is ground wire connected
back to the battery, and if the fuse of the power wire is n good condition;
Check whether there is voltage(more than 7V) on power input ACC signal wire;
Check whether the hard disk key is turned off.
14) What is the log in user name and password for new device?
The default user name and password are both “admin”. The device password can be set as empty.
15) In the ON/OFF of basic settings, the low voltage protection is 8V, why?
After testing, when the battery is lower than 8V, the voltage will lower down quickly. Therefore the
lowest voltage is set to be 8V. When it is lower than 8V, the MDVR device will recognize it as
external power-off and then enter into shutdown state.

756
10 -10
3.FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions (1)this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
