ReliOn Outlaw 1072s User manual
USER MANUAL
Power Station & Solar Generator
(Solar Panel not included)
Press to start / stop AC Output
Press to start / stop DC Output
DISCHARGING THE OUTLAW 1072S
DISCHARGE OPERATION
1. Set the AC and/or DC power switches to the on position and plug your devices into the appropriate
receptacle(s). Use the provided power strip if more that one AC outlet is required. The backlit LCD screen may
shut o to preserve power if there are no active external loads. To activate display, apply an external load.
CHARGE OPERATION
During standby, the indicator on the AC charger (included accessories) shows that LED1 is red and LED2 is green.
During charging the battery pack LED2 turns red.
When the battery pack is fully charged, LED1 turns red and LED2 turns green. Please promptly disconnect the
charge cable upon charge completion.
If the Power Station’s total output exceeds 1,150W for more than 10 seconds, the BMS will go into protection
mode by opening the circuit to prevent damage to the battery. To recover from protection mode, set the AC and
DC switches to the o position and unplug all devices. Then set the AC and DC switches to the on position and
plug devices back in. You may need to limit the number of devices used at the same time to prevent the power
station from going back into protection mode.
The Power Station does not turn o automatically. Turn o each output by pressing its power button when not in
use to preserve power. The edge of the buttons are illuminated by a blue ring when powered on.
Children should not operate the power station without adult supervision
Care MUST be taken with ring terminals of the quick plug (EC5) when connected to the power station. They are
a direct live connection to the battery even when the AC or DC power is o. The quick plug (EC5) terminates in
ring terminals but these may be replaced with the appropriate matching connector for any DC appliance with
current requirements greater than 10 amps but less than 30 amps.
AC Charger

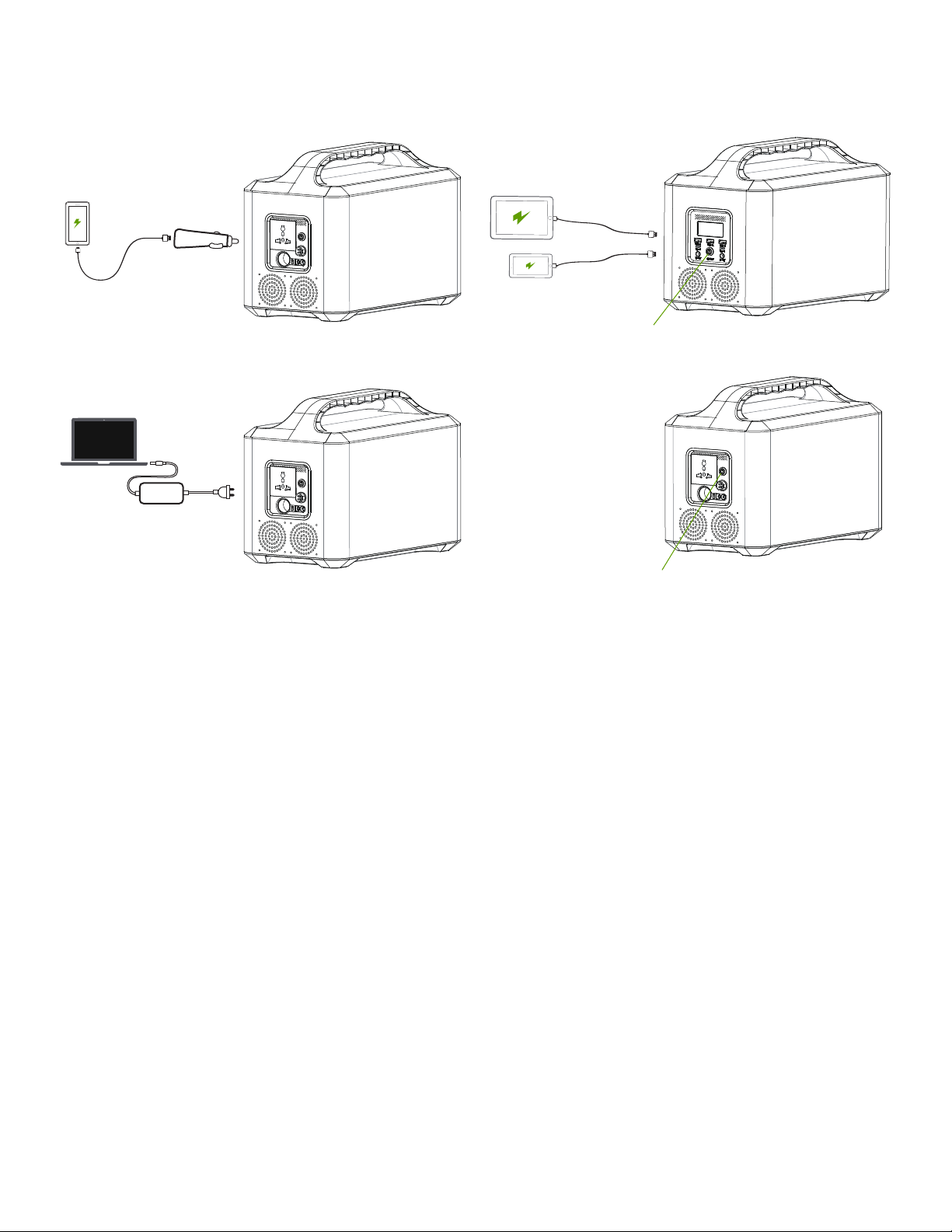

CHARGING THE OUTLAW 1072S
SOLAR CHARGER
18V 150W (Max) Solar Panel
POWER DISPLAY (VOLTAGE RANGE)

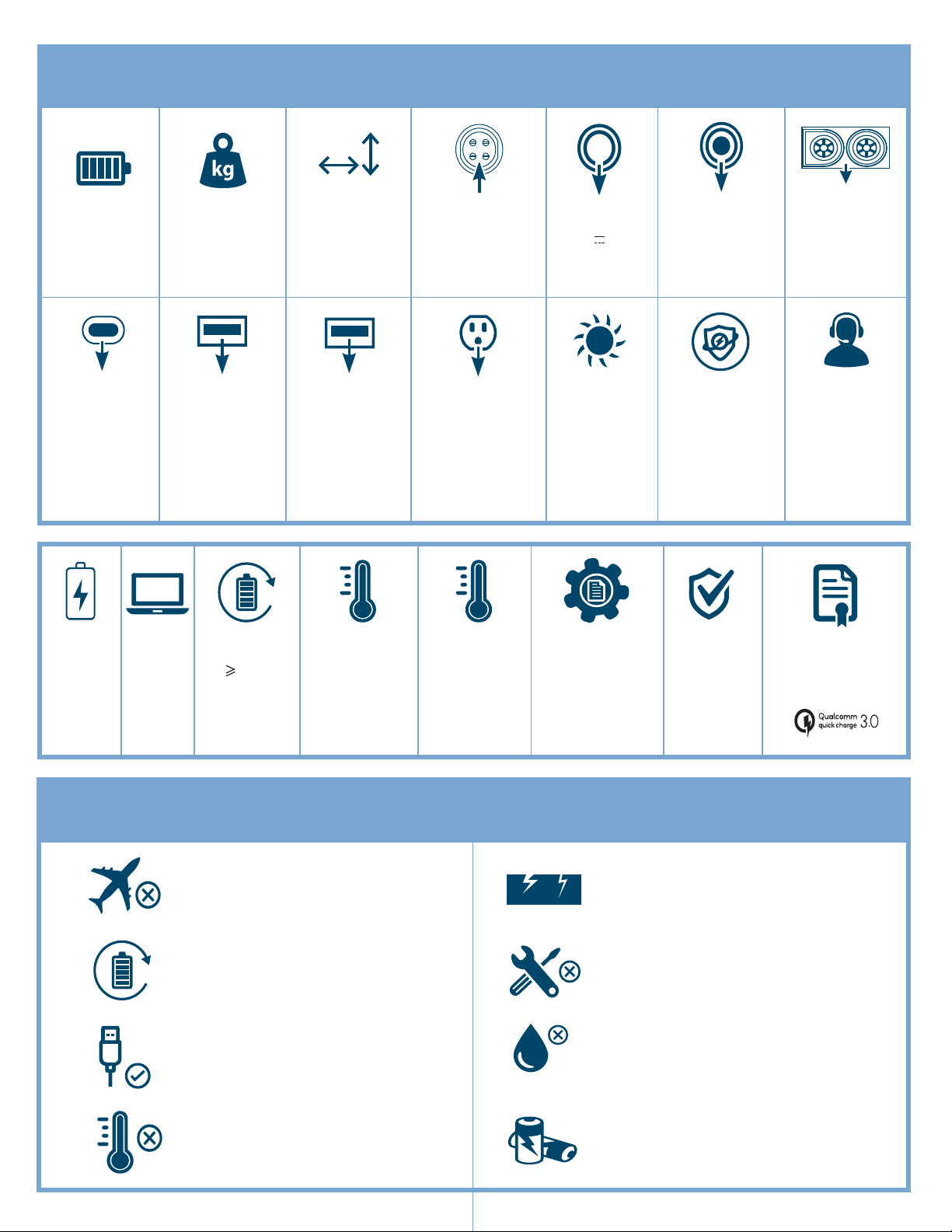

SPECIFICATIONS
ATTENTION
12.8V72Ah
（921.6Wh）
Type-C PD DC
5V~6V 3A
6V~9V 2A
9V~12V 1A
LiFePO4
Not permitted on aircraft
LCD
Display -20~60°C
USB-1/USB-2
DC 5V 2.1A
USB-3 DC
Quick Charge3.0
5V~6V 3A
6V~9V 2A
9V~12V 1A
1x110V~9.09A,
60Hz, 1000W
max continuous,
2000W surge peak
Support Solar
Panel MPPT
Charging PV/
15-25V
160 watts max
Temperature
Control,
Surge Protection,
Short circuit
protection
Lifetime
14.5kg
31.96Lbs
L x W x H
368x200x275mm
14.48x7.87x10.82in
DC 14.6V/Max10A
Support PV 15~20V
12V 10A
2xDC Port
(12V/7A)
1xDC 30A
Quick Charger
2000
0~50°C Under Voltage Protection
Over Voltage protection
Over Current Protection
Short Circuit Protection
12 Months
CE,FCC,ROHS
UN38.3,MSDS
To preserve the Outlaw 1072S
lifespan discharge and recharge
at least once every six months.
Use original or certified
charger and cables
Avoid extreme temperatures
Avoid dropping
Do not disassemble
Do not immerse in water
Please dispose of batteries and
electronic goods in accordance
with local regulations

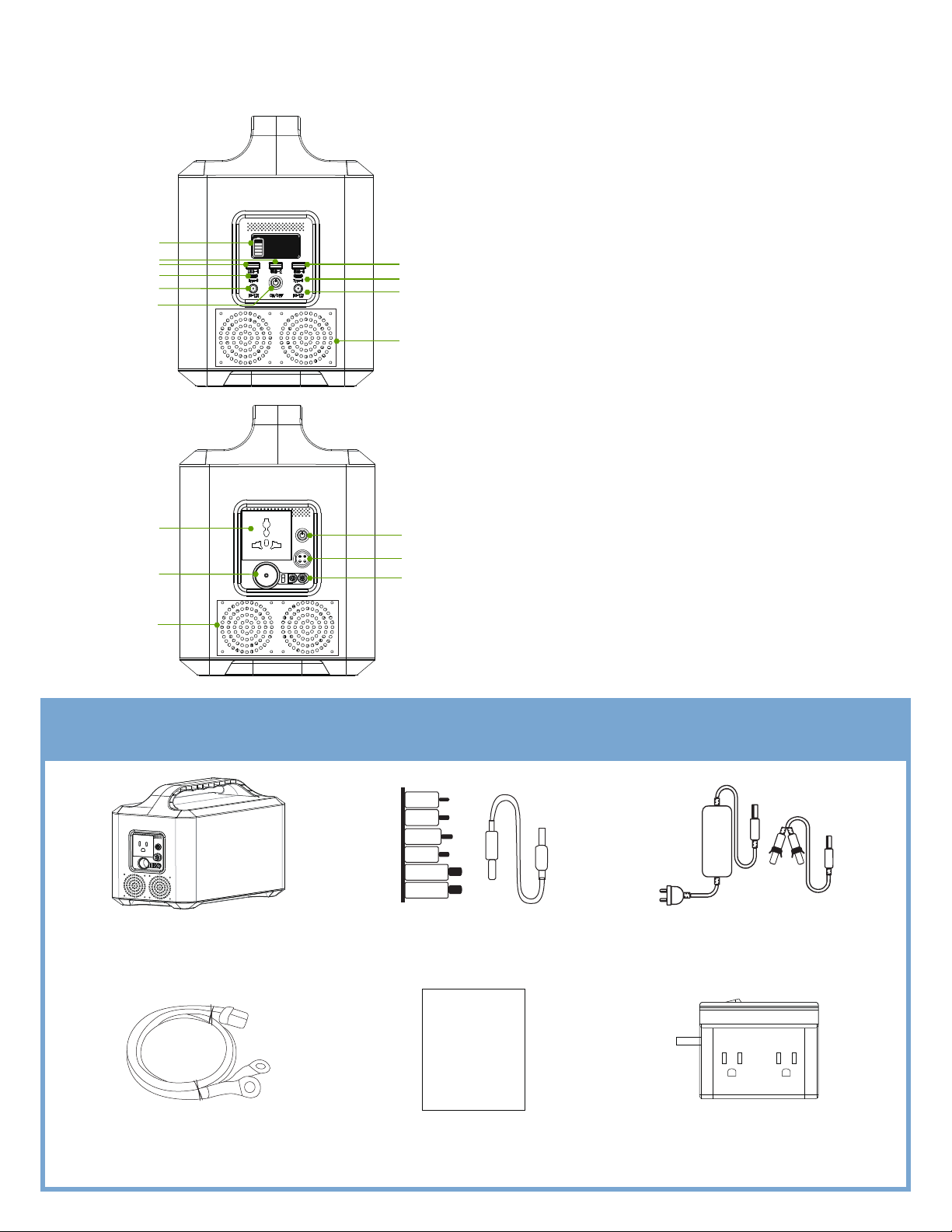

WHAT’S IN THE BOX
PRODUCT DIAGRAM
1
3
4
6
12
2
6
5
4
11 7
8
9
10
12
The Manufacturer has no obligation under this Limited Warranty for Product subjected to the following
conditions (including but not limited to):
Damage caused during shipping or mishandling of the Product
Damage due to improper installation; loose terminal connections, under-sized cabling, incorrect series
(cannot be used in series) or parallel connections, reverse polarity connections or insuicient space for
airflow
Environmental damage such as inappropriate storage conditions as defined by the Manufacturer, exposure
to extreme hot or cold temperatures, fire or freezing, or water damage, impact or collision Damage due to
improper operation or maintenance such as under- or over-charging the Product, cold temperature
charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic
matter, fossil fuels or chemicals on the Product casing
Improper use of cables such as improper connections or not connecting them
Product that has been opened, modified or tampered with
Tampering or removal of manufacture date codes
Product that was used for applications other than which it was designed and intended for by the
Manufacturer
Product that was under-sized for the application
This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which
may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life
which will occur over dierent periods of time depending on the application.
The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection,
to be at its normal end of life even if within the Warranty Period.
For full warranty information please visit https://relionbattery.com/resource-center/warranty
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause
undesired operation.
LIMITED WARRANTY
855.931.2466 • relionbattery.com
