Remington MB340C User manual

MB340C
I remington-europe.com

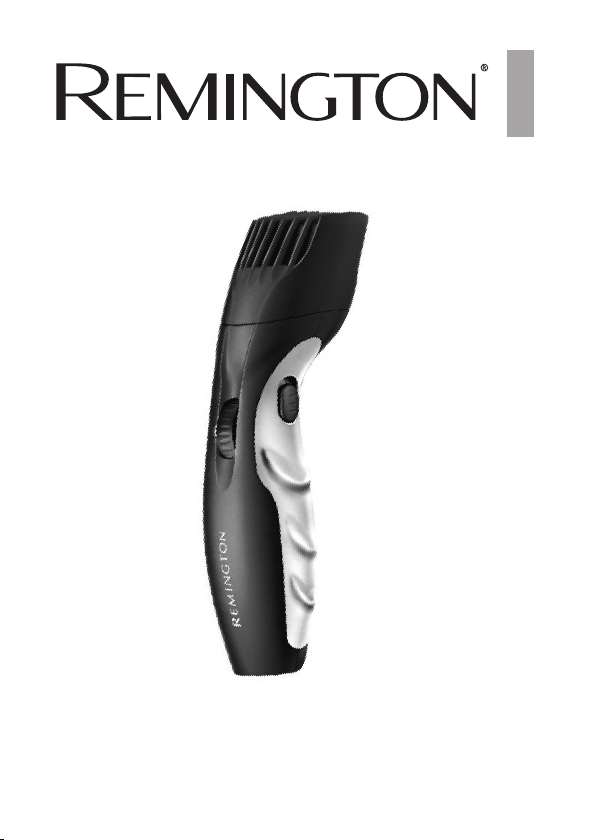

Cord/Cordless Beard Trimmer

2
k
j
e
g
i
f

3
Thank you for buying your new Remington® product. Please read these instructions carefully
and keep them safe. Remove all packaging before use.
IMPORTANT SAFEGUARDS
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been supervised/instructed and
understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be done by children unless they are
older than 8 and supervised.
• Always check the appliance before you use it. Do not use the appliance if it is
damaged, as this may cause injury.
• The adaptor contains a transformer. Do not cut off the adaptor to replace it
with another plug, as this causes a hazardous situation.
• Check if the voltage indicated on the adapter corresponds to the local mains
voltage before you connect the appliance.
• Only use the adapter supplied to charge the appliance.
• Always replace a damaged adaptor with one of the original type.
• Keep the appliance and the adapter dry.
• This appliance should never be left unattended when plugged into a power outlet,
except when charging.
• Do not plug or unplug the appliance with wet hands.
• Do not use attachments other than those we supply.
• This appliance is not intended for commercial or salon use.
KEY FEATURES
1. On/o switch
2. 9 position zoom wheel
3. Length position indicator
4. Charging indicator
5. Adjustable trimmer comb
6. Trimmer assembly
7. Pop-up trimmer (not shown)
8. Charging adaptor (not shown)
ENGLISH
GB
DE
NL
FR
ES
IT
DK
SE
FI
NO
PT
SK
CZ
PL
HU
RU
TR
RO
GR
SI
HR
UA
AE

4
GETTING STARTED
• Before using your trimmer for the rst time, charge for 14-16 hours.
• Ensure the product is switched o.
• Connect the charging adaptor to the product and then to the mains.
•The charging indicator will illuminate.
•The charging indicator will remain illuminated once charge is complete.
• Your appliance cannot be overcharged. However, if the product is not going
to be used for an extended period of time (2-3 months), unplug it from the
mains and store.
• Fully recharge your appliance for 16 hours when you would like to use it
again.
• To preserve the life of your batteries, let them run out every 6 months then
recharge for 14-16 hours.
CORDED USE
•Connect the charging adaptor to the product then to the mains.
CAUTION
•Extended mains only use will result in the reduction of the battery life.
INSTRUCTIONS FOR USE
BEFORE YOU BEGIN
•Comb facial hair with a ne comb before you start trimming.
ADJUSTING THE TRIM LENGTH
•The trimmer comb can be adjusted to give you 9 dierent trim lengths
simply by turning the wheel to the desired setting.
•Turn the wheel clockwise for shorter length, anti-clockwise for longer length.
• The wheel will click into place as it reaches each setting and the setting
number will appear on the length position indicator.
SETTING HAIR DESCRIPTION HAIR LENGTH
1Stubble or Cropped look 1.5mm 0.06’’
2 2.5mm 0.1’’
3Short 4mm 0.16’’
4 5.5mm 0.22’’
5Medium 7mm 0.28’’
ENGLISH

5
69mm 0.35’’
711mm 0.43’’
814mm 0.55’’
9Long 18mm 0.71’’
• Note: trimmer comb must be attached to the product in order to use the
hair length selector.
• Note: use the beard trimmer without the adjustable comb for trimming hair
close to the skin. This will trim hair to 1mm, holding the blades perpendicular to the skin
will trim hair to 0.4mm.
ATTACHING AND REMOVING THE TRIMMER COMB
•Hold the trimmer in one hand with your thumb rmly on the zoom wheel to
keep it from turning. Ensure that the length position indicator is at 1.
• Slide the comb down the grooves until it clicks into place.
• The trimmer comb attachment can only be attached in one way.
•To remove the comb attachment slide the comb o the grooves and pull
away from the trimmer body.
TO THIN AND TAPER THE BEARD/MOUSTACHE
•Slide on the attachment comb to the main trimmer blade.
•Use the zoom wheel to set the trimmer comb to the desired length setting.
•The setting will appear on the length position indicator. If you are trimming
for the rst time start with the maximum trimming length setting.
• Turn the unit on.
• Place the at top of the trimmer comb against the skin.
•Slowlyslidethroughthehair.Repeatfromdierentdirectionsasnecessary.
•If hair builds up in the trimmer combduring thetrimming process, switch
the unit o, pull o the comb and brush the hair o.
TO DEFINE THE BEARD/MOUSTACHE LINE
•Remove the trimmer comb attachment.
• Start with edge of beard/moustache line and gently lower the trimmer
blade onto your skin.
• Use motions towards edge of beard/moustache line to trim to desired
locations in facial area and away from beard in neck area.
• For ner shaping, raise the pop-up trimmer. Shape as desired.
ENGLISH
GB
DE
NL
FR
ES
IT
DK
SE
FI
NO
PT
SK
CZ
PL
HU
RU
TR
RO
GR
SI
HR
UA
AE

6
TRIMMING EDGE OF SIDEBURNS
•Remove the trimmer comb attachment.
• Start with edge of sideburn and with the trimmer blades resting lightly
against your skin, use motions towards edge of sideburn line to trim the
desired locations in facial area.
• For ner shaping, raise the pop-up trimmer. Shape as desired.
• To raise the pop-up trimmer, remove the adjustable comb and then slide up
the pop-up trimmer release button which sits below the pop-up trimmer.
• To retract the pop-up trimmer, slide down the pop-up trimmer release
button.
TRIMMING THE NAPE OF YOUR NECK
Note: You will need a hand mirror for this operation if performing it alone.
• Remove the trimmer comb attachment.
• Use your ngers to lift the hair at the base of your head up o the neck. Your
index nger should be covering the roots of the hairs you are lifting to
prevent accidental removal by trimmer.
• Using your other hand, hold the trimmer to the base of your neck with the
cutting unit facing up and move the trimmer up the length of the neck until
it touches your nger, covering the hair roots at the base of your head.
• Be sure to move the unit slowly when performing this operation and to keep
the hair roots at the base of your head out of the way of the trimmer.
REMOVING THE CUTTING ASSEMBLY
• Remove the cutting assembly by rmly pushing up on the blade with your
thumb.
REPLACING THE CUTTER ASSEMBLY
•Hold the trimmer in one hand. With your other hand, insert the lower part of
the cutter assembly into the trimmer, push down the cutter until rmly
attached.
TIPS FOR BEST RESULTS
•Beard, moustache and sideburn hairs should be dry.
• Avoid using lotions before use.
• Comb your hair in the direction that it grows.
• Remove the trimmer comb attachment if you are; dening hairline edges
such as sideburns, trimming the nape of your neck or trimming your beard
line on front of neck.
ENGLISH

7
CARE FOR YOUR TRIMMER
• Care for your product to ensure a long lasting performance.
• Your trimmer is tted with high-quality, cutting blades that are permanently
lubricated.
• Cleaning should only be done with a soft brush.
AFTER EACH USE
•Turn the groomer o.
• Remove the trimmer comb attachment and cutter assembly.
• Gently brush the remaining hairs away from the trimmer comb and trimmer
blade.
• Please note, the main body of the trimmer is not washable and should be
kept away from water.
• After rinsing under a tap ensure the blades are dry.
POP-UP TRIMMER
•Remove the trimmer comb attachment.
• Slide up the pop-up trimmer into operating position.
• Brush hair from the trimmer blades and the surrounding area.
CLEANING CAUTIONS
•Only the adjustable trimmer comb and cutter assembly may be removed
from the trimmer for cleaning.
• Cleaning should only be done with a soft brush.
• Do not use harsh or corrosive cleaners on the units or their blades.
• This trimmer is not washable. Do not rinse under water.
• Do not submerge in water as damage will occur.
STORAGE
•Store this appliance and cord in a moisture-free area. Do not store it in
temperatures exceeding 140°F (60°C).
• Do not wrap the cord of the charging adaptor around the appliance.
TROUBLESHOOTING
The trimmer does not work when turned on:
• Trimmer must be charged for a full 14-16 hours. If this does not work,
contact Remington® Service Centre.
ENGLISH
GB
DE
NL
FR
ES
IT
DK
SE
FI
NO
PT
SK
CZ
PL
HU
RU
TR
RO
GR
SI
HR
UA
AE

8
Trimmer blades do not move:
•The cutting unit may be dirty and clogged.
• Clean and lubricate the unit.
BATTERY REMOVAL
• The battery must be removed from the appliance before it is scrapped.
• The appliance must be disconnected from the mains supply when removing
the battery.
• Turn the trimmer on and discharge all remaining power.
• Remove the comb and cutter assembly.
• Use a screwdriver to pry out the holder plate under the trimmer carefully.
• Use a screwdriver to pry the two side panels carefully.
• Remove the 4 screws from the housing.
• Using a screwdriver carefully pry apart the top and bottom housing.
• Unscrew the 2 screws on the circuit board.
• Remove the upper circuit board.
• Disconnect the battery from the low circuit board.
• The battery is to be disposed of safely.
RECYCLING
WTo avoid environmental and health problems due to hazardous
substances, appliances and rechargeable and non-
rechargeable batteries marked with one of these symbols must
not be disposed of with unsorted municipal waste. Always
dispose of electrical and electronic products and, where
applicable, rechargeable and non-rechargeable batteries, at an
appropriate ocial recycling/collection point.
ENGLISH

9
DEUTSCH
Vielen Dank, dass Sie sich für den Kauf dieses Remington® Produkts entschieden haben. Lesen
Sie diese Bedienungsanleitung aufmerksam durch und bewahren Sie sie auf. Entfernen Sie die
Verpackung vor dem Gebrauch vollständig.
WICHTIGE SICHERHEITSHINWEISE
• Dieses Gerät ist für die Nutzung von Kindern ab 8 Jahren sowie von Personen
mit eingeschränkten physischen, sensorischen oder geistigen Fähigkeiten oder
Mangel an Erfahrung und Wissen geeignet, wenn ihnen die Handhabung
erklärt wurde/ sie dabei beaufsichtigt werden und ihnen die damit
verbundenen Gefahren bewusst sind. Kinder dürfen nicht mit dem Gerät
spielen. Reinigung und Pflege dürfen nicht von Kindern durchgeführt
• werden, es sei denn sie sind älter als 8 Jahre und werden dabei beaufsichtigt.
• Überprüfen Sie das Gerät vor jedem Gebrauch. Benutzen Sie es nicht, wenn es
beschädigt ist, um Verletzungen zu vermeiden.
• Das Netzteil enthält einen Transformator. Bitte schneiden Sie den Netzstecker
nicht ab, um ihn durch einen anderen Netzstecker zu ersetzen, da dies
gefährlich sein kann.
• Überprüfen Sie vor dem ersten Gebrauch, ob die Spannungsangabe auf dem
Adapter mit der örtlichen Netzspannung übereinstimmt.
• Verwenden Sie zum Laden des Geräts ausschließlich den mitgelieferten
Adapter.
• Ersetzen Sie ein beschädigtes Netzteil immer durch ein Original-Ersatzteil.
• Gerät und Adapter dürfen nicht nass werden.
• Lassen Sie das an das Stromnetz angeschlossene Gerät auf keinen Fall
• unbeaufsichtigt, ausgenommen, wenn es gerade aufgeladen wird.
• Schließen Sie das Gerät nicht mit nassen Händen an das Stromnetz an.
• Verwenden Sie nur das von uns zur Verfügung gestellte Zubehör.
• Dieses Gerät ist nicht für die gewerbliche Nutzung geeignet.
GB
DE
NL
FR
ES
IT
DK
SE
FI
NO
PT
SK
CZ
PL
HU
RU
TR
RO
GR
SI
HR
UA
AE

10
DEUTSCH
HAUPTMERKMALE
1. Ein- / Ausschalter
2. 9-stuges Einstellrad
3. Schnittlängenanzeige
4. Ladekontrollanzeige
5. Verstellbarer Trimmerkamm
6. Trimmereinheit
7. Detail-/Langhaarschneider (Nicht
abgebildet)
8. Ladeadapter (Nicht abgebildet)
VORBEREITUNGEN
• Bevor Sie Ihr Gerät das erste Mal in Betrieb nehmen, laden Sie das Gerät 14-16
Stunden lang auf.
•Vergewissern Sie sich, dass das Gerät ausgeschaltet ist.
• Schließen Sie den Ladeadapter an das Produkt und anschließend an das
Stromnetz an.
•Die Ladekontrollanzeige leuchtet auf.
• Die Ladekontrollanzeige leuchtet auch dann noch, wenn das Gerät
vollständig aufgeladen ist.
• Das Gerät kann nicht überladen werden. Sollten Sie das Gerät jedoch über
einen längeren Zeitraum (2-3 Monate) nicht verwenden, ziehen Sie den
Netzstecker aus der Steckdose und verstauen Sie das Gerät.
• Wenn Sie Ihr Gerät wieder verwenden möchten, lassen Sie ihr Gerät für 16
Stunden vollständig auaden.
• Um die Lebensdauer Ihres Akkus zu verlängern, lassen Sie diesen alle sechs
Monate vollständig entladen, um ihn dann 14-16 Stunden wieder vollständig
aufzuladen.
NETZBETRIEB
•Schließen Sie den Ladeadapter an das Gerät und anschließend an das
Stromnetz an.
ACHTUNG
• Ein häuger Einsatz des Geräts im Netzbetrieb führt zu einer Verkürzung der
Akkulaufzeit.
BEDIENUNGSANLEITUNG
BEVOR SIE LOSLEGEN
•Kämmen Sie das Gesichtshaar mit einem feinen Kamm, bevor Sie zu
schneiden beginnen.
