Remington RM4625 User manual

Operator’s Manual
2-Cycle Gas Cultivator
RM4625
TABLE OF CONTENTS
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Oil and Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Starting and Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
All information, illustrations, and specifications in this manual are based
on the latest product information available at the time of printing. We
reserve the right to make changes at any time without notice.
Copyright© 2012 MTD SOUTHWEST INC, All Rights Reserved.
DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF
PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.
For assistance regarding the assembly, controls, operation or
maintenance of the unit, please call the Customer Support Department
at 1-866-206-2707 in the United States or 1-877-696-5533 in Canada.
Additional information about the unit can be found on our website at
www.remingtonpowertools.com.
For service, please call the Customer Support Department to obtain
a list of authorized service dealers near you. Service on this unit,
both within and after the warranty period, should only be performed
by an authorized and approved service dealer. When servicing, use
only identical replacement parts.
769-08702 / 00 11/12
SAVE THESE INSTRUCTIONS
SERVICE

2
SAFETY
SAFETY WARNINGS FOR GAS UNITS
• Store fuel only in containers specifically designed and approved
for the storage of such materials.
• Always stop the engine and allow it to cool before filling the
tank. Never remove the fuel tank cap or add fuel when the
engine is hot. Always loosen the fuel tank cap slowly to relieve
any pressure in the tank before fueling.
• Always mix and add fuel in a clean, well-ventilated outdoor area
where there are no sparks or flames. Do not smoke.
• Never operate the unit without the fuel cap securely in place.
• Avoid creating a source of ignition for spilled fuel. Wipe up any
spilled fuel from the unit immediately, before starting the unit.
Move the unit at least 30 ft. (9.1 m) from the fueling source and
site before starting the engine. DO NOT smoke.
• Never start or run the unit inside a closed room or building.
Breathing exhaust fumes can kill. Operate this unit only in a well
ventilated outdoor area.
• IMPORTANT SAFETY INSTRUCTIONS •
SPARK ARRESTOR NOTE
NOTE: For users on U.S. Forest Land and in the states of
California, Maine, Oregon and Washington. All U.S. Forest Land
and the state of California (Public Resources Codes 4442 and
4443), Oregon and Washington require, by law that certain internal
combustion engines operated on forest brush and/or grass-covered
areas be equipped with a spark arrestor, maintained in effective
working order, or the engine be constructed, equipped and
maintained for the prevention of fire. Check with your state or local
authorities for regulations pertaining to these requirements. Failure
to follow these requirements could subject you to liability or a fine.
This unit is factory equipped with a spark arrestor. If it requires
replacement, ask your LOCAL SERVICE DEALER to install the
Accessory Part #753-06792 Muffler Assembly.
Read the operator’s manual and follow all warnings and safety
instructions. Failure to do so can result in serious injury to the
operator and/or bystanders.
SYMBOL MEANING
WARNING: Signals a SERIOUS hazard.
Failure to obey a safety WARNING signal CAN result in
serious injury to yourself or to others.
CAUTION: Signals a MODERATE hazard.
Failure to obey a safety CAUTION signal MAY result in
property damage or injury to yourself or to others.
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
NOTE: Advises you of information or instructions vital to the
operation or maintenance of the equipment.
DANGER: Signals an EXTREME hazard.
Failure to obey a safety DANGER signal WILL result in
serious injury or death to yourself or to others.
CALIFORNIA PROPOSITION 65
WARNING: Engine exhaust, some of its constituents and
certain finished components contain or emit chemicals known
to the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
WARNING: Gasoline is highly flammable and its vapors
can explode if ignited. Take the following precautions:
READ ALL INSTRUCTIONS BEFORE OPERATING
• Read the instructions carefully. Be familiar with the controls and
proper use of the unit.
• Do not operate this unit when tired, ill or under the influence of
alcohol, drugs or medication.
• Children must not operate the unit. Teens must be accompanied
and guided by an adult.
• All guards and safety attachments must be installed properly
before operating the unit.
• Inspect the unit before use. Replace damaged parts. Check for
fuel leaks. Make sure all fasteners are in place and secure.
Replace parts that are cracked, chipped, or damaged in any
way. Do not operate the unit with loose or damaged parts.
• Be aware of risk of injury to the head, hands and feet.
• Carefully inspect the area before starting the unit. Remove
rocks, broken glass, nails, wire, string and other objects that
may be thrown or become entangled with the unit.
• Clear the area of children, bystanders and pets; keep them
outside a 50-foot (15 m) radius, at a minimum. Even then, they are
still at risk from thrown objects. Encourage bystanders to wear
eye protection. If you are approached, stop the unit immediately.
• Squeeze the throttle control and check that it returns
automatically to the idle position. Make all adjustments or
repairs before using the unit.
WARNING: When using the unit, all safety rules must be
followed. Please read these instructions before operating
the unit in order to ensure the safety of the operator and any
bystanders. Please keep these instructions for later use.

3
WHILE OPERATING
• Wear safety glasses or goggles that meet current ANSI Z87.1
standards and are marked as such. Wear ear/hearing protection
when operating this unit. Wear a face mask or dust mask if the
operation is dusty.
• Wear heavy long pants, boots, gloves and a long sleeve shirt. Do
not wear loose clothing, jewelry, short pants, sandals or go
barefoot. Secure hair above shoulder level.
• This unit has a clutch. The tines remain stationary when the
engine is idling. If they do not, take the unit to an authorized
service dealer for an adjustment.
• Make sure the tines are not in contact with anything before
starting the unit.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. Be in the starting position whenever
pulling the starter rope. The operator and unit must be in a stable
position while starting. Refer to Starting and Stopping.
• Use the right tool. Only use this tool for its intended purpose.
• Always hold the unit with both hands when operating. Keep a
firm grip on both handles or grips.
• Do not overreach. Always keep proper footing and balance. Take
extra care when working on steep slopes or inclines.
• Use extreme caution when reversing or pulling the unit towards
you.
• Keep hands, face, and feet away from all moving parts. Do not
touch or try to stop moving parts.
• Do not touch the engine or muffler. These parts get extremely hot
from operation, even after the unit is turned off.
• Do not operate the unit faster than the speed needed to do the job.
Do not run the unit at high speed when not in use.
• Do not force the unit. It will do a better, safer job when used at
the intended rate.
• Always stop the unit when operation is delayed or when walking
from one location to another.
• If you strike or become entangled with a foreign object, stop the
unit immediately and check for damage. Do not operate the unit
before repairing damage. Do not operate the unit with loose or
damaged parts.
• Turn the engine to off and disconnect the spark plug for
maintenance or repair.
• Use only original equipment manufacturer (OEM) replacement
parts and accessories for this unit. These are available from your
authorized service dealer. Use of any other parts or accessories
could lead to serious injury to the user, or damage to the unit,
and void the warranty.
• Keep the unit clean. Carefully remove vegetation and other
debris that could block moving parts.
• To reduce fire hazard, replace a faulty muffler and spark arrestor.
Keep the engine and muffler free from grass, leaves, excessive
grease or carbon build up.
• If the unit starts to vibrate abnormally, stop the unit immediately.
Inspect the unit for the cause of the vibration. Vibration is
generally an indicator of trouble.
OTHER SAFETY WARNINGS
• All service, other than the maintenance procedures described in
this manual, should be performed by a authorized service dealer.
• Before inspecting, servicing, cleaning, storing, transporting or
replacing any parts on the unit:
1. Stop the unit.
2. Make sure all moving parts have stopped.
3. Allow the unit to cool.
4. Disconnect the spark plug wire.
• Secure the unit while transporting.
• Never store the unit with fuel in the tank, inside a building where
fumes may reach an open flame (pilot lights, etc.) or sparks
(switches, electrical motors, etc.).
• Store the unit in a dry place, secured or at a height to prevent
unauthorized use or damage. Keep the unit out of the reach of
children.
• Never douse or squirt the unit with water or any other liquid.
Keep handles dry, clean and free from debris. Clean the unit
after each use. Refer to Cleaning and Storage.
• Clean the tines with a household cleaner to remove any gum
buildup. Oil the tines with machine oil to prevent rust.
• Keep these instructions. Refer to them often and use them to
instruct other users. If you loan this unit to others, also loan
them these instructions.
SAVE THESE INSTRUCTIONS

4
• SAFETY & INTERNATIONAL SYMBOLS •
This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's
manual for complete safety, assembly, operating and maintenance and repair information.
SYMBOL MEANING SYMBOL MEANING
• SAFETY ALERT SYMBOL
Indicates danger, warning or caution. May be used in
conjunction with other symbols or pictographs.
• READ OPERATOR'S MANUAL
WARNING: Read the operator’s manual(s) and
follow all warnings and safety instructions. Failure to
do so can result in serious injury to the operator
and/or bystanders.
• WEAR EYE AND HEARING PROTECTION
WARNING: Thrown objects and loud noise can
cause severe eye injury and hearing loss. Wear eye
protection meeting current ANSI Z87.1 standards and
ear protection when operating this unit. Use a full face
shield when needed.
• UNLEADED FUEL
Always use clean, fresh unleaded fuel.
• OIL
Refer to operator’s manual for the proper type of oil.
• DO NOT USE E85 FUEL IN THIS UNIT
WARNING: It has been proven that fuel containing
greater than 10% ethanol will likely damage this
engine and void the warranty.
• ON/OFF STOP CONTROL
ON / START / RUN
• ON/OFF STOP CONTROL
OFF or STOP
• PRIMER BULB
Push primer bulb, fully and slowly, 10 times.
• CHOKE CONTROL
1. • FULL choke position
2. • PARTIAL choke position
3. • RUN choke position
• THROWN OBJECTS AND ROTATING CUTTER CAN
CAUSE SEVERE INJURY
WARNING: Small objects can be propelled at high
speed, causing injury. Keep away from the rotating rotor.
• KEEP BYSTANDERS AWAY
WARNING: Keep all bystanders, especially children
and pets, at least 50 feet (15 m) from the operating area.
• HOT SURFACE
WARNING: Do not touch a hot muffler or cylinder.
You may get burned. These parts get extremely hot
from operation. When turned off they remain hot for a
short time.
• GARDEN CULTIVATORS – ROTATING TINES CAN
CAUSE SEVERE INJURY
WARNING: Stop the engine and allow the tines to
stop moving before installing or removing the tines, or
before cleaning or performing any maintenance. Keep
hands and feet away from rotating tines.
• NO STEP
Always keep proper footing and balance. Do not
overreach, take extra care when working on steep
slopes or inclines.
• PLACE RIGHT FOOT HERE
Avoid accidental starting. Be in the starting position
whenever pulling the starter rope. The operator and
unit must be in a stable position while starting.

5

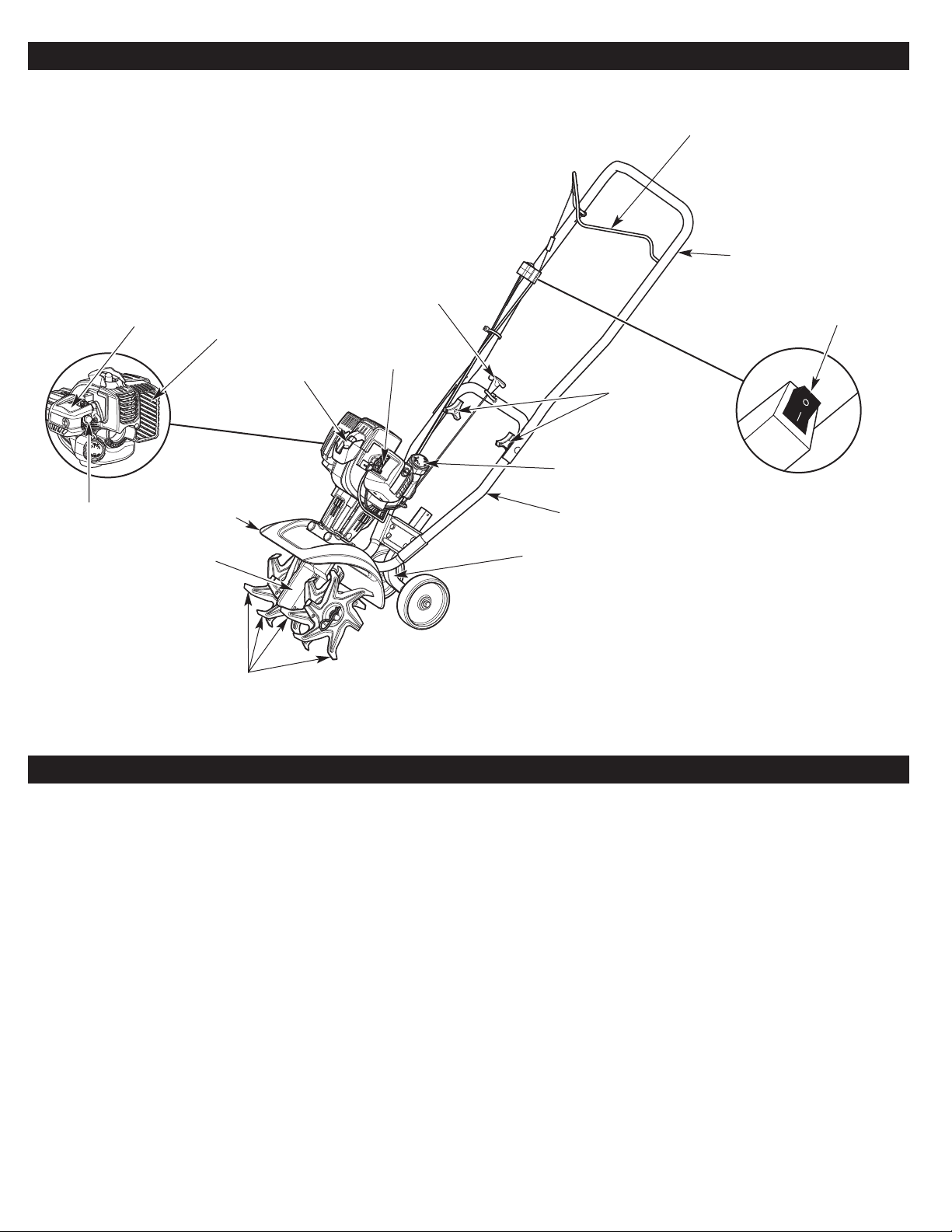

KNOW YOUR UNIT
APPLICATION
• Cultivating sod and light to medium soil
• Cultivating in garden areas, around trees, etc.
Choke Lever
Throttle Control
Upper Handle
Handlebar
Knobs
Primer Bulb
Air Filter Cover
Spark Plug
Gear Box
Starter Rope
Grip
Muffler
On/Off Control
Wheel Assembly
Fuel Cap
Tines
Tine Guard
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 2-Cycle
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 cc (1.52 cu. in.)
Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025 inch (0.635 mm)
Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Champion® RDJ7J or equivalent plug
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Oil Mixture
Fuel/Oil Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40:1
Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ounces (295 ml)
Cultivating Path Width (Maximum). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 inches (22.86 cm)
Cultivating Depth (Maximum). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 inches (12.7 cm)
Approximate Weight (no fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 - 24 lb (10.4 - 10.9 kg)
SPECIFICATIONS*
* All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any
time without notice.
Lower Handle
NO ASSEMBLY TOOLS REQUIRED

6
INSTALLING AND ADJUSTING THE WHEEL ASSEMBLY
Installing the Wheel Assembly
1. Set the unit on its side (Fig. 1).
2. Insert the wheel assembly into the wheel bracket (Fig. 1).
3. Insert the clevis pin through the wheel bracket and wheel
assembly and lock it in place with the cotter pin (Fig. 1).
NOTE: It may be necessary to adjust the position of the wheel
assembly before using the unit.
Adjusting the Wheel Assembly
1. Set the unit on its side (Fig. 1).
2. Remove the cotter pin and the clevis pin from the wheel bracket
and wheel assembly (Fig. 1).
3. Adjust the height by moving the wheel assembly along the wheel
bracket.
4. Insert the clevis pin through the wheel bracket and assembly
and lock it in place with the cotter pin (Fig. 1).
NOTE: Moving the wheel assembly down will raise the wheel height.
Moving the wheel assembly up will lower the wheel height.
ASSEMBLY
WARNING: To avoid injury from the tines, wear heavy
gloves and a long sleeve shirt when installing the wheel
assembly.
WARNING: To prevent serious personal injury, the wheel
assembly must be installed when operating the unit.
POSITIONING THE HANDLEBARS
1. Loosen the two knobs on the inside of the handlebars (Fig. 3).
2. With the unit upright, swing the handlebars up into the operating
position (Fig. 2).
NOTE: Take care not to pinch the throttle cable or switch wires
when positioning the handlebar (Fig. 3).
3. Tighten the knobs to secure the handlebars in place (Fig. 3).
NOTE: Do not over tighten the knobs.
4. Readjust the throttle cable and switch wires so they are smooth
and tight against the handlebar assembly. This will help prevent
them from catching or snagging during normal operation. Fig. 2
Handlebar
Knobs
Fig. 3
Throttle Cable
and Switch Wires
Handlebar Knobs
Fig. 1
Clevis Pin Wheel
Assembly
Wheel
Bracket
Lower Raise
Cotter Pin

7
FUELING THE UNIT
1. Position the unit with the fuel cap facing up.
2. Remove the fuel cap.
3. Place the fuel container spout into the fill hole on the fuel tank
and fill the tank.
NOTE: Do not overfill the tank.
4. Wipe up any fuel that may have spilled.
5. Reinstall the fuel cap.
6. Move the unit at least 30 ft. (9.1 m) from the fuel container and
the fueling site before starting the engine.
OIL AND FUEL MIXING INSTRUCTIONS
Old and/or improperly mixed fuel are the main reasons for the unit
not running properly. Be sure to use fresh, clean unleaded fuel.
Follow the instructions carefully for the proper fuel/oil mixture.
Definition of Blended Fuels
Today's fuels are often a blend of gasoline and oxygenates such as
ethanol, methanol, or MTBE (ether). Alcohol-blended fuel absorbs
water. As little as 1% water in the fuel can make fuel and oil
separate. It forms acids when stored. When using alcohol-blended
fuel, use fresh fuel (less than 30 days old).
Using Blended Fuels
If you choose to use a blended fuel, or its use is unavoidable, follow
recommended precautions:
• Always use the fresh fuel mix explained in your operator's manual
• Use the fuel additive STA-BIL® or an equivalent
• Always agitate the fuel mix before fueling the unit
• Drain the tank and run the engine dry before storing the unit
Using Fuel Additives
The bottle of 2-cycle oil that came with your unit contains a fuel
additive which will help inhibit corrosion and minimize the formation
of gum deposits. It is recommended that you use our 2-cycle oil
with this unit.
If unavailable, use a good 2-cycle oil designed for air-cooled
engines along with a fuel additive, such as STA-BIL Gas Stabilizer or
an equivalent. Add 0.8 oz. (23 ml) of fuel additive per gallon of fuel
according to the instructions on the container. NEVER add fuel
additives directly to the unit's fuel tank.
Mixing the Fuel
Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded
gasoline in a separate fuel can. Use a 40:1 fuel/oil ratio. Do not mix
them directly in the engine fuel tank. See the table below for specific
gas and oil mixing ratios.
NOTE: One gallon (3.8 liters) of unleaded gasoline mixed with one
3.2 oz. (95 ml) bottle of 2-cycle oil makes a 40:1 fuel/oil ratio.
NOTE: Dispose of the old fuel/oil mix according to federal, state and
local regulations.
WARNING: Remove fuel cap slowly to avoid injury from
fuel spray. Never operate the unit without the fuel cap
securely in place.
WARNING: Add fuel in a clean, well ventilated outdoor
area. Wipe up any spilled fuel immediately. Avoid creating
a source of ignition for spilt fuel. Do not start the engine
until fuel vapors dissipate.
CAUTION: For proper engine operation and maximum
reliability, pay strict attention to the oil and fuel mixing
instructions on the 2-cycle oil container. Using improperly
mixed fuel can severely damage the engine.
WARNING: Gasoline is extremely flammable. Ignited
vapors may explode. Always stop the engine and allow it
to cool before filling the fuel tank. Do not smoke while
filling the tank. Keep sparks and open flames at a distance
from the area.
OIL AND FUEL
Unleaded gasoline* 2-cycle oil
1 gallon U.S.
(3.8 liters)
3.2 fl. oz.
(95 ml)
1 liter 25 ml
MIXING RATIO - 40:1
*WARNING: DO NOT USE E85 FUEL IN THIS UNIT.
It has been proven that fuel containing greater than 10%
ethanol will likely damage this engine and void the warranty.

8
STARTING AND STOPPING
STARTING INSTRUCTIONS
1. Mix gasoline with oil. Refer to Oil and Fuel Mixing Instructions.
2. Fill the fuel tank. Refer to Fueling the Unit.
NOTE: There is no need to turn the unit on. The On/Off Control is in
the ON ( I ) position at all times (Fig. 4).
3. Fully press and release the primer bulb 10 times, slowly. Some
amount of fuel should be visible in the primer bulb (Fig. 5). If fuel
can not be seen in the bulb, press and release the bulb until fuel
is visible.
4. Move the choke lever to Position 1 (Fig. 5).
5. Stand in the starting position (Fig. 6). Hold the handlebar and
squeeze the throttle control with one hand. Hold the starter rope
with the other hand. Use one foot to hold the wheels in place.
NOTE: Always tilt the unit back slightly to bring the tines off the
ground when starting the unit (Fig. 6).
6. SQUEEZE and HOLD the throttle control for ALL further steps.
Pull the starter rope 5times.
7. Continue to squeeze the throttle control. Move the choke
lever to Position 2 (Fig. 5).
8. Continue to squeeze the throttle control. Pull the starter rope
3-5 times to start the engine.
9. Continue to squeeze the throttle control. Allow the engine to
warm up for 30-60 seconds.
10. Continue to squeeze the throttle control. Move the choke
lever to Position 3 (Fig. 5).
11. Continue to squeeze the throttle control. Run the unit for an
additional 60 seconds to complete the warm-up. The unit may
be used during this step.
NOTE: The unit is properly warmed up when the engine accelerates
without hesitation.
IF... The engine hesitates, return the choke lever to Position 2 and
continue the warm-up.
IF... the engine does not start, begin the starting procedure with
step 3.
IF... The engine fails to start after 2 attempts, move the choke lever
to Position 3 and squeeze the throttle control. Pull the starter
rope 3-8 times in a controlled and steady motion. The engine
should start. If not, repeat.
IF... the engine is already warm, begin the starting procedure with
step 7.
WARNING: Avoid accidental starting. Make sure you are
in the starting position when pulling the starter rope (Fig. 6).
To avoid serious injury, the operator and unit must be
in a stable position while starting.
STOPPING INSTRUCTIONS
1. Release the throttle control. Allow the engine to cool down by idling.
2. Press and hold the On/Off Control in the OFF (O) position until
the unit comes to a complete stop (Fig. 4).
Fig. 4
Throttle Control
Stop/Off (O)
Start/On (I)
Fig. 5
Position 2
Position 1
Position 3
Fig. 6
Starter Rope
Starting Position
Throttle
Control
On/Off Control
Choke Lever
Primer Bulb

9
MOVING THE UNIT
1. Stop the engine.
2. Tilt the unit back until the tines clear the ground.
3. Push or pull the unit to the next location.
ADJUSTING THE TINE DEPTH
The tines should penetrate most garden soils approximately 4 to 5
inches. If necessary, adjust the tines as follows:
1. Stop the engine and allow it to cool. Grasp the spark plug wire
firmly and pull the cap from the spark plug.
2. Raise the wheel height for shallower tine penetration or lower
the wheel height for deeper tine penetration. Refer to Adjusting
the Wheel Assembly in the Assembly Instructions section.
3. Reconnect the spark plug wire and continue use.
OPERATING TIPS
1. Move the cultivator to the work area prior to starting the engine.
Refer to Moving the Unit.
2. Start the unit as described in the Starting Instructions.
3. With the tines off the ground, squeeze the throttle control to
increase the engine speed.
4. Hold the handlebar firmly with both hands and slowly lower the
unit until the tines make contact with the ground (Fig. 7).
5. As cultivating action begins, pull back on the cultivator so that
the tines can penetrate the ground.
6. Once the ground has been broken, continue at a moderate pace
until you are familiar with the controls and the handling of the
cultivator.
7. Pull the cultivator backwards to improve the depth of cultivation
and reduce your effort.
8. If the tines are digging too deep or not deep enough, adjust
them according to Adjusting Tine Depth.
OPERATION
WARNING: Dress properly to reduce the risk of injury
when operating this unit. Do not wear loose clothing or
jewelry. Wear eye and ear/hearing protection. Wear heavy
long pants, boots and gloves. Do not wear short pants,
sandals or operate barefoot.
CAUTION: To prevent serious personal injury, never
pick-up or carry the unit while the engine is running.
WARNING: To prevent serious personal injury, always
stop the engine when operation is delayed or when moving
the unit from one location to another.
WARNING: To prevent serious personal injury, use extreme
caution when reversing or pulling the unit towards you.
Fig. 7

10
MAINTENANCE
TINE REMOVAL AND REPLACEMENT
NOTE: All installation instructions are explained from the operating
position.
All 4 tines should be replaced at the same time because they will
wear evenly through normal use. Work on one side at a time.
1. Stop the engine and allow it to cool. Grasp the spark plug wire
firmly and pull the cap from the spark plug.
2. Lay the cultivator back on a flat level surface with the handles
touching the ground so that the cultivator is in a horizontal position.
NOTE: It may be necessary to wash any dirt off the tines and shaft
for easier tine removal.
3. Remove the cotter pins from each end of the tine shaft (Fig. 9).
Slide the tines off of the shaft (Fig. 8).
4. Clean and oil the shaft.
5. Slide on the new tines with the hubs facing in towards each
other (Fig. 8). Making sure that the rotation arrows are facing the
gearbox when installing the tines on left tine shaft and away
from the gearbox for the right tine shaft. (Fig. 9)
6. Secure the new tines to the shaft with cotter pins (Fig. 9).
7. Reconnect the spark plug wire.
WARNING: To prevent serious personal injury, always
wear heavy gloves when handling the tines.
Fig. 8
Left
Tine Shaft
Fig. 9
Right
Tine Shaft
Rotation Arrow
Hubs Hubs
Cotter Pin
Tines
Tines
Gearbox
MAINTENANCE SCHEDULE
Perform these required maintenance procedures at the frequency
stated in the table. These procedures should also be a part of any
seasonal tune-up.
NOTE: Some maintenance procedures may require special tools or
skills. If you are unsure about these procedures, take the unit to
an MTD authorized service dealer.
NOTE: Maintenance, replacement, or repair of the emission control
devices and system may be performed by an MTD authorized
service dealer.
NOTE: Please read the California/EPA statement that came with the
unit for a complete listing of terms and coverage for the
emissions control devices, such as the spark arrestor, muffler,
carburetor, etc.
WARNING: To prevent serious injury, never perform
maintenance or repairs while the unit is running. Always
allow the unit to cool before servicing or repairing the unit.
Disconnect the spark plug wire to prevent the unit from
starting accidentally.
FREQUENCY MAINTENANCE REQUIRED
Every 10 hours Clean and re-oil the air filter. Refer to
Maintaining the Air Filter.
Every 25 hours Check the spark plug condition and gap. Refer
to Maintaining the Spark Plug.

11
IDLE SPEED ADJUSTMENT
NOTE: Careless adjustments can seriously damage your unit. An
authorized service dealer should make carburetor adjustments.
If after checking the fuel mixture and cleaning the air filter the engine
still will not idle, adjust the idle speed screw as follows:
1. Start the engine and let it run for about 2-3 minutes at a high
speed (full throttle) to warm up. Refer to the Starting and
Stopping Instructions.
NOTE: Ensure the tines are not in contact with the ground when
adjusting the idle.
2. Release the throttle control and let the engine idle. If the engine
stops, use a small Phillips screwdriver to turn the idle speed
screw clockwise, 1/8 of a turn at a time (as needed) until the
engine idles smoothly (Fig. 12).
NOTE: The tines should not rotate during engine idle.
3. If the tines rotate when the engine idles, turn the idle speed
screw counterclockwise 1/8 of a turn at a time (as needed), to
reduce idle speed.
Checking the fuel mixture, cleaning the air filter, and adjusting the
idle speed screw should solve most engine problems. If not and all
the following are true:
• The engine will not idle
• The engine hesitates or stalls on acceleration
• There is a loss of engine power
Have the carburetor adjusted by an authorized service dealer.
WARNING: The tines may turn during idle speed
adjustments. Wear protective clothing and observe all
safety instructions to prevent serious personal injury.
AIR FILTER MAINTENANCE
Cleaning the Air Filter
Failure to maintain your air filter properly can result in poor
performance or can cause permanent damage to your engine.
1. Open the air filter cover by unscrewing the cover screw (Fig. 10).
2. Remove the air filter and the screen that sits behind it (Fig. 10).
3. Wash the filter in detergent and water. Rinse the filter thoroughly
and allow it to dry.
4. Apply enough clean SAE 30 motor oil to lightly coat the filter.
5. Squeeze the filter to spread and remove excess oil.
6. Replace the air filter and the screen that sits behind it (Fig. 10).
NOTE: Operating the unit without the air filter will VOID the warranty.
7. Reinstall the air filter cover. Insert the hooks on the air filter
housing into the slots on the air filter cover (Fig. 11).
8. Swing the air filter cover to the right and align the cover screw
with the cover screw hole (Fig. 11). Tighten the cover screw to
secure the air filter cover.
NOTE: Do not over tighten as this may strip the screw.
Fig. 10
Screen
Fig. 11
Hooks
Air Filter
Cover
Fig. 12
Idle Speed Screw
Air Filter
Air Filter
Housing
Air Filter Cover
Cover Screw
Cover
Screw Hole
Air Filter
Housing
Slots

12
REPLACING THE SPARK PLUG
1. Stop the engine and allow it to cool. Grasp the spark plug wire
firmly and pull the cap from the spark plug.
2. Clean dirt from around the spark plug. Remove the spark plug from
the cylinder head by turning a 5/8 in. socket counterclockwise.
3. Inspect the spark plug. If the spark plug is cracked, fouled or
dirty, replace it with a replacement part #753-06193,
Champion® RDJ7J or equivalent spark plug.
4. Use a feeler gauge to set the air gap at 0.025 in. (0.635 mm)
(Fig. 22).
5. Install the spark plug in the cylinder head. Tighten the spark plug
with a 5/8-inch socket, turning it clockwise until snug.
NOTE: If using a torque wrench, torque to:
110-120 in.•lb. (12.3-13.5 N•m). Do not over tighten.
6. Reconnect the spark plug wire.
WARNING: Do not sand blast, scrape or clean
electrodes. Grit in the engine could damage the cylinder.
Fig. 13
0.025 in.
(0.635 mm)

13
CLEANING AND STORAGE
CLEANING
Use a small brush to clean the outside of the unit. Do not use strong
detergents. Household cleaners that contain aromatic oils such as
pine and lemon, and solvents such as kerosene, can damage plastic.
Wipe off any moisture with a soft cloth.
Clean the tines with water. Wipe the tines with a light machine oil to
prevent rust.
WARNING: To avoid serious personal injury, always stop
the engine and allow it to cool before cleaning or maintaining
the unit.
STORAGE
• Never store a fueled unit where fumes may reach an open flame
or spark.
• Allow the engine to cool before storing.
• Lock up the unit to prevent unauthorized use or damage.
• Store the unit in a dry, well-ventilated area.
• Store the unit out of the reach of children.
Long-term Storage
1. Remove the fuel cap, tip the unit and drain the fuel into an
approved container. Reinstall the fuel cap.
2. Start the engine and allow it to run until it stalls. This ensures
that all fuel has been drained from the carburetor.
3. Allow the engine to cool. Remove the spark plug and put 5 drops
of any high quality motor oil or 2-cycle oil into the cylinder. Pull the
starter rope slowly to distribute the oil. Reinstall the spark plug.
4. Thoroughly clean the unit and inspect it for any loose or
damaged parts. Repair or replace damaged parts and tighten
loose screws, nuts or bolts.
Preparing the Unit for Use after Long-term Storage
1. Remove the spark plug and drain all of the oil from the cylinder.
NOTE: Do not use fuel that has been stored for more than 30 days.
Dispose of old fuel according to federal, state and local regulations.

14
TROUBLESHOOTING
If further assistance is required, contact an authorized service dealer.
The fuel tank is empty Fill the fuel tank with properly mixed fuel
The primer bulb was not pressed enough Press the primer bulb 10 times or until fuel is visible
The engine is flooded Move the choke lever to Position 3, squeeze the throttle control and
pull the starter rope
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel
The spark plug is fouled Replace the spark plug
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel
The air filter is dirty Clean or replace the air filter
PROBLEM SOLUTION
The air filter is dirty Clean or replace the air filter
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel
The idle speed is incorrect Adjust the idle speed
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel
The air filter is dirty Clean or replace the air filter
The spark plug is fouled Replace the spark plug
THE ENGINE WILL NOT START
THE ENGINE WILL NOT IDLE
THE ENGINE WILL NOT ACCELERATE
THE ENGINE LACKS POWER OR STALLS

15
NOTES

The limited warranty set forth below is given by Remington LLC (Remington) with respect to new merchandise purchased and used in the
United States, its possessions and territories.
Remington warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of
original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship. This
limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with
the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism,
theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or
attachment not approved by Remington for use with the product(s) covered by this manual will void your warranty as to any resulting
damage. This warranty is limited to ninety (90) days from the date of original retail purchase for any Remington product that is used for rental
or commercial purposes, or any other income-producing purpose.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED SERVICE
DEALER. To locate the dealer in your area, visit our website at www.remingtonpowertools.com, check for a listing in the Yellow Pages, call
1-866-206-2707 or 1-877-696-5533 in Canada, or write to P.O. Box 361032, Cleveland, OH 44136. No product returned directly to the
factory will be accepted unless prior written permission has been extended by the Customer Service Department of Remington.
This limited warranty does not provide coverage in the following cases:
A. Tune-ups - Spark Plugs, Carburetor Adjustments, Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter Pulley, Starter Ropes, Drive Belts, Saw Chains, Guide Bars,
Cultivator Tines, Blades.
C. Remington does not extend any warranty for products sold or exported outside of the United States of America, its possessions and
territories, except those sold through Remington’s authorized channels of export distribution.
Remington reserves the right to change or improve the design of any Remington Product without assuming any obligation to modify any
product previously manufactured.
No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the
applicable period of express written warranty above as to the parts as identified. No other express warranty or guaranty, whether
written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product
shall bind Remington. During the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth
above. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)
The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales. Remington shall not be
liable for incidental or consequential loss or damages including, without limitation, expenses incurred for substitute or replacement
lawn care services, for transportation or for related expenses, or for rental expenses to temporarily replace a warranted product.
(Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of the safety features
of the product shall void this Warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others
and their property arising out of the use or misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for whom it was purchased
as a gift.
How State Law Relates to this Warranty: This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
To locate your nearest service dealer, dial 1-866-206-2707 in the United States or 1-877-696-5533 in Canada.
REMINGTON LLC
P.O. Box 361032
Cleveland, OH 44136
MANUFACTURER’S LIMITED WARRANTY FOR:

Manuel de L’utilisateur
Cultivateur de Jardin á 2-temps
RM4625
TABLE DES MATIÈRES
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Familiarisez-vous avec votre outil . . . . . . . . . . . . . . . . . . . . . . . . .21
Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Assemblage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Huile et carburant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Démarrage et arrêt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Nettoyage et entreposage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Résolution des problèmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Toutes les informations, illustrations et spécifications contenues dans
ce manuel tiennent compte des dernières informations techniques
disponibles au moment de mettre sous presse. Nous nous réservons
le droit d'y apporter des modifications à tout moment, sans préavis.
Copyright © 2012 MTD SOUTHWEST INC., Tous droits réservés.
NE RAMENEZ PAS CET APPAREIL CHEZ LE DÉTAILLANT.
UNE PREUVE D’ACHAT SERA EXIGÉE POUR TOUTE
PRISE EN CHARGE DANS LE CADRE DE LA GARANTIE.
Si vous éprouvez des difficultés à assembler ce produit ou si vous
avez des questions sur les commandes, l'utilisation ou l'entretien de
cet appareil, veuillez contacter le service à la clientèle en composant
le 1-866-206-2707 aux États-Unis ou le 1-877-696-5533 au Canada.
Des informations supplémentaires sont disponibles sur notre site
web : www.remingtonpowertools.com.
Pour un entretien ou une réparation, veuillez appeler le service
clientèle pour obtenir une liste complète des professionnels agréés
près de chez vous. L’entretien de cet appareil doit être confié
exclusivement à un professionnel agréé pendant et après la période
de garantie. Utilisez uniquement des pièces de rechange identiques.
769-08702 / 00 11/12
CONSERVEZ CES INSTRUCTIONS
SERVICE

18
SÉCURITÉ
• CONSIGNES DE SÉCURITÉ IMPORTANTES •
NOTE SUR LE PARE-ÉTINCELLES
REMARQUE : à l’intention des utilisateurs sur les terrains
forestiers américains et dans les États de Californie, du Maine,
de l’Oregon et de Washington. Tous les services des forêts
américains et les États de Californie (codes des ressources
publiques 4442 et 4443), de l’Oregon et de Washington exigent, au
titre de la loi, que certains moteurs à combustion interne utilisés
dans les broussailles de forêt et/ou les zones recouvertes d’herbe
soient équipés d’un pare-étincelles, soient maintenus en bon état
de marche, ou soient construits, équipés et entretenus en vue
d’éviter tout risque d’incendie. Veuillez contacter les autorités
nationales ou locales pour connaître les réglementations à cet
égard. Le non-respect de ces exigences pourrait impliquer votre
responsabilité ou entraîner une amende. Cet appareil est équipé
en usine d’un pare-étincelles. Si ce dernier doit être remplacé,
veuillez consulter votre CENTRE DE RÉPARATION LOCAL pour
installer le pot d’échappement réf. 753-06792.
Veuillez lire le manuel de l’opérateur et respecter tous
les avertissements et consignes de sécurité. Dans le cas
contraire, l’opérateur et/ou les passants peuvent subir des
blessures graves.
SYMBOLE SIGNIFICATION
AVERTISSEMENT : indique un danger GRAVE.
Le non-respect d’un symbole d’AVERTISSEMENT PEUT
provoquer des blessures graves de l’opérateur ou d’autres
personnes.
ATTENTION : indique un danger MODÉRÉ.
Le non-respect d’un symbole ATTENTION POURRAIT
provoquer des blessures ou des dommages des biens
de l’opérateur ou d’autres personnes.
Les symboles de sécurité visent à attirer votre attention sur les
dangers éventuels. Vous devez accorder une attention particulière
aux symboles de sécurité afin de bien les comprendre. Les
avertissements de sécurité n’éliminent pas les dangers en eux-
mêmes. Les instructions ou mises en garde ne remplacent en rien
les mesures de prévention appropriées contre les accidents.
REMARQUE : vous donne des informations ou des consignes
essentielles pour l’utilisation ou l’entretien de l’équipement.
DANGER : indique un danger EXTRÊME.
Le non-respect d’un symbole de DANGER ENTRAÎNERA
des blessures graves, voire un décès, de l’opérateur ou
d’autres personnes.
PROPOSITION 65 DE L’ÉTAT DE CALIFORNIE
AVERTISSEMENT : les gaz d’échappement, certains
de leurs constituants et certains composants finis
contiennent ou émettent des produits chimiques reconnus
par l’État de Californie comme étant à l’origine de cancers
ou de malformations congénitales ou autres dangers pour
la reproduction. Lavez-vous les mains après avoir
manipulé l’appareil.
VEUILLEZ LIRE TOUTES LES INSTRUCTIONS AVANT
• Veuillez lire soigneusement ces instructions. Familiarisez-vous
avec les commandes et l’utilisation correcte de l’appareil.
• N’utilisez pas cet appareil quand vous êtes fatigué, malade ou sous
l’influence de boissons alcoolisées, de drogues ou de médicaments.
• Les enfants ne doivent pas utiliser cet appareil. Les adolescents
doivent être supervisés par des adultes.
• Tous les carters et dispositifs de sécurité doivent être
correctement installés avant l’utilisation de cet appareil.
• Inspectez l’appareil avant l’utilisation. Remplacez les pièces
endommagées. Détectez les fuites de carburant éventuelles.
Assurez-vous que toutes les fixations sont en place et bien
serrées. Remplacez les pièces fissurées, ébréchées ou
endommagées d’une manière ou d’une autre. N’utilisez pas
l’appareil quand des pièces sont desserrées ou endommagées.
• Vous devez être conscient des risques de blessures à la tête,
aux mains et aux pieds.
AVERTISSEMENT : quand vous utilisez l’appareil,
vous devez respecter toutes les règles de sécurité. Veuillez
lire ces consignes avant d’utiliser l’appareil pour assurer la
sécurité de l’opérateur et de tous les passants. Veuillez
conserver ces instructions pour référence ultérieure.
• Inspectez attentivement la zone de travail avant de démarrer
l’appareil. Retirez les pierres, le verre cassé, les clous, les fils, les
ficelles et autres objets qui peuvent être projetés ou s’enrouler
dans l’appareil.
• Éloignez les enfants, les passants et les animaux domestiques ;
ils doivent rester dans un rayon d’au moins 15 mètres (50 pieds).
Même à cette distance, il existe néanmoins un risque de
projectiles pour les personnes à proximité. Encouragez-les à
porter des lunettes de sécurité. Si quelqu’un s’approche de
vous, arrêtez immédiatement l’appareil.
• Appuyez sur la manette des gaz et vérifiez qu’elle revient
automatiquement à la position de ralenti. Effectuez tous les
réglages ou réparations avant d’utiliser l’appareil.

19
AVERTISSEMENTS DE SÉCURITÉ POUR LES APPAREILS
À GAZ
• Stockez le carburant uniquement dans des récipients
spécifiquement conçus à cet usage et approuvés pour le
stockage de telles substances.
• Arrêtez toujours le moteur et laissez-le refroidir avant de remplir
le réservoir d’essence. N’enlevez jamais le bouchon du réservoir
de carburant ou ne remplissez jamais ce dernier quand le
moteur est chaud. Dévissez toujours lentement le bouchon du
réservoir de carburant afin de relâcher toute pression présente
avant de le remplir.
• Toujours mélanger et ajoutez le carburant dans un endroit bien
aéré et propre, en plein air, à l’abri des sources d’étincelles ou
flammes vives. Ne fumez pas.
• N’utilisez jamais l’appareil quand le bouchon du réservoir de
carburant n’est pas correctement vissé.
• Évitez de créer une source d’inflammation en présence d’un
déversement de carburant. Essuyez immédiatement tout
carburant échappé du réservoir avant de démarrer l’appareil.
Éloignez l’appareil à 9,1 mètres (30 pieds) au moins de la source
de ravitaillement et du site avant de démarrer le moteur. NE
fumez PAS.
• Ne démarrez jamais ou n’utilisez jamais l’appareil à l’intérieur
d’un espace ou d’un bâtiment clos. L’inhalation des fumées
d’échappement peut tuer. Utilisez cet appareil uniquement dans
une zone extérieure bien aérée.
AVERTISSEMENT : l’essence est extrêmement
inflammable et ses vapeurs peuvent exploser en présence
d’une source d’inflammation. Prenez les précautions
suivantes :
PENDANT L’UTILISATION
• Portez des lunettes de sécurité conformes aux normes ANSI Z87.1
en vigueur et marquées comme telles. Portez une protection
auditive pendant l’utilisation de cet appareil. Portez un écran facial
ou un masque antipoussières si la tâche est poussiéreuse.
• Portez un pantalon long et épais, des bottes, des gants et une
chemise à manches longues. Ne portez pas des vêtements
amples, des bijoux, un pantalon court, des sandales et ne travaillez
pas pieds nus. Attachez vos cheveux au-dessus des épaules.
• Cet appareil est doté d'un embrayage. Les dents restent
stationnaires lorsque le moteur est au ralenti. Si ce n'est pas le
cas, apportez l'appareil à un centre de réparation agréé pour
obtenir un ajustement.
• Assurez-vous que les dents ne sont pas en contact avec quoi
que ce soit avant de démarrer l'appareil.
• Utilisez l’appareil uniquement en plein jour ou avec un bon
éclairage artificiel.
• Évitez tout démarrage accidentel. Placez-vous dans la position de
démarrage dès que vous tirez sur le câble de démarreur. L’opérateur
et l’appareil doivent être dans une position stable pendant le
démarrage. Consultez les sections Mise en marche et Arrêt.
• Utilisez le bon outil. Utilisez uniquement cet outil pour l’usage prévu.
• Tenez toujours l’appareil à deux mains lorsqu’il est en marche.
Tenez fermement les deux anses ou poignées.
• Ne vous penchez pas trop en avant. Conservez toujours une
position stable et un bon équilibre. Montrez-vous très prudent
quand vous travaillez sur des pentes raides.
• Soyez extrêmement prudent en marche arrière ou en tirant
l'unité vers vous.
• Éloignez vos mains, votre visage et vos pieds des pièces
mobiles. Ne touchez pas ou n’essayez pas d’arrêter des pièces
en mouvement.
• Ne touchez pas le moteur ni le silencieux. Ces composants
deviennent extrêmement chauds pendant l’utilisation, même
après l’arrêt de l’appareil.
• N’utilisez pas l’appareil à une vitesse supérieure à celle
nécessaire pour réaliser le travail. Ne faites pas fonctionner
l’appareil à haute vitesse quand vous ne l’utilisez pas.
• Ne forcez pas l’appareil. Il sera plus efficace et plus sûr si vous
l’utilisez à la vitesse pour laquelle il a été conçu.
• Arrêtez toujours l’appareil quand le travail est interrompu ou
quand vous vous déplacez d'un endroit à un autre.
• Si vous heurtez ou enroulez un objet étranger dans l’appareil,
arrêtez immédiatement l’appareil et vérifiez les dommages
éventuels. Ne redémarrez pas l’appareil avant de l’avoir réparé.
N’utilisez pas l’appareil quand des pièces sont desserrées ou
endommagées.
• Arrêtez le moteur et débranchez la bougie pour les tâches
d’entretien ou les réparations.
• Utilisez uniquement des pièces et des accessoires de rechange
du fabricant d’origine pour cet appareil. Ils sont disponibles
auprès de votre centre de réparation agréé. L’utilisation d’autres
pièces ou accessoires pourrait entraîner de graves blessures de
l’utilisateur ou endommager l’appareil, et annuler la garantie.
• L’appareil doit rester propre. Retirez avec précaution la végétation
et autres débris qui pourraient bloquer les pièces mobiles.
• Pour réduire les risques d’incendie, remplacez un pot
d’échappement et un pare-étincelles défectueux. Nettoyez l’herbe,
les feuilles, les couches de graisse excessives ou les dépôts de
carbone présents sur le moteur et le pot d’échappement.
• Si l’appareil commence à vibrer de façon anormale, arrêtez-le
immédiatement. Inspectez l’appareil pour découvrir l’origine des
vibrations. Les vibrations indiquent en général un problème.
AUTRES AVERTISSEMENTS DE SÉCURITÉ
• Toutes les réparations, autres que les procédures de
maintenance décrites dans ce manuel, doivent être effectuées
par un centre de réparations agréé.
• Avant une inspection, un entretien, un nettoyage, un entreposage,
un transport ou le remplacement d’une pièce de l’appareil :
1. Arrêtez l’appareil.
2. Assurez-vous que toutes les pièces mobiles se sont arrêtées.
3. Laissez l’appareil refroidir.
4. Débranchez le fil de la bougie.
• Assurez-vous que l’appareil est sécurisé pour les transports.
• Quand le réservoir contient du carburant, ne rangez jamais
l’appareil à l’intérieur d’un bâtiment où des vapeurs d’essence
pourraient atteindre une flamme nue (veilleuses, etc.) ou des
étincelles (interrupteurs, moteurs électriques, etc.).
• Rangez l’appareil dans un endroit sec et sûr ou en hauteur pour
éviter une utilisation non autorisée ou des dommages. Gardez
toujours l’appareil hors de portée des enfants.
• Ne mouillez pas ou n’éclaboussez pas l’appareil avec de l’eau ou
tout autre liquide. Les poignées doivent rester sèches, propres et
dépourvues de tout dépôt. Nettoyez l’appareil après chaque
utilisation. Consultez la section Nettoyage et entreposage.
• Nettoyez les dents avec un nettoyant ménager pour éliminer
toute accumulation de gomme. Pour prévenir la rouille, mettez
de l'huile mécanique fluide sur les dents.
• Conservez ces instructions. Consultez-les souvent et utilisez-les
pour former d’autres utilisateurs. Si vous prêtez cet appareil à
d’autres personnes, remettez-leur également ces instructions.
CONSERVEZ CES INSTRUCTIONS

20
• SYMBOLES DE SÉCURITÉ ET INTERNATIONAUX •
Le présent manuel de l’opérateur décrit les symboles et pictogrammes de sécurité et internationaux, susceptibles d’apparaître sur ce
produit. Veuillez lire le manuel de l’opérateur pour connaître les informations complètes sur la sécurité, l’assemblage, l’utilisation, l’entretien
et la réparation.
SYMBOLE SIGNIFICATION SYMBOLE SIGNIFICATION
• SYMBOLE D’ALERTE DE SÉCURITÉ
Indique un danger, un avertissement ou une mise en
garde. Peut être utilisé conjointement avec d’autres
symboles ou pictogrammes.
• LISEZ LE MANUEL DE L’OPÉRATEUR
AVERTISSEMENT : veuillez lire le(s) manuel(s) de
l’opérateur et respecter tous les avertissements et
consignes de sécurité. Dans le cas contraire,
l’opérateur et/ou les passants peuvent subir des
blessures graves.
• PORTEZ DES PROTECTIONS AUDITIVES ET
OCULAIRES
AVERTISSEMENT : la projection d’objets et les
bruits forts peuvent provoquer des blessures oculaires
graves et une perte auditive. Portez une protection
oculaire conforme aux normes ANSI Z87.1 en vigueur,
ainsi qu’une protection auditive pendant l’utilisation
de cet appareil. Utilisez un écran facial complet dès
que nécessaire.
• ESSENCE SANS PLOMB
Utilisez toujours de l’essence sans plomb, propre et
neuve.
• HUILE
Consultez le manuel de l’opérateur pour connaître le
type d’huile à utiliser.
• N’UTILISEZ PAS UN CARBURANT E85 DANS CET
APPAREIL
AVERTISSEMENT : il a été prouvé qu’un carburant
contenant plus de 10 % d’éthanol est susceptible
d’endommager ce moteur et d’annuler la garantie.
• COMMANDE DE MARCHE/ARRÊT
ALLUMAGE / DÉMARRAGE / MARCHE
• COMMANDE DE MARCHE/ARRÊT
ARRÊT
• POIRE D’AMORÇAGE
Poussez complètement et lentement la poire
d’amorçage à 10 reprises.
• ETRANGLEUR
1 • Position d’étranglement MAXIMUM
2 • Position d’étranglement PARTIEL
3 • Position de MARCHE
• LES OBJETS PROJETÉS ET LA TÊTE ROTATIVE
PEUVENT PROVOQUER DES BLESSURES GRAVES
AVERTISSEMENT : les petits objets peuvent être
propulsés à des vitesses élevées, provoquant des
blessures. Tenez-les à l’écart du rotor en mouvement.
• ÉLOIGNEZ LES PASSANTS
AVERTISSEMENT : éloignez tous les passants,
en particulier les enfants et les animaux domestiques,
à 15 m (50 pieds) au moins de la zone de coupe.
• SURFACE CHAUDE
AVERTISSEMENT : ne touchez pas un pot
d’échappement ou un cylindre chaud. Vous pourriez
vous brûler. Ces éléments chauffent énormément
lorsque l’appareil est en marche. Ils restent chauds
pendant un court instant après l’arrêt.
• CULTIVATEURS DE JARDIN – LES DENTS
ROTATIVES PEUVENT PROVOQUER DES
BLESSURES GRAVES
AVERTISSEMENT : Arrêtez le moteur et laissez
les dents s'arrêter avant d'installer, d'enlever ou de
nettoyer les dents ou d'effectuer un entretien
quelconque. Gardez les mains et les pieds éloignés
des dents rotatives.
• NE PAS MARCHER
Tenez-vous toujours en équilibre. Ne vous étirez pas
et faites très attention lorsque vous travaillez sur des
pentes ou inclinaisons abruptes.
• PLACEZ LE PIED DROIT ICI
Évitez tout démarrage accidentel. Placez-vous dans la
position de démarrage dès que vous tirez sur le câble
de démarreur. L’opérateur et l’appareil doivent être
dans une position stable pendant le démarrage.
