Remlinger 3HD User manual

Setup/Owner’s Manual
Our Tradition is Quality Driven and Field Proven
Manual # - MAN-345HD-DFC-004
3, 4 & 5 Bar HD Angle Iron
Flexible Harrow
(3HD, 4HD, 5HD)

Table of Contents
Warning ...................................................................................................................................3
Safety Rules ............................................................................................................................3
To the Owner ...........................................................................................................................4
Warranty Policy .......................................................................................................................4
Mounting the Harrow
Field Cultivator - Chisel ....................................................................................................5
Disk - Disk Chisel .............................................................................................................7
Adjusting the Attachment
Pull Chain .........................................................................................................................9
Lift Chain ..........................................................................................................................9
Pull Link..........................................................................................................................10
Recommended Torque Specications ............................................................................10
Common Adapter Mounts...................................................................................................... 11
Optional Harrow Accessory Kit
Cross Chains for Flat Fold & Double Fold Wing Implements Only.................................12
Bolt-On Extension and Harrow Section Connector Kits .................................................13
Manual # - MAN-345HD-DFC-004

Manual # - MAN-345HD-DFC-004
Warning
!
Before using this attachment, make certain that every operator:
• Is instructed in safe and proper use of this attachment.
• Reads and understands the manual pertaining to the attachment.
• Reads and understands ALL (if applicable) Safety Decals on the attachment.
• Clears the area of all other people before operating the implement and attachment.
• Learns and practices safe use of the attachment in a safe clear open area before operating the
implement and attachment in the eld.
This symbol indicates an important Safety Alert Message in this Manual. Carefully read and
understand the message that follows. The potential for series injury or death is possible.
!
Safety Rules
! !
• Never attempt to operate or adjust the attachment without reading this manual.
• Do not attempt to adjust the attachment while it is in motion.
• The addition of this attachment will make the implement rear-end heavy.
• Caution is required when hooking up or un-hooking the attachment. A rear jack stand is
recommended but not provided.
• Always use any transport locks that are provided on the attachment or implement.
• Always place all safety decals and reectors in their proper locations. Clean and replace as
necessary.
• Never allow anyone to ride on the implement or attachment.
• Always slow down when turning and traveling over rough terrain.
• Always support the implement when mounting or working on the attachment.
• Be careful around teeth, tines, sweeps, and blades: they get sharper with wear.
!
3
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

To the Owner
Your new harrow attachment was carefully designed to give years of dependable service.
This manual contains important information about the safe assembly, adjustment, operation, and
maintenance of your attachment. To keep it operating e󰀩ciently, read the instructions in this manual.
Parts of the attachment have been partially assembled at the factory. The use of this manual describes
how to complete the remaining assembly. This manual should be considered a permanent part of
your implement and should remain with the implement when it is sold. Additional diagrams may also
be included for specic applications. Please contact the dealer or Remlinger Manufacturing for any
questions at 1-800-537-7370.
Any unauthorized modication to any part of the attachment could cause serious injury and void
any warranty consideration. Please refer to the Warranty Policy referenced below. For additional manuals
or to replace a lost or damaged manual, please contact your dealer. The manual number is referenced on
the lower right-hand corner of each page.
Warranty Policy
Remlinger Manufacturing will warrant all products against defects in material and workmanship
manufactured and sold by it. Warranty will only be granted after examination by appropiate personnel.
This warranty is expressly limited to the replacement of defective products. This warranty does not
obligate Remlinger Manufacturing to cover cost of labor to replace these parts. This warranty is in e󰀨ect
for 1 year after purchase.
Remlinger Manufacturing warrants its own products only and cannot be responsible for damages
to equipment on which it is attached or mounted.
Manual # - MAN-345HD-DFC-004
4
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

Mounting the Harrow
1. The harrow sections have been factory assembled and rolled into bundles.
Field Cultivator - Chisel
2. Each bundle has the section size stenciled on the rear of the last bar. Left hand and right hand
sides are determined by standing behind the implement and facing forward. The chain pulls on
the front of the attachment should face forward, pointing towards the implement.
** Start at center of the implement and work out from there.
3. Lay the harrow sections out behind the implement. Mount the mounting arms to the rear frame
tool. The mounting arm must be directly above the channel brackets on the attachment. Use the
5/8” - 11 x 6 1/2” hex cap bolts and mounting plates. See common adapters below.
Left
Front of the Attachment
Right
Manual # - MAN-345HD-DFC-004
5
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

If there are obstacles, mount the lift arm as close to where it needs to be and move the
channel brackets on the harrow. The channel bracket with 2 ears welded to it doesn’t have
to be on the front bar.
!
4. Place the lift chains into the slots in the channel brackets. Use the 7/16” - 14 x 3” hex cap bolts
with lock nuts. Next, attach the other end of the lift chain to the mounting arm. Remove any twist in
the chain. Use 3/8” - 16 x 3” hex cap bolts with lock nuts. Be certain to use the 3/8” atwasher to
help hold the chain.
Do not allow the chain to get twisted. Chain twist will cause the inside of the links to rub
together. This rubbing will cause the links to wear prematurely and will not be covered by
warranty.
6. Periodically check for loose or worn bolts, replace as necessary. Torque all bolts to
recommended torque settings. See chart on page 10.
!
5. Attach the pull chain to the underside of the chain pull link. Use the 3/8” - 16 x 1 1/2” hex cap
bolts with lock nuts. Again, make certain to use the 3/8” atwasher to help hold the chain. Use the
7/16” lynch pin to connect the pull chain to the pull bracket on the mounting arm. Remove any
twist in the chain.
Manual # - MAN-345HD-DFC-004
6
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

Disk - Disk Chisel
** Start at center of the implement and work out from there.
3. Lay the harrow sections out behind the implement. The adapters mount to the rear frame of the
implement. The adapter must be mounted directly above the channel brackets on the attachment.
Use the 5/8” - 11 x 2” hex caps bolts to attach the mounting arm to the adapter plate.
Manual # - MAN-345HD-DFC-004
7
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370
1. The harrow sections have been factory assembled and rolled into bundles.
2. Each bundle has the section size stenciled on the rear of the last bar. Left hand and right hand
sides are determined by standing behind the implement and facing forward. The chain pulls on
the front of the attachment should face forward, pointing towards the implement.
Left
Front of the Attachment
Right

If there are obstacles, mount the lift arm as close to where it needs to be and move the
channel brackets on the harrow. The channel bracket with 2 ears welded to it doesn’t have
to be on the front bar.
!
4. Place the lift chains into the slots in the channel brackets. Use the 7/16” - 14 x 3” hex cap bolts
with lock nuts. Next, attach the other end of the lift chain to the mounting arm. Remove any twist in
the chain. Use 3/8” - 16 x 3” hex cap bolts with lock nuts. Be certain to use the 3/8” atwasher to
help hold the chain.
Do not allow the chain to get twisted. Chain twist will cause the inside of the links to rub
together. This rubbing will cause the links to wear prematurely and will not be covered by
warranty.
6. Periodically check for loose or worn bolts, replace as necessary. Torque all bolts to
recommended torque settings. See chart on page 10.
!
5. Attach the pull chain to the underside of the chain pull link. Use the 3/8” - 16 x 1 1/2” hex cap
bolts with lock nuts. Again, make certain to use the 3/8” atwasher to help hold the chain. Use the
7/16” lynch pin to connect the pull chain to the pull bracket on the mounting arm. Remove any
twist in the chain.
Manual # - MAN-345HD-DFC-004
8
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

Adjusting the Attachment
Pull Chain
• Use the 7/16” Lynch Pin to adjust the chain to the desired length.
• Allow the attachment to oat back to a minimum of 10” behind closest blade, sweep or shank.
• The freshly turned soil and residue should come to rest on the ground in front of the attachment bars.
Landing on top of the bars may result in plugging.
• Do not allow twist in the chain. Always allow an even number of links to hang free.
Lift Chain
• Use the 3/8” - 16 x 3” Hex Cap Bolt on the mounting arm to adjust the chain to the desired height.
• The attachment teeth should be just touching the ground when the implement is set down on a level
surface.
• In normal conditions the lift chains will be loose in the eld.
• In heavy residue, the rst and/or second chain may need to be shortened to help carry the bar
through residue. Normally the rst bar causes the plugging issues.
• Carrying the attachment bars in the eld with the lift chains may cause premature chain wear.
• Do not allow twist in the chain. Always allow an even number of links to hang free.
Manual # - MAN-345HD-DFC-004
9
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

Pull Link
Position A - Allows maximum exibility in heavy trash conditions (factory set).
Position B - Maintains maximum rigidity for better soil shattering.
Do not allow the chain to get twisted. Chain twist will cause the inside of the links to rub
together. This rubbing will cause the links to wear prematurely and will not be covered by
warranty.
!
Recommended Torque Specications
SAE Grade No. 5 8
Bolt Head
Identication
Bolt Size Lb - Ft N - m Lb - Ft N - m
1/4” 9 - 11 12 – 15 12 - 15 16 - 20
5/16” 17 - 20.5 23 – 28 24 - 29 33 - 39
3/8” 35 – 42 48 - 57 45 - 54 61 - 73
7/16” 54 – 64 73 - 87 70 - 84 95 - 114
1/2” 80 - 96 109 - 130 110 - 132 149 - 179
5/8” 150 – 180 203 - 244 220 - 264 298 - 358
3/4” 270 – 324 366 – 439 380 - 456 515 - 618
7/8” 400 – 480 542 – 651 600 - 720 814 - 976
1” 580 - 696 787 – 944 900 - 1080 1220 - 1464
1-1/8” 800 – 880 1085 – 1193 1280 - 1440 1736 - 1953
1-1/4” 1120 – 1240 1519 – 1681 1820 - 2000 2468 - 2712
1-3/8” 1460 – 1680 1980 – 2278 2380 - 2720 3227 - 3688
1-1/2” 1940 - 2200 2631 – 2983 3160 - 3560 4285 - 4827
Manual # - MAN-345HD-DFC-004
10
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

Common Adapter Mounts

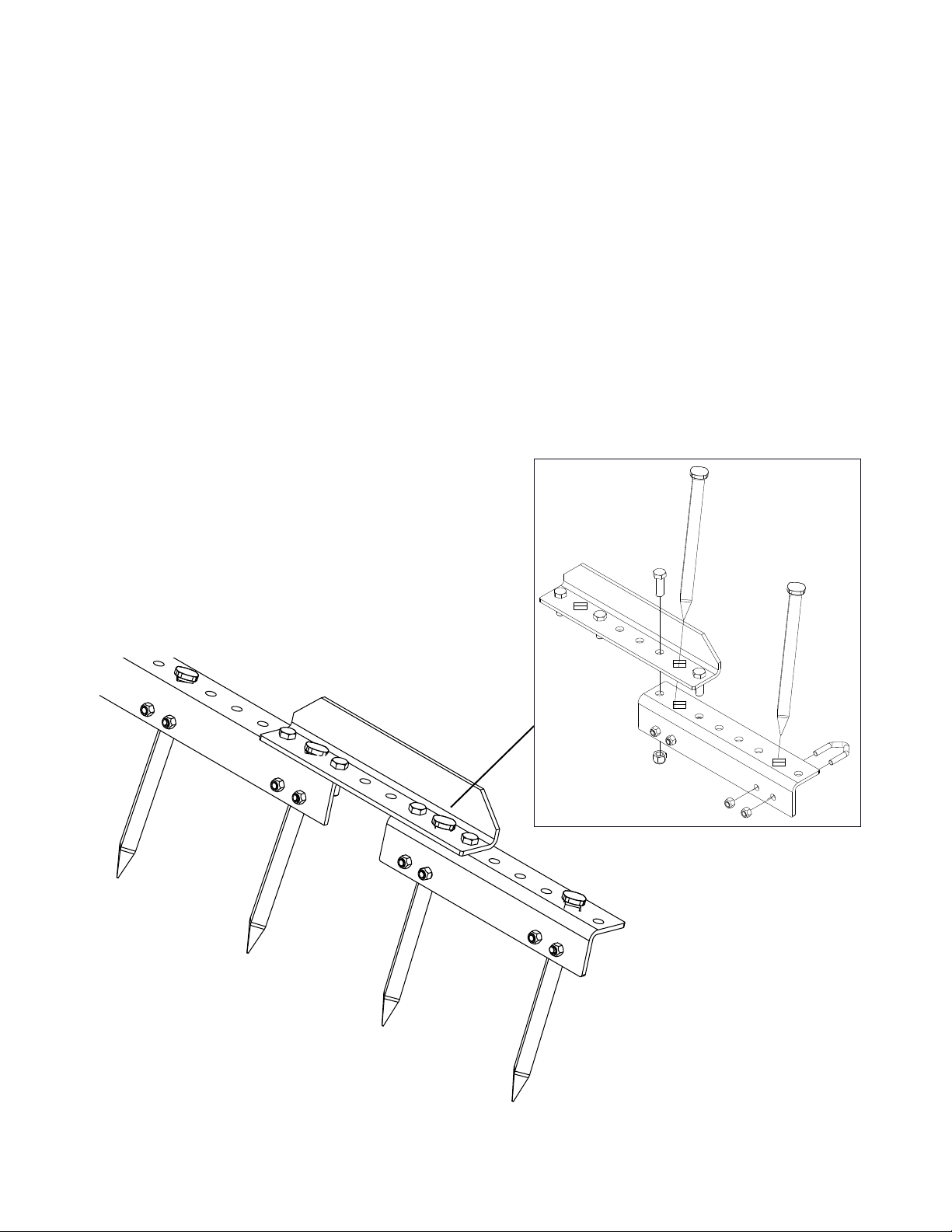

Universal Adapter - Disk Gang (U-Bolt) Universal Adapter - Disk Gang (U-Plate)
Butt-up Adapter - Straight Rear Frame Butt-up Adapter - Welded Rear Plate
Universal Adapter - Rear Mount Frame Butt-up Adapter - Rear Mount Frame
Manual # - MAN-345HD-DFC-004
11
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

Optional Harrow Accessory Kits
Cross Chains for Flat Fold & 5 Section Double Fold Wing Implements Only
(Optional Kit)
Cross Chains are required on Flat Folding and Double Wing Folding Implements. The chains
retain the harrow sections while the wing folds for transport on at fold models and the harrow sections
while the secondary wing folds for transport. These chains are only required on the outside arm on each
wing for at folding wings and only required on the secondary wing on 5 section double fold models.
Note: Views are shown from standing behind the implement!
The diagram above shows the location of the cross chains on a 5 Bar Harrow section (2nd &
4th Bars). On the 3 & 4 Bar Harrow sections, place the chains on the 1st & 3rd bars. The cross chain
kit contains (8) 31 links of chain and required hardware needed within the complete harrow kit for
implements using this kit.
The nal diagram shows where to attach the cross chains. Remove the 3/8” x 3” bolt that attaches
the lift chain to the mounting arm (see top diagram for proper location). Place the cross chain on the side
opposite of the lift (inside position). Use the 3/8” x 3 1/2” bolt, locknut and two at washers. Place the at
washers to the outside to help hold both chains. Attach other end of the cross chain to the corresponding
bar. Use 1/2” x 1 1/4” bolt, lock nut and at washer. When attaching the remaining end, stretch chain
towards the center of the harrow section. The chains should not move the section left or right. The lift
chains should still hang straight down.
Double Fold (Outer Wing Shown)
Double Fold (Outer Wing Shown)
Flat Fold (LH Wing Shown)
Flat Fold (LH Wing Shown)
Manual # - MAN-345HD-DFC-004
12
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

Bolt - On 18” & 36” Extension Kit
Optional Kit - Required to Extend an Existing Harrow
The extension is added when standard size harrow sections will not appropriately cover the cut
of the implement. The extension comes in 18” or 36” lengths. The 18” extension provides an additional
9” per side. The 36” extension (shown) provides an additional 18” per side. The extension bolts to any
existing 3, 4 or 5 bar HD Angle Iron Flexible Harrow.
Extension Kit (Rigid): Remove the outside tooth from one end of each bar. Use (2) 1/2” x 1 1/2”
hex head bolts with locknuts to attach the L-A0055 connecting bracket to the end of each bar as shown.
Again use (2) 1/2” x 1 1/2” hex head bolts with locknuts to attach extension to each connecting bracket as
shown. Finally, replace the teeth and tighten them into place using the special “V” shaped U-bolt.
Note: Also can be used to connect (2) complete sections together if mounting arm coniction arises when
attaching complete harrow kit to your machine.
Manual # - MAN-345HD-DFC-004
13
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

Remlinger Manufacturing
16394 US 224
PO Box 299
Kalida, OH 45853
Toll Free 1-800-537-7370
Phone [phone]
Fax [phone]
[email protected]
www.remlingermfg.com
View Manual Online Email Tech Support
