Town & Country Fireplaces TCWS54DST User manual

WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
What To Do If You Smell Gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier
from a neighbour’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier
call the fire department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a
certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room. MODEL: TCWS54DST
SERIES D
MODULAR DIRECT VENT
FIREPLACE
TCWS54D
SEE THRU - Version 2
USER MANUAL
160517-16 TCWS54DST_Ver2 5056.425217-A
SERIAL #
Visit www.townandcountryfireplaces.com for the most recent version of this manual
USER INSTRUCTIONS
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

5056.425217-A
Table of Contents
Your Town & Country replace has been professionally installed by:
Dealer name: _____________________________________________
Phone Number: ___________________________________________
If you discover any problems with your Town & Country replace contact your dealer immediately to have the
unit repaired.
Caution: Do not attempt to repair the replace because you may cause injury to yourself or others, and risk
causing damage to the unit.
Before operating your replace carefully read this manual and pay close attention to all Safety
Warnings. The manual contains important information on the unit’s safe operation and maintenance.
Congratulations on your Town & Country purchase
Caution ...................................................................................... 3
Safety ........................................................................................ 3
Lighting Instructions .................................................................. 4
First Fire ..................................................................................... 5
Special Operator Note ............................................................... 5
Remote Control Operation ........................................................ 5
Fireplace Description ......................................................... 7
Transmitter (Remote Control with LCD Display)................. 7
IFC Module......................................................................... 7
Operating Procedure.......................................................... 7
Using the Remote Control Transmitter............................... 8

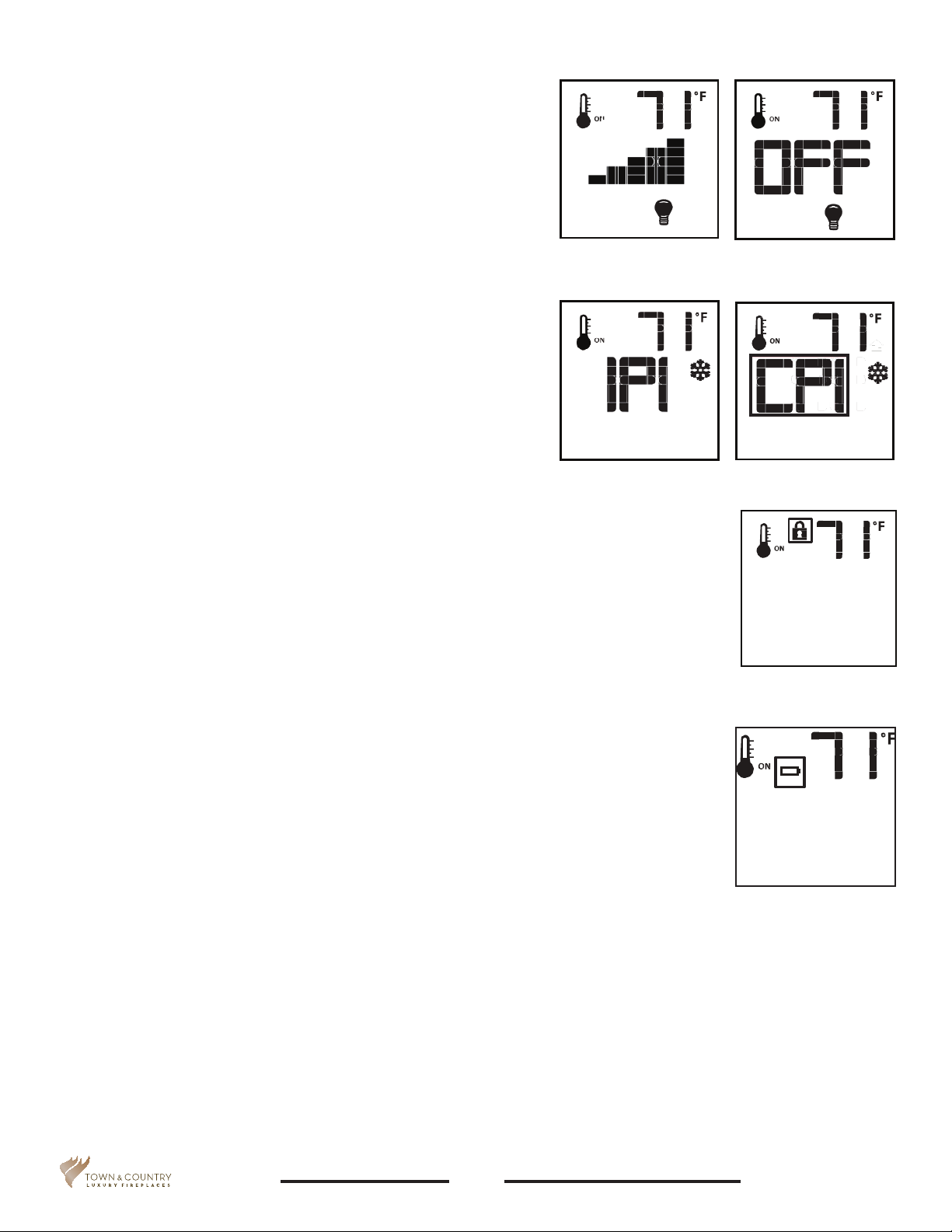

Temperature indication Display.......................................... 8
Turn on the Fireplace.......................................................... 8
Turn off the Fireplace ............................................................. 8
Manual Bypass of the Remote Fireplace ........................... 8
Remote Flame Control ....................................................... 9
Room Thermostat (Transmitter Operation)......................... 9
Smart Thermostat (Transmitter Operation)......................... 9
Instructions for enabling the Thermostat
function for Canadian users............................................... 9
Remote dimmer control (Light)......................................... 10
Continuous Pilot/Intermittent Pilot (CPI/IPI) selection...... 10
Key Lock .......................................................................... 10
Low Battery Power Detection .......................................... 10

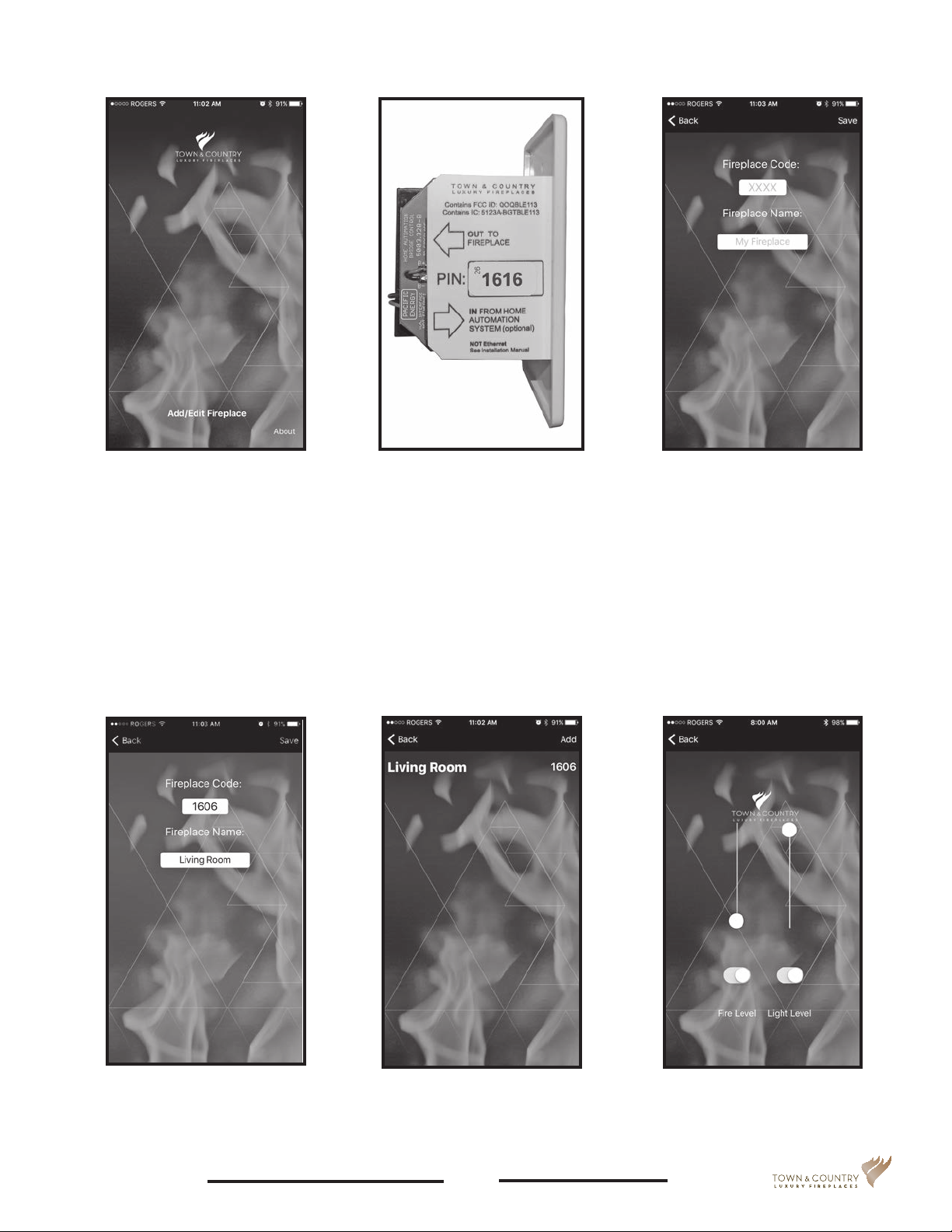

Linking Remote Handset and apple®Device to Fireplace ...... 11
Maintenance ............................................................................ 14
Glass Panel: ..................................................................... 14
Annual Inspection:............................................................ 14
Periodically:...................................................................... 14
2TCWS54DST_160517-16
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with the appliance and
shall be installed for the protection of children and
other at-risk individuals.

5056.425217-A
Due to high temperatures, this gas appliance should be located out of trafc and away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns
or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young chil-
dren, and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at-risk
individuals in the house. To restrict access to a replace or stove, install an adjustable safety gate to keep toddlers,
young children, and other at-risk individuals out of the room and away from hot surfaces.
Clothing or other ammable material should not be placed on or near the appliance.
Any grill, panel or door removed for servicing the unit must be replaced prior to operating. Failure to do so may create a
hazardous condition.
Installation and repair should be done by a qualied service person. The appliance should be inspected before use and
at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
It is our policy that no responsibility is assumed by the Company or by any of its employees or representatives for any
damages caused by an inoperable, inadequate, or unsafe condition which is the result, either directly or indirectly, of any
improper operation or installation procedures.
This appliance must not be connected to a chimney ue serving a separate solid fuel burning appliance.
FOR YOUR SAFETY - Do not install or operate your Town & Country replace without rst reading and understanding
this manual. Any installation or operational deviation from the following instructions voids the Town & Country
FireplacesTM Warranty and may prove hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping system during any pressure
testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual manual shut off valve during
any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight odour for a couple of hours. This is due to the curing of
paints, sealants and lubricants used in the manufacturing process. This condition is temporary. Open doors and win-
dows to ventilate area. Smoke and fumes caused by the curing process may cause discomfort to some individuals.
Do not use the replace if any part has been under water. Immediately call a qualied service technician to inspect the
replace and to replace any part of the control system and any gas control which has been under water.
3
TCWS54DST_160517-16
Caution
Safety
We recommend that our gas hearth
products be installed and serviced
by professionals who are certied
in the United States by the National
Fireplace Institute® (NFI) as NFI
Gas Specialists

5056.425217-A
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS APPLIANCE
WARNING:
If you do not follow these instructions exactly, a
fire or explosion may result causing property damage,
personal injury or loss of life.
A.This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by hand.
B.BEFORE LIGHTING smell all around the appliance area for gas. Be
sure to smell next to the floor because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
- Do not try to light any appliance.
- Do not touch any electric switch; do not use any phone in your
building.
- Immediately call your gas supplier from a neighbour's phone. Follow
the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.
C.Use only your hand to push in or turn the gas control knob. Never use
tools. If the knob will not push in or turn by hand, don't try to repair it,
call a qualified service technician. Force or attempted repair may
result in a fire or explosion.
D.Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance & to replace any part of the control system & any gas
control which has been under water.
1. STOP! Read the safety information above on this label.
2. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by hand.
3. Push the "On/ Off" switch to turn the fireplace ON.
- If the burner does light go to step 6.
- If the burner does not light, complete steps 4 through 5.
- If the burner will not light or stay lit after several tries, push the
"On/ Off" switch for the fireplace to OFF, turn off all electric power
to the fireplace and call your service technician or gas supplier.
Note: Sufficient time must be allowed for air to escape from lines if
the unit is being lit for the first time.
4. Push the "On/ Off" switch to the fireplace Off.
5. Allow sufficient length of time (minimum 5 minutes) for any gas in the
combustion chamber to escape. If you still smell gas, STOP! Follow
"B" in the safety information above on this label. If you don't smell
gas, go to step 3.
6. Set fireplace to desired setting by using hand held remote.
1.
Push the "on/ off" switch to the "Off" position.
2. Turn off all electric power to the appliance and remove backup
batteries if service is to be performed or for extended shutdown.
Due to high surface temperatures, keep children, clothing and furniture away. Keep burner and control compartment clean. See installation and
operating instructions accompanying the appliance.
A cause de la temperature elevee des parios, tenir eloignes les enfants, les vetements et les meubles. Maintenir propres le bruleur et le
compartiment de commande. Voir les instructions relatives a l'installation et au fonctionnement qui accompagnent l'appareil.
CAUTION:
Hot while in operation. Do not touch. Severe burns may result. Keep children,
clothing, furniture, gasoline and other liquids having flammable vapours away. Keep burner and control
compartment clean. See installation and operating instructions accompanying the appliance.
ATTENTION:L'appareil est chaud lorsqu'il fonctionne. Ne pas toucher l'appareil. Risque de
brûlures graves. Serveiller les enfants. Garder les vêtements, le meubles, l'essence ou autres liquides
produisant des vapeurs infl ammables loin de l'appareil. S'assurer que le brûleur et le compartiment des
commandes sont propres. Voir les instructions d'installation et d'utilisation qui accompagnent l'appareil.
090713
5051.185
GBWY
4TCWS54DST_160517-16
Lighting Instructions

5056.425217-A
First Fire
When lit for the rst time, the replace will emit a slight odor for a couple of hours. This is due to the cur-
ing of paints, sealants and lubricants used in the manufacturing process. This condition is temporary. Open
doors and windows to ventilate area. Odors caused by the curing process may cause discomfort to some
individuals.
It is normal for replaces fabricated of steel to give off some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found with your furnace heat exchanger or cook stove oven.
Remote Control Operation
NOTE: Fireplace may
take up to 30 seconds
to ignite each time the
“ON” button has been
selected.
Special Operator Note
Blue back lit LCD display
ON/OFF Key
THERMOSTAT Key
UP/DOWN Arrow Key
MODE Key

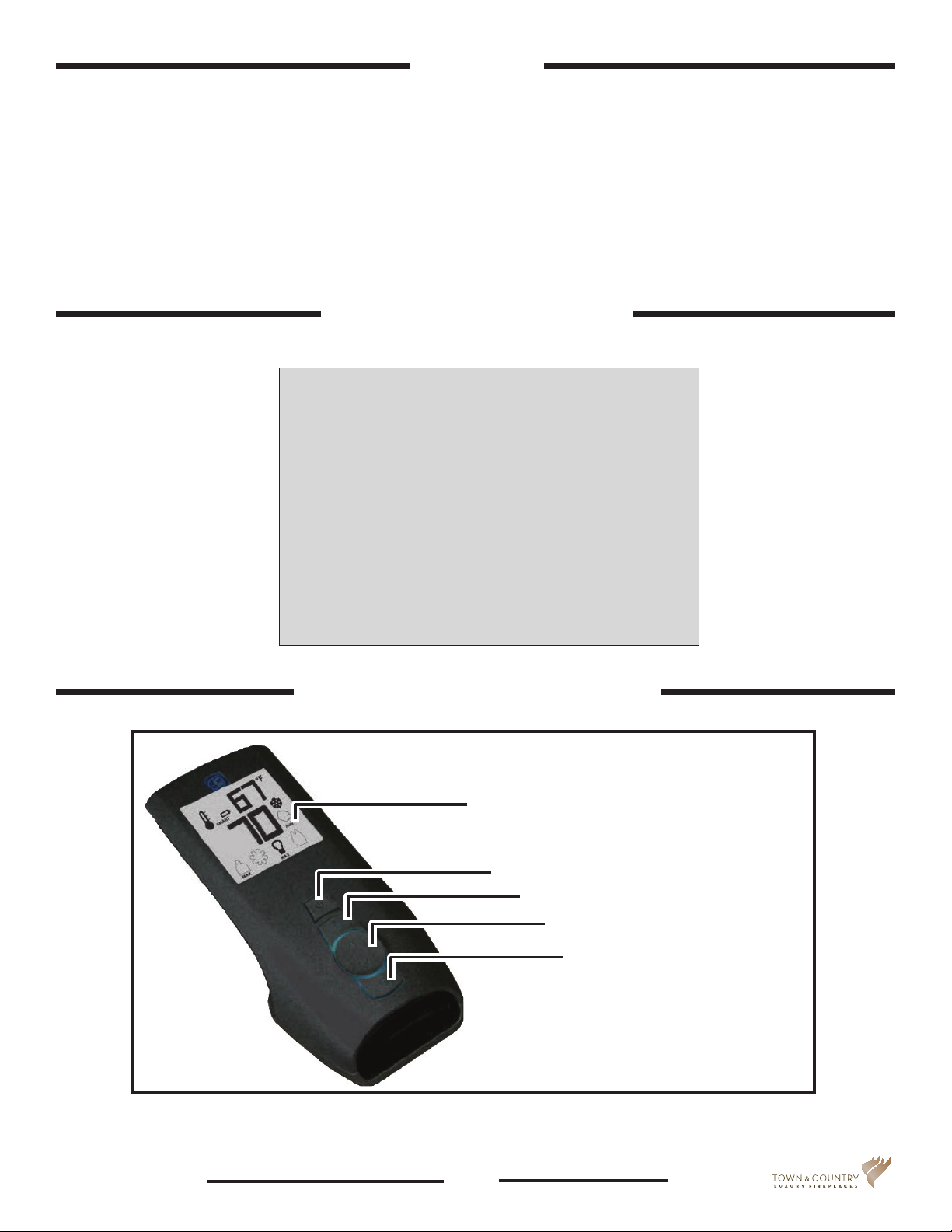

Figure 1: Proame 2 handset.
5
TCWS54DST_160517-16

5056.425217-A
Attention!
• Turn off the main gas supply for the appliance during instal-
lation or maintenance of the receiver/module device.
• Turn off main gas supply for the appliance prior to removing
or reinserting the batteries.

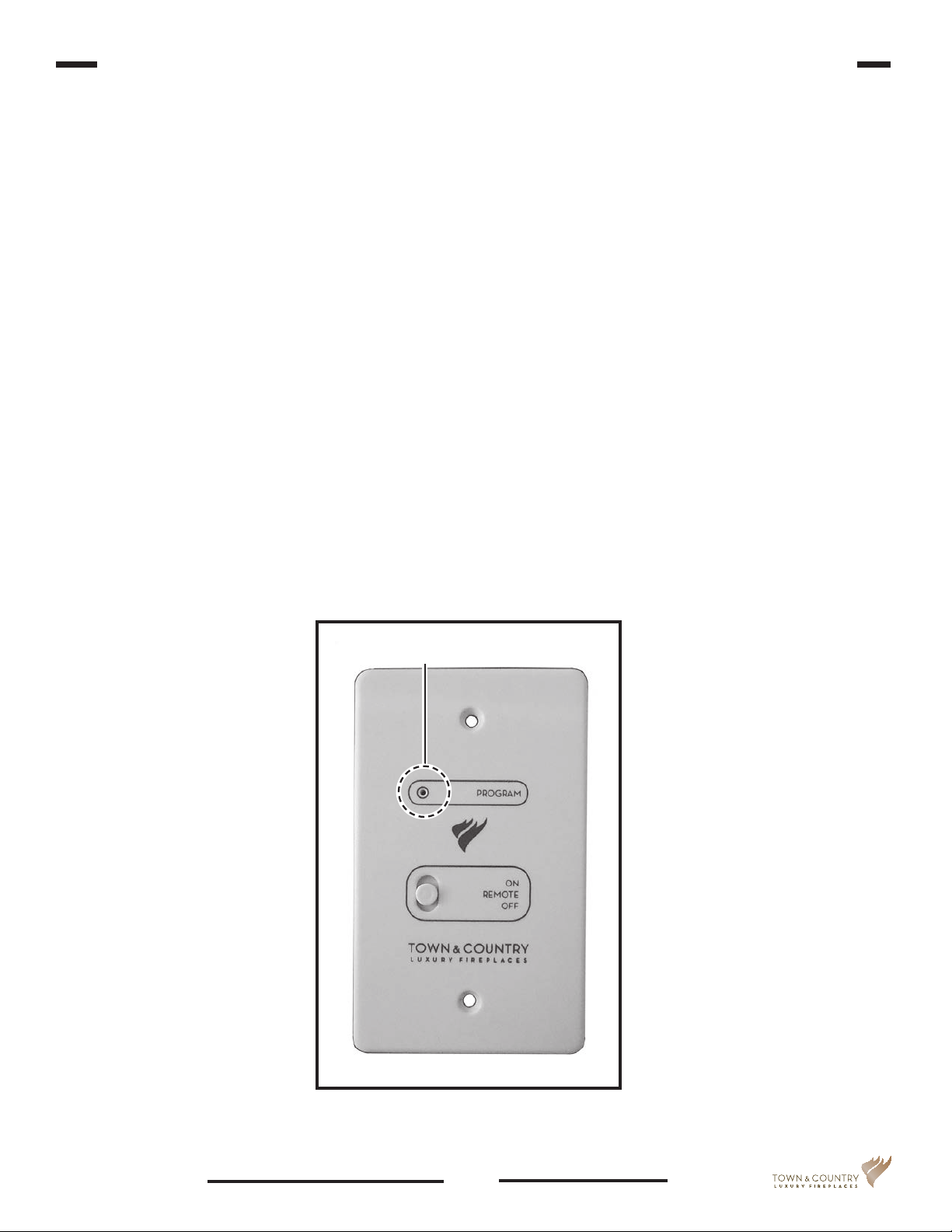

• In case of remote control malfunction, turn off the replace
using the “on/off” main switch located on the wall.
• For installation/maintenance, turn off the replace at the on/
off switch located on the wall and at the replace power
supply circuit breaker.
OFF
ON
SMART
MAX MAX
KEY LOCK
LOW BATTERY ALARM
ROOM
TEMPERATURE
CPI MODE
DIMMER ON
FLAME LEVEL
SET POINT:
TEMPERATURE/LEVEL/STATE
THERMOSTAT OFF/
ON/SMART
TRANSMISSION
* SEE NOTICE REGARDING
THERMOSTAT USE
* SEE NOTICE REGARDING
THERMOSTAT USE
* SEE NOTICE REGARDING
Figure 2: Proame 2 LCD screen details.
NOTICE: The thermostat function is disabled by default. Thermostat function is not
permissible in the USA but is permissible in Canada. Instructions for enabling the thermostat
function in Canada - See “Instructions for enabling the Thermostat function for Canadian
users.” on page 9
6TCWS54DST_160517-16

5056.425217-A
Fireplace Description
The Proame 2 Remote Control Fireplace consists of three elements:
1. Proame 2 Remote Control Transmitter.
2. Proame Integrated Fireplace Control (IFC) board and a wiring harness to connect the IFC to the
gas valve and stepper motor.
3. Wall mounted Remote Control Receiver Figure 3, Figure 4 and Figure 5.
Transmitter (Remote Control with LCD Display)
The Proame 2 Transmitter uses a streamline design with a simple key layout and an informative LCD
display (Figure 2). The remote control transmitter is powered by 3 AAA batteries. A mode key is provided to
index between the features and a thermostat key is used to turn on/off or index through thermostat func-
tions (Figure 1).
IFC Module
The Proame 2 Integrated Fireplace Control (IFC) module is a device that allows automatic ignition and pilot
ame supervision and commands the functions of the replace. It’s congured to control the ON/OFF main
burner operation, giving the choice of both IPI (intermittent pilot ignition), and CPI (continuous pilot ignition)
modes. The Proame2 IFC module controls and connects directly to the pilot assembly and the automatic
valve using low electric power.
The IFC module can be powered by both an AC power supply, and battery pack for back up. The Proame
2 offers the added ability to control the comfort fan speed from OFF through six (6) speeds, and a remotely
actuated auxiliary outlet and a dimmable light outlet. The external batteries can provide DC power to the
IFC allowing the batteries to be used only when line power is interrupted or lost, and if the replace does
not use a combustion fan.
Operating Procedure
The replace must rst be linked to the wall switch. Then the wall switch must be linked to the remote hand-
set. Instructions for both of these procedures including instructions for enabling a Blue Tooth®enabled
apple mobile device to the replace, see See “Linking Remote Handset and apple® Device to Fireplace” on
page 11.
NOTICE: Do not install batteries into the wall switch this unit
(Figure 4). Battery holder must remain empty.
7
TCWS54DST_160517-16

5056.425217-A
Figure 5: Wall switch.
Using the Remote Control Transmitter
Temperature indication Display
With the remote control transmitter in the “OFF” position, press the thermostat
and mode keys at the same time. Look at the LCD screen on the remote control
transmitter to verify that a C or F is visible to the right of the room temperature
display - Figure 7 and Figure 8.
Turn on the Fireplace
With the replace OFF, press the ON/OFF key on the remote control transmitter.
The remote control transmitter display will show the active icons on the screen.
At the same time the wall switch will activate the replace via the IFC module. A
single “beep” from the IFC module will conrm reception of the command.
Figure 3: Wall switch - interface
side.
Program button
Turn off the Fireplace
With the replace ON, press the ON/OFF key on the remote control transmitter. The remote control transmit-
ter LCD display will only show the room temperature (Figure 7 and Figure 8). At the same time the IFC module
will turn off the replace. A single “beep” from the IFC module conrms reception of the command.
Manual Bypass of the Remote Fireplace
If the batteries of the remote control transmitter are low or depleted, the replace can be turned off manually
using ON/OFF switch located on Town & Country wall switch. This will bypass the remote control transmitter.
Figure 4: Wall switch with no
batteries.
Figure 6: Proame 2 remote
battery compartment.
Figure 7: Temperature in
fahrenheit.
°C
Figure 8: Temperature in
celcius.
8TCWS54DST_160517-16

5056.425217-A
Remote Flame Control
The Proame2 has six (6) ame levels. With the replace turned on, and
the ame level at maximum height, press the down arrow key once to
reduce the ame height by one step (Figure 9) until the ame is turned
off.
The up arrow key will increase the ame height each time it is pressed. If
the up arrow key is pressed while the replace is on but the ame is off,
the ame will come on in the high position. A single “beep” will conrm
reception of the command.
Room Thermostat (Transmitter Operation)
The remote control transmitter can operate as a room thermostat. The thermostat can be set to a desired
temperature to control the comfort level in a room. To activate this function, press the thermostat key
(Figure 1). The LCD display on the remote control transmitter will change to show that the room thermostat is
“ON” and the set temperature is now displayed (Figure 10). To adjust the set point, press the up or down
arrow keys until the desired set point temperature is displayed on the LCD screen of the remote control
transmitter.
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the ame height in accordance to the difference between the set point
and the room temperatures. As the room temperature gets closer to the set point, the Smart Function will
modulate the ame down. If the room temperature is cool, the Smart Function will modulate the ame up. To
activate this function, press the THERMOSTAT button (Figure 1) until the word “SMART” appears to the right of
the temperature icon (Figure 11). To adjust the set point, press the up or down arrow buttons until the desired
set point temperature is displayed on the LCD screen of the remote control transmitter.
The thermostat key (Figure 1) on the remote handset needs to be held down. Keep it pressed down and
remove one of the three batteries from the remote handset. Simply re-install the battery that was removed
and the feature is activated. Use the same procedure to disable the thermostat function.
Instructions for enabling the Thermostat function for Canadian users.
Flame Off
Flame level 5
Flame level Max
Flame level 1
Figure 9: Flame level control.
Figure 10: Room temperature
control.
Figure 11: Smart ame
control.
Figure 12: Smart ame
function set low.
9
TCWS54DST_160517-16

5056.425217-A
Low Battery Power Detection
Transmitter
The life span of the remote control batteries depends on various factors: quality of the
batteries used, the number of ignitions of the Heater, the number of changes to the
room thermostat set point, etc.
When the remote batteries are low, an battery icon (Figure 16) will appear on the LCD
display of the remote before all battery power is lost. When the batteries are replaced
this icon will disappear.
Receiver
The life span of the IFC module batteries depends on various factors: quality of the batteries used, the number
of ignitions of the Heater, the number of changes to the room thermostat set point, etc.
When the IFC batteries are low, a “double-beep” will be emitted from the IFC module when it receives a com-
mand from the remote. This is an alert for a low battery condition for the IFC board. When the batteries are
replaced, a single “beep” will be emitted from the IFC module when a key is pressed.
Key Lock
This function will lock the keys to avoid unsupervised operation. To activate this func-
tion, press the MODE and UP keys at the same time (Figure 1). The lock icon will
appear (Figure 15). To de-activate this function, press the MODE and UP key at the
same time.
Remote dimmer control (Light)
The auxiliary function controls the AUX power outlet by the
dimmable light control. To activate this function use the Mode
Key (Figure 1) to index to the light bulb icon (Figure 13). The
intensity of the output can be adjusted through six (6) levels.
Use the Up/Down Arrow Keys to adjust the output level. A
single “beep” will conrm reception of the command.
Continuous Pilot/Intermittent Pilot (CPI/IPI) selection
With the system in the “OFF” position, press the Mode Key
(Figure 1) to index to the CPI mode icon (Figure 14). Pressing
the Up Arrow Key will activate the Continuous Pilot Ignition
mode (CPI). Pressing the Down Arrow Key will return to IPI. A
single “beep” will conrm the reception of the command.
Figure 13: Dimmer light control.
Figure 14: IPI - CPI control.
Figure 15: Lock icon.
Figure 16: Low battery
icon.
10 TCWS54DST_160517-16

5056.425217-A
Linking Remote Handset and apple®Device to Fireplace
Town & Country Fireplaces can be operated remotely by using the remote handset that came with the re-
place, and by using an Blue Tooth®enabled apple mobile device and the “TC Fire” app which can be down-
loaded free from the Apple®app store.
Regardless of which method is used, the rst two procedures are to be performed in order to establish a link
between the replace and the wall switch, followed by a procedure to establish a link between the remote
handset and the wall switch.
Step 1: Procedure for linking / pairing wall switch to replace
1. Set the wall switch selector to the “Remote” setting.
2. Press and hold Program button (Figure 17) on the wall switch for up to 10 seconds. Use a straight-
ened paper clip to access the button.
3. The wall switch will beep 5 times. Release the button following the beeps.
4. The replace will beep 3 times repeated by another 3 beeps.
5. The replace and wall switch are now linked/paired.
If there is cross communication with another nearby fireplace causing the other
fireplace to activate instead of the intended fireplace, repeat above procedure to
automatically switch to another one of three available channels.
PROGRAM BUTTON
Figure 17: Town and Country wall switch.
11
TCWS54DST_160517-16

5056.425217-A
Step 2: Procedure for linking / pairing the wall switch to remote handset
1. Press and release Program button on the wall switch once (Figure 17).
2. You will hear 3 beeps from the wall switch.
3. Press and release the on/off button (Figure 18) on the remote handset (within 60 sec.)
4. The wall switch will beep 3 times.
5. The remote handset is now linked/paired to the wall switch and is ready to activate the replace.
Step 3: Optional procedure for linking / pairing a Blue Tooth enabled apple mobile device to the
replace (iOS only).
1. Download the “TC Fire” app from the Apple®App Store.
2. From your device, open the app and go to “Add /Edit Fireplace”.
3. Press the “Add” button
Find the PIN number located on a sticker on the wall switch (Figure 20).
4. Enter the PIN number and a user dened description of the replace (Figure 21).
5. Press the “Save” button.
6. The replace is added to the main screen and iOS device is ready to use the app (Figure 22).
ON /OFF
Figure 18: Remote handset.
12 TCWS54DST_160517-16

5056.425217-A
Using the TC Fire app
The app controls two functions: Flame ON/OFF/Flame level and Lighting ON/OFF/Level. The toggle buttons
(Figure 24) turn the functions ON and OFF while the sliders increase and decrease the ame and lighting lev-
els.
Figure 19: Home screen. Figure 20: Wall switch with
PIN number.
Figure 21: Add-edit progam
elds.
Figure 22: PIN & name entry Figure 23: App programed
for living room.
Figure 24: Control sliders.
13
TCWS54DST_160517-16

5056.425217-A
Figure 25: Pilot assembly.
CAUTION:
Turn off gas and electrical power supply (if applicable) and allow ample time for unit to
cool before servicing appliance. It is recommended that the replace and its venting
should be inspected at least once a year by a qualied service person.
Glass Panel:
Warning: Do not operate replace with glass panel removed, cracked or broken.
Replacement of the glass panel should be done by a licensed or qualied service
person.
Do not strike or otherwise impact the glass in anyway that may cause it to break. If
the glass becomes cracked or broken it must be replaced before using the replace.
Replacement glass can be obtained from your nearest Town & Country FireplacesTM
dealer. Use ceramic glass only. Do not substitute with any other type.
To remove broken glass, remove window frame as noted in "Window Frame Removal"
section.
Unclip the Glass Retainer Clips located at the top and sides of the Window Frame. Pull
the top edge of the glass out of the frame rst, then lift it up and out of the bottom edge.
Install the new piece of glass with the gasket into the frame so that the thicker bead of
gasket faces the replace.
Re-install glass retaining clips.
Annual Inspection:
a) Remove glass panel and pebble assemblies. Inspect pebble and burner assemblies for soot buildup. If excessive buildup of soot
is present, have a qualied service person inspect and adjust unit for proper combustion. Clean logs and burner with a brush or
vacuum cleaner, paying close attention to burner ports.
b) Check the pilot system for proper ame size and operation. Clean pilot free of soot, dust or any other deposits. (See Fig. #67)
c) Check that the vent pipe and vent terminal are open and free from blockage or debris. If the venting is disassembled for cleaning, it
must be properly assembled and re-sealed. Refer to VENTING section for proper procedure.
d) Check glass panel gasket, replace if necessary. It is important that the glass seal be maintained in good condition.
e) Check and replace batteries as needed.
Note: The appliance area must be kept clear and free from combustible materials, gasoline and other ammable vapours and liquids.
Periodically:
a) Viewing glass may be cleaned as necessary with replace glass cleaner.
b) Exterior nish may be cleaned with mild soap and water.
CAUTION:
Do not use abrasive cleaners on glass or any other part of the replace.
Do not clean glass when hot.
PILOT FLAME
FLAME SENSOR
ELECTRODE
PILOT
14 TCWS54DST_160517-16
Maintenance

5056.425217-A
15
TCWS54DST_160517-16

© 2017 Copyright Pacic Energy Fireplace Products LTD
Reproduction, adaptation, or translation
without prior written permission is prohibited,
except as allowed under the copyright law.
For technical support, please contact your retailer.
Web site: www.townandcountryfireplaces.com
2975 Allenby Rd., Duncan, BC V9L 6V8
Printed in Canada
