Renault Trafic User manual

NU650_12_G1-FRA.qxd 24/09/04 13:06 Page COUV1
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page1

NU650_12_G1-FRA.qxd 24/09/04 13:06 Page COUV2
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page2
recommends ELF
All engine
types
Petrol engines
all types
All types
of engine
5 or 6 speed manual
gearbox.
ELF EXCELLIUM LDX 5W-40 ACEA A3 / B3 / B4
Optimum performance and maximum protection in the most severe conditions
All types of driving
ELF EVOLUTION SXR 5W-40 ACEA A3 / B3 / B4
Optimum performance
All types of driving
ELF EVOLUTION SXR 5W-30 ACEA A5 / B5
Fuel economy, engine protection and respect for the environment.
All types of driving
ELF COMPETITION ST 10W-40 ACEA A3 / B3 / B4
ELF TURBO DIESEL 10W-40 ACEA B3 / B4
Other RENAULT-approved lubricants for normal use.
TRANSELF TRX 75W-80 API GL5
RENAULT recommends approved ELF lubricants.
When topping up or changing the oil, we recommend you use the original oils.
Consult your RENAULT Dealer or visit the site www.lubricants.elf.com

NU650_12_G1-FRA.qxd 24/09/04 13:06 Page 0.02
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page4
0.02
Brief overview
•Tyre pressures ........................................................................................................ 0.04
•Adjusting the seats and the driver's position ...................................... 1.18 ➟1.31
•Child restraints ......................................................................................... 1.32 ➟1.43
•Warning lights .......................................................................................... 1.48 ➟1.58
•Audible and visual signals ..................................................................... 1.62 ➟1.65
•Running in, driving ................................................................................. 2.02 ➟2.21
•Heating / air conditioning ...................................................................... 3.02 ➟3.12
•Opening the bonnet .............................................................................................. 4.02
•Levels (engine oil, screen washer, etc.) ................................................. 4.03 ➟4.11
•Emergency spare wheel ........................................................................... 5.02 ➟5.05
•Practical advice (changing bulbs, fuses, repairs, operating faults) .... 5.02 ➟5.36

NU650_12_G1-FRA.qxd 24/09/04 13:06 Page 0.03
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page5
0.03
CONTENTS
Sections
1
2
3
4
5
6
7
Getting to know your vehicle ............................................................
Driving ...............................................................................................................
Your comfort .................................................................................................
Maintenance ..................................................................................................
Practical advice ...........................................................................................
Technical specifications ........................................................................
Alphabetical index ....................................................................................

NU650_12_G1-FRA.qxd 24/09/04 13:06 Page 0.04
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page6
0.04
Tyre inflation pressures (in hectopascals or bar, when cold)
Tyre dimensions
(original tyres) 195/65R 16 C 205/65 R 16 C 215/65 R 16C 195/75 R 16C
Wheel sizes 6 J 16
Front 3.4 3.8 3.1 3.8
Rear 3.7 4.2 3.4 4.2
Emergency spare wheel 3.7 4.2 3.4 4.2
Tyre safety and use of snow chains
Refer to the information chapter entitled “Tyres”in section 5 for advice on tyre maintenance and, depending on the
version, the use of chains.

NU650_12_G1-FRA.qxd 24/09/04 13:06 Page 1.01
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page7
1.01
Section 1: Getting to know your vehicle
Keys - Remote control - Deadlocking ................................................................................................. 1.02 ➟1.05
Doors ..................................................................................................................................................... 1.06 ➟1.13
Anti-intrusion alarm .............................................................................................................................. 1.14 - 1.15
Engine immobiliser ........................................................................................................................................... 1.16
Front seats ......................................................................................................................................................... 1.17
Headrests ........................................................................................................................................................... 1.18
Rear-view mirrors ............................................................................................................................................. 1.19
Seat belts ................................................................................................................ 1.20 - 1.21 - 1.28 - 1.29 - 1.31
Restraint systems in addition to front seat belts .............................................................................. 1.22 ➟1.27
Front seat belt pretensioners ................................................................................................................ 1.22 - 1.23
Airbag .................................................................................................................................................... 1.22 ➟1.27
Methods of restraint in addition to the rear seat belt ...................................................................................1.30
Child safety ........................................................................................................................................... 1.32 ➟1.43
Driver’s position ................................................................................................................................... 1.44 ➟1.47

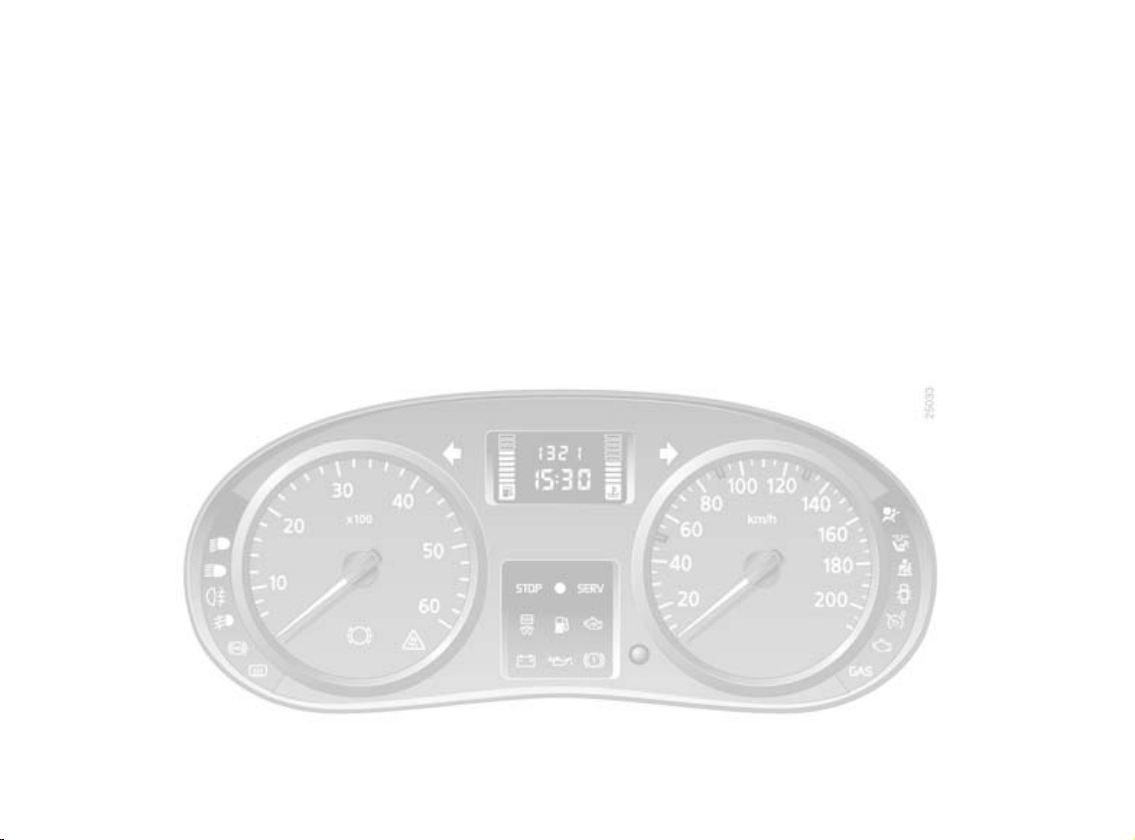

Instrument panel .................................................................................................................................. 1.48 ➟1.55
On-board computer .............................................................................................................................. 1.56 ➟1.58
Clock .................................................................................................................................................................. 1.59
Washers / Wipers .............................................................................................................................................. 1.60
Lighting and external signals ................................................................................................................ 1.61 - 1.62
Electric headlight beam adjustment ................................................................................................................ 1.63
Audible and visual signals .............................................................................................................................. 1.64
Fuel tank ................................................................................................................................................. 1.65 - 1.66

21
NU650_12_G1-FRA.qxd 24/09/04 13:06 Page 1.02
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page8
1.02
KEYS
1Radio frequency remote controls,
ignition key, key for doors and
fuel filler cap.
2Ignition key, key for doors and
fuel filler cap. Driver's responsibility
If there is a child (or a pet)
in the vehicle, never leave
it unattended with the key
in the ignition. With the key in the
ignition the child could start the
engine or operate electrical
equipment such as the electric
windowsandthereisariskthathe
or she may be injured (by trapping
his or her neck, arm, hand, etc.).
Risk of serious injury.

2
1
A
B
NU650_12_G1-FRA.qxd 24/09/04 13:06 Page 1.03
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page9
1.03
RADIO FREQUENCY REMOTE CONTROL
The remote control 1locks and
unlocks the doors.
It is powered by a battery which
must be replaced when battery
warning light 2no longer lights up
(refer to the section entitled
“Remote control unit: batteries”).
Locking/unlocking the doors
Press the remote control unit for
approximately one second
(indicator light 2lights up) to lock
(side B) or to unlock (side A).
The side mounted indicators and
hazard warning lights flash twice to
indicate that the doors have been
locked.
Note: depending on the vehicle, if
either a door or the boot lid is open
or not properly closed, the hazard
warning lights will not flash.
The hazard warning lights and side
mounted indicators flash once to
indicate unlocking.

NU650_12_G1-FRA.qxd 24/09/04 13:06 Page 1.04
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page10
1.04
RADIO FREQUENCY REMOTE CONTROL UNIT (continued)
Remote control unit operating
range
This varies according to the
surroundings: therefore when
handling the remote control, be
careful that you do not
inadvertently lock or unlock the
doors!
Note: on certain vehicles, if a door is
not opened within approximately
30 seconds of the door being
unlocked by remote control, the
doors will lock again automatically.
Interference
Operation of the remote control may
be disrupted by equipment being
used close to the vehicle (e.g.
external equipment or the use of
devices which operate on the same
frequency as the remote control).
If you lose your keys or need
another set of keys (or a remote
control), contact your RENAULT
Dealer.
•If a remote control is replaced, it
will be necessary to take the
vehicle and all sets of keys to
your RENAULT Dealer to
initialise the system.
•It is not possible to use more than
four remote control units for one
vehicle.
Make sure that the batteries are
always in good condition - they last
for approximately two years.
Refer to the section entitled
“Remote control unit: batteries”in
Section 5 for information on how to
change the batteries.

A
NU650_12_G1-FRA.qxd 24/09/04 13:06 Page 1.05
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page11
1.05
DEADLOCKING
Deadlocking the doors and tailgate
(for some countries)
This allows you to lock the doors
and tailgate and to prevent the
doors from being unlocked with the
interior handles (for example, by
breaking the window and then
trying to open the door from the
inside).
To activate deadlocking,press
twice on locking side Aof the
remote control.
The hazard warning lights flash five
times to indicate locking.
Special note: deadlocking is not
possible if the hazard warning lights
or the side lights are lit.
Never use deadlocking if
someone is still inside the
vehicle.

1
NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.06
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page12
1.06
INTERIOR ELECTRIC DOOR LOCKING CONTROL
Fromtheinsidewithelectric
central locking 1
This enables all the doors to
be locked simultaneously.
To lock, press the switch on
the opposite side to that in the
diagram.
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for
those assisting you to gain access to
your vehicle in the event of an
emergency.
Note: the front doors cannot be
locked if a door is open.

2
1
3
4
NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.07
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page13
1.07
FRONT DOORS
Opening the doors from the
outside
Unlock driver's door 2using the key
or, for vehicles fitted with the
remote control unit, use the remote
control. Pull lever 1towards you
and open the door.
Closing from the outside
Push the door until it catches
automatically. Lock it via lock 2or
use the remote control.
Opening the doors from the
inside
Use lever 4.
Closing from the inside
Pull the door until it catches
automatically.
Manual locking
With the door closed, lock the door
by pressing button 3.
Warning buzzer
An audible warning will sound
when a front door is opened and the
lights are still switched on after the
ignition has been turned off (to
prevent discharge of the battery).
As a safety precaution,
the doors should only be
opened or closed when
the vehicle is stationary.
Note: the front doors cannot be
locked if a door is open.

2
3
4
1
NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.08
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page14
1.08
SLIDING SIDE OPENING DOORS
Opening the doors from the
outside
Unlock the front door using the key,
or, for vehicles fitted with the
system, use the remote control unit.
Pull handle 1towards you and slide
the door towards the rear.
Closing from the outside
Slide the door towards the front of
the vehicle while holding handle 1
until it is completely closed.
Lock with the key or using the
remote control.
Opening the doors from the
inside
Pull handle 3towards the rear of the
vehicle and open the sliding door
until it locks into position.
Closing from the inside
Pull handle 2towards the front of
the vehicle.
Manual locking
Use button 4.

5
NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.09
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page15
1.09
SLIDING SIDE DOORS (continued)
Childproof locks
To prevent the sliding side door
from being opened from the inside,
turn bolt 5clockwise through 90°
(usingatoolsuchasaflat
screwdriver) and check from the
inside that the door is properly
locked.
Recommendations
concerning the sliding side
door
Care must be taken when
opening or closing the sliding door,
as is the case for any of the opening
elements on the vehicle:
- check that the door will not come
into contact with any person, part
of the body, animal or object;
- use only the handles on the
inside and outside of the door to
operate it.
- take care when opening and
closing the door;
- take particular care when the
vehicle is parked on a slope: open
the door with care until it is fully
open and latches into its locking
position;
- before moving off, always ensure
that the door is properly closed.

1
2
NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.10
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page16
1.10
HINGED REAR DOORS
Opening the doors from the
outside
Unlock using the door key, or, for
vehicles fitted with the system, use
the remote control unit. Pull lever 1
towards you and open the door.
Press handle 2andopenthesecond
door. If the vehicle is parked on
the hard shoulder with boot
lid open, the rear lights
may be obscured. You
should make other road users
aware of the presence of your
vehicle by using a warning triangle
or other equipment specified by the
road traffic regulations of the
country concerned.

12
NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.11
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page17
1.11
HINGED REAR DOORS (continued)
Opening the doors to the
maximum position
For each door, pull catch 1to release
door handle 2. Open the door as far
as possible.
There is no device to
restrain the doors in the
wind.
Closing from the outside
Return the doors to an
almost-closed position and slam
them shut.
For your safety, check
that all your vehicle's
doors are properly closed
before starting the
engine.

4
3
NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.12
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page18
1.12
HINGED REAR DOORS (continued)
Opening the doors from the
inside
Pull handle 3andopenthedoor.
Turn handle 4and open the second
door.
For your safety, check
that all your vehicle's
doors are properly closed
before starting the
engine.
Closing from the inside
Close the door using handle 4,then
the second door.

1
2
NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.13
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page19
1.13
TAILGATE
The tailgate locks and unlocks at the
same time as the doors.
To open
Press button 1and lift the tailgate.
To close
Lower the tailgate, initially using
the interior handle 2to assist you.
When the tailgate has been lowered
to shoulder height, release handle 2
and finish closing the tailgate by
pressing down on the tailgate from
the outside.

1
NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.14
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page20
1.14
ANTI-INTRUSION ALARM
It protects the vehicle by performing
the following functions:
- volumetric protection of the front
passenger compartment using an
ultrasound field;
- protection of the passenger
compartment perimeter;
- protection of the rear load area
and bonnet;
- surveillance in the event of an
attempt to start the engine with an
incorrect ignition key;
- surveillance in the event of horn
power supply cut-off.
Before activating the alarm
function
Check that:
- the windows and doors are
properly closed;
- there are no passengers, animals or
objects inside the vehicle which
could move and set off the alarm.
Otherwise it will be necessary to
disable the passenger compartment
protection promptly. Refer to the
section on disabling the spatial
protection.
Passenger compartment protection
is disabled (in the event, for
example, of there being a moving
object or animal in the vehicle).
Press the locking side 1of the
remote control locking unit, the
horn will bleep to confirm
disablement.
It remains disabled even if you
press the locking side 1of the
remote control locking unit several
times.
Disablement is cancelled each time
the doors are unlocked.

NU650_12_G1-FRA.qxd 24/09/04 13:07 Page 1.15
TRAFIC - NU 650-12 X83 C:\Documentum\Checkout\NU650-12_T1-ENG.win 17/12/2004 7:13 -page21
1.15
ANTI-INTRUSION ALARM (continued)
Activating the alarm function
The alarm is set when the doors are
locked with the remote control unit.
This is signalled by the hazard
warning lights flashing twice
When the alarm function is
activated, any detection leads to the
alarm being triggered and the
hazard warning lights flashing for
around 25 seconds.
After approximately 5 seconds, if
the detection persists, the system
will start once more for
approximately 25 seconds and then
again for approximately 13 minutes.
Beyond that, there is no more
surveillance until the doors are next
unlocked/locked.
If the hazard warning
lights do not flash when
the alarm is set this
indicates that a door or
the bonnet is open or not
properly closed: check. If this is
not the case, contact your
RENAULT Dealer.
Deactivating the alarm function
The alarm, even when triggered,
stops:
- when the doors are unlocked with
the remote control unit;
- when the vehicle ignition is
switched on.
Deactivation is indicated by the
hazard warning lights flashing
once.
If the hazard warning
lights do not flash when
the alarm is deactivated
this indicates that the
alarm was triggered during your
absence.
Opening the doors with the
key does not stop the alarm;
it must be stopped using
the remote control unit or
by switching on the ignition.
