Renesas ISL29501-ST-EV1Z User manual

Evaluation Board Manual
UG055 Rev.1.00 Page 1
Apr 5, 2022 © 2015-2022 Renesas Electronics
The ISL29501-ST-EV1Z is a distance measurement
reference design. It combines the ISL29501 chip with
an OSRAM SFH 4550 IR emitting LED and OSRAM
SFH 213FA photodiode. The circuit board is enclosed
in an opaque plastic chassis designed to optically
isolate components. Included is a USB flash drive
containing the evaluation software for a PC and
related technical documents.
The ISL29501-ST-EV1Z board also allows quick
evaluation of the ISL29501 performance for a 2m
sensing system.
Specifications
This board is configured and optimized for the
following operating conditions:
▪Micro USB 2.0 connection
▪VIN = 5V (USB Power)
▪IDD maximum = 225mA
▪P optical maximum = 70mW
▪Wavelength = 860nm
▪Optical duty cycle maximum = 50%
▪Emission angle = ±3°
▪Coherent light - No
Features
▪Self contained measurement system
▪Enables proximity detection and distance
measurement
▪Emitter DAC with programmable current up to
255mA
▪Operates in continuous or single shot mode
▪On-chip active ambient light rejection
▪Regulated power 2.7V to 3.3V USB or external
supply
▪I2C interface supporting 1.8V and 3.3V bus
Contents
The following items are shipped with board:
▪USB cable
▪Software
▪Technical documentation
Figure 1. Sand Tiger Block Diagram
IR
LED
PD
C2
C1
C3
R1R2R3
8051
HOST
CONTROLLER
R4
C4
R4R5
SS
AVSS
DVSS
DVCC
PDp
PDn
AVCC
RSET
CEn
SCL
SDA
EVCC
EIR
EVSS
IRQ
VOUT
A1
A2
AVDD
2.7V TO 3.3V
LDO
USB 5V
ISL29501
ISL29501-ST-EV1Z
Sand Tiger Evaluation Board

UG055 Rev.1.00 Page 2
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
Contents
1. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Operating Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1.1 External Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1.2 External Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1.3 System Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1.4 Calibrating Sand Tiger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Changing Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Sand Tiger Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. Board Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 PCB Layout Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Sand Tiger Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.1 Control Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.2 ISL29501 and Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Bill of Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3.1 ISL29501-ST-EV1Z . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3.2 Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.4 Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. Typical Performance Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1 Temperature Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4. Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5. Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

UG055 Rev.1.00 Page 3
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
1. Functional Description
The ISL29501-ST-EV1Z is both a reference design and evaluation board that provides a single platform to
evaluate the features of the ISL29501. The ISL29501-ST-EV1Z circuit board and supplied enclosure deliver
maximum electrical and optical performance.
The system sends out light pulses through the emitter LED and receives returned light pulses that reflected off a
target. The difference in phase of the emitted signal and the return signal is converted to distance by the ISL29501
and is graphed in the evaluation software. The magnitude of the return signal is graphed as well. This and
additional data is available in chip registers, see UG054, ISL29501 Evaluation Software Manual for additional
details.
1.1 Operating Features
The ISL29501-ST-EV1Z evaluation board is shown in Figure 4 and Figure 5. The hardware enable function is
controlled by a software switch, which can be overridden shorting J9 pins 1 and 2. See the schematic for details. A
Power-Good (PG) LED indicates that the LDO is regulating properly.
1.1.1 External Power Supply
For high current/high duty cycle setups, USB power may not be able to power the board. In the default condition,
jumper J10 shorts pins 1 and 2 to connect to USB power to the LDO. To power the board with an external power
supply, remove this jumper and connect the positive (+) terminal to J10-2 and the negative (-) to J10-4.
If you want to bypass the LDO and power the ISL29501 directly with a power supply, remove the jumper on J10.
Use J10-4 for your ground connection and apply the positive voltage to TP7.
1.1.2 External Microprocessor
For debug of customer written software, it might be useful to connect the Sand Tiger to a different microprocessor.
The I2C pins SCL and SDA are available on pins J4-4 and J4-3, respectively. The remaining support pins are
available on J5: SS - J5-4, IRQ - J5-3, and CEn - J5-2. The support pins are generally connected to GP pins on
the microprocessor. SCL and SCL are compatible with 1.8V microprocessors but unfortunately the support pins
require 3V signaling.
1.1.3 System Calibration
Before meaningful measurements can be made, the calibration registers in the chip need to be loaded. This can
be done in two ways. The first is to load a profile that contains data into the GUI. This could be one of the Renesas
provided profiles or one that was saved previously by the user. See UG054, ISL29501 Evaluation Software
Manual for further details. The second is to calibrate the board directly.
1.1.4 Calibrating Sand Tiger
There are three separate standard calibrations that need to be executed to calibrate the system. These are
magnitude, crosstalk, and distance calibrations.
1.1.4.1 Magnitude Calibration
Magnitude calibration is done after the emitter current and duty cycle settings are programmed. It is a dark (no
light) calibration that takes less than 1s to run. Run this calibration from the GUI.
1.1.4.2 Crosstalk calibration
Crosstalk is defined as a signal that reaches the ISL29501 chip directly without bouncing off the target. This can
be electrical or optical. At close range and large return signal values, crosstalk has a minor impact on distance
measurements. At the far end of the distance range, the crosstalk might exceed the signal, adding error to
measurements.

UG055 Rev.1.00 Page 4
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
For this calibration, the user makes a distance measurement with the return signal blocked from reaching the
photodiode. This can be done in two ways. The first is to cover the emitter or photodiode optically preventing any
of the emitted signal from reaching the photodiode. The second is to point the board toward infinity so there is no
return signal. Care must be taken since small amounts of signal are returned by objects up to 4 meters away. The
emitting angle of the light is ±3° so you must be sure that there are no objects within this cone when doing this
calibration.
Because the chip sees none of the emitted signal, anything received is crosstalk. Run this calibration from the GUI
after running Magnitude calibration.
1.1.4.3 Distance Calibration
Variation in delay of emitters, photodiodes, and the ISL29501 changes the signal path delay. To compensate for
this, a reference point at a known distance needs to be established. This reference is calculated during distance
calibration. The process involves making a distance measurement at a known distance. While it is not critical it is
best to use a reference distance about 25% of the intended range. The GUI writes the correct registers that
establish the reference distance inside the chip.
It is important that there are no objects inside the ±3° emitting angle other than the target.
When these calibration registers are written, all succeeding distance has this value subtracted real time from the
measured value. Run this calibration from the GUI after running crosstalk calibration. See UG054, ISL29501
Evaluation Software Manual for details on how to run the calibrations in the GUI.
1.2 Operating Range
The circuit board contains an LDO to convert the input voltage to the ISL29501 operating voltage range, 2.7V -
3.3V. By default the board is configured for USB power but can be alternately powered by an external power
supply. The LDO resistors are ratioed to create a 3.0V power rail. All other set-up conditions can be configured
through the chip registers and evaluation software.
1.3 Quick Start Guide
To start making distance measurements follow these simple steps.
1. Plug the USB cable into the reference design and the PC.
2. Point the emitter toward the desired target.
3. Double click TOF.exe to start the GUI.
4. From the GUI click on File -> Load Profile -> filename to load safe initial register settings and calibration data.
5. Click either Start or Step to begin making distance measurements.
1.4 Changing Settings
When the board is running and making measurements, the user may want to change settings. The user has the
ability to change any of the chip registers with the evaluation software, see UG054, ISL29501 Evaluation Software
Manual for details. Important: If the pulse duty cycle or the emitter current is changed, the user must redo the
standard calibrations. This process is described in the sections under Calibrating Sand Tiger.

UG055 Rev.1.00 Page 5
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
1.5 Sand Tiger Enclosure
The Sand Tiger chassis allows easy handling of the board to make distance measurements. The threaded hole fits
most camera tripod screws, which create a stable mount for precision measurements and characterization. The
holes in the top isolates the emitter and photodiode to minimize optical crosstalk. The chassis top connects to the
bottom with an interference fit. It is snug but the two can be easily separated by hand. Two threaded 4-40 holes
are provided to allow attachment of glass. Shown on the side are a micro USB that connects to a PC to run the
evaluation software and the power-good LED.
2. Board Design

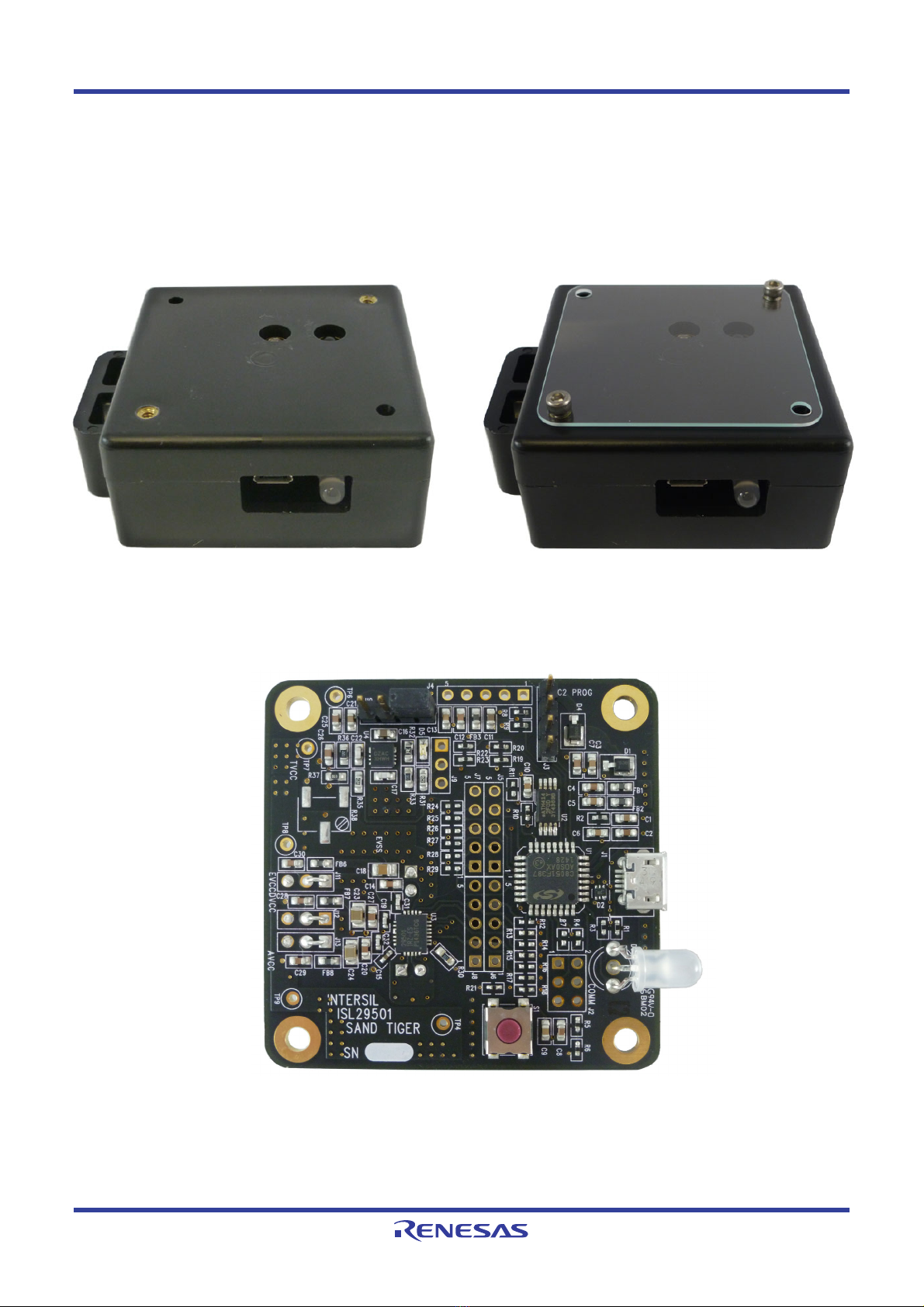

Figure 2. Sand Tiger Chassis Figure 3. Sand Tiger Chassis with Glass
Figure 4. Sand Tiger Board (Top Side)

UG055 Rev.1.00 Page 6
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
2.1 PCB Layout Guidelines
The ISL29501-ST-EV1Z PCB layout has been optimized for electrical and thermal performance. Care needs to be
placed in decoupling circuits and noise isolation. Sand Tiger follows good design techniques but additional
suggestions are available in AN1917, ISL29501 Layout Design Guide.

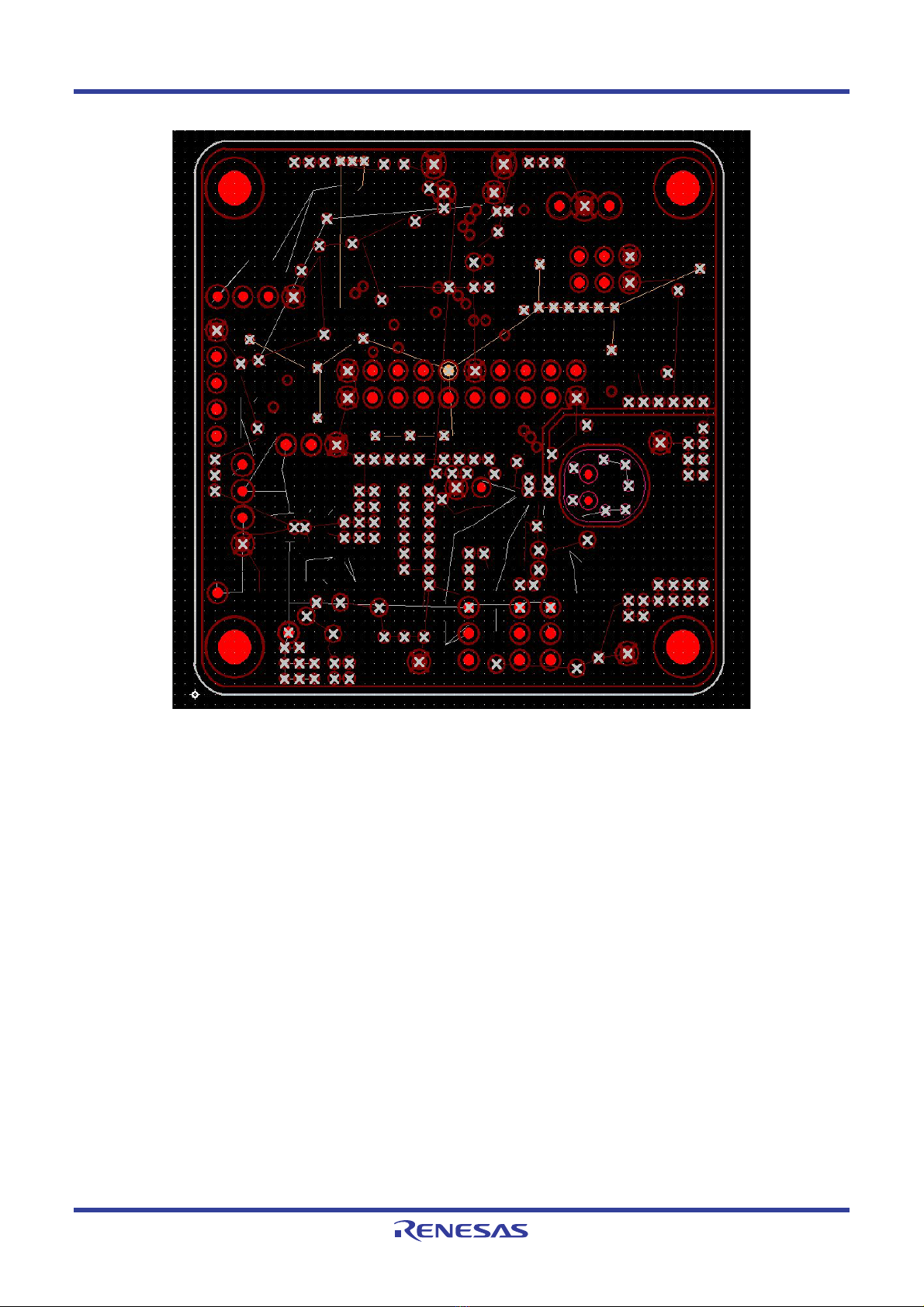

Figure 5. Sand Tiger Board (Bottom Side)[1]
1. Visible on the bottom side of the board are the emitter LED and photodiode. Each is surrounded by a brass tube. These tubes are grounded
and serve as terminators for any electric fields. They prevent crosstalk from the emitter to the photodiode.

UG055 Rev.1.00 Page 7
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
2.2 Sand Tiger Schematics
2.2.1 Control Sheet
Figure 6. Sand Tiger Schematic Control Sheet
3&%72+$9(%/$&.0$77(62/'(50$6.21%27+6,'(6
+5V USB POWER
90-Ohm DIFF Pair
SDA SCL I2C_EN
Green side Amber side
3B6'$ ,&B(1 3B6&/
67;'
/('
' '
3B:3
65;'
/('
3B6&/ 3B6'$
3B3(
3B:3
3B&(1 3 3B66 3B&6 3B026, 3B0,62 3B6&. 3 3 3 3 3 3B,54
'9&&'9&&
'9&&
86%
'9&&
'9&&
'9&&
'9&& '9&&
'9&&
3B6&/ 3B6'$
3B66
3B&(1
3B3(
3B,54
'HVLJQ 'RF
1DPH 1DPH 3DJH
1XP
0&8&RPP
,QWHUVLO
,6/B(9
6$1'7,*(5
'HVLJQ 'RF 1DPH 1DPH 3DJH
1XP
0&8&RPP
,QWHUVLO
,6/B(9
6$1'7,*(5
'HVLJQ 'RF 1DPH 1DPH 3DJH
1XP
0&8&RPP
,QWHUVLO
,6/B(9
6$1'7,*(5
- 23(1
    
5 N
- 23(1
    
'/('%,&2/285
8
$7&&;+'
$

$

$
6'$ 
9VV

6&/ 
:3 
9FF

5 23(1N
5 .
& 8)
)%
5 
& 8)
&
8)
- 23(1
    
5 23(1N
- 23(1
    
'
73'6'5<5
'

'

,'

9%86 
1& 
*1' 
&
8)
6
6.+8$0(

 

5 23(1N
-
0,&5286%
9%86 
' 
' 
,' 
*1' 
32

32

6+

6+

6+

6+

'
0%50/
 
& 8)9
& 8)
&
8)
5 N
'
0%50/
 
5
23(1N
5 23(1N
5 23(1N
)%
5 23(1N
5 
5 N
-
&21;




&
8)
5 
& 8)
-
8$57 23(1

  
  
& 8)
)%
5 23(1N
5 23(1N
5 
8
&)*4
3

3

*1'

'

'

9''

5(*,1

9%86

Q567&&.

3&'

3

3

3

3

3

3

3  3  3  3  3  3  3  3 
3 
3 
3 
3 

3B5[
3B7[ 
3 
3 
5  5 
5 23(1N
5 N
5 23(1N
5 23(1N
- 23(1
    
&
8)
5 N

UG055 Rev.1.00 Page 8
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
2.2.2 ISL29501 and Power
Figure 7. Sand Tiger Schematic - ISL29501 and Power
POWER SELECT JUMPERS for ISL29501
1.7V 0.7V
',*,7$/5(*8/$725
7KHUPDOSDGWR*1' 6HHGDWDVKHHW
2.6V-3.4V
USB Power: Jump 1 to 2 (default) External Power: Jump 3 to 2
SFH4550
Either stuff R37 or R38. Engineering use R38 Ref. boards use R37
(,5
3'Q $966
*1'B(966
3B3(
3'S
79&&
'9&&
(966
3
86%
79&&
79&& 79&&
'9&& '9&&
3B6&/ 3B6'$
3B,54 3B66
3B3(
3B&(1
'HVLJQ
,QWH
'HVLJQ
,QWH
'HVLJQ
,QWH
5 N
)%
%/03*
5
23(1
'
*UHHQ/('
 
5 N
-
,QVW3RZHU
   
73 23(1 *1'

73 23(1 79&&

& 8)
-
23(1
',*,7$/(1
  
5 N
& 8)
5 
5 .
&
8)9
,6/
8
$9''

$966B

3'S

3'Q

$966B

56(7

66 
,54 
(9&& 
(,5 
(966 
$  1&B

'9&&

'966

$966

$9&&

9287

1&B 
1&B 
&(Q 
$ 
6'$ 
6&/ 
(3

5 N
& 8)
5 
73 23(1

& 8)
& 8)
& 8)
&
8)
'
6)+)$
& 3)
&
3)
- 23(1
/('6(/(&7



5 N
- 23(1
',*,7$/6(/(&7



5 N
&
8)
&
8)9
& 8)
&
8)
'
,5(0,77(56
)% %/03*
& 3)
5 
- 23(1
$1$/2*6(/



)% %/03*
73 23(1 *1'

8
,6/$,5$-=
9,1

9,1
9287 
9287 
3* 
$'- 
*1'

(3$'

,6(7

(1$%/(

66

& 8)
5 N
& 8)
& 3)
5 N
& S)
&
8)
& 8)
73 23(1 *1'


UG055 Rev.1.00 Page 9
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
2.3 Bill of Materials
2.3.1 ISL29501-ST-EV1Z
Qty Reference Designator Description Manufacturer Manufacturer Part
1PWB-PCB-ISL29501-ST-EV1Z,
REVC, ROHS TBD ISL29501-ST- EV1ZREVCPCB
3 C19, C31, C32 CAP, SMD, 0402, 100pF, 16V, 10%,
NP0, ROHS AVX 0402YA101KAT2A
1C15 CAP, SMD, 0402, 3.3µF, 4V, 20%,
X5R, ROHS TAIYO YUDEN AMK105BJ335MV-F
2C17,C22 CAP, SMD, 0603, 100pF, 50V, 5%,
C0G, ROHS PANASONIC ECJ-1VC1H101J
8C1, C3, C5, C6, C9, C10,
C13, C21
CAP, SMD, 0603, 0.1µF, 25V, 10%,
X7R, ROHS MURATA GRM188R71E104KA01D
13
C2, C4, C7, C8, C12, C14,
C20, C25, C26, C27, C28,
C29, C30
CAP, SMD, 0603, 1.0µF, 10V, 10%,
X7R, ROHS AVX 0603ZC105KAT2A
2C11,C16 CAP, SMD, 0603, 10µF, 16V, 10%,
X5R, ROHS MURATA GRM188R61C106KAALD
3 C18, C23, C24 CAP, SMD, 0805, 47µF, 10V, 20%,
X5R, ROHS TDK C2012X5R1A476M125AC
1J1 CONN-RECEPTACLE, USB-MICRO
B, SMD, 5 CONTACT, R/A, ROHS MOLEX 1050170001
2J3,J10 CONN-HEADER, 1x4, BRKAWY
1x36, 2.54mm, ROHS BERG/FCI 68000-236HLF
3J11-Pins1-2, J12-Pins1-2,
J13-Pins1-2 ONLY CONN-JUMPER, SOLDER SHORT,
1 J10-Pins 1-2 CONN-JUMPER, SHORTING, 2PIN,
BLACK, GOLD, ROHS SULLINS SPC02SYAN
2D1,D4 DIODE-SCHOTTKY, 30V, 1A, SMD,
2P, DO-216AA, ROHS
ON
SEMICONDUCTOR MBRM130LT1G
1D5 LED, SMD, 0603, GREEN CLEAR,
2V, 20mA, 574nm, 35mcd, ROHS LITEON/VISHAY LTST-C191KGKT
1D6 LED-EMITTER IR, TH, T1 3/4, 1.5V,
100mA, 850nm, ROHS OSRAM SFH4550
1
D3 - *Leads should stand
approximately two tenths off
board and part is bent to right
side before being soldered.
LED, TH, RND, 5mm, GREEN/RED,
2.1V/2V, 10mA, 10mcd/6.3mcd,
ROHS
ROHM SPR-54MVWF
6FB1, FB2, FB3, FB6, FB7,
FB8
FERRITE BEAD, SMD, 0603, 470Ω,
1A, 200mΩ, ROHS MURATA BLM18PG471SN1D
1U2 IC-2-WIRE SERIAL EEPROM, 8P,
TSSOP, 1MHz, 512kBIT, ROHS ATMEL AT24C512C-XHD
1U1 C-USB MICROCONTROLLER, 32P,
LQFP, 8BIT, 48MIPS, ROHS
SILICON
LABORATORIES C8051F387-GQ

UG055 Rev.1.00 Page 10
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
1U3 IC-TOF SIGNAL PROCESSOR, 24P,
QFN, ROHS INTERSIL ISL29501IRZ-T7
1U4 IC-1A LDO ADJ.VOLT REGULATOR,
10P, DFN, 3x3, ROHS INTERSIL ISL80101AIRAJZ
1D2 IC-TVS, 4-CHANNEL ESD
SOLUTION, 6P, SON6, ROHS
TEXAS
INSTRUMENTS TPD4S012DRYR
1R2 RES, SMD, 0402, 100Ω, 1/16W, 1%,
TF, ROHS VENKEL CR0402-16W-1000FT
4 R5, R6, R19, R23 RES, SMD, 0402, 1k, 1/16W, 1%, TF,
ROHS VENKEL CR0402-16W-102JT
7R9, R10, R13, R15, R17,
R18, R21
RES, SMD, 0402, 10k, 1/16W, 1%,
TF, ROHS PANASONIC ERJ-2RKF1002X
3 R8, R20, R22 RES, SMD, 0402, 22.1Ω, 1/16W, 1%,
TF, ROHS YAGEO RC0402FR-0722R1L
2R1,R3 RES, SMD, 0402, 432Ω, 1/16W, 1%,
TF, ROHS VENKEL CR0402-16W-4320FT
0
R4, R7, R11, R12, R14, R16,
R24, R25, R26, R27, R28,
R29
RES, SMD, 0402, DNP, DNP, DNP,
TF, ROHS
1R37 RES, SMD, 0603, 100Ω, 1/10W, 1%,
TF, ROHS VENKEL CR0603-10W-1000FT
2R30,R33 RES, SMD, 0603, 10k, 1/10W, 1%,
TF, ROHS VENKEL CR0603-10W-1002FT
1R32 RES, SMD, 0603, 24.9k, 1/10W, 1%,
TF, ROHS PANASONIC ERJ-3EKF2492V
1R36 RES, SMD, 0603, 2.61k, 1/10W, 1%,
TF, ROHS VENKEL CR0603-10W-2611FT
2R31,R35 RES, SMD, 0603, 432Ω, 1/10W, 1%,
TF, ROHS YAGEO RC0603FR- 07432RL(PbFREE)
1S1 SWITCH-TACTILE, SMD, 6.3x6.2,
12V, 50mA, 2.6N, 260gf, ROHS
ALPS ELECTRIC
INC SKHUAME010
1 BAG & SHIP W/BOARD CABLE-USB TYPE A MALE to TYPE
MICRO-B MALE, 3FT, ROHS
QUALTEK
ELECTRONICS 3025010-03
1 COMPLETED ASSEMBLY PWB-ASSY, ISL29501-ST-
EV1ZCHASSIS, ROHS INTERSIL ISL29501-ST- EZCHASSISBOM
1 Place assy in bag BAG, STATIC, 5x8, ZIPLOC, ROHS INTERSIL 212403-013
0 J2, J4, J5, J6, J7, J8, J9 DO NOT POPULATE OR
PURCHASE
0R38 DO NOT POPULATE OR
PURCHASE
0 TP4, TP6, TP7, TP8 (5001) DO NOT POPULATE OR
PURCHASE
Qty Reference Designator Description Manufacturer Manufacturer Part

UG055 Rev.1.00 Page 11
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
2.3.2 Chassis
1 AFFIX TO BACK OF PCB LABEL-DATE CODE_LINE 1:
YRWK/REV#, LINE 2: BOM NAME INTERSIL LABEL-DATE CODE
1D7 IC-PHOTODIODE, RADIAL, 2P,
5mm, 50V, 900nm, 1nA, ROHS OSRAM SFH213-FA
Qty Reference Designator Description Manufacturer Manufacturer Part
1 ASSY INSTRUCTIONS PWB-FG, ISL29501-ST-EV1Z, ROHS INTERSIL ISL29501-ST-EV1ZFG
2PCB TO CHASSIS
BOTTOM
SCREW, 4-40x3/16in, SOCKET HEAD,
CAP, SS, ROHS
MCMASTER-
CARR 92185A105
1SANDTIGER-
CHASSISBOTTOM
CHASSIS BOTTOM, 2.5x2.5, ACETAL
HOMOPOLYMER, BLK, ROHS PROTOLABS 29501-01-08
1 SANDTIGER-CHASSISTOP CHASSIS TOP, 2.5x2.5, ACETAL
HOMOPOLYMER, BLK, ROHS PROTOLABS 29501-02-05
1 D6, D7 (PCB) GASKET GASKET-URETHANE FOAM, VERY
FIRM, BLK, CUSTOM CUT 28.5x14.6mm ROGERS CORP. 4701-60-20031-04
4CHASSIS TOP, CHASSIS
BOTTOM
HARDWARE, ULTRASERT II-LONG, 4-40,
0.219x0.172, BRASS, ROHS DODGE INSERTS 6035-04BR219
1CHASSIS BOTTOM SIDE
HOLE
HARDWARE, ULTRASERT II-SHORT,
1/4-20, 0.30x0.375, BRASS, ROHS DODGE INSERTS 6035-4BR300
0
a) Ensure J1 (USB
connector) and D5 (LED) are
facing the side opening in
CHASSIS BOTTOM when
PCB is mounted face down.
Instructions for assembly. INTERSIL ASSEMBLY
INSTRUCTIONS
2CHASSIS BOTTOM TO
PCB
HARDWARE, DOWEL PIN, 3/4x1/8,
STAINLESS, ROHS
MCMASTER-
CARR 90145A473
2 D6, D7 (PCB) TUBE-BRASS, Alloy#260/270, 1/2-3/4,
Length 0.275, 0.25OD, 0.238ID
K&S Precision
Metals
SANDTIGER-
BRASSTUBE
Qty Reference Designator Description Manufacturer Manufacturer Part

UG055 Rev.1.00 Page 12
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
2.4 Board Layout
Figure 8. Top Layer

UG055 Rev.1.00 Page 13
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
Figure 9. PCB – Layer 2 (Viewed from Top)

UG055 Rev.1.00 Page 14
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
Figure 10. PCB – Layer 3 (Viewed from Top)

UG055 Rev.1.00 Page 15
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
The measured distance drifts with changes in temperature as shown in Figure 14. The ISL29501 has temperature
compensation built into the chip. This is an advanced calibration, which involves collecting temperature vs.
distance data and programming the compensation registers. Initially Renesas generates these coefficients from
customer collected data. The process for collecting data is described in AN1967, ISL29501 Temperature and
Ambient Data Collection.
Renesas strongly recommends that customers evaluate these parameters as a last step in their evaluation. To
avoid temperature effects low integration times, reg 0x10 < 0x06 should be used.
Figure 11. PCB – Bottom Layer (Viewed from Top)

UG055 Rev.1.00 Page 16
Apr 5, 2022
ISL29501-ST-EV1Z Evaluation Board Manual
3. Typical Performance Curves
3.1 Temperature Performance
4. Ordering Information
5. Revision History
USB Powered VIN = 5V, Vreg = 3.3V, TA= +25°C, Sample size = 5, integration time = 140ms.
Figure 12. Measured vs Actual Distance Figure 13. Error vs Actual Distance
Figure 14. Temperature Performance Before and After Correction
Part Number Description
ISL29501-ST-EV1Z ISL29501 Sand Tiger Evaluation Board
Revision Date Description
1.00 Apr 5, 2022 Applied new template.
0.00 Oct 7, 2015 Initial release
0
0.5
1.0
1.5
2.0
2.5
0 0.5 1.0 1.5 2.0 2.5
Actual Distance (m)
Measured Distance (m)
-0.08
-0.06
-0.04
-0.02
0
0.02
0.04
0.06
0.08
0 0.5 1.0 1.5 2.0 2.5
Actual Distance (m)
Error (m)
y = 0.0128x - 0.1442
y = 0.002x + 0.1249
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
20 25 30 35 40 45 50 55 60
Chamber Temperature (°C)
Distance (m)
Distance_Raw
Distance_Corrected_white

Corporate Headquarters
TOYOSU FORESIA, 3-2-24 Toyosu,
Koto-ku, Tokyo 135-0061, Japan
www.renesas.com
Contact Information
For further information on a product, technology, the most
up-to-date version of a document, or your nearest sales
office, please visit:
www.renesas.com/contact/
Trademarks
Renesas and the Renesas logo are trademarks of Renesas
Electronics Corporation. All trademarks and registered
trademarks are the property of their respective owners.
IMPORTANT NOTICE AND DISCLAIMER
RENESAS ELECTRONICS CORPORATION AND ITS SUBSIDIARIES (“RENESAS”) PROVIDES TECHNICAL
SPECIFICATIONS AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING
REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND
OTHER RESOURCES “AS IS” AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for developers skilled in the art designing with Renesas products. You are solely responsible
for (1) selecting the appropriate products for your application, (2) designing, validating, and testing your application, and (3)
ensuring your application meets applicable standards, and any other safety, security, or other requirements. These
resources are subject to change without notice. Renesas grants you permission to use these resources only for
development of an application that uses Renesas products. Other reproduction or use of these resources is strictly
prohibited. No license is granted to any other Renesas intellectual property or to any third party intellectual property.
Renesas disclaims responsibility for, and you will fully indemnify Renesas and its representatives against, any claims,
damages, costs, losses, or liabilities arising out of your use of these resources. Renesas' products are provided only subject
to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources
expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
(Rev.1.0 Mar 2020)
