Renin Modena User manual

Hardwired LED Illuminated Mirror
Espejo iluminado con luces LED, cableado
Miroir illuminé à DEL câblé
INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES / MANUEL D’INSTRUCTIONS
98-3200 REV.B
MKTD 3244
Non Bluetooth® Models
Modelo no Bluetooth®
Modèle non Bluetooth®
200097 Modena
200155 Florence
200158 Landscape
200169 Capri
200170 Portofino
Bluetooth® Enabled Models
Modelos habilitados para Bluetooth®
Modèles compatibles Bluetooth®
200156 Melody
200157 Symphony
REINVENT YOUR SPACE

2 | ENGLISH | HARDWIRED LED ILLUMINATED MIRROR | INSTRUCTION MANUAL
ENGLISH
PLEASE READ CAREFULLY
General Safety Rules to Follow
Tools Required
Package Contents
5 YEAR LIMITED WARRANTY
Products described in this manual must be installed by a licensed electrician.
It is highly recommended that you follow all applicable building and electrical
codes.
• Read all instructions carefully
• Protect your eyes, wear safety goggles
• Make sure the installation area is free of clutter
• Do not modify wires in any way
• Phillips #2 screw driver
• Pencil
• Drill with 1/4” bit
• Level
• Measuring Tape
• Wall anchors and screws
• Mirror back plate and mirror
• Instruction sheet
Renin Corp warranties their products against manufacturer’s defects for up to five years from the
purchase date. The warranty applies only to the original purchaser of the product from Renin Corp.
If a product is determined to be defective due to a manufacturers defect, Renin Corp will supply a
replacement product. The scope of the warranty is limited to replacing the product and does not include
labor to install, repair, deliver, or to remove the existing illuminated mirror.
This warranty is void in the event the product is damaged in transit, or if damage or failure is caused by
abuse, misuse, storage of products in an improper environment, abnormal usage, faulty installation,
failure to follow installation instructions, damage in an accident, improper maintenance, or any repair.
Renin Corp reserves the right to inspect any claim prior to issuing credit.
PART# 98-3200 REV.B

INSTRUCTION MANUAL | HARDWIRED LED ILLUMINATED MIRROR | ENGLISH | 3

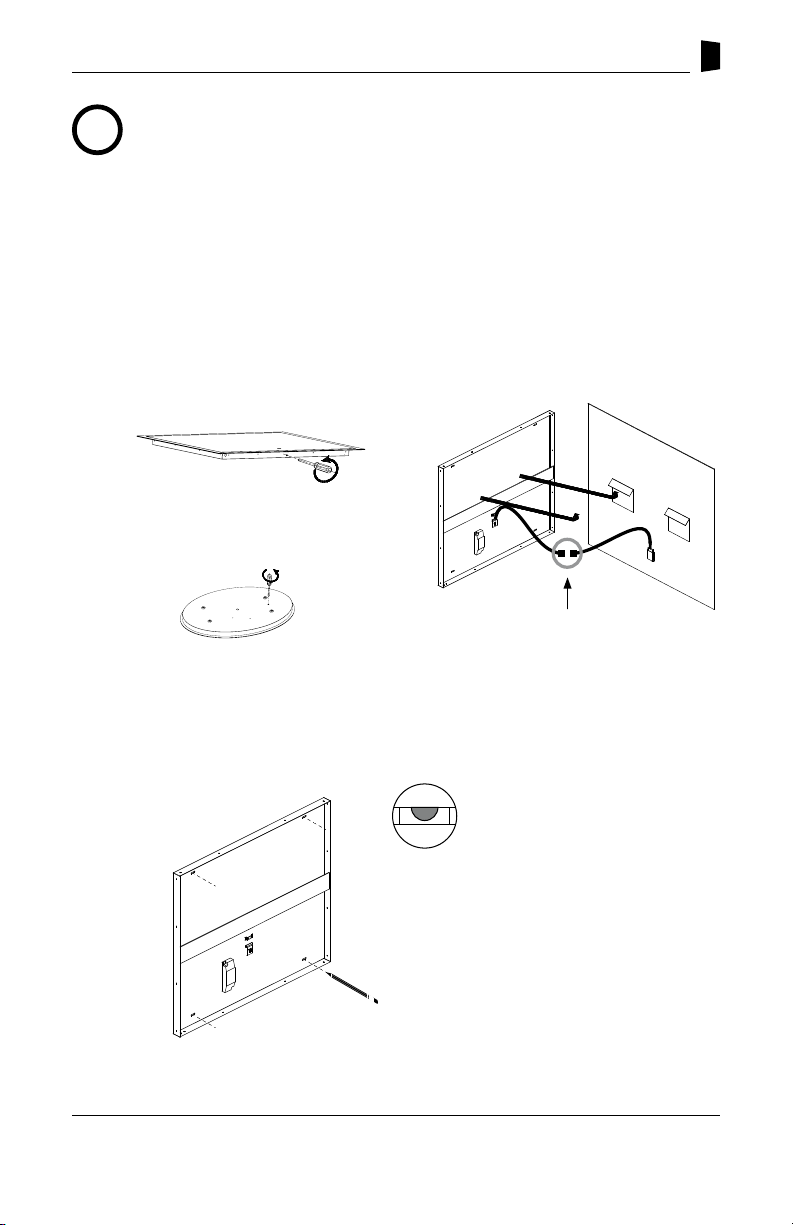

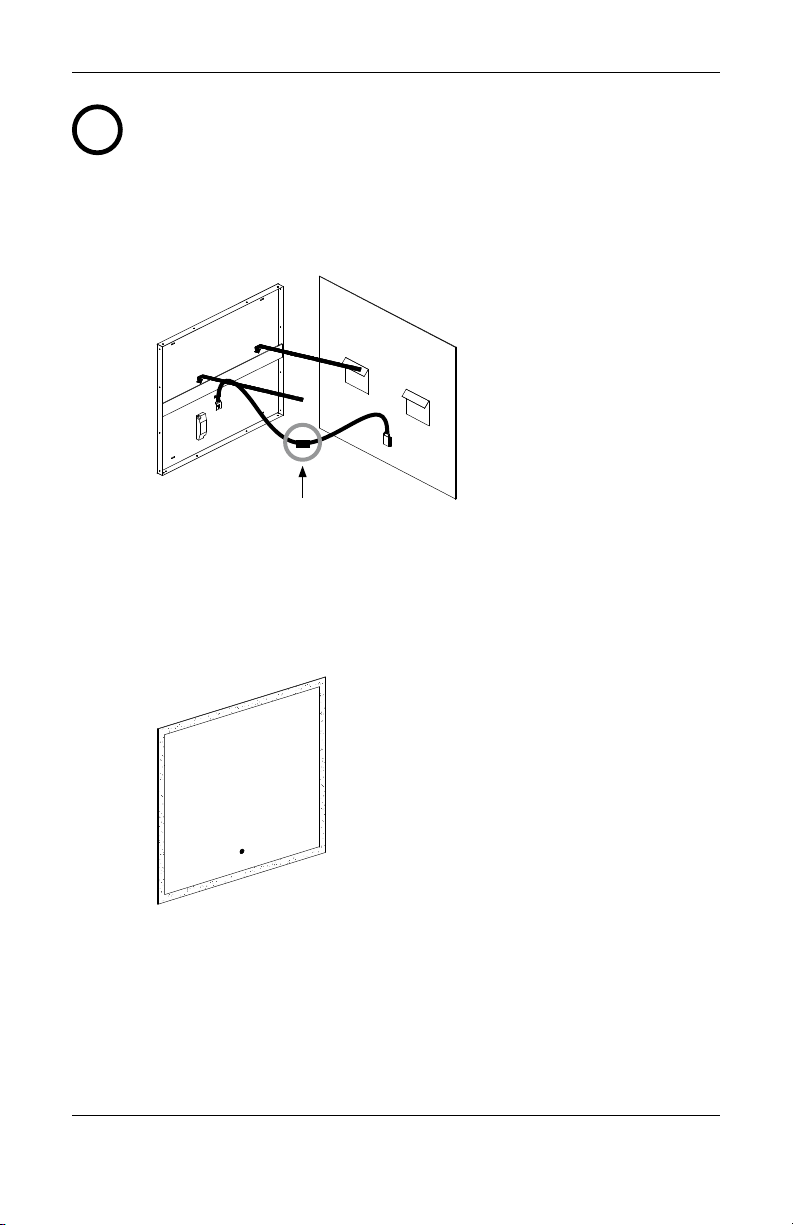

A. Lay mirror carefully with mirror facing down flat and remove the
back plate of the LED illuminated mirror (Fig 1A). Be sure to
disconnect the sensor switch wire prior to completely separating
the mirror from the back plate. Separate the back plate from the
mirror (Fig.1B).
B. Place the back plate over the area where the illuminated mirror
will be installed and draw in the holes. Ensure the unit is level
before marking your holes (Fig.2).
MAPPING OUT THE MIRROR BACK
PLATE INSTALLATION AREA
1
Use level
Mark installation holes
Fig.1A
Fig.2
PART# 98-3200 REV.B
Separate the back plate from the mirror
Fig.1B
Disconnect
Models:
Model:
200097, 200158, 200169,
200170, 200156, 200157
200155

MAPPING OUT THE MIRROR BACK
PLATE INSTALLATION AREA CONT’D
1

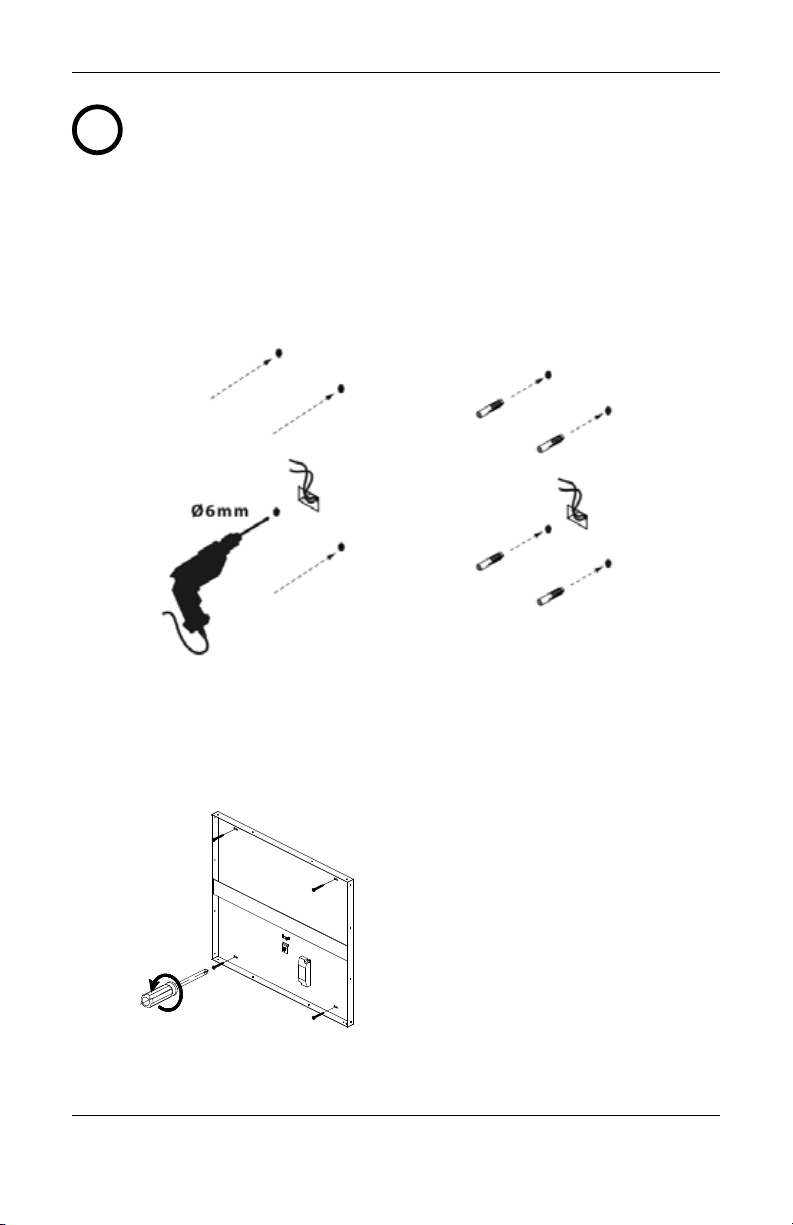

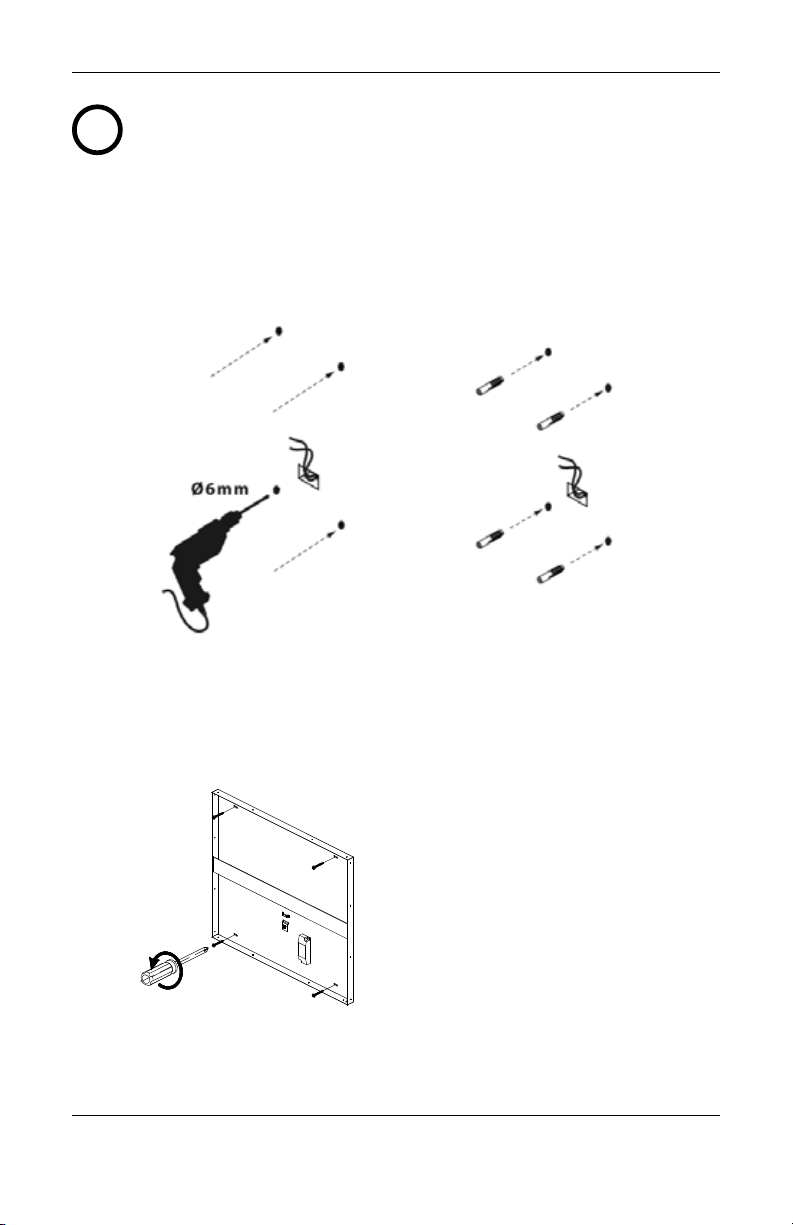

C. Using a 1/4" drill bit. Drill holes in the corresponding marks
from Step A (Fig.3). Place supplied anchors in the holes (Fig.4).
Secure back plate with screws supplied to anchors (Fig.5).
Fig.3 Fig.4
Fig.5
Drill holes Add anchors*
*Note: If back plate is secured to studs,
anchors are not required
Secure back plate to anchors
4 | ENGLISH | HARDWIRED LED ILLUMINATED MIRROR | INSTRUCTION MANUAL
PART# 98-3200 REV.B
ENGLISH

CONNECTING THE WIRES
2
Fig.1
Fig.2
WHITE
BLACK
COPPER WIRE CAP
COPPER
BLUE
WHITE
BLACK
RED

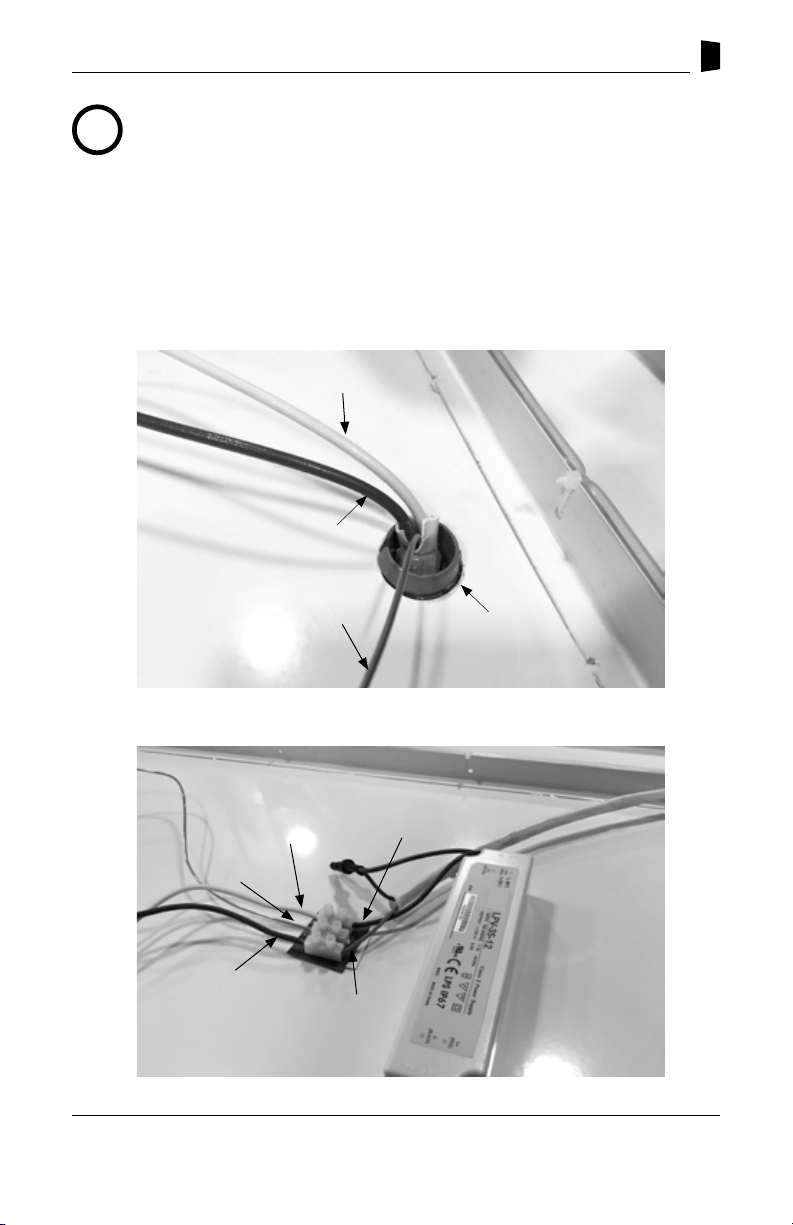

Ensure wires feed through the safety wire cap (Fig.1). Connect wires
into the connecting harness in (Fig.2). Align the white wire from the
wall with the blue wire and black wire with the red wire. The copper
ground wire should be tightened in place in the center of the
connection module. Ensure all connection are tight in place before
proceeding.
INSTRUCTION MANUAL | HARDWIRED LED ILLUMINATED MIRROR | ENGLISH | 5
PART# 98-3200 REV.B
