Renishaw HPGA User manual

Installation and user guide
H-5616-8500-04-C
HPGA
high-precision generic arm
Original instructions – translations of these original instructions are available on request.

Renishaw part no: H-5616-8500-04-C
First issued: 10.2009
Revised: 12.2022
© 2009–2022 Renishaw plc. All rights reserved.
This document may not be copied or
reproduced in whole or in part, or transferred
to any other media or language, by any
means, without the prior written permission of
Renishawplc.
Renishaw plc. Registered in England and
Wales. Company no: 1106260. Registered
ofce: New Mills, Wotton-under-Edge,
Gloucestershire, GL12 8JR, UK.

1
Before you begin ...........................................................................................................3
Disclaimer.......................................................................................................3
Trade marks....................................................................................................3
Warranty .........................................................................................................3
CNC machines ...............................................................................................3
Care of the system .........................................................................................3
Patents ...........................................................................................................4
Compliance declaration ..................................................................................4
Disposal of waste electrical and electronic equipment (WEEE) .....................4
Intended use................................................................................................... 4
Safety .............................................................................................................5
Chinese safety................................................................................................6
REACH regulation ..........................................................................................7
China RoHS....................................................................................................7
FCC information to user (USA only) ...............................................................7
ICES information to user (Canada only).........................................................8
TSI 3 / TSI 3-C software notices..................................................................... 8
Specication ..................................................................................................................9
HPGA system options.................................................................................................10
Dimensions ..................................................................................................................11
HPGA dimensions (side exit, side view)....................................................... 11
HPGA dimensions (rear exit, side view) .......................................................11
HPGA dimensions (top view) with straight connector................................... 12
HPGA 90° connector dimensions................................................................. 12
System installation......................................................................................................13
Installing the HPGA with TSI 3 (or TSI 3-C) and HSI interfaces ...................13

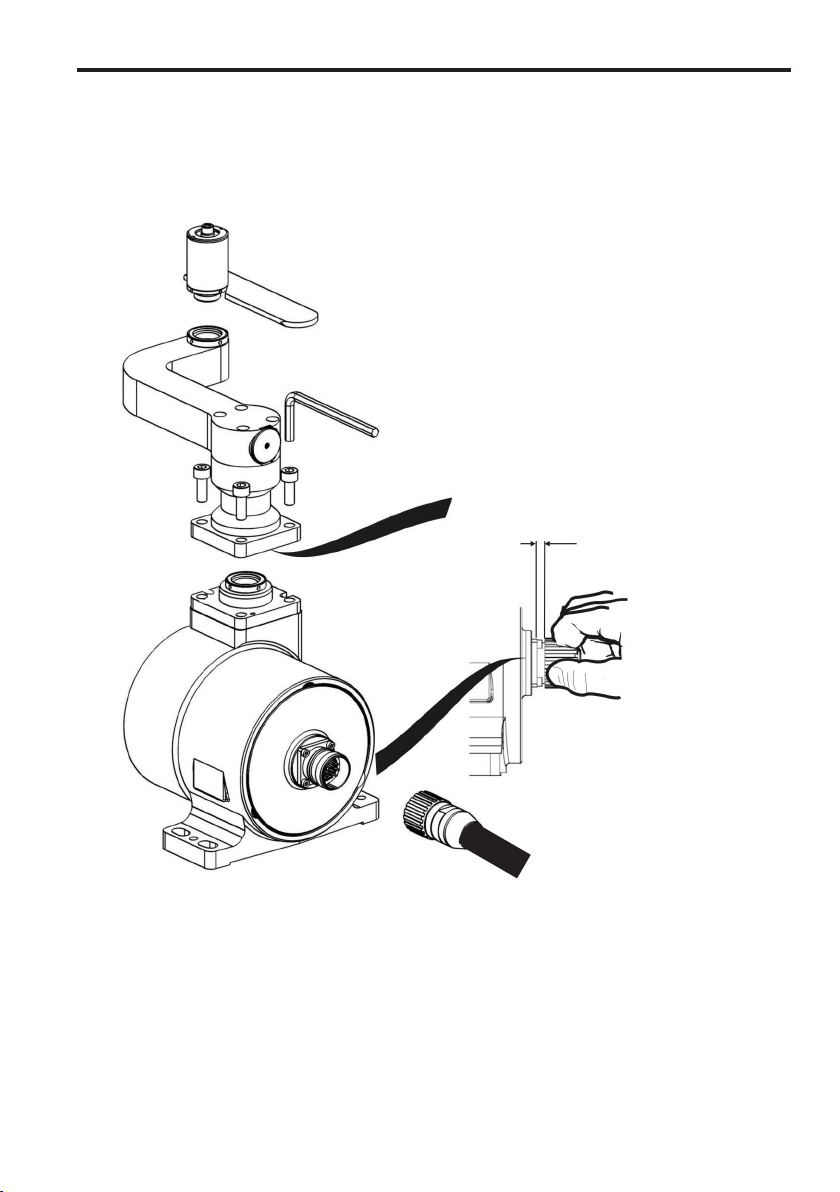

Installing a straight arm to the hub and base assembly ...............................14
Installing a 90° arm to the hub and base assembly......................................15
Installing the HPGA ......................................................................................16
Contents

2

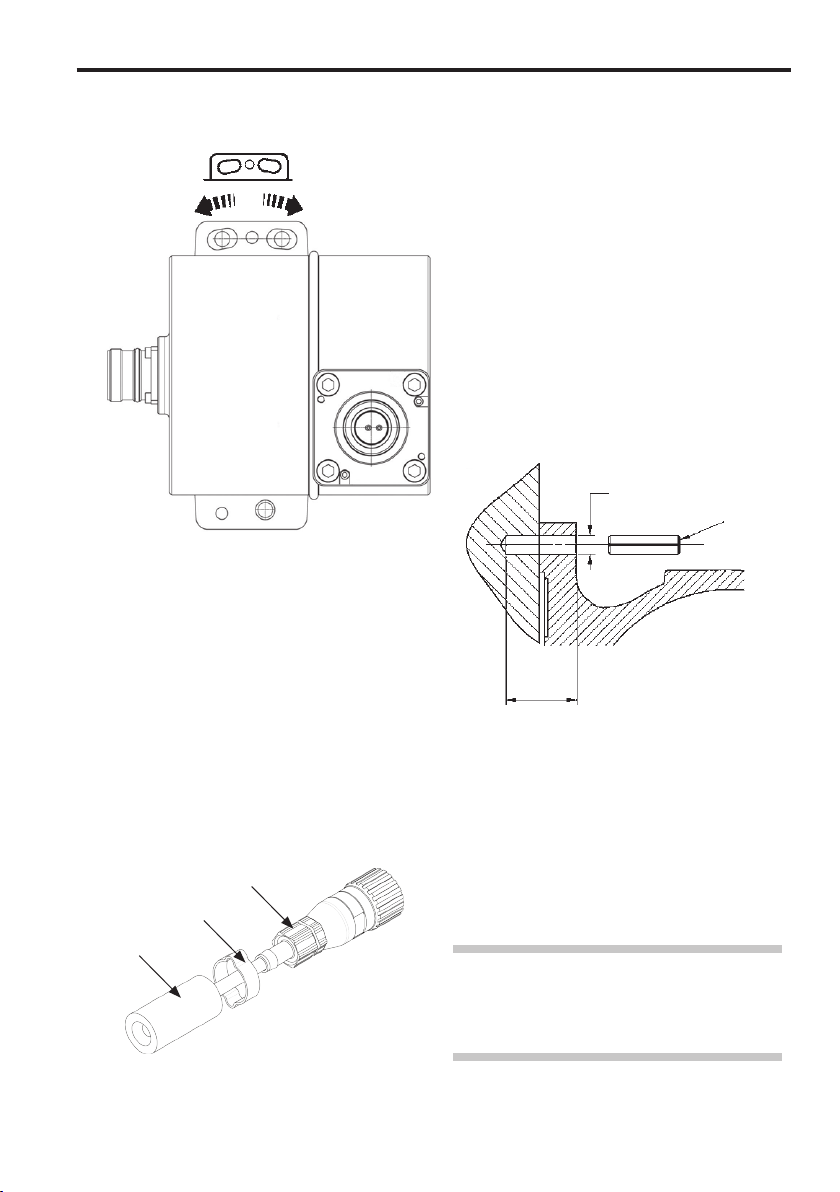

Hub and base adjustment.............................................................................17
Conduit installation .......................................................................................17

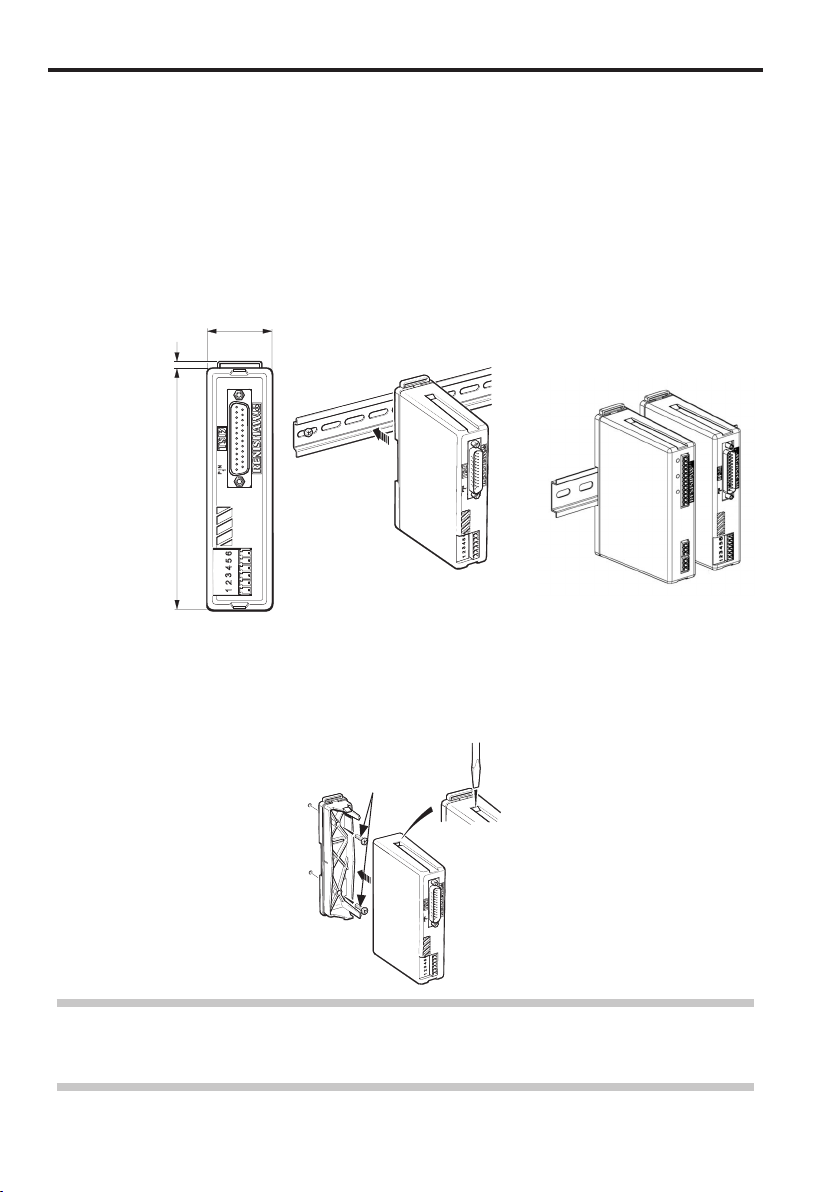

Installing the TSI 3 (or TSI 3-C) and HSI interface units...............................18
HPGA rear exit installation using TSI 3 (or TSI 3-C) and HSI interfaces ......20
HPGA side exit installation using TSI 3 (or TSI 3-C) and HSI interfaces......22
Connecting the TSI 3 (or TSI 3-C) to the machine controller........................24
Input specication.........................................................................................25
Output specication......................................................................................25
Arm control ................................................................................................... 26
HSI interface.................................................................................................28
Maintenance.................................................................................................................29
Probe removal ..............................................................................................29
Cleaning the HPGA arm...............................................................................29
Calibration....................................................................................................................30
Calibrating the probe ....................................................................................30
Fault nding.................................................................................................................31
Parts list .......................................................................................................................34
Notes.............................................................................................................................36
Contents

3
Disclaimer
WHILE CONSIDERABLE EFFORT
WAS MADE TO VERIFY THE
ACCURACY OF THIS DOCUMENT AT
PUBLICATION, ALL WARRANTIES,
CONDITIONS, REPRESENTATIONS
AND LIABILITY, HOWSOEVER ARISING,
ARE EXCLUDED TO THE EXTENT
PERMITTED BY LAW.
RENISHAW RESERVES THE RIGHT TO
MAKE CHANGES TO THIS DOCUMENT
AND TO THE EQUIPMENT, AND/OR
SOFTWARE AND THE SPECIFICATION
DESCRIBED HEREIN WITHOUT
OBLIGATION TO PROVIDE NOTICE OF
SUCH CHANGES.
Trade marks
RENISHAW®and the probe symbol are
registered trade marks of Renishaw plc.
Renishaw product names, designations
and the mark ‘apply innovation’ are trade
marks of Renishaw plc or its subsidiaries.
Other brand, product or company names
are trade marks of their respective owners.
Warranty
Unless you and Renishaw have agreed
and signed a separate written agreement,
the equipment and/or software are
sold subject to the Renishaw Standard
Terms and Conditions supplied with such
equipment and/or software, or available on
request from your local Renishaw ofce.
Renishaw warrants its equipment and
software for a limited period (as set out
in the Standard Terms and Conditions),
provided that they are installed and used
exactly as dened in associated Renishaw
documentation. You should consult these
Standard Terms and Conditions to nd out
the full details of your warranty.
Equipment and/or software purchased by
you from a third-party supplier is subject
to separate terms and conditions supplied
with such equipment and/or software. You
should contact your third-party supplier for
details.
CNC machines
CNC machine tools must always be
operated by fully trained personnel in
accordance with the manufacturer’s
instructions.
Care of the system
Keep system components clean and treat
the system as a precision tool.
Before you begin

4
Patents
None applicable.
Compliance declaration
Renishaw plc hereby declares that the
HPGA is in compliance with the essential
requirements and other relevant provisions
of:
• the applicable EU directives
• the relevant statutory instruments
under UK law
Full declaration text is available at:
www.renishaw.com/mtpdoc
C
Disposal of waste electrical and
electronic equipment (WEEE)
The use of this symbol on Renishaw
products and/or accompanying
documentation indicates that the product
should not be mixed with general
household waste upon disposal. It is the
responsibility of the end user to dispose
of this product at a designated collection
point for waste electrical and electronic
equipment (WEEE) to enable reuse or
recycling. Correct disposal of this product
will help to save valuable resources and
prevent potential negative effects on
the environment. For more information,
contact your local waste disposal service
or Renishaw distributor.
Intended use
The HPGA system is a motorised
high-precision tool setting solution
predominantly intended for use on
3-axis CNC grinding machines and CNC
lathes for workpiece inspection, tool
measurement and broken tool detection.
Before you begin

5
Before you begin
Safety
Information to the user
In all applications involving the use of
machine tools, eye protection and safety
footwear is recommended.
Remove power before performing any
maintenance operations.
The expected method of providing an
emergency stop for Renishaw products is
to remove power.
Information to the machine supplier /
installer
It is the machine supplier’s responsibility to
ensure that the user is made aware of any
hazards involved in operation, including
those mentioned in Renishaw product
literature, and to ensure that adequate
guards and safety interlocks are provided.
If the probe system fails, the probe signal
may falsely indicate a probe seated
condition. Do not rely on probe signals to
halt the movement of the machine.
The high-precision generic arm (HPGA)
system must be installed by a competent
person, observing relevant safety
precautions. Before starting work, ensure
that the machine tool is in a safe condition
with the power switched OFF and the
power supply to the TSI 3, TSI 3-C or HSI
disconnected.
CAUTION: HPGA and TSI 3 / TSI 3-C /
HSI are intended for exclusive use as
part of the HPGA system. Any attempts
to integrate with other arms or interfaces
could result in unexpected behaviour and/
or product damage.
Information to the equipment installer
All Renishaw equipment is designed to
comply with the relevant UK, EU and
FCC regulatory requirements. It is the
responsibility of the equipment installer
to ensure that the following guidelines
are adhered to, in order for the product
to function in accordance with these
regulations:
• Any interface MUST be installed in
a position away from any potential
sources of electrical noise (for
example, power transformers, servo
drives).
• All 0 V/ground connections should be
connected to the machine “star point”
(the “star point” is a single point return
for all equipment ground and screen
cables). This is very important and
failure to adhere to this can cause a
potential difference between grounds.
• All screens must be connected as
outlined in the user instructions.
• Cables must not be routed alongside
high current sources (for example,
motor power supply cables), or be
near high-speed data lines.
• Cable lengths should always be kept
to a minimum.
Equipment operation
If this equipment is used in a manner
not specied by the manufacturer, the
protection provided by the equipment may
be impaired.

6Before you begin
雷尼绍（上海）贸易有限公司
中国上海市静安区江场三路288号
18幢楼1楼
200436
T+86 21 6180 6416
F+86 21 6180 6418
[e-mail]
www.renishaw.com.cn
安全须知
用户须知
在所有涉及使用机床的应用中，建议
采取保护眼睛的措施，并应穿着安全靴。
在执行任何维护操作之前，请先断开
电源。
雷尼绍产品的建议急停方法是断开电
源。
机床供应商/安装商须知
机床制造商有责任确保用户了解操作
过程中存在的任何危险，包括雷尼绍产品
说明书中所述的危险，并应确保提供充分
的防护装置和安全联动装置。
如果测头系统发生故障，则可能误发
测头已复位的信号。切勿单凭测头信号即
停止机床运动。
高精度通用对刀臂 (HPGA) 系统必须
由具备资质的人员在遵守相关安全措施的
前提下进行安装。在开始工作之前，须确
保机床的电源已关闭，处于安全状态，并
且TSI 3、TSI 3-C或HSI的电源已断开。
小心：HPGA和TSI 3 / TSI 3-C / HSI仅可作
为HPGA系统的一部分进行使用，如果试图
将其与其他对刀臂或接口进行集成，将可能
导致意外操作及/或产品损坏。
设备安装商须知
雷尼绍所有设备的设计均符合相关的
UK、EU和FCC监管要求。为使产品按照这
些法规正常运行，设备安装商有责任确保
遵守以下指导原则：
• 任何接口的安装位置必须远离任何潜
在的电噪声源（例如变压器、伺服系
统驱动装置）。
• 所有0伏/接地连接都应当连接到机床接
地终端上（“接地终端”是所有设备
地线和屏蔽电缆的单点回路）。这一
点非常重要，不遵守此规定会导致接
地点之间存在电位差。
• 所有屏蔽装置都必须按照使用说明书
中所述进行连接。
• 电缆线路不得与电机电源电缆等高电
流源并行或靠近高速数据传输线。
• 电缆长度应始终保持最短。
设备操作
如果设备的使用方式与制造商要求的
方式不符，则设备提供的保护功能可能会
减弱。

7
Before you begin
REACH regulation
Information required by Article 33(1) of
Regulation (EC) No 1907/2006 (“REACH”)
relating to products containing substances
of very high concern (SVHCs) is available
at:
www.renishaw.com/REACH
China RoHS
For more information on China RoHS,
visit:
www.renishaw.com/mtpchinarohs
FCC information to user (USA only)
Supplier’s declaration of conformity
47 CFR Section 2.1077 Compliance
information
Unique identier: HPGA high-precision
generic arm
Responsible party – US contact
information
Renishaw Inc.
1001 Wesemann Drive
West Dundee
Illinois
IL 60118
United States
Telephone number: [phone]
Email: [e-mail]
FCC compliance statement
47 CFR Section 15.19
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause
undesired operation.
47 CFR Section 15.21
The user is cautioned that any changes or
modications not expressly approved by
Renishaw plc or authorised representative
could void the user’s authority to operate
the equipment.
47 CFR Section 15.105
This equipment has been tested and found
to comply with the limits for a ClassA
digital device, pursuant to part 15 of the
FCC Rules. These limits are designed
to provide reasonable protection against
harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a
residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at their
own expense.

8Before you begin
ICES information to user
(Canada only)
Class A Equipment Statement
This ISM device complies with Canadian
ICES-001(A) / NMB-001(A).
Cet appareil ISM est conforme à la norme
ICES-001(A) / NMB-001(A) du Canada.
TSI 3 / TSI 3-C software notices
This TSI 3 / TSI 3-C product includes
embedded software (rmware) to which
the following notices apply:
US government notice
NOTICE TO UNITED STATES
GOVERNMENT CONTRACT AND PRIME
CONTRACT CUSTOMERS
This software is commercial computer
software that has been developed
by Renishaw exclusively at private
expense. Notwithstanding any other
lease or licence agreement that may
pertain to, or accompany the delivery
of, this computer software, the rights
of the United States Government and/
or its prime contractors regarding its
use, reproduction and disclosure are as
set forth in the terms of the contract or
subcontract between Renishaw and the
United States Government, civilian federal
agency or prime contractor respectively.
Please consult the applicable contract
or subcontract and the software licence
incorporated therein, if applicable, to
determine your exact rights regarding use,
reproduction and/or disclosure.
Renishaw software EULA
Renishaw software is licensed in
accordance with the Renishaw licence at:
www.renishaw.com/legal/softwareterms

9
Specication
* The system includes the hub/base, arm and probe.
Maximum 2 sigma value in any direction. Performance specification is for 10 points at 48 mm/min trigger speed
using an LP2 probe with a 20 mm long stylus and a 15 mm square tip.
§ Please refer to Data Sheets H-2000-2100 (LP2) and H-5500-8200 (MP250) for more details.
** MRO = Machine Ready Output
ARO = Arm Ready Output
Primary application Workpiece inspection and tool setting
on cutter grinder machines and CNC
lathes.
Sense directions Probe ±X, ±Y, +Z
Arm sweep angle 90° (typical)
Weight 3.9 kg (137.57 oz), typical hub and
base only.
Uni-directional repeatability 3.0 µm 2 sigma*
ARO to MRO** 2 seconds, typical
MRO to ARO** 2 seconds, typical
Power supply approvals BS EN IEC 62368-1
Cable protection The installer is responsible for
ensuring adequate protection of the
HPGA cable during normal use in the
machining environment.
Probe § LP2 or MP250
Interface TSI 3 (or TSI 3-C) and HSI
Environment:
IP rating IPX8 (static)
Storage temperature -25 °C to 70 °C (-13 °F to 158 °F)
Operating temperature 5 °C to 55 °C (41 °F to 131 °F)

10 HPGA system options
TSI 3 interface
or
TSI 3-C interface
HSI interface
LPE1 LPE2
LPE3
Extension bars
or
Customer specic arm
Probe module
MP250 or LP2
Hub and base
assembly
Straight cable
assembly
Machine cabinet
90° Hub and base
assembly
NOTE: A rear exit hub and base assembly
is also available. For part numbers, please
refer to page 34.

11
Dimensions
HPGA dimensions (side exit, side view)
135 (5.31)
dimensions mm (in)
67.5 (2.66)
59 (2.32)
143.9 (5.67)
Ø109 (Ø4.29)
Ø25 (Ø0.98)

LPE1 = 50 (1.97), LPE2 = 100 (3.94), LPE3 = 150 (5.91)
LP2 probe = 40.8 (1.6), MP250 = 40.7 (1.6)
For a full range of stylus please contact Renishaw plc

M8 x 25 (3 off)
13 (0.51)
minimum
13 (0.51)
minimum
M8 x 25 (3 off)
Ø109 (Ø4.29)
Ø25 (Ø0.98)
135 (5.31)
67.5 (2.66)
143.9 (5.67)     
HPGA dimensions (rear exit, side view)
59 (2.32)
50
(1.97)
70 (2.95)
Ø 33 (1.30) Ø 30 (1.18)
23
(0.91)
dimensions mm (in)
Serial number
Serial number

12
HPGA dimensions (top view) with straight connector
26.1 (1.03)
18.8
(0.74)
135 (5.31)
118.8 (4.68)
8.5
(0.33)
36 (1.42)
27 (1.06) 42 (1.65) 73 (2.87)
47.2 (1.86)
44.4 (1.75)
HPGA 90° connector dimensions
Dimensions
59 (2.32)
14
(0.55)
51 (2.01)
dimensions mm (in)
dimensions mm (in)

13
Installing the HPGA with TSI 3 (or TSI 3-C) and HSIinterfaces
Customer specic
arm
Machine
controller
TSI 3 interface
or
TSI 3-C interface
Cables not
supplied
System installation
HSI interface
NOTE: For part numbers, please refer to page 34.
LP2/MP250
probe
Hub and base
assembly
Cable
assembly

14 System installation
Installing a straight arm to the hub and base assembly
10 Nm to 12 Nm
(7.37 lbf.ft to 8.84 lbf.ft)
Probe module
MP250 or LP2
Extension
bars
Straight cable
assembly
10 Nm to 12 Nm
(7.37 lbf.ft to 8.84 lbf.ft)
Hub and base
assembly
Rotate coupling nut
clockwise to secure
connector in position
until no movement
can be felt in cable
connector.
≤ 5 mm
(0.20 in)

15
System installation
Installing a 90° arm to the hub and base assembly
10 Nm to 12 Nm
(7.37 lbf.ft to 8.84 lbf.ft)
Probe module
MP250 or LP2
8.3 Nm
(6.1 lbf.ft)
Customer
specic arm
Straight cable
assembly
Rotate coupling nut
clockwise to secure
connector in position
until no movement
can be felt in cable
connector.
≤ 5 mm
(0.20 in)
Hub and base
assembly
Ensure the arm O-ring
is clean and lubricated

16
<8 mm
(0.315 in)
≥8 mm
(0.315 in)
System installation
Installing the HPGA

17
Hub and base adjustment
1. Rotate arm on bottom mounting
screw to set stylus alignment.
2. Tighten all screws to 10 Nm.
3. Check that stylus alignment has
not moved after tightening.
4. If required, dowel base in position.
Drill through base into mounting
using pilot holes as a guide. Fit
roll pins supplied in base xing kit.
Apply corrosion inhibitor to pins
after tting.
Roll pin
(Ø6 x 22)
23
21
Drill Ø 6.12
6.00
System installation
1° 1°
Conduit installation
1. Loosely t the O-clip over the
conduit.
2. Push the conduit over the barbed
conduit tting and position the
O-clip.
3. Pinch the O-clip onto the conduit
using pincers.
NOTE: The procedure is similar for
conduit installation on 90 degree
connectors.
Conduit
O-clip
Conduit tting

18
Installing the TSI 3 (or TSI 3-C) and HSI interface units
The TSI 3 (or TSI 3-C) and HSI interface units should be installed in the CNC control
cabinet. Where possible, site the units away from potential sources of interference such
as transformers and motor controllers.
System installation
Alternative mounting
M4
Depth 98 mm
(3.86 in)
R
R
34.6 mm
(1.36 in)
130 mm
(5.12 in)
4 mm
(0.16 in)
CAUTION: The HPGA arm must only be used with the TSI 3 (or TSI 3-C) and HSI
interfaces.
dimensions mm (in)
