RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
1
RS-MG41-O3
Ozone gas detector
User Manual
Document version：V1.1

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
2
Table of Contents
1.Product Brief.................................................................................................................................... 3
1.1product description.................................................................................................................3
1.2Features.................................................................................................................................. 3
1.3Technical index...................................................................................................................... 3
2.product model...................................................................................................................................4
3.Equipment size and list.................................................................................................................... 4
4.Portal................................................................................................................................................ 5
5.Function and operation instructions.................................................................................................5
5.1Key Description..................................................................................................................... 5
5.2Introduction to the main interface..........................................................................................6
5.3Instructions.............................................................................................................................7
5.3.1System setup instructions............................................................................................8
5.3.2Channel setting instructions........................................................................................8
5.3.3Store data.....................................................................................................................9
5.3.4Restore factory default................................................................................................9
6.Configuration Software Instructions..............................................................................................10
8..Configuration Software Instructions.............................................................................................13
9.Precautions..................................................................................................................................... 13
10.Common faults and solutions.......................................................................................................15
11.contact details...............................................................................................................................16
Document history..............................................................................................错误！未定义书签。

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
3
1.Product Brief
1.1product description
In many industries, the production process needs to use or produce potentially toxic or explosive
gases. RS-MG41-O3 is an intrinsically safe gas detector developed by our company for
environments containing ozone gas. The detector uses natural diffusion. The gas is detected by an
electrochemical gas sensor, which has excellent sensitivity and excellent repeatability. The
product can store up to 100,000 pieces of test data, and can view historical data at any time with
the software.
The product is easy to use and maintain, and meets the requirements of industrial field safety
monitoring for high reliability of the equipment. The shell is made of high-strength engineering
plastic and composite anti-skid rubber. It has high strength and good hand feel.
This detector is widely used in petroleum, chemical, environmental protection, metallurgy,
refining, gas transmission and distribution, biochemical medicine, agriculture and other industries.
The design, manufacture and verification of this product comply with the following national
standards:
GB3836.1- -2010 "Explosive Environment Part 1: General Requirements for Equipment"
GB3836.4--2010 "Explosive environment Part 4: Equipment protected by intrinsically safe" i ""
JJG1077-2012 "Ozone Gas Analyzer Verification Regulations"
1.2Features
1.The product uses an electrochemical sensor with excellent sensitivity and repeatability
2.The product shell has high strength and belongs to intrinsically safe explosion-proof products
3.High-definition color screen design, easy to check gas status
Can set high and low limit alarm value
4.Full-function self-test, the product uses sound and light vibration three-level alarm
5.Shortcut keys to quickly turn on and off the sound alarm and storage mode
6.Up to 100,000 stored data, with software to view historical data at any time
7.Large-capacity battery, the device can be continuously used for at least 8 hours in the
constant light mode
1.3Technical index
Detect gas
ozone（O3）
Detection range
0~10.00ppm
Resolution
0.01ppm
Duplicate value
≤2%
Zero drift
≤±1ppm

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
4
Accuracy
±6%FS
stability
≤7% signal value / year
Response time
Diffusion ≤60S
Insulation resistance
≥20MΩ
Alarm function
Sound, light, vibration
working environment:
Temperature -10 ℃-50 ℃; humidity <95% RH without
condensation
Operating Voltage:
DC3.7V (Lithium battery capacity 3000mAh)
Explosion-proof mark:
Ex ib IIB T3 Gb
Charging time:
6h - 8h
Standby time:
Continuous for more than 8h
2.product model
RS-
Company code
MG41-
Handheld gas detector housing
O3-
Ozone sensor
10P
Range 0 ~ 10ppm
3.Equipment size and list
Equipment size chart
Equipment List:
One suitcase (contains detector equipment, USB plug, USB data cable, standard gas hood,
certificate, warranty card)

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
5
4.Carrying method
Open the device by the surface buckle, snap the device to where it needs to be carried, and then
close the buckle
5.Function and operation instructions
5.1Key Description
name
Explanation
Increase build
Main interface: long press to turn on the buzzer
alarm;
Menu bar interface: short press, the cursor moves
to the previous icon;
Input value interface: short press to increase the
current value; long press to quickly increase the
current value.
Decrease key
Main interface: long press to turn off the buzzer
alarm;
Menu bar interface: short press, the cursor moves
to the next icon;

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
6
Input value interface: short press to decrease the
current value; long press to quickly decrease the
current value.
Cycle key
Password, time setting interface: the cursor moves
to the next number;
Menu interface: short press, the cursor moves to
the next icon,
Main interface: short press to quickly check the
range and alarm limit;
Long press to quickly turn on or off the data
storage function.
Any interface: Long press to return to the main
interface.
Enter
Power off state: Long press 2S, the device enters
the power on state;
Main interface status: long press 4S, the device
shuts down, short press to enter the password
interface
Menu, input value interface: After the cursor
determines the option, short press to confirm the
current option.

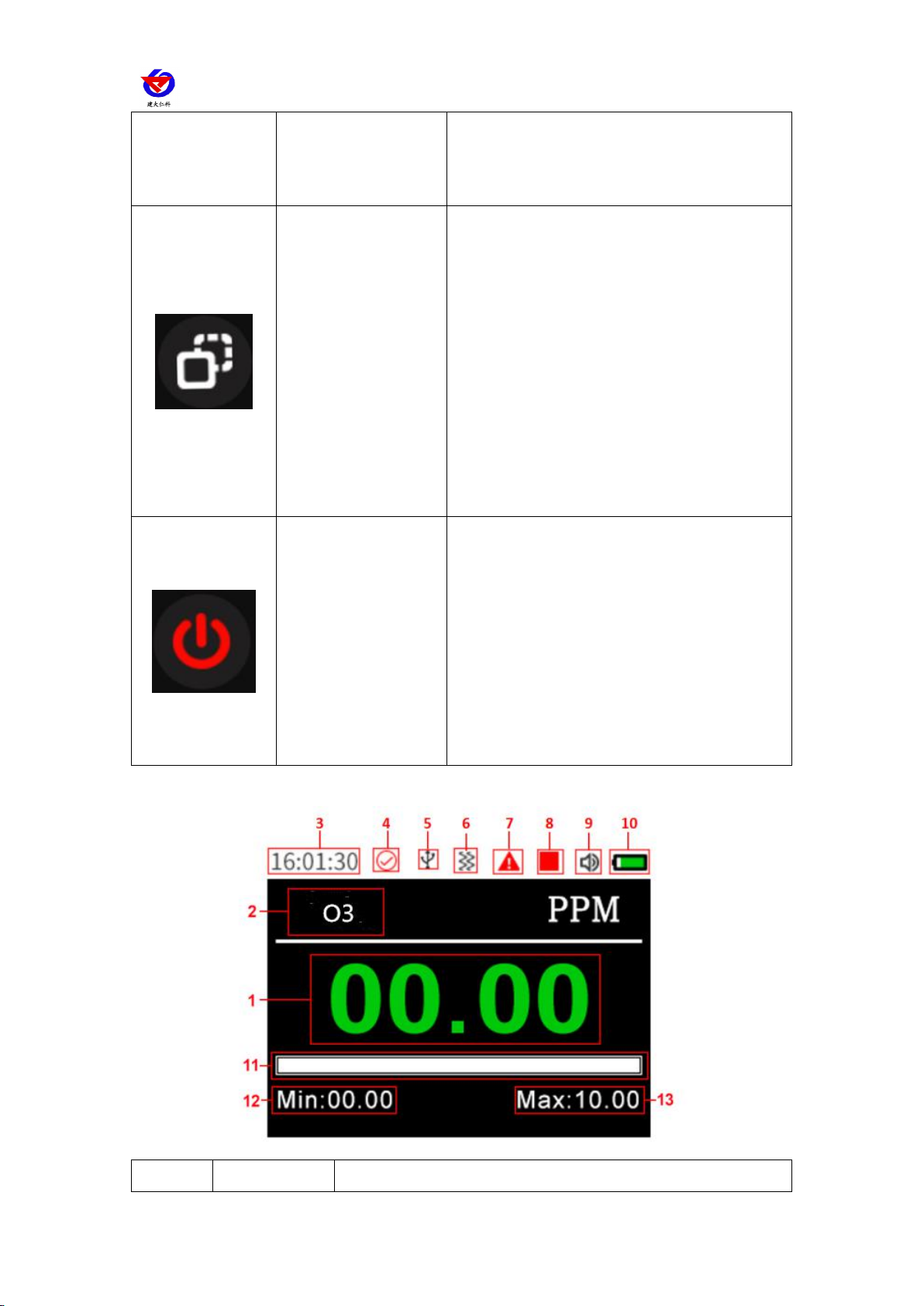

5.2Introduction to the main interface
Serial
name
Explanation

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
7
number
1
Real-time value
Display the current actual gas concentration value
2
Gas name
Display gas name
3
time
Display the current time (manual adjustment)
4
Call the police
As shown in the figure, the total alarm sound, light and vibration
are turned on (the buzzer alarm can be turned off separately). When
displayed, it means that the total alarm is turned off
5
USB socket
After plugging in the USB, this logo is displayed
6
shock
This symbol appears to indicate that the device is in a vibration
state
7
An alarm
occurred
This sign appears to indicate that the equipment is in alarm state
8
Storage status
Display ■indicates that the device is in the state of storing data.
When ▶is displayed, it indicates that the device is in the state of
storing data
9
buzzer
As shown in the figure, the buzzer is normally enabled. When the
buzzer is disabled, it displays:
When the alarm is turned off, the buzzer cannot be activated
10
Power
Display the remaining battery power
11
Proportion
The proportion of current gas concentration to the range of this
sensor
12
Minimum value
Minimum range
13
Maximum
Maximum range
5.3Instructions
1. In the shutdown state, long press the 2S confirmation key, the device detects whether the buzzer,
flash, vibration is normal, and the device enters the main interface
2. Short press the confirmation key on the main page to enter the password interface, the password
defaults to 0000, press the cycle key to move the cursor to confirmation, and click the
confirmation key to enter the menu interface. As shown in Figure 1:
figure 1

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
8
5.3.1System setup instructions
Move the cursor to the corresponding icon and click the confirm button to enter the setting
interface

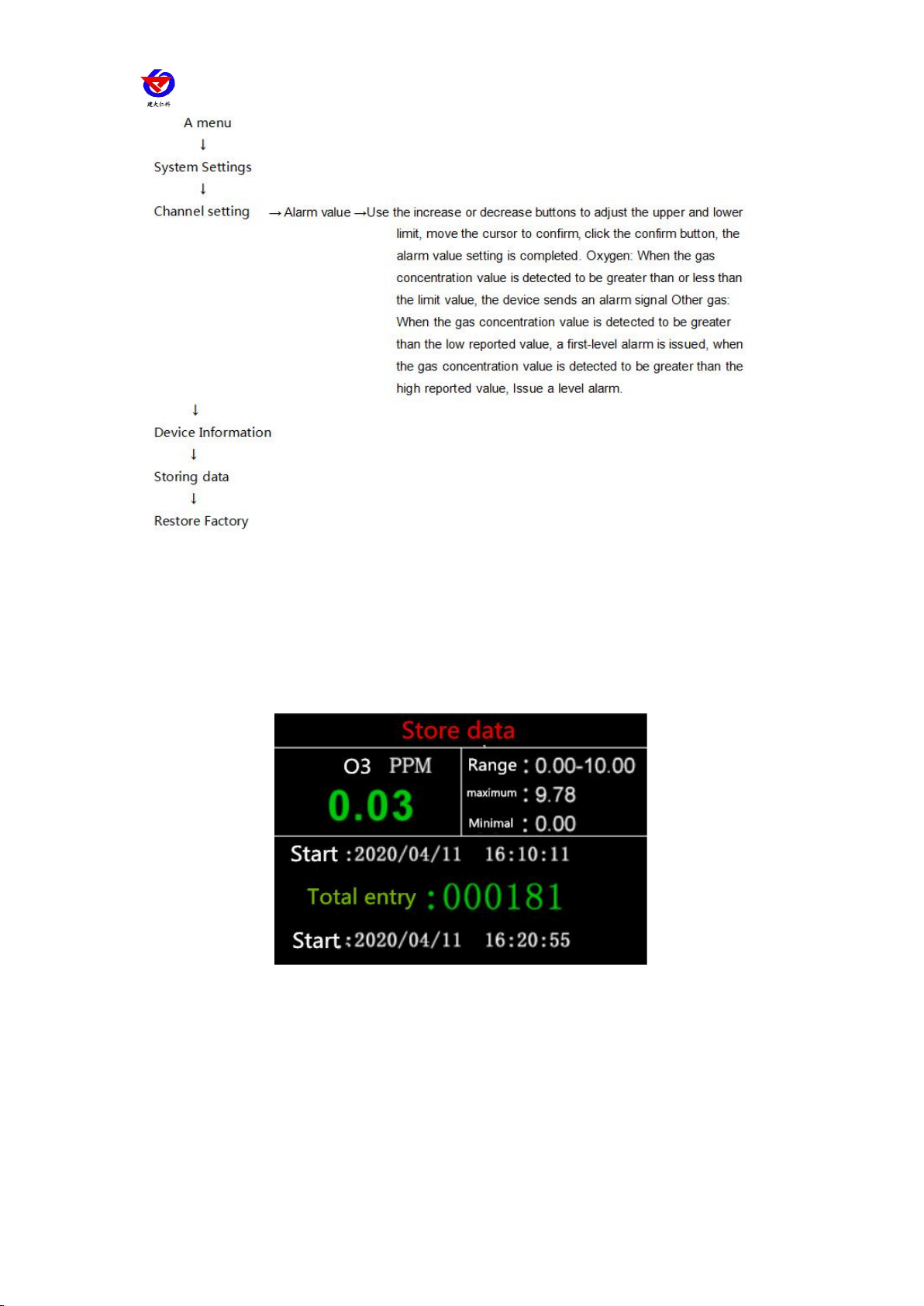

5.3.2Channel setting instructions

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
9
5.3.3Store data
Device viewing
Note: The storage settings need to be enabled in the system settings. The specific historical data
cannot be viewed in the device, you need to use the configuration soft armor to read the data. The
device can be viewed: gas type, current value, range, maximum value, minimum value, start
storage time, end storage time and the number of storage.

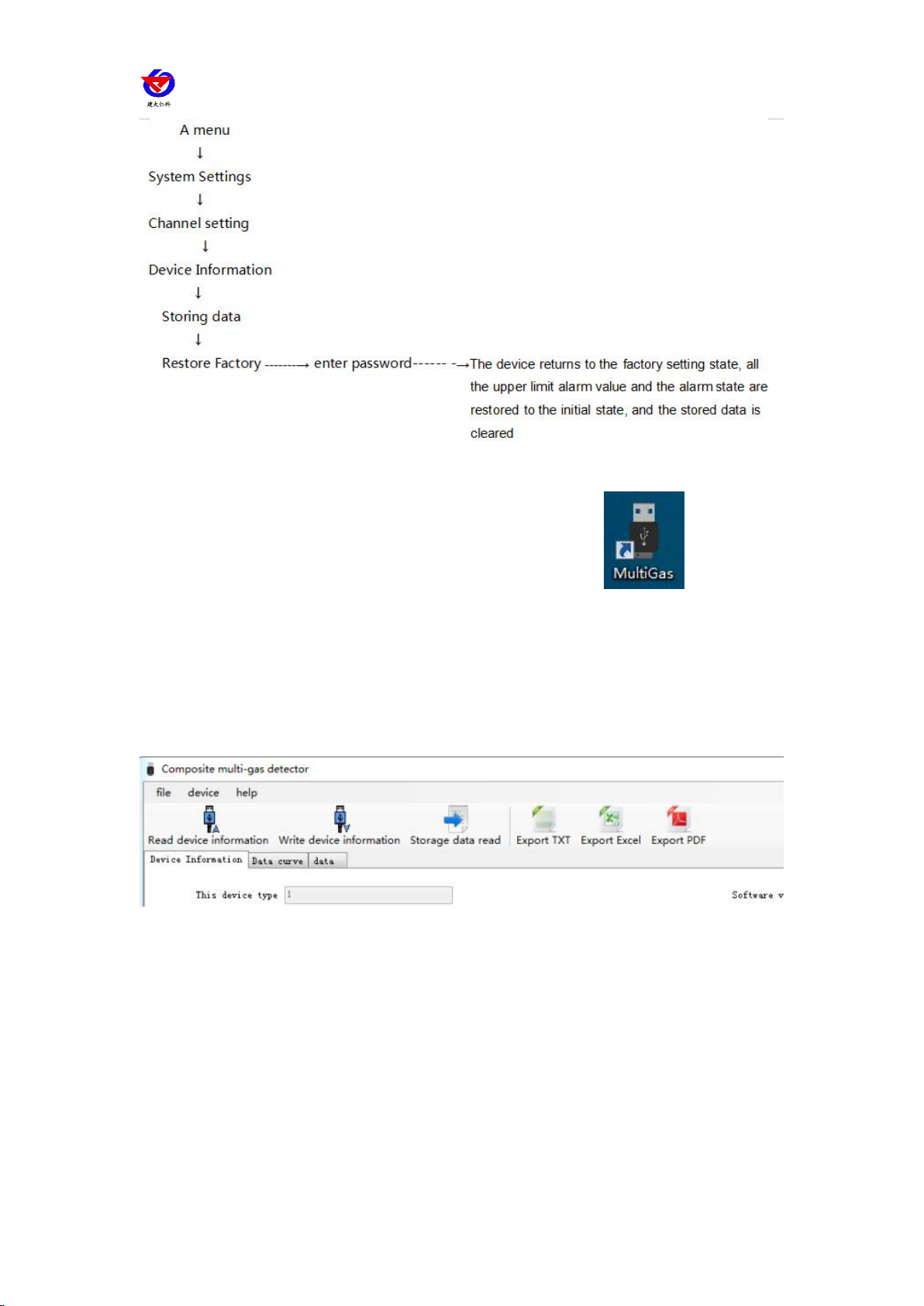

5.3.4Restore factory default

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
10
6.Instructions for configuring the software
After the software is installed, it will be generated on the desktop“ ”Icon, double
click to open the software.

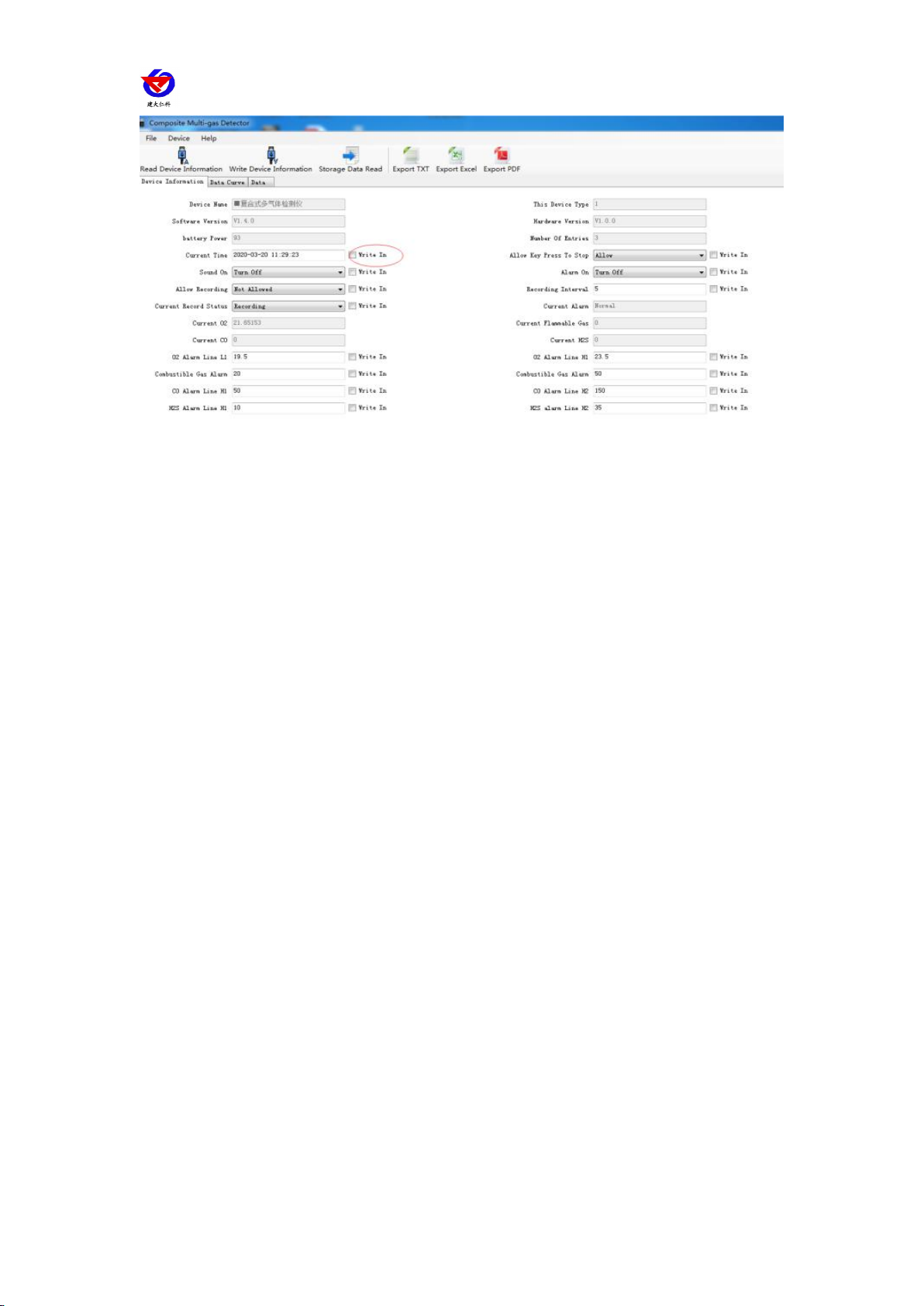

6.1 Set detection parameters
Connect the device to the computer via a USB data cable, click "Read Device Information" on the
toolbar, and click "Write Device Information" after editing the device parameters to write the
parameters to the device.
It should be noted that after the modified parameters, check the modified parameters, and
then click to write the device information, the parameter will be written to the device, this function
is to facilitate the modification of other parameters by mistake Set.

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
11
Name: Factory default, can be viewed but cannot be modified
Equipment type: refers to the gas combination type of the detector.
Battery level: the current remaining capacity of the detector.
Number of stored items: the number of records currently stored in the detector (total number of
records for four gases).
Device time: You can check the clock time indicated by the detector to determine whether you
need to adjust the time.
Allow button to stop the report: if you choose to allow, you can long press the decrease button
to quickly turn off the alarm sound when the detector generates an alarm, if you choose not to
allow, you can not quickly turn off the alarm sound.
Sound On: Set the alarm sound of the detector to be turned on or off.
Alarm on: Set the sound, light and vibration alarm of the detector to be turned on or off.
Allow recording: Set the storage function of the detector to be turned on or off.
Recording interval: Set the recording interval time of the detector (default 5 seconds).
Current recording status: whether the device is in recording status.
Current alarm information: whether it is currently in the alarm state.
Current ozone concentration: the current concentration of ozone gas.
Ozone alarm line L1: Set the ozone alarm low limit.
Ozone alarm line H1: Set the ozone alarm high limit.
6.2 Import Data
Open the configuration software of the multi-gas detector, and then connect the recorder to the
computer via a USB cable. Click "Save Data Read" to import the data stored in the detector into
the configuration software.

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
12
Click the data to view the stored historical data in
time.
6.3 export data
Select the export format (TXT / XLS / PDF) on the toolbar to save the data to the specified path
(take PDF as an example), indicating that the export is successful.

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
13
6.4 Clear device data
Click "Device" on the toolbar, and click "Clear Device Storage Data" in the drop-down menu to
clear the device data. After the removal, the software prompts "Data Clear Successful".
8.Charging function description
When the power is less than 10%, the device will give an alarm (acoustic and light vibration)
every two minutes until the device is turned off.
When the device is off, connect the charger to the portable detector and the other end to the
AC220V AC power supply. After the detector is fully charged, the power display is full and can
be used normally.
9.Precautions
1. Prevent the machine from falling from a high place or subject to severe vibration
2. In a high-concentration gas environment, the machine may not be used normally
3. Please use the detector strictly in accordance with the instructions, otherwise it may lead to
inaccurate test results or damage to the product
4. This product cannot be used or stored in an environment containing corrosive gas

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
14
5. If you have not used the device for a long time, please warm it up and aging for 10 minutes
before starting it again.
6. In order to ensure the detection accuracy, the machine should be calibrated regularly, the
verification period should not exceed one year
7. In an explosive gas environment, the battery pack cannot be disassembled or replaced, nor can
the battery pack be charged.

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
15
10.Common faults and solutions
Fault phenomenon
Possible cause of failure
Processing method
Can not boot
Low voltage
Please charge in time
Crash
Please contact dealer or
manufacturer for repair
circuit failure
Please contact dealer or
manufacturer for repair
No gas detection
circuit failure
Please contact dealer or
manufacturer for repair
Inaccurate display
Sensor overdue
Please contact dealer or
manufacturer
Long-term uncalibrated
Replace the sensor
Wrong time display
The battery is completely
exhausted
Replace the RTC battery and
reset the time
Strong electromagnetic
interference
Reset time
Zero calibration function is
not available
Excessive sensor drift
Calibrate or replace the sensor in
time
Instrument normal detection
interface
Non-zero (except oxygen)
Sensor drift
Perform zero calibration
When the instrument is tested
normally
The interface displays full
scale
Sensor failure
Please contact dealer or
manufacturer
Replace the sensor

RS-MG41-O3Ozone gas detector user manualV1.1
Shandong Renke Control Technology Co., Ltd. www.renkeer.com
16
11.contact details
Shandong Renke Control Technology Co., Ltd.
Address: 2nd Floor, East Building, Building 8, Shuntai Plaza, High-tech Zone, Jinan City,
Shandong Province
Postcode: 250101
Phone: [phone]
Fax: [phone]
Website: www.renkeer.com
Cloud platform address: www.0531yun.cn
Document history
V1.0 document creation
V1.1 Add equipment dimension drawing
