Renogy SNZB-04 User manual

Door & Window Sensor
VERSION A0
User Manual

Operation Instruction
The other devices should support Zigbee 3.0
protocol. Detailed information is in accordance
with the final product.
Download DC Home app.
Pull out the battery insulation sheet
from the Door & Window Sensor.
The Door & Window Sensor works intelligently with
Renogy ONE to communicate with other devices.
1

Renogy ONE
Add Device
Add Gateway
25%
A
Device
Device
Battery
RBT12400LFPL-...
Controller
Scene Community Me
RCC60RVRU
%
25
A
0 0
W
0
2
Add Door & Window Sensor to
Renogy ONE.

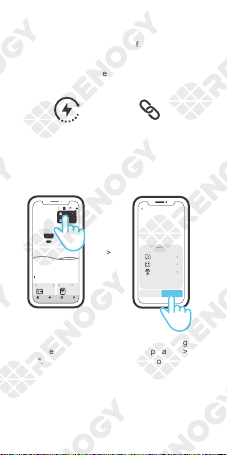

On DC Home app, tap "+ > Add Device" in the upper
right corner of the interface. Long press the reset button
on Door & Window Sensor for 5s until the LED indicator
flashes three times. This means the Door & Window
Sensor has entered the pairing mode. Wait until the
pairing completes.
Prior to adding Door & Window Sensor to Renogy
ONE, make sure that Renogy ONE has been bound
to DC Home app. For details, see the User Manual of
Renogy ONE.
If adding Door & Window Sensor to Renogy ONE
fails, move the sensor closer to Renogy ONE and
redo the adding.

Product Introduction
3

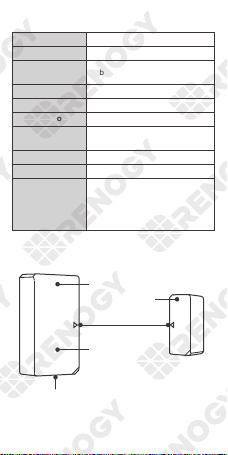

Specifications
Alignment marks
Transmitter
Magnet
Reset button
LED indicator
Model
Battery model
Wireless
connection
Quiescent current
Emission current
Installation gap
Operating
temperature
Working humidity
Material
Dimensions
SNZB-04
CR2032 (3V)
Zigbee (IEEE 802.15.4)
< 2 µA
< 15 mA
< 10 mm (0.39 in)
-10°C-40°C (14°F-104°F)
10-90%RH (non-condensing)
PC
Transmitter: 47 x 27 x 13.5 mm
(1.85 x 1.06 x 0.53 in)
Magnet: 32 x 15.6 x 13 mm
(1.26 x 0.61 x 0.51 in)

4
Features
SNZB-04 is a Zigbee low-energy wireless Door &
Window Sensor that informs you of the opening/closing
status of door and window in real time by separating the
magnet from the transmitter. By connecting it with
Renogy ONE, you can create a smart scene to control
other devices.
Low Energy Smart Scene
Renogy ONE
Add Device
Add Gateway
25%
A
Device
Device
Battery
RBT12400LFPL-...
Controller
Scene Community Me
RCC60RVRU
%
25
A
0 0
W
0
Add Devices
FoundDevices
Door Sensor
Cancel Confirm
Zigbee Relay
Motion Sensor
Connect multiple devices
concurrently to Renogy ONE
Power on Renogy ONE, set the sensor to pairing mode.
Choose Renogy ONE on DC Home app, tap "+ > Add
Device". Tap the sensor name to add it to Renogy ONE.

Alternatively, you can long-press the sensor on DC
Home app to delete it from Renogy ONE.
Tear off the protective film of the 3M adhesive from
both the transmitter and magnet.
5
Delete Sensor from Renogy ONE
Installation Methods
To disconnect the sensor from Renogy ONE, long press
the reset button on the sensor for 5s until the LED
indicator flashes three times successfully.

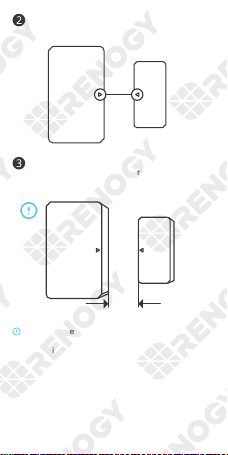

Align the mark on the magnet with that on the
transmitter horizontally.
Install the transmitter and magnet in the opening
and closing sides of the door or window
separately.
6
Make sure the gap between the magnet and the
transmitter is less than 10 mm when the door or the
window is closed.
<10mm

FCC Warning
Changes or modifications not expressly approved by the
party responsible for compliance could avoid the user ’s
authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interface;
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
7
Application
● Do NOT install the Door & Window Sensor outside the
door/window.
● Do NOT install the Door & Window Sensor in a
unstable position or in a place exposed to rain or
moisture.
● Do NOT install the Door & Window Sensor near wiring
or magnetic objects.
Door Window
NOTE

This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance20cm between the radiator & your
body. This transmitter must not be co-located or
operating in conjunction with any other antenna or
transmitter.
FCC Radiation Exposure Statement:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
Note:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
8
