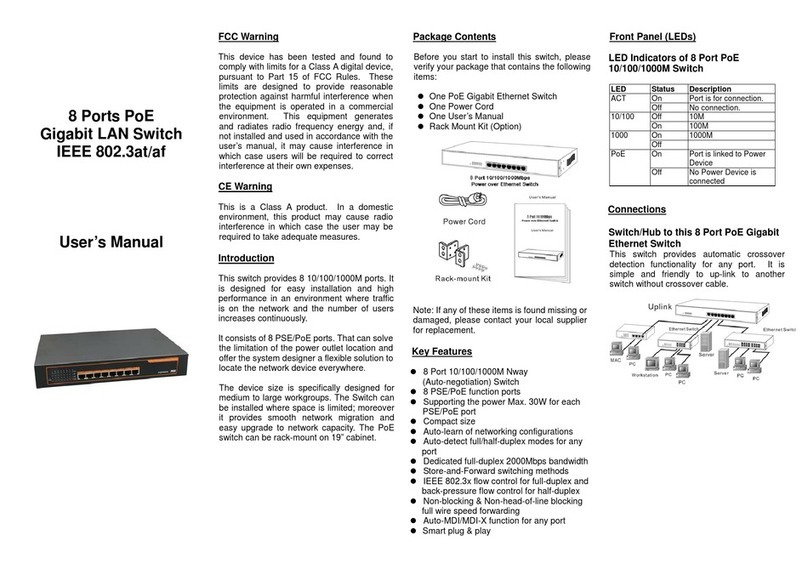

Repotec RP-PEG08-H User manual

8 Ports PoE
Gigabit LAN Switch
IEEE 802.3at/af
User’s Manual
FCC Warning
This device has been tested and found to
comply with limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates
and radiates radio frequency energy and, if
not installed and used in accordance with the
user’s manual, it may cause interference in
which case users will be required to correct
interference at their own expenses.
CE Warning
This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.
Introduction
This switch provides 8 10/100/1000M ports. It
is designed for easy installation and high
performance in an environment where traffic
is on the network and the number of users
increases continuously.
It consists of 8 PSE/PoE ports. That can solve
the limitation of the power outlet location and
offer the system designer a flexible solution to
locate the network device everywhere.
The device size is specifically designed for
medium to large workgroups. The Switch can
be installed where space is limited; moreover
it provides smooth network migration and
easy upgrade to network capacity. The PoE
switch can be rack-mount on 19” cabinet.
Package Contents
Before you start to install this switch, please
verify your package that contains the following
items:
zOne PoE Gigabit Ethernet Switch
zOne Power Cord
zOne User’s Manual
zRack Mount Kit (Option)
Note: If any of these items is found missing or
damaged, please contact your local supplier
for replacement.
Key Features
z8 Port 10/100/1000M Nway
(Auto-negotiation) Switch
z8 PSE/PoE function ports
zSupporting the power Max. 30W for each
PSE/PoE port
zCompact size
zAuto-learn of networking configurations
zAuto-detect full/half-duplex modes for any
port
zDedicated full-duplex 2000Mbps bandwidth
zStore-and-Forward switching methods
zIEEE 802.3x flow control for full-duplex and
back-pressure flow control for half-duplex
zNon-blocking & Non-head-of-line blocking
full wire speed forwarding
zAuto-MDI/MDI-X function for any port
zSmart plug & play
Front Panel (LEDs)
LED Indicators of 8 Port PoE
10/100/1000M Switch
LED Status Description
ACT On Port is for connection.
Off No connection.
10/100 Off 10M
On 100M
1000 On 1000M
Off
PoE On Port is linked to Power
Device
Off No Power Device is
connected
Connections
Switch/Hub to this 8 Port PoE Gigabit
Ethernet Switch
This switch provides automatic crossover
detection functionality for any port. It is
simple and friendly to up-link to another
switch without crossover cable.

PC/Other devices to this 8 Ports Gigabit
Ethernet Switch
Via a twisted pair cable straight through, this
switch can be connected to PCs, servers and
other network devices.
Power Device to this 8 Port PoE
Gigabit Ethernet Switch and getting
48V power source through Cat. 5
cables
Using Cat. 5 twisted-pair cable to connect Power
Device to the port 1~8 of this switch, and then
this switch will supply 48V power to Power
Device over Cat. 5 twisted-pair cable. Please be
noted Power Device should also comply with
IEEE 802.3at.
Rear Panel (Power)
AC input
AC input (100~240V/AC, 50~60Hz)
Technical Specifications
Standards
IEEE 802.3at/af
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab
1000BaseTX
IEEE 802.3x Flow control
Features
Number of Ports: 8 PSE/PoE
Ports
MAC Address: 4K
Buffer Memory: 1.625 Mb
Method: Store and
Forward
Filtering/
Forwarding
Rates
1000Mbps port - 1,488k pps
100Mbps port – 148,800pps
10Mbps – 14,880pps
Transmission
Media
10BaseT Cat. 3, 4, 5
UTP/STP
100/1000BaseTX Cat. 5
UTP/STP
LED
Indicators
Per Port: ACT, 10/100,
1000, PoE
Per Unit: Power
Power Input 100~240V/AC, 50~60Hz
Power
Output
56V/DC Per Port Output –
30 W Max Per Port
8 Ports at Full 30 W
Output Supported
Power
Consumption 250 W (Max)
Dimensions 280 × 185 × 45 mm
(L x W x H)
Weight 2.3 kgs (with packing)
Operating
Temperature 0 to 55℃
Storage
Temperature -20 to 90℃
Humidity 10 to 90% RH
(non-condensing)
Certifications FCC Class A, CE
