USER GUIDE
USER GUIDE

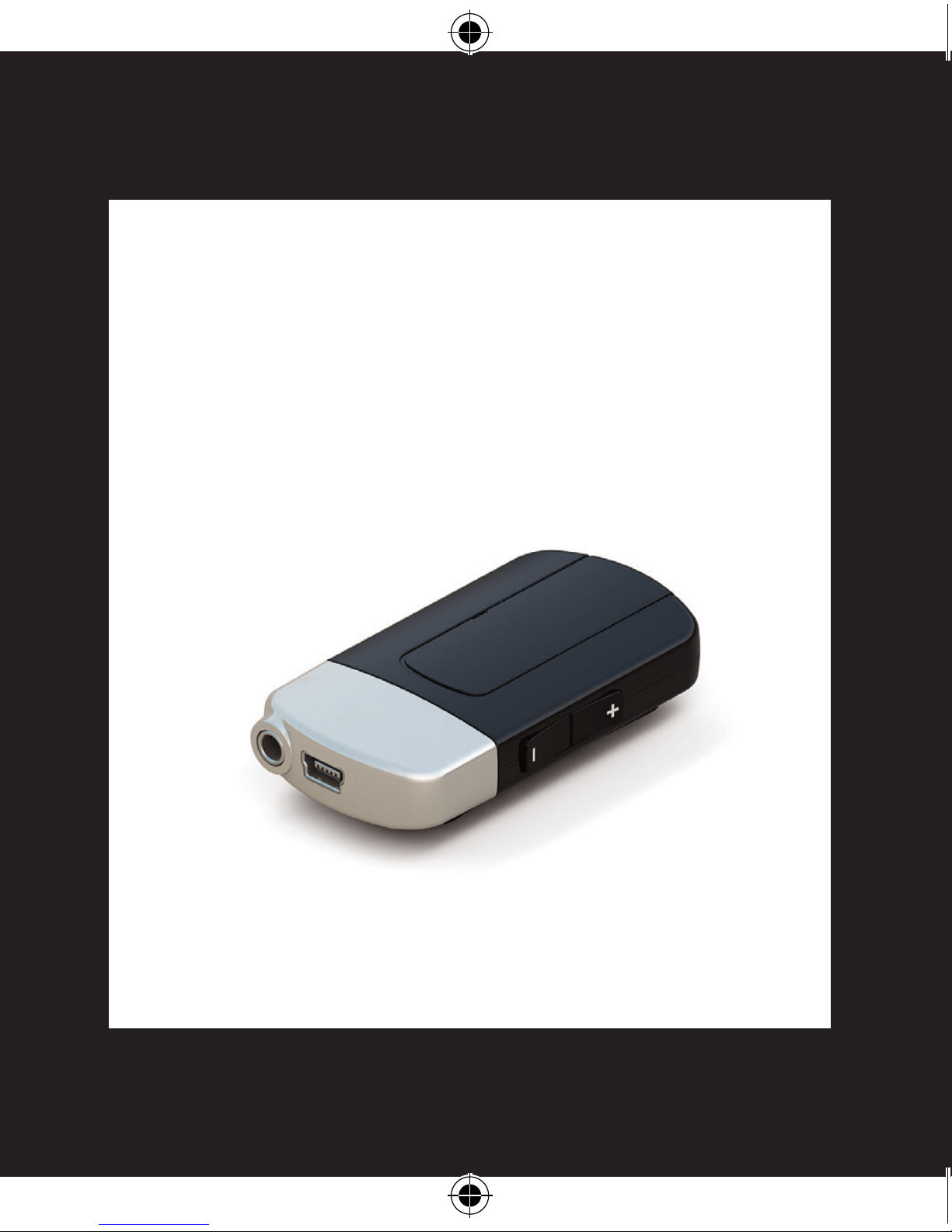

Clip-On Microphone
17729544-US-13.08-Rev.A.indd 1 19-08-2013 13:56:14

2
Welcome
Congratulations on your purchase of a wireless Clip-On Micro-
phone, a high quality streamer of speech and sound.
The Clip-On Microphone streams speech directly to your hearing
instrument.
The line-in functionality of the Clip-On Microphone will provide
you with a streamed audio signal (mono) from your audio system,
personal computer, TV or similar device directly to your hearing
instruments.
Please read this manual carefully to fully benefit from the
Clip-On Microphone. Ask your hearing healthcare professional if
you have any questions.
For your safety, carefully read the chapter “Important Informa-
tion,” starting on page 23.
FCC ID: X26SM-1
17729544-US-13.08-Rev.A.indd 2 19-08-2013 13:56:14

3
Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this de-
vice may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi-
cations.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the Clip-On Microphone and
receiver.
17729544-US-13.08-Rev.A.indd 3 19-08-2013 13:56:14

4
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications can void the user’s authority to operate
the equipment.
Intended use
The Clip-On Microphone is intended to enable hearing instrument
users to better follow speech or listen to other audio signals. The
essential performance of the Clip-On Microphone is to transfer
signals from the microphone or other audio devices to a compat-
ible wireless hearing instrument.
List of countries
Products are intended for sale in countries within the European
Economic Area as well as Switzerland.
17729544-US-13.08-Rev.A.indd 4 19-08-2013 13:56:14

5
National restrictions
Norway: You are not allowed to operate the equipment within 20
km of the centre of Ny Ålesund.
France: You are not allowed to operate the equipment outdoors.
Italy: Product is for private use. You are not allowed to operate the
equipment outside your own premises.
This product is in compliance with the following regulatory
standards:
In EU: The device conforms to the essential requirements
according to - Annex I of Council directive 93/42/EEC for medi-
cal devices (MDD) and essential requirements and other relevant
provisions of directive 1999/5/EC (R&TTE). The declaration of
conformity may be consulted at www.resound.com
In US: FCC CFR 47 Part 15, subpart C, section 15.247
In Canada: IC 6941C-SM1
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Operation is subject to the following two conditions: (1) this de-
vice may not cause interference, and (2) this device must accept
17729544-US-13.08-Rev.A.indd 5 19-08-2013 13:56:14

6
any interference, including interference that may cause undesired
operation of the device.
For other identified applicable international regulatory require-
ments in countries outside EU and US, please refer to local coun-
try requirements.
Products are categorized as receiver class 2 according to EN 300
328.
17729544-US-13.08-Rev.A.indd 6 19-08-2013 13:56:14

7
Contents
Description ........................................8
Getting started ....................................10
Turning your wireless Clip-On Microphone
ON and OFF ...................................11
Pairing to your hearing instruments.....................12
Start streaming ....................................15
Stop streaming ....................................17
Wearing your wireless Clip-On Microphone ..............18
Light indicator (LED) ................................18
Using the line-in input ...............................19
Volume control ....................................21
Important information ...............................23
General warnings ..................................24
General precautions ................................25
Technical specifications .............................31
Warranty .........................................32
Troubleshooting guide ..............................34
17729544-US-13.08-Rev.A.indd 7 19-08-2013 13:56:14

8
Description
1. Mini-USB connector for charging
2. Microphone inlet
3. Line-in input
4. ON/OFF switch
2
41
3
17729544-US-13.08-Rev.A.indd 8 19-08-2013 13:56:14

9
5. Volume control
6. Light indicator (LED)
7. Clip
8. Pairing button
6
5
7
8
17729544-US-13.08-Rev.A.indd 9 19-08-2013 13:56:17

10
Getting Started
Charging the Battery
Before using your wireless Clip-On
Microphone, you need to fully
charge the rechargeable battery.

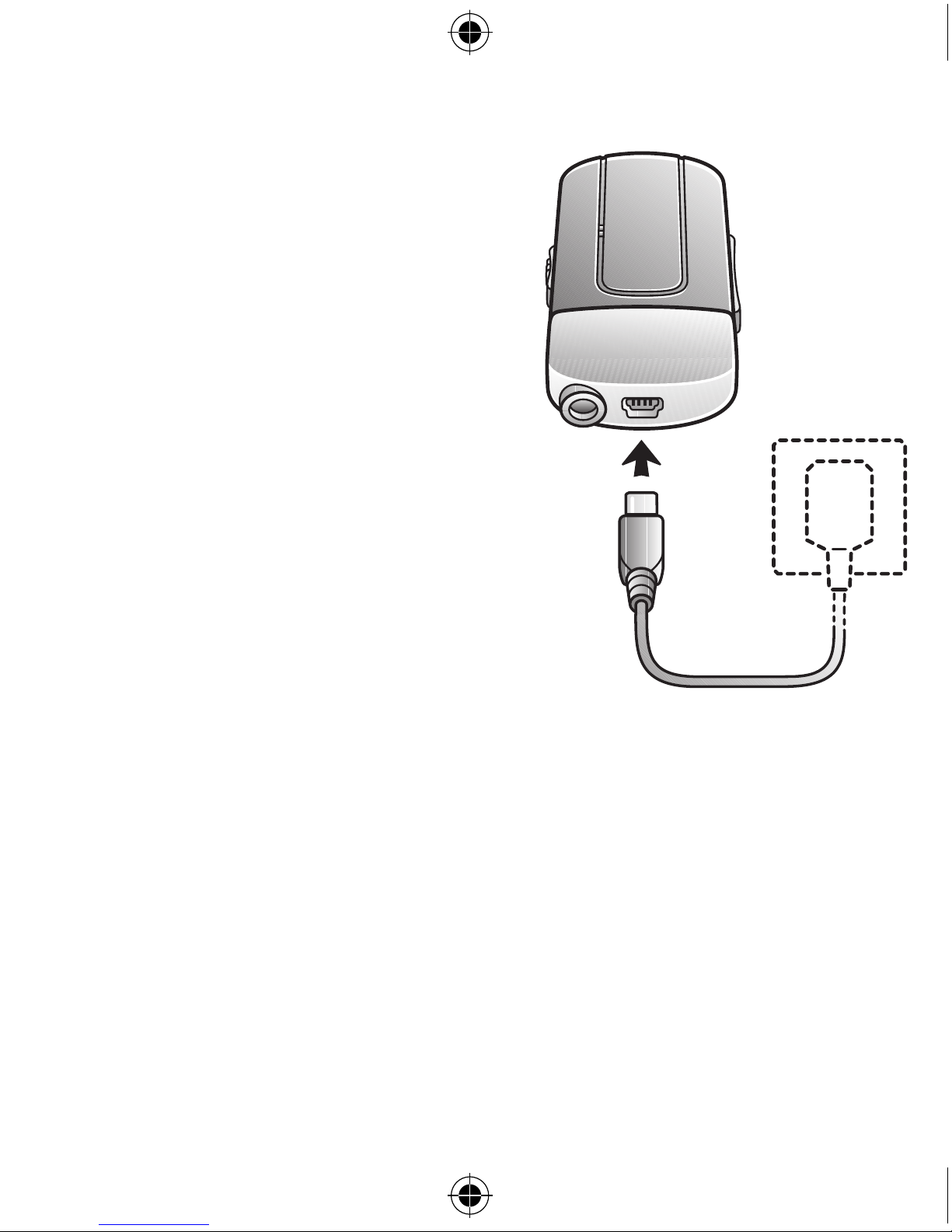

To charge it, plug the charging ca-
ble as shown in the picture to the
right. Then plug the other end of the
charging cable into a power outlet.
During the charging process, the
LED indicator will show a solid red
light. When fully charged and still
connected to the charger, the LED
will turn solid green interrupted by a
red blink every 2 seconds.
Charging an empty battery typically takes about 3 hours. It is safe
to leave the charger connected overnight—the battery cannot be
overcharged.
• When charging your wireless Clip-On Microphone for the first
time, allow it to charge for at least 3 hours, even if the battery
indicator indicates that the battery is fully charged.
17729544-US-13.08-Rev.A.indd 10 19-08-2013 13:56:18

11
• For safety reasons, recharge the battery only with chargers
supplied by your hearing healthcare professional and specifi-
cally intended for your Clip-On Microphone.
Do not charge the Clip-On Microphone
while it is on your body.
Turning your Clip-On Microphone ON and OFF
To turn ON your wireless Clip-On Microphone, slide the ON/OFF
switch (#4 on page 8) down to the ON position. A white “I” icon
will be visible on the switch and the LED indicator will now blink
green every 2.5 seconds.
If the battery level is low the LED will blink yellow every 2 seconds.
To turn it OFF, slide the ON/OFF switch up to the OFF position.
The LED will now stop blinking.
17729544-US-13.08-Rev.A.indd 11 19-08-2013 13:56:18

12
Pairing to your hearing instruments
Note! The following information is intended primarily for your hear-
ing healthcare professional, who in most cases will complete the
tasks that are necessary before the Clip-On Microphone can be
used with your hearing instruments. However, the process is de-
signed to be simple and most people can do it themselves.
It is possible to pair up to three compatible streaming devices—
e.g. one Clip-On Microphone and two TV streamers (an optional
accessory)—with a given pair of hearing instruments. Therefore,
channel 1, 2 or 3 must be selected when starting the pairing pro-
cess.
Pairing the Clip-On Microphone in Channel 1
1. Make sure the Clip-On Microphone is turned ON. Your hear-
ing instruments must be OFF—the battery doors must be
open.

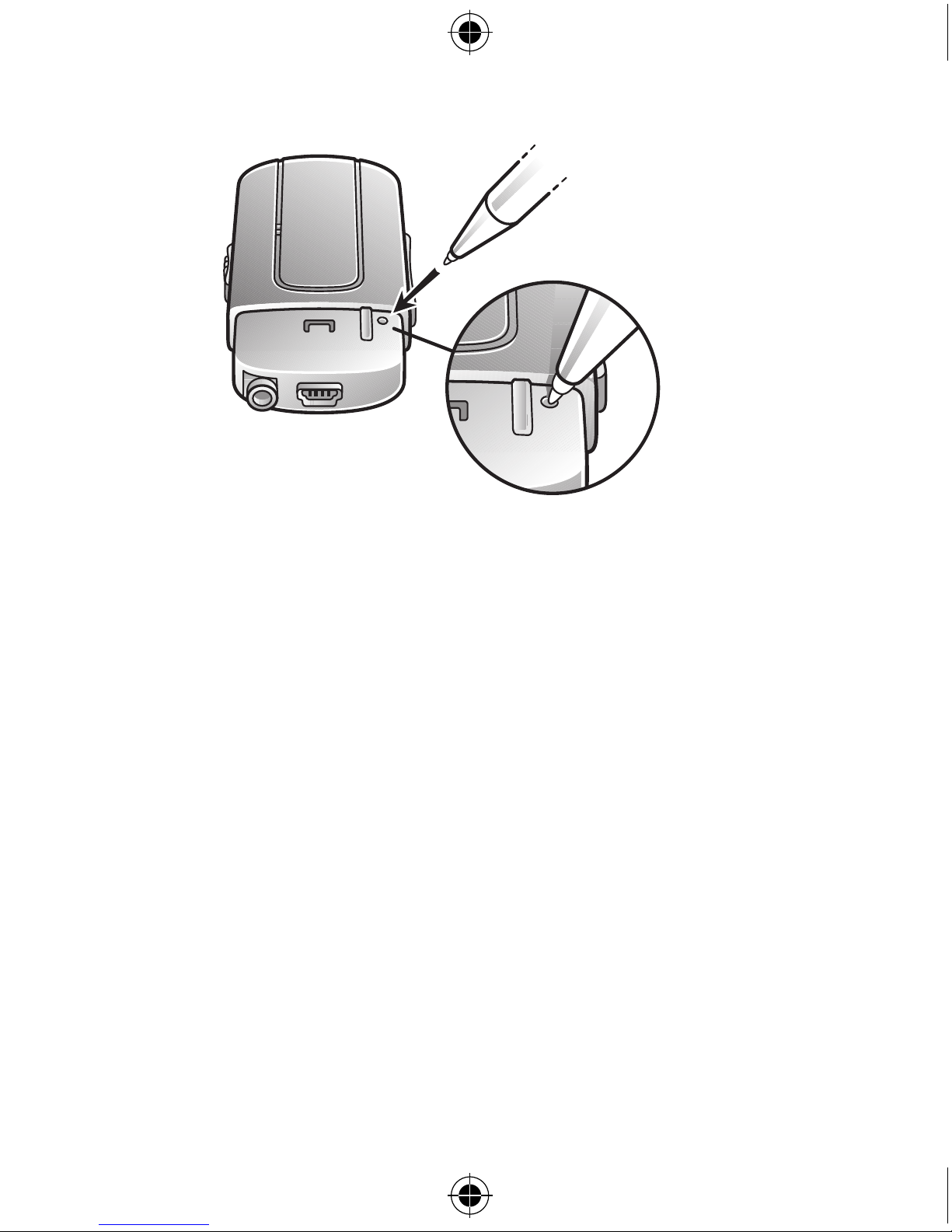

2. Remove the silver cap from the Clip-On Microphone. With the
tip of a pen or similar object, press the small pairing
button one time on the front of your Clip-On Microphone (see
picture on the next page). The LED will now blink yellow once
every 2 seconds to indicate that it is ready to be paired in
Channel 1. Your Clip-On Microphone will remain in pairing
mode for 20 seconds.
17729544-US-13.08-Rev.A.indd 12 19-08-2013 13:56:19

13
3. While pairing mode is activated, close the battery doors
of both hearing instruments and make sure they are ON. A
successful pairing will be indicated by an audible melody
played in both hearing instruments.
You are now ready to use your wireless Clip-On Microphone!
Pairing the Clip-On Microphone in Channel 2 or 3
TopairtheClip-OnMicrophoneinChannel2,pressthepairingbutton
twice. The LED will now blink yellow twice every 2 seconds to in-
dicate that it is ready to be paired in Channel 2. Close the battery
doors on the hearing instruments.
17729544-US-13.08-Rev.A.indd 13 19-08-2013 13:56:19

14
To pair the Clip-On Microphone in Channel 3, press the pairing
button three times. The LED will now blink yellow three times ev-
ery 2 seconds to indicate that it is ready to be paired in Channel
3. Close the battery doors on the hearing instruments.

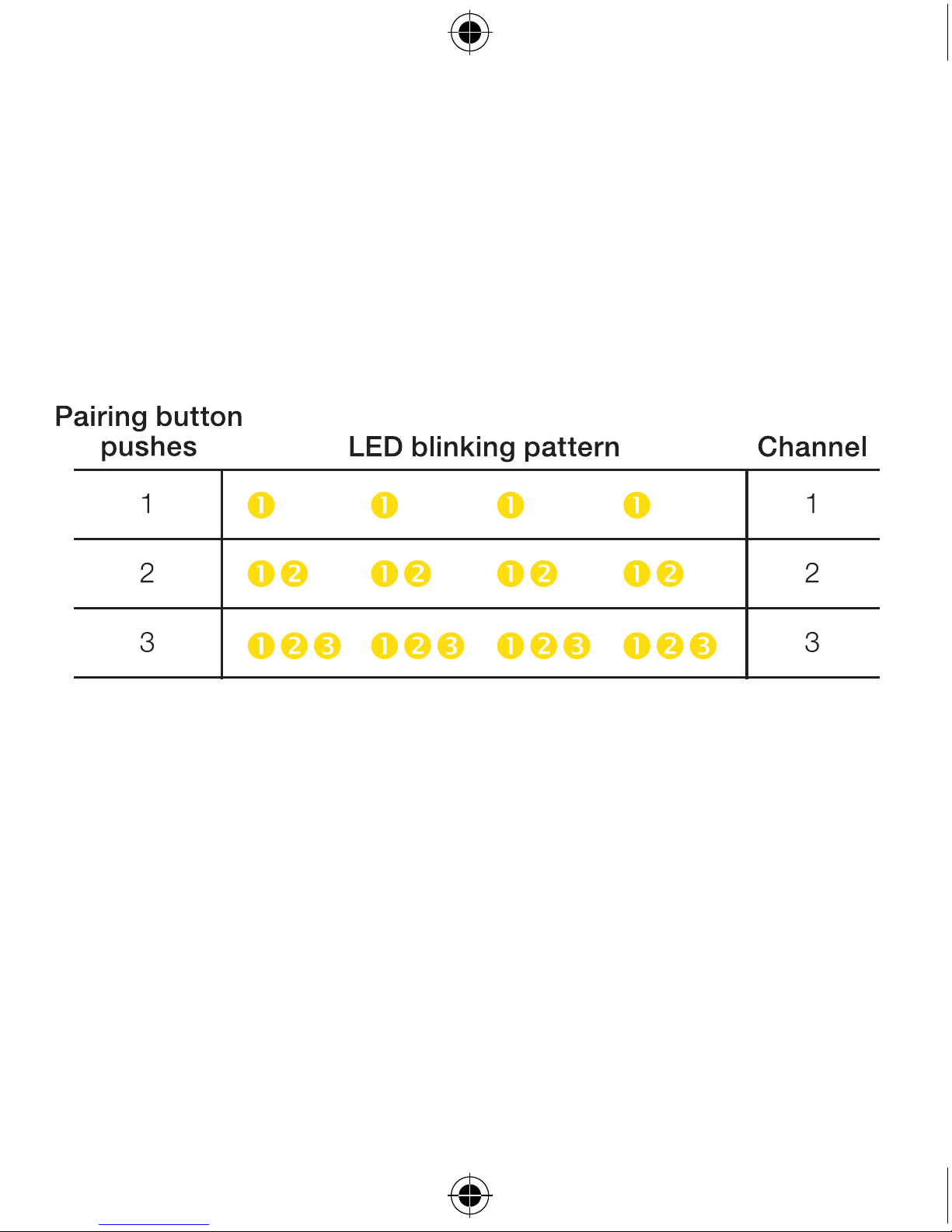

Pairing blinking pattern:
17729544-US-13.08-Rev.A.indd 14 19-08-2013 13:56:20

15
Start streaming
Turn on the Clip-On Microphone and make sure your hearing in-
struments are turned on as well. Streaming may then be started
in one of two ways.
1. Press and hold the push button on both hearing instruments
for about three seconds in order to listen to the streamed
audio signal. Once the Clip-On Microphone has been con-
nected, an audible melody will play in your hearing instru-
ments and will be followed by the streamed sound.
2. If you have a compatible Remote Control (optional), simply
press the streaming button. Doing so will briefly show a
search icon in the remote control display. Once the hearing
instruments connect to the Clip-On Microphone, a short
melody will be played in both ears to confirm the presence
of streamed audio and a streaming icon will appear in the
display. The streamed sound can now be heard in your
hearing instruments.
17729544-US-13.08-Rev.A.indd 15 19-08-2013 13:56:20

16
Start streaming on a 2nd or 3rd Clip-On Microphone unit
If your hearing instrument is paired to more than one streaming
device, you can start streaming in two ways.
1. Press and hold the hearing instrument push button for about
3 seconds a 2nd or 3rd time to access the 2nd or 3rd com-
patible streaming device.
2. If you are using a compatible Remote Control, press the
streaming button on the Remote Control a 2nd or 3rd time to
access the 2nd or 3rd compatible streaming device.
Connected to
Clip-On Microphone
Streaming button
Searching for
Clip-On Microphone
MM
MM
17729544-US-13.08-Rev.A.indd 16 19-08-2013 13:56:21

17
When using a compatible Remote Control, listening programs for
streaming devices are designated as A, B and C.* The program in
use is indicated in the remote control display.
* The designations for listening programs can be customized by
your hearing healthcare professional in the programming soft-
ware. Such customizations will be reflected in the remote con-
trol display.
Stop streaming
• To stop streaming with a Remote Control (optional) you just
have to press the “P” button, located in the center of the key
pad. This will return the hearing instruments to the last program
used. You may also press the home button to return to your
default settings.
• If you are using the telephone with a compatible Phone Clip,
Phone Clip+ or with PhoneNow™ accessory, streaming of the
Clip-On Microphone will be temporarily disrupted. When you
have ended your phone call, streaming will resume.
Note! The Clip-On Microphone will transmit over a range
of approximately 20 feet (or more.) Transmission can be
interrupted if the distance between the hearing instru-
ment and the Clip-On Microphone is increased beyond
the transmission range. If the Clip-On Microphone is
moved back into range within 5 minutes, your hearing
instruments will automatically reconnect and continue
streaming.
17729544-US-13.08-Rev.A.indd 17 19-08-2013 13:56:21

18
Wearing your wireless Clip-On Microphone
Clip your wireless Clip-On Microphone on the speaker’s jacket
or other clothing. Place the device within a range of 4 to 8 inches
from the speaker’s mouth.
Light indicator (LED)
The Light indicator (#6 on page 9) on your wireless Clip-On
Microphone serves as a multipurpose user interface, providing
information on the status of your device.
17729544-US-13.08-Rev.A.indd 18 19-08-2013 13:56:22

19
Using the line-in input
The line-in input (#3 on page 8) can be used to stream audio sig-
nals from most audio devices through the Clip-On Microphone’s
line-in feature directly to your hearing instrument.
1. Insert one end of the cable included with your Clip-On Micro-
phone into the line-in jack on the Clip-On Microphone.
2. Plug the other end of the cable into the AUDIO OUT on the
audio device you want to stream from.
17729544-US-13.08-Rev.A.indd 19 19-08-2013 13:56:23

20
Note: When using the Clip-On Microphone with a TV, you
can use the HEADPHONE output terminal which is usu-
ally located on the side or front of the TV. Typically, when
using the HEADPHONE output terminal on the TV, only
the person wearing the hearing instruments will hear the
sound, and the TV speakers will be muted. Consult your
TV manual to determine whether or not your TV supports
simultaneous speaker and HEADPHONE use.
17729544-US-13.08-Rev.A.indd 20 19-08-2013 13:56:23
