RESPICARE AO3 Series User manual

AO3/AO3W/AO5/AO5W Series
Medical Oxygen Concentrator
User Manual
Official micro channel code
specialized manufacturer of respiratory equipment
www.rms-care.com
EC REP
Part NO.233010002 Rev 3.0 3/20/15
Manufacture: Shenyang RMS Medical Tech Co.,Ltd
Address: No. 8-1, Gaoge Road, Hunnan New District, Shenyang, China
Tel: [phone]-8001
Fax: [phone]-8008
KINGSMEAD SERVICE LIMITED
145-157 St John Street, London, EC1V 4PY (UK)
TEL:[phone]

Table of Contents
Section 1- Special Notes
Warnings
Cautions
Radio Frequency Interference
Intended Use
Section 2- Packaging And Handling
Unpacking
Accessory List
Inspection
Storage
Section 3- Features
Parts and Functions
Circuit Diagram
Section 4- Device Technical Indicators
Section 5- Operating Instructions
Introduction
Product Functions
Operating Pandl and LCD Screen
Operating Medthod
Start to use
Section 6- Cleaning And Maintenance
Cleaning and Maintenance
Warranty Instructions
Section 7- Troubleshooting Guide
Troubleshooting
Alarms
Appendix A : EMC Information
04
04
05
06
06
07
07
07
07
07
08
08
09
10
11
11
11
11
13
14
15
15
15
16
16
17
18
Drip Proof EquipmentIP21
NO smoking
Serial Number
Indicating its conformity with the medical devices
directive 93/42/EEC.
The 0917 is the number of notified body.
Proper disposal of equipment according to
local laws and regulations.
Type BF Applied Part
Class Ⅱ（Double Insulated）
Maufacturer
European authorized representative
Read instructions before use
Caution,consult accompanying documents
European RoSH
Date of manufacture
0302
Respiratory Medical Solutions
EC REP
SN

1.2 Cautions
☻ Don’t smoke while using your oxygen equipment or when you are near a person
utilizing oxygen therapy.keep matches,cigarettes,burning tobacco,or candles away
from the area where the system is being stored or operated.
☻ Use No Oil or Grease:A spontaneous and violent ignition may occur if oil,grease,or
other petroleum substances come into contact with oxygen under pressure.keep these
substances away from the oxygen system,tubing and connections,and any other oxygen
source.Don’t use any petroleum based or other lubricants.
☻ Don’t leave oxygen equipment running when not in use.Don’t leave cannula
unattended while unit is delivering oxygen.High concentrations of oxygen can cause
rapid burning.keep the equipment in a well-ventilated area.
☻ Avoid creation of any spark near oxygen equipment.This includes sparks from static
electricity created by any type of friction.
☻ Don't turn over or lay the device during carrying it.
☻ The temperature of environment in using the device should be 10~37℃.
Don't move the device casually when the device is energizing.
☻ Don't overfill humidifier.Watering the humidifier bottle according to the standard
water meter of the humidifier bottle.
☻ Don't reverse the oxygen input and output connections.water from the humidifier
bottle will travel through the cannula back to the patient.
☻ Use the device according to the intended use on user manual, it can't be used to life
support.
☻ The flow and use time of the device must be selected under the directions of
physicians.
☻ Advice contained in this manual should not supersede instructions given by the
physicians.
☻ It's a normal phenomenon that the device has a regular exhaust sound in using.
☻ The device should only be matched with power cord, ,
humidifier bottle and other accessories recommended by RMS. It may effects the
function of device or causes some risks if you use the unapproved accessories.
☻
Nasal Oxygen Cannula
☻ The oxygen tube and humidification bottle to be used on the machine are for single
use and should be only provided by RMS. Otherwise some malfunction or danger may be
caused by using unapproved accessories.
Section 1 Special Notes
Please read all instructions before using.Important information is highlighted by these terms:
1.1 Warnings
☻ Never use aerosol sprays or flammable anesthetics near the equipment.
☻ If the equipment has a damaged cord or plug,if it is not working properly,if it has
been dropped or damaged,or if it has been submersed in water,do not use and call a
qualified technician for examination and repair.
☻ Don't use the device in bathroom, if the patient needs use it continuously, you must
put the oxygen concentrator no less than 3m away from the bathroom.
☻ Keep all units away from children.Do not allow unauthorized or untrained
individuals to operate the equipment.Never try to repair the equipment yourself.if you
have any questions or suspect your equipment is not operating properly,contact your
oxygen provider.
☻ Don't touch the device when body is wet. Don’t use or put the device in a place where
is easy to drop into water or there is conductive liquid. If so, pull up the power plug
immediately.
☻ It may cause an auto-ignition when oils and fats or things oily contact the oxygen
under pressure. Don’t use any lubricant on oxygen concentrator, tubes or other parts
unless RMS recommends in writing.
☻ People who have operation, emergency treatment, critical patients and carbon
monoxide poisoning patients can't use the device.
☻ Don't block the air inlet of the device or put the device on a soft surface, such as sofa,
bed and other things may block the air inlet. The air inlet should be away from the lint,
hair or other similar things.
☻ The device should be away from the wall, tapestry, furniture and other things for no
less than 10cm.
☻ There must be a special care when children or disabled use it.
☻ The power line should be away from the heat source or high-temperature surface.
☻ Cut off the power immediately when breaking out the fire and turn off the flow
adjusting button quickly.
hoose Humidifier and Nasal Oxygen Cannula which include a means to prevent the
propagation of fire and accordance with requirements of EN ISO 8359/A1:2012
☻ C
Warning Warning indicates a hazardous situation which,if not avoided,could result in
death or serious injury.
Caution Caution indicates a hazardous situation which,if not avoided,may result in
Property damage or minor injury or both.
Respiratory Medical Solutions
0504

☻ Don't bend the oxygen tube in using, pick off the oxygen tube after turning off the
device.
☻ Never drop or insert any object or liquid into any opening.
☻ Don't open the device inside and it must be repaired by the competent dealer.
☻ Pull up the power plug when you don't use the device.
☻ Don't multiple the device or cascade the device with other oxygen concentrators and
oxygen therapy equipments of other brands.
☻ Contact the competent service adviser if the power line or plug of the device is
broken, the device is in abnormal work, dropping into water or inflowing water.
☻ For optimum performance,RMS recommends that each concentrator be on and
running for a minimum of 30 minutes at a time.Shorter periods of operation may reduce
maximum product life.
Close supervision is necessary when this product is used near children or
physically‐challenged individuals.
☻
☻ When using the oxygen oncentrator,please notice the indications of working status
on the screen .
1.3 Radio Frequency Interference
Most of electrical equipments are easy to be interfered by radio frequency, so it may
cause interference if using the portable communication equipments near the device.
1.4 Intended Use
Medical oxygen concentrator (Model: AO3,AO3W,AO5, AO5W) used for separating
oxygen from air. EUT not intended to be used for emergency treatment, and patient who
has serious carbon monoxide poisoning cannot use this device.
Section 2 Packaging And Handling
2.1 Unpacking
☻ Check for any obvious damage to the carton or its contents.If damage is
evident,notify the carrier,or your local dealer.
☻ Remove all loose packing from the carton.
Your oxygen concentrator should include the following items,If any of these items
are missing,please contact your equipment provider.
2.2 Accessory List
2.3 Inspection
Inspect exterior of the oxygen concentrator and accessories for damage.Inspect all
components.
2.4 Storage
☻ Store the repackaged oxygen concentrator in a dry area.
☻ Don’t place objects on top of packaged concentrator.
Power Cord
Nasal Oxygen Cannula
humidifier bottle
Cautions:
☻ The device should only be matched with power cord, Nasal Oxygen Cannula,
humidifier bottle and other accessories recommended by RMS. It may effects the
function of device or causes some risks if you use the unapproved accessories.
Respiratory Medical Solutions
0706
（A O 3 W /A O 5 W）
6

3.2 Circuit Diagram
230L
230N Fuse 3A
Circuit Breaker 3A
Transformer
Compressor Fan
Main control panel
Operation panel(Display,Button)
Control valve
Pressure test
Oxygen Concentration Testing
Circuit Breaker
Power Switch
Power Socket
Filter
Device Tag
LCD Screen
Control Buttons
Caste
Handle
Warning Tag
Oxygen Outlet
Inlet Filter Window
Compressed Air Output
Humidifier Bottle
Section 3 Features

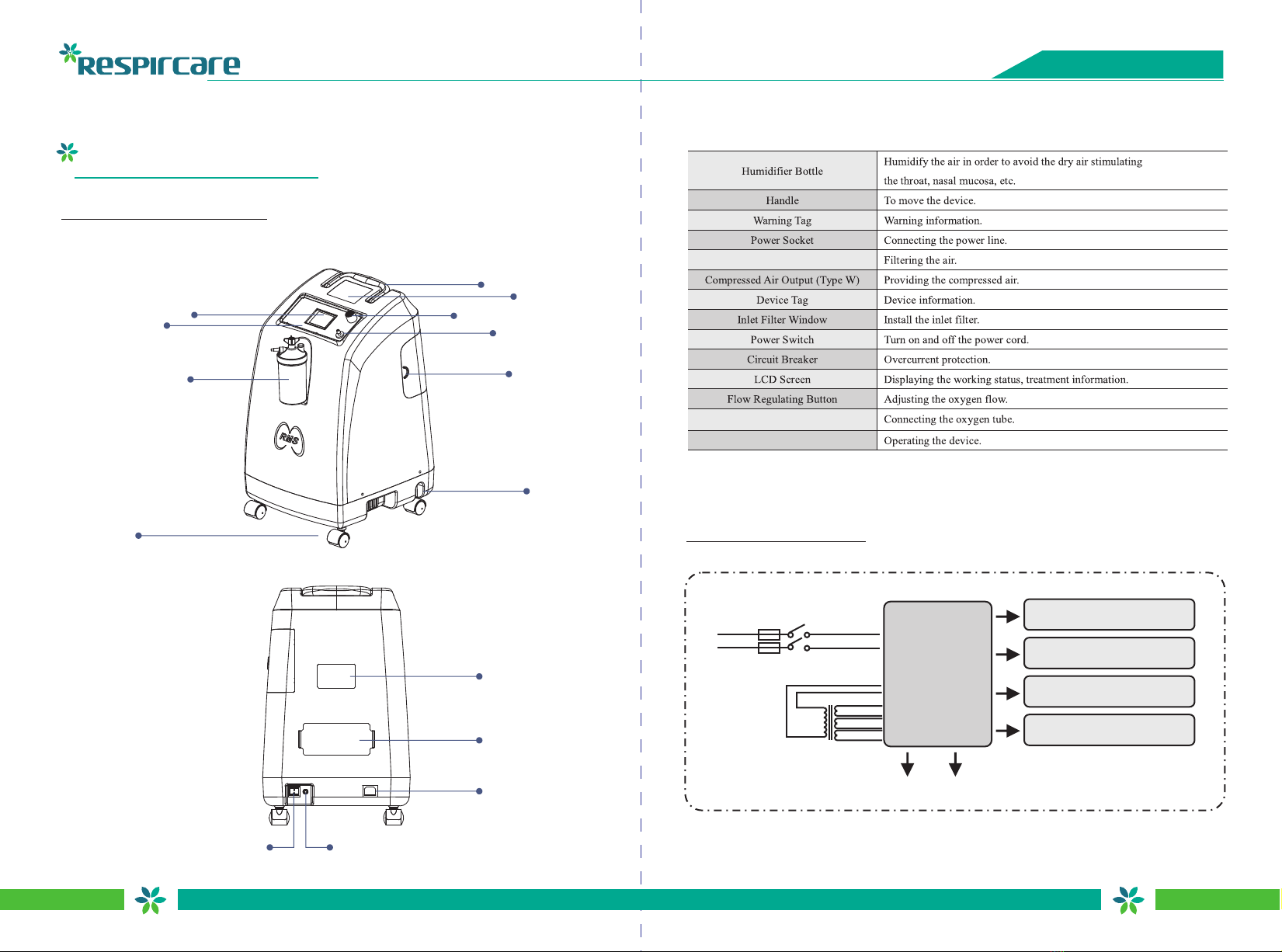

3.1 Parts and Functions
Flow Regulating Button
Filter
Oxygen Outlet
Control Buttons
Respiratory Medical Solutions
0908

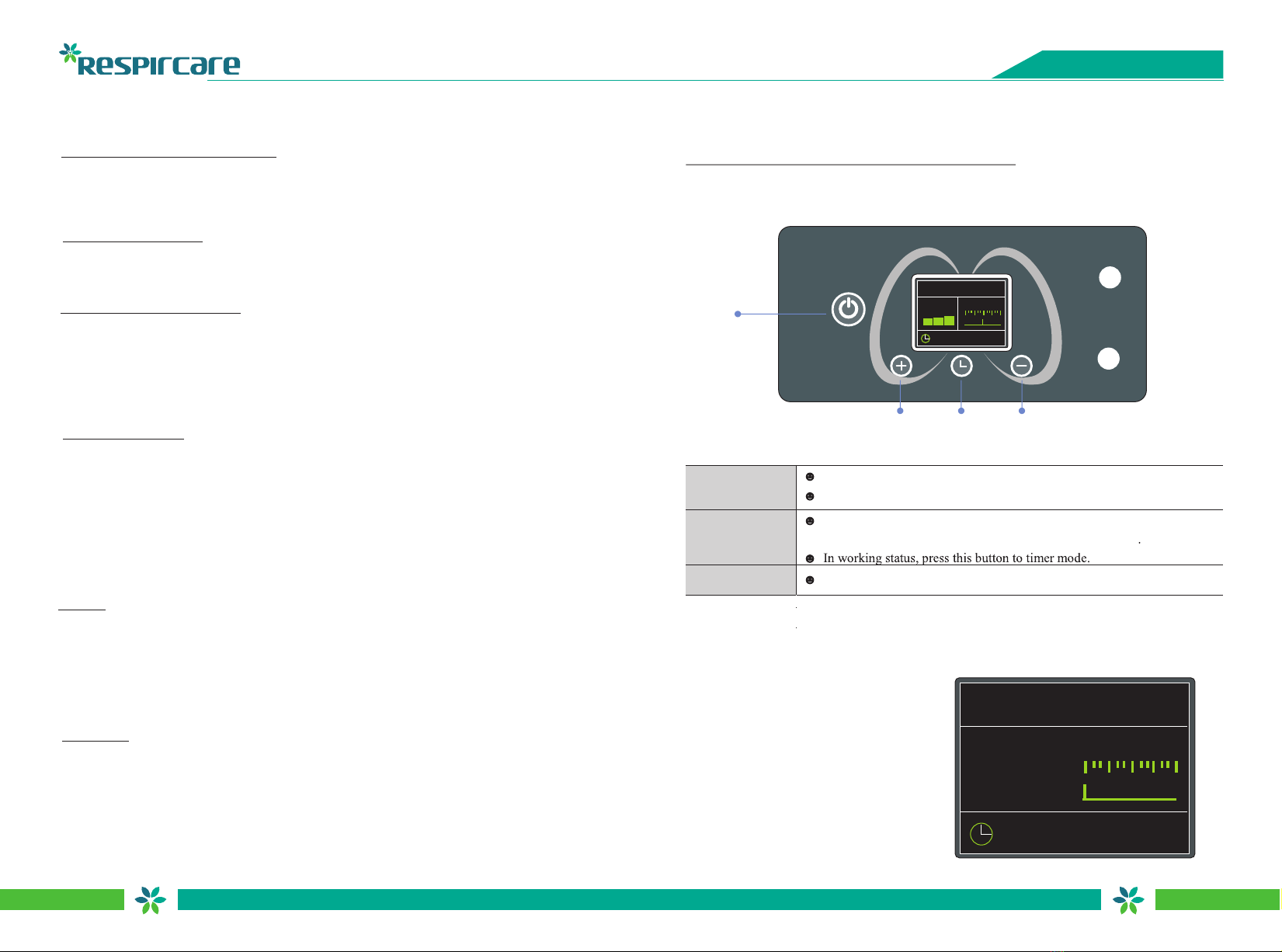

Section 5 Operating Instructions
5.1 Introduction
RMS Series Medical Molecular Sieve Oxygen Concentrator adopts the theory of
Pressure Swing Adsorption, with air as material, without any additives, isolating to get
the medical oxygen of 93%+-3% concentration by the ZMS adsorbing nitrogen and
other gas. Read and understand the user manual completely in order to use the device
safe and effective.
5.2 Product Functions
5.3 Start to Use
Cautions: The humidifier bottle should be filled with purified water. the incrustant
will block the oxygen outlet if it is filled with running or mineral water.Change the
water in humidifier bottle every day.
Fill the humidifier bottle with water
Pulling the black rubber band and taking down the humidifier
bottle, then fill it with appropriate purified water (not over the max
water level), tighten the humidifier cap. Pulling the rubber band,
replace the humidifier bottle and securely tighten it.
CFM:During respiratory period, the concentrator provides continuous fixed flow of
oxygen output at the joint of the patient.
3L/min(AO3/AO3W) 、5L/min(AO5/AO5W)
Drop Proof Ip21
Environment
Air Pressure 70~106kPa
Working Temperature 10℃37℃ ~
Working Moisture20～65% ,Non-condensing
Transport and storage Moisture10~95% ,Non-condensing
Transport and storage Temperature -20~60℃
When the backpressure is 0 and the rated flow is 5L/min, giving a 7kpa backpressure can make the
flow being 4.7 L/min.
When the backpressure is 0 and the rated flow is 3L/min, giving a 7kpa backpressure can make the
flow being 2.8 L/min.
If the power network isn’t stable, the power voltage fluctuate over ±10%, please use it after
installing a voltage stabilizer.
Make sure the environment nearby dry, ventilated, no dust and any other caustic gas, no strong
electromagnetic interference.
This device can be used normally below the height 1828m, the user is not suggested to use the
device over the height 1828m, it may cause the oxygen concentration low.

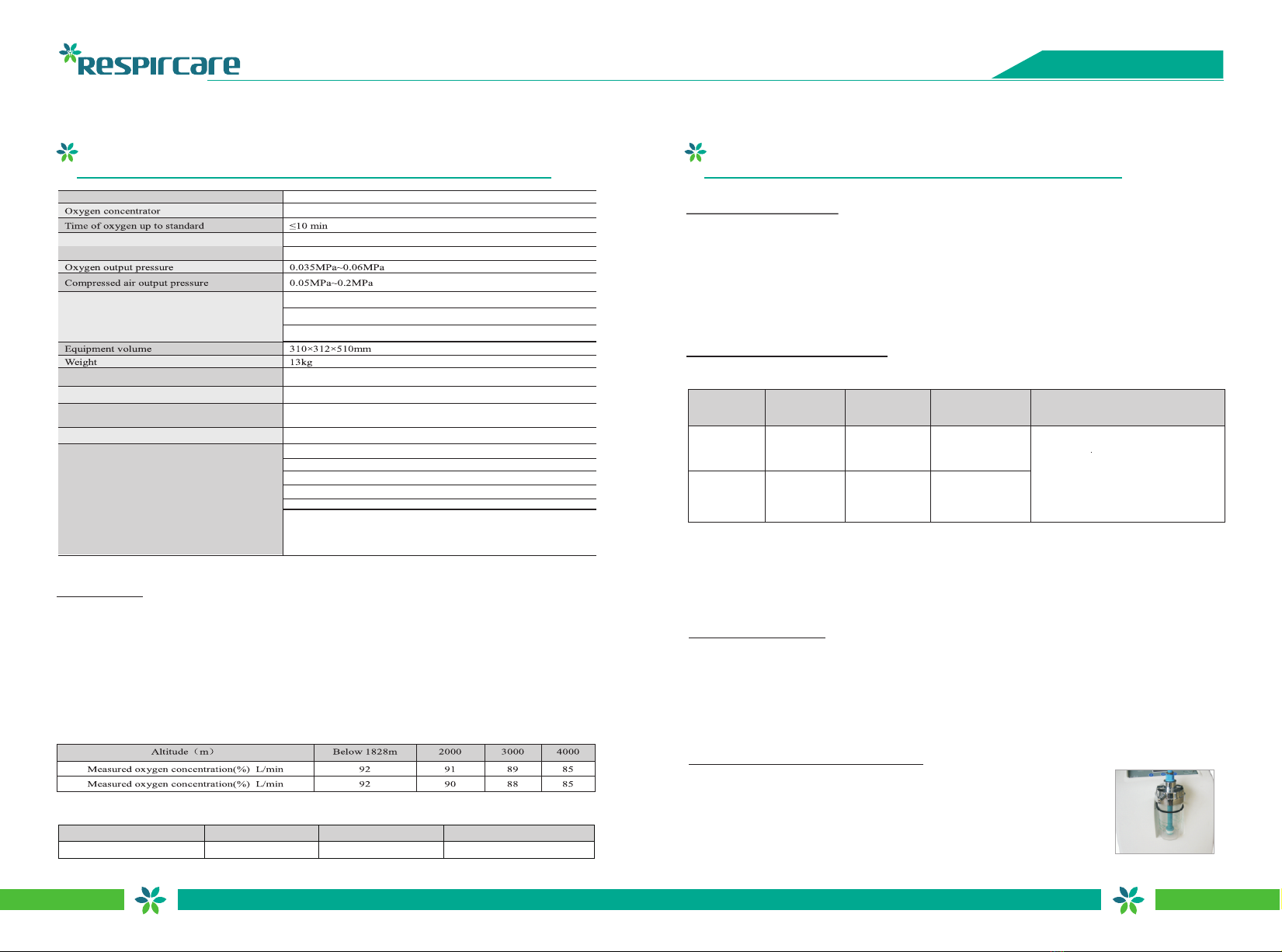

Section 4 Device Technical Indicators
Cautions:
Contionuous operation time Up to 24 hours per day.
Sound Level
≤40dB(A)(AO3/AO3W)、 ≤45dB(A)(AO5/AO5W)
93±3%
Oxygen Output Concentration Levels:
Flow 1L/min 3L/min
5L/min
Concentration 95.6% 93.5%
91.3%
-25℃
+70℃ at a
without relative humidity control;
relative humidity up to 93%,non-condensing;
after having been removed from its protective packaging and
subsequently between uses.
Rated flow
3
(AO3/AO3W)、 18Kg(AO5/AO5W)
Respiratory Medical Solutions
1110
High Pressure Alarm、 、 Low Pressure Alarm
Safety System
Low Oxygen Concentration Alarm、Power Failure Alarm、
periodical Maintenance Alarm、Ti ming Function
Electrical Requirements 230V~,50Hz(The fuze type：SS-5T2A250V)
Power Consumption 400VA(AO3/AO3W),500VA(AO5/AO5W)
IEC 60601-1 classifications Class II (double insulation), Type
AO3/AO3W 0.5~5 93±3% NO/YES
AO5/AO5W 0.5~5 93±3% NO/YES
Oxygen Concentration
Flow Indication
High-low Pressure Alarm
Low Oxygen Concentration
Alarm
Power Failure Alarm
Timing Function
Type
Parameter
CFM Mode
(L/min)
Oxygen(%)
Concentration
Compressed Air
Output Function
Othern Functions
(Indication)
5

Connecting the humidifier bottle
Connect the oxygen outlet in panel and the oxygen inlet in top of humidifier with the
oxygen connection tube.
Turning on the power
Plug in power cord to on an electrical outlet.
Selecting the working mode
Start the device if needs oxygen inhalation, adjust at the flow-rate advised by
physician.
Select the compressed oxygen output mode if needs the compressed oxygen output
function.
Oxygen inhalation
Connect an end of oxygen tube to the outlet of humidifier bottel,fix the tube on use
.
Cautions: Don't adjust the oxygen inhalation time or the flow-rate and Check the
oxygen tubes are connected well. Don't pull the tubes in strength, avoiding the tubes
falling down. oxygen therapy should listen to the physician’s advice.
's
ears, insert the other end into uses' nose for inhalation
Timing
Set the time according to the timer function.
During treatment, there will be alarm if the external power off, the user should take
down the oxygen tube and check the power cord, using it continuously after
troubleshooting. Press On/Off button to use it continuously after the external power
regaining.
End of use
Press the On/Off button to stop the device working after finished using and turn off
the power cord. Take down the power line if you don’t often use it.
5.4 Operating Panel and LCD Screen
Start/Stop
Plus Key Minus Key Timer Key/Mode
Oxy Concentrtor
Oxygen
0 1 2 3 4
Total time 00007 hour
Flow L/min
It is composed of buttons, indicator light and LCD screen, etc.
The LCD screen display the standby interface and the operation interface.
St an dby i nt erfac e: Sh ow th e
working mode, accumulated service
time.
Flow regulator
0xygen outlet
Respiratory Medical Solutions
START/STOP
Oxygen
Conce ntr ati on
0 1 2 3 4
This tim e 00:00 h /min
Timer off - -:- - h/ min
Flow L/min
Timer Key/Mode
Start/Stop: Start or stop operation
In working state,press this button to enter into time mode
In the standby state,switch between the oxygen supply mode(CFM) and
compressed air outlet mode(AO5W)
by pressing this button
Plus/Minus Key In timing mode,use this button to increase or reduce the time
Respiratory Medical Solutions
1312

Section 6 Cleaning And Maintenance
6.1 Cleaning and Maintenance
Cautions:Unplug the power of device before cleaning to avoid the electrical shock.
☻The cabinet of oxygen concentrator(once a month): clean the cabinet of device with
the wet towel with little detergent,and then wipe it with dry towel.
☻Inlet filter (once a week): Remove the cabinet filter,clean the dust or foreign
matters on the filter,then rinse thoroughly with clean water,dry the filter naturally
completely,put the filter on the device again for continuous usage.
☻Air lnlet filter: Check once a month,if there is lots of dust on filter,connect RMS or
supplier for purchase.
☻The LCD will display the prompt words for routine maintenance every 3000 hours
when you use RMS oxygen concentrator. Please contact RMS or supplier for proper
maintenance.
☻If any fault of oxygen concentrator,please contact RMS or supplier for solution.
☻User should observe the instruction on safety and clean & maintenance for long
period service of the device.
☻If accessories need replacement,please use the parts provided by RMS only.
☻When the medical molecular sieve oxygen concentrator and accessories are out of
service life,dispose properly of them by contacting RMS or supplier.
☻The service time of oxygen concentrator is 5 years.It is suggested that the molecular
sieve should be replace after continuous usage for 20000 hours,otherwise the oxygen
concentration maybe affected.
6.2 Warranty Instruction
The following situations are not in free warranty:
☻The device is dismantled by unauthorized person.
☻The damage caused by inproper maintenance or usage.
☻The damage caused by human error; (fault operation, konck,moving,liquid
infiltration, etc.)
☻The damage by natural disasters or accidents.
☻Other accessories not listed for warranty.
Oxygen
Concentration
0 1 2 3 4
This time 00:00 h/min
Timer off - -:- - h/min
Flow L/min
5.5 Operating Method
Operation interface: Display working
m o de, ala r m i n f o r m a t ion , o x y g e n
concentration, oxygen flow , present
service time, timing time.
Mode Selecting
In the standby state:press timer/mode key to switch between oxygen supply
mode(CFM) and compressed air output mode(AO5W).
Flow Adjusting
Adjust the flow to the setting rate by turning flow regulator .
Timer Function
In working condition, press timer/mode key,the timing indicator flickers and select
the time by plus/minus key;Confirm by pressing timer/mode key ,then the indicator
stops flickering.The device will enter into service contdown,when it reaches the setting
time,the concentrator will stop working automatically.
Compressed Air Output Function (Alternative)
Cautions:
☻ Cleaning the atomized device every time after using .
☻ Cleaning the atomized device and connecting tube with clean water and cleanser.
☻ Cleaning the atomized adapter and mask with water, then soak it with medical
alcohol to disinfect, cleaning it again and putting it into bag after drying.
☻ Taking off the compressed air adapter of the device after atomized treatment, in
order to avoiding air leakage.
In the standby state, press timer/mode key to select the output mode of compressed
air;connect one end of tube with compressed air connector properly,then insert the
connector directly to the compressed air outlet of the concentrator,turn off flow
regulator.press start button,output the compressed air.push inward the metal ring to
remove the connector after operation.
Respiratory Medical Solutions
1514

Section 7 Troubleshooting Guide
7.1 Troubleshooting
Oxygen irregular tube Smooth the irregular part of the tube
Air leakage on humidifier bottle Tighten the humidifier bottle
and the cap again
incrustant
Rinse the outlet attached with
water scales by vinegar for about
20 minutes,flush with fresh water
The flow regulating rotated
improperty
Power cord not plugged in or
improper connection
humidity
Over filling or use water warm
The location differs from usage
place,with temperature difference Do not operate the device in the
rooms with temperature difference
Exhaust pipe is dropped off
sound
Drip
Respiratory Medical Solutions
1716
There may be the following alarm information during using the device, please pay attentions:
7.2 Alarms
indicator flashing
Continuous Alarm
Concentrator not operating
Press start/stop the alarm stops
Call service provider
indicator flashing
Continuous Alarm
start/stop, the alarm stops
Call service provider
Concentrator not operating
The red “low pressure indicator”
flashing
Continuous Alarm
Press start/stop, the alarm stops
Call service provider
Concentrator not operating
The red “hign pressure indicator”
flashing
Continuous Alarm
Press start/stop, the alarm stops
Call service provider
The yellow “periodical
maintenance” flashing
Contact the service provider
Continuous Alarm
Periodical Maintenance
Inspect the external connection
of power
Low Oxygen Concentration
Alarm(oxygen
concentration<72%)
High Oxygen Concentration
Alarm(oxygen concentration
from72%to 83%)
value
value
Periodical Maintenance Alarm
(the device will remind user
when it reached the
maintenance time)
Power Failure Alarm
(the main power loss in
working state)
Alarms Description Action

Appendix A EMC Information
Guidance and Manufacturer’s Declaration
Warning
Medical Electrical Equipment needs special precautions regarding EMC and needs to
b e i n s t a l l e d a n d p u t i n t o s e r v i c e a c c o r d i n g t o t h e E l e c t r o m a g n e t i c
Compatibility[EMC]information provided
in the accompanying documents.
Portable and Mobile RF Communications Equipment can affect Medical Electrical
Equipment.
The equipment or system should not be used adjacent to or stacked with other
equipment and that
if adjacent or stacked use is necessary,the equipment or system should be observed to
verify normal operation in the configuration in which it will be used.
NOTE-The EMC tables and other guidelines provide information to the customer or
user that is essential in determining the suitability of the Equipment or System for the
Electromagnetic Environment of use,and in managing the Electromagnetic Environment
of use to permit the Equipment or System to perform its intended use without disturbing
other Equipment and Systems or non-medical electrical equipment.
IMMUNITY
test
IEC 60601 test
level
Compliance
level
Electromagnetic environment –guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80
MHZ
outside ISM
bandsa
3 V/m
80 MHz to 2,5
GHz
3V
3V/m
Portable and mobile RF communications
equipment should be used no closer to any part
of the XXXXXXX, including cables, than the
recommended separation distance calculated
from the equation applicable to the frequency of
the transmitter.
Guidance and manufacturer’s declaration – electromagnetic immunity
This device is intended for use in the electromagnetic environment specified below.
The customer or the user of should assure that it is used in such an environment.this device
Respiratory Medical Solutions
1918
Recommended separation distances between portable and mobile RF communications
equipment and this device.
T is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile
RF communications equipment (transmitters) and as recommended below,
according to the maximum output power of the communications equipment.
his device
this device
this device
Rated maximum
output powerof
transmitter( )W
Separation distance according to frequency of transmitter( )m
150 kHz to 80 MHZ
80 MHz to 800 MHZ
800 MHz to 2,5 GHz
0.01
0.117
0.117
0.233
0.1
0.36999
0.0.36999
0.73681
1
1.17
1.17
2.33
10
3.69986
3.69986
7.36811
100
11.7
11.7
23.3
