Retekess TA003 User manual
TA003 & TA004
RECEIVER & TRANSMITTER
User Manual ◆What’s in the box
Transmitter Box
●1* Transmitter
●1 *Antenna
●1 *9V Power Adapter
●1 *male 1/8" to male 1/8" cable
●1* male RCA to female 1/8" cable
●1* User Manual
Features
Figure A:
1. MIC: 1/8 inch microphone input. Plug in a wired microphone to be mixed with the
audio being transmitted.
2. RCA R+L Input: Connect your mixer or audio device to the Left and Right RCA
input.
3. POWER: The light will illuminate green when it is charging, and red when it is on.
4. OFF-LO-H: This switch toggles the transmitter on and selects the power level at
which it transmits.
Switch to LO for low power mode. Transmission distance will be roughly 100 feet.
When using the internal battery, the system will always transmit in low power mode.
Switch to HI for high power mode. Transmission distance will be roughly 300 feet.
Note: High power transmission mode is only available when the transmitter is
plugged in with the DC 9V adapter.
5. USB Factory Service: DO NOT use this connection to charge/power the device.
This connection is used to update the device and is intended for service personnel
only.
Figure B:
6. ANTENNA: The antenna attaches here using the BNC connector.
7. CHANNEL: This button changes the channel the transmitter is using. Press to
toggle between channel 1, 2, 3, etc. The LED display will show the currently selected
channel. Notes: When more than two transmitters are working simultaneously, make
sure each transmitter on a different channel.
8. DC-9V: Connect the power adapter here to power the unit and charge the internal
battery. While the transmitter is plugged in, it can be operated in high power mode.
(See Fig A. Item #4) ◆Getting Connected
The transmitter is easily wired into any system,
just fllow these steps:
1.Attach the antenna to the transmitter (Arrow #1)
2. Connect a cable from the Audio Output on the
music source to the RCA Audio Input located on
the Silent Symphony transmitter. (Diagram pg 3)
3. Connect a microphone to the 1/8" input on the
transmitter to be mixed with the audio signal.
(Diagram pg 3)
4. Select the Transmission Power Level. (Pg 2, Fig
A, Item #4)
5. Select from one of the available frequencies to
broadcast on with the Channel Select switch.
(Arrow #2)
6. Power your headset receiver(s) ON and select
the appropriate channel to listen with the Tune
button.
7. Adjust the headset receiver volume to a
comfortable listening level.

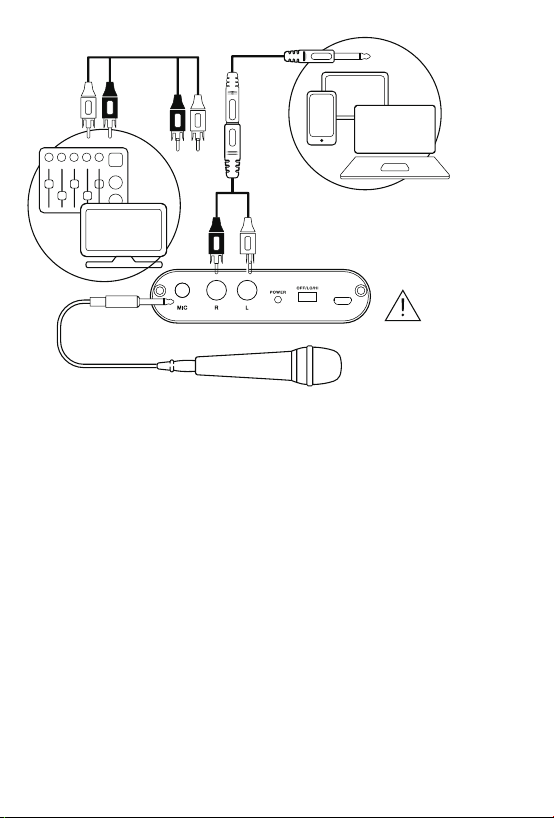

Factory
Service
Use RCA to 1/8" Female, connect to
1/8" Male to 1/8" Male, then out to
Laptop, Phone, Tablet
Factory
Service
RCA to RCA Not Included
1/8" Microphone and Wire Not Included
Do Not Connect Mini
USB Charging Cable
to Transmitter
FAQ / Troubleshooting
Why am I not hearing any sound from the headset receiver(s)?
● Make sure the headset receivers are tuned to the same channel as the transmitter.
● Double check volume levels at:
Music source
Any sound equipment connected to the transmitter
Headset receiver(s)
● Double check the connections from the Music Source to the Audio Input.
● Ensure the internal batteries are fully charged for both the transmitter and headset.
How many receivers can work at once?
● There is no limit to the number of receivers that can be in one area.
Is there a pairing process to add additional headset receiver(s)?
● No, there is no pairing process other than selecting the appropriate channel with
the TUNE button located on the headset receiver(s).
How far does the transmitter reach when on high and low settings?
● On the high setting, the operational range is approximately 300ft.
● On the low setting, the operational range is approximately 100ft.
What is the expected battery life for the headphones and for the transmitter when
being used remotely?
● The headphones can run for about 8 hours continuously, and transmitter can run
for about 5 hours continuously before needing to be charged.
● Please allow at least 6 hours of charging time. ◆What’s in the box
Receiver Box
●1 * Headphone receiver
●1 * USB charging cable
●1 * User Manual
Features:
● Transmits audio signal about 300M, through walls, floors and ceilings.
● Active noise reduction system for crystal clear sound
● Advanced 40mm speaker for outstanding sound performance
● Double PLL system for ultimate frequency stability
● Big channel-indicating logo light, you can see the channel difference by logo color
change
● Soft leatherette ear cushions and robust headband let you listen to your
entertainment in extreme comfort, even during long hours of extended wear
● With Shock-Resistant, Robust Metal Headband
● Endless headphones can be used simultaneously with one transmitter
● Auto mute and automatic shut-off after 10 minutes of no signal detection, conserve
battery life
Operation:
1.POWER/TUNE: Hold the power button for ~3 seconds to turn the
headphones on and off.
Press the power button once to change the selected channel. The LED lights will
change to display the currently selected channel.
Channel 1 – Red
Channel 2 – Green
Channel 3 – Blue
2.VOLUME/LED: Move the switch to the left to increase volume, move to the right to
decrease volume. Press the switch in and hold for ~2 seconds to toggle the LED light
mode. LED will toggle between always on and off.
With this setup, any audio
that is fed into the
transmitter will be
broadcast wirelessly to all
headset receivers tuned to
the same channel and that
are within its operational
range.
Note: The transmitter will
power off if no input signal
is detected after 5 minutes.
TUNE ◆SPECIFICATION
RECEIVER
TRANSMITTER
Modulation type
Modulation Frequency offset
Working Voltage
Built-in Battery
Charging time
Input I/O
Working Current
Transmit Frequency
Power
Antenna gain
Sensitivity
FM / UHF
50KHZ / 600mVrms
9V DC/3.7V DC(Li-ion)
1000mAh
3-3.5H
3.5mm & RCA
LOW：200mA（TYP）; HI：450mA（TYP）US:923.8Mhz\924.5Mhz\925.6Mhz
EU:863.3Mhz\863.9Mhz\864.9Mhz
Low：10dBm，Hight:29dBm
5dB
60mVp-p（TYP）Modulation type
System
Working Voltage
Working Current
Receive Frequency
Receive Sensitivity
Receive Response
Audio output Max.Power
Distortion
SNR
Service time of Max. Audio output
Voltage of charging
Time of charging full
Audio Mode
Channel quantity
Speaker
Frequency Response
Built-in Battery
FM / UHF
UHF / RF
3.7V DC
75±5mA
US:923.8Mhz\924.5Mhz\925.6Mhz
EU:863.3Mhz\863.9Mhz\864.9Mhz
10dBuVemf
60~15000HZ
≥2200mVp-p
<2%
>60dB
≥8h
5V DC Max. Current：300 mA
2~3h
Stereo
3 CH
40mm
20-15000Hz
600mAh
12 3 4 5
SECTION A:TRANSMITTER SECTION B:HEADPHONE RECEIVER
