Reverie R01SB0465 Assembly instructions

www.reverie.ltd.uk Page 1/4
ReVerie Ltd
Tel: [phone]
Unit 2, handlers Row 02081 235997
Port Lane Fax: [phone]
olchester E-mail: [e-mail]
Essex, O1 2HG Skype: Reverie_ omposites
R01SB0465
Introduction
This extended carbon diffuser improves down force as its approximately 120mm longer, featuring
deeper vanes and also further reduces drag. This part is best used with our rear diffuser surround
shroud R01SB0482, otherwise you will have to make your own rear diffuser hangers or infil panel.
Please if Dyno testing the car remove this part and any car on mid floor or diffuser fitted
as there is a danger without air flow the car on could ignite.
Parts Available:
R01SB0482 Exige V6 S3 Rear diffuser surround
R01SB0465 Exige V6 S3 Rear carbon diffuser
LOTUS DISCLAIMER
Although ReVerie Limited supply parts for use with/on vehicles manufactured by Lotus ars Limited, ReVerie
Limited is in no way connected to Lotus ars Limited or any other member of the Lotus Group of companies
(“Lotus”) and is entirely independent of Lotus. Accordingly, none of the products offered for sale or supplied by
ReVerie Limited (nor any advice or service offered or provided by ReVerie Limited) are in any way endorsed by
Lotus and Lotus has not tested or approved any such products or services. Accordingly, Lotus shall not under
any circumstances be liable for any loss, claim, damages or any consequential, indirect or special damages
whatsoever arising out of or in connection with the use of products sold or supplied by ReVerie.
Tools Required
Small ¼” drive metric socket set
Drill and metric drill bits set 3-10mm
Metric allen key set
Parts supplied
R01SW6242 2 off M8 x 30mm washer
R01SW6049 2 off M8 x 30mm button head socket screw
R01SW6071 11 off M5x20mm cap head s/steel bolt
R01SW6072 11 off M5x25mm washer
Exige V6 S3 Rear Diffuser Fitting Guide

www.reverie.ltd.uk Page 2/4

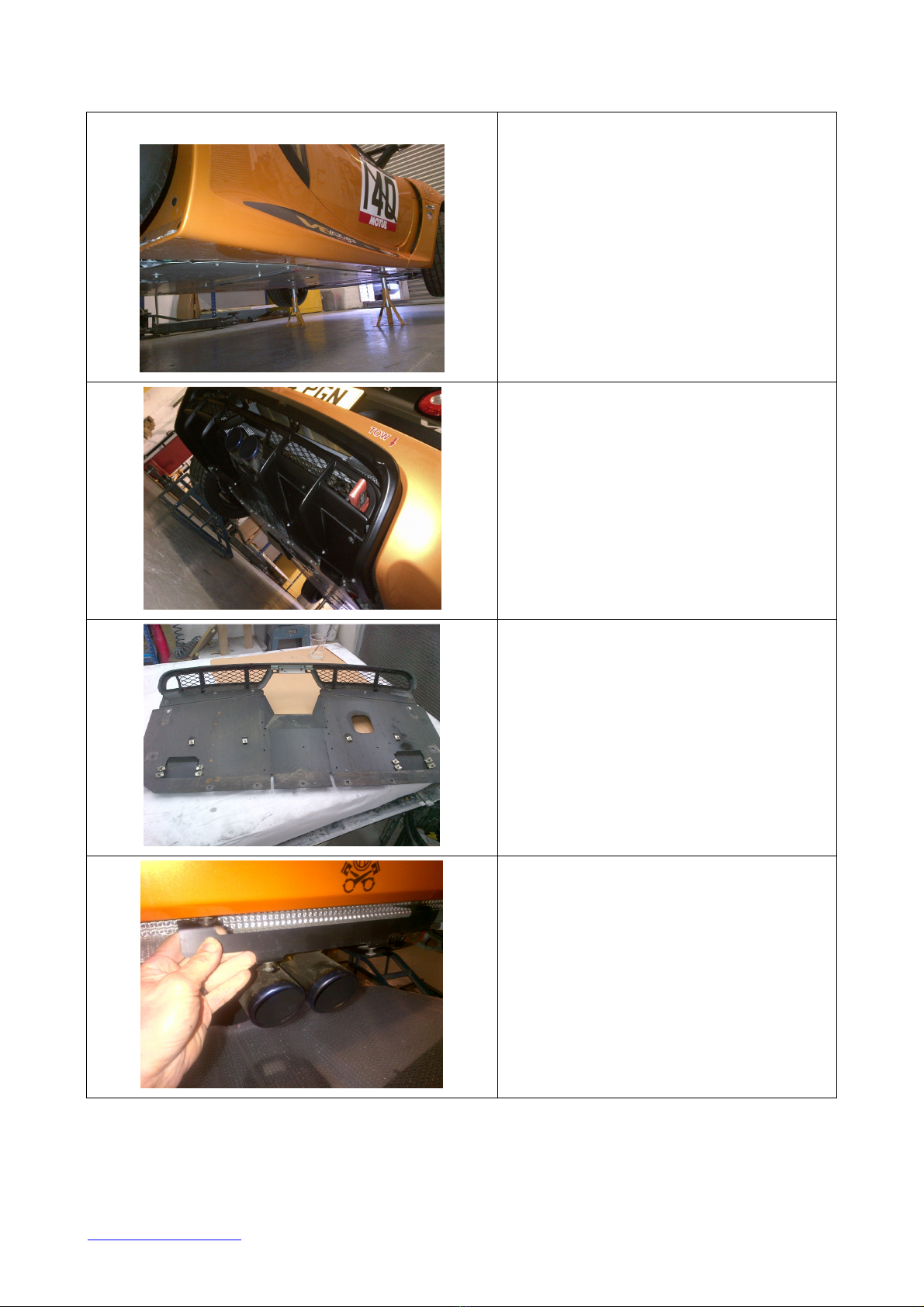

1. Handbrake on
Jack up the car carefully as per
lotus handbook instructions and
support on four axle stands
safely. Caution vehicle very rear
weight heavy.
We find it is better to jack up
with a low jack and 4 mm spacer
under the rear wishbones, then
support the rear wheels with steel
ramps.
2. Unbolt the OEM ear diffuser to allow
access to the Rear upper diffuser
surround trim bolts and rivets.
3. Oem diffuser shown off the car
4. Unbolt and remove this centre
diffuser hanging bracket

www.reverie.ltd.uk Page 3/4
5. Now unbolt the one lower bolt each
side and the 5 upper bolts and
carefully drill out the upper diffuser
surround fixing rivets. Also remove
any parking sensors if fitted, these
cannot be refitted to our Reverie
part (unless you do your own
custom modification).
6. Rear OEM diffuser surround
shown off the car
7. Existing Lotus fixing holes shown.
Best to now fit the diffuser surround
(see instructions) or make your own
diffuser rear hangers or infil panel
8. New diffuser shown ready to fit to
the Exige. Simply bolt up along the
front to mid floor with original or new
M5 fixings, Also the 2 off M8 into
rear sub frame brackets. The Rear
fixings needs our diffuser surround or
your own hangers.
9. Rear diffuser m5 fixings shown in
our diffuser support panel, 3 each
side. Once installation complete,
carefully lower the vehicle to the
ground for use.
Never rolling road tune the vehicle
with a Carbon mid floor, diffuser or
diffuser surround fitted as these
parts may become hot and ignite
without cooling airflow normally
present.

www.reverie.ltd.uk Page 4/4
WARNING, MOTORSPORT OR DRIVING CAN BE DANGEROUS RESULTING IN DEATH OR
PERSONAL INJURY.
READ OUR FITTING INSTRUCTIONS CAREFULLY
This article is sold without warranty expressed or implied. No warranty or representation is made as to this product’s ability to protect the user
from injury or death. The user assumes that risk. The effectiveness, warranty and longevity of this equipment are directly related to the manner in
which it is INSTALLED, USED, and/or MAINTAINED. THE USER ASSUMES THE RISK.
Fitment of REVERIE PRODUCTS TO AUTOMOBILES THAT ARE SUBJECT TO A MANUFACTURER'S WARRANTY MAY VOID THE
MANUFACTURER'S WARRANTY AND THE VEHICLES ABILITY TO MEET EMISSION OR OTHER TRANSPORT REGULATIONS.
By purchasing this product and opening the packaging, purchasers expressly acknowledge, understand and agree that they take , select and
purchase these REVERIE products from REVERIE, its affiliates, distributors, and agents ( collectively, REVERIE) "as is" and "with all faults".
The entire risk as to the quality and performance of these REVERIE parts is with the purchasers. Should the goods prove defective following their
purchase; the purchasers assume the entire cost for all necessary servicing or repair or any resulting liability. Working on your car can be a
dangerous activity. If you are unsure of what you are doing, please leave mechanical or Safety critical work to a skilled mechanic.
We take no responsibility for the incorrect use and / or installation of REVERIE products.
WWW.REVERIE.LTD.UK
UV-PROTECTION
Please Note Epoxy Pre-preg products are not UV stable. Texallium products are particularly liable and can yellow in only 2 – 6 weeks.
The epoxy resin will ‘yellow’ with prolonged exposure to UV radiation and material strength properties will slowly deteriorate. We
recommend exterior products or those exposed to constant UV are either regularly treated with UV polish or screens such as Armour-all
or 606 protect ant or colour painted or at least Lacquered. We use predominately 2K car lacquers of medium solids, the DBS range has
been found very suitable, although people have had equally good results with Urethanes varnishes and epoxy clear coats.
The surface should be sanded with 180, 240 then 320 grit and a cleaning solvent used to remove grease or dirt prior to paint
application. Several coats may be required (normally 3 to 4 light coats) to avoid pin-holing, common with painting composite products.
Pin holes may be dubbed in carefully with a brush, then wet flatted for a final application of 3 thin coats.
Let air dry only, you may stove the paint at 70’c once fully air dried.
