Revolution Micro Avici User manual

120/240/277v or 347v
Avici Integrated LED Lighting System
Owner's Manual 3 March, 2021

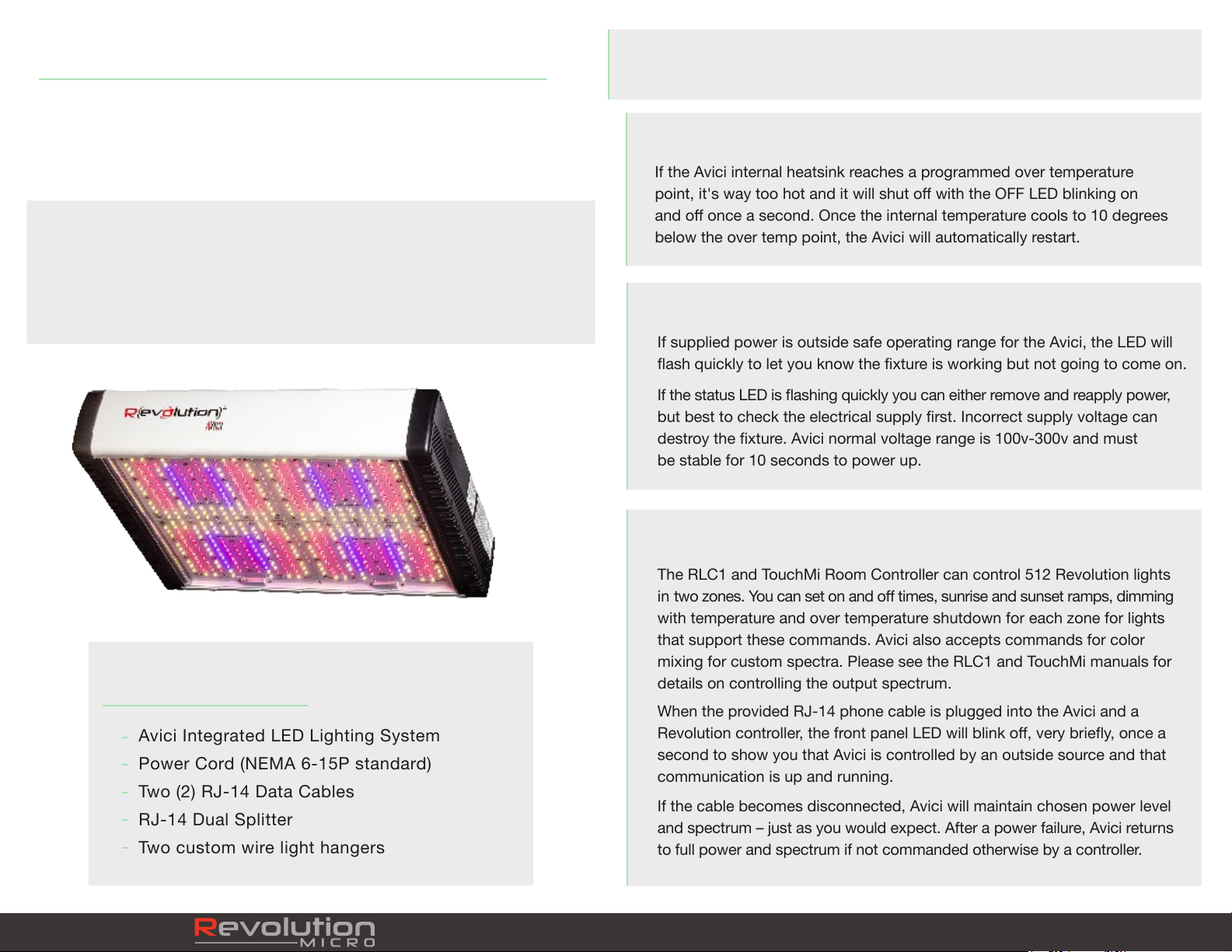

The Box Contains
Avici Integrated LED Lighting System
Power Cord (NEMA 6-15P standard)
Two (2) RJ-14 Data Cables
RJ-14 Dual Splitter
Two custom wire light hangers
Blinking LEDs – What Your Avici Is Telling You
Blinks Once A Second – Over Temperature or Fan Failure
If the Avici internal heatsink reaches a programmed over temperature
point, it's way too hot and it will shut o with the OFF LED blinking on
and o once a second. Once the internal temperature cools to 10 degrees
below the over temp point, the Avici will automatically restart.
Blinks Four Times A Second – Over Voltage / Under Voltage
If supplied power is outside safe operating range for the Avici, the LED will
ash quickly to let you know the xture is working but not going to come on.
If the status LED is ashing quickly you can either remove and reapply power,
but best to check the electrical supply rst. Incorrect supply voltage can
destroy the xture. Avici normal voltage range is 100v-300v and must
be stable for 10 seconds to power up.
Flickers Briey Once a Second – External Control
The RLC1 and TouchMi Room Controller can control 512 Revolution lights
in two zones. You can set on and o times, sunrise and sunset ramps, dimming
with temperature and over temperature shutdown for each zone for lights
that support these commands. Avici also accepts commands for color
mixing for custom spectra. Please see the RLC1 and TouchMi manuals for
details on controlling the output spectrum.
When the provided RJ-14 phone cable is plugged into the Avici and a
Revolution controller, the front panel LED will blink o, very briey, once a
second to show you that Avici is controlled by an outside source and that
communication is up and running.
If the cable becomes disconnected, Avici will maintain chosen power level
and spectrum – just as you would expect. After a power failure, Avici returns
to full power and spectrum if not commanded otherwise by a controller.
Congratulations on your new Avici. The Avici combines an array of
Osram LEDs with our custom-designed drivers for one amazing,
programmable spectrum, computer-controlled grow lighting system.
This manual will tell you how to hang, connect and operate your new Avici.
404/334-9788
[e-mail]

Avici LED lights have a wide-input power supply of 120/240/277 volts, and can
be ordered with various power cords as noted below. The Avici 347v version is
direct-wire, with a 3 meter pigtail cable attached.
Avici has four (4) fans to keep the LED chips cool. While rated to run at 85C,
the Osram chips in the Avici only run about 55C for long life. At full power,
the fans run all the time. At reduced power, fan speed with be reduced
proportionately.
Fans come on briey at power up just to let you know they're working, and
stay running 30s after the lights turn o.
In the event of an over-temperature condition, Avici will power down if the
heatsink exceeds 60C to protect the LEDs. Once temperature drops to
50C, Avici will recover and re-light.
AVICI1150W-US120
Plug: NEMA5-15P
AVICI1150W-US240
Plug: NEMA6-15P
AVICI1150W-AUS
AVICI1150W-UK
AVICI1150W-EURO
AVICI1150W-277
Plug: NEMA L7-15P
USA, Canada
USA, Canada
Australia, New Zealand,
China, Argentina
UK, Ireland, Singapore
Europe (except UK)
USA, Canada, Europe
These are available by
special order for projects
that require a locking
connector.
These are the data cables we supply. If you get longer or dierent ones,
make sure they are wired like this.
Data Cables and Connections
Look at the cable ends in the pic to the right and you’ll see the wires are
the same by color, pin 1 to 1, pin 2 to 2, etc. on each connector.
FansPower Cables
We have tested and recommend these cables:
Digikey Part Number A2662R-07-ND, 7’ long.
Digikey Part Number A2662R-25-ND, 25’ long.
RevMicro has the right cables of all sizes should you need them, or
http://digikey.com is a good source in the USA.
404/[e-mail] 404/334-9788
[e-mail]

Specifications
Spectrum
PPF
Max Wattage
Ecacy
Input Current
Input Voltage
Input Power Plug
Power Factor
Light Source
Lifetime
Ingress Rating
RMH (Recommended Mounted Height Above Canopy)
Footprint @RMH
Dimming / Spectrum Control
Dimensions
Programmable
2800 μMole/sec dimmable in 10% steps
1150w
2.45
9.6 A @ 120 volts, 4.8 A @ 240 volts, 4.17 A @ 277 volts
120/240/277 volts AC, 50/60 Hz or 347v 50/60 Hz
NEMA 6-15P (240v) or NEMA 5 or NEMA L7P
0.99 @ 120 volts
Osram OSLON LED array
> 150,000 hours
IP54
> 18”
5’ x 5’
External Controller
435mm x 528mm x 121.6mm ( ~ 17” x 21” x 5”) 15.0 kg ( ~ 32 lbs)
The Avici Integrated LED Lighting System has been tested
at FCC-certied laboratories in the United States and
conforms to FCC’s Part 15B Consumer standard for both
conducted and radiated emissions.
Given that all electronic equipment emits some RF energy,
please note that compliance with these standards does
not mean a zero level of emission, only a very low level
of emission.
The FCC requires that we also state:
This product may cause interference to radio
equipment and should not be installed near maritime
safety communications equipment or other critical
navigation or communication equipment operating
between 0.45-30 MHz.
This device complies with Part 15 of the FCC Rules.
Changes or modications not expressly approved by
Revolution Microelectronics could void the user’s
authority to operate the equipment.
FCC Compliance Statement
Avici 1150W
