RFI Emission OS-214plus User manual

OS-214plus
Desktop Barcode Printer
User’s Manual
I
Proprietary Statement
This manual contains proprietary information of Argox Information Co., Ltd. It is
intended solely for the information and use of parties operating and maintaining
the equipment described herein. Such proprietary information may not be used,
reproduced, or disclosed to any other parties for any other purpose without the
expressed written permission of Argox Information Co., Ltd.
Product Improvements
Continuous improvement of products is a policy of Argox Information Co., Ltd. All
specifications and signs are subject to change without notice.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that the interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into a different outlet on a different circuit.
Consult the dealer or an experience Radio/TV technician for help.
This unit was tested with shielded cables on the peripheral devices. Shielded
cables must be used with the unit to insure compliance. The user is cautioned
that any changes or modifications not expressly approved by Argox Information
Co., Ltd. could void the user’s authority to operate the equipment.
CE Statement of Conformity
This products is herewith confirmed to comply with the requirements set out in
the Council Directive on the Approximation of the laws of the Member States
relating to Electromagnetic Compatibility Directive (89/336/EEC). For the
evaluation regarding EMC, the following standard was applied:
RFI Emission:
EN 55022: 2006 + A1: 2007 Class A
EN 61000-3-2: 2006 Class A

II
EN 61000-3-3: 1995 + A1: 2001 + A2:2005
Immunity:
EN 55024: 1998+A1: 2001+A2: 2003
Liability Disclaimer
Argox Information Co., Ltd. takes steps to assure that the company’s published
engineering specifications and manuals are correct; however, errors do occur.
Argox Information Co., Ltd. reserves the right to correct any such errors and
disclaims any resulting liability. In no event shall Argox Information Co., Ltd. or
anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any
damages whatsoever (including, without limitation, damages for loss of business
profits, business interruption, loss of business information, or other pecuniary
loss) arising out of the use of or the results of use of or inability to use such
product, even if Argox Information Co., Ltd. has been advised of the possibility of
such damages.
III
Table of Contents
Getting Started.......................................................................... 1
Unpacking .............................................................................. 1
Package Contents.................................................................... 2
Connecting the Power Supply ................................................. 3
Getting to Know Your Printer.................................................. 4
Parts and Features................................................................... 4
Controls and Indicators........................................................... 6
Loading Ribbon and Media...................................................... 8
Loading a Ribbon ................................................................... 8
Loading Media...................................................................... 13
Standard Mode.................................................................. 13
Cutting Mode.................................................................... 18
Calibration and Configuration............................................... 20
Performing Calibration and Configuration ............................ 20
Resetting to Factory Default Settings .................................... 21
Computer Connections........................................................... 22
USB Interface Requirements................................................. 22
Serial (RS-232) Interface Requirements ................................ 23
Parallel Interface Requirements ............................................ 24
Serial and Parallel Cabling Requirements.............................. 24
Communicating with the Printer ........................................... 25
Installing the Printer Driver (Seagull Driver) .................... 25
Driver for Plug and Play (USB Only).................................... 29
Driver for Win Vista (USB Only).......................................... 32
Troubleshooting ...................................................................... 36
LED Diagnosis ..................................................................... 36
Miscellaneous....................................................................... 39
Recovery .............................................................................. 40
Caring for Your Printer.......................................................... 41
Cleaning ............................................................................... 41
Media Sensor .................................................................... 41

IV
Thermal Print Head ........................................................... 41
Replacing the Thermal Print Head.....................................44
Important notice during TPH replacement ........................... 46
Technical Reference ................................................................47
General Specifications...........................................................47
Fonts, Bar Codes and Graphics Specification ........................ 49
Printer Programming Language A, PPLA .......................... 49
Printer Programming Language B, PPLB .......................... 51
Interface Specifications ......................................................... 52
USB Interface....................................................................52
Serial................................................................................. 53
Connection with host:........................................................ 53
Parallel (Centronics).......................................................... 56
Auto Polling...................................................................... 56
Appendix I - Installing the Cutter..........................................57
Appendix II - Installing the Extension Card.......................... 60
1
Getting Started
Congratulations on choosing the Argox OS-214plus desktop
barcode printer. This manual will help you get to know your new
printer. There are two parts to this manual, an operation guide
and related information. The operation guide is illustrated to help
you quickly become familiar with the printer. The related
information includes troubleshooting, maintenance and technical
information for your reference.
Unpacking
After receiving your printer, please check for possible shipping
damage:
1. Inspect the outside of both the box and the printer for
possible damage.
2. Open the top cover of the printer to see if the media
compartments are in order.
Note: If damage has occurred, contact your shipping company
immediately to file a claim.
3. Check whether you have received the following
accessories together with the printer. If there are any
items missing, please contact your local dealer.

2
Package Contents
Printer
Power Supply
Power Cord
Quick Installation Guide
CD ROM
USB Cable
0.5” ID Core for Ribbon
Media Holder
3
Connecting the Power Supply
Connect the power supply as below.
WARNING! Do not operate the printer and power supply in an
area where they can get wet.
Make sure the power switch is in the "O" position, and be careful
not to touch the 36-pin parallel connector.
1. Insert the barrel connector of the Power Supply into the power
jack on the back of the printer. Note the location of the power
jack for different models in the diagrams below.
2. Insert the separate power cord into the Power Supply.
3. Plug the other end of the cord into an AC electrical outlet.
OS-214plus

4
Getting to Know Your Printer
Parts and features of the OS-214plus are illustrated below.
Parts and Features
OS-214plus
Top Cover
Power Switch
H Cover
Power
Indicator
Ready Indicator
Feed Button
5
Ribbon Pick-up Holder
Release Levers
Media Hanger
Power Switch
Ribbon Supply Holder
Thermal Print head
Platen Roller

6
Controls and Indicators
The printer’s controls and indicators are shown in the diagram
below. The following table explains control and indicator
functions.
Top Cover
Power Indicator
Ready Indicator
Feed Button
Power Switch
7
Control /
Indicator Function
Power Switch
On: turns on normal operation
Off: turns off power
Note: Turn power off before connecting or
disconnecting cables
Power Indicator
Green light shows the power-on
Light off shows the power-off
Blinking light indicates error has occurred
Ready Indicator
Green shows printer is ready to operate
Blinking light indicates printer is paused or
data transferring
Seagull driver status monitor
Feed Button
Press to advance labels to the first printing
position
Press to take the printer out of "pause"
Press and hold while turning on the power
to print out a configuration profile

8

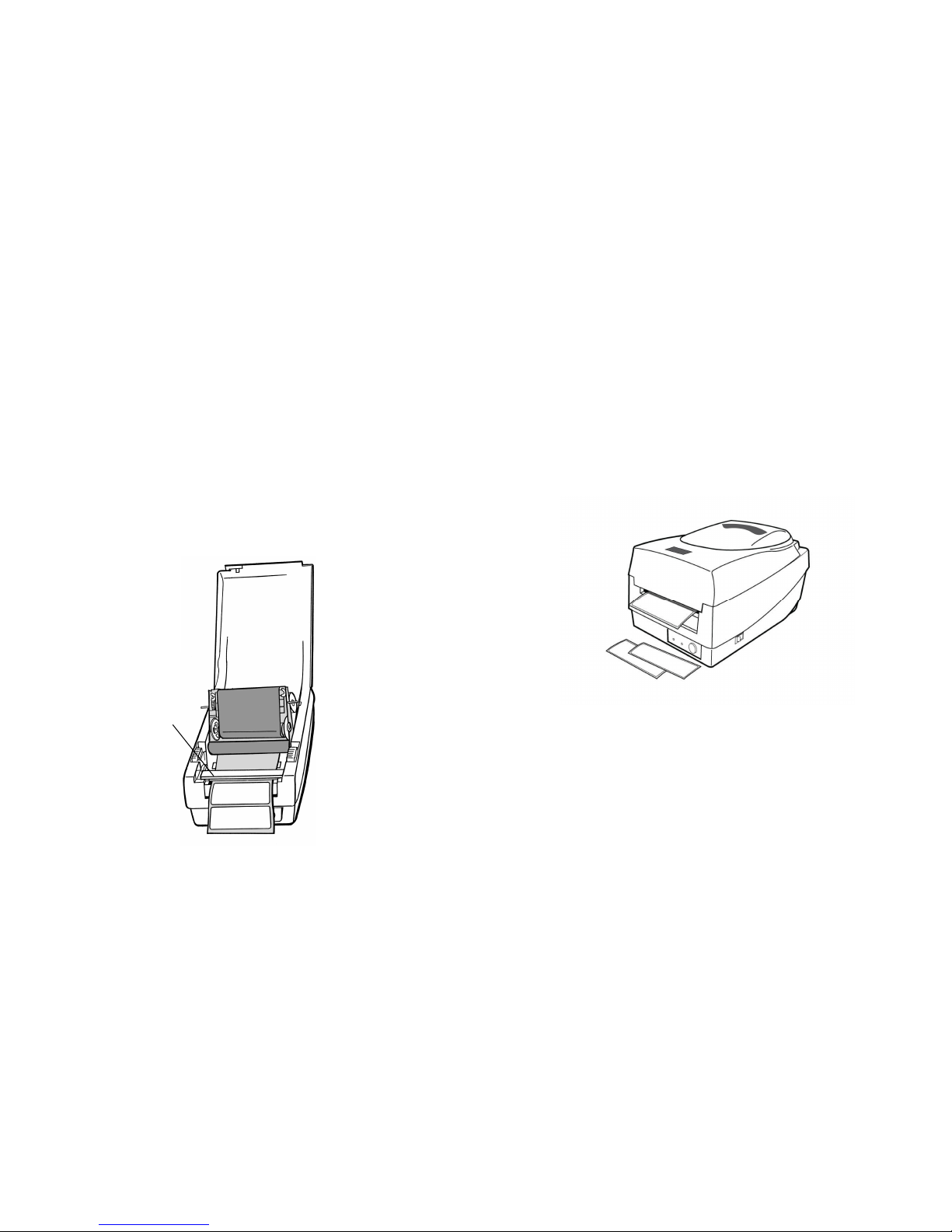

Loading Ribbon and Media
This section describes how to load ribbon and media into the
OS-214plus printer.
Loading a Ribbon
Note: This section does not apply to direct thermal printing.
1. Lift the top cover to expose the media compartment.
2. Unlatch the print head module by pushing the two white
release levers on the sides toward the rear.
3. Turn over the print head module to expose the ribbon
supply holder.
9
Media Compartment
Release Lever
Print Head Module
Release Lever
Ribbon Supply Holder

10

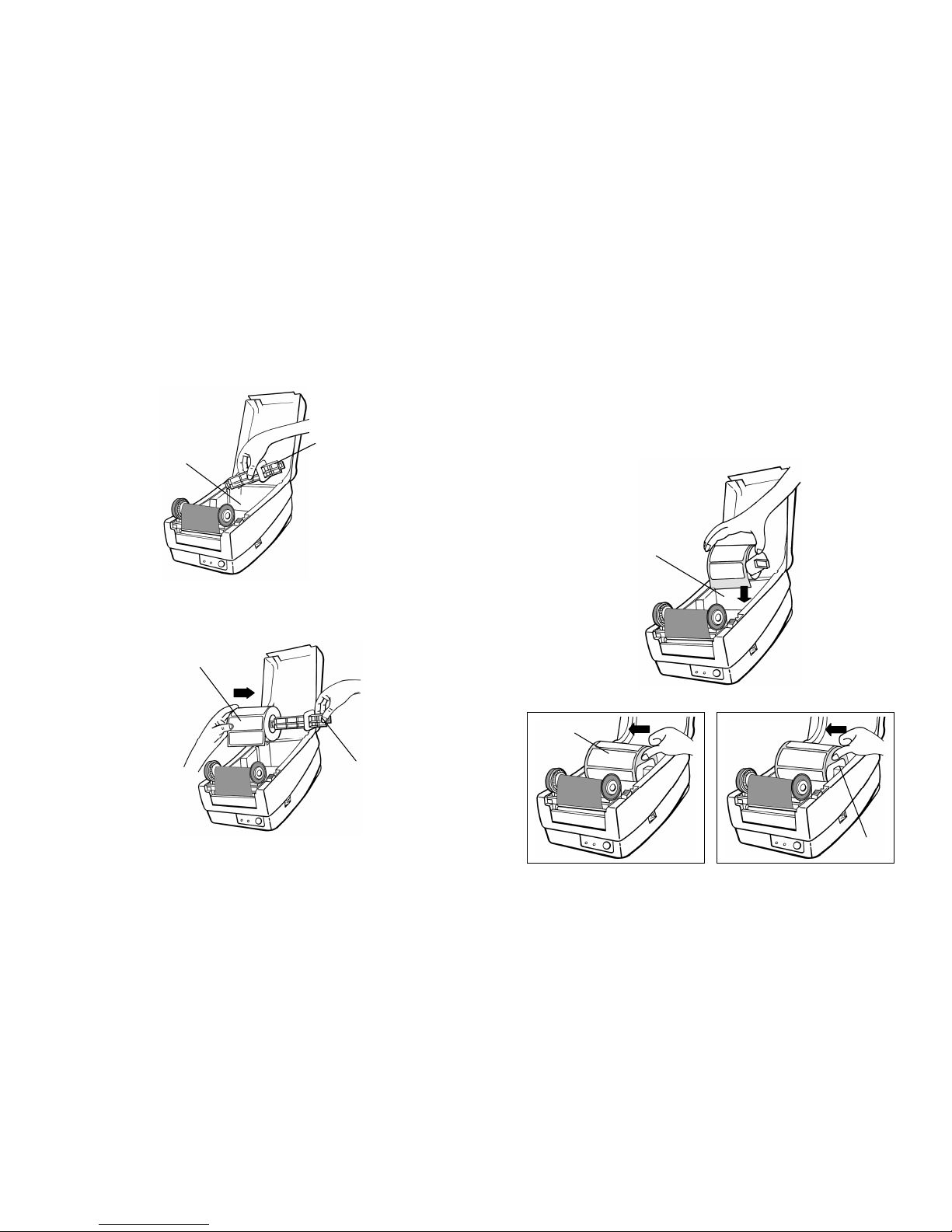

4. Unwrap the ribbon roll pack and separate the ribbon roll
and the bare core.
5. Attach the edge of the ribbon on the bare core and wind it
a little bit onto the core.
6. Insert the ribbon roll into the supply holder. (First snap in
the left side and then the right side.)
Ribbon Supply Holder
Ribbon Roll
Bare Core
11
7. Put the print head module down and insert the bare core
into the pick-up holder. (First snap in the left side, and
then the right side.)
Ribbon Pick-up Holder
Bare Core

12
8. Turn the wheel of the print head module to ensure the
ribbon is tightly wound.
9. Press down the print head module firmly until you hear a
snap.
Wheel
Print Head Module
13
Loading Media
The OS-214plus offers two different loading modes: standard or
cutting.
Standard mode allows you to collect each label freely.
Cutting mode automatically cuts the label after it prints.
Standard Mode
1. Lift the top cover to expose the media compartment.

14
2. Remove the media hanger.
3. Load the media roll onto the hanger from left to right.
Media Compartment Media Hanger
Media Roll
Media Hanger
15
4. Click the media hanger back into the media
compartment.
5. Align the media roll to the left end.
6. Move the shield from right to left until it leans against the
media.
Media Compartment
Shield
Media Roll

16
7. Unlatch the print head module.
8. Hold the print head module upright with one hand to
allow the media to pass under it. Lead the media through
the media guides with the other hand.
9. Lead the media over the platen roller.
Print Head Module Media Guides
17
10. Put the print head module down and press down firmly
until you hear a snap.
11. Close the top cover and turn on the printer or press the
"FEED" button if the printer is already on.
Print Head Module
Feed Button

18
Cutting Mode
Note: For Cutter mode you must first install the cutter and add
the cutter baby board to J16 on the main board. Please
refer to Appendix I.
Follow Steps 1 to 8 listed in Standard Mode above.
9. Thread the media over the platen roller, then route the
media through the slot of the cutter module.
10. Press down the print head module firmly.
Cutter Module
19
11. Close the top cover and turn on the printer or press the
"FEED" button if the printer is already on.
Note: The "FEED" button does not make the printer cut. Cutting
occurs only when the software is properly set.

20
Calibration and Configuration
This section discusses calibration, printing configuration and
resetting the printer to factory defaults.
Performing Calibration and Configuration
1. Turn off the printer power.
2. Press and hold the feed button while turning on the power,
until the printing motor is activated.
3. Calibration is performed while the printer automatically feeds
the label stock for a certain length; the printing motor
suspends for one second and then prints out a configuration
profile.
4. The profile includes firmware version, ROM checksum,
RS-232, thermal transfer/direct thermal settings, hardware
configuration, and font types.
5. At PPLB emulation, the printer enters character dump mode.
To exit from dump mode, press the feed button again. (If you
accidentally print the label without exiting from dump mode in
advance, you need to turn on the printer or press feed button
again to print normally.)
Important! You must always carry out calibration when
changing media. Failure to do so will result in improper
detection by the label sensor.
21
Resetting to Factory Default Settings
1. Turn on the printer and wait for 5 or more seconds.
2. Press the "Feed" button for 10 seconds, and the "Ready"
indicator and "Power" indicator will go off in order.
3. When the two indicators relight, release the feed button.
4. The printer feeds approximately 3 ~5 blank labels, and
then resets to the factory defaults.
Note: Revise the factory default settings that stored in flash,
even if turn off the power source cannot be eliminated.

22
Computer Connections
Note: You must insert the power supply’s barrel connector into
the power jack on the back of the printer before
connecting communication cables.
This printer comes with a USB interface, a nine-pin Electronics
Industries Association (EIA) RS-232 serial data interface and a
standard Centronics parallel interface. You must supply the
required interface cable for your application.
Note: This printer complies with FCC Rules and Regulations,
Part 15, for Class A Equipment, for use with fully shielded
six-foot data cables. Use of longer cables or unshielded
cables may increase radiated emissions above Class A
limits.
USB Interface Requirements
The Universal Serial Bus (USB) interface is version 2.0 and 1.1
compliant and provides a full-speed (12Mb/s) interface that is
compatible with your existing PC hardware. The USB’s “plug and
play” design makes installation easy. Multiple printers can share a
single USB port/hub.
23
Serial (RS-232) Interface Requirements
The required cable must have a nine-pin "D" type male connector
on one end, which is plugged into the mating serial port located
on the back of the printer. The other end of the signal interface
cable connects to a serial port on the host computer.
For technical and pin-out information, please refer to the
Reference Technical Information, Interface Specification.
Power Jack
RS232 Serial Port
Parallel Port
USB Port

24
Parallel Interface Requirements
The required cable (IEEE 1284-compliant is recommended) must
have a standard 36-pin parallel connector on one end, which is
plugged into the parallel port located on the back of the printer.
The other end of the parallel interface cable connects to the
printer connector at the host computer. For pin-out information,
refer to the Reference Technical Information, Interface
Specification.
Serial and Parallel Cabling Requirements
Data cables must be of fully shielded construction and fitted with
metal or metalized connector shells. Shielded cables and
connectors are required to prevent radiation and reception of
electrical noise.
To minimize electrical noise pickup in the cable:
Keep data cables short (6 ft or 1.83m recommended).
Do not tightly bundle the data cables with power cords.
Do not tie the data cables to power wire conduits.
Notes:
1. Centronics allows a much higher communication speed
than serial.
2. The printer automatically detects parallel or serial port.
No need to set a switch or send a command.
3. Default settings are included in the configuration report.
25
Communicating with the Printer
The bundled printer driver can be applied to all applications
under Windows 2000/2003/Windows XP/Windows Vista and
Windows 7 and support 32/64 bits version. With this driver
you can run any popular Windows software applications
such as MS-Word and print out to this printer.
Installing the Printer Driver (Seagull Driver)
1. Double click the driver file
to execute in Windows.
2. Click "Next".
3. Write down the Installation
Directory (for example:
C:'Seagull) and click "Next".

26
4. Click "Finish".
5. Select ”Install printer
drivers” and click “Next”.
6. Select a driver for your
printer and click "Next" .
27
7. Select the port of the
printer and click "Next.
8. Enter a specify Printer
Name and click “Next”
9. Click “Finish”

28
10. After the related files
have been copied to
your system,
click “Finish”
11. After the installation is
complete, click “Close”
Notes:
1. If you are updating the driver, make sure you remove the
previous version first.
2. If you install new bar code application software such as
Bartender Ultra Lite, you should activate the seagull driver
for Argox printers.
29
Driver for Plug and Play (USB Only)
For Windows 2000/2003/XP/ Windows 7
1. Extract the PrinterDriver.exe to the fixed route. (“C:\ Seagull
Driver)
2. Connect the label printer to a computer with a USB cable.
3. Turn on the printer’s power and the system detects the device
automatically.
4. Select “Install from a list or specific location (Advanced)”, click
“Next”.

30
5. Select “Search for the best driver in these locations” and
choose “Include this location in the search”. Input the location
of the printer driver, click “Next”.
6. Select “Continue Anyway”.
31
7. Click “Finish”.
8. Argox OS-214plus printer is added in “Printers and Faxes”.
9. Reboot the system.
10. The system assigns the USB port for Argox OS-214plus
printer.

32
Driver for Win Vista (USB Only)
1. Extract the PrinterDriver.exe to the fixed route. (“C:\ Seagull
Driver)
2. Connect the label printer to a computer with a USB cable.
3. Turn on the printer’s power and the system detects the device
automatically.
4. Select “Locate and install driver software (recommended)”.
5. Pop the window “User access control” and click “ Continue”
33
6. Select “I don’t have the disk. Show me the other options.”
7. Select “Browse my computer for driver software (advanced) “.

34
8. Input the location of printer driver. (“C:\Seagull)
9. Select” Install this driver software anyway”
10. The related files start to copy to your system.
35
11. After the installation is complete, click “Close”.
12. Click” Yes”
Table of contents
