Rheavendors Group barista XX Manual

INSTALLATION AND MAINTENANCE MANUAL
Original instructions
MAN1920124 rel. 01 dated 23.09.2011
_________________________________________
www.rheavendors.com
copertina
type: XX

copertina 2
Company names; implementation of safety warnings, general information and maintenance;23.09.201101
First issue;17.11.201000
DESCRIPTIONDATEREL.
notes
by
MAN1920124 rel. 01 dated 23.09.2011 page no. 2 of 48 pages

these conditions regulate Rheavendors Industries S.p.A.’s
obligations with reference to guarantee and repair; any other term
or condition, either verbal or written, is not applicable, including
those in the purchaser’s purchase orders, if not explicitly accepted
and signed by Rheavendors Industries S.p.A.; if the guarantee
terms here below should be held not to be valid and/or lawful in
the Country where the product is sold, they will not be effective
whereas all the other clauses will remain valid and applicable;
the mechanical and electronic components of the machine are
guaranteed for twelve months, starting from the sales date certified
by the fiscal receipt;
the guarantee shall be understood as the free replacement or
repair of any part of the machine that – at the manufacturer’s
unquestionable discretion – should prove to be originally
defective due to manufacturing defects; the cost of sending the
manufacturer machines, defective pieces and spare parts will be
totally charged to the user’s account; the manufacturer reserves
the right to use new or reconditioned components for repair; if
replaced, original components will be guaranteed for 12 months;
the parts replaced under guarantee will become the property of
Rheavendors Services S.p.A. (request for “Form PO 19.01/2b”
Materials under guarantee – Authorisation to return);
in case of irreparable failure or if a failure of the same origin is
repeated, the manufacturer may – at its unquestionable discretion
– replace the machine with another one, the model of which is
either the same or an equivalent one; the guarantee of the new
machine will be extended up to the original term of guarantee of
the replaced machine;
all the parts that should prove to be defective due to negligence or
carelessness (non-observance of the instructions for the operation
of the machine), incorrect installation or maintenance by
unauthorised personnel, transport damage or any circumstance –
anyway – not due to the manufacturing defects of the machine are
not covered by guarantee; the installation and connection with
supply plants as well as the maintenance operations mentioned by
the installation manual are also excluded from any performance
under guarantee; the guarantee will not cover payment systems
either; whether installed on the machine or supplied as an
accessory, they are subject to their manufacturer’s guarantee
whereas Rheavendors Industries S.p.A. will just act as a broker;
all changes made to the machine and not agreed with the
manufacturer in writing will involve the immediate termination of
the guarantee period and anyway fall under the Customer’s total
responsibility;
the guarantee is excluded in all cases of improper use of the
machine;
Rheavendors Industries S.p.A. will disclaim all responsibility for any
damage that may be directly or indirectly caused to people,
animals or things as a result of:
improper use of the vending machine; incorrect installation;
improper energy or water supply; serious maintenance deficiency;
actions or changes not explicitly authorised; use of non original
spare parts;
in case of failure, Rheavendors Industries S.p.A. is obliged neither
to compensate any economic damage due a forced stop of the
machine nor to extend the guarantee period;
if the machine should be transferred to a centre designated by the
manufacturer for overhaul or repair, the relative transportation
risks and costs will be charged to the user’s account. The freight
charges of machines, defective pieces and spare parts are always
understood as charged to the user’s account;
General guarantee
conditions
1st
2nd
3rd
4th
5th
6th
7th
MAN1920124 rel. 01 dated 23.09.2011 page no. 3 of 48 pages
garanzia
by

Rheavendors Industries S.p.A. declares that this vending machine
has been designed and manufactured in compliance with the
following directives and safety standards:
Directives:
2004/108/EC; 2006/95/EC; 2006/42EC;
2002/95/EC (RoHS); 2002/96/EC (RAEE); 1907/2006/EC (REACH);
1935/2004/EC;
Standards:
SAFETY part. 2-75: (particular requirements for commercial
dispensing appliances and vending machines) +
CEI EN 60335-2-75/A12;
EN 60335-1: 2002 + A1: 2004 + A2: 2006 + A11: 2004 +
A12:2006 + A13: 2008 + A14: 2010 +
60335-1/EC: 2010;
EN 60335-2-75: 2004 + A1: 2005 + A11: 2006 + A2: 2008 +
A12: 2010;
EMC:
EN 55014-1: 2006 + A1: 2009;
EN 55014-2: 1997 + A1: 2001 + A2: 2008;
EN 61000-3-2: 2006 + A1: 2009 + A2: 2009;
EN 61000-3-3: 2008;
EMF:
EN 62233: 2008;
manufacturer of the machine
Rheavendors Industries S.p.A.
Via Garavaglia, 58
21042 Caronno Pertusella
Varese
Italia
The Legal Representative
(A. D. Majer )
declaration of
conformity
ISO 9001
certification
dichiar. conf.
by
MAN1920124 rel. 01 dated 23.09.2011 page no. 4 of 48 pages

legend
introduction
technical data
configurations
presentation
preliminary actions
connections
first power on
programming
maintenance
solution of problems
parameters
how to do to…
espresso hydraulic diagram
instant hydraulic diagram
addendum Light
in the listed chapters, the manual describes a Barista vending
machine in its hardware and software components for a complete
and fully-aware use of all machine functions; due to the large
variety of available options and the constant technical update of
our vending machines, some special device or function might be
indicated and described not in the manner you expect; in this case,
do not hesitate to contact us;
telephone: [phone]
fax: [phone]
e mail: rheaven[email protected]
ATTENTION: this label applied next to the serial number label
inside the vending machine points out that the instructions
supplied by this manual must be carefully read before the
installation and operation of the vending machine;
please, print this manual only if necessary; environmental
protection is our common interest;
page 06
page 07
page 08
page 10
page 12
page 23
page 24
page 25
page 27
page 34
page 37
page 39
page 40
page 42
page 43
page 44
table of contents
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
11.
12.
13.
14.
15.
16.
indice
by
MAN1920124 rel. 01 dated 23.09.2011 page no. 5 of 48 pages

legenda
by
MAN1920124 rel. 01 dated 23.09.2011 page no. 6 of 48 pages
01.
legend
01.01. abbreviations
and pictograms I =
E =
A =
R =
=
VSF =
=
=
=
01.02. symbols of
attention
01.03. tools
some general instructions that may be of use for reference to this
manual;
dispensing cycle of drinks based on instant products;
dispensing cycle of drinks based on instant products and coffee
beans;
machines with internal water tank;
machines with external water supply;
mixer for mixing the instant product with water;
worm screw pitch in the product canister;
product shaker for instant canisters;
espresso coffee brewer;
hot water dispenser;
if the text is highlit by this symbol, it is recommended to pay
special attention to the performance of the procedures described; if
not carefully performed on safe conditions, they can be source of
general danger;
if not properly performed, the actions marked by this symbol may
expose to accidental contacts with electric voltage;
if not properly performed, the actions marked by this symbol may
expose to accidental contacts with high-temperature parts;
the same symbols can be found inside the vending machine to
specify the parts on which to act with the outmost care;
the symbol recommends the utmost attention during the actions
described; the use of the service key intended to activate all
machine functions when the door is open is only reserved to the
technical operators who know the operation of the vending
machine, who are aware of potential risks and who make sure they
are operating on totally safe conditions;
the use of the service key shall be strictly limited to the time
necessary to perform the actions requiring the use thereof; users
shall be informed of the prohibition on using and approaching the
vending machine;
the symbol means that it is forbidden to dispose of the equipment
as urban waste and compulsory to provide for separate collection in
order to prevent any potential effect on the environment and
human health; strictly follow the provisions of the European
Parliament’s 2002/96/EC Directive;
some tools commonly used and easy to find are necessary to act
with this vending machine:
- a pair of scissors for electricians;
- a star screwdriver 4/6 mm;
- a set of fixed wrenches up to 13 mm;
- a set of socket head screws from 2 to 8 mm;
it may be of use to procure some expendables, such as disposable
paper, single-use gloves, clean cloths, cups and a bucket for the
collection of waste water;
§

© Rheavendors Industries S.p.A.; all rights reserved;
this document contains some confidential information of
Rheavendors Industries S.p.A.’s exclusive property; the content of
this document can be neither disclosed in favour of third parties,
nor copied or reproduced in any form whatsoever, either fully or
partially, without Rheavendors Industries S.p.A.’s prior
authorisation in writing; the utilisation, reproduction or disclosure
of the technical information in this document can be protected by
Rheavendors Industries S.p.A. according to the Law;
this manual is intended for the owner of the vending machine; it is
an integral part of the machine and it shall be kept with it;
the information supplied by this manual are intended to achieve
the best performances of the vending machine within the scope of
application established by the Manufacturer; Rheavendors
Industries S.p.A. reserves the right to improve future production
without serving any prior notice and without assuming any
obligation to update the products on the market; the manufacturer
will disclaim all responsibility for any inaccuracy due to misprints;
safety rules for using the vending machine
** pay special attention to the chapters and notes high lit by the
symbols of alert; strictly observe the rules concerning, in
particular, the operators’ and users’ safety;
** under no circumstance may the vending machine be used by
children or by people with poorer physical, sensorial or mental
capacities or who have not been properly informed on correct
use; children shall be supervised to prevent them from playing
with the vending machine;
** if you should find out a water leak or the presence of smoke,
immediately detach the vending machine from the electric and
hydraulic network, never try to restore its operation and apply
to skilled technicians;
** the machine shall be installed according to national rules; pay
special attention to the rules about the machines directly
connected with the hydraulic network;
** the user is not allowed to access the maintaining and servicing
area that shall be properly signalled;
** never remove protections, never override safety devices and
never modify the machine or its components;
Rheavendors Services S.p.A. is at disposal for any kind of
support and information on this vending machine;
telephone: [phone]
fax: [phone]
e mail: rheaven[email protected]
for any reference about our partners all over the world please visit
site :
www.rheavendors.com
to be able to identify the vending machine rapidly and univocally as
well as to get the best support, please specify the data of the serial
number label;
code : D12345A67890
s/n: 1234 56 7890
silvery serial number labels are applied inside and outside the case
of the machine;
02.
introduction
02.01. copyright
information
02.02. rules
**
**
**
**
**
**
02.03. contacts
02.04. serial number
labels
introduzione
(example)
by
MAN1920124 rel. 01 dated 23.09.2011 page no. 7 of 48 pages

height (including the 30 mm upper rail):
width:
depth:
depth with open door:
instant machine:
espresso machine:
- connection by means of a solenoid valve with 3/8“ gas male face:
- supply by a submersible pump:
- connection from internal tank;
- 230 V ac (110 V ac), 50/60 Hz; single-phase and ground;
- cable of the following type: H05VV-F 3G 1 mm² 300/500 V;
anyway refer to label data
A-weighted sound pressure level;
eight selection buttons;
two sixteen-character lines;
door lighting with neon tube;
light indicator blinking during the dispensing cycle;
open; folding cup support (useful height 90 mm);
drip tray beneath the cup surface;
a fixed dispensing place;
in the instant machine, overflow sensor;
in the espresso machine, overflow sensor and pressure relief valve;
in all machines water inlet solenoid valve with anti-flood sensor;
a main switch, a door switch;
two 6.3x32 mm fuses;
manually resettable sensors;
thermofuses;
time limits for water dispensing cycles;
in the espresso machine:
in the espresso machine, conical;
made of plastics; the dimension of the brewing chamber can be
mechanically programmed in three volumes:
in the espresso machine, air break with overflow and level switch;
in the instant machine:
in the espresso machine:
max. three , according to the machine configuration;
max. two in the instant version, max. one in the espresso version,
according to the machine configuration;
max. two in the instant version, max. one in the espresso version,
according to the machine configuration;
instant machine: open-top boiler;
espresso machine: heat-exchanger for espresso;
open-top boiler for instant products;
600 mm
300 mm
455 mm
700 mm
20 kg
30 kg
from 0.1 MPa to 0.8 MPa
24 V dc, 1.2 A max.;
2,2 litre capacity
in I: 1.400 W
in E: 2.100 W
less than 70 dB(A)
220 V ac; 6 W; 210 mm
maximum 150 mm
capacity 750 ml
220 V ac; 12 A delayed
88 °C
121 °C
220 V ac
Ø40mm
orange chamber
Ø36mm
black chamber
24 V dc
220 V ac
95 r.p.m. 24 V dc
15.000 r.p.m. 24 V dc
3,4 litres, 1.300 W
700 W
1,3 litres, 1.300 W
03.
technical data
03.01. dimensions
03.02. weight
03.03. supply water
energy
03.04. sound pressure
03.05. keyboard
03.06. display
03.07. lighting
03.08. dispensing cpt.
03.09. drip tray
03.10. dispenser
03.11. safety water
energy
heat
software
03.12. grinder motor
03.13. grinders
03.14. coffee brewer
03.15. air break
03.16. pump
03.17. product motors
03.18. mixing bowls
03.19. mixer motors
03.20. boiler
dati tecnici
by
MAN1920124 rel. 01 dated 23.09.2011 page no. 8 of 48 pages

max. three, according to the machine configuration; single (55
mm) or double (110 mm) width; dispensing worm screws 9 mm or
18 mm in pitch; with mixer gear and stirrer, if arranged by the
configuration and with standard or shorter product slide outlet
(see 05.24.);
- coffee beans canister (or hopper) capacity: 1.0 kg
- instant canister capacity:
machine parameters programmable by means of a flash key or
selection keyboard; data collection by means of a flash key (see
09.06.);
the water and energy supply tolerance limits that can ensure a
good and proper operation of the Barista machine are:
water:
- total hardness:
- recommended conductivity:
(*) if harder, please use anti-limestone filters;
energy:
- nominal voltage:
- nominal frequency:
room (during storage and operation):
- temperature:
- relative humidity:
electric consumption:
- power (vending fase):
the complete data according to the EVA-EMP Energy Measurement
Protocol, are made available upon request (see 02.03.);
the power supply cable supplied with the vending machine
shall not be altered under any circumstance; in case of loss
or damage replace it by using an original component only;
make sure that the electric installation can deliver the power
suitable for the machine (see 03.03.); a good ground connection is
not only a legal obligation for the protection of users and
operators, but it can also provide for correct power supply;
from 10 °F to 25 °F (*)
400 μS @ 20 °C
+10 % /- 25 %
+/- 5 %
5 °C ÷35 °C
max. 80 %
from 34 Wh to 430 Wh
03.21. product canisters
03.22. miscellaneous
03.23. notes
dati tecnici
by
MAN1920124 rel. 01 dated 23.09.2011 page no. 9 of 48 pages
width 55 mm width 110 mm
capacity 1.7 litres capacity 3.5 litres
coffee 0.33 kg
milk 0.38 kg milk 0.80 kg
chocolate 0.94 kg chocolate 2.20 kg
tea 0.98 kg

Barista configurations are numerous; they are coded by means of
some categories exemplified here below in the abbreviation of the
machine:
- instant products only:
- instant products and coffee beans:
- number of instant products and coffee beans (if E):
- - external, by means of the inlet solenoid valve:
- - internal, from the internal tank to the vending machine:

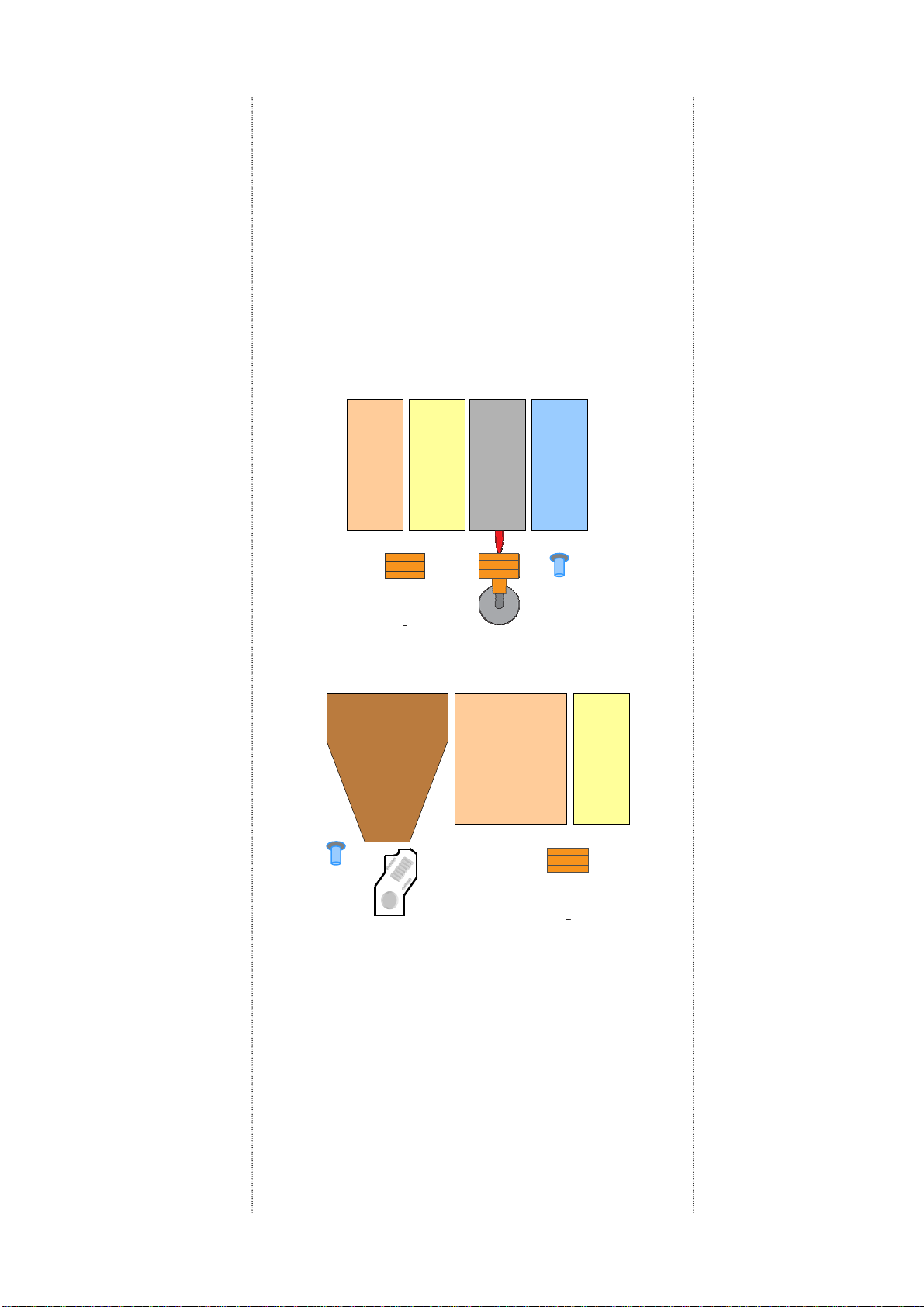

product canisters, mixing bowls and mixers are numbered in
progression, from the left to the right, as it is shown later on; this
numbering is used in the chapter on how to programme (see 09.)
drinks;
V.M. Barista I/3 A
V.M Barista E/3 R
the configurations above are just some of possible Barista
configurations, considering the vending machine releases and
programmability; the principles of operation and information are
anyway universal and applicable to all machines of the Barista
range;
to complete and supplement the vending machines of the Barista
range, Rheavendors Industries S.p.A. has got a series of
accessories manufactured for these machines, such as cabinets,
autonomous water supply kits, …;
Rheavendors Services S.p.A. is at disposal for any kind of support
and information on special configurations (see 02.03.)
04.
configurations
04.01.
a. instant
b. instant and espresso
c. product canisters
d. water supply
e. numbering
04.02. examples of
configurations
04.03. accessories
configurazioni
Barista I
Barista E
Barista E/4;
Barista I/5
Barista E/4 R
Barista E/3 A
keyboard selections
1. short coffee
2. long coffee
3. white coffee
4. cappuccino
5. capp-ciocc
6. latte macchiato
7. chocolate
8. hot water
keyboard selections
1. short coffee
2. long coffee
3. white coffee
4. cappuccino
5. capp-ciocc
6. latte macchiato
7. chocolate
8. hot water
by

330
grams
COFFEE
3
VSF9
VSF 18
380
grams
MILK
2
940
grams
CHOCOLATE
VSF18
1
§

2,2
litres
WATER
water 1
mixer 1
water 2
mixer 2

CHOCOLATE
2200
grams
VSF18
§
1
380
grams
MILK
VSF9
2
COFFEE BEANS
1000
grams
water 1
mixer 1
MAN1920124 rel. 01 dated 23.09.2011 page no. 10 of 48 pages

Barista can produce a drink called Latte Macchiato, composed by
milk and coffee and served in the cup in differently coloured bands,
typically milk, coffee and milk;
to get this special drink, refer to a specific package of instructions,
every step of which is called “LM dispensing cycle”; please keep in
mind some general principles to achieve this special drink quality:
- the first milk dispensing cycle shall not be too much mixed;
- the second milk dispensing cycle should occur after 10/15
seconds; mixing shall be extended and performed at the
maximum rotation speed of the impeller;
- the espresso coffee should be dispensed at least 15/20
seconds after the second milk dispensing cycle in the cup;
the data supplied by the table provide for a “latte macchiato”
dispensing cycle and they can be adapted to achieve dispensing
cycles more suitable for the users’ wishes;
04.04. LM selection
LM
by
MAN1920124 rel. 01 dated 23.09.2011 page no. 11 of 48 pages
parameters values
1st milk
parameters time prod n 24
start delay prod n 5
water time n 60
prod n start delay water n 0
time mixer n 60
water n start delay mixer n 3
speed mixer n low
mixer n
2nd milk
prod LM time prod LM 24
start delay prod LM 200
water LM water LM time 60
start delay water LM 150
mixer LM time mixer LM 80
start delay mixer LM 180
speed mixer LM high
coffee water 2nd delay
es
p
resso coffee star
t
200
selection 1st milk 1st delay 2nd milk 2nd delay
"Latte Macchiato" selection
flow dia
g
ram
time

espresso
instant
05.
presentation
E-I
05.05. orange panel
in espresso machines
05.08.
door lock
05.04.
display
by
05.02.
selection keyboard
05.09.
drip tray
05.07.
dispenser
MAN1920124 rel. 01 dated 23.09.2011 page no. 12 of 48 pages
05.03.
selection label pocket
05.06.
orange light
indicator
flap support for cups
05.05.
light blue panel
in instant product machines
rail stop cups
05.06.
light blue light
indicator

espresso front
espresso fronte
05.19.
grinder
05.25.
product motor
05.24.
instant product canister
05.19.
grinder
05.20.
coffee brewer
05.23.
grounds container
05.09.
drip tray
05.18.
coffee beans canister
05.24.
product slide
05.26.
mixing bowl
05.28.
nozzle support
05.16.
internal button PROG
by
05.15.
service key
05.15.
door switch
05.08.
door lock
05.24.
closing baffle
MAN1920124 rel. 01 dated 23.09.2011 page no. 13 of 48 pages
05.17.
flash key connection
05.06. light indicator
power supply
05.05.
neon power supply
05.09.
waste water discharge
05.38.d. coffee unit
chamber heating
connection
05.35. coffee hopper
presence switch
05.20. coffee
unit lock lever
05.19.
grinding regulation
05.27.
mixer motor
05.22. coffee unit
presence switch
05.28. dispenser
nozzle support lock
lever
05.20. coffee unit
water supply

espresso rear
espresso retro
05.36.
boiler
05.38.d.
resistor supply
05.38.a.
CPU
05.31.
environment aspirator
05.32.
air break
05.12.
fuses
05.30.
powder aspirator
05.36.
heat exchanger
05.27.
mixer motor
05.31.
environment aspirator
05.12.
fuses
05.11.
power on switch
05.10.
electric connection
by
05.38.c.
expansion board
05.25.
product motor
05.34.
heat exchanger pump
boiler outlet hose
05.14.
water inlet solenoid valve
05.30.
powder aspirator
05.14.
water inlet solenoid valve
MAN1920124 rel. 01 dated 23.09.2011 page no. 14 of 48 pages
toroidal transformer

pump motor
level probe three-way valve
outlet
water outlet
boiler temperature probe
05.32.
air break
clicson
heat exchanger
temperature probe
05.33.
volumetric counter
espresso interno
by
B
A
A
A
05.27.
mixer motor
05.19.
grinder motor
05.21.
coffee brewer motor
A
MAN1920124 rel. 01 dated 23.09.2011 page no. 15 of 48 pages
espresso
to extract the slide including the fundamental components of the
vending machine, just remove the three screws A and separate the
two electric connectors B after having removed the coffee unit (see
13.05.) and the connectors of the temperature probes (see
05.38.a. and c.); now, you can extract the slide from the machine
cabinet;
after having extracted the slide of hydraulic components from the
cabinet, some “internal” parts can be easily inspected and
accessed; e.g. if the machine is disassembled this way, you can
easily set up the right phase of the coffee unit, which shall be
exactly in the position of the picture during the brewing phase;
the central articulation of the connecting rod shall be “moved
backwards” by some degrees compared to the ideal line joining the
axis of rotation of the unit and the upper end of the connecting
rod;
to achieve this result:
- loosen the socket head screw A;
- adjust the switch position by rotating the support as well as by
anticipating or postponing the cam trip on the switch lever;
- screw the socket head screw again;
05.22. coffee unit
presence switch
coffee unit rotation switch
coffee unit rotation
switch regulation

05.24.
instant product canister
05.09.
drip tray
05.24.
product slide
05.26.
mixing bowl
05.28.
nozzle support
05.29.
water door
05.16.
internal button PROG
05.08.
door lock
05.24.
closing baffle
instant front and rear
f
ronte e retro
solubile
by
05.14.
water inlet solenoid valve
05.38.a.
CPU
05.12.
fuses
05.10.
electric connection
05.11.
power on switch
05.25.
product motor
05.27.
mixer motor
05.31.
environment aspirator
05.30.
powder aspirator
05.37.
pump motor
05.37.
boiler
05.13.
water drain plug
05.29.
internal water tank
MAN1920124 rel. 01 dated 23.09.2011 page no. 16 of 48 pages
05.06. light indicator
power supply
05.05.
neon power supply

05
02
04 03
08 06
07
09
presentazione
by
11
12
10
13
14
MAN1920124 rel. 01 dated 23.09.2011 page no. 17 of 48 pages
the Rhea Barista vending machine is a machine explicitly designed
for being easily used by all users since no specific competence is
required in preparing drinks;
the function consists in dispensing drinks by mixing food products
and water at a proper temperature; the correct operation of the
vending machine occurs in closed rooms in normal environmental
conditions and at a room temperature between 5°and 35°C, the
relative humidity below 80%;
use only specific ingredients for vending machines;
dispense by briefly pressing a key of the selection keyboard
(see 05.02.); make sure that the cup has been properly positioned
at the dispensing station, if necessary by using the flap support for
caps (see 03.08.);
after having closed the door, press the buttons to dispense; keys
will assume various functions in the programming mode (see 09.)
and enable the user to modify the machine parameters; keys are
numbered progressively from the left: 1, 2, …;
the front cover side just above the selection pushbutton panel
accommodates the pocket where to insert the stripe specifying the
names of the selections you can obtain;
the display messages inform users and operators about the
operation state of the vending machine;
the front panel of the door is lighted by a neon tube arranged in a
door compartment; the panel is orange in the espresso machine
and light blue in the instant machine;
a light indicator is blinking (colours as above) during the dispensing
cycle of drinks;
the Barista vending machine has got a fixed drink dispenser on the
cup support surface;
the door is closed by means of a lock; the key is mapped and
numbered for identification;
it collects all residual drops from the dispenser and, if necessary,
the waste water in excess from the boiler; it is slided at the bottom
of the machine case, in the front, and it is composed by a covering
drawer and a grilled cover that can be washed by running water;
an electric contact is intended to control the filling level (see 10.01.
and 13.01.); the floater is raised if the content is in excess;
a three-terminal socket is arranged at the back of the case for the
connection of the mains cable;
to power on and off the machine;
installed on the mains power supply (see 03.11.);
from where to let the silicone tube from the boiler come out for
emptying, in I machines;
the water inlet solenoid valve on R machines only has got an anti-
flood safety device intended to stop the water inlet in case of
failures; to its electrical pins can be connected in parallel an any
submersible pump (see 03.03.);
05.01. general
information
05.02. selection
keyboard
05.03. selection label
pocket
05.04. display
05.05. door lighting
05.06. light indicator
05.07. dispenser
05.08. door lock
05.09. drip tray
05.10. electric
connection
05.11. power on switch
05.12. fuses
05.13. water drain plug
05.14. water inlet
solenoid valve

presentazione
by
18
19
20
23
24
26
15 16
17
25
MAN1920124 rel. 01 dated 23.09.2011 page no. 18 of 48 pages
to power off the machine when the door is open;
attention
some parts remain anyway network-connected
act extremely carefully
use the service key to supply the vending machine if it is necessary
to activate the machine when the door is open; the service key is
in a support on the left wall inside the vending machine;
the button giving access to the programming mode of the machine
is arranged inside the door at the bottom of the cover (PROG);
the connection for insertion of the flash key is made available on
the cover, on the right side;
it contains coffee beans, it is protected by a cover; an orange
closing baffle enables the operator to lift it on safe conditions;
the grinder grinds the coffee beans in the hopper to pour them into
the coffee unit underneath; the grinding degree can be adjusted by
means of the index inside the semicircular sector;
after having received and compressed the ground dose, the coffee
unit will brew it with the water coming from the pump; the used
dose is conveyed to the grounds container (see 05.23.); it is
fastened by means of a lever;
the coffee brewer motor will rotate some parts of the coffee brewer
to compress ground coffee for brewing; rotation is controlled by a
switch driven by a cam that will inform the CPU on the position of
the brewer;
a switch makes sure that the coffee unit is properly installed to
prevent it from dispensing espresso in case of shortage;
it collects over sixty ground doses in E machines after having used
them in the coffee brewer; a software option (see 09.01.n.) will
show a warning message as soon as the tray is full;
instant product canisters dispense their content in the underlying
mixing bowls; an internal worm screw driven by the product motor
will push the instant product to the product slide; they can be
equipped with a wheel and a stirrer for constant dispensing; the
outlet, the dimension of which can be either standard or smaller,
has got a closing baffle;
the coffee bean canister (hopper) has a closing blade for insertion
before lifting it and a metal tongue that enables the machine to
dispense espresso drinks after having inserted it into its seat (see
05.35);
to protect the products, canisters are closed by a cover; the
versions not connected with the water mains are complete with a
water tank in the place of a product canister and it can be filled
through a cover hatch of the vending machine (see 05.29.);
they are intended to rotate the worm screws inside instant product
canisters to pour the product quantity necessary for selection in the
mixing bowls;
the mixing bowls of the mixers will accommodate the instant
products you have poured to mix them with water; the fan of mixer
motors will act at the bottom and the drink outflow to the
dispenser occurs by means of a silicone tube; mixing bowls and
outlet tubes can be washed with lukewarm running water;
05.15. door switch
05.16. internal button
(PROG)
05.17. flash key
connection
05.18. coffee beans
canister
05.19. grinder
05.20. coffee brewer
05.21. coffee brewer
motor
05.22. coffee unit
presence switch
05.23. grounds
container
05.24. product canisters
05.25. product motors
05.26. mixing bowls

presentazione
by
MAN1920124 rel. 01 dated 23.09.2011 page no. 19 of 48 pages
the motors of mixers help to mix instant products with water by
means of the rotation of the fan mounted on their axis; the
rotation speed can be adjusted (see 09.01.a.) to the features of the
various products;
a support on the cup station accommodates the dispensers coming
from the mixer bowls; it can be locked in its open position for a
better access to the machine;
only in A machines, on the cover of the vending machine, a door
enables the operator to access the water tank inside for filling
purposes; the tank is complete with a floater signalling by means
of a red stripe that it has been filled in excess;
an aspirator will eject suspended product residuals from the
vending machine; the aspirator is connected with a drawer to
intercept the residual impalpable powder coming from selections;
the action time of the aspirator is programmable by means of a
software parameter (see 13.18. and 09.01.f.); aspirated air is
ejected through the slots of the rear panel;
to aspirate the air from the internal environment of the machine to
avoid any condensate;
in E machines, it accumulates water for conveyance to the heat
exchanger; the level is controlled by a switch operated by a floater
and, if higher than established, it will flow back to the safety device
of the inlet solenoid valve, thus preventing further water from
flowing in;
for the espresso version only, it supplies the CPU with the water
quantity flowing through the coffee unit to determine its volume
and dispense the espresso you wish;
the water quantity of instant selections is established by the time
set in the “water N” parameter only (see 09.01.a.);
in E machines, a vibration pump with by pass conveys water to the
heat exchanger supplying the espresso hydraulic circuit;
this switch is pressed when the coffee hopper is installed in the
right position; otherwise, no drink including espresso coffee will be
dispensed;
05.27. mixer motor
05.28. nozzle support
05.29. water door
05.30. powder aspirator
05.31. environment
aspirator
05.32. air break
05.33. volumetric
counter
05.34. exchanger pump
05.35. coffee hopper
switch
28
27
34
33

attention
these components may be very hot even if the machine is off;
it produces hot water for the espresso circuit; complete with
temperature probe and overtemperature protection (see 09.01.e.);
it heats and accumulates water for the circuit of instant drinks;
active elements (heating element, heat protections, temperature
sensor, pumps) are all secured to the cover;
pumps with turbines immersed in the boiler water; water is
conveyed in tubes feeding mixing bowls; (attention to the
polarisation of motors; see 03.16.); the water quantity of instant
selections is established by the time set in the “water N” parameter
(see 09.01.a.);
05.36. espresso machine
heat exchanger
boiler
boiler pumps
05.37. instant machine
presentazione
pump name sw outlet
P1 water 1 hot water
P2 water 2 mixing bowl
P2 P1
thermofuseclicson
level probe
clicson
water inlet
water outlets
temperature probe
level probe
by
pump name sw outlet
P1 water 1 mixing bowl 1
P2 water 2 mixing bowl 2
P3 water 3 hot water
temperature probe
three-way valve
soluble pumps
P2
P3
P1
temperature probe
level probe
level probe clicsons
water outlets
water outlet
soluble pumps
X2
1
12
3
MAN1920124 rel. 01 dated 23.09.2011 page no. 20 of 48 pages
heat safety
