Rheavendors Group XX OC Manual

xx oc
(type: XX)
Installation and maintenance manual
This manual must be kept next to the machine
MAN1910117 Vers. 7 - 15/11/2012
www.rheavendors.com

MAN1910117 V.7 – 15/11/2012
2
COVER
REAR DOOR
CANISTERS
SLIDES
MIXING BOWLS
WATER TANK
(VERSION A)
WASTE
LIQUID BUCKET
COIN-MECH
PROTECTION
KEYBOARD
DISPLAY
PIPES SUPPORT
FRONTAL DOOR
TOP DOOR

MAN1910117 V.7 – 15/11/2012
3
INDEX
1TECHNICAL DATA AND DECLARATION OF CONFORMITY............................................................................... 4
2INTRODUCTION ............................................................................................................................................................... 5
3DESCRIPTION OF THE EQUIPMENT.......................................................................................................................... 5
4ADVICE FOR THE INSTALLER..................................................................................................................................... 6
5BASIC OPERATING PRINCIPLES................................................................................................................................. 7
6TRANSPORTATION.......................................................................................................................................................... 7
7UNPACKING....................................................................................................................................................................... 8
8POSITIONING .................................................................................................................................................................... 8
9CONNECTION TO THE MAINS WATER SUPPLY AND TO THE ELECTRICAL SUPPLY................................ 8
10 HOW TO ACTIVATE OR DEACTIVATE THE MACHINE.................................................................................... 9
11 START-UP OPERATIONS.......................................................................................................................................... 10
12 PROGRAMMING OF THE MACHINE .................................................................................................................... 15
13 INSTALLATION OF THE COIN-MECHANISM SUPPORT UNIT...................................................................... 30
14 CLEANING AND LOADING OPERATIONS........................................................................................................... 32
15 MACHINE OUT OF SERVICE................................................................................................................................... 34
16 MACHINE OUT OF SERVICE................................................................................................................................... 37
17 FURTHER ADVICE FOR THE USER....................................................................................................................... 37
18 TROUBLESHOOTING................................................................................................................................................ 38

MAN1910117 V.7 – 15/11/2012
4
1 Technical Data and Declaration of Conformity
DIMENSIONS WEIGHT
Height 555 mm From 20 Kg to 24 Kg according to version
Width 300 mm
Depth 455 mm
CONNECTION TO THE MAINS WATER SUPPLY (version without autonomous water tank)
Water inlet pressure between 0,1 MPa and 0,8 MPa (1 - 8 bar);
Mains water connection 3/8” gas female
CONNECTION TO THE ELECTRICAL SUPPLY
230 V ~ 50 Hz - 60 Hz Power consumption from 1200 W to 1350 W
SOUND PRESSURE LEVEL WEIGHING-A
< 70 dB
DECLARATION OF CONFORMITY
Rheavendors Industries S.p.A. declares that this vending machine has been planned and made in conformity
with the following directives and security norms:
Directives:
2006/42/EC; 2004/108/EC; 2006/95/EC ;
2002/95/EC (RoHS); 2002/96/EC (RAEE); 1238/2007/EC (REACH); 1935/2004/EC;
Norms:
SAFETY part. 2-75: (particular requirements for commercial dispensing appliances and vending machines) +
CEI EN 60335-2-75/A12;
EN 60335-1: 2002 + A1: 2004 + A2: 2006 + A11: 2004 + A12:2006 + A13: 2008 + A14: 2010 +
60335-1/EC: 2010; EN 60335-2-75: 2004 + A1: 2005 + A11: 2006 + A2: 2008 + A12: 2010;
EMC: EN 55014-1: 2006 + A1: 2009; EN 55014-2: 1997 + A1: 2001 + A2: 2008;
EN 61000-3-2: 2006 + A1: 2009 + A2: 2009; EN 61000-3-3: 2008;
EMF: EN 62233: 2008;
Machine’s manufacturer: Rheavendors Industries S.p.A. - Via Garavaglia, 58
I - 21042 Caronno Pertusella - Varese - Italia
The legal Agent
(A. D. Majer)
1.1 Copyright Information
© Rheavendors Industries S.p.A. - All rights reserved.
This document contains confidential information, which is property of Rheavendors Industries S.p.A. The content of this document cannot be
neither circulated to third parties, nor copied or duplicated in any form, without previous written consent by Rheavendors Industries S.p.A.
Use, duplication or divulgation of technical information contained in this document can be subject to legal protection by Rheavendors
Industries S.p.A. via Trieste 49, I-21042 Caronno Pertusella (VA), Italia.
THIS MANUAL MUST BE KEPT NEXT TO THE VENDING MACHINE.
WARNING: You find this warning label placed next to the serial number label inside the machine. It advises the
user that a careful reading of this Manual is necessary before installation and use of the machine.

MAN1910117 V.7 – 15/11/2012
5
2 Introduction
2.1 Welcome
We congratulate you on your choice of a Rheavendors Industries S.p.A. semi-automatic vending machine. Experts
have designed this product and it has been manufactured according to the high quality standards, which have
always been a characteristic of all Rheavendors Industries S.p.A. products. This instruction manual will help you to
acquire a better knowledge of your machine. We recommend you to read it with the maximum attention and to
follow the advice given in the text.
The present manual includes all information and instructions for loading and cleaning operations of the
vending machine, as well as instructions reserved to technical personnel for performing maintenance
operations of more complex nature. This is the reason why the manual pages are clearly identifiable with
relation to the technical preparation of the user to whom they are destined:
Text with grey background: for any person having access to the interior of the vending machine. These pages
consist of an introduction, sections of general interest and sections concerning loading and routine cleaning.
Text with normal background: these are for use by qualified technical personnel only. They include all operations
related to installation, adjustment, extra ordinary cleaning and general maintenance.
All information contained in this manual are aimed to obtain from the machine the best performance within the limits
of use set by the manufacturer. This Manual is integral to the equipment and must be available inside the machine
until final displacement. Inside the rear door of the machine there is a suitable pocket where the Manual should be
kept. In the event of loss or damaging of the Manual, to obtain an extra copy it will be necessary to supply to the
manufacturer all the identification data appearing on the identification sticker. In compliance with the Company's
endeavour to adopt technical improvements whenever possible, Rheavendors Industries S.p.A. reserves the right
to ameliorate future production (and the contents of future Manuals) without prior notice and without any obligation
of updating the products on the market. The Technical service department of Rheavendors Services S.p.A. is at
your disposal for any further information. Just call or send a fax at the following numbers:
+ 39 02 966551
+ 39 02 9655086
or an e-mail to the address [e-mail] or surf our web site www.rheavendors.com.
In order to speed up the response to requests it will be necessary to supply:
- All data appearing on the Serial Number Label (glued to the first page of this manual).
CAUTION: Rheavendors Industries S.p.A. is not liable for any damage that could affect, directly or
indirectly, any person or property as a consequence of:
- incorrect use of the machine;
- incorrect installation;
- unsuitable electrical or water supply;
- major shortcomings in maintenance;
- technical interventions or alterations of unauthorised nature;
- adoption of non-original spare parts.
In the event of breakdown, Rheavendors Industries S.p.A. has got no obligation whatsoever neither to compensate
any economical damage deriving from the inactivity of the machine nor too extend the warranty period.
3 Description of the Equipment
3.1 Use
The semi-automatic vending machine xx oc (xx office coffee), in its different versions, is an appliance meant for
general use (non professional). The semi-automatic vending machine is supposed to supply beverages
automatically, mixing ingredients with water. The distribution of beverages will take place into suitable cups placed
properly by the user.
3.2 Denomination of the versions
Rheavendors Industries S.p.A. adopts the following conventional codes for the definition of the different versions:
Type: XX
xx oc <coffee/canisters> <electrical supply> <hydraulic supply> where:
<coffee> states the main process for the preparation of coffee:
<I> = Instant coffee (from soluble products)
<E> = states the infusion process through a high pressure Espresso Coffee brewer
<canisters> states the number of product canisters except the one for coffee beans. Capacity and variety of types
of beverages that can be supplied by the vending machines will depend on this number;
<electrical supply> 230 V;
<A> states if the machine is equipped with an independent water tank.
<R> states if the machine must be plumbed.

MAN1910117 V.7 – 15/11/2012
6
3.3 Obtainable Drinks
The machine can distribute drinks coming from instant ingredients by the programming functions present inside the
machine. It is possible to program the machine by the Rheaction software
using the Rhea black flash card or connecting it to a table top PC by an RS232-FLASH. For further information
contact Rheavendors Services S.p.A. - Customer Service.
4 Advice for the installer
Installation and maintenance operations described in text with normal background (white) must be carried
out only by qualified technical personnel.
WARNING: For a correct operation, the machine must be installed indoors with operating temperature
higher than 5° C in normal conditions of use.
WARNING: Forestall the machine and the ingredients freezing.
WARNING: Given the sensitivity of some ingredients used in the machine to excessive temperature and
humidity, some malfunctions may occur if the machine is operated at temperature higher than 30° C or with
relative humidity exceeding 80%. Under these conditions the components in contact with the powdered
ingredients must be cleaned at least once a day.
WARNING: The maximum operation temperature is 95° C.
WARNING: The operations described in Text with normal background must be developed by qualified
technical personnel only.
WARNING: Installation in premises where water jets are used (e.g. large kitchens) is to be avoided.
WARNING: Under no circumstance may the vending machine be used by children or by people with poorer
physical, sensorial or mental capacities or who have not been properly informed on correct use; children
shall be supervised to prevent them from playing with the vending machine.
The XX OC vending machine, that you have bought, has been manufactured according to the norms and
regulations related to the non-toxicity of those parts coming in contact with foodstuffs and electric
insulation. The machine is mounted inside of an industrial cleaned ambient. The person entrusted with the
mounting and the test operations is subjected to frequent sanitary examinations to confirm his attitude.
However, freight conditions, period of stay in the warehouse and possible handling due to the installation
of the vending machines do not allow using it immediately.
The machines, before their use, must be subjected to a cycle of sanitary tests as per the instructions
shown in paragraph “Cleaning and disinfecting of those parts coming in contact with foodstuffs”.
WARNING: Do not clean the machine with water jets.
WARNING: Respect the NATIONAL RULES for machines directly connected to the main water supply.
WARNING: The use of the safety key can make in movements internal parts of the machine.
WARNING: Install the machine placing the electrical plug easy accessible.
WARNING: The machine must be installed following the NATIONAL NORMS and only in good airy places.
WARNING: Use only ingredients specific for semi-automatic vending machines.
WARNING: The personnel in charge of the loading of the ingredients must own a valid certificate of good
health following local and NATIONAL NORMS and be equipped with specific protections. Furthermore,
compliance with any other domestic or local regulations must be checked.
WARNING: Under no circumstance may the vending machine be used by children or by people with poorer
physical, sensorial or mental capacities or who have not been properly informed on correct use; children
shall be supervised to prevent them from playing with the vending machine.

MAN1910117 V.7 – 15/11/2012
7
5 Basic Operating Principles
The powered machine is normally in the stand-by mode. When a button is pressed, a vend cycle starts. If a sale
price is preset, before pressing the selection the required amount of money must be inserted by means of coins.
According to the selection required and to the version of the machine, the vend cycle is composed by some of the
following procedures.
5.1 Preparation of hot drinks from instant ingredients
This procedure is usually carried out after the cup is correctly positioned under the outlet pipes of the beverage.
More than one procedure of this sort can be carried out simultaneously or in sequence during a vend cycle.
This procedure is usually carried out after the cup is correctly positioned under the outlet pipes of the beverage.
More than one procedure of this sort can be carried out simultaneously or in sequence during a vend cycle.
1) One of the boiler pump is activated for a pre-set time to transfer the quantity of the required water into the correct
mixing bowl;
For “I” version
2) If present, the mixer motor is activated;
3) The geared motor activates the screw feeder, in the canister of the corresponding ingredient, which pours the
correct quantity of ingredient in the mixing bowl. More than one canister of ingredients can dispense
simultaneously for the same mixing bowl;
4) The boiler pump is switched off;
5) If present, the motor of the mixing bowl is switched off..
1) When the solenoid valve corresponding is activated, the preset quantity of water is poured to dissolve the
ingredients;
For “E” version
2) The water coming from the water refilling tank, in which the water level is kept constant, is conveyed under
pressure in the boiler by means of a pump;
3) If present, the mixer motor is activated;
4) The geared motor activates the screw feeder, in the canister of the corresponding ingredient, which pours the
correct quantity of ingredient in the mixing bowl. More than one canister of ingredients can be activated
simultaneously for the same mixing bowl;
5) If present, the motor of the mixing bowl is switched off.
5.2 Preparation of the Espresso coffee
This process is carried out in the models equipped with the espresso coffee group after the selection button
corresponding to coffee beans selections has been pressed. The execution priority between this process and the
process for the preparation from instant ingredients is preset by the programme of the machine and varies
according to the selection chosen.
1) The coffee grounds are ejected into the waste bucket (this procedure can be carried out also after 10 minutes
of inactivity of the coffee group);
2) The coffee group moves to the correct position to receive coffee dose;
3) The coffee grinder is activated for a time programmed by software;
4) The coffee group moves to the infusion position: this occurs when the coffee group motor is started. The cup
and the lower filter are moved upwards to close the brewer and press the compress of ground coffee;*
5) The water coming from the water-refilling tank, in which the water level is kept constant, is conveyed under
pressure in the boiler by means of a pump. After the activation of a solenoid valve, the same quantity of
warmed water is then conveyed to the coffee group;
6) The coffee group ends the cycle.
* Procedures marked by asterisk may be carried out in a different order according to the electronic setting of
the machine.
6 Transportation
Only qualified personnel must move the machine.
The machine must be carefully transported as any overturning of the machine is to be avoided.
WARNING: The machine must be kept vertically positioned when moved to another location with the
topside indicated on the box towards up. DO NOT OVERTURN THE MACHINE to avoid damages to the
electronic boards.
The machines are carried on pallet.
WARNING: They must be moved on with dolly, at reduced speed and preventing any excessive bending
movement of the machines.
WARNING: the machine weighs from 20 Kg to 24 Kg ca. Take care during transfer to avoid accidents to
people (example: muscular rip, hernia, etc.).

MAN1910117 V.7 – 15/11/2012
8
If the machine must be stocked for a period before installing it, please keep the machine in a dry place (the relative
humidity must not exceed 80%), with temperature between 5°C and 30°C. Do not place on one machine more than
another one. Do not overturn the machines.
7 Unpacking
The machine must be unpacked as follows:
1) cut the protection film along one of the protection angle bar around the pallet;
2) remove the pallet from all the machines using the appropriate side holes on the packing of the machines;
WARNING: the machine weighs from 20 Kg to 24 Kg ca. Take care during transfer to avoid accidents to
people (example: muscular rip, hernia, etc.)
Each machine must be unpacked as follows:
1) place the machine on a fixed surface;
2) cut the two safe plastic straps;
3) lift up the packing;
4) remove the appropriate bag;
5) lift and place the machine in its working position.
WARNING: the packing materials must be kept out of the reach of unauthorised people, especially
children, as potentially hazardous. Qualified waste recovery companies must carry out the disposal of
special packing materials.
6) take the access keys fixed with adhesive tape at the grid of the cup station;
7) open the door and remove the adhesive tape from the coin box (if it is present);
8) take out the supply cord and connect it to the plug on the backside of the machine without connecting
the other end to the mains electrical supply;
9) lift the superior cover and extract the cartoon sheet placed between the canisters and the cover.
8 Positioning
The machine must be installed indoors on a flat and sound plane.
Any inclination of the surface shall not exceed 2°.
Place the machine at least at 10 cm from the wall to guarantee a suitable air circulation.
Rheavendors Industries S.p.A. declines all responsibility for any shortcomings caused by non-compliance
with installation instructions.
The electrical plug must be easily accessible. If the machine is installed on delicate or valuable floors, it is advised
to lay a carpet under the machine, about 10 cm larger than the machine itself, made of rugged material, resistant to
dirt and water (e.g. synthetic laminate). This is to protect the floor and also prevent it to get dirty for the accidental
spilling of beverages. The xx oc support base, supplied as optional, can contain cups, sugar bags and stirrers.
9 Connection to the mains water supply and to the electrical supply
9.1 Connection to the mains water supply (Version R)
WARNING: respect the NATIONAL NORMS relative to main water supply.
Before proceeding to the connection carry out the following checks on the water to be used:
- Make sure that the water supply is of drinking quality possibly through certificate of a laboratory;
- Make sure that water mains pressure ranges from 0,1 to 0,8 MPa (from 1 to 8 bar);
- If the mains pressure is lower than 0,1 MPa (1 bar), a pump must be installed;
- If the mains pressure is higher than 0,8 MPa (8 bar), a pressure reducer must be mounted, calibrated at 0,3 MPa
(3 bar), on the water connecting hose of the machine; in any case the mounting of a pressure reducer is advisable
in all installations where high-pressure peaks occur.
If not already existing, install a 3/8" gas tap to exclude the machine from the mains source in case of emergency.
Connection of the tap to the machine must be made with a copper or plastic hose which have been approved for
food contact use and resistant to operating pressure not lower than 1 MPa (10 bar).
Make sure that the water is free of impurities and does not feature excessive hardness (higher than 20 French
Degrees). This shortcoming can be solved using normal water softeners.

MAN1910117 V.7 – 15/11/2012
9
9.2 Version with water independent tank (vers. A)
Fill the internal independent water tank using drinking water. If it is necessary
demand a laboratory certification to a specific analysis laboratory. To fill in water, lift
the water refilling cover or extract the tank from the machine and pour drinking
water inside the tank. The capacity of this tank is about 2 litres.
Do not overpass the maximum level indicated on the tank. In case of too
much water inside the tank the red float will lift up.
9.3 Connection to the electrical supply
Make sure that the grounding of the electrical mains to which the machine will be connected is in good conditions
and in compliance with domestic and European standards concerning electrical safety.
The machine is equipped with a power supply cord VII-H50VV-F-3G1.0, 3x1.5 mm2 with Shucko plug C19 (In case
of damaged cable contact Rheavendors Industries S.p.A. to replace it).
WARNING: place the machine with the electrical plug easily accessible.
Make sure that the electrical mains voltage is the same as indicated on the identification sticker of the machine and
that the current rating of the plug is suitable for the current absorbed by the machine.
The identification sticker is put inside the machine and can be seen opening the door. For connection, an electric
plug, single-phase, 230V - 50 Hz, for a maximum load of 10 A is required.
Any type of plug, which is incompatible with the socket of the machine, must be replaced.
Do not use adaptors or multiple plugs.
10 How to activate or deactivate the machine
10.1 Starting switch
A starting switch placed in the rear part of the machine cuts the power off all electrical and electronic components
in the machine.
WARNING: If required, to switch the machine off push the starting switch in OFF position or unplug it from
the electrical mains.
10.2 Safety switch A safety switch is provided in the machine, which cuts the power off to all 24 V
supplied components in the machine when the door is opened.
To activate the machine with the door opened
Then insert the safety key into the safety switch as shown in the picture.
you have to lift the top cover
and remove the safety key that you can find under the top left side of the cover.
WARNING: if required, to switch the machine off, open the door of the
machine or unplug it from the electrical mains.
MAX
LEVEL

MAN1910117 V.7 – 15/11/2012
10
WARNING: the opening and switching on of the machine with the door open
(unless for cleaning operations) must be carried out only by authorised, qualified
personnel. Do not leave the machine open unguarded.
WARNING: removing the coffee beans canister a micro-switch cuts the power off
grinder in the machine.

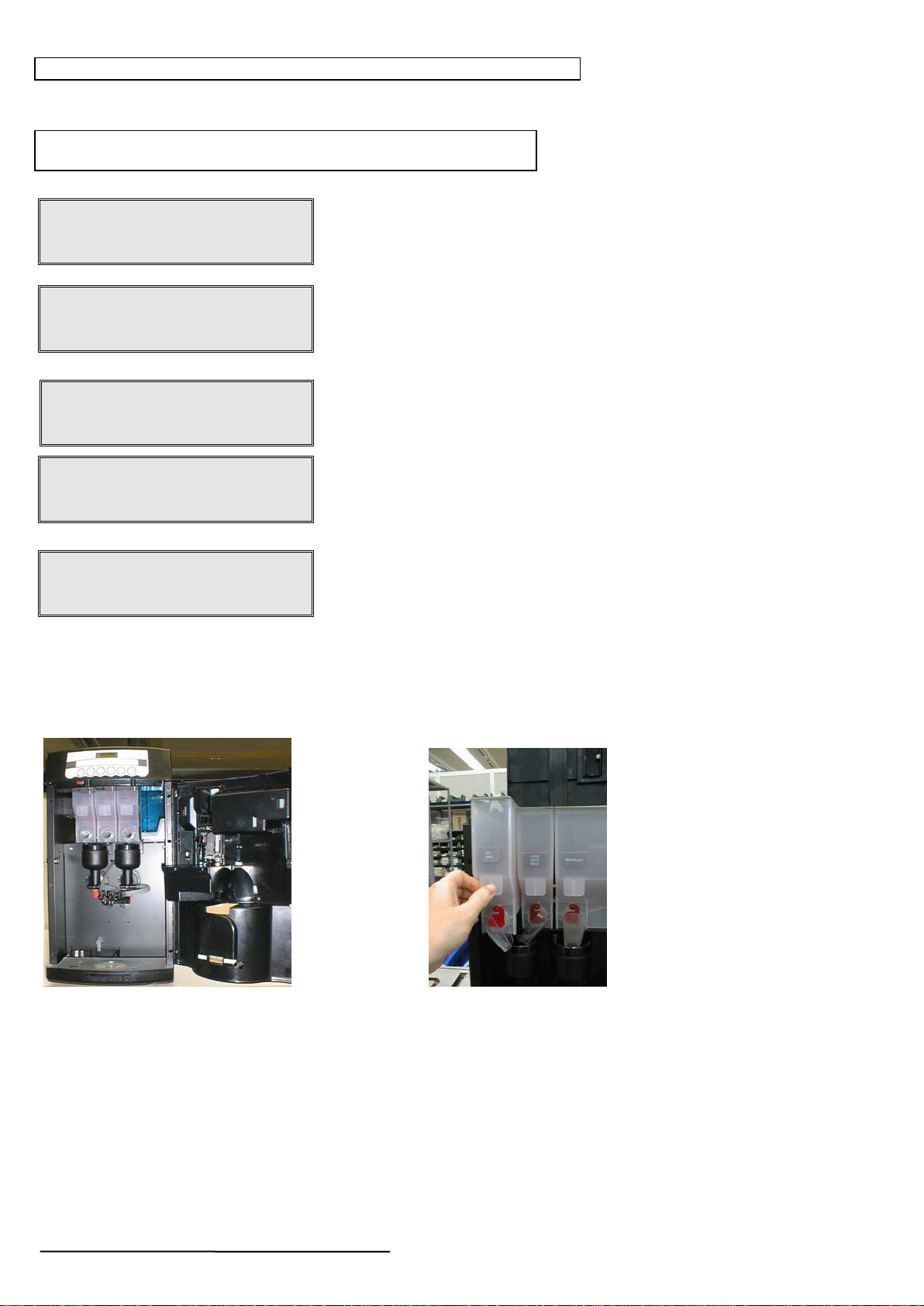

10.3 Diagnostics cycle of the switching up
At the starting the machine carries out a diagnostics cycle to check the position of the mobile components, the
correct quantity of some ingredients and the correct water mains supply pressure. At the end of checks, the
standard invitation message will appear on the display, e.g.:
rheavendors group
- - - - - - - - - - - - - - -
version 2.4
24 - 04 - 03
the date of the update of the software and the version of the master loaded into the machine (e.g.: 2.2).
switching on
please wait
Only during the First Installation, at this point, the machine makes some specific operations. They are described
in the paragraph “Start up operations”. At the end of all tests the display shows the message:
rheavendors
xx oc
place
your cup
11 Start-up operations
11.1 First installation phase
During the First installation phase water is filled inside the water tank and the boiler. Then it is necessary to set the
correct boiler’s temperature.
11.1.1 Loading the boiler
Make sure that the liquid waste bucket is correctly placed.
Version R - Open the tap of the water circuit.
Version A – Fill the blue water tank.
Open the front door. Insert the plastic key into the safety switch and turn on the machine.
rheavendors
16-11- 05

MAN1910117 V.7 – 15/11/2012
11
XX OC LX V1A
14 04 06
(only in case RFID reader is connected)
rheacard reader
connected
Please
wait

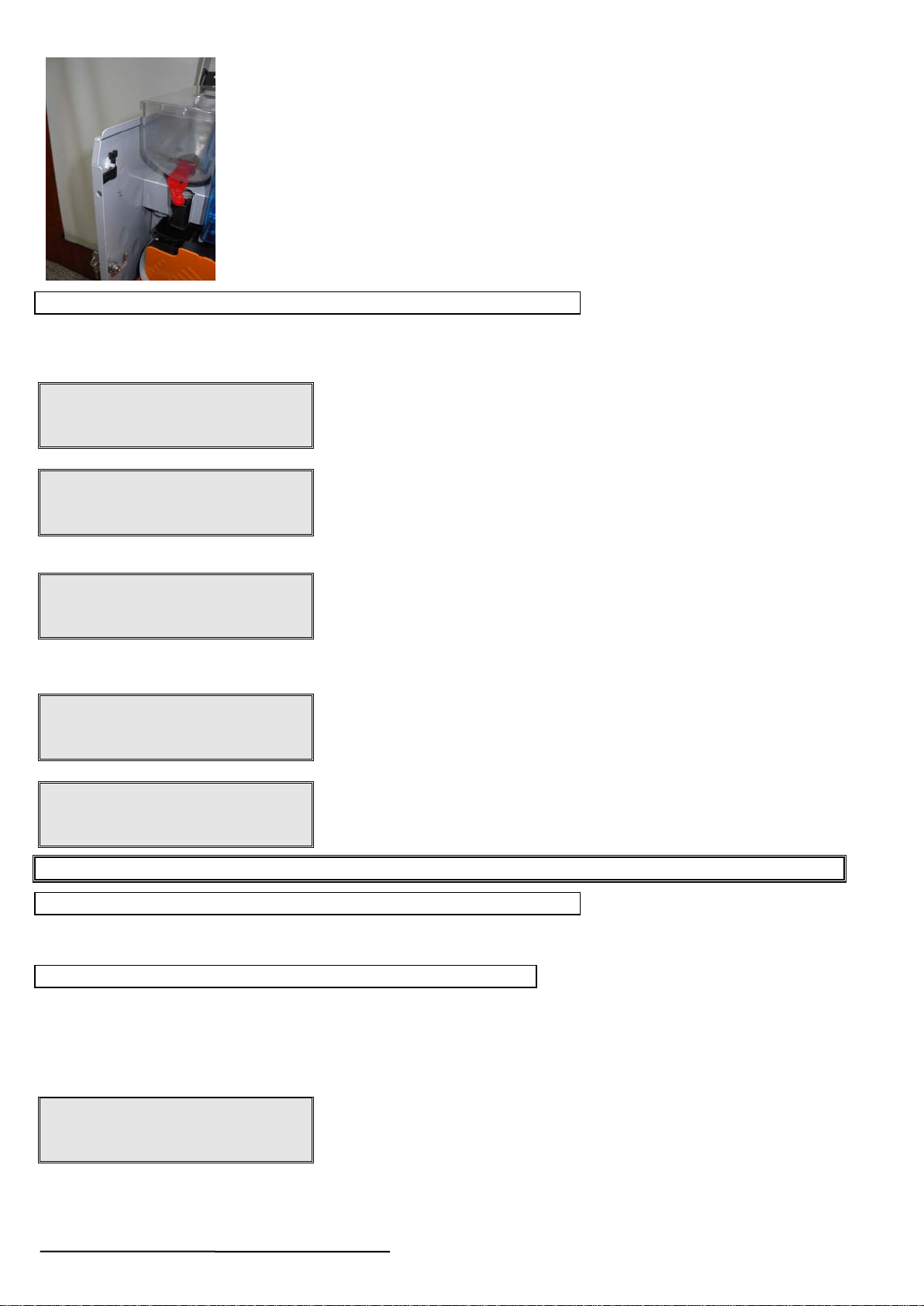

The machine starts to make automatically the First Installations operations. The display shows:
water refilling
The machine starts automatically loading the water tank and the boiler. The boiler is filled up in about 5 min. At the
end of this phase the machine starts to test the Damian Snack as described at the paragraph “Diagnostics cycle
of the switching up”.
Il distributore automaticamente inizia a caricare acqua direttamente nel bollitore per la versione solubile e prima
nella centralina poi nel bollitore per la versione espresso. A bollitore carico si accende la resistenza per il
raggiungimento della temperatura impostata all’interno del bollitore. Durante la procedura di prima installazione il
display mostra:
press PROG
to STOP water
WARNING: press the key PROG only in case of flowing of water from pipes
. Do not press PROG in case
you don’t see water coming out. This last operation could damage the machine.
.
At the end of the operation the display will show::
end
installation
The machine makes a new check cycle . When ready the display shows:
XX OC LX
place
the cup

MAN1910117 V.7 – 15/11/2012
12
11.2 Second installation phase
The second phase of the installation of the machine contains the cleaning of the parts in contact with foodstuff, the
loading of the food products and the installation of some accessories.
11.2.1 Washing and disinfecting of components in contact with
foodstuff.
With the vending machine switched on, make sure that the display shows:
rheavendors
xx oc
place
your cup
Open the door. Insert the plastic key into the safety switch. The display shows:
1=PROG
3=FREE
2=DATA 4=CLEAN
5=MAINT.
Make the cleanings of the mixing bowls pressing button 4; the display shows:
CLEANINGS
SEL 1-2- - - - - - - - -
Press buttons 1 and 2. With all these three buttons use about 3 litres of water altogether. This will remove any
possible trace of dirt from the boiler. Press the internal key on the display board inside the machine.
WARNING: Switch off the machine. Wash hands thoroughly.
Prepare separately, in a suitable container, a disinfecting antibacterial solution of chlorine, according to the
instructions enclosed in the chemical.
Open the front door and lift the cover.

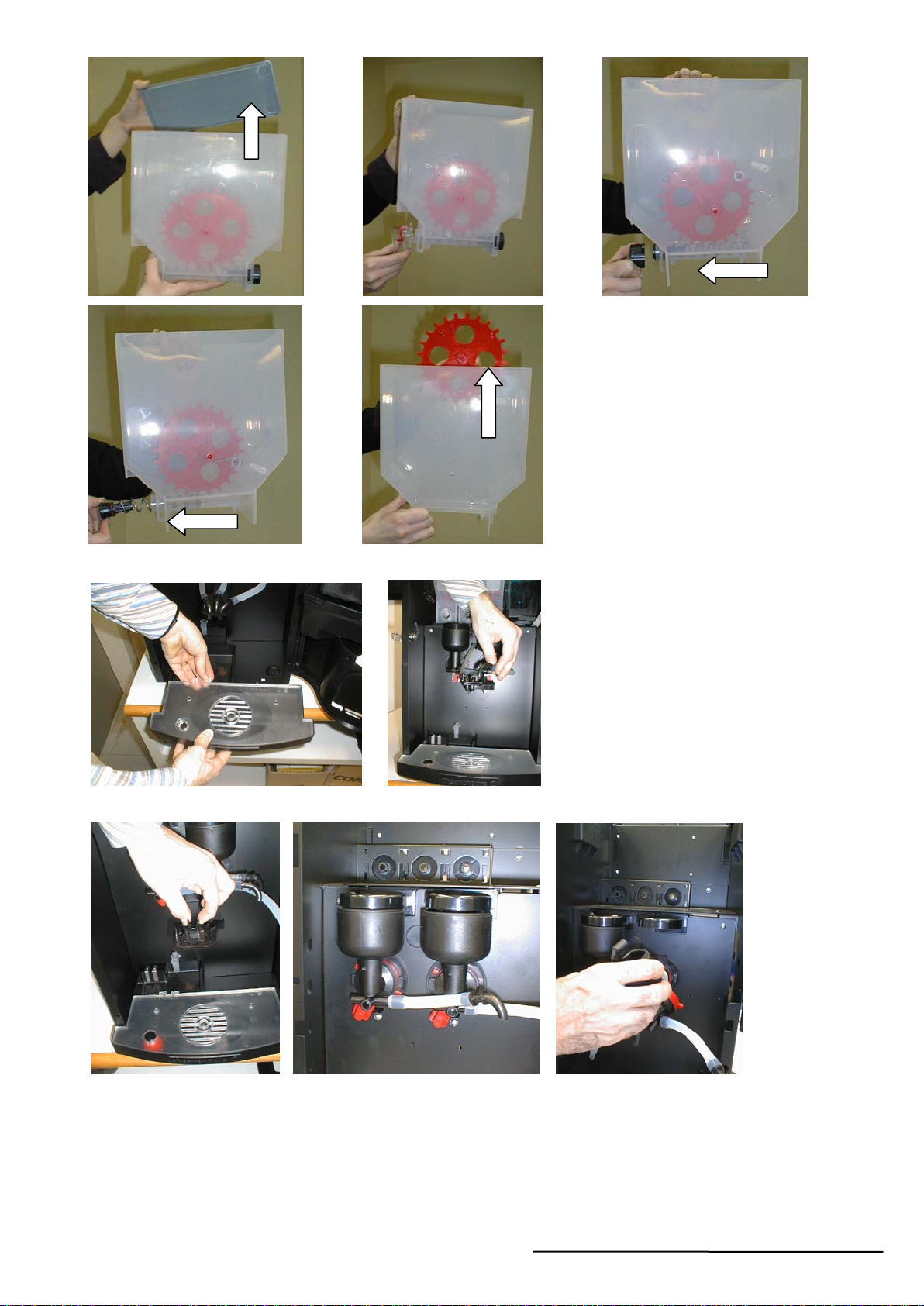

completely the canisters
Remove all the ingredients canisters from the machine
and disassemble

MAN1910117 V.7 – 15/11/2012
13
immerse all parts in the solution previously prepared.
Remove the liquid waste bucket, remove the product pipes,
remove the pipes support, remove the mixing bowls, the mixing fan.
1.
2.
3.
4.
5.

MAN1910117 V.7 – 15/11/2012
14
and the aspiration drawers. Immerse all parts in the solution. Using a cloth soaked in the solution, proceed to clean
also the attachment bases of the mixers, which remain fixed to the machine. The time of permanence in the
solution, in order to obtain a full disinfecting, is stated on the packaging of the chemical.
At the end of the disinfecting, recover all the disassembled parts, dry them very carefully (using compressed air, a
hair dryer or perfectly clean and sterile cloths) and reassemble them in the machine in opposite sequence with
respect to disassembly. Switch on the machine and make again two or three times a cleaning.
Use about 2 litres of water altogether. This will remove all traces of disinfecting solution from the outlet pipes.

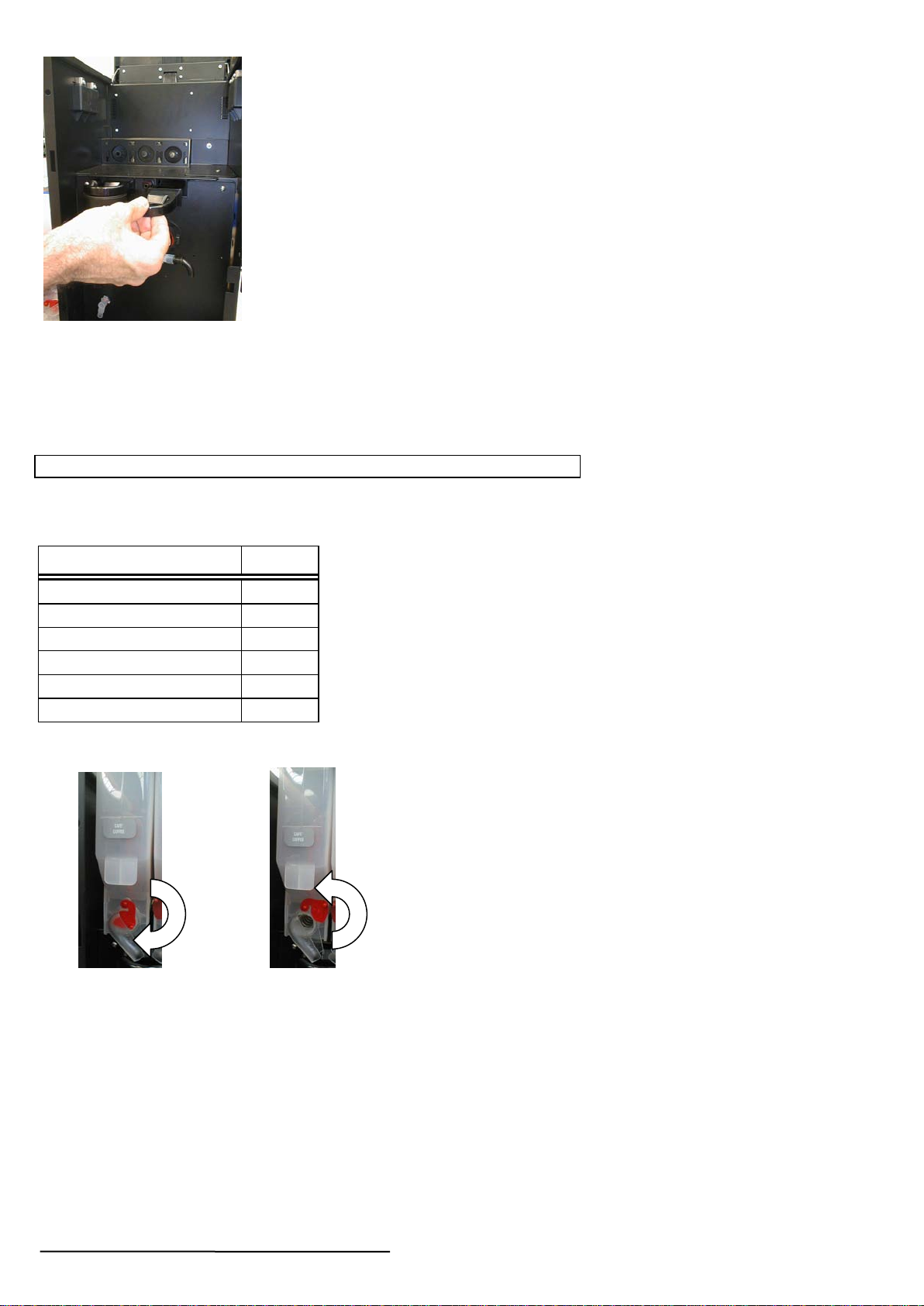

11.3 Refilling of ingredients
Read on the canister the indication of the ingredient to be loaded into the machine. Fill up the canister of the
ingredients, after having removed the cover. Use a quantity of product suitable for a period between two refilling,
and in any case do not exceed the quantities shown in the table here below.
INGREDIENTS
QTY
Coffee beans
650 g
Instant coffee (small) 330 g
Milk (small)
380 g
Chocolate (small)
940 g
Cgocolate(big)
2200 g
Water 2,2 lit
This will prevent deterioration of the quantity of product in excess. Canisters for soluble ingredients can be removed
from the machine, in order to facilitate refilling. Rotate the slide lock in order to avoid spilling powder.
closed open

MAN1910117 V.7 – 15/11/2012
15
12 Programming of the machine
12.1 Memory
The machine is controlled by a program stored in the microprocessor of the FLASH memory, installed on the CPU
board.
The program stored in the memory (master file) can be updated with Rhea black flash card
•Download the master file furnished from the factory on the
programmed with the
Rheaction Program. Rhea black flash card
•Switch off the machine;
using the Rheaction
Program;
•Insert the flash card into the flash slot in the front of the machine.
•Switch on the machine.
•Wait until the display shows:
Programming
Master
OK
•Switch off the machine.
•Extract the flash card.
12.2 Factory set parameters
The machine is supplied already pre-set for the most common operation parameters. In particular:
- configuration of the version;
- throw of powdered ingredients and quantity of water required;
- vend prices (set to 0: the machine is in the free vend mode);
- pre-setting for the use of the system of parallel payment;
- the clock function disabled;
The Data set of the machine must be modified only if the pre-set factory parameters are not complying with the
required use.
The parameters stored into the memory (configuration file) can be updated with Rhea black flash card
•Download the configuration data file furnished from the factory on the flash card using the Rheaction
Program;
programmed with the Rheaction Program.
•Switch off the machine;
•Insert the flash card into the flash slot in the front of the machine.
•Switch on the machine.
•Wait until the display shows:
1 = KEY - - - > VMC
2 = VMC - - - > KEY
•Press button 1. The display shows:

MAN1910117 V.7 – 15/11/2012
16
Programming
EAROM data
Programming
OK
•Switch off the machine.
•Extract the flash card.
12.3 How to enter and exit from the programming mode
To modify the operation parameters of the machine it is necessary to enter in the programming mode. To enter
press the internal key P on the display board inside the machine. The display shows.
1=PROG
3=FREE
2=DATA 4= CLEAN
5=MAINT.
Enter 1on the keyboard. The display shows:
PROGRAMMING
BUTTON 1 - - - - - - - -
Once the parameters have been modified, enter the key P on the keyboard and the machine will exit from the
programming. The display shows:
END PROGRAMMING
- - - - - - - - - - - - - - - - -
12.4 Keys used in the programming mode
Programming is carried out by pressing the buttons on the selection keypad.
Notably:
•with 1the sequence of programming sub-menus is visualised;
•with 6the sequence of programming sub-menus is visualised in the reverse direction;
•with 2the sequence of specific programming functions for the chosen sub-menu is visualised;
•with 3the sequence of specific programming functions for the chosen sub-menu is visualised in the reverse
direction;
•with 4the value of the visualised function is increased or selected;
•with 5the value of the visualised function is decreased or selected.
12.5 Programming sub-menus
Access to the programming sub-menus is possible at any time, after entering the programming mode and entering
1on the keyboard. These sub-menus are repeated cyclically after the last one has been displayed. The sub-menus
and their video order are as follows:
PROGRAMMING- - - - -
- BUTTON 1 -- - - - - -
FREE

MAN1910117 V.7 – 15/11/2012
17
PROGRAMMING - - - -
- BUTTON 6 - - - - - - -
PROGRAMMING - - - -
- PRICES - - - - - - - - - -
PROGRAMMING
-SPECIAL PRICES - - -
PROGRAMMING - - - -
- COINS - - - - - - - - - - -
PROGRAMMING - - - -
-TEMPERATURE - - - -
PROGRAMMING - - - -
-MISCELLANEOUS - -
DIAGNOSTICS - - - - - -
- - - - - - - - - - - - - - - - - -
SALES AUDIT - - - - - -
- - - - - - - - - - - - - - - - -
PROGRAMMING- - - - -
-CLOCK- - - - - - - - - - -
REGISTRATION
OUT OF SERVICE
PROGRAMMING
PRODUCT QTY - - - - -
PROGRAMMING
-MAINTENACE- - - - -
PROGRAMMING
- RFID CARD
12.5.1 Pre-setting of the buttons
The modification of throws is a delicate operation as the good operation of the machine can be affected. As a
general rule, it is recommended to keep in mind that when instant ingredients are dissolved in water, a brief interval
to rinse the mixing bowl must be foreseen at the end of the powdered ingredient vending. This is provided by
programming a dispensing time for water about 2 sec. longer than the dispensing time for the instant ingredients.
To each of the 6 selections it is possible to associate the recipe of any drinks. To proceed at the pre-setting of each
button, in the programming mode, enter 1until the video shows:

MAN1910117 V.7 – 15/11/2012
18
PROGRAMMING- - - - -
-BUTTON 1- - - - - - - -
Enter 2to visualise one of the following functions:
FUNCTIONING
INHIBITED
Scroll the functions entering 4and 5. To inhibit the button, which is going to be programmed, confirm INHIBITED
entering 1.
12.5.2 Setting of a selection
To program a selection confirm FUNCTIONING. Press again the button 2. The display shows:
WATER time
Coffee brewer xx
Use this parameter to adjust the quantity of the water for ground coffee. Activate this parameter only if you want to
associate to this selection button a drink made with coffee beans. Increase or decrease the value pressing
respectively the buttons 4 and 5. To inhibit this function programme the value 0.0. Press again the button 2. The
display shows:
opt. coffee-milk
(0-1) X
Use this parameter to set the priority of starting between milk and ground coffee for drinks made with these
ingredients. Increase or decrease the value pressing respectively the buttons 4 and 5. Set this parameter at 0 if
you want that milk starts before ground coffee and the value 1 for the opposite. Press again the button 2. The
display shows:
grinder time:
0.0
Use this parameter to set the time of activation of the grinder motor. Increase or decrease the value pressing
respectively the buttons 4 and 5. Press again the button 2. The display shows:
PRODUCT 1
0=inhib. .0
The number of the product shows the position of the canister inside of the machine starting to count from the left
the possible positions of the product motors. If the PRODUCT 1 is necessary for the drink that is being set,
increase or decrease until the desired value, pushing respectively 4and 5; otherwise inhibit the ingredient setting
its value to 0.0. If you press the key PROG, you can dispense the quantity of product set. Only if PRODUCT 1 is
not set at 0
start delay
, entering again 2the video shows:
PRODUCT 1 .0
Entering respectively 4and 5increase or decrease the ingredient’s pouring delay after the beginning of the
selection. Entering again 2the video shows the same items for other products that can be set as the previous one
following the recipe of the desired drink. The relative delays are shown only if the PRODUCTS are not at 0.
breaks number :
Entering again 2the video shows:
0

MAN1910117 V.7 – 15/11/2012
19
Entering respectively 4and 5increase or decrease the number of breaks during the dispensing of the product. The
maximum number of programmable breaks is 2. I.e: If you want that products is dispensed into two phases
program this parameter at 1. Entering again 2the video shows:
WATER 1 time
0=inhib. .0
The number of the WATER shows the position of the mixer starting from the left. Increase or decrease the value
pressing respectively 4and 5; otherwise inhibit WATER setting its value to 0.0. Only if WATER 1 is not set at 0
start delay
,
entering again 2the video shows:
WATER 1 .0
Entering 4and 5increase or decrease respectively the water pouring delay after the beginning of the selection.
Entering again 2the display shows:
flow WATER 1
0
Entering 4 and 5it is possible to choose among three parameters:
0which corresponds to “slow”, 1which corresponds to “medium”, 2which corresponds to “quick” to increase or
decrease the correspondent water flow. Entering again 2the video shows:
MIXER 1
0=inhib. .0
Increase or decrease the value of the time of working of the mixer pressing respectively 4and 5; otherwise inhibit
the MIXER setting its value to 0.0. Entering again 2the video shows:
start delay
MIXER 1 1.0
Entering 4and 5increase or decrease respectively the mixer start delay after the beginning of the selection.
Entering again 2the video shows:
MIXER 1 speed
00
Entering 4and 5increase or decrease respectively the mixer speed of the selection. Entering again 2the video
shows the same items for other waters that can be set as the previous one following the recipe of the desired drink.
The relative parameters are shown only if the WATERS are not at 0.
number of cycles for
Entering again 2the video shows:
jug: 0
Setting this parameter to a value different from 0 a jug drink is activated made of the set number of cycles of the
same drink (jug mode). This is possible only in case of RFID card. Increase or decrease the number of the cycles
pressing respectively 4and 5Pressing again button 2 the display shows:
selection name:
standard
Pressing button 4 and 5it is possible to modify the message shown in the display during the preparation of the
drink. If you select the value standard, the display will show:
drink number N
preparing

MAN1910117 V.7 – 15/11/2012
20
otherwise if you select one of the available selection names the display will show:
selection name
preparing
Press button 1 to programme the following button.
Enter 1to programme next button. All the settings described in this and in following paragraphs can be set in an
easier way using rheaction software. For further information contact Rheavendors Services S.p.A - Customer
Service.
12.5.3 Setting of sale prices
One price for each selection available can be memorised in the machine. When a selection is matched to a price
set to zero, the selection is in the free vend mode. To modify sale prices, in the programming mode, enter 1until
the sub-menu
PROGRAMMING - - - -
PRICES - - - - - - - - - -
is visualised. Enter 2and 3and select the price to be modified. For example:
PRICE X
XXXX
will appear on the video. Enter 4and 5to modify the value of the price videoed. Enter 1to confirm the set data.
Setting of sale prices One price for each selection available can be stored in the machine. When a selection is
matched to a price set to zero, the selection is in the free vend mode. To modify sale prices, in the programming
mode, press button 1 until the sub-menu
PROGRAMMING - - - -
PRICES - - - - - - - - - -
is visualised. Press buttons 2 and 3and select the price to be modified. For example:
PRICE X
XXXX
will appear on the display. Press buttons 4 and 5to modify the value of the price displayed. Press button 1 to
confirm the set data. When the invitation message is visualised and with machine open and switched on, the pre-
set sale prices can be by-passed by entering the selection test mode (free-vend). To have access to this mode,
press the key P on the display board inside the machine, then press button 3. The display shows:
1=PROG
3=FREE
