Rheavendors Group Cino XS Grande Pro VHO Manual

CINO XS GRANDE PRO VHO
type: compact
__________________________________________
www.rheavendors.com
INSTALLATION AND MAINTENANCE MANUAL
Translation of the original instructions
MAN2100154 rel. 00 dated 04.11.2013

Cino XS grande PRO VHO by
preliminary
safety
information
***
***
***
***
***
***
before using the machine, carefully read this information that helps you
behave properly and guarantee a safe use;
the following pages use the symbols listed here below, whose meaning is of
attention:
GENERAL;
if the text is highlit by this symbol, it is recommended to pay special
attention to the performance of the procedures described; if not carefully
performed on safe conditions, they can be source of general danger;
HIGH VOLTAGE;
if not properly performed, the actions marked by this symbol may expose
to accidental contacts with electric voltage;
DANGEROUS TEMPERATURE;
if not properly performed, the actions marked by this symbol may expose
to accidental contacts with high-temperature parts;
MOVING MEMBERS;
if not properly carried out, the actions marked by this symbol may expose
to accidental contacts with moving members;
the same symbols are placed inside the vending machine to indicate the
parts on which to act with the utmost caution;
SERVICE KEY IN USE;
the symbol recommends the utmost attention during the actions described;
the use of the service key intended to activate all machine functions when
the door is open is only reserved to the technical operators who know the
operation of the vending machine, who are aware of potential risks and who
make sure they are operating on totally safe conditions;
the use of the service key shall be strictly limited to the time necessary to
perform the actions requiring the use thereof; users shall be informed of
the prohibition on using and approaching the vending machine;
safety rules for using the vending machine
pay special attention to the chapters and notes high lit by the symbols of
alert; strictly observe the rules concerning, in particular, the operators’ and
users’ safety;
under no circumstance may the vending machine be used by children or by
people with poorer physical, sensorial or mental capacities or who have not
been properly informed on correct use; children shall be supervised to
prevent them from playing with the vending machine;
if you should find out a water leak or the presence of smoke, immediately
detach the vending machine from the electric and hydraulic network, never
try to restore its operation and apply to skilled technicians;
the machine shall be installed according to national rules; pay special
attention to the rules about the machines directly connected with the
hydraulic network;
the user is not allowed to access the maintaining and servicing area that
shall be properly signalled;
never remove protections, never override safety devices and never modify
the machine or its components;
MAN2100154 rel. 00 dated 04.11.2013 page no. 2 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]m
exclusive property of rheavendors group

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 3 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
the symbol means that it is forbidden to dispose of
the equipment as urban waste and compulsory to
provide for separate collection in order to prevent
any potential effect on the environment and human
health; strictly follow the provisions of the
European Parliament’s 2002/96/EC Directive;

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 4 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
residual risks a residual risk is understood as a potential danger
that can not be eliminated and it persists despite all
precautions in use since it is related to the intrinsic
features of the product and it also includes non-
identifiable risks;
the actions and behaviours listed here below are
intended to reduce residual risks and you shall
always adopt them when interacting with the
machine;
wear clothes that can properly avoid any accident
(never wear rings, chains, clothes with laces or
excessively long sleeves, …);
carefully evaluate the treatment of residues from
installation (wood, plastics, …) and utilisation
(product powder, bags, …);
never repair or carry out any technical action if you
have not been properly trained;
signal that a technical action is in progress on the
machine (barriers against approach, signs, …),
carry it out quickly without leaving the station;
install the machine in a sheltered, illuminated,
ventilated and noiseless environment; keep it clean
and never place tools or any other object on it;
never install it outdoors or, anyway, never expose
it to atmospheric agents;
make sure it can be neither reached by water
sprays or vapours nor hit by objects that might
damage it;
carefully consider the machine weight and stability
during the installation and in the final working
position;
supply the machine within voltage, temperature,
pressure and hydraulic limits, …as it is detailed on
the following pages and provide for an effective
earthing;
even if detached from supply, the machine may
contain hot pressurised water at a high
temperature;
never detach hydraulic and electric supplies when
they are active;

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 5 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
general guarantee
conditions
1st
2nd
3rd
4th
5th
6th
7th
these conditions regulate Rheavendors Industries S.p.A.’s
obligations with reference to guarantee and repair; any other term
or condition, either verbal or written, is not applicable, including
those in the purchaser’s purchase orders, if not explicitly accepted
and signed by Rheavendors Industries S.p.A.; if the guarantee
terms here below should be held not to be valid and/or lawful in
the Country where the product is sold, they will not be effective
whereas all the other clauses will remain valid and applicable;
the mechanical and electronic components of the machine are
guaranteed for twelve months, starting from the sales date certified
by the fiscal receipt;
the guarantee shall be understood as the free replacement or
repair of any part of the machine that –at the manufacturer’s
unquestionable discretion –should prove to be originally
defective due to manufacturing defects; the cost of sending the
manufacturer machines, defective pieces and spare parts will be
totally charged to the user’s account; the manufacturer reserves
the right to use new or reconditioned components for repair; if
replaced, original components will be guaranteed for 12 months;
the parts replaced under guarantee will become the property of
Rheavendors Services S.p.A. (request for “Form PO 19.01/2b”
Materials under guarantee –Authorisation to return);
in case of irreparable failure or if a failure of the same origin is
repeated, the manufacturer may –at its unquestionable discretion
–replace the machine with another one, the model of which is
either the same or an equivalent one; the guarantee of the new
machine will be extended up to the original term of guarantee of
the replaced machine;
all the parts that should prove to be defective due to negligence or
carelessness (non-observance of the instructions for the operation
of the machine), incorrect installation or maintenance by
unauthorised personnel, transport damage or any circumstance –
anyway –not due to the manufacturing defects of the machine are
not covered by guarantee; the installation and connection with
supply plants as well as the maintenance operations mentioned by
the installation manual are also excluded from any performance
under guarantee; the guarantee will not cover payment systems
either; whether installed on the machine or supplied as an
accessory, they are subject to their manufacturer’s guarantee
whereas Rheavendors Industries S.p.A. will just act as a broker;
all changes made to the machine and not agreed with the
manufacturer in writing will involve the immediate termination of
the guarantee period and anyway fall under the Customer’s total
responsibility;
the guarantee is excluded in all cases of improper use of the
machine;
Rheavendors Industries S.p.A. will disclaim all responsibility for any
damage that may be directly or indirectly caused to people,
animals or things as a result of:
improper use of the vending machine; incorrect installation;
improper energy or water supply; serious maintenance deficiency;
actions or changes not explicitly authorised; use of non original
spare parts;
in case of failure, Rheavendors Industries S.p.A. is obliged neither
to compensate any economic damage due a forced stop of the
machine nor to extend the guarantee period;
if the machine should be transferred to a centre designated by the
manufacturer for overhaul or repair, the relative transportation
risks and costs will be charged to the user’s account; the freight
charges of machines, defective pieces and spare parts are always
understood as charged to the user’s account;

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 6 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
declaration of
conformity
marking
ISO 9001 certification
Rheavendors Industries S.p.A. declares that this drink vending
machine has been designed and manufactured in compliance with
the following directives and safety standards:
Directives:
2004/108/EC; 2006/95/EC; 2006/42EC;
2002/95/EC (RoHS); 2002/96/EC (RAEE); 1907/2006/EC (REACH);
1935/2004/EC;
Standards:
SAFETY:
EN 60335-1: 2002 + A11: 2004 + A1: 2004 + A12:2006 +
A2: 2006 + A13: 2008 + A14: 2010 + A15: 2011;
EN 60335-2-75: 2004 + A1: 2005 + A11: 2006 + A2: 2008 +
A12: 2010;
EMC:
EN 55014-1: 2006 + A1: 2009 + A2:2011;
EN 55014-2: 1997 + A1: 2001 + A2: 2008;
EN 61000-3-2: 2006 + A1: 2009 + A2: 2009;
EN 61000-3-3: 2008;
EMF:
EN 62233: 2008;
manufacturer
Rhea Vendors Group S.p.A.
Via Valleggio, 2/bis –22100 Como –(CO) - Italia
manufacturer of the machine
Rheavendors Industries S.p.A.
Via Garavaglia, 58 - 21042 Caronno Pertusella –(VA) –Italy
The President & CEO
(C. D. Majer )
conformity

page 08
page 08
page 09
page 11
page 12
page 20
page 22
page 23
page 25
page 38
page 41
page 44
page 48
page 51
Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 7 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
table of contents
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
11.
12.
13.
14.
legend
introduction
technical data
configurations
presentation
preliminary actions
connections
installation and first power on
programming
parameters
solution of problems
maintenance
how to do to…
hydraulic diagram
in the listed chapters, the manual describes a
Cino XS grande PRO VHO
vending machine in its hardware and software components for a
complete and fully-aware use of all machine functions; due to the
large variety of available options and the constant technical update
of our vending machines, some special device or function might be
indicated and described not in the manner you expect; in this case,
do not hesitate to contact us;
telephone: [phone]
fax: [phone]
e mail: [e-mail]
attention
this label applied next to the serial number label inside the vending
machine points out that the instructions supplied by this manual
must be carefully read before the installation and operation of the
vending machine;
please, print this manual only if necessary; environmental
protection is our common interest;
00 04.11.2013 First issue;
rel. date description
this document is made available electronically on site www.rheavendors.com

01.
legend
01.01. pictograms
01.02. tools
02.
introduction
02.01. copyright
information
02.02. contacts
02.03. serial number
label
§
Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 8 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
(example)
some general information that may be of use to consult this
manual;
- electrician's shears, a Phillips PH2 cross-screwdriver for 4/6 mm
self-threading screws, a set of wrenches up to 13 mm, a set of
Allen wrenches from 2 to 8 mm;
-it may be convenient to have expendable materials at disposal,
such as disposable paper and gloves, some pieces of clean
cloth, some glasses and a bucket for waste water; a small
portable aspirator is of use to remove any product residue from
inside the machine;
© Rheavendors Industries S.p.A.; all rights reserved;
this document contains some confidential information that is
Rheavendors Industries S.p.A.'s exclusive property; the content of
this document can neither be disclosed to third parties, nor copied
or duplicated, in any form, either totally or partially, without
Rheavendors Industries S.p.A.'s prior consent in writing; the
utilisation, duplication or disclosure of the technical information
supplied by this document may be protected by Rheavendors
Industries S.p.A. according to the Law;
this manual is intended for the vending machine owner, it is an
integral part of the machine and it must be kept with the machine;
the information supplied by this manual is intended to obtain the
best performance level from the vending machine within the
Manufacturer's range; Rheavendors Industries S.p.A. reserves the
right to improve the future production without any prior notice and
without any obligation to update the products on the market; the
manufacturer disclaims all responsibility for any incorrect
information due to misprints;
Rheavendors Services S.p.A. is ready to supply support and
information on this vending machine;
telephone: [phone]
fax: [phone]
e mail: [e-mail]
for the references of our partners all over the world visit the site;
www.rheavendors.com;
for a quick and univocal identification of the vending machine and
for the best support please supply the data on the serial number
label;
code: D12345A67890
s/n: 1234 56 7890
silver serial number labels are applied inside and outside the
machine cabinet;
R E VSF
machines with
external water
supply;
dispensing of drinks
based on instant
products and coffee
beans;
pitch of the worm
screw of product
canisters (9/18mm);
product shaker of
instant product
containers
hot water dispenser
into cup;
standard outlet hole
(orange closing
baffle)
reduced outlet hole
(red closing baffle)
coffee brewer
type of product slide

§
Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 9 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
03.
technical data
03.01. dimensions
03.02. weight
03.03. supply water
energy
03.04. safety water
energy
heat
software
03.05. sound pressure
03.06. keyboard
03.07. display
03.08. dispensing
compartment
03.09. dispenser
03.10. drip tray
03.11. grinder motor
03.12. millstones
03.13. espresso brewer
03.14. air break
03.15. pump
03.16. pressure boiler
03.17. product canisters
VSF
height (including the coffee beans canister projecting by 80 mm):
height (including the grounds base):
width:
depth:
depth with open door:
machine:
grounds base:
connection through solenoid valve with 3/8”gas male face:
230 V ac, 50/60 Hz; single-phase and earth:
cable of type: H05VV-F 3G:
anyway refer to the values supplied by the serial number label
overflow sensor and pressure relief valve; water inlet solenoid
valve with antiflood sensor;
a main switch, a door switch;
two fuses 6.3x32 mm;
manually resettable sensors;
time limits for water dispensing;
A weighted sound pressure level;
ten selection buttons;
multicolor; work area 66.5 mm x 33.2 mm;
open; with cup folding support (useful height 80 mm);
a fixed dispensing place;
a drip tray beneath the cup surface;
conical:
variable-volume percolation chamber;
motor:
with overflow and level switch;
vibration:
pressure boiler:
maximum four; according to the machine configuration;
coffee beans canister capacity:
instant product canister capacity:
width: 55 mm useful volume: 1.7 litres milk
tea
110 mm useful volume: 3.5 litres milk
chocolate
product slide with standard orange (tea) or reduced red outlet;
with shaker (milk and chocolate);
dispensing worm screws, 9 mm (tea) or 18 mm in pitch;
670 mm
815 mm
420 mm
590mm
880 mm
36 kg
9 kg
from 0.1 MPa to 0.8 MPa
2,100 W
1 mm²; 300/500 V
230 V ac; 12 A delayed
127 °C
less than 70 dB (A)
64 x 128 pixel resolution;
maximum 140 mm
750 ml capacity
230 V dc; 150 W
400 r.p.m.
Ø 45 mm; 8 ÷ 15 gr.
24 V dc; 30 W
230 V ac
0.8 litres; 2,000 W
2,000 gr.
380 gr.
980 gr.
800 gr.
2,200 gr.

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 10 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
03.18. product motors
03.19. product sensor
03.20. mixing bowls
03.21. mixer motors
03.22. miscellaneous
03.23. notes
maximum three; according to the machine configuration;
one; installed to control the coffee beans canister content;
maximum two; according to the machine configuration;
maximum two; according to the machine configuration;
the machine parameters can be programmed by means of a flash
key or a selection keyboard; housing for NRI G13 payment systems
or alike; protocols: serial, parallel, executive, MDB; data collection
by means of a flash key (see 09.06.);
the water and energy supply tolerance limits for a good and regular
operation of the machine Cino XS grande PRO VHO are:
water:
- total hardness:
- recommended conductivity:
(*) in case of higher hardness use anti-limestone filters and
provide for their regular maintenance according to the
manufacturer's instructions;
energy
- nominal voltage:
ambient (during storage and operation):
- temperature:
- relative humidity:
electric consumption:
- power (upon sale):
the complete data, according to the EVA-EMP Energy Measurement
Protocol, are made available upon request (see 02.02.);
attention
the power supply cable supplied with the vending machine
shall be altered in no way; if either lost or damaged, replace
it with the original component only;
make sure that the power supply installation that is connected with
the vending machine can supply the indicated power (see 03.03.);
a good earth connection is not only required by the law for the
protection of users and operators, but it can also provide for proper
power supply;
95 r.p.m.; 24 V dc
capacitive; plastic canister;
15,000 r.p.m.; 24 V dc
from 10 °f to 25 °f (*)
400 μS @ 20 °C
+10 % /- 15 %
5 °C ÷ 35 °C
maximum 80 %
from 44 Wh to 396 Wh

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 11 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
04.
configurations
04.01. configurations
04.01.01.
four product canisters
04.01.02.
three canisters
product
04.02. accessories
Cino XS grande PRO VHO's two possible configurations are
represented here below:
the product canisters, mixers and waters are numbered
progressively from the left to the right, as it is specified later on;
this numbering is used in the chapter about drink programming
(see 09.);
to complete Cino XS grande PRO VHO vending machines,
Rheavendors Industries S.p.A. offers a series of accessories
manufactured for these machines, such as base cabinets,
autonomous water supply kits, payment systems,
Rheavendors Services S.p.A. is ready to supply support and
information on special configurations (see 02.02.);
keyboard selections
1. coffee
2. long coffee
3. espresso
4. latte macchiato
5. American
6. cappuccino
7. moccaCino
8. milk chocolate
9. lemon tea
10. hot water
keyboard selections
1. instant coffee
2. espresso coffee
3. cappuccino
4. latte macchiato
5. chocolate
6. long cappuccino
7. long instant coffee
8. choco milk
9. milk
10. hot water
coffee beans
milk chocolate tea
380
grams 2200 grams 980 grams
2000
grams
mixer
1 mixer 2
3 4 6
water 1 water 2
water 3
§
vsf 9vsf 18
vsf 18
milk chocolate
2000
grams
800
grams 2200 grams
mixer 1
coffee beans
54
water 3
water 1
§
vsf 18 vsf 18
§

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 12 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
05.
presentation
05.19.
baffle
05.22.
variable coffee brewer
05.06.
drip tray
05.19.
coffee beans canister
05.26.
mixing bowl
05.27.
nozzle holder
05.06.
level sensors
05.19. instant product
canisters
05.13.
door switch
05.28.
product motors
05.03.
keyboard board
05.29.
mixer motor
05.24.
heater
05.07.
grounds feeder
05.13.
service key
05.14.
PROG internal button
05.15.
flash key seat
05.19.
product slide
05.02.
door lock
05.20.
coffee beans sensor
05.30. aspirator drawer
housing
05.21.
grinder

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 13 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group

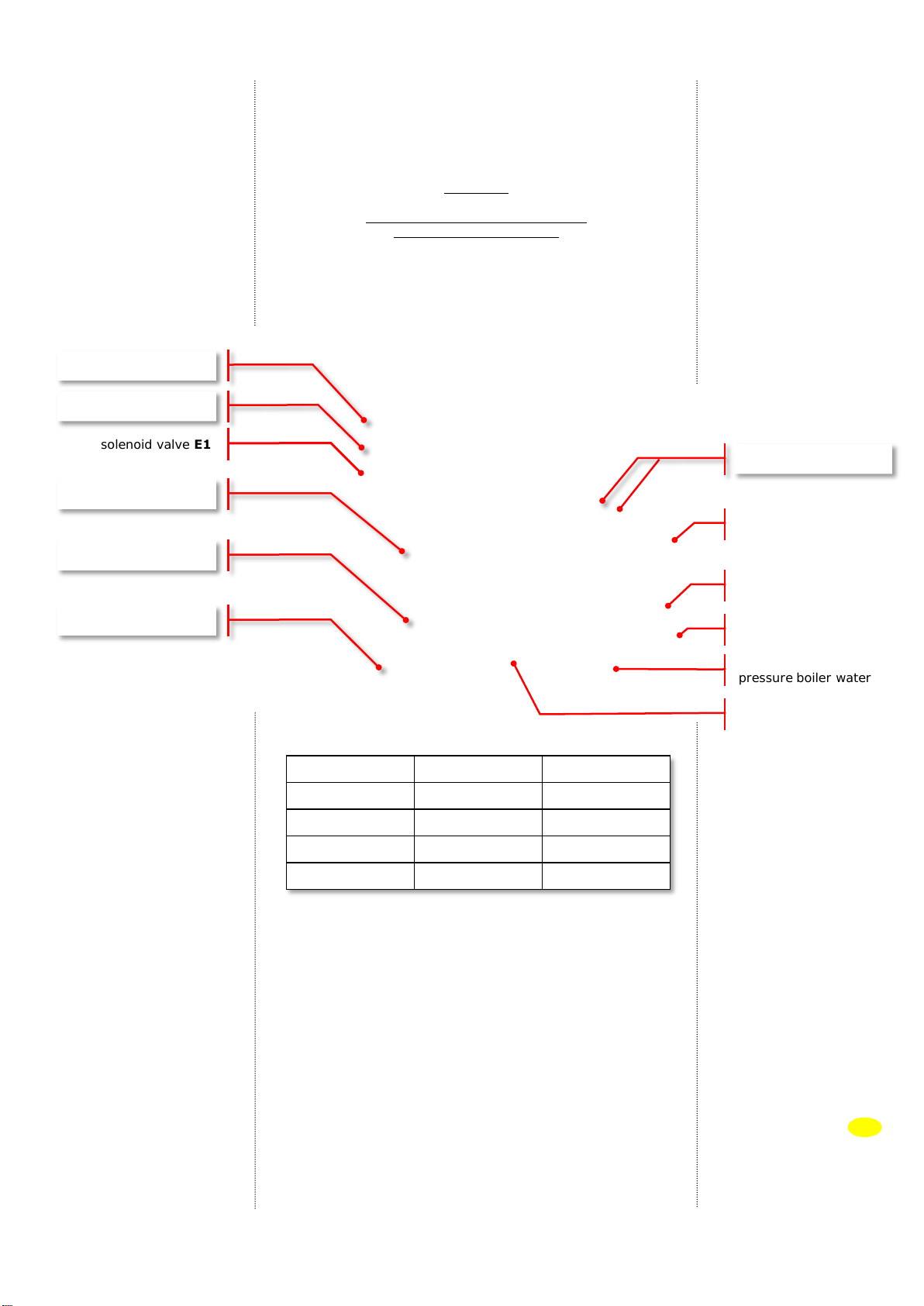

05.08.
electrical connection
05.10.
fuses
05.09.
power-on switch 05.35.
outlet solenoid valve
05.12. water inlet
solenoid valve
05.30.
powder aspirator
05.28.
product motor
05.37.
CPU
05.20.
product sensor
05.21.
grinder motor
05.32.
air break
05.33.
volumetric counter
05.34.
pressure boiler pump
05.35.
pressure boiler
05.31.
environment aspirator
05.35.
instant solenoid valves
05.25.
coffee brewer motor
05.32.
floater switch
05.35.
three-way solenoid
valve
05.11. water drain plug

08
09
10
12
11
04
03
06
02
05
07
13
Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 14 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
05.01. general
information
05.02. door lock
05.03. selection
keyboard
05.04. display
05.05. cup station
05.06. drip tray
05.07. grounds base
05.08. electrical
connection
05.09. power-on switch
05.10. fuses
05.11. water drain plug
05.12. water inlet
solenoid valve
05.13. door switch
the Cino XS grande PRO VHO Rhea vending machine is a
machine specifically designed to be user-friendly, not requiring a
specific competence in preparing drinks;
drinks are dispensed by mixing foodstuffs and water at a proper
temperature; the vending machine is properly operated in rooms
sheltered from atmospheric agents, under usual environmental
conditions and at a room temperature between 5°C and 35°C, and
relative humidity below 80%;
dispense by shortly pressing a key of the selection keyboard (see
05.03.); before dispensing, make sure that the cup is properly
positioned at the dispensing station. If necessary, use the flap
support for cups (see 05.05.);
the lock is intended to close the door; the key mapping is
numbered for identification;
after closing the door, press the buttons for dispensing; in the
dispensing mode, the button is illuminated; in the programming
mode (see chapter 09.), the keys acquire several functions, thus
enabling the operator to modify the machine parameters; the
numbering of keys is progressive from the top and from the left: 1,
2, …,;
display messages inform users or operators about the operation
status of the vending machine;
the Cino XS grande PRO VHO vending machine has a fixed drink
dispenser on the cup surface and a folding support for smaller
cups;
it collects any drip residue from the dispenser and, if necessary,
waste water in excess from machine circuits; it is slide-inserted at
the bottom and in the front of the machine cabinet and it consists
of a drawer and a grilled cover; an electric contact is intended to
detect the filling level in excess;
the base drawer collects the coffee grounds; a frame arranged
inside is intended to secure a plastic bag to facilitate the removal of
used doses;
a three-terminal socket is arranged at the back of the cabinet for
connection of the earth cable;
to power on and off the machine;
installed on the mains supply for machine protection (see 03.04.);
the fuses must be necessarily replaced by specialised technical
personnel only;
from where the silicone tube - coming from the air break - comes
out for emptying purposes;
the inlet solenoid valve has an antiflood safety that prevents water
from coming in in case of failure; a submersible pump may be
connected in parallel with its electric terminals (24 V dc, 1,2 A
maximum);
it powers off the machine when the door is open;
attention
some parts remain live any way
act with the utmost caution
use the service key to supply the vending machine if the machine
is to be activated when the door is open;
the key is arranged in a cover housing;

14
15
16
19
20
21
22
17
b
c
b
a a
d d
17
18
Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 15 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
05.14. internal button
(PROG)
05.15. flash key seat
05.16. label pockets
05.17. door lighting
05.18. cup station band
05.19. product canisters
05.20. product sensor
coffee beans
05.21. grinder
05.22. coffee brewer
the button giving access to the machine programming mode is
arranged inside the door on the orange protection carter (PROG);
the seat for programming flash keys is made available in the carter
inside the door (see 09.06.);
the seats for product labels are arranged inside the door panel
beneath the orange carter, insert the labels into the pockets in
observance of the machine configuration (see 13.02.);
-the door panel is illuminated by two led modules assembled
inside (“a”);
-the panel sides are illuminated by two led modules assembled
inside (“b”);
-the cup station and the logo are illuminated by a module
assembled inside (“c”);
-the product labels and the selection keys are illuminated by two
modules (“d”) assembled at the back of the door;
a band intended to cover the dispensing system is arranged inside
the door panel; it can be removed to facilitate cleaning; a flap
support for dispensing into small cups is hinged in the front;
instant product canisters dispense their content into the underlying
mixing bowls; an internal worm screw driven by the product motor
pushes the instant foodstuff to the slide; they may be equipped
with a wheel and a shaker for constant dispensing; the outlet, of a
standard or smaller size, has a baffle; the coffee beans canister has
a closing blade for insertion before lifting it; the canisters are
closed by a cover for the protection of products;
a product sensor intended to check the quantity of coffee beans in
the canister is arranged behind the coffee beans canister;
if the product is lacking, it signals it through the vending machine
display;
it grinds the coffee beans and pours the powder in the coffee
brewer chamber; the grinding degree can be manually adjusted by
means of the wheel that can be accessed after removing the coffee
beans canister whereas the ground quantity is determined by a
software parameter (see 09.01.a “grinder time”) that establishes
the grinder working time;
after receiving the coffee dose from the grinder and compressing it,
percolation occurs by using the water from the pump; the used
dose is conveyed to the slide and the drawer at the base of the
machine; the brewer structure is kept at the correct temperature
by a hot air heating system that can be programmed via software
(see 09.01.e.);

27
24
25
23
31
30
32
33
29
28
26
Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 16 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
05.23. brewer detector
switch
05.24. coffee brewer
heater
05.25. coffee brewer
motor
05.26. mixing bowls
05.27. nozzle holder
05.28. product motors
05.29. mixer motor
05.30. powder aspirator
05.31. environment
aspirator
05.32. air break
05.33. volumetric
counter
the coffee brewer presence is controlled by a micro switch that - in
case of absence thereof - inhibits the selections including coffee
beans;
besides protecting the operator against moving parts, a safety
cover keeps the coffee brewer at a proper temperature by means of
an air heater preserving the drink quality even after a long pause
of the vending machine
the variable coffee brewer motor regulates the chamber closing and
compressing phases to compress the ground coffee and provide for
percolation; its action is controlled by an encoder informing the
CPU on the brewer position;
the mixing bowls of mixers are intended to receive instant products
for mixing them with water; the fan of mixer motors acts at the
bottom thereof and the drink flows into the dispenser through a
silicone tube; the mixing bowls and outlet tubes can be washed
with lukewarm running water;
a fixed support at the cup station accommodates the dispensers
from the mixing bowls of mixers and the one of hot water for cups;
the slide-installed nozzle support can be easily removed without
any tool;
motors are intended to rotate the worm screws inside instant
product canisters so as to pour the product quantity necessary for
selection into the mixing bowls;
the mixer motors favour the mixing of instant products with water
by rotating the fan mounted on their axis; the rotation speed rate
is adjustable (see 09.01.a. “mixer speed”) for adaptation to the
features of the different products;
an aspirator ejects the products residues in suspension from the
inside of the vending machine; the aspirator is connected with a
drawer beneath the product slides so as to remove the very fine
powder resulting from selections; the working time of the aspirator
can be programmed by means of software parameter (see 09.01.f.
“fan time”); the aspirated air is ejected through the slots of the
rear panel;
it aspirates air from the inside of the machine to avoid the
condensate build-up;
it accumulates water for conveyance to the pressure boiler; the
level is controlled by a floater; if higher than established, it flows
back to the safety of the inlet solenoid valve, thus preventing
additional water from coming in;
it tells the CPU how much water is flowing through the coffee
brewer so as to establish its volume;
the water quantity of instant selections is only established by the
time set up by the "N water" parameter (see 09.01.a.);

36
Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 17 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
a vibration pump with by pass conveys water to the pressure boiler
that is connected with the block of instant solenoid valves and the
three-way valve for espresso;
attention
these components may be very hot
even if the machine is off;
pressure boiler complete with a temperature probe and protection
clicsons; a solenoid valve is used to empty the water circuit (see
13.19.);
the static relay arranged inside the vending machine behind the
supply bock can directly supply the pressure boiler heating element
so as not to overload the power supply board;
05.34.
pressure boiler pump
05.35. pressure boiler
05.36. static relay
solenoid valve E3
pressure boiler water
drain solenoid valve
solenoid valve E1
solenoid valve E2
temperature probe
pressure boiler pump
water inlet
inlet
pressure boiler water
drain
3-way solenoid valve
3-way solenoid valve
EX
1.1 MPa bypass
protection clicsons
solenoid valve sw name output
E1 water 1 mixer 1
E2 water 2 mixer 2
E3 water 3 hot water 3
EX coffee water coffee brewer

37.b
37.c
Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 18 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
05.37. electronics
05.37.a. CPU
05.37.b. display board
05.37.c. flash board
the CPU board governs the machine operation, it is the place where
machine programmes are located and it is secured to the frame by
means of four turrets;
the phone cable provides for connection with the flash key seat
(see 05.15. and 05.37.c.) whereas the display cable can provide for
the signal exchange with the keyboard and the display in the door
(see 05.03. and 05.04.); the temperature probe cable is separated
from the machine wiring so as not to hinder the removal of the
probe;
the five leds are intended to display the machine status;
the display board secured inside the door receives the signals from
the selection keyboard (consisting of two separate modules of five
keys each) and it displays the messages produced by the CPU it is
connected with by means of a flat cable;
the internal programming button is installed on the printed circuit
of this board;
arranged inside the door, beneath the orange carter (see 05.15.), it
provides for the insertion of the flash key for machine
programming (see 09.06.);
temperature probe
connector
display board connector
RFID connector
MDB connector
executive connector
DL2 - led 5 V dc
USB port
DL1 - led 24 V dc
DL4 - espresso pump
led
pressure boiler
heating element
IN 230 V ac
grinder motor connector
DL3 - led 5 V CPU
grinder motor 2A fuse
to the keyboardto the keyboard
to the CPU to the flash board
label lighting
label lighting
door lighting
DL5 - led pressure
boiler heating element
name colour description
DL1 red + 24 V main
DL2 green + 5 V power supply
DL3 red + 5 V main
DL4 green espresso pump
DL5 red pressure boiler heating element

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 19 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
05.38. software
05.39. rheAction
the software installed in in Cino XS grande PRO VHO can be
subdivided into two different chapters called:
- master:
it is the software determining the machine cycles, the links
between the functions, the order of execution of operations;
this software can not be modified by the operator, but it can be
replaced in the CPU by means of a flash key written at works or
by means of rheAction (see 09.06. and 05.39.);
- configuration:
it is the software determining the times and the
succession of dispensing drinks, the payment system protocol,
the display modes, …; variables may be modified by the operator
either manually aboard the machine or by means of rheAction
(see 09.06. and 05.39.) to adapt the machine behaviour to the
final users’ needs (product quantities and mixtures, warning
messages …) (see 09.);
if it is necessary to update one of the software programmes above
on the machine, the flash key may be of great use; the key can
contain either software or both of them and provide for a rapid and
safe transfer;
please note that the flash key used for these software handlings
must have been previously initialised (with rheAction for example);
in general, the transfer procedure is:
- power off the machine;
- insert the flash key or into the connector of the board in question
(see 05.15. and 05.37.c.);
- power on the machine by means of the service key (see 05.13.);
- wait for the message on the machine display;
- answer the messages on the display;
- power off the machine and remove the flash key;
please note: if the flash key should contain a master software, the
transfer will certainly occur from the key to the machine, whereas
it will be necessary to follow the steps described by 09.06 in case
of a configuration software;
a system called rheAction is intended to complete and supplement
the programming executable in the machine; it is composed by a
software and hardware, installable in a pc, capable of storing,
modifying and writing the configuration data of Rhea machines;
Rheavendors Services S.p.A. is at disposal for any kind of support
and information on the rheAction system (see 02.02.);

Cino XS grande PRO VHO by
MAN2100154 rel. 00 dated 04.11.2013 page no. 20 of 51 pages
www.rheavendors.com tel: [phone] fax: [phone] e mail: [email protected]
exclusive property of rheavendors group
06.
preliminary actions
06.01. handling
vending machine
06.02. unpacking
06.03. positioning
06.04. preparation
the vending machine may be transported, handled and positioned
by skilled and trained personnel only; never overturn the machine
while transporting it and never forget to observe the orientation
arrows on the package;
attention
handle the machine with special caution for accident-prevention;
considering the vending machine weight and overall dimensions, it
is recommended to use a truck at a slow speed rate;
- put the packed vending machine close to its working position;
- cut the two plastic belts;
- lift the outer package;
- remove the drip tray;
- extract the protection bag from the top;
- lift the vending machine and put it on the working surface;
attention
leave the package materials out of the reach of unauthorised
personnel, in particular of children, since they are a potential
source of danger; the disposal of package components may be
carried out by specialised companies only;
the vending machine shall be arranged in a sheltered room by
using a support suitable for the machine weight (see 03.02.); keep
an adequate distance from the walls for good and free air
circulation and easy access;
attention
the surface shall be inclined by max. 2°;
it is recommended to use a waterproof protection, which can be
easily cleaned, beneath the vending machine so as to collect any
product that may accidentally fall down;
after putting the machine into its final working position:
- cut the clamp intended to secure the door key to the grilled cover
of the drip tray;
- insert it into the lock (see 05.02.), rotate and open the door;
- remove the envelope including documents and labels;
- remove the shaped grounds canister;
- take the power supply cable and the hydraulic fitting;
- raise the machine cover and remove the protections intended to
secure the product canisters for transportation;
- insert the labels while observing the order of selections, as it is
established by the machine configuration (see 04.01.);
- arrange the drip tray;
