Riata®Rake
Precision ARENA DRAG
OPERATOR'S MANUAL
RA1108
RA1110
5RR11XXM00A (6/15/12)

TO THE PURCHASER:
Assembly and proper installation of this product is the responsibility of the Riata dealer/customer. Read
manual instructions and safety rules. To dealers: Make sure all items on the Dealer’s Pre-Delivery and
Delivery Check Lists in the Owner’s/Operator’s Manual are completed before releasing equipment to
the owner.
The dealer/customer must complete the Warranty Registration with Riata.
TO THE OWNER:
Read this manual before operating your Riata equipment. The information presented will prepare you
to set-up and operate your equipment safely. Keep manual for reference. Require all operators to read
this manual carefully and become acquainted with all the adjustment and operating procedures before
attempting to operate. Replacement manuals can be obtained direct from Riata at www.riataranch.com.
The equipment you have purchased has been carefully engineered and manufactured to provide
dependable and satisfactory use. Like all mechanical products, it will require cleaning and upkeep.
Lubricate the unit as specified. Observe all safety information in this manual and safety decals on the
equipment.
For service, your authorized Riata dealer has trained mechanics, genuine Riata Rake service parts,
and the necessary tools and equipment to handle all your needs.
Use only genuine Riata Rake service parts. Substitute parts will void the warranty and may not meet
standards required for safe and satisfactory operation. Record the model number and serial number of
your equipment in the spaces provided:
Model:____________________________________ Date of Purchase:_________________
Serial Number: (see Safety Decal section for location)_______________________________
Provide this information to Riata or your dealer to obtain correct repair parts.
Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause
damage to equipment. The terms CAUTION, WARNING and DANGER are used in conjunction
with the Safety Alert Symbol, (a triangle with an exclamation mark), to indicate the degree of hazard for
items of personal safety.
DANGER
This Safety-Alert Symbol indicates a hazard and means ATTENTION!
BECOME ALERT! YOUR SAFETY IS INVOLVED!
Indicates an imminently hazardous situation that, if not avoided, will result in
death or serious injury.
Indicates a potentially hazardous situation that, if not avoided, could result in
death or serious injury, and includes hazards that are exposed when guards
are removed.
Indicates a potentially hazardous situation that, if not avoided, may result in
minor or moderate injury.
Indicates that failure to observe can cause damage to equipment.
Indicates helpful information.
WARNING
CAUTION
NOTE
INTRODUCTION II
IMPORTANT

TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
SPECIFICATIONS / GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6
DEALER INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 14
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 - 22
OWNER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
PARTS CATALOG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 - 25
BOLT SIZE AND BOLT TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
WARRANTY FOR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
The purpose of this manual is to assist you in operating and maintaining your Riata Rake. Read it carefully. It furnishes
information and instructions that will help you achieve years of dependable performance.
These instructions have been compiled from field experience and engineering data. Some information may be general
in nature, due to unknown and varying operating conditions. However, through experience and these instructions, you
should be able to develop procedures suitable to your particular situation.
The illustrations and data used in this manual were current at the time of printing. However, due to possible production
changes, your machine may vary slightly in detail. We reserve the right to redesign and change the machines as may
be necessary without notification.
Throughout this manual, references are made to right and left direction. These are determined by standing behind the
tractor facing the direction of forward travel.
Purpose
TABLE OF CONTENTS

SPECIFICATIONS
Product Comparison
Manufacturer: Riata Ranch Company Riata Riata
Models 1108 1110
iMatch Compatible yes yes
Cat. 2 Quick Couple Compatible yes yes
Uses Arena Conditioning and repair tool Arena Conditioning and repair tool
Operating Speed 4-6 mph 4-6 mph
Shipping Single Units Single Units
Frame Tubing Size 3" x 4" x 3/16" 3" x 4" x 3/16"
Max Depth of Workable Footing 6" 6"
Tine Diameter 1" 1"
Tine Length 12" 12"
Tine Composition High Carbon Steel Heat treated High Carbon Steel Heat treated
Number of Tines 21 27
Tines Spacing 2.75" center to center 2.75" center to center
Tine Beam Dimensions 101.5" 77.5"
*Scarier Dimensions 12" Shank, fully disposible 12" Shank, fully disposible
*Scarier Composition 4130 alloy steel 4130 alloy steel
*Number of Scariers 911
*Replaceable Scarier tips No No
*Scarier Spacing 10" 10"
*Hydraulic Cylinder Size 11" retracted 11" retracted
*Hydraulic Cylinder Rod & Stroke 1" x 4" 1" x 4"
Gauge Wheels 15" x 6"-6" 15 "x 6"-6"
Working Width (Tines) 76" 98.5"
Working Width (Leveling Comb) 79" 103"
Working Width (Rear Finishing Comb) 94" 117.5"
Machine Width (Transport) 94" 117.5"
Machine Length 55" 55"
Max Working Height 43" 43"
Max Shipping Height 36" w/ pallet 36" w/ pallet
Tractor HP (Min) 30 HP 40 HP
Tractor Width (Max) 76" 98"
Assembly/Set-Up Time 0.7 hr 0.7 hr
3-Point Hitch Cat. I & II Cat. I & II
iMatch Bushing Provided no no
Operating Weight (lbs) 760 950
Shipping Weight (lbs) 800 1000
Warranty 12 Month limited warranty 12 Month limited warranty
SPECIFICATIONS 1
GENERAL INFORMATION

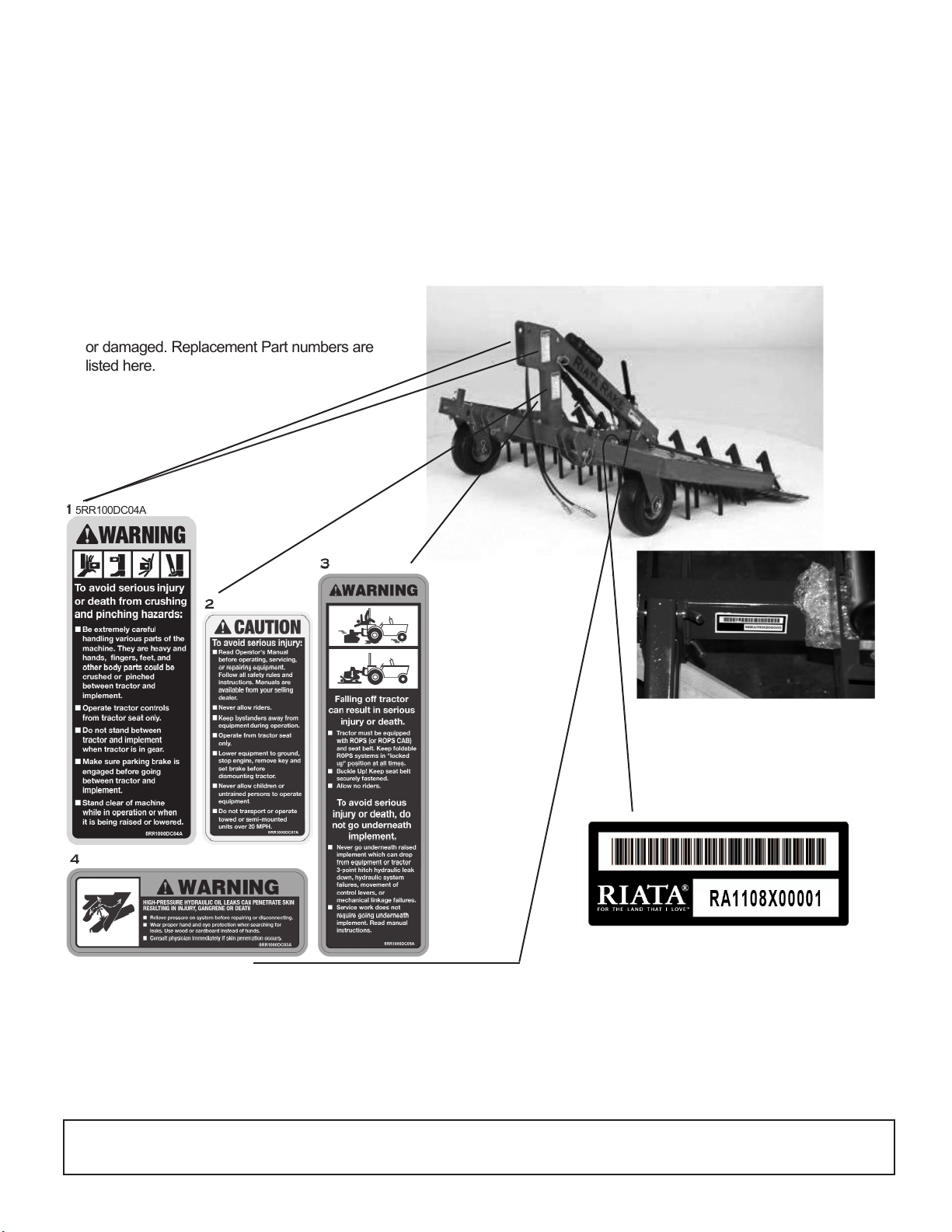

SAFETY & INSTRUCTIONAL DECALS
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY
OR DEATH
Replace Decals Immediately If Damaged!
Check that all safety decals are installed and
in good condition. Replace if decals are worn
or damaged. Replacement Part numbers are
listed here.
5RR100DC04A
5RR100DC07A
5RR100DC05A
5RR100DC03A
Serial Number Plate located opposite
the 3 Point connection plates on the
inside frame.
2 SAFETY DECALS

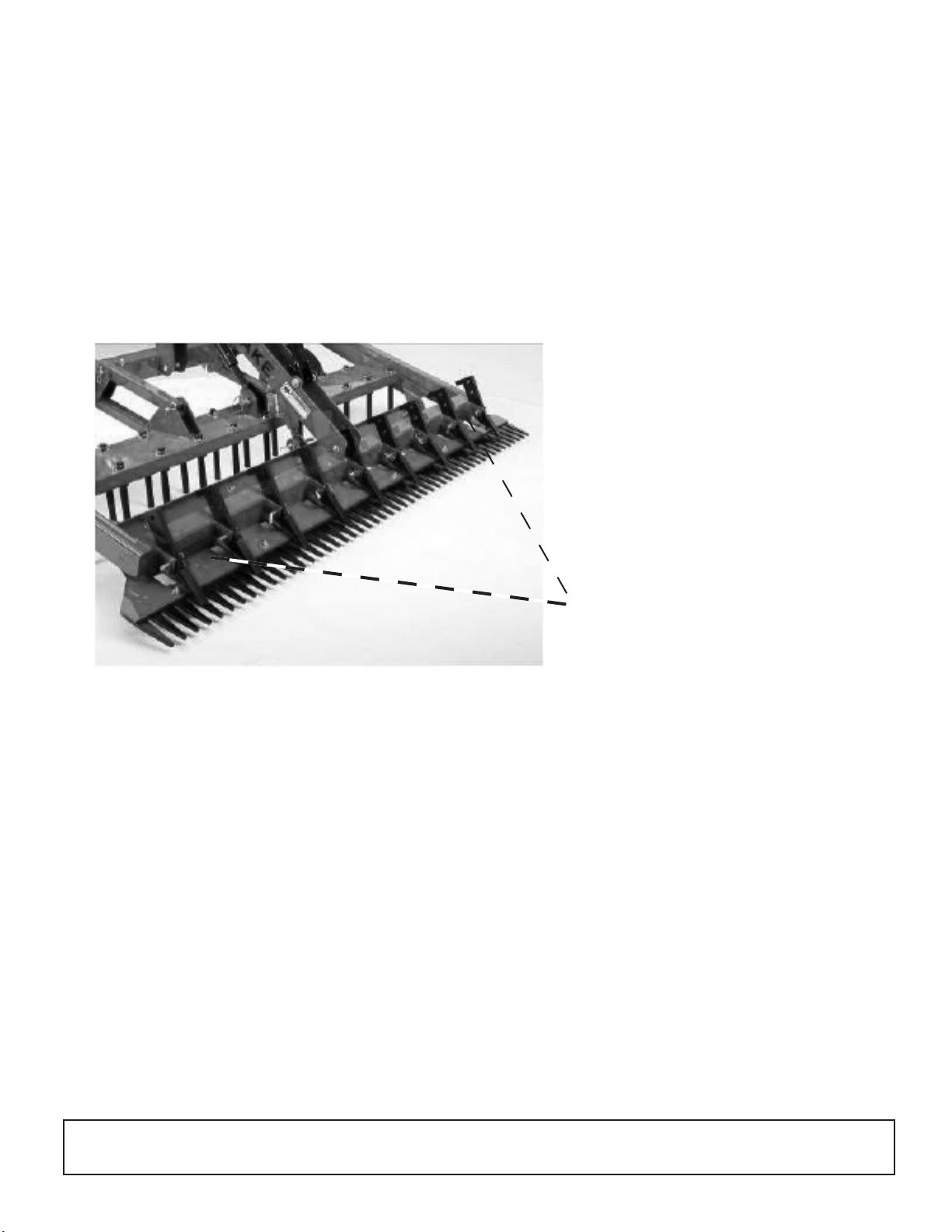

8” RED REFLECTORS
5RR1000DC08A
Check that all reflector decals are
installed and in good condition. Replace
if decals are worn or damaged.
SAFETY REFLECTOR DECALS
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY
OR DEATH
Replace Decals Immediately If Damaged!
SAFETY DECALS 3

Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped
out by an operator’s single careless act.
In addition to the design and configuration of
equipment, hazard control and accident preven-
tion are dependent upon the awareness, con-
cern, judgement, and proper training of person-
nel involved in the operation, transport, mainte-
nance and storage of equipment.
It has been said “The best safety device is an
informed, careful operator." We ask you to be
that kind of operator.
TRAINING
• Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information.
(Replacement manuals are available at www.
riataranch.com.) Failure to follow instructions or
safety rules can result in serious injury or death.
• If you do not understand any part of this manu-
al and need assistance, contact Riata or dealer.
• Operators must be instructed in and be capa-
ble of the safe operation of the equipment, its
attachments, and all controls. Do not allow any-
one to operate this equipment without proper
instructions.
• Never allow children or untrained persons to
operate equipment.
• Train all new personnel and review instruction’s
frequently with existing workers. A person who
has not read and understood all operating and
safety instructions is not qualified to operate the
machine. An untrained operator exposes himself
and bystanders to possible serious injury or
death.
PREPARATION
• Always wear relatively tight and belted clothing to
avoid getting caught in moving parts. Wear sturdy,
rough-soled work shoes and protective equip-
ment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropri-
ate.
• Make sure attachment is properly secured,
adjusted, and in good operating condition.
• Power unit, when applicable, must be equipped
with ROPS or ROPS cab and seat belt. Keep
seat belt securely fastened. Falling off power
unit can result in death from being run over or
crushed. Keep foldable ROPS system in “locked
up” position at all times.
• A minimum 20% of tractor and equipment
weight must be on the tractor front wheels when
attachments are in transport position. Without
this weight, tractor could tip over, causing per-
sonal injury or death. The weight may be
attained with a loader, front wheel weights, bal-
last in tires or front tractor weights. Weigh the
tractor and equipment. Do not estimate.
TRANSPORTATION
• Always comply with all state and local laws
governing highway safety and lighting and
marking requirements.
• Never allow riders on power unit or attach-
ment.
• Do not operate or transport on steep slopes.
• Use extreme care and reduce ground speed
on slopes and rough terrain.
• Do not operate or transport equipment while
under the influence of alcohol or drugs. Consult
your doctor about operating this machine while
taking prescription medications.
Safety Rules continues on the next page
4 SAFETY RULES

never advisable to use powered equipment in
areas with livestock. Never operate Riata Rake in
an arena while livestock is present.
• Do not operate or transport on steep slopes.
• Do not stop, start, or change directions sud-
denly on slopes. Always operate down slopes;
never across the face.
• Use extreme care and reduce ground speed
on slopes and rough terrain.
• Keep alert and watch the front as well as the
rear when operating.
• Stop power unit and equipment immediately
upon striking an obstruction. Turn off engine,
remove key, inspect, and repair any damage
before resuming operation.
• Before leaving operator’s seat, put attachment
on the ground. Engage brake, stop engine,
remove key, and remove seat belt.
MAINTENANCE
• Always wear relatively tight and belted cloth-
ing to avoid getting caught in moving parts.
Wear sturdy, rough-soled work shoes and pro-
tective equipment for eyes, hair, hands, hear-
ing, and head; and respirator or filter mask
where appropriate.
• Never go underneath equipment (lowered to
the ground or raised) unless it is properly
blocked and secured. Never place any part of
the body underneath equipment or between
moveable parts even when the engine has
been turned off. Hydraulic system leak down,
hydraulic system failures, mechanical failures,
or movement of control levers can cause equip-
ment to drop or rotate unexpectedly and cause
severe injury or death.
Safety Rules continues on the next page
OPERATION
•Never go underneath equipment (lowered to
the ground or raised) unless it is properly
blocked and secured. Never place any part of
the body underneath equipment or between
moveable parts even when the engine has
been turned off. Hydraulic system leak down,
hydraulic system failures, mechanical failures,
or movement of control levers can cause
equipment to drop or rotate unexpectedly and
cause severe injury or death.
• Always comply with all state and local laws
governing highway safety and lighting and
marking requirements.
• Operate only in daylight or good artificial
light.
• Keep bystanders away from equipment.
• Keep hands, feet, hair, and clothing away from
equipment while engine is running. Stay clear
of all moving parts.
• Power unit, when applicable, must be equipped
with ROPS or ROPS cab and seat belt. Keep
seat belt securely fastened. Falling off power
unit can result in death from being run over or
crushed. Keep foldable ROPS system in “locked
up” position at all times.
• Never allow riders on power unit or attach-
ment.
• Always sit in power unit seat when operating
controls or starting engine. Securely fasten seat
belt, place transmission in neutral, engage
brake, and ensure all other controls are disen-
gaged before starting power unit engine.
• Look down and to the rear and make sure
area is clear before operating in reverse.
• Use extreme care when working close to fences,
ditches, other obstructions, or on hillsides. It is
SAFETY RULES 5

Safety Rules continued from the previous
page
MAINTENANCE (cont’d)
• When performing maintenance or repairs
make sure the equipment is in the lowered posi-
tion. Failure to do so can cause serious injury or
death.
• Make sure attachment is properly secured,
adjusted, and in good operating condition.
• Before leaving operator’s seat put attachment
on the ground. Engage brake, stop engine,
remove key, and remove seat belt.
• Never perform service or maintenance with
engine running.
• Keep all persons away from operator control
area while performing adjustments, service, or
maintenance.
• Tighten all bolts, nuts, and screws to torque
chart specifications. Check that all cotter pins
are installed securely to ensure equipment is in
a safe condition before putting unit into ser-
vice.
STORAGE
• Block equipment securely for storage.
• Keep children and bystanders away from stor-
age area.
6 SAFETY RULES

Dealer/Customer Assembly
Assembly Instruction
(Purchaser's Responsibility)
Inspect the equipment thoroughly before
assembly to be certain it is complete and
undamaged. This pictorial purchaser
assembly guide should be followed
sequentially during setup.
TIME REQUIRED: 30 Minutes

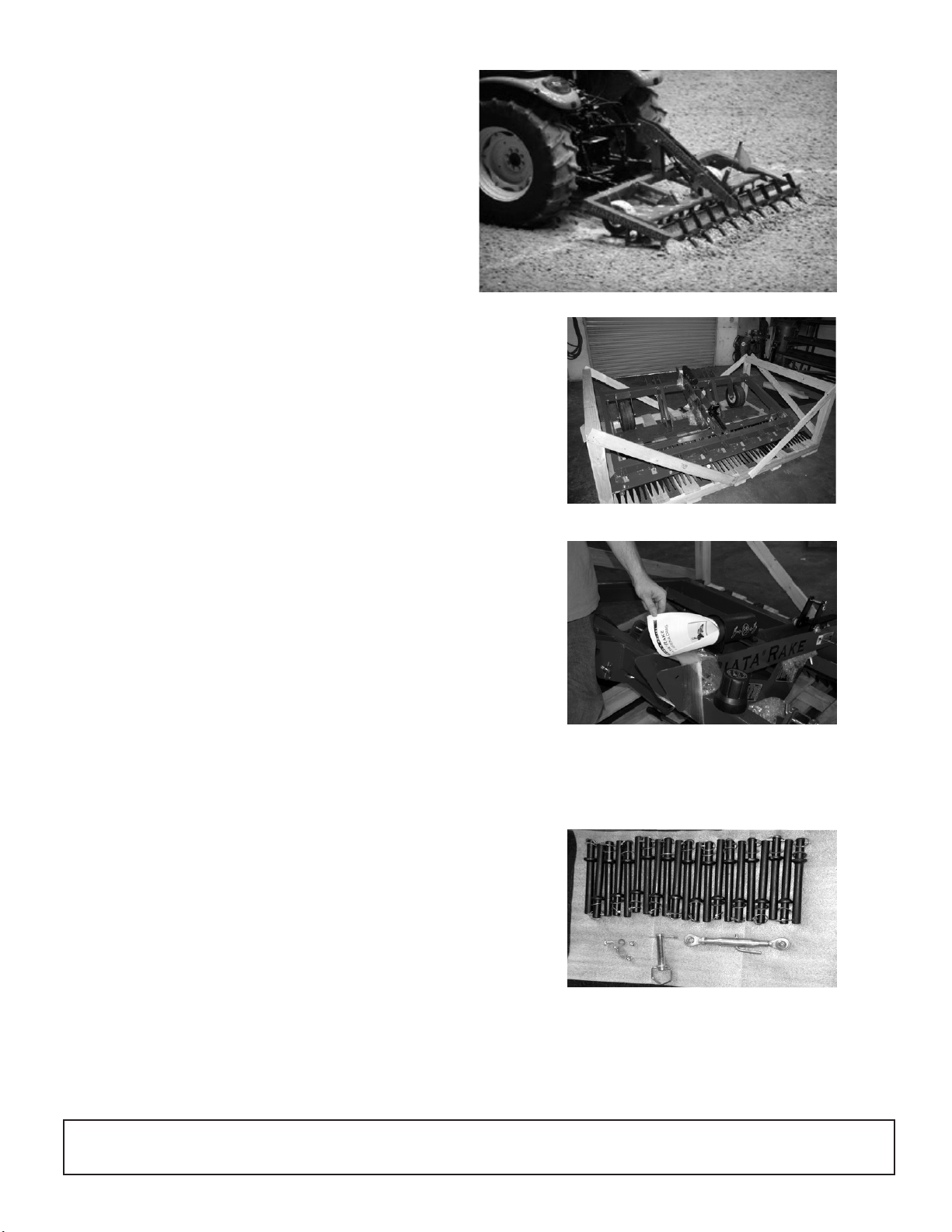

Riata Rake has arrived bolted to a heavy
duty pallet. Assemble on level ground
with room to move around the implement.
Read and follow all instruction.
REMOVE BOX CONTENTS
Open Box and remove all contents as
shown below.
CONTENTS OF BOX
High Carbon Tines w/washers and
spring clips
1” Hitch Pin for the spine mast
connection
1/2” Carriage Bolts and nylon lock
nuts for spine assembly
Turnbuckle w/handle for inside leveling
comb
REMOVE OWNERS MANUAL
The owners manual is located in the manual
tube. Remove the manual and follow
QTY
21 or 27
1
2
1
DEALER INSTRUCTIONS 7

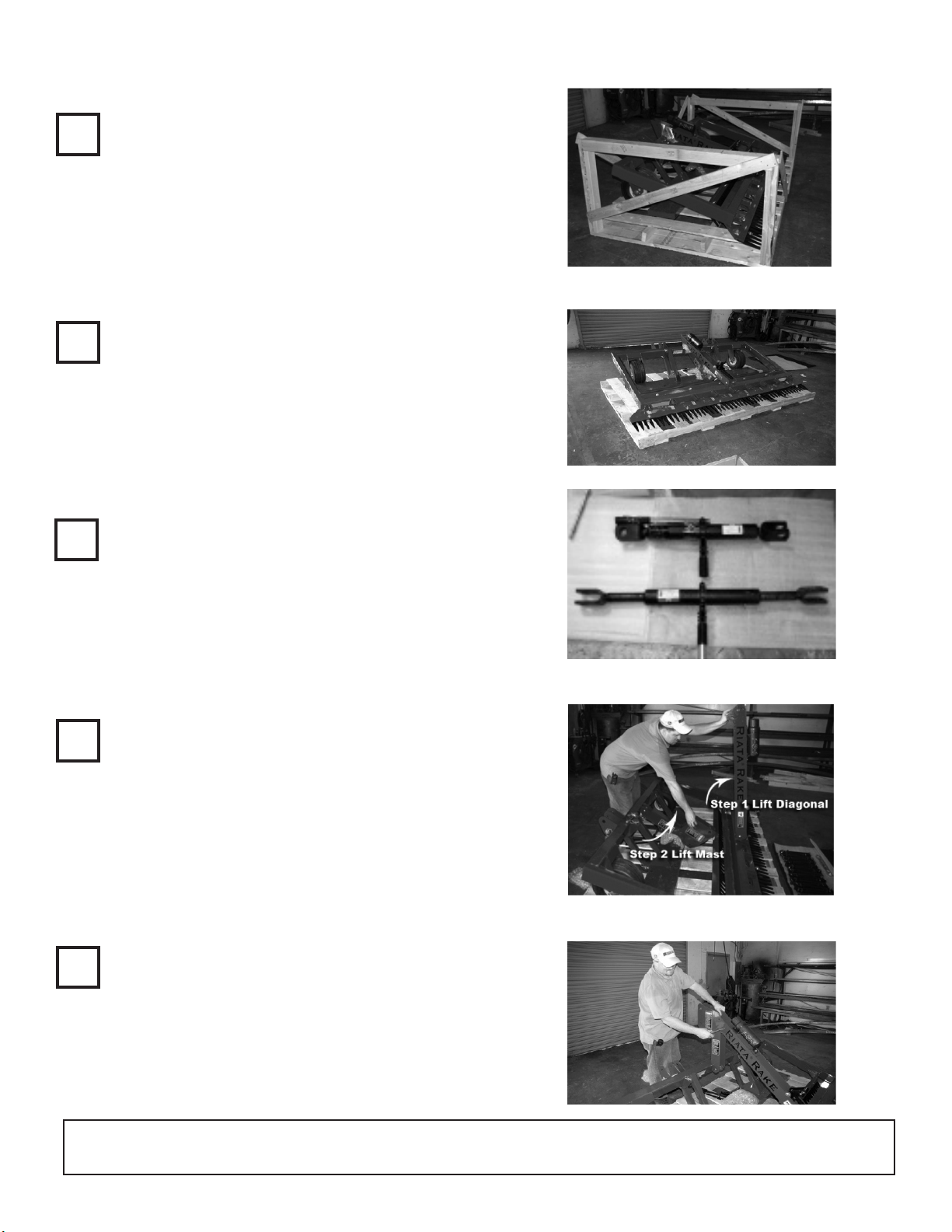

EXTEND RATCHET JACK
Ratchet Jack is attached to tine bar of unit.
Fully extend the ratchet jack for later assem-
bly.
REMOVE PALLET SIDE/CROSS BRACING
Removing the side bracing and cross brac-
ing will provide access to assemble Riata
Rake.
POSITION SPINE DIAGONAL MEMBERS
(two person operation)
1) Lift spine diagonal to a vertical position, then
lift the mast to a vertical position. Diagonal ts
over the vertical mast.
1
2
4a
3
DISCARD PALLET BRACING
Removing the side bracing and cross brac-
ing will provide access to assemble Riata
Rake.
CONNECT SPINE DIAGONAL MEMBERS
After joining spine mast and diagonal, connect
using the 1" pin.
4b
8 DEALER INSTRUCTIONS

ATTACH CARRIAGE BOLTS, WASHERS &
NUTS
TIGHTEN BOLTS ON LOWER MAST
Tighten both carriage bolts and lock nuts
5
6
7
8
TIGHTEN BOLTS ON UPPER MAST
Top of Spine—3/4” box wrench required
TIGHTEN BOLTS ON LOWER DIAGONAL
Tighten both carriage bolts and lock nuts
REMOVE LAG BOLTS THAT CONNECT
REAR COMB TO PALLET
Remove lag bolts—left and right side on rear
comb.
DEALER INSTRUCTIONS 9

REMOVE LAG BOLTS THAT CONNECT
TINE BAR TO PALLET
Remove lag bolts—left and right side on tine
bar.
ATTACH RATCHET JACK TO THE MAST
Attach the top end of the Ratchet Jack us-
ing the supplied 1" Pin which was temporarily
removed.
ELEVATE THE TINE BAR
Elevating the tine bar using a pry bar placing
a 4" block between the pallet and the tine bar.
10
11
12 13
9LOCATE LAG BOLTS THAT CONNECT TINE
BAR TO PALLET
ATTACH RATCHET JACK TO THE TINE BAR
Attach the end of the Ratchet Jack to the
brackets in the top of the tine bar using the
supplied 1" Pin. You may be required to raise
or lower the tine bar to attach.
14
10 DEALER INSTRUCTIONS

ATTACH INSIDE LEVELING COMB
The inside rake has a turnbuckle which at-
taches between the leveling comb frame and
the level control arm. Raise the free end of
the top link and insert it into the clevis pin as
shown.
OPERATIONAL USE OF LEVELING COMB
You can operate the Riata Rake using a oat-
ing method or xed method of leveling. It is
recommended that the rst use of the imple-
ment you use it in a oating position with the
handle in the up position (as shown). Once
you have made a complete pass over your
arena you may wish to lock the inside leveling
comb (Down position) at a height that allows
a small amount of material to build up in front
of the comb but not in excess of a couple of
inches. This will allow Riata Rake to distribute
the footing consistently as you condition your
arena.
15
16
DEALER INSTRUCTIONS 11

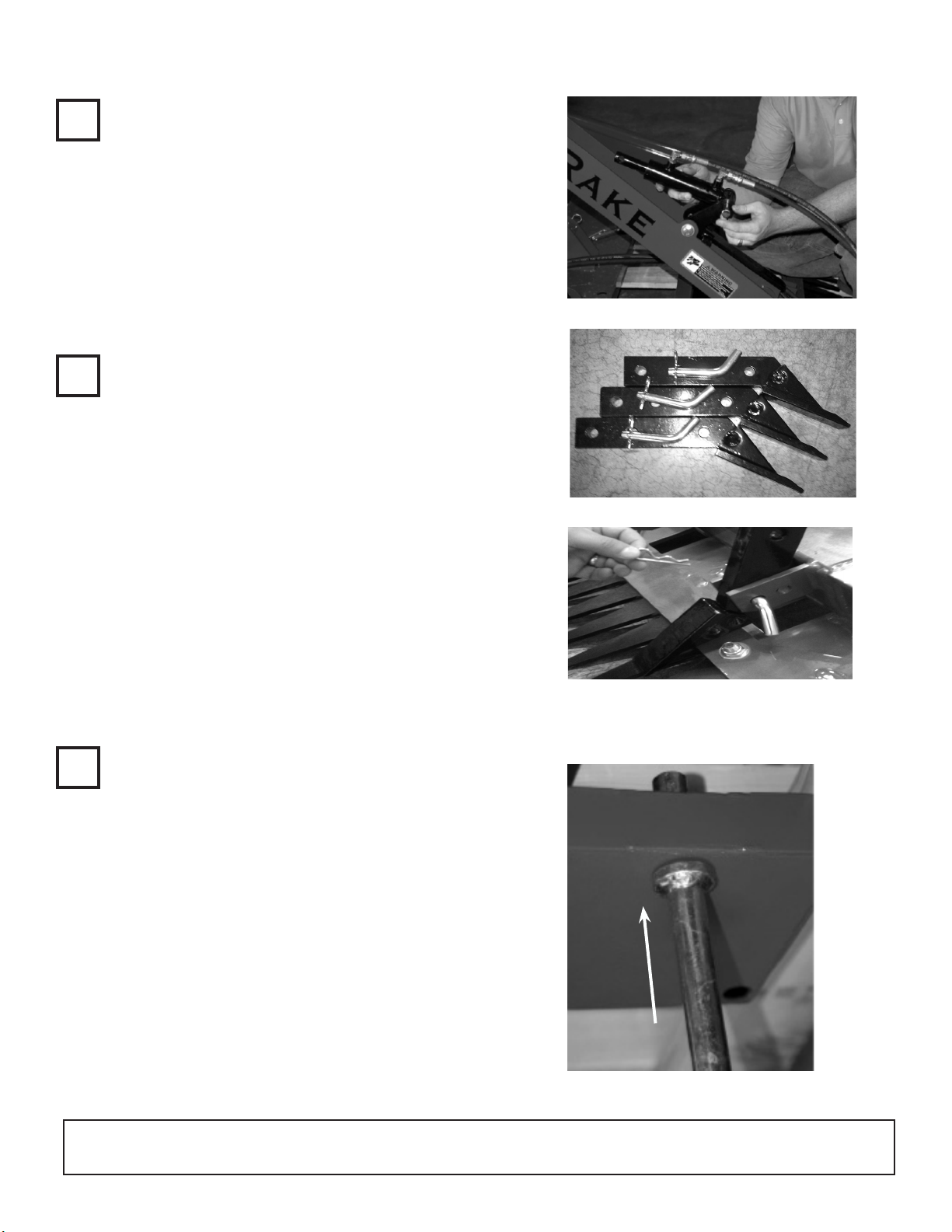

OPTIONAL-HYDRAULIC KIT
(5RR1108A020A)
In place of the turnbuckle (as shown in step
15) place the optional hydraulic kit as shown.
OPTIONAL-SCARIFIERS
Place in keeper position as shown.
ATTACH ALL TINES
While the Rake is still on the pallet, adjust
the ratchet jack so that the tine bar is at its
highest point so that the tines will be easy to
load into the tine bar from the under side.
Warning:
DO NOT LAY UNDER THE RIATA RAKE.
Then install all the tines one at a time attach-
ing the provided brass washer and spring
clip to the top of each tine.
18
19
17
12 DEALER INSTRUCTIONS

CONNECT RIATA RAKE TO YOUR TRACTOR’S 3
POINT HOOKUP
Now you are ready to connect your Riata Rake to the
tractor. Lower link pins are provided and are pinned in
place on your unit. Top links can vary depending on your
tractor model and size—we do not provide a top link pin.
Make sure you set the inside leveling comb adjustment
handle to the down, or locked position before you lift the
rake from the pallet.
If you are using a fork lift, attach a nylon strap to the
spine around the welded plate that connect the two
sides of the spine. This position should give a balanced
position for lifting the Riata Rake.
Warning: Do not lift Riata Rake with a forklift with the
forks under the frame. It is prone to slip off the forks due
the slick surfaces and standard length of the forks may
make this a drop hazard.

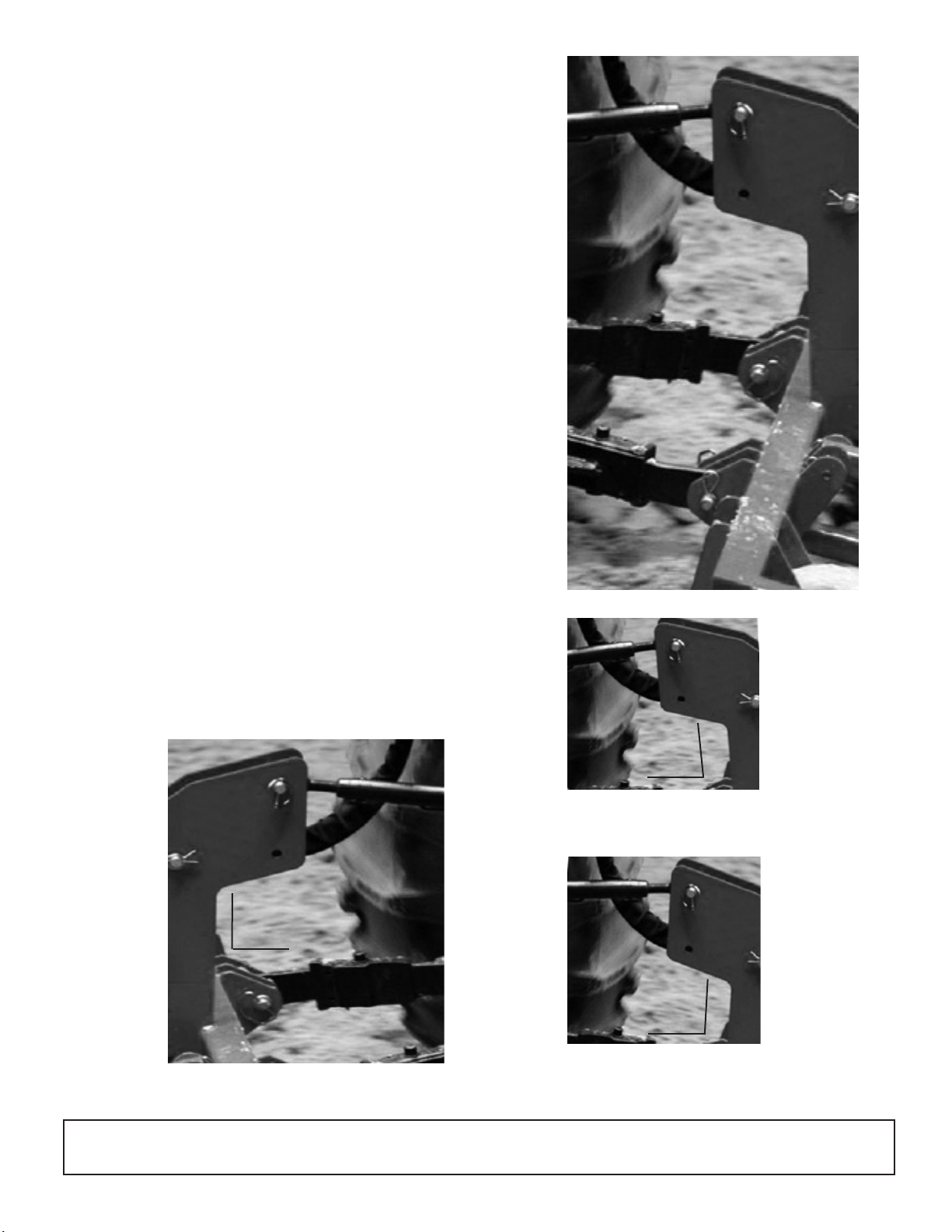

The Top Link Mast should be vertical, 90 degrees to the
arena footing. This ensures that the tine bar is level
front to back. The correct setup can be seen in gure 1
below.
Incorrect - lengthen the top link
Incorrect - shorten the top link
Figure 2
Figure 3
TOP LINK ADJUSTMENT
Correct Working position
Figure 1
90°
<90°
>90°
DEALER INSTRUCTIONS 13

Pre-Delivery
Dealer Checklist
(Purchaser's Responsibility)
Inspect the equipment thoroughly after assem-
bly to be certain it is set up properly before
delivering it to the customer. The following
check list is a reminder of points to inspect.
Check off each item if it is found satisfactory or
after proper adjustment is made.
____ Check that all safety decals are installed
and in good condition. Replace if damaged.
____ Check all bolts to be sure they are
tight.
____ Check that all cotter pins and safety
pins are properly installed.
____It is important for the dealer to visually
check and make sure all parts are in tact
prior to delivery to customer.
____ Check that tires are inflated and wheels
are greased.
____ Check to confirm that each of 3 grease
zerks are greased prior to delivery. (2)
Wheels, (1) Ratchet Jack.
____ Show customer the safe, proper proce-
dures to be used when mounting, dismount-
ing, and storing equipment.
____ For mounted units, add wheel weights,
ballast in front tires, and/or front tractor
weight to enhance front end stability. A min-
imum 20% of tractor and equipment gross
weight must be on front tractor wheels.
When adding weight to attain 20% of tractor
and equipment weight on front tractor
wheels, you must not exceed the ROPS
weight certification. Weigh the tractor and
equipment. Do not estimate!
____ Show customer how to make adjust-
ments.
____ Present Operator’s Manual and
request that customer and all operators read
it before operating equipment. Point out the
manual safety rules, explain their meanings
and emphasize the increased safety hazards
that exist when safety rules are not fol-
lowed.
____ Point out the safety decals. Explain
their meaning and the need to keep them in
place and in good condition. Emphasize the
increased safety hazards when instructions
are not followed.
____ Explain to customer the potential crush-
ing hazards of going underneath raised
equipment. Instruct customer that service
work does not require going underneath unit
and never to do so.
____ Complete the Warranty Registration
located in the back of the owners manual.
Make a copy and email to riata at sales@
riataranch.com subject "New Warranty
Registration".
DEALER/CUSTOMER INSTRUCTIONS
14 DEALER INSTRUCTIONS

Never place any part of the body underneath
equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures,
mechanical failures, or movement of control
levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
• Service work does not require going under-
neath.
• Read Manual for service instructions or have
service performed by a qualified Riata dealer.
• Stop tractor and implement immediately upon
striking an obstruction. Turn off engine, remove
key, inspect, and repair any damage before
resuming operation.
• Always wear relatively tight and belted clothing
to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and
head.
Owner/Operator (Owner’s/Operator’s
Responsibility) Pre-Operation Checklist
____ Review and follow all safety rules and
safety decal instructions on page 2 through page
6.
____ Check that equipment is properly and
securely attached to tractor.
____ Check that all safety decals are installed
and in good condition. Replace if damaged.
____ Check that all hardware is properly installed
and secured.
____ Do not allow riders.
____ Make sure tractor ROPS or ROPS CAB
and seat belt are in good condition. Keep seat
belt securely fastened during operation.
____ Check that tires are inflated and wheels are
greased.
____ Check to confirm that each of 4 grease
zerks are inspected and greased prior to opera-
tion. (2) Wheels, (1) Ratchet Jack, (1)
Turnbuckle.
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped
out by an operator’s single careless act.
In addition to the design and configuration of
equipment, hazard control and accident pre-
vention are dependent upon the awareness,
concern, judgement, and proper training of per-
sonnel involved in the operation, transport,
maintenance and storage of equipment.
It has been said “The best safety device is an
informed, careful operator.” We ask you to be
that kind of operator".
The operator is responsible for the safe opera-
tion of this equipment. The operator must be
properly trained. Operators should be familiar
with the equipment, the tractor, and all safety
practices before starting operation. Read the
safety rules and safety decals on pages 2-6.
Owner should check and tighten all hardware
after the first hour of operation. The break in
stage of your new Riata Rake can cause mini-
mal loosening of hardware. Please see Bolt
Torque Chart (page 25) for proper torque infor-
mation.
• Power unit must be equipped with ROPS or
ROPS cab and seat belt. Keep seat belt
securely fastened. Falling off power unit can
result in death from being run over or crushed.
Keep foldable ROPS systems in “locked up”
position at all times.
• Never allow children or untrained persons to
operate equipment.
• Keep bystanders away from equipment.
• NEVER BACK RIATA RAKE UP WITH
IMPLEMENT IN THE GROUND!
• NEVER GO UNDERNEATH EQUIPMENT.
Operation
CAUTION
WARNING
OPERATION 15

Connecting Riata Rake to Tractor
The Riata Rake is compatible with tractors equipped
with Category 1 or Category 2, 3-point hitch systems
that use side-swing type lower lift arms. The Riata
Rake will also fit tractors equipped with a Category
1 and 2 Quick Hitch ( or I Match) system.
Category 1 & 2 Standard (Figure 1)
1. Attach the tractor’s lower link arms to the Riata
Rake through the lower, inner set of holes.
2. Use the hitch pin supplied with your Riata Rake
and re-install the lynch pins.
3. Attach the tractor’s top link to the Riata Rake's
mast using a heavy-duty top link pin and lynch pin
supplied with your top link. DO NOT USE DOWN
PRESSURE/DRAFT!
4. Make sure the lower link arms are in float
position.
5. Stablizing bars should be in float position with
3-inches of sway.
1. Use Category 1 Standard instructions except
use lower, outer set of holes (*bushings required).
Category 1 Quick Hitch (Figure 2)
1. Connect the tractor’s Quick Hitch to the Riata
Rake through the upper, inner set of holes.
2. Slide lower sleeve over the mounting pin (sold
separately). Re-install lynch pins.
3. Slide upper sleeve over the heavy-duty top link
pin supplied with top link. Reinstall retaining pin.
Category 2 Quick Hitch (Figure 3)
1. Connect the tractor’s Quick Hitch to the Riata
Rake through the upper, outer set of holes.
2. Slide upper sleeve over the heavy-duty top link
pin supplied with top link. Reinstall retaining pin.
Adjusting Top Link
Adjust the three point top link so that the tine bar is
level front to rear. This will also be enabled by the
mast being in a level vertical position. In most
cases this will give the desired results. To adjust
the scarifier depth or angle of address, shorten the
three point top link. Lengthen the top link to
decrease the scarifier depth. Be sure to re level
the tine bar/Mast before using tines after ripping.
NOTE: When attaching Riata Rake to any hitch
other than a standard Category 1 hitch, bushings
and sleeves must be purchased separately.
Lower Hitch Point Location
Cat. 1 & 2 Standard
Figure 1. Category 1 and 2 Hitch Set-up
Inner Holes
Figure 2. Category 1 Quick Hitch Set-up
Top Link Sleeve
Bushings
Outer Holes
Figure 3. Category 2 Quick Hitch Set-up
Top Link Sleeve
Bushings
16 OPERATION

ADJUSTING TINE DEPTH
Your Riata Rake is equipped with a tine bar array and a single adjustment point (see gure 4
below).
One way of determining the depth that is best suited for your arena is to adjust the tine bar by
extending the ratchet jack until the tines are in the footing of your arena. Now continue to adjust
the depth until you begin to see the rake frame raise off the ground—this is easy to detect if you
watch the rear comb. Now raise the tines until the rear comb is solidly in the footing material.
This position depth is the lowest possible position at that location in your arena that the tine can
be pulled. It is up to your particular sport and your footing preferences to determine the depth
for your arena footing but as a rule of thumb, 1 1/2” - 2 1/2 “ is the typical depth for most eques-
trian sports. You should not attempt this method of depth setting if your arena is a deep sand
arena.
Tine Depth Adjustment
Figure 4, Tine Depth Adjustment
OPERATION 17
Tine Depth Adjustment
