RIDGID 1233 User manual

Ridge Tool Company/Elyria, Ohio, U.S.A.
7/99
Pipe and Bolt Threading Machine 1233
999-998-716.10
Printed in U.S.A.
Main Drive Components
1
2
345
6
7
8
9
10
11
12 14
15
16
17
18
19
18
20
21
22 23
24 25
26
27 28
29
30
13
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
1 61882 Rear Centering Head
2 61922 Centering Jaw Set
3 61247 Spiral Pins (3)
4 54002 Centering Scroll
5 61927 Retaining Ring
6 54017 Rear Bearing
7 54022 Oil Ball Valve (2)
8 92455 #10 - 24 x 3/4″Screw
9 61932 Motor Cover
10 61937 Bottom Cover
11 87730 1/4″x 3/8″Screw (4)
12 77905 5/16″x 1/4″Screw
13 54037 Motor Wedge
14 54302 Drain Plug
15 54042 M-10 1.5 Hex Screw
16 54052 Oil Pan Liner
Ref. Catalog
No. No. Description
17 54047 Chip Tray
18 60025 5/16″- 18 Set Screw (4)
19 61887 Base (Incl. Ref. 9,10,11)
20 45475 Bearing Retaining Pins (4)
21 54062 Front Bearing
22 54067 Spindle Assembly
23 54072 Hammer Wheel
24 54077 Chuck Scroll
25 54212 Jaw Insert Set
— 54217 Jaw Insert f/Coated Pipe
— 59612 Jaw Insert f/SS Pipe
26 54087 Chuck Jaw Set
27 54082 Chuck Cap
28 54092 Chip Guard
29 58322 Screws 6 - 32 x 1/2″, Pkg of 6
30 46775 1/4″x 13/4″Soc. Head Screw (6)

Ridge Tool Company/Elyria, Ohio, U.S.A.
2
Pipe and Bolt Threading Machine 1233
1
2
3
4
56
7
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20 21
22
23 24 25
26
27
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
1 46810 Detente Assembly
2 54097 Spool Valve
3 54102 O-Ring
4 35307 Oil Pressure Relief Set
5 54107 Crescent Ring
6 54112 Rear Rail
7 35162 Rail Plug (4)
8 35062 Oil Line Clamp
9 79965 10-32 x 1/2″Screw
10 35067 Oil Tube
11 54117 Front Rail
12 34342 Roll Pin
13 57097 Pinion
14 35182 Hand Wheel
15 35187 Pinion Idler Shaft
54122 Cap Plug (not shown)
16 54127 Carriage
17 54132 Carriage Stop
18 54137 5/16″- 18 x 1/2″Screw
19 35142 Hose Clamp
20 61282 Carriage Oil Line
21 47080 Oil Line Grommet
22 35117 Oil Line Insert
23 54152 Oil Intake Line
24 54142 Bulkhead Fitting
25 61897 Oil Filter Tube
26 58467 Filter Screen Assembly
27 45420 10-24 x 3/8″Screw
28 54517 Drip Pan
28
Carriage and Oil System

Ridge Tool Company/Elyria, Ohio, U.S.A. 3
Pipe and Bolt Threading Machine
1
234
56
7
8
9
10
11
12
12
13
14
15
16
17
17 17
17
18
19
20 21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
38
36
37
17

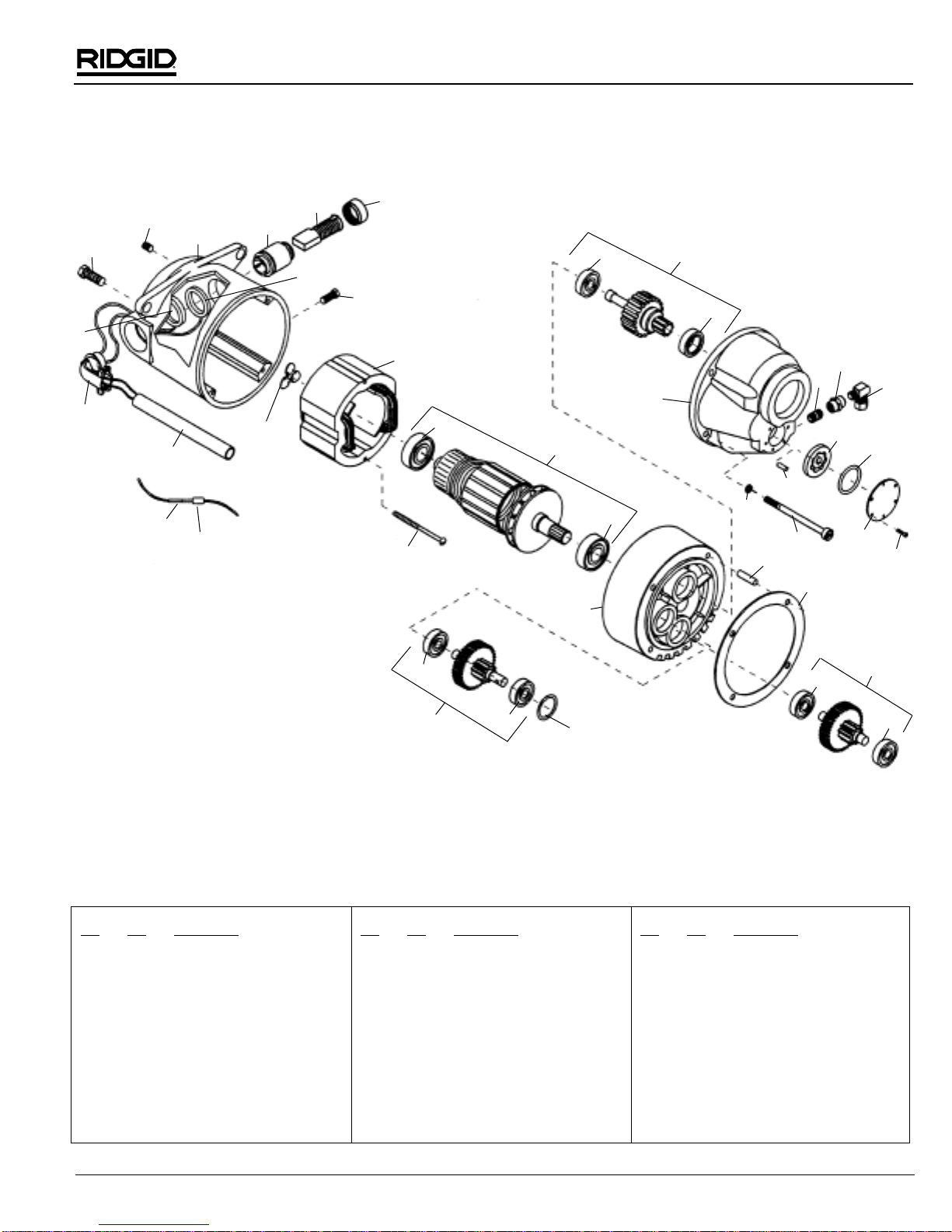

Motor
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
—52457 Motor Model 3092, 100V
—52462 Motor Model 3192, 115V
—52467 Motor Model 3292, 230V
—52472 Motor Model 3192R, 115V Rev.
—52477 Motor Model 3292R, 230V Rev.
1 85915 Motor Mounting Bolt (2)
2 39770 Set Screw 1/4″- 20 x 1/4″(2)
3 52482 Motor Housing
4 45025 Brush Holder Set (2)
5 44540 Brush Assembly Set (2)
6 44545 Brush Cap Set (2)
7 86685 Red Brush Lead
8 86680 White Brush Lead
9 83500 Field Locking Screw
10 44580 Loading Spring
11 44015 Field 100/115V
Ref. Catalog
No. No. Description
44035 Field 230V
12 44565 Armature Bearing (2)
13 52487 100V Armature
52497 115V Armature
52492 230V Armature
14 54552 Fan Housing Assembly
15 45165 Dowel Pin
16 52502 Gasket
17 44760 Gear Bearing
18 45315 Front Bearing
19 45370 Main Drive Gear Assembly
20 52507 1/8″NPT Close Nipple (2)
21 52512 1/8″Coupling (2)
22 52517 Elbow Compression Fitting (2)
23 96830 Gear Case
24 96870 Gerotor Set
Ref. Catalog
No. No. Description
25 96875 “O”Ring
26 96840 Cover Plate
27 96890 Screw #4 x 3/8″(6)
28 45075 Screw 1/4″- 20
29 45150 Lockwasher 1/4″
30 96880 Oil Seal
31 96885 Pin
32 52522 1st Gear Assembly
33 52527 2nd Gear Assembly
34 44555 Screw 10-24 x 3″
35 63382 Plastic Tube
36 46900 90 Connector
37 16946 Male Wire Connector
38 16956 Female Wire Connector
3092
3192
3292
3192R
3292R
1233

Ridge Tool Company/Elyria, Ohio, U.S.A.
4
Pipe and Bolt Threading Machine 1233
2
3
4
6
7
5
9
12
3
45
6
7
8
9
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
1 61902 Switch Mounting Screw
2 61907 Switch
3 54172 Switch Gasket
4 45420 10-24 x 3/8″Screw
5 44695 10-24 Nut
6 61912 Cord Clamp
7 92455 10-24 x 3/4″RH Screw
8 54232 Cord Grommet
9 46740 Power Cord
Ref. Catalog
No. No. Description
1 61397 Switch Knob
2 54167 Switch Face Plate
3 54157 Switch & Screws
4 61902 Slotted Pan Head Screw #6 - 32 x 1/2″
5 61917 Switch Plate
6 54172 Switch Gasket
7 63387 Brown Wire
8 63392 Blue Wire
9 63372 Suppressor
—63387 Brown Lead Wire
—63392 Blue Lead Wire
10 45420 10-24 x 3/8″Screw
11 44695 10-24 Nut
12 61912 Cord Clamp
13 92455 10-24 x 3/4″RH Screw
14 36652 Foot Switch (B-296)
40022 Foot Switch f/Aust. (B-299)
40017 Foot Switch f/U.K. (B-298)
15 54177 Strain Relief w/Locknut
16 63377 Ferrite Bead
17 43552 Cable Tie
Lever Type Switch
1
8
9
13
11
14
12
15
10
16 17

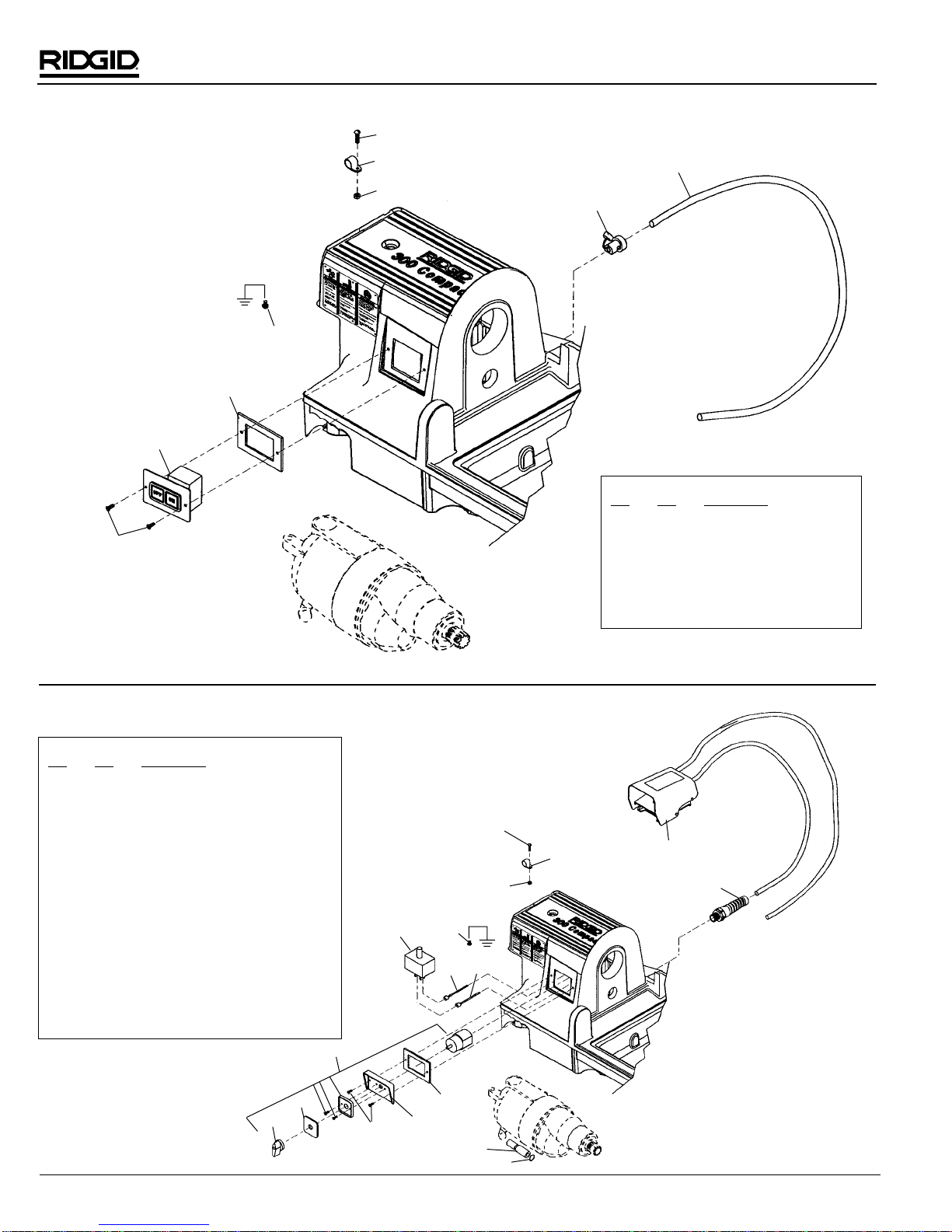

Electrical Components
Push Button Type Switch

Ridge Tool Company/Elyria, Ohio, U.S.A. 5
Pipe and Bolt Threading Machine 1233
1
2
3
4
5

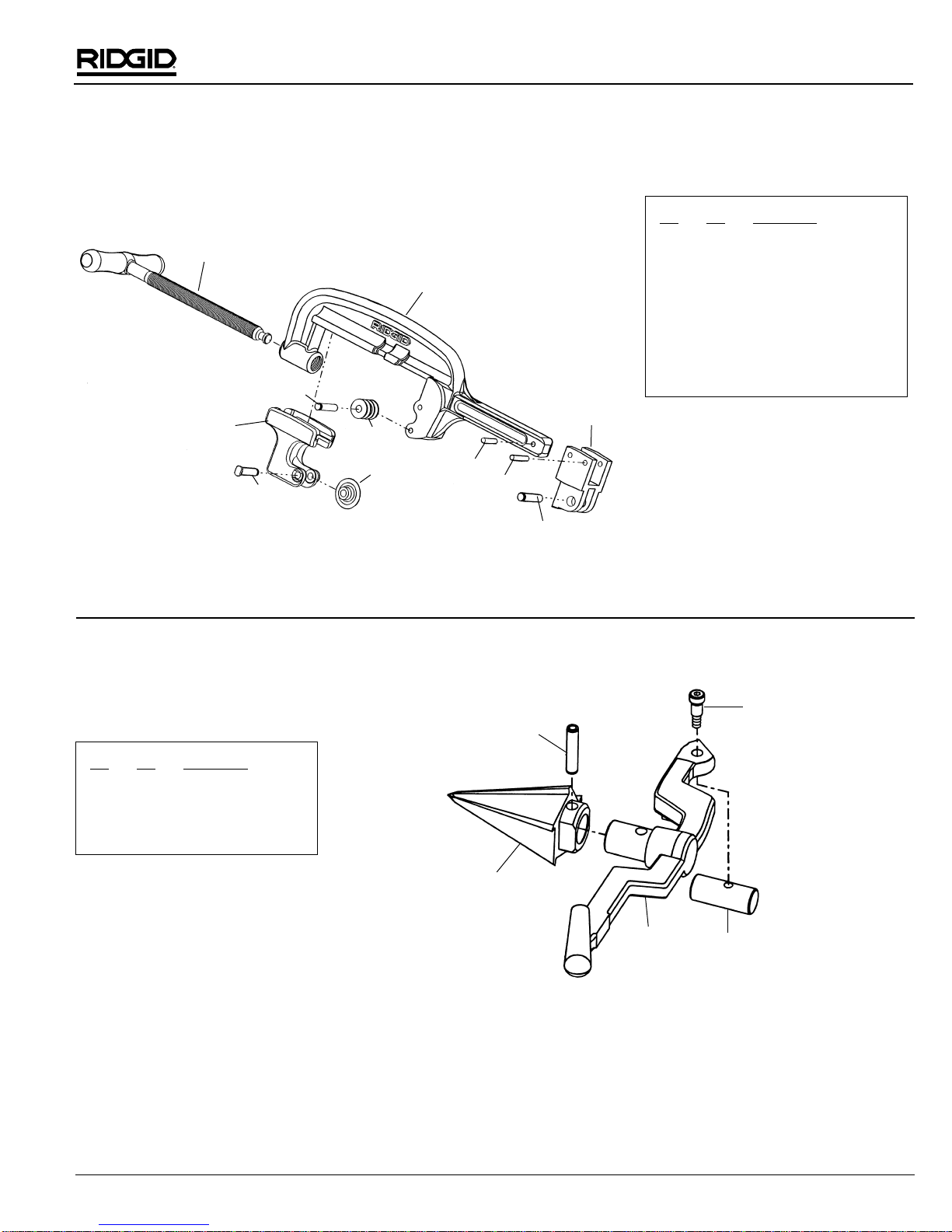

No. 743 Reamer
Ref. Catalog
No. No. Description
—52272 743 Reamer Complete
1 36262 Shoulder Screw
2 36267 Pivot Pin
3 36272 Reamer Arm
4 52277 Reamer Cone
5 35355 Split Roll Pin
No. 763 Pipe Cutter
1
2
3
4
6
7
89
10
5
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
—52452 763 Cutter Complete
1 54197 Feed Screw Handle
2 61872 Cutter Frame
3 58090 1/4″x 1″Roll Pin
4 61877 Bracket
5 54300 Roll Pin
6 44185 E1032 Cutter Wheel
7 34780 Pin & Clip
8 52247 Wheel Housing
9 46960 Rolls f/Steel Pipe (2)
—43682 Rolls f/Coated Pipe (2)
10 46662 Roll Pin (2)
11 45520 Hinge Pin
11

Ridge Tool Company/Elyria, Ohio, U.S.A.
6
Pipe and Bolt Threading Machine 1233
3
12
45
6
78
9
10
12 13
14
17
18
15
16
19
20
21
22
23
24
25
26
27
11

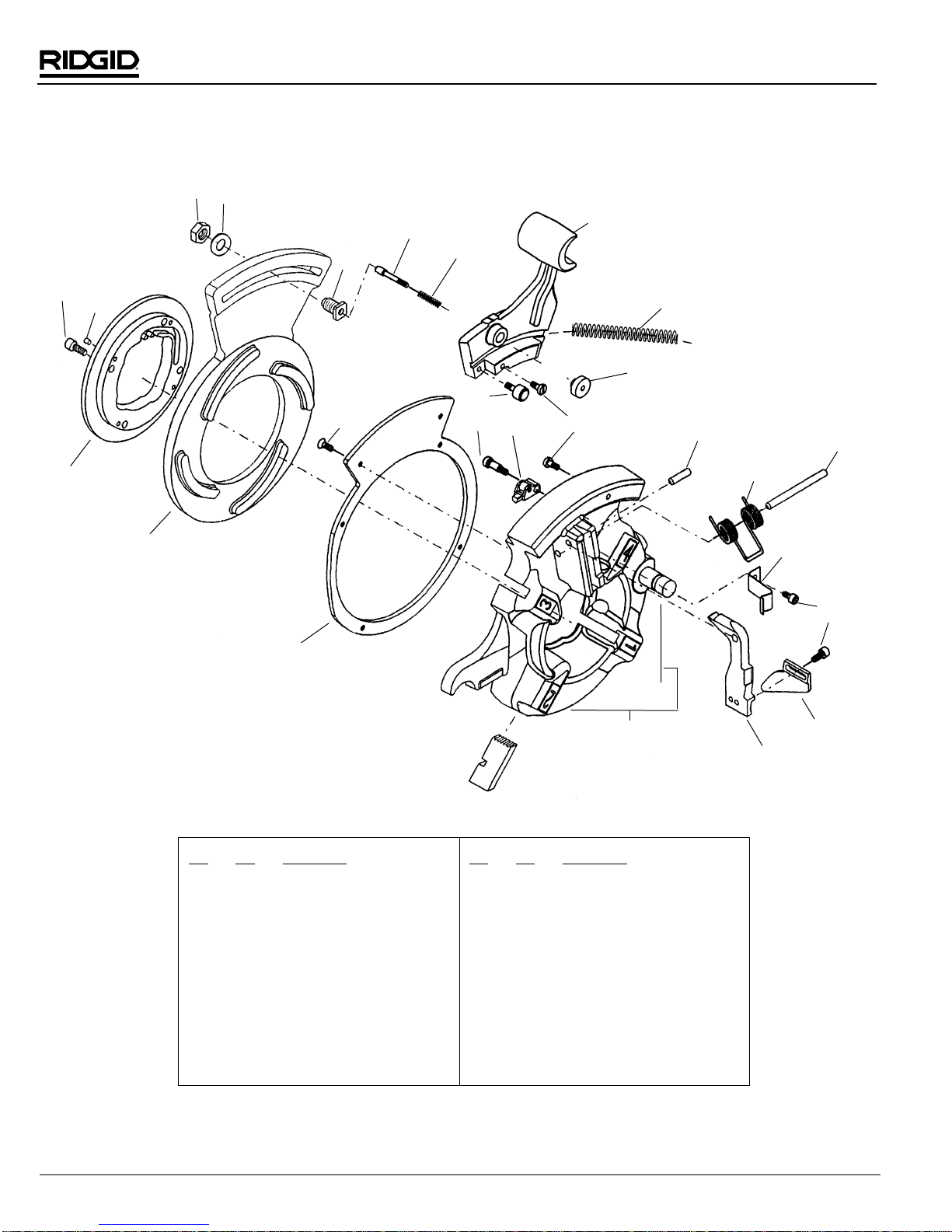

No. 724 NPT & 924 BSPT 1/2″- 3/4″Die Heads
No. 726 NPT & 926 BSPT 1″- 2″Die Heads
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
—50317 924 1/2″- 3/4″BSPT Die Head
—50322 926 1″- 2″BSPT Die Head
—54447 724 1/2″- 3/4″NPT Die Head
—54442 726 1″- 2″NPT Die Head
1 32205 Screw 1/4″- 20 x 5/8″SHCS (4)
2 60097 Detente Plunger (4)
3 52292 Retaining Ring 1/2″- 3/4″, 1″- 2″
4 61587 Jam Nut 3/8″
5 61592 Flat Washer 3/8″
6 61607 Adjuster Bolt
7 61602 Adjuster Plunger
8 52342 Adjuster Spring
9 52447 Screw #10-24 x 1/2″FHCS (6)
10 52312 Cam Plate BSPT 924, 1/2″- 3/4″
52317 Cam Plate BSPT 926, 1″- 2″
56067 Cam Plate NPT 724, 1/2″- 3/4″
56072 Cam Plate NPT 726, 1″- 2″
Ref. Catalog
No. No. Description
11 52442 Support Ring
12 34877 Soc. Hd. Shoulder Bolt 1/4″x 1/2″
13 61617 Rocker Release Assembly
14 52377 Slide Roller Bearing (2)
15 58667 Adjuster Slide
16 61612 Release Spring
17 61597 Adjuster Knob
18 52372 Spring Retainer (2)
19 87940 Roll Pin 1/4″x 7/8″
20 52387 Trigger Spring
21 52397 Spring Mounting Pin
22 60092 Trigger Spring
23 45750 Screw #10-24 x 3/8″SHCS (2)
24 52417 Adjustable Trigger
25 52422 Trigger Pivot
26 59832 Die Head Post
27 52432 Die Head w/Post

Ridge Tool Company/Elyria, Ohio, U.S.A. 7
Pipe and Bolt Threading Machine 1233
1
2
3
45
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19 20
21
22
23
24
16
Die
Quick-Opening

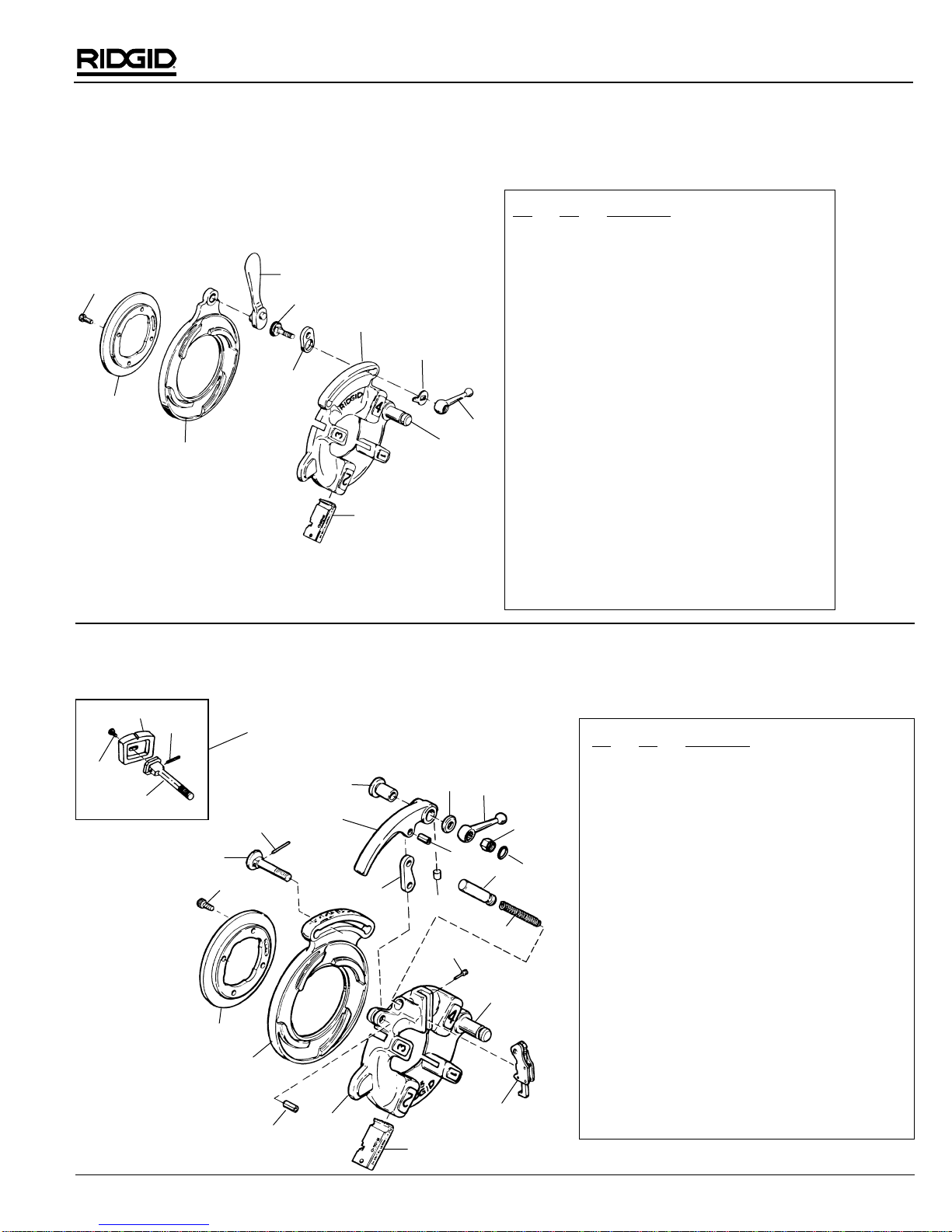

Through-Head-Oiling Die Heads
See 1822 Service Notes
Self-Opening
Through-Head-Oiling Die Heads
Ref. Catalog
No. No. Description
—97075 815A Self-Opening (Through-
Head-Oiling) Die Head (NPT)
97080 815A Self-Opening (Through-
Head-Oiling) Die Head (BSPT)
1 44240 Bushing
2 43830 Throw-Out Lever
3 44265 Throw-Out Link
4 44245 Washer
5 44260 Clamp Lever
6 44270 Roll Pin (2)
7 45055 Insert
8 44250 Nut
9 44255 Retaining Ring
10 44275 Throw-Out Plunger
11 48997 Spring
12 44290 Trigger Screw
13 59832 Post
14 44235 Lock Screw
15 32205 Screw (4)
16 45050 Pin
17 97020 Retaining Ring
18 40942 Cam Plate (815A NPT)
97040 Cam Plate (815A BSPT)
19 40932 Head w/Post
20 44285 Trigger Assembly
32982 Adj. Trigger Assy. (Europe)
45327 Trigger Assy. (Europe)
21 45332 Gauge Plate Assy.
22 46722 Adj. Lock Screw
23 46717 Gauge Plate
24 47147 Screw
811A NPT
811A BSPT
842
531B
532B
Ref. Catalog
No. No. Description
—97065 811A NPT Quick Opening (Through-
Head-Oiling) Die Head (NPT RH)
97070 842 Quick Opening (Through-
Head-Oiling) Die Head (NPT LH)
23282 811A BSPT Quick Opening (Through-Head-
Oiling) Die Head (BSPT RH)
97045 531B Quick Opening Through-Head-
Oiling) Die Head (1/4″- 1 Bolt RH/LH)
97050 532B Quick Opening (Through-Head-
Oiling) Die Head (11/4″- 2 Bolt RH/LH)
1 32205 Screw
2 97020 Retaining Ring RH (811A)
46620 Retaining Ring RH/LH (531)
46625 Retaining Ring RH/LH (532)
3 23292 Retaining Ring LH (842)
4 43360 Cam Plate (811A, 842)
43405 Cam Plate (531)
43410 Cam Plate (532)
5 46520 Throwout Lever (811A, 842)
46555 Throwout Lever (531, 532)
6 39860 Lock Screw (811A, 842)
39955 Lock Screw (531, 532)
7 39950 Link
8 40922 Head w/Post RH (811A)
97025 Head w/Post RH (851)
97055 Head w/Post LH/RH (531)
97060 Head w/Post LH/RH (532)
9 23287 Head w/Post LH (842)
10 39460 Lever Washer
11 39970 Clamp Lever
12 59832 Post
815A NPT
815A BSPT
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
1
4
5
6
7
10
11
12
2 R.H.
3 L.H.
8 R.H.
9 L.H.
Die

Ridge Tool Company/Elyria, Ohio, U.S.A.
8
Pipe and Bolt Threading Machine 1233
No. 200A Wheel and Cabinet Stand
No. 100A Leg and Tray Stand
Ref. Catalog
No. No. Description
–92467 Wheel Stand Assembly
1 56887 Cabinet
2 80030 Hex Bolt 3/8″- 16 x 1″(4)
3 44230 Flat Washer (4)
4 79985 Locknut 3/8″- 16 (2)
5 58037 End Cap (6)
6 58067 Handle (2) Includes Ref. No. 5 & 7
7 61567 Plunger Assembly (2)
8 58052 Hex Bolt 3/8″- 16 x 21/2″(6)
9 58057 Front Leg
10 44225 Hex Nut 3/8″- 16 (4)
11 58027 Leveling Pad
12 47180 Washer (2)
13 47030 Cotter Pin (2)
14 58072 Axle (2)
15 27442 Wheel (2)
16 84150 Lock Washer 1/2″(2)
17 44745 Locknut 1/2″(2)
18 58042 Spacer (4) (1224 Machine Only)
19 58032 Cross Member (2)
20 58062 Rear Leg
21 63652 Stand Stop Assembly
22 58047 Hex Bolt 3/8″- 16 x 4″(4)
(1224 & 535 Auto Machine Only)
NOTE: 3/8″- 16 x 4″bolts and spacers used when mounting 1224 &
535 Auto machines.
Ref. Catalog
No. No. Description
–92462 Wheel and Tray Assembly
1 56872 Tray
2 80030 Hex Bolt 3/8″- 16 x 1″(4)
3 44230 Flat Washer (4)
4 79985 Locknut 3/8″- 16 (2)
5 58037 End Cap (6)
6 58067 Handle (2) includes Ref. No. 5 & 7
7 61567 Plunger Assembly (2)
8 58052 Hex Bolt 3/8″- 16 x 21/2″(6)
9 58057 Front Leg
10 44225 Hex Nut 3/8″- 16 (4)
11 58027 Leveling Pad
12 47180 Washer (2)
13 47030 Cotter Pin (2)
14 58072 Axle (2)
15 27442 Wheel (2)
16 84150 Lock Washer 1/2″(2)
17 44745 Locknut 1/2″(2)
18 58042 Spacer (4) (1224 machine only)
19 58032 Cross Member (2)
20 58062 Rear Leg
21 63652 Stand Stop Assembly
22 58047 Hex Bolt 3/8″- 16 x 4″(4)
(1224 & 535 Automatic Machine Only)
NOTE: 3/8″- 16 x 4″bolts and spacers used when mounting 1224 &
535 Auto machines.
No. 150A Wheel and Tray Stand
12
3
5
6
4
18
5
7
8
8
20
5
816
8
15 14 13
12
11
10
8
9
18
19
455
67
8
10
11
18 19 18
17
21
22
22
22
22
13
5
6
418
5
7
8
8
20
5
8
15 14 13
12
11
10
8
9
18
19
455
6
7
8
2
22
22
22
22
Ref. Catalog
No. No. Description
–92457 Leg Stand Assembly
1 56872 Tray
2 80030 Hex Bolt 3/8″- 16 x 1″(4)
3 44230 Flat Washer 3/8″(4)
4 58037 End cap (4)
5 58022 Leg (2)
6 58052 Hex Bolt 3/8″- 16 x 21/2″(4)
7 44225 Hex Nut 3/8″- 16 (4)
8 58027 Leveling Pad (4)
9 58042 Spacer (4) - (1224 Machine Only)
10 58032 Cross Member (2)
11 58047 Hex Bolt 3/8″- 16 x 4″(4)
(1224 & 535 Auto Machine Only)
NOTE: 3/8″- 16 x 4″Bolts and spacers used when mounting 1224 &
535 Auto machines.
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
816
11
19
18
17
18
21
10
1
2
3
4
5
6
7
8
6
8
7
9
10
8
7
6
4
5
4
6
8
9
9
11
7
10 11
11
9
11
