RIDGID SeekTech SR-60 User manual

WARNING!
Read this operator’s manual
carefully before using this
tool. Failure to understand
and follow the contents of
this manual may result in
electrical shock, fire and/or
serious personal injury.
SeekTech®SR-60
Pipe, Cable and Sonde Locator
Operator’s
Manual
Patents Pending

ii www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60
Table of Contents
GENERAL SAFETY INFORMATION........................................................................................................... 2
SR-60 COMPONENTS.................................................................................................................................. 5
INTRODUCTION TO THE SR-60................................................................................................................. 6
GETTING STARTED...................................................................................................................................... 6
DISPLAY ELEMENTS..................................................................................................................................... 6
SET UP ..................................................................................................................................................... 11
LINE TRACING WITH THE SR-60............................................................................................................. 13
ACTIVE LINE TRACING ...............................................................................................................................13
DEPTH WARNINGS................................................................................................................................... 16
OPERATING TIPS FOR ACTIVE LINE TRACING .............................................................................................. 17
PASSIVE LINE TRACING..............................................................................................................................20
OMNISEEK LOCATING................................................................................................................................21
SONDE LOCATING ................................................................................................................................... 22
LOCATION METHODS ................................................................................................................................. 23
TILTED SONDES ........................................................................................................................................ 24
MEASURING DEPTH (SONDE MODE)...........................................................................................................25
SIMULTRACE............................................................................................................................................. 25
CUSTOM USER FREQUENCIES .............................................................................................................. 28
MENUS AND SETTINGS ........................................................................................................................... 29
OPTIONAL FEATURES ................................................................................................................................31
MENU TREE .............................................................................................................................................. 35
OPERATING WITH THE DISTORTION LINE ....................................................................................................35
INFORMATIONAL LOCATING ........................................................................................................................36
NOTES ON ACCURACY ...............................................................................................................................36
A BETTER WAY OF LOCATING............................................................................................................... 38
ADVANTAGES OF THE OMNIDIRECTIONAL ANTENNA .....................................................................................38
SR-60 MAINTENANCE.............................................................................................................................. 39
SERVICE AND REPAIR................................................................................................................................40
ICONS AND SYMBOLS............................................................................................................................. 41
GLOSSARY -- DEFINITIONS.........................................................................................................................42
TROUBLE SHOOTING GUIDE.................................................................................................................. 45
SPECIFICATIONS........................................................................................................................................ 46
DEFAULT SETTINGS................................................................................................................................... 46
STANDARD EQUIPMENT .............................................................................................................................46
OPTIONAL EQUIPMENT...............................................................................................................................46
FREQUENCIES TABLE................................................................................................................................. 46
MANUFACTURERS FREQUENCY TABLE........................................................................................................47

Ridge Tool Company Elyria, Ohio U.S.A www.seektech.com 1
SeekTech SR-60
SeekTech®SR-60
Record the Serial Number of your unit below and retain for your records.
See Information screen for serial number and software version.
Serial
Number
Software
Version
SeekTech®SR-60
Pipe, Cable and Sonde Locator

2www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60
General Safety Information
WARNING
Read and understand all instructions. Failure to
follow all instructions listed below may result
in electric shock, fire, and/or serious personal
injury!
SAVE THESE INSTRUCTIONS
Work Area Safety
•Keep your work area clean and well
lit. Cluttered benches and dark areas
may cause accidents.
•Do not operate electrical devices or
power tools in explosive
atmospheres, such as in the
presence of flammable liquids,
gases, or heavy dust. Electrical
devices or power tools create sparks,
which may ignite the dust or fumes.
•Keep bystanders, children, and
visitors away while operating tool.
Distractions can cause you to lose
control.
Electrical Safety
•Do not operate the system with
electrical components removed.
Exposure to internal parts increases the
risk of injury.
•Avoid exposure to rain or wet
conditions. Keep battery out of direct
contact with water. Water entering
electrical devices increases the risk of
electric shock.
•Do not probe high voltage lines.
Battery Precautions
•Use only the size and type of battery
specified. Do not mix cell types (e.g.
do not use alkaline with
rechargeable). Do not use partly
discharged and fully charged cells
together (e.g. do not mix old and new).
•Recharge batteries with charging
units specified by the battery
manufacturer. Using an improper
charger can overheat and rupture the
battery.
•Properly dispose of the batteries.
Exposure to high temperatures can
cause the battery to explode, so do not
dispose of in a fire. Some countries
have regulations concerning battery
disposal. Please follow all applicable
regulations.
Personal Safety
•Stay alert, watch what you are doing,
and use common sense. Do not use
diagnostic tools while tired or under the
influence of drugs, alcohol, or
medications. A moment of inattention
while operating diagnostic instruments
may result in serious personal injury.
•Gloves should always be worn for
health and safety reasons. Sewer
lines are unsanitary and may contain
harmful bacteria and viruses.
•Do not overreach. Keep proper
footing and balance at all times.
Proper footing and balance enables
better control of the tool in unexpected
situations.
•Use safety equipment. Always wear
eye protection. Dust mask, non-skid
safety shoes, hardhat, or hearing
protection must be used for appropriate
conditions.
•Use proper accessories. Do not place
this product on any unstable cart or
surface. The product may fall causing
serious injury to a child or adult or
serious damage to the product.
•Prevent object and liquid entry.
Never spill liquid of any kind on the
product. Liquid increases the risk of
electrical shock and damage to the
product.
•Avoid Traffic. Pay close attention to
moving vehicles when using on or
near roadways. Wear visible clothing
or reflector vests. Such precautions
may prevent serious injury.

Ridge Tool Company Elyria, Ohio U.S.A www.seektech.com 3
SeekTech SR-60
SR-60 Use and Care
•Use equipment only as directed. Do
not operate the SR-60 unless you have
read the operator’s manual.
•Do not immerse the antennas in
water. Store in a dry place. This will
reduce the risk of electric shock and
instrument damage.
•Store idle equipment out of the
reach of children and other
untrained persons. Equipment is
dangerous in the hands of untrained
users.
•Maintain the instrument with care.
Properly maintained diagnostic
instruments are less likely to cause
injury.
•Check for breakage of parts, and any
other conditions that may affect the
SR-60’s operation. If damaged, have
the instrument serviced before using.
Many accidents are caused by poorly
maintained tools.
•Use only accessories that are
recommended by the manufacturer
for the SR-60. Accessories that may
be suitable for one instrument may
become hazardous when used on
another.
•Keep handles dry and clean, and
free from oil and grease. Allows for
better control of the instrument.
•Protect against excessive heat. The
product should be situated away from
heat sources such as radiators, heat
registers, stoves, or other products that
produce heat.
Service
•Diagnostic instrument service must
be performed only by qualified repair
personnel. Service or maintenance
performed by unqualified repair
personnel could result in injury.
•When servicing a diagnostic
instrument, use only identical
replacement parts. Follow instructions
in the maintenance section of this
manual. Use of unauthorized parts or
failure to follow maintenance
instructions may create a risk of
electrical shock or injury.
•Follow instructions for changing
accessories. Accidents are caused by
poorly maintained equipment.
•Provide proper cleaning. Remove
battery before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
•Conduct a safety check. Upon
completion of any service or repair of
this product, ask the service technician
to perform safety checks to determine
that the product is in proper operating
condition.
•Damage to the product that requires
service. Remove the batteries and
refer servicing to qualified service
personnel under any of the following
conditions:
o If liquid has been spilled or objects
have fallen into product;
o If product does not operate normally
by following the operating
instructions;
o If the product has been dropped or
damaged in any way;
o When the product exhibits a distinct
change in performance.
CAUTION
Remove batteries entirely before shipping.
If you have any questions regarding the service or
repair of this machine, call or write to:
Ridge Tool Company
Technical Service Department
400 Clark Street
Elyria, Ohio 44035-6001
Tel: [phone]
E-mail: [e-mail]
www.ridgid.com

4www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60
DANGER
Important Notice
The SR-60 is a diagnostic tool that senses
electromagnetic fields emitted by objects
underground. It is meant to aide the user in locating
these objects by recognizing characteristics of the
field lines and displaying them on the screen. As
electromagnetic field lines can be distorted and
interfered with, it is important to verify the location
of underground objects before digging.
Several utilities may be underground in the
same area. Be sure to follow local guidelines
and one-call service procedures.
Exposing the utility is the only way to verify its
existence, location, and depth.
Ridge Tool Co., its affiliates and suppliers, will
not be liable for any injury or any direct,
indirect, incidental or consequential damages
sustained or incurred by reason of the use of
the SR-60.
In any correspondence, please give all the
information shown on the nameplate of your locator
including model number and serial number.
DANGER
Important Notice
Always insert and connect the earth grounding rods
before turning on the transmitter. Never pull out an
earth grounding rod as long as the generator is
switched on! Never pull the earth grounding rod or
disconnect the ground lead if the other lead is
connected to a utility.

Ridge Tool Company Elyria, Ohio U.S.A www.seektech.com 5
SeekTech SR-60
SR-60 Components
Figure 1: SR-60 Components

6www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60
Introduction to the SR-60
Getting Started
Installing/Changing Batteries
To install batteries into the SR-60, turn the unit over
to access the battery compartment. Turn the knob on
the battery cover counter clockwise. Pull straight up
on the knob to remove the cover. Insert the batteries
as shown on the inside decal and make sure they
drop to full contact. Fit the cover into the case and
turn the knob clockwise while lightly pressing down to
close. The battery cover can be installed in either
orientation.
Figure 2: Battery Case
When the SR-60 is powered on, it takes a few
seconds to check the batteries. Until then the battery
level will show as “empty”.
CAUTION
Do not allow debris or moisture into battery
compartment. Debris or moisture may short
the battery contacts, leading to rapid discharge
of the batteries, which could result in
electrolyte leakage or risk of fire.
Folding Mast
To begin operation, unfold the antenna mast and lock
the folding joint into place. When locating is
complete, press the red release lever to fold the
antenna mast for storage.
IMPORTANT
Do not snap or whip the SR-60 mast to open or
close it. Open it and close it by hand only.
NOTE: Avoid dragging the lower antenna node on
the ground while locating with the SR-60. It may
cause signal noise which will interfere with
results, and may eventually damage the antenna.
Figure 3: Folding Antenna Mast and Release Button
SR-60 Modes
The SR-60 operates in three distinct modes. They
are:
1. Active Line Trace Mode, used when a
chosen frequency can be put onto a long
conductor using a Line Transmitter, for
locating conductive pipes, lines, or cables.
2. Passive Trace Mode, used for tracing
electrical lines that are already carrying 60
Hz current (U.S.), 50 Hz current (Europe), or
radio frequencies.
3. Sonde Mode, used for locating Sondes in
pipes, conduits, or tunnels that are non-
conductive or cannot otherwise be traced.
Note that the two Tracing modes, Active and Passive,
are identical except for the frequencies used. No
transmitter is used in Passive Trace mode.
Display Elements
Beginning operators or experienced operators can
use the SR-60 with equal ease. While the SR-60
offers advanced features that make the most
complex locate easier, many of its features can be
turned off or hidden, making the SR-60 simple to use
in basic locating in uncomplicated situations.
The “basic features” of the SR-60 are on by default.
They can be customized easily to suit the user’s
requirements. The use of the various elements
displayed is covered in later sections of this manual.

Ridge Tool Company Elyria, Ohio U.S.A www.seektech.com 7
SeekTech SR-60
Common Display Elements

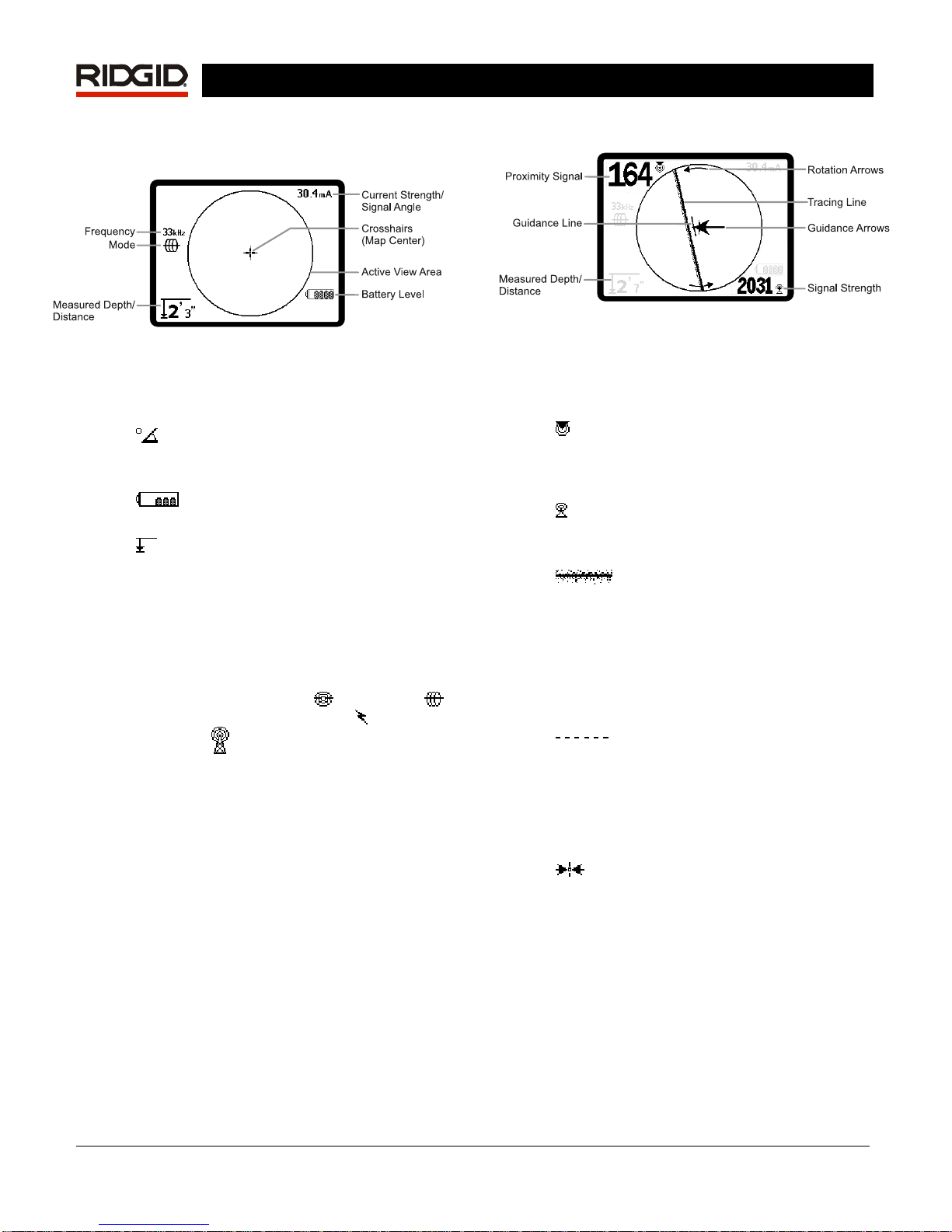

Figure 4: Common Display Elements
The display screen in Active Line Trace, Passive Line
Trace or Sonde mode will show the following
features:
•Signal Angle: Field tilt from the
horizontal; angle toward the field’s center;
numeric value displayed in degrees.
•Battery Level – Indicates level of
remaining battery capacity.
•Measured Depth/Distance – Displays
the measured depth when receiver is
touching the ground directly over signal
source. Displays computed distance when
the antenna mast is pointed at a signal
source in some other manner. Displays
feet/inches (U.S.A. default) or meters
(European default).
•Mode– Icon for Sonde , Line Trace ,
Power (Passive Line Trace) , or Radio
Frequency mode.
•Frequency – Shows current frequency
setting in hertz or kilohertz.
•+ Crosshairs (Map Center) - shows
operator’s position relative to the target
center.
Display Elements: Line Trace Mode
Figure 5: Display Elements (Line Trace Mode)
In Active Line Trace Mode, the following features will
also be displayed:
•Proximity Signal – Numerical indication
showing how close the signal source is to the
locator. Displays from 1 to 999. (Line Trace
modes only)
•Signal Strength – Strength of signal as
sensed by the lower Omnidirectional
antenna.
•Tracing Line – The Tracing Line
represents the approximate axis of the
detected field. It represents detected
distortion in the field by appearing less
focused. (See page 33 for information on
setting the sensitivity and how to enable or
disable the distortion response in the Tracing
Line.)
•Distortion Line If the normal
distortion response of the Tracing Line is
disabled, a second line is shown, which
represents the signal from the upper antenna
node. By comparing the two lines, the user
can estimate the degree of distortion present
in a signal. (See page 35.)
•Guidance Arrows The Guidance
Arrows serve to steer the operator toward the
center of the detected field, by showing when
the signals reaching the left and right
Guidance Antennas are out of balance or
equal. The two signals are equal when
crossing the center of an undistorted field. If
the signals are unequal, the Guidance
Arrows show which way the field appears to
be relative to the receiver.
•mA Current Strength – Proportional to
current on the line. Switches to Signal Angle
when Signal Angle is greater than 35°.

8www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60
•Guidance Line Shows the alignment of the
target line and helps determine when the
locator is directly over the target line. It will
be longest when directly aligned with the
target line. Rotation Arrows will appear to
indicate which way the SR-60 should be
turned to align it with the field.
Note: The Tracing Line reflects the approximate axis
of the conductor being traced, but is modified by a
degree of “distortion” in the form of varying
cloudiness, or loss of focus, in the Tracing Line. The
Tracing Line will appear to grow unfocused in
proportion to the distortion in the field being detected.
It ranges from a clear line (no distortion present),
through slightly distorted, to moderately un-focused,
growing to a wide, cloud-like band of particles
depending on the degree of distortion in the detected
field. It represents the best possible calculation of the
location and bearing of the line combined with the
degree of distortion sensed by the receiver’s
Omnidirectional Antennas.
When the distortion response of the tracing line is
turned off, a separate Distortion Line will be
displayed. The Distortion Line can be used to analyze
distortion when it is out of alignment with the Tracing
Line. (The dashed line can be disabled separately, as
well, which will leave a single Tracing Line displayed
with no distortion response).
The default setting is to have the distortion response
enabled in the Tracing Line. This incorporates the
information provided by these two lines into a single,
easy-to-read presentation, making the SR-60 easier
to use.
(For more information about distortion, see pages 33
and 39.)
Note: The screen elements in Passive Trace Mode
are the same as those seen in Active Line Trace
mode. Mode is determined by the type of target
source (Sonde or Line). For example, selecting the
512 Hz frequency from the Sonde mode section of
the frequency menu puts the SR-60 into Sonde
mode. (A frequency which appears in more than one
category, such as 33 kHz, must be selected from the
correct category).
Display Elements: Sonde Mode
Figure 6: Display Elements: Sonde Mode
In Sonde mode, the screen elements include several
features that are unique to Sonde locating.
•Signal Strength – Strength of signal as
sensed by the lower Omnidirectional
antenna.
•|| Pipe Direction – Represents the
approximate direction of the pipe in which the
Sonde is lying.
•Sonde Icon – Appears when
approaching the location of a Sonde.
•Equator – Represents the mid-line of
the Sonde’s field perpendicular to the axis of
the Poles. (See page 26).
•Pole Icon – Represents the location of
either of the two Poles of the Sonde’s dipole
field. (See page 26).
•Zoom Ring – Appears when the locator
moves close to a Pole.
The use of these features is described in the Active
Line Tracing, Passive Line Tracing, and Sonde
Locating sections.
Default Frequencies
The Master Frequency Menu contains a large set of
frequencies, but only some of these are made
currently available. They are made “Currently
Available” by checking them in the Master Frequency
Menu.
The frequencies which are currently available will
appear on the Main Menu when the Menu Key is
pressed.
Currently available frequencies can be checked in the
Main Menu, in which case they will appear when
using the Frequency Key . If they are unchecked in

Ridge Tool Company Elyria, Ohio U.S.A www.seektech.com 9
SeekTech SR-60
the Main Menu, they will not appear when using the
Frequency Key to cycle through frequencies.
Frequencies which appear in the Main Menu and are
checked for activation are called “Checked-Active”.
Frequencies that are “Checked-Active” can be cycled
through simply by pressing the Frequency Key
(see Figure 7). A frequency chosen by pressing the
Frequency Key becomes the “In Use” frequency.
Frequencies currently available by default include:
Sonde Mode
•512 Hz*
Active Line Trace Mode:
•128 Hz*
•1 kHz*
•8 kHz*
•33 kHz*
•93 kHz*
•262 kHz*
Power (Passive Line Trace Mode):
•60 Hz (9th) *
•< 4 kHz *
Radio Frequency
•4 kHz—15 kHz (L) *
•15 kHz – 35kHz (H) *
OmniSeek (multi-range <4kHz – 35kHz)*
(* = Checked-Active Frequencies)
Keypad
Figure 7: Keypad
•Power/Right Key – Powers SR-60 on.
Powers the SR-60 down after a 3-second
countdown. The countdown can be
interrupted before shutdown by pressing any
key. Used to move to the right in some
screens.
•Up and Down Keys – Used for
locating choices during menu selection; used
for setting volume level when the Volume
Control Key has been pressed. If Signal
Focus is activated, the Up and Down Keys
will change the Signal Focus setting up and
down.
•Select Key – Used to make a choice
during Menu selection; in normal operation,
to force a Measured Depth reading and re-
center audio tone. Can be used to force a
“quick-check” trace-line and Measured Depth
display.
•Menu Key – Used to display a “tree” of
choices including frequency selections,
display element choices, brightness and
contrast, and restoring default settings. In a
menu, will move up one level.
•Volume Control Key – Used to raise or
lower the volume setting; will cycle the
volume by steps, increasing to maximum and
then mute. Pressing the Volume Key opens
the volume control panel if it is closed. When
open, the control panel will close after ten
seconds if no keys are pressed. Volume can
also be raised and lowered using the Up and
Down Keys when the Volume screen is open.

10 www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60
•Frequency / Left Key – Used to set the
In-Use Frequency of the SR-60 from the set
of Checked-Active frequencies. Each short
press cycles to the next Checked-Active
frequency. (The list of frequencies that have
been set to Checked-Active status can be
modified via the Menu Key.)
A long press on the Frequency Key will
display a scrollable list of all currently active
frequencies to choose from, by highlighting
and pressing Select again.

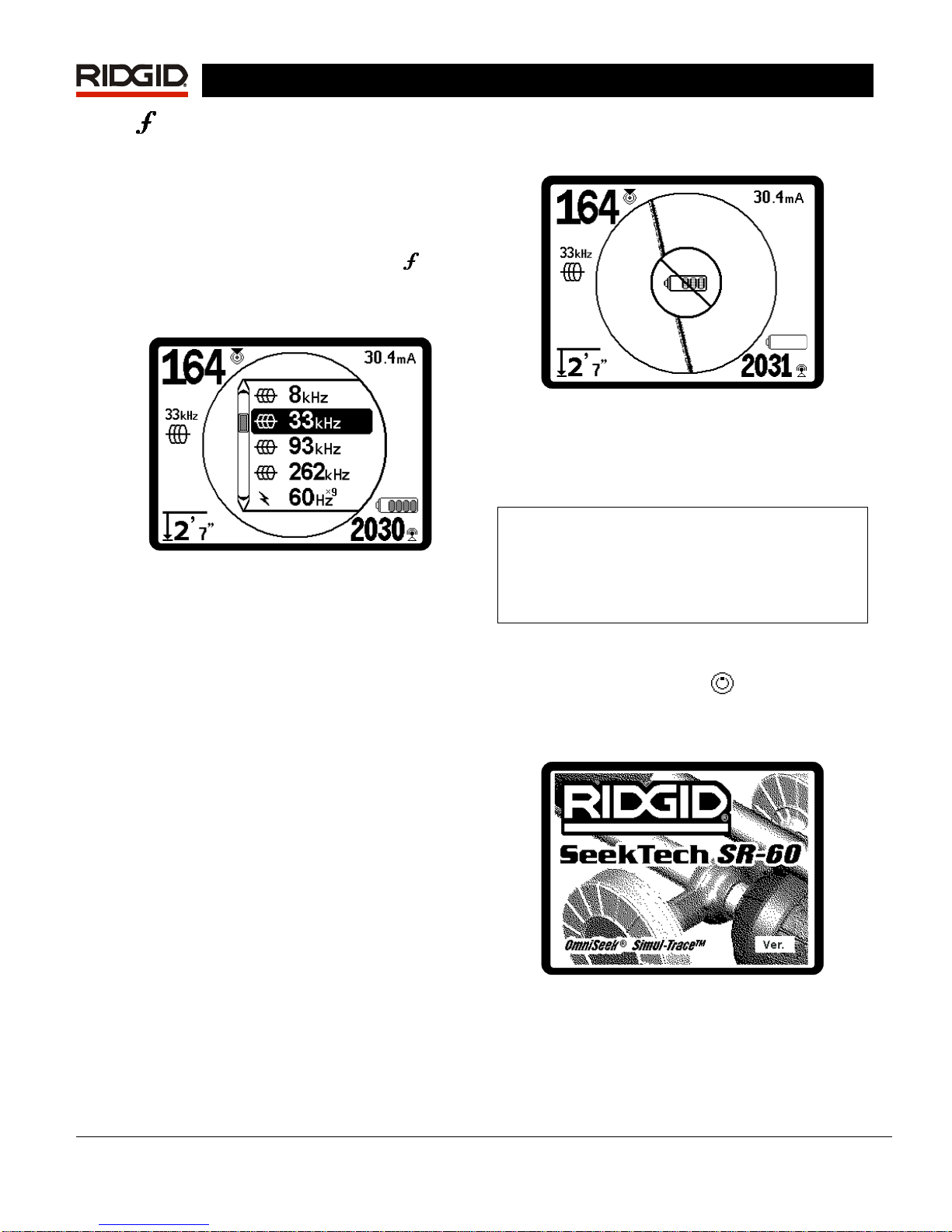

Figure 8: Scrollable List of Frequencies
•Light Sensor – In Automatic mode, the light
sensor controls when the backlight goes on
or off depending on ambient light. Placing a
thumb over the light sensor will force the
backlight on.
Operation Time
Using alkaline cells, typical operation time is from
about 12 to 24 hours depending on sound volume
and how often the backlight is on. Other factors that
affect the operation time will include chemistry of the
battery (many of the new high performance batteries,
such as the “Duracell® ULTRA” last 10%-20% longer
than conventional alkaline cells under high demand
applications). Operation at lower temperatures will
also reduce battery life.
The SR-60 display can also show random symbols
when the battery power is too low to drive the internal
logic circuits correctly. This is remedied by simply
putting fresh batteries into the unit.
To preserve battery life, the SR-60 will automatically
shut down after 1 hour of no key presses. Simply
power the unit on to resume use.
Low Battery Warning
When the battery gets low, a battery icon will
periodically appear in the map area on the screen.
This indicates that the batteries need to be changed
and that the unit will soon shut down. A tone will
sound at ten-minute intervals.
Figure 9: Low-Battery Warning
Just before complete shut down there will be a non-
interruptible power down sequence. An extended
buzz will sound when the SR-60 is about to go into
shutdown sequence.
Note: Voltage on rechargeable batteries may
sometimes drop so quickly that the unit will just
shut down. The unit will power down and restart.
Just replace the batteries and power the unit back
on.
Starting Up
After pressing the Power Key on the keypad, the
RIDGID logo displays, and the software version
number will appear in the lower right corner of the
screen.
Figure 10: Start-up Screen
Make a note of the software version in the box on
page 1. If technical support from Ridge is needed, it
will be helpful to have it available.

Ridge Tool Company Elyria, Ohio U.S.A www.seektech.com 11
SeekTech SR-60
Set up
Once the SR-60 is up and running, the next step is to
set up the frequencies needed to match the
transmitter frequency being used, or the frequency of
the line to be located. Each frequency is selected for
use by choosing it from a list in the Main Menu. If the
box on the Main Menu for that frequency is checked,
the frequency is “Checked-Active”.
Checked-Active frequencies are already selected for
use and appear in sequence when pressing the
Frequency Key . (For example, the line trace
frequency of 33 kHz is available by pressing the
Frequency Key and advancing through the list until
33 kHz is reached.)
NOTE: When a frequency is highlighted in the
Main Menu, pressing the Frequency Key will
display its exact frequency value. For example, 8
kHz = 8192 Hz.
A long press on the Frequency Key will bring up a
scrollable list of all Checked Active frequencies.

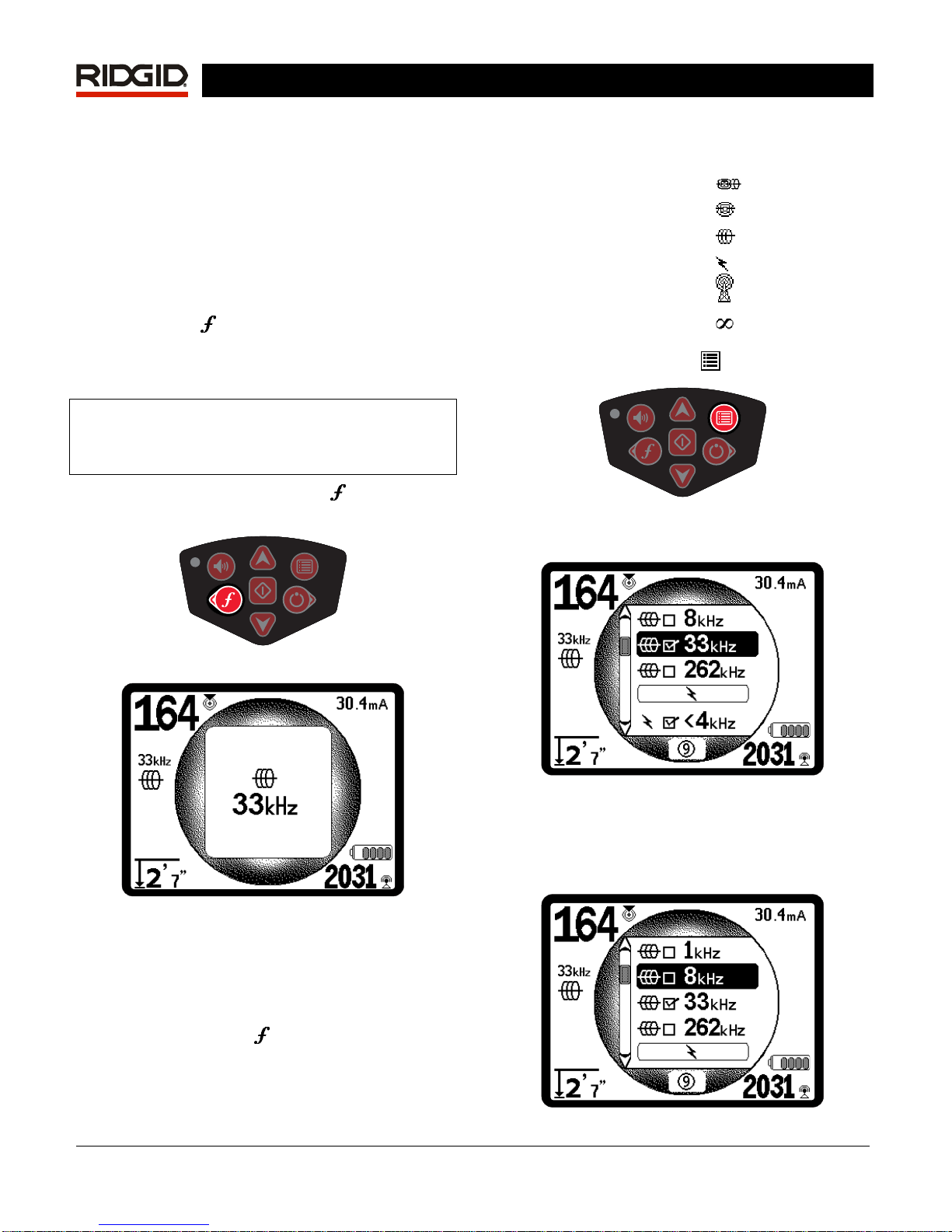

Figure 11: Frequency Key
Figure 12: Line Trace Frequency Selected with
Frequency Key
Activating Frequencies
Frequencies can be chosen for the set of Checked-
Active frequencies so they will become available
using the Frequency Key . Frequencies can also be
deactivated to keep the frequency set smaller.
Each frequency is activated by choosing it from a list
in the Main Menu (See Figure 14). Frequencies are
grouped by category:
SimulTrace (512 Hz + 33 kHz) (if active)
Sonde
Active Line Trace
Power (Passive Line Trace)
Radio
OmniSeek (multi-RF bands)
1. Push the Menu Key :
Figure 13: Menu Key
The Main Menu screen is then activated:
Figure 14: Main Menu
2. Using the Up and Down Keys, highlight
the frequency desired (
Figure 15). In this
example, the operator is activating the 8 kHz
frequency.

12 www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60

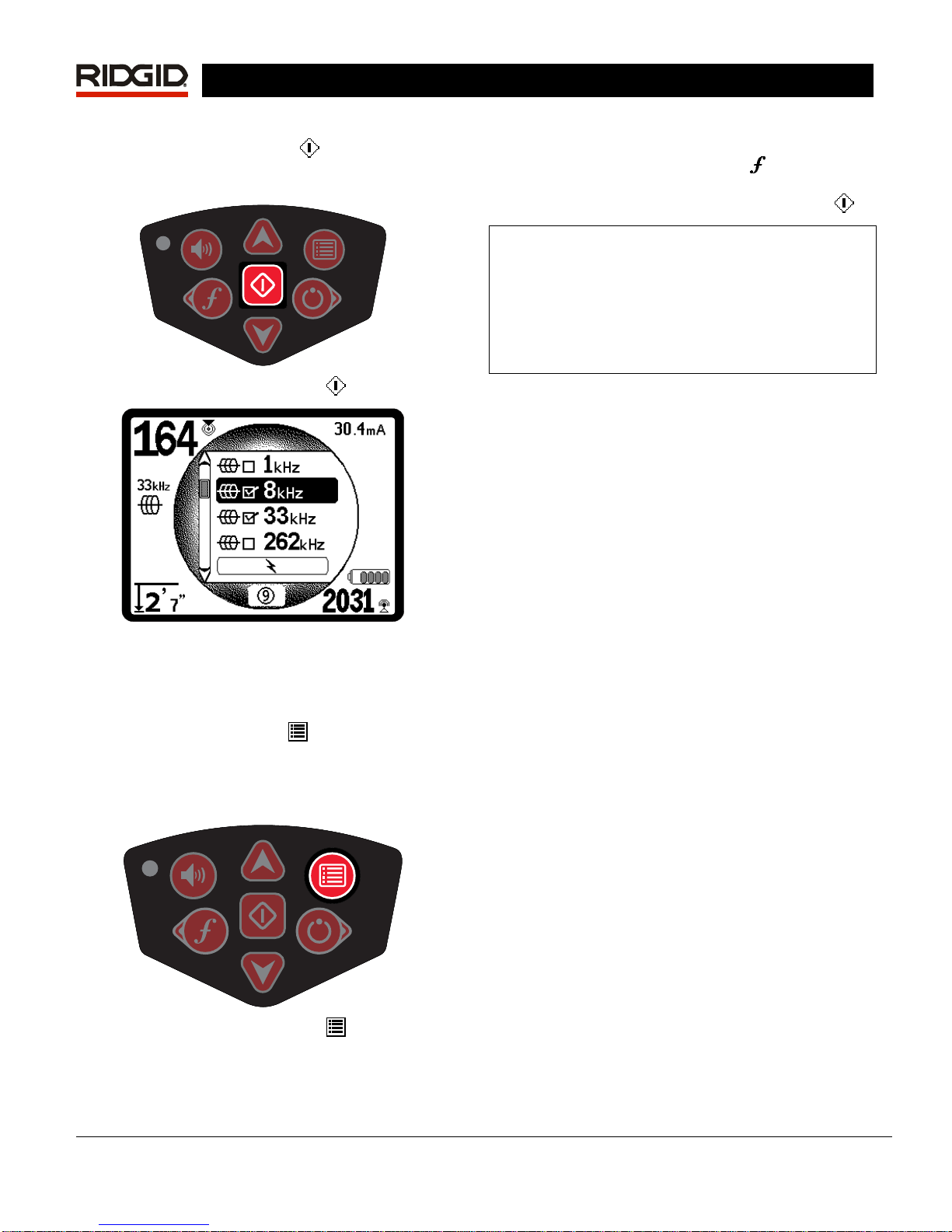

Figure 15: Highlighting a Desired Frequency (8 kHz)
3. Press the Select Key (shown below) to
check the box for each frequency to be used.
Figure 16: Select Key
Figure 17: Desired Frequency Checked
Frequencies that have been selected for use will
show a check in the box next to them.
4. Press the Menu Key again to accept the
choice and exit. Letting the unit countdown
and exit automatically will have the same
effect.
Figure 18: Menu Key
The Main Menu lists all frequencies available for
activation. For information on adding additional
frequencies to the Main Menu so they can be chosen
for activation, see “Frequency Selection Control” on
page 33.
A long press on the Frequency Key will bring up a
list of all Checked Active Frequencies. To use one,
simply scroll down to it and press the Select Key .
Note on 93 kHz Frequency Use
The SR-60 offers two 93 kHz frequencies for Line
Tracing. The default 93 kHz frequency has an actual
cycle count of 93,623 cycles per second.
But some older transmitters use a different value for
the nominal 93 kHz frequency, 93,696 cycles per
second. This is found in the SR-60 listed as “93k-B”.
If you find that your transmitter signal at 93 kHz
cannot be detected by the SR-60, set the locator’s
frequency to 93-B kHz, which is set to the older
value. Both 93 and 93-B frequencies can be found
under the Line Trace category of the Frequency
Selection sub-menu.
Sounds of the SR-60
The sound level is driven by the proximity to the
target. The closer to the target, the higher the sound
pitch will be. A rising tone indicates increasing signal.
In Active Line Trace or Passive Line Trace mode,
sound is on one continuous curve and does not re-
scale.
In Line Tracing modes, the default distortion
response also activates an audio signal proportionate
to the distortion in the detected field. When there is
no distortion present, the sound of the SR-60 is a
clear warbling sound when on the left side of the
detected field, with a slight click added when on the
right side of the detected field. If distortion is detected
a sound similar to AM radio static sound can be
heard, which gets stronger as the degree of distortion
increases, similar to the unfocusing that signals
distortion visually around the Tracing Line. If the
distortion response feature is disabled, the static
sound does not occur.
In Sonde Mode, if the sound level reaches its highest
point, it will “re-scale” to a medium level and continue
signaling from the new starting point.
In Sonde Mode, the pitch will “ratchet” upward. That
is, it will rise and then re-scale (fall) in pitch while
approaching the Sonde. Moving away from the
Sonde, it will drop to a lower pitch and remain there
as long as one moves away from the Sonde. Moving
back toward the Sonde again it will resume rising in
steps starting from the level it had reached
previously. This serves as an indication when the

Ridge Tool Company Elyria, Ohio U.S.A www.seektech.com 13
SeekTech SR-60
locator receiver is getting closer or further away from
the Sonde.
If desired, force the sound to re-center at a medium
level (in any mode) by pressing the Select Key during
operation. See also the “Directional Sound” section,
below.
Key Items in Using the SR-60
PROXIMITY SIGNAL reflects the proximity of the
locator to the target utility; the closer the locator
moves to the center of the detected field, the higher
the Proximity Signal number gets. The Proximity
Signal is calculated from the ratio of the signals
received at the lower and upper antennas, adjusted
for scalability.
SIGNAL STRENGTH represents the strength of the
field being detected by the lower antenna node of the
SR-60, converted mathematically for scalability. In a
clear and undistorted field, you can locate based on
Signal Strength alone.

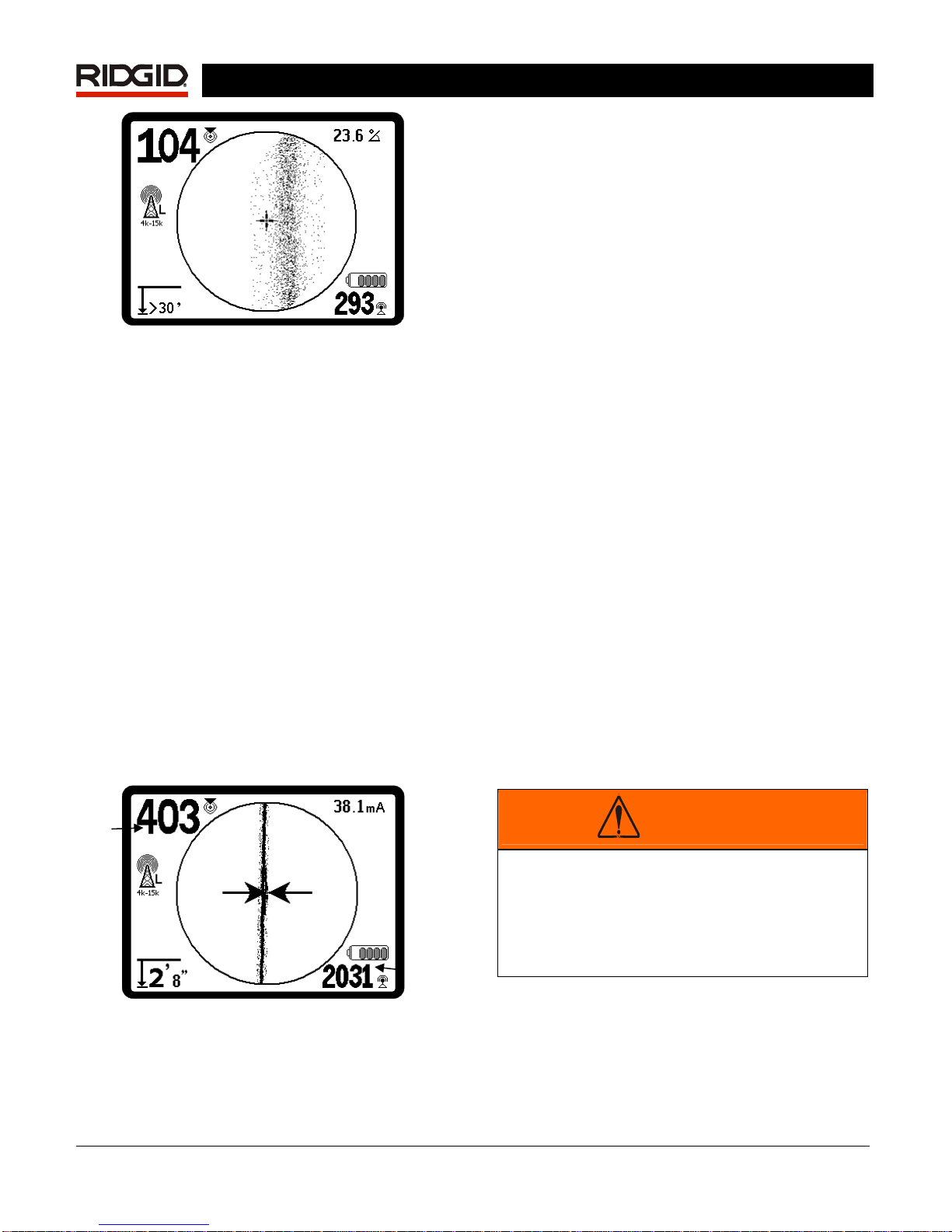

DISTORTION is the degree to which the field
detected is deformed. In an undistorted environment,
current on a long conductor produces a field which is
cylindrical, down the conductor. If multiple fields are
present, the detected field is pushed or pulled out of
shape and the different antennas will pick up different
field strengths. On the SR-60, distortion is reflected
by the Tracing Line growing unfocused instead of
sharp, or by disagreement among the Guidance
Arrows, Tracing Line, and Signal Strength.
TRACING LINE indicates the direction and degree of
distortion in the detected field.
GUIDANCE ARROWS are driven by the signals
received at the guidance antennas of the SR-60.
When the fields detected by these side antennas are
equal, the arrows will center. If one is receiving a
stronger field signal than the other, the arrows will
point toward the probable center of the target
conductor. Moving in the direction indicated by the
arrows will bring you closer to the center of the
detected field. A small “guidance line” at the end of a
guidance arrow indicates the degree of alignment
with the conductor’s field. It will be at its maximum
length when correctly aligned with the conductor, with
the guidance antenna axis crossing the field at 90°.
Rotational guidance arrows on the perimeter of the
screen will indicate the direction you need to turn to
align with the detected conductor.
DIRECTIONAL SOUND from stereo speakers will let
you follow a line by sound, while staying visually alert
for nearby traffic or obstacles. The Sound Pointer
speakers are designed to be clipped to a jacket or
vest on either shoulder. Stereo sound from the
speakers will fade to the left or right. The louder side
indicates the direction toward the center of the
detected field. Sound will balance when over the
center of the line. The operator can stay centered on
the line using sound signals instead of the visual
cues on the screen. The SR-60 comes with clip-on
speakers designed to be attached to the left and right
shoulders of a safety vest for this purpose.
Shutting Down
Pressing the Power Key at any time during operation
will start a count-down of 3 seconds, during which the
shut-down tone will sound. At the end of the count-
down, the SR-60 will shut down.
Figure 19: Count-Down Screen (Shutting Down)
Line Tracing with the SR-60
There are two major ways to look for lines
underground with the SR-60. They are called Active
and Passive. The difference is that in Active Line
Tracing, a current is placed on a conductor using a
transmitter, and that specific signal is then sought for
using the locator. Passive tracing does not use a
transmitter and seeks for any signal that may be
picked up at particular frequencies.
Active Line Tracing
In active line tracing, underground lines are
energized with a Line Transmitter. This active signal
is then traced using the SR-60. A Line Transmitter is
different from a Sonde in that it is used to energize a
conducting target line, rather than acting as a target
for a locate itself, the way a Sonde does. Line
transmitters energize lines by direct connection with
clips, or by directly inducing the signal using a clamp,
or by inducing the signal using inductive coils built
into the transmitter.
Direct Connect Mode: The transmitter is attached
by direct metal-to-metal connection to the target
conductor at some access point such as a valve, a

14 www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60
meter, or other point. Important: The connection
between the transmitter and the conductor must be a
clean, firm connection. The transmitter is also
connected to a ground stake providing a strong open
path to ground. Important: A weak ground
connection is the most frequent cause of a poor
tracing circuit. Make sure the transmitter is well
connected to ground, and has enough exposure to
the ground to allow current to flow through the circuit.
Inductive Clamp Mode: The transmitter is
connected to an inductive clamp which is then closed
around a pipe or cable. The transmitter energizes the
clamp, which then induces a current in the conductor.
Important: Make sure the SR-60 is set to trace mode
and set to the same frequency as the transmitter. Do
not clamp onto a live conductor. This mode works
best when both ends of the conductor are grounded.
Inductive Mode: The transmitter is placed over the
conductor. There is no direct connection; the internal
coils of the transmitter generate a strong field through
the ground which induces a current in the
underground conductor of interest. Important: If the
transmitter is too close to the SR-60 in this mode, it
can cause “air-coupling” which means the locator is
reading more on the signal from the transmitter’s
field, than on the target conductor. (See page 16).
Note: When using Inductive Mode, it is always
possible to move the transmitter to a different point
along the target line. This will sometimes improve the
circuit and provide a better signal.
WARNING
Connect ground and power leads of the
transmitter before powering the transmitter on,
to avoid electric shock. See warning on page 4.
1. Energize the target conductor according to
the transmitter manufacturer’s instructions,
using one of the methods described above.
Select the transmitter frequency. Set the
frequency on the SR-60 to the same
frequency used on the transmitter, using the
Frequency Key . Be sure the frequency has a
line trace icon . Push the Menu Key to
return to the operating screen. To activate
frequencies not yet made active, see “Frequency
Selection Control” on page 33.
Figure 20: Line Trace Frequency Chosen with the
Frequency Key (This screen will flash briefly when a
new frequency is chosen.)
2. Observe the Proximity Signal to ensure that
the receiver is picking up the transmitted
signal. The Proximity Signal should peak over
the line and drop off on either side.
When tracing, the direction of the detected
field will be shown on the screen by the
Tracing Line. The Tracing Line will be a clear,
single line if the field being detected is
undistorted.
If other fields are interfering in some way, the
distortion caused by those fields will be
reflected by a blurring of the Tracing Line.
The more distorted the detected field, the broader
the cloud around the Tracing Line will be. This
alerts the operator that the apparent axis of the
line may be influenced by other fields, and
requires careful evaluation.
The Tracing Line has three important functions.
It represents the location, and the direction, of the
signal being traced. It reflects changes in
direction of the target utility — when the utility
makes a turn, for example. And it helps recognize
signal distortion. It does this by becoming
cloudier as distortion increases. Disagreement
between different indicators can also indicate
distortion.
Figure 21: Tracing Line Showing Low Distortion

Ridge Tool Company Elyria, Ohio U.S.A www.seektech.com 15
SeekTech SR-60
Figure 22: Tracing Line Showing High Distortion
3. Use the Guidance Arrows, Proximity Number,
Signal Strength, and Tracing Line to guide the
line trace. These pieces of information are
generated from discrete signal characteristics to
help the operator understand the quality of the
locate. An undistorted signal emitted from a line
is strongest directly over that line. (Note: Unlike
the Signal Trace lines, the guidance arrows
require that the user orient the locator so that the
guidance arrows point 90 degrees to the Signal
Trace line. (See Figure 23).
Note: an undistorted line will also be clear rather
than blurred on the screen, and the sound
accompanying the image will have no “static” in it.
Note: Confidence in the accuracy of a locate can
be increased by maximizing the Proximity Signal
(and/or Signal Strength), balancing the Guidance
Arrows and centering the Tracing line on the screen.
Confirm a locate by testing whether the Measured
Depth reading is stable and reasonable. Agreement
among all these indicators means the probability of
an accurate locate is high.
Figure 23: High Probability Locate
As always, the only way to be certain of the location
of a utility is through visual confirmation by exposing
the utility. The accuracy of position and depth
measurement improves as the SR-60 lower antenna
node is placed closer and closer to the target utility.
Rechecking the Measured Depth and position
periodically during the excavation process can help
avoid damage to a target utility and may identify
additional utility signals that were not noticed prior to
excavation.
When line tracing, it is important to remember that
tees, curves, other conductors in the vicinity, and
nearby masses of metal can add distortion to the
field, requiring closer scrutiny of the data to
determine the true path of the target utility.
Clarifying the situation can be done by assessing
whether the distortion is due to a poor signal that
needs to be improved, a local interference such as a
near-by car, or a tee or turn in the line.
Circling the last location of a clear signal at a
distance of about 20 feet (6.5 m) can clarify if the
distortion is coming from a local turn or tee in the line,
and enable the operator to again pick up the line
nearby.
Always cross check the locate by ensuring that:
•The Tracing Line shows little or no distortion
response (blurriness).
•The Proximity Signal and the Signal strength
maximize when the Tracing Line crosses the
map center.
•The Measured Depth increases appropriately
as the unit is raised vertically and the Tracing
Line remains aligned.
Measured Depth readings should be taken as
estimates and actual depths should be
independently verified by potholing or other
means prior to excavating.
WARNING
Care should be taken to watch for signal
interference that may give inaccurate readings.
The Tracing Line is only representative of the
position of the buried utility if the field is
UNDISTORTED. Do NOT base a locate solely on
the Tracing Line
If the signal is clear, the SR-60 will often show a
straight signal line with very little distortion right up to
a 90-degree tee, show a small amount of distortion
as it follows around the curve, and then show a clear
signal again as it resumes its travel after the tee. It
shows very clearly when the line is turning.
Maximized
Maximized

16 www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60
Measuring Depth (Line Tracing Modes)
The SR-60 calculates Measured Depth by comparing
the strength of the signal at the lower antenna to that
at the upper antenna.
Measured Depth is measured correctly in an
undistorted field when the bottom antenna is touching
the ground directly above the signal source and the
antenna mast is vertical.
1. To measure depth, place the locator on the
ground, directly above the Sonde or the line.
2. Measured Depth will be shown in the lower
left hand corner.
3. Measured Depth will be accurate only if the
signal is undistorted and the antenna mast is
held vertical.
Testing for the consistency of the Measured Depth
reading can be done by raising the SR-60 a known
distance (say, 12 inches (33 cm)) and observing
whether the Measured Depth indicator increases by
the same amount. Small variation is acceptable, but if
the Measured Depth does not change, or changes
drastically, it is an indication of a “distorted” field, or
very low current on the line.
Push-Button Depth
Holding the Select Key will display a short count-
down followed by a calculated depth report. This
“Pushbutton Depth”, calculated on more signal
samples, will be more precise than the running Depth
indication.
Push-button Depth will generate a brief count-down
screen followed by a calculation screen, which
changes to a depth report screen when the
calculation is complete.
Figure 24: Push-Button Depth Report
Depth Warnings
NOTE: Exposing the utility is the only way to
verify its existence, location, and depth.
Certain conditions make depth readings less precise
or less reliable. When using Pushbutton Depth, a
warning will appear when these conditions occur:
Motion of the SR-60 during
sampling
Depth is varying greatly
Signal Strength is varying
greatly.
Extreme offset between
guidance line and tracing
line (right or left).
Clipping (Signal too high).
Averaged depth will be
inaccurate.
Distortion level too high to
read depth accurately

Ridge Tool Company Elyria, Ohio U.S.A www.seektech.com 17
SeekTech SR-60
Current and Signal Angle Reading
The Current Strength ( )and Signal Angle
indicator ( ) in the upper right corner of the screen
will display the current detected on the traced line, in
milliamps, when the computed angle to the center of
the detected field is less than 35° and the SR-60
crosses the center of the field.
When moving across the center of the field the
current display will retain the displayed current value
until the guidance arrows reverse again, at which
point the display will be updated. The update occurs
whenever the guidance arrows reverse.
When the angle to the center exceeds 35°, the Signal
Angle indicator will again replace the Current
indicator, and the display will show the computed
angle to the center of the detected field.
Clipping (Tracing Modes)
Occasionally the Signal Strength will be strong
enough that the receiver will be unable to process the
whole signal, a condition known as “clipping”. When
this occurs, a warning symbol will appear on
the screen. It means that the signal is particularly
strong. If clipping persists, remedy it by increasing
the distance between the antennas and the target
line OR by reducing the strength of the current from
the transmitter.
Note: Measured Depth Display is disabled
under clipping conditions.
When clipping occurs, the SR-60 will automatically
attenuate the signal to dampen it. When the signal
strength received falls below the clipping threshold,
the attenuation stops automatically. The SR-60
screen will indicate the starting of attenuation and the
stopping of attenuation by showing these images:
Figure 25: Attenuation On Figure 26: Attenuation Off
Operating Tips for Active Line
Tracing
1. The SR-60 quickly identifies distorted fields. If the
guidance arrows are centered on the screen, and
the Trace Line is not centered (or if the Proximity
Signal number and Signal Strength are not
maximized), then distortion is creating a complex
non-circular field. This is also reflected by the
Tracing line dissolving, or growing unfocused in a
cloudy pattern proportional to the distortion
detected.
2. To improve the tracing circuit:
a. Move the ground stake position away
from the line to be traced.
b. Use a larger ground contact surface
(such as a shovel blade).
c. Make sure that the line is not commonly
bonded to another utility. (Undo common
bonds only if safe to do so).
d. Try changing the frequency used.
e. Move the transmitter to a different point
on the line, if possible. Try locating from
the other direction along the line, for
example.
3. Circling the last location of a clear signal at a
distance of about 20 feet (6.5 m) can clarify if the
distortion is coming from a local turn or tee in the
line, and enable the operator to again pick up the
line nearby.
4. If the Tracing Line will not center or if it moves
across the screen erratically, then the SR-60 may
not be receiving a clear signal. The Measured
Depth and the Proximity Signal may also be
unstable under these circumstances.
a. Check the transmitter to be sure that it is
operating and well grounded. Good
connection and good grounding can
remedy low current problems.
b. Test the circuit by pointing the lower
antenna at either transmitter lead. If a
strong signal is not shown, improve the
circuit.
c. Check that the SR-60 and transmitter are
operating on the same frequency.
d. Try a higher frequency, until the line can
be picked up dependably. Using lower
frequencies can overcome bleed-over
problems. Higher frequencies can

18 www.seektech.com Ridge Tool Company Elyria, Ohio U.S.A
SeekTech SR-60
overcome resistance and inject more
current onto the line.
e. Re-locate the ground connection for a
better circuit. Ensure there is enough
contact (ground stake is sufficiently
deep) especially in dryer soils.
f. In extremely dry soil, wetting the area
around the ground stake will improve the
circuit. Be aware the moisture will
dissipate and evaporate, reducing the
quality of the circuit over time.
5. Using the numeric Signal Angle Indicator is
another way to check for distorted signals. Move
the SR-60 perpendicularly to both sides of the
traced line until the numeric Signal Angle
indicator reads 45 degrees. Be sure to keep the
lower Omnidirectional antenna node at the same
height, and the locator mast vertical. If there is
little or no distortion the traced line should be in
the middle and the distance to each 45 degree
point should be approximately the same on either
side. If the signal is undistorted, then the distance
from the line center to the 45°point is
approximately equal to the depth.
Note: Another technique is to move the same
distance to the right and left of the traced line,
say 24 inches (60 cm) and check that the Signal
Strength readings are similar.
6. While tracing, the Proximity Signal and Signal
Strength should maximize, and the Measured
Depth minimize, at the same place where the
guidance arrows center on the display. If this is
not the case, the utility may be changing direction
or other coupled signals may be present.
Ground
45 °0° 45 ° 45 °
45 °
45 °
A
A
A=same distance
A
Energized Pipe
Figure 27: Checking for Distortion
7. Higher frequencies bleed over to adjacent utilities
more readily, but may be needed to overcome
breaks in tracer wires or go over insulating
couplers. If the line is ungrounded at the far end,
higher frequencies may be the only means to
make the line traceable. (See Informational
Locating, on page 39).
8. When using the transmitter inductively, be sure to
begin the locate about 30 feet (10m) away to
avoid “direct coupling” (also know as air
coupling). This occurs when the SR-60 picks up
the signal from the transmitter directly through
the air and not from the line to be traced. An
unrealistic Measured Depth reading when over
the line can also indicate air coupling is
occurring.
9. While tracing, the mapping display operates best
under the following conditions:
a. The line is level
b. The SR-60 Locator is above the target
utility elevation
c. The SR-60 antenna mast is held
approximately vertical
If these conditions are not met, pay close attention to
maximizing Signal Strength.
In general, if the SR-60 is used in a zone over the
target line within a sweep area of about two “depths”
of the line, the map will be useful and accurate. Be
aware of this when using the map if the target or line
is very shallow. The width of the useful search area
for the map can be small if the line is extremely
shallow.
See the section on Suppression on page 32 for
information on noise suppression options.
