RIDGID EB44242 User manual

Your Oscillating Edge Belt/Spindle Sander has been engineered and manufactured to RIDGID’s high standard for dependability,
ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
Thank you for buying a RIDGID product.
OPERATOR’S MANUAL
OSCILLATING EDGE BELT/
SPINDLE SANDER
EB44241/EB44242/EB44243
SAVE THIS MANUAL FOR FUTURE REFERENCE
R
E
M
O
V
E
aaaa
R
E
M
O
V
E
Shown with Spindle
Sander attached.
Shown with Edge Belt
Sander attached.

2
TABLE OF CONTENTS
 Introduction........................................................................................................................................................................2
 General Safety Rules ..................................................................................................................................................... 3-4
 Specific Safety Rules.........................................................................................................................................................4
 Symbols......................................................................................................................................................................... 5-6
 Electrical ............................................................................................................................................................................7
 Glossary of Terms..............................................................................................................................................................8
 Features....................................................................................................................................................................... 9-10
 Tools Needed...................................................................................................................................................................10
 Loose Parts......................................................................................................................................................................11
 Assembly ................................................................................................................................................................... 11-16
 Operation................................................................................................................................................................... 17-19
 Adjustments............................................................................................................................................................... 20-21
 Maintenance ....................................................................................................................................................................22
 Accessories .....................................................................................................................................................................23
 Troubleshooting ...............................................................................................................................................................24
 Warranty ..........................................................................................................................................................................25
 Customer Service Information.........................................................................................................................................26
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have
been given top priority in the design of this product making it easy to maintain and operate.

3
WARNING:
Read and understand all instructions. Failure to
follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
READ ALL INSTRUCTIONS
KNOW YOUR POWER TOOL. Read the operator's
manual carefully. Learn the applications and limitations
as well as specific potential hazards related to this tool.
 GUARD AGAINST ELECTRICAL SHOCK BY
PREVENTING BODY CONTACT WITH GROUNDED
SURFACES. For example: pipes, radiators, ranges, re-
frigerator enclosures.
 KEEP GUARDS IN PLACE and in working order.
 REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see keys and adjusting wrenches are
removed from tool before turning it on.
KEEP THE WORK AREA CLEAN. Cluttered work areas
and work benches invite accidents. DO NOT leave tools
or pieces of wood on the tool while it is in operation.
 DO NOT USE IN DANGEROUS ENVIRONMENTS. Do
not use power tools in damp or wet locations or expose
them to rain. Keep the work area well lit.
 KEEP CHILDREN AND VISITORS AWAY. All visitors
should wear safety glasses and be kept a safe distance
from work area. Do not let visitors contact tool or exten-
sion cord while operating.
 MAKE WORKSHOP CHILDPROOF with padlocks,
master switches, or by removing starter keys.
 DON’T FORCE THE TOOL. It will do the job better and
safer at the rate for which it was designed.
 USE THE RIGHT TOOL. Do not force the tool or attach-
ment to do a job for which it was not designed.
 USE THE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. Use only a cord heavy
enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage result-
ing in loss of power and overheating. A wire gauge size
(A.W.G.) of at least 16 is recommended for an extension
cord 25 feet or less in length. If in doubt, use the next
heavier gauge. The smaller the gauge number, the heavier
the cord.
 DRESS PROPERLY. Do not wear loose clothing, gloves,
neckties, or jewelry. They can get caught and draw you
into moving parts. Also wear protective hair covering to
contain long hair.
 ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-resis-
tant lenses, they are NOT safety glasses.
 SECURE WORK. Use clamps or a vise to hold work when
practical, it is safer than using your hand and frees both
hands to operate the tool.
GENERAL SAFETY RULES
 DO NOT OVERREACH. Keep proper footing and balance
at all times.
 MAINTAIN TOOLS WITH CARE. Keep tools sharp and
clean for best and safest performance. Follow instructions
for lubricating and changing accessories.
 DISCONNECT TOOLS. When not in use, before servic-
ing, or when changing attachments, blades, bits, cutters,
etc., all tools should be disconnected from power source.
 AVOID ACCIDENTAL STARTING. Be sure switch is off
when plugging in any tool.
 USE RECOMMENDED ACCESSORIES. Consult the
operator’s manual for recommended accessories. The
use of improper accessories may result in injury.
 NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped.
CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of
parts, mounting and any other conditions that may affect
its operation. A guard or other part that is damaged must
be properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
 USE THE RIGHT DIRECTION OF FEED. Feed work into
a blade, cutter, or sanding spindle against the direction
or rotation of the blade, cutter, or sanding spindle only.
 NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
THE POWER OFF. Don’t leave tool until it comes to a
complete stop.
 PROTECT YOUR LUNGS. Wear a face or dust mask if
the cutting operation is dusty.
 PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
 DO NOT ABUSE CORD. Never carry tool by the cord or
yank it to disconnect from receptacle. Keep cord from
heat, oil, and sharp edges.
USE OUTDOOR EXTENSION CORDS. When tool
is used outdoors, use only extension cords with
approved ground connection that are intended for use
outdoors and so marked.
 KEEP BLADES CLEAN, SHARP, AND WITH
SUFFICIENT SET. Sharp blades minimize stalling
and kickback.
NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking of the motor could ignite fumes.
INSPECT TOOL CORDS PERIODICALLY. If dam-
aged, have repaired by a qualified service technician at
an authorized service facility. The conductor with insula-
tion having an outer surface that is green with or without
yellow stripes is the equipment-grounding conductor. If
repair or replacement of the electric cord or plug is neces-
sary, do not connect the equipment-grounding conductor
to a live terminal. Repair or replace a damaged or worn
cord immediately. Stay constantly aware of cord location
and keep it well away from the rotating blade.

4
GENERAL SAFETY RULES
FIRMLY CLAMP OR BOLT your tool to a workbench or
table at approximately hip height.
 NEVER stand or have any part of your body in line with
the path of the workpiece.
 PLAN YOUR WORK TO REDUCE THE RISK OF
THROWBACKS (when the workpiece catches the sand-
ing drum and is torn from your hands).
 MAKE SURE THERE’S NO DEBRIS between the
workpiece and its supports.
 WHEN SANDING IRREGULARLY SHAPED WORK-
PIECES, plan your work support so it will not slip and be
pulled from your hands.
 USE EXTRA CAUTION WITH LARGE, very small or
awkward workpieces.
 NEVER USE THIS TOOL to finish pieces too small to
hold by hand.
 USE EXTRA SUPPORTS (TABLES, SAW HORSES,
BLOCKS, ETC.) for any workpieces large enough to tip
when not secured to the work surface.
 NEVER sand more than one piece at a time. DO NOT
STACK more than one workpiece on the sander table at
a time.
 ALWAYS FEED WORKPIECE FROM LEFT TO RIGHT
against the direction the drum sleeve is rotating.
SPECIFIC SAFETY RULES
 DO NOT USE DRUMS, sanding sleeves or belts which
show visual signs of wear such as grooves, tears or rips.
ALWAYS STAY ALERT! Do not allow familiarity (gained
from frequent use of your sander) to cause a careless
mistake. ALWAYS REMEMBER that a careless fraction
of a second is sufficient to inflict severe injury.
MAKE SURE THE WORK AREA HAS AMPLE LIGHTING
to see the work and that no obstructions will interfere with
safe operation BEFORE performing any work using your
tool.
ALWAYS TURN OFF THE SANDER before disconnect-
ing it to avoid accidental starting when reconnecting to
power supply. NEVER leave the tool unattended while
connected to a power source.
 SUPPORT WORKPIECE with miter gauge, work rest, or
worktable.
 MAINTAIN 1/16 IN. clearance between worktable and
sanding belt or disc.
 AVOID KICKBACK by sanding in accordance with di-
rectional arrows.
 SAVE THESE INSTRUCTIONS. Refer to them frequently
and use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also.
INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
KEEP TOOL DRY, CLEAN, AND FREE FROM OIL AND
GREASE. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum-based products, or
any solvents to clean tool.
STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate
tool when you are tired. Do not rush.
DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorized service center.
INSPECT FOR AND REMOVE ALL NAILS FROM LUM-
BER BEFORE USING THIS TOOL. Following this rule
will reduce the risk of serious personal injury.
 NEVER START A TOOL WHEN ANY ROTATING COM-
PONENT IS IN CONTACT WITH THE WORKPIECE.
DO NOT OPERATE A TOOL WHILE UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
WHEN SERVICING use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
USE ONLY RECOMMENDED ACCESSORIES listed
in this manual or addendums. Use of accessories that
are not listed may cause the risk of personal injury.
Instructions for safe use of accessories are included
with the accessory.
DOUBLE CHECK ALL SETUPS. Make sure the spindle
or sanding belt assembly is tight and not making con-
tact with sander or workpiece before connecting to
power supply.

5
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta-
tion of these symbols will allow you to operate the tool better and safer.
Read The Operator’s Manual
Safety Alert
No Hands Symbol
No Hands Symbol
No Hands Symbol
No Hands Symbol
SYMBOL NAME DESIGNATION/EXPLANATION
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed, orbits etc., per minute
Do not expose to rain or use in damp locations.
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear safety goggles or safety glasses with side shields
and a full face shield when operating this product.
Precautions that involve your safety.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Wet Conditions Alert
.../min Per Minute
Class II Construction
n
o
No Load Speed
Direct Current
Alternating Current
min Minutes
W Watt
Hz Hertz
A Amperes
V Volts
Hot Surface To reduce the risk of injury or damage, avoid contact with
any hot surface.
SYMBOLS

6
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to your nearest
AUTHORIZED SERVICE CENTER for repair. When servic-
ing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt
to use this product until you read thoroughly and
understand completely the operator’s manual. Save
this operator’s manual and review frequently for
continuing safe operation and instructing others
who may use this product.
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety
Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection
which is marked to comply with ANSI Z87.1.
WARNING:
SAVE THESE INSTRUCTIONS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SYMBOLS

7
Fig. 1
GROUNDING
PIN COVER OF GROUNDED
OUTLET BOX
ELECTRICAL
SPEED AND WIRING
The no-load speed of this tool is approximately 1,725
rpm. This speed is not constant and decreases under a
load or with lower voltage. For voltage, the wiring in a
shop is as important as the motor’s horsepower rating. A
line intended only for lights cannot properly carry a power
tool motor. Wire that is heavy enough for a short distance
will be too light for a greater distance. A line that can
support one power tool may not be able to support two
or three tools.
GROUNDING INSTRUCTIONS
In the event of a malfunc tion or breakdown, grou nding provides
a path of least resistance for electric current to reduce the risk
of electric shock. This tool is equipped with an electric cord
having an equipment-groundIng conductor and a grounding
plug. The plug must be plugged into a matching outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided. If it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding con-
ductor can result in a risk of electric shock. The conduc-
tor with insulation having an outer surface that is green
with or without yellow stripes is the equipment-grounding
conductor. If repair or replacement of the electric cord
or plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.
This tool is intended for use on a circuit that has an outlet
like the one shown in figure 1. It also has a grounding pin
like the one shown.
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong ground-
ing plugs and 3-pole receptacles that accept the tool's plug.
When using a power tool at a considerable distance from
the power source, use an extension cord heavy enough
to carry the current that the tool will draw. An undersized
extension cord will cause a drop in line voltage, resulting in
a loss of power and causing the motor to overheat. Use the
chart provided below to determine the minimum wire size
required in an extension cord. Only round jacketed cords
listed by Underwriter's Laboratories (UL) should be used.
**Ampere rating (on tool faceplate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
When working with the tool outdoors, use an extension cord
that is designed for outside use. This is indicated by the
letters “WA” on the cord's jacket.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on
lumber, tools or other obstructions while you are
working with a power tool. Failure to do so can
result in serious personal injury.
WARNING:
Check extension cords before each use. If dam-
aged replace immediately. Never use tool with a
damaged cord since touching the damaged area
could cause electrical shock resulting in serious
injury.
ELECTRICAL CONNECTION
This tool is powered by a precision built electric motor. It
should be connected to a power supply that is 120 volts,
60 Hz, AC only (normal household current). Do not operate
this tool on direct current (DC). A substantial voltage drop
will cause a loss of power and the motor will overheat. If the
saw does not operate when plugged into an outlet, double
check the power supply.

8
Non-Through Cuts
Any cutting operation where the blade does not extend
completely through the thickness of the workpiece.
Push Blocks and Push Sticks
Devices used to feed the workpiece through the saw
blade during cutting operations. A push stick (not a push
block) should be used for narrow ripping operations.
These aids help keep the operator's hands well away from
the blade.
Pilot Hole (drill presses)
A small hole drilled in a workpiece that serves as a guide
for drilling large holes accurately.
Resaw
A cutting operation to reduce the thickness of the work-
piece to make thinner pieces.
Resin
A sticky, sap-based substance that has hardened.
Revolutions Per Minute (RPM)
The number of turns completed by a spinning object in
one minute.
Ripping or Rip Cut
A cutting operation along the length of the workpiece.
Riving Knife/Spreader/Splitter (table saws)
A metal piece, slightly thinner than the blade, which helps
keep the kerf open and also helps to prevent kickback.
Saw Blade Path
The area over, under, behind, or in front of the blade. As
it applies to the workpiece, that area which will be or has
been cut by the blade.
Set
The distance that the tip of the saw blade tooth is bent (or
set) outward from the face of the blade.
Snipe (planers)
Depression made at either end of a workpiece by cutter
blades when the workpiece is not properly supported.
Throw-Back
The throwing back of a workpiece usually caused by the
workpiece being dropped into the blade or being placed
inadvertently in contact with the blade.
Through Sawing
Any cutting operation where the blade extends completely
through the thickness of the workpiece.
Workpiece or Material
The item on which the operation is being done.
Worktable
Surface where the workpiece rests while performing a
cutting, drilling, planing, or sanding operation.
Anti-Kickback Pawls (radial arm and table saws)
A devise which, when properly installed and maintained,
is designed to stop the workpiece from being kicked back
toward the front of the saw during a ripping operation.
Arbor
The shaft on which a blade or cutting tool is mounted.
Bevel Cut
A cutting operation made with the blade at any angle
other than 90° to the table surface.
Chamfer
A cut removing a wedge from a block so the end (or part
of the end) is angled rather than at 90°.
Compound Cut
A cross cut made with both a miter and a bevel angle.
Crosscut
A cutting or shaping operation made across the grain or
the width of the workpiece.
Cutter Head (planers and jointers)
A rotating piece of adjustable blades. The cutter head
removes material from the workpiece.
Dado Cut
A non-through cut which produces a square-sided notch
or trough in the workpiece (requires a special blade).
Featherboard
A device used to help control the workpiece by guiding it
securely against the table or fence during any ripping
operation.
FPM or SPM
Feet per minute (or strokes per minute), used in reference
to blade movement.
Freehand
Performing a cut without the workpiece being guided by a
fence, miter gauge, or other aids.
Gum
A sticky, sap-based residue from wood products.
Heel
Alignment of the blade to the fence.
Kerf
The material removed by the blade in a through cut or the
slot produced by the blade in a non-through or partial cut.
Kickback
A hazard that can occur when the blade binds or stalls,
throwing the workpiece back toward operator.
Leading End
The end of the workpiece pushed into the tool first.
Miter Cut
A cutting operation made with the workpiece at any angle
to the blade other than 90°.
GLOSSARY OF TERMS

9
HEX KEY
STORAGE
AREA
SANDING BELT
ASSEMBLY
DUST
EXHAUST
PORT
PRODUCT SPECIFICATIONS
Motor ...................................................... 3/8 HP Induction
Phase ....................................................................... Single
Rotation of Shaft ...............................................Clockwise
No Load Speed ................................. 0-1725/rpm/spindle
No Load Speed .......................................0-1350/rpm/belt
Oscillation ..............................................................60/min.
FEATURES
Stroke ...................................................................... 3/4 in.
Sanding Sleeves ......... 1/2 in., 3/4 in., 1 in., 1-1/2 in., 2 in.
Sanding Drums ....................... 3/4 in., 1 in., 1-1/2 in., 2 in.
Sanding Belt ...................................................4 in. x 24 in.
Input .............................. 120 V, 60 Hz, AC only, 5.0 Amps
Net Weight .............................................................. 40 lbs.
R
E
M
O
V
E
aaaa
SWITCH
SPINDLE KNOB
SANDING
SLEEVE
SANDING SLEEVES /
THROAT PLATES /
WASHER STORAGE AREA
UPPER SPINDLE
WASHER
THROAT PLATE TABLE
INSERT
TABLE
LOCK
KNOB
SLOTS FOR
SAW HORSE
MOUNTING
R
E
M
O
V
E
SANDING BELT
WORK REST
BELT
TENSION
LEVER
TABLE INSERT / SANDING
BELT STORAGE
WORKTABLE
TRACKING KNOB
Fig. 2

10
KNOW YOUR OSCILLATING EDGE BELT/
SPINDLE SANDER
See Figure 2.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
SANDING BELT
Removes material from wood. Oscillates (3/4 in.) up and
down to sand faster and prevents burning of the workpiece.
BELT TENSION LEVER
Slide lever left to release the sanding belt tension; slide right
to apply belt tension.
TRACKING KNOB
Turning knob counterclockwise causes sanding belt to move
towards the table; turning knob clockwise causes sanding
belt to move away from the table.
SPINDLE KNOB
Loosen knob to remove sanding belt assembly (or sanding
drum) and change to spindle sanding (or belt sanding).
NOTE: Knob has left hand threads. Turn knob clockwise to
loosen and counterclockwise to tighten.
FEATURES
WORK REST
Supports the workpiece on the sanding belt.
THROAT PLATE
Fits around drum to help support workpiece.
SANDING SLEEVE/DRUM
Removes material from wood. Oscillates up and down to
sand faster and prevents burning the workpiece.
TABLE LOCK KNOB
Loosening knob allows the front table to be tilted for bevel
sanding.
DUST EXHAUST PORT
2-1/2 in. opening for wet/dry vac hook-up.
TABLE INSERT/SANDING BELT STORAGE
Holds table insert or sanding belt when not being used.
TABLE INSERT
Helps to support workpiece when drum sanding.
WORKTABLE
Equipped with a sturdy, worktable that provides a stable surface
when using either the disc sanding or the belt sanding feature.
TOOLS NEEDED
COMBINATION
SQUARE
STRAIGHT EDGE
The following tools (not included) are needed for making adjustments to your tool:
Fig. 3

11
LOOSE PARTS
UNPACKING
This product requires assembly.
Carefully lift sander from the carton by the base, and
place it on a level work surface.
NOTE: This tool is heavy. To avoid back injury, lift with
your legs, not your back, and get help when needed.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-866-539-1710 for assistance.
ASSEMBLY
WARNING:
If any parts are missing, do not operate this tool
until the missing parts are replaced. Failure to do
so could result in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create acces-
sories not recommended for use with this tool. Any
such alteration or modification is misuse and could
result in a hazardous condition leading to possible
serious personal injury.
THROAT PLATES
RUBBER FEET
KNOB
HEX KEYS
TABLE INSERT
SANDING BELT
ASSEMBLY
1-3/4 in. O.D.
WASHER
SWITCH KEY
SANDING SLEEVES SANDING DRUMS
7/8 in. O.D.
WASHER 5/8 in. O.D.
WASHER
2 in.
1-1/2 in.
1 in.3/4 in.1/2 in.
Fig. 4
The following items are included with your tool:
Oscillating Edge Belt/Spindle Sander (1)
Throat Plates (4)
Switch Key
Hex Keys (2)
Knob
Rubber Feet (4)
Flat Washers (4),1-3/4 in. O.D., 7/8 in. O.D.,
5/8 in. O.D., 1/2 in. I.D.
Sanding Sleeves (5)
Sanding Drums (4)
Sanding Belt Assembly
Table Insert
Operator's Manual
WARNING:
The use of attachments or accessories not listed might be hazardous and could cause serious
personal injury.
1/2 in. I.D.
WASHER

12
R
E
M
O
V
E
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in acci-
dental starting and possible serious personal injury.

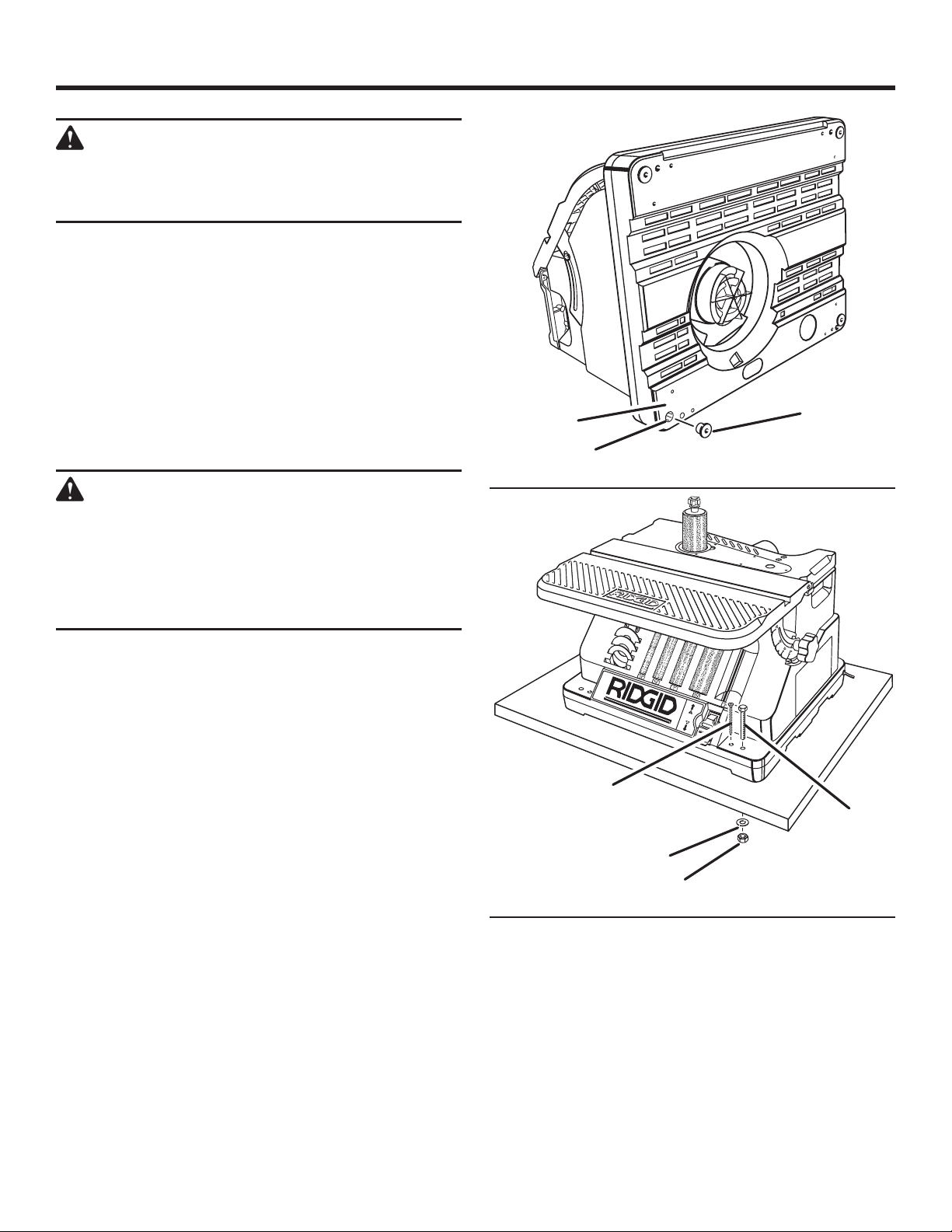

MOUNTING RUBBER FEET TO BASE
See Figure 5.
Place the sander directly on the table surface.
From the parts bag locate the four rubber feet.
Place the sander on its side so the bottom of the base is
facing toward the front.
Locate the four holes in each corner of the base and place
one of the rubber feet in each of these holes.
Position sander in the upright position and apply pressure
in the downward position to ensure the feet are inserted
securely.
CAUTION:
To reduce the risk of injury from tool movement,
the supporting surface where sander is mounted
should be examined carefully after mounting to
insure no movement during use can result. If any
tipping or walking is noticed, secure to workbench
or supporting surface before operating sander.
MOUNTING SANDER TO WORKBENCH
See Figure 6.
If sander is to be used in a permanent location, it should be
fastened securely to a firm supporting surface, such as a
workbench, with either bolts or drywall screws.
Fastening with bolts
Use 1/4 in. bolts, washers, and nuts (not included). The
bolt length should be 1-1/2 in. plus the thickness of the
workbench.
Locate and mark the holes where the sander is to be
mounted.
Drill four 3/8 in. diameter holes through workbench.
Place sander on workbench, aligning holes in base with
holes drilled in workbench.
Insert four 1/4 in. diameter bolts and washers and attach
nuts securely.
Fastening with screws
Drive four 2-1/2 in. long screws through the holes in the
base and through the workbench. Do not overtighten the
screws.
ASSEMBLY
1/4 in. BOLT
2-1/2 in.
DRYWALL SCREW
WASHER
NUT
BASE
RUBBER
FEET
HOLE
Fig. 5
Fig. 6

13
R
E
M
O
V
E
ASSEMBLY
CLAMPING SANDER TO WORKBENCH
See Figure 7.
An alternative method of mounting is to fasten the sander
to a mounting board. The board should be sufficient size to
avoid tipping while in use. Any good grade of plywood or
chipboard with a 3/4 in. thickness is recommended. (Thinner
chipboard can break.)
Once sander is mounted to board, clamp to workbench.
NOTE: For proper stability, holes must be countersunk so
screw heads are flush with the surface of supporting board.
SUPPORTING OSCILLATING EDGE BELT/
SPINDLE SANDER TO SAWHORSES
See Figure 8.
The sander has provisions for being supported by saw-
horses. The sawhorse can be built with the crosspiece either
vertical or horizontal. Make sure the sawhorses are secure.
PARTS STORAGE
See Figures 9 - 10.
On board storage has been provided for all washers, spac-
ers, drums, sleeves and hex keys. All front loaded parts
can be protected from incidental dislodging by lowering
the table all the way down until it rests against the base and
tightening the knob.
Storage for the sanding belt assembly is provided in the
pocket on the rear of the base.
R
E
M
O
V
E
HEX KEY
STORAGE
AREA
SANDING SLEEVES /
THROAT PLATES / WASH-
ERS STORAGE AREA
R
E
M
O
V
E
aaaa
TABLE INSERT / SANDING
BELT STORAGE
TABLE LOCK
KNOB
SLOTS FOR
SAW HORSE
MOUNTING
Fig. 7
Fig. 9
Fig. 10
MOUNTING
BOARD
C-CLAMP
WORKBENCH
Fig. 8

14
ASSEMBLY

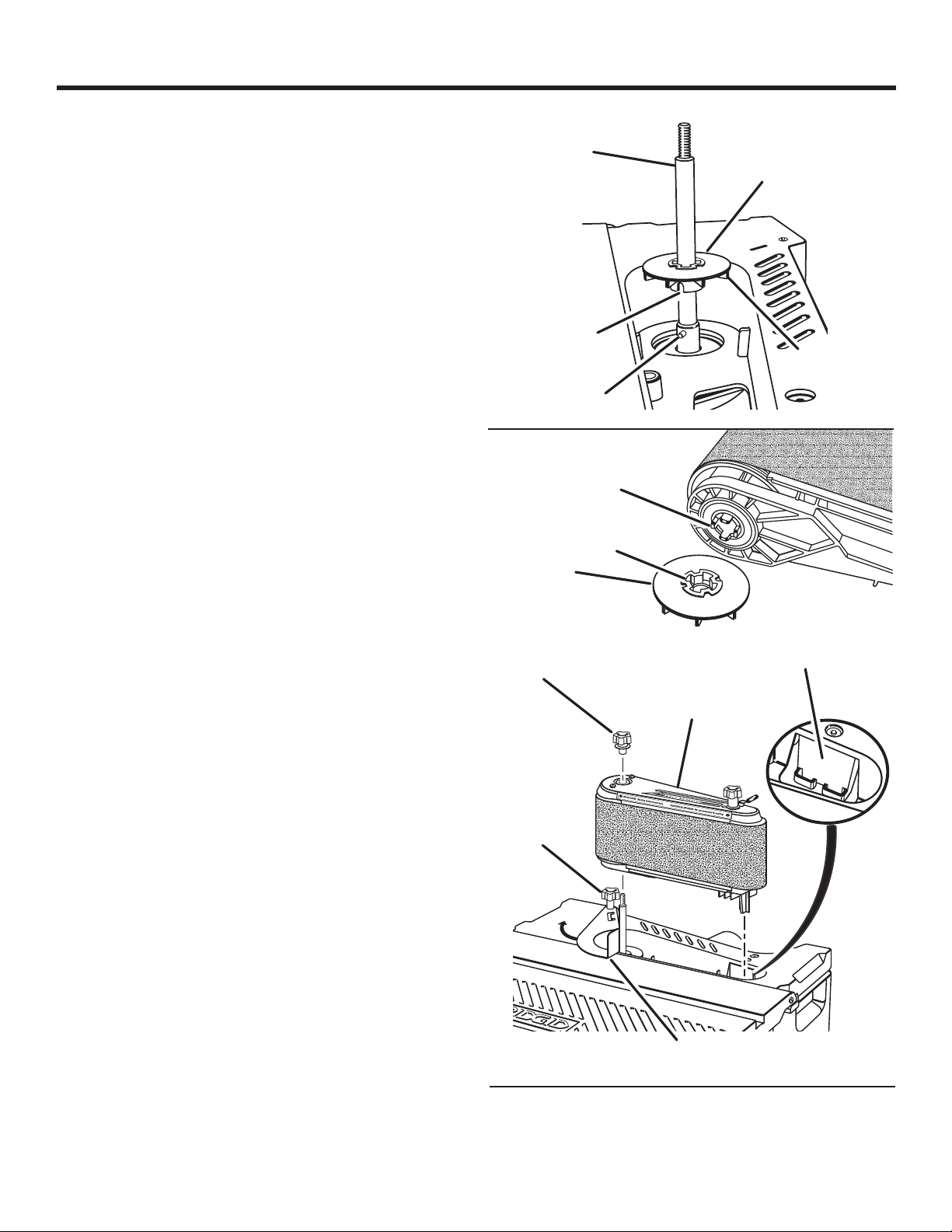

INSTALLING THE SANDING BELT ASSEMBLY
See Figure 11.
Remove the fan and clean sawdust from inside table
recess.
Slide the fan onto the motor shaft (vanes face down)
aligning slot with roll pin as shown. The fan is used in
all sanding operations.
Slide belt assembly down motor shaft. Align drive drum
splines with the slots in the fan. Place belt assembly into
the wear plate opening as shown.
Tighten spindle knob. Do not overtighten.
NOTE: Knob turns counterclockwise to tighten.
Install sanding belt (see “Removing/Installing the Sanding
Belt”, page 21).
Plug the power cord into the power source and install the
key.
REMOVING THE SANDING BELT ASSEMBLY
See Figure 12.
Loosen the work rest knob and pivot the work rest out of
the way. Tighten the work rest knob.
Remove the spindle knob and lift off the sanding belt
assembly.
NOTE: Knob turns clockwise to loosen.
Store assembly in pocket in rear of base.
R
E
M
O
V
E
R
E
M
O
V
E
MOTOR
SHAFT FAN
VANES
SLOT
ROLL PIN
SPLINES
SLOTS
FAN
SANDING BELT
ASSEMBLY
SPINDLE
KNOB
WORK REST
KNOB
WEAR PLATE
WORK REST
Fig. 11
Fig. 12

15
1
12
/
1
34
/
12
/
45
30
15
0
2
P
U
L
L
ON
I
P
U
S
H
OFF
O
R
E
M
O
V
E
ASSEMBLY
INSTALLING SANDING SLEEVES LARGER
THAN 1/2 IN. DIAMETER
See Figures 13 - 14.
Remove the fan and clean sawdust from inside table
recess.
Slide the fan onto the motor shaft (vanes face down)
aligning slot with roll pin. The fan is used with all drums
and sleeves.
Install the table insert by sliding it over the fan.
Use a straight edge as shown to make sure the table
insert is flush with the table.
If necessary, adjust the set screws in the table insert with
the 3/32 in. hex key provided.
Slide the sanding sleeve-rubber drum onto the spindle.
NOTE: If the drum is difficult to slide over the spindle,
apply talcum powder to the spindle.
Position throat plate insert in the table recess. (See rec-
ommended throat plate insert selection area from table
on page 16). Use the smallest throat plate insert that will
fit over the drum.
Place desired sanding sleeve on correct drum.
NOTE: If the sanding sleeve is difficult to slide over the
drum, apply talcum powder to the outside surface of the
rubber drum.
Install the correct upper spindle washer and tighten the
knob. Do not overtighten.
NOTE: Knob turns counterclockwise to tighten.
Plug power cord in the power source and install the
switch key.
SANDING
SLEEVE
KNOB
WASHER
SANDING
DRUM
THROAT PLATE
STRAIGHT EDGE
TABLE INSERT
3/32 in. HEX KEY
SET SCREWS
Fig. 13
Fig. 14

16
7/8 in. O.D.
WASHER
INSTALLING SANDING SLEEVES FOR THE
1/2 IN. DIAMETER SANDING DRUM
See Figure 15.
Remove the fan and clean sawdust from inside table
recess.
Slide the fan onto the motor shaft (vanes face down) align-
ing slot with roll pin. The fan is used with all sanding
operations.
Install 1/2 in. I.D. washer over motor shaft.
Install the throat plate.
Use a straight edge as shown to make sure the table
insert is flush with the table. If necessary, adjust the set
screws in the table insert with the 3/32 in. hex “L” wrench
provided.
ASSEMBLY
Position 15/16 in. I.D. throat plate into the table recess.
Locate 1/2 in. sanding sleeve and slide it on the spindle.
(Rubber drum is not used.)
Install the upper spindle washer and tighten the knob.
Do not overtighten.
NOTE: Knob turns counterclockwise to tighten.
Plug power cord into the power source and install the
yellow switch key.
SELECTION OF THROAT PLATE INSERTS AND
UPPER SPINDLE WASHERS
See Figure 16.
WARNING:
Using the wrong throat plate throat plate may per-
mit small pieces of wood or finger tips to become
wedged between the abrasive surface and the
insert.
NOTE: Use the smallest throat plate that will fit over the
drum.
NOTE: Use the largest upper spindle washer that will not
protrude past sanding sleeve.
1/2 in.
SANDING
SLEEVE
KNOB 5/8 in. O.D.
WASHER
15/16 in. I.D.
THROAT PLATE
5/8 in. O.D.
WASHER
1-3/4 in. O.D.
WASHER
15/16 in. I.D.
THROAT PLATE
1-3/16 in. I.D.
THROAT PLATE
1-11/16 in. I.D.
THROAT PLATE
2-3/16 in. I.D.
THROAT PLATE
Fig. 15
Fig. 16
1/2 in. I.D.
WASHER
1/2 in. I.D.
WASHER
Sanding
Sleeve
Diameter
Throat plate Insert
Opening Inside
Diameter (I.D.)
Upper Spindle
Washer Outside
Diameter (O.D.)
1/2 in. 15/16 in. 5/8 in.
3/4 in.
1 in. 1-3/16 in. 7/8 in.
1-1/2 in. 1-11/16 in.
2 in. 2-3/16 in. 1-3/4 in.

17
HOLD SWITCH IN
WARNING:
Do not allow familiarity with your tool to make you
careless. Remember that a careless fraction of a
second is sufficient to inflict severe injury.
WARNING:
Always wear safety goggles or safety glasses with
side shields when operating tools. Failure to do so
could result in objects being thrown into your eyes,
resulting in possible serious injury.
APPLICATIONS
This product has been designed only for the purposes listed
below:
 Oscillating and Rotary Motion – for fast, burn free finishes
on edges, faces, contours, inside and outside curves.
ON-OFF SWITCH
See Figure 17.
WARNING:
Always remove the switch key when the tool is not
in use and keep it in a safe place. In the event of a
power failure, turn the switch OFF ( O ) and remove
the key. This action will prevent the tool from ac-
cidentally starting when power returns.
The ON-OFF switch has a locking feature. This feature is
intended to help prevent unauthorized and possible hazard-
ous use by children and others.
To turn sander ON ( I ) insert key into switch.
Lift the switch button to turn on.
To turn sander OFF ( O ). Push lever in.
To lock switch in OFF ( O ) position, hold switch in with
one hand. Remove key with other hand.
CAUTION:
Before turning switch on, make sure the belt or
drum and sleeve are properly installed.
OPERATION
WHEN SANDER IS RUNNING
Before starting your work, watch the sander while it runs.
If it makes an unfamiliar noise or vibrates excessively, stop
immediately. Turn the sander off. Unplug the sander. Do not
restart until identifying and correcting the problem.
Before using the sander, make sure the sanding belt turns
clockwise, when viewed from above.
Don’t force tool. It will perform better and safer at its de-
signed rate. Press workpiece against the sanding sleeve or
belt hard enough to begin sanding without bogging down
or binding spindle.
BEFORE FREEING ANY JAMMED MATERIAL:
Turn switch OFF ( O ).
Unplug the sander.
Wait for all moving parts to stop.
BEFORE LEAVING THE SANDER
Turn switch off. Don’t leave tool until the unit comes to a
complete stop.
Make workshop childproof. Remove the switch key. Store it
away from children and others not qualified to use the tool.
Disconnect master switches. Lock the shop.
SWITCH
SWITCH
KEY
LIFT SWITCH
PUSH SWITCH DOWN
REMOVE SWITCH KEY
TO TURN ON
TO TURN OFF
Fig. 17

18
OPERATION
PRECAUTIONS TO TAKE WHEN SANDING
METALS
When sanding metals, sparks or hot fragments could cause
a fire. To reduce the risk of this:
Disconnect any dust collecting hose from the sander.
Remove all traces of wood dust from inside the unit before
sanding metals.
Remove all traces of metal dust from inside the unit before
sanding wood again.
PRECAUTIONS TO TAKE WHEN SANDING
PAINT
Sanding of lead-based paint is not recommended. It is
difficult to control the contaminated dust that could cause
lead poisoning.
It is also difficult to identify whether or not a paint contains
lead. Therefore, we recommend the following precautions
when sanding all paints:
Protect your lungs. Wear a dust mask or respirator at all
times. Wear only dust masks that are suitable for work-
ing in lead paint sanding environments. Ordinary painting
masks do not offer this protection.
 Do not allow children or pregnant women to enter the work
area until paint sanding job is complete and work area is
clean.
To prevent ingesting contaminated paint particles: Do not
eat, drink, or smoke in a work area where paint is being
sanded. After sanding paint, wash and clean up before
eating, drinking or smoking. Do not leave food, drinks, or
tobacco products in the work area where dust can settle
on them.
BASIC SANDING OPERATION
Sandpaper selection
Selecting the correct size diameter, correct size grit, and
correct type sandpaper is an extremely important step in
achieving a high quality sanded finish. Aluminum oxide,
silicon carbide, and other synthetic abrasives are best for
power sanding. Natural abrasives, such as flint and garnet,
are too soft for economical use in power sanding.
In general, coarse grit will remove the most material and finer
grit will produce the best finish in all sanding operations. The
condition of the surface to be sanded will determine which
grit will do the job. If the surface is rough, start with a coarse
grit and sand until the surface is uniform. Medium grit may
then be used to remove scratches left by the coarser grit and
finer grit used for finishing of the surface. Always continue
sanding with each grit until surface is uniform.
NOTE: Do not use sander without sandpaper. Doing so will
damage the rubber drum.
Select and install the desired sanding sleeve for the particu-
lar application. Sanding sleeves from 1/2 in. to 2 in. can be
used with this sander. Choose one that is close in size to
the workpiece you are sanding. Also install the appropriate
throat plate insert (page 16).
WARNING:
Failure to use the correct size throat plate insert
with its matching sanding sleeve could result in
fingers being pinched or the workpiece being
pulled down between the throat plate insert and
sanding sleeve.
NOTE: The correct size sanding belt is 4 in. x 24 in. These
belts are available in coarse, medium and fine grits.
SURFACE SANDING ON THE SANDING BELT
See Figure 18.
WARNING:
To reduce the risk of injury from slips, jams or
thrown pieces, adjust the work rest to clear the
sanding surface by no more than 1/16 of an inch.
When checking clearance between the sanding belt
and work rest, press the sanding belt flat against
the metal worktable beneath it.
Hold the workpiece firmly with both hands, keeping fin-
gers away from the sanding belt.
Keep the end butted against the work rest and move the
work evenly across the sanding belt. Use caution when
sanding very thin pieces.
For sanding long pieces the work rest can be rotated out
of the way.
Apply only enough pressure to allow the sanding belt to
remove material.
Do not sand thin pieces that may become trapped be-
tween the belt and work rest.
R
E
M
O
V
E
SURFACE SANDING
Fig. 18

19
R
E
M
O
V
E
R
E
M
O
V
E
OPERATION
END SANDING ON THE SANDING BELT
See Figure 19.
Move the work evenly across the sanding belt. For
accuracy, use a miter gauge accessory (not included).
SANDING CURVED EDGES
See Figure 20.
Inside curves are best sanded with the sander assembled
in the spindle mode. However, inside curves larger than
1-1/2 in. may be sanded on the drive drum when in the belt
sander mode.
Although it is possible to lightly sand on the idler drum end of
the belt sanding assembly, it is not recommended. The idler
drum is an integral part of the belt tracking mechanism. It
is spring loaded to maintain proper tension. Use of the idler
drum to sand curves may cause belt to track improperly.
FEED DIRECTION
See Figure 21.
WARNING:
To prevent thrown workpiece, feed workpiece
against sanding sleeve from left to right as shown.
The sanding sleeve rotates clockwise. Feed the workpiece
against the sanding sleeve from left to right as shown. When
fed from left to right, the rotation of the sanding sleeve sands
against the workpiece. If fed in the opposite direction, the ro-
tation forces of the spinning sanding sleeve will tend to throw
or bounce the workpiece away from the sanding sleeve. This
could cause loss of control of workpiece or possible injury.
Fig. 19
Fig. 21
Fig. 20
R
E
M
O
V
E
END SANDING
CURVED EDGE SANDING
FEED DIRECTION

20
R
E
M
O
V
E
DRIVE DRUM - Sanding drums mount here.
TRACKING/IDLERDRUM- Not recommended forsanding.
B E L T ROTATION
WARNING:
Before performing any adjustment, make sure the
tool is unplugged from the power supply and the
switch is in the OFF ( O ) position. Failure to heed
this warning could result in serious personal injury.
SQUARING FRONT TABLE
See Figure 22.
NOTE: Use a combination square to check the angle of the
front table with the sanding belt.
If the front table is not 90° to the sanding belt:
Use the hex key provided and “back out” both set screws
located on each side of the table.
Loosen the front table lock knob and adjust the front table
90° to the sanding belt.
Tighten the front table lock knob.
Adjust both set screws to contact the front table.
Adjust detent if necessary
Loosen the two pan head screws that secure the detent.
Adjust detent so that it engages the notches in the bracket
table lock.
Tighten the two pan head screws.
ALIGNING BELT TO MITER GAUGE SLOT
See Figure 23.
The sanding belt is installed at the factory; however, check
and make sure the belt is parallel to the miter gauge groove:
Use a combination square to check the distance from the
miter gauge groove to the belt assembly as shown.
If adjustment is required, use a 5/32 in. hex key provided
with unit to loosen the two flat head socket recess screws
on the table.
Adjust the worktable as needed to make it parallel or
same distance to the miter gauge slot.
Tighten two screws.
ADJUSTMENTS
HEX KEY
SET SCREW
TABLE
LOCK
KNOB
R
E
M
O
V
E
COMBINATION
SQUARE
SANDING
BELT
MITER GAUGE
GROOVE
HEX KEY
ADJUST WORKTABLE
PARALLEL MITER
GAUGE SLOT
SOCKET RECESS
SCREWS
FRONT TABLE
DETENT
NOTCHES IN
BRACKET TABLE
LOCK
PAN HEAD
SCREWS Fig. 22
Fig. 23
