RIDGID WD620/WD935 User manual

Ridge Tool Company/Elyria, Ohio, U.S.A.
3/06
999-998-151.10
Printed in U.S.A.
9 Gallon Only
WD935 Only
1
14
6
5
4
3
2
7
8
9
10
11
12
13
20
21
22
23
15
16
17
17
18
24

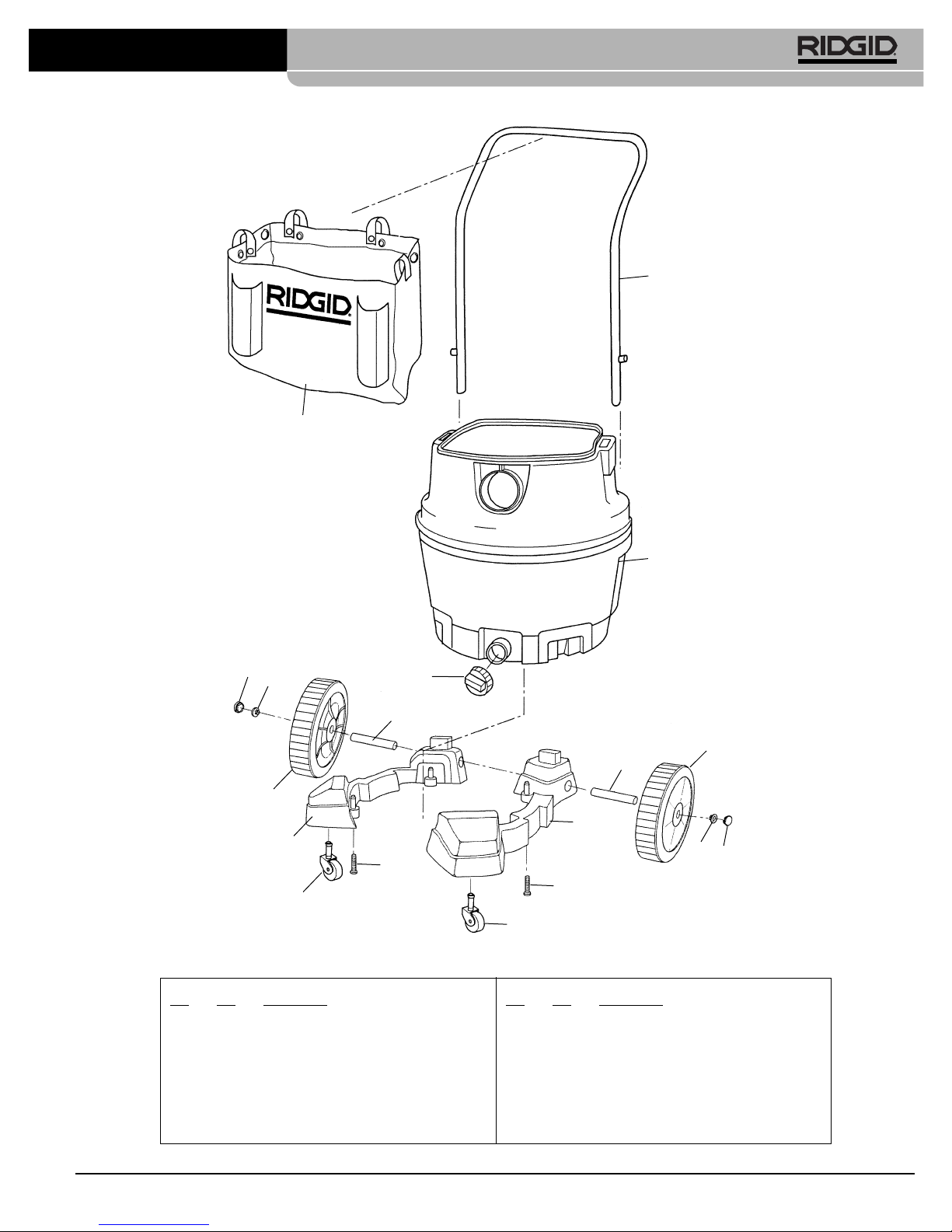

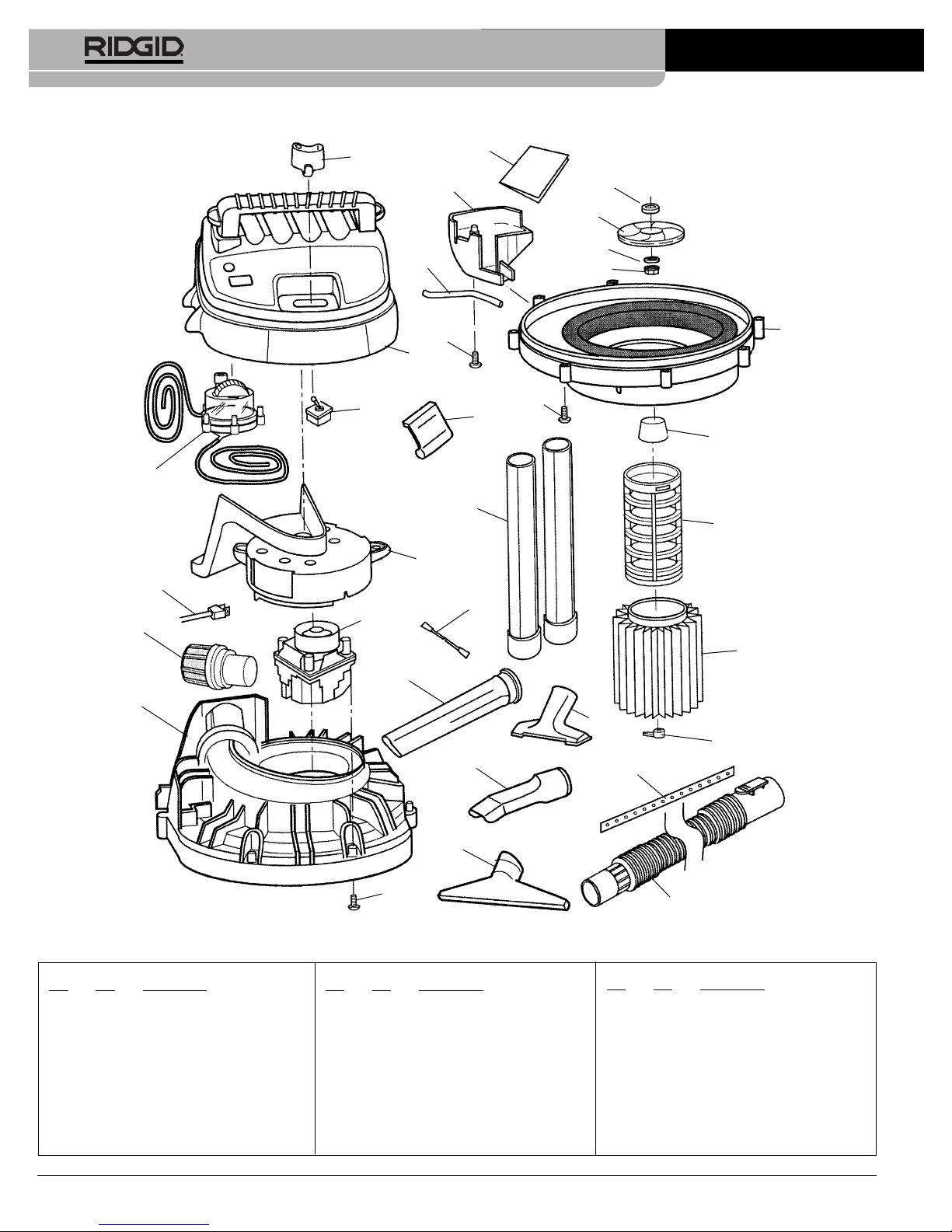

Ref. Catalog
No. No. Description
1 12313 Toggle Switch
2 12398 Cover Motor
3 12283 Motor Assembly (WD620)
12288 Motor Assembly (WD935)
4 12483 Cord Assembly
5 12403 Lid (WD620)
12413 Lid (WD935)
6 73482 Screw Pan Head #10 x 3/4″
7 47862 Spacer
8 12278 Blower Wheel (WD620)
12273 Blower Wheel (WD935)
Ref. Catalog
No. No. Description
9 47872 Washer
10 12353 Nut Hex Flange 5/16″- 18
11 12408 Plate Collector
12 73472 Float
13 73637 Filter Cage
14 72947 Pleated Paper Filter
15 47907 Filter Nut
16 12448 Drum Assembly (WD620)
12453 Drum Assembly (WD935)
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
17 12388 Foot Caster
18 12298 Caster
19 72907 Utility Nozzle
20 72937 Car Nozzle (WD935)
21 72912 Wet/Squeegee Nozzle (WD935)
22 73562 Squeegee (WD935)
23 72902 Extension Wand
24 72897 7 Foot Hose
Wet/Dry Vacuums — WD620/935

Ridge Tool Company/Elyria, Ohio, U.S.A.
2
Ref. Catalog
No. No. Description
1 47832 Toggle Switch
2 73652 Motor Cover
3 73687 Motor
4 73592 Cord with Plug
5 73482 Screw 10 x 3/4″
6 73667 Collector
7 47857 Lid Gasket
8 47862 Spacer
9 73507 Blower Wheel
10 47872 Washer
11 47297 Hex Nut 1/4″- 20
12 73672 Lid
Ref. Catalog
No. No. Description
13 73472 Float
14 73637 Filter Cage
15 83732 Adapter Hose Lock
16 83737 O-Ring
17 72947 VT 4000 Filter
18 47907 Filter Nut
19 73742 Dust Drum (WD1200)
73747 Dust Drum
20 73737 Drain Cap
21 83742 Caster with Storage
22 73627 Twin Wheel Caster
1
3
4
5
6
7
8
9
10
11
17
12
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
14
Ref. Catalog
No. No. Description
23 72907 VT 2509 Utility Nozzle
24 72937 VT 2503 Car Nozzle
25 72912 VT 2510 Wet Nozzle
26 73562 Squeegee
27 72902 VT 2508 Ext. Wand
28 73502 Hose Lock
29 83707 Male-Male Adapter
30 83712 Adapter Hose
31 83727 Locking Hose
32 83717 Spring Tab
33 83722 End Hose Int. Lock
2
5
5
18
13
15
16
5
19
20
23
24
25
26
21
22
27
28
29
33
32
30 31
Wet/Dry Vacuums — WD1200/1625/1630

Ridge Tool Company/Elyria, Ohio, U.S.A. 3
1
2
3
4
5
6
8
17
7
8
9
16
14
13
10
15
11
12
18
19
20
21
22
23
24
32
30
33
31
28
27
26
25
29
Ref. Catalog
No. No. Description
1 12373 Cap Trim
2 47832 Toggle Switch
3 12363 Cover Motor
4 12463 Motor Assembly
5 12328 Lead Assembly
6 12488 Cord Assembly
7 12393 Lid 12 Gal (WD1245)
12378 Lid 16 Gal (WD1635)
8 83742 Latch Drum (WD1635)
9 12333 Screw 10 x 3/4″
10 12458 Collector Assembly
11 73472 Float
Ref. Catalog
No. No. Description
12 73637 Filter Cage
13 12353 Nut Hex Flange 5/16″- 18
14 47872 Washer
15 96537 Blower Wheel
16 47862 Spacer
17 12338 Screw 10 x 11/4″
18 72947 Pleated Paper Filter
19 12303 Plate Filter
20 47907 Filter Nut
21 12433 Drum w/Graphics (WD1245)
12348 Drum w/Graphics (WD1635)
22 73737 Drain Cap
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
23 12388 Foot Caster
24 12293 Caster
25 72907 Utility Nozzle
26 72937 Car Nozzle
27 72912 Wet/Squeegee Nozzle
28 73562 Squeegee
29 72902 Extension Wand
30 96577 Hose 21/2″x 7′Locking
31 96572 Spring Tab
32 83722 End Hose Interlock
33 83712 Adapter Hose
Wet/Dry Vacuums — WD1245/1635

Ridge Tool Company/Elyria, Ohio, U.S.A.
4
Complete Assembly
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
2
10
20
1
3
4
6
7
5
811
23
22
21
19
18
12
28
27
26
14
13
17
30
29
33
32
9
15
31
34
25
37
35
24
Ref. Catalog
No. No. Description
1 19818 Actuator Switch
2 12313 Toggle Switch
3 19993 Cover Motor Assembly
4 20008 Duct Motor Exhaust
5 20013 Motor Assembly
6 19843 Cord with Terminals
7 20023 Lead Assembly
8 20028 Pad Foam Lid
9 20038 Lid Assembly
10 12338 Screw PN Serr TY AB 10 x 11/4″
11 83742 Latch Drum
12 47862 Spacer
13 96537 Blower Wheel
Ref. Catalog
No. No. Description
14 20043 Washer
15 12353 Nut Hex Flange 5/16″- 18
16 12458 Collector Assembly
17 12333 Screw PN Serr TY AB 10 x 3/4″
18 19883 Float
19 73637 Filter Cage
20 72952 2-Stage Fine Dust Filter
21 12303 Plate Filter
22 47907 Filter Nut
23 20053 Holder Accessory
24 20058 Drum Assembly
25 20073 Drain Cap
26 20078 Foot Caster Rear
Ref. Catalog
No. No. Description
27 20083 Screw Type AB #10 x 13/4″
28 20088 Foot Caster Front
29 20093 Caster
30 72907 Utility Nozzle
31 72937 Car Nozzle
32 72912 Wet/Squeegee Nozzle
33 73562 Squeegee
34 19888 Hose Assembly 2.5″x 7′Locking
35 72902 Extension Wand
36 20098 Bag Assembly Accy Pack
37 — Owner's Manual
— 23743 Disposable Filter Bags
Wet/Dry Vacuums — WD1450

Ridge Tool Company/Elyria, Ohio, U.S.A. 5
3
4
6
18
2
30
1
7
8
9
10
11
12
13
14
31
15
16
20
21
19
22
28
24
23
25
26
34
29
32
17
5
27
27
35
37
36
33
Ref. Catalog
No. No. Description
1 72947 Filter
2 47907 Filter Nut
3 73752 Drum
4 73737 Drain Cap
5 73627 Twin Wheel Caster
6 73782 Caster Foot
7 73637 Filter Cage
8 73472 Float
9 73467 Lid
10 73612 Drum Latch
11 73617 Power Head Latch
12 73657 Lid Gasket
13 73482 Screw #10 x 3/4″
Ref. Catalog
No. No. Description
14 73577 Intake Shield/Lid
15 73572 Foam Pad
16 73597 Power Cord
17 73682 Switch
18 47297 Nut-Hex Flange 1/4″- 20
19 47872 Washer
20 73507 Blower Wheel
21 47862 Spacer
22 73582 Collector Gasket
23 73587 Motor/Collector
24 73622 Diffuser
25 73632 Male-Male Adapter
Ref. Catalog
No. No. Description
26 73607 Motor Cover
27 73482 Screw #10 x 3/4″
28 73787 Screw #8 x 1/2″
29 73772 Cord Wrap
30 72907 Utility Nozzle
31 72937 Car Nozzle
32 72892 Blower Nozzle
33 72912 Wet Nozzle
34 73562 Squeegee
35 73497 Hose Lock
36 72902 Extension Wands
37 72897 Hose 21/2″x 7′
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Wet/Dry Vacuums — WD1650

Ridge Tool Company/Elyria, Ohio, U.S.A.
6
1
2
3
5
6
7
8
10
16
11
4
9
12
Ref. Catalog
No. No. Description
1 73472 Float
2 73637 Filter Cage
3 72947 VT 4000 Filter
4 47907 Filter Nut
5 73752 Drum w/Handles
6 73737 Drain Cap
7 87357 All Terrain Wheel
8 89012 Base Drum
9 73627 Twin Wh. Caste
10 83747 Drum Latch
11 83752 Lid
12 83757 Power Head. Latch
13 83762 Gasket Lid
14 73482 Screw 10 x 3/4″
Ref. Catalog
No. No. Description
15 83767 Pull Handle
16 83772 Intake Shield
17 83777 Foam Pad
18 83782 Foam Pad Holder
19 83787 20 Ft. Cord Assembly
20 83792 Detachable Lid
21 83797 Switch
22 47297 Hex Nut Flange 1/4″- 20
23 47872 Washer
24 73507 Blower Wheel
25 47862 Spacer
26 73582 Collector Gasket
27 83802 Blowing Diffuser
28 83807 Motor & Collector
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
29 83707 Male-Male Adapter
30 83812 Motor Cover
31 72907 VT 2509 Utility Nozzle
32 72937 VT 2503 Car Nozzle
33 72892 VT 2506 Blower Nozzle
34 72912 VT 2510 Wet Nozzle
35 83712 Adapter Hose
36 83727 Loc Hose 21/2″x 7′
37 83717 Spring Tab
38 83722 End Hose Inter
39 73562 Squeegee
40 72902 VT 2508 Ext. Wand
31
32
34
38
40
9
19
20
18
17
14
14
15
13
29
27
23
24
21
22
30
14
28
26
25
14
39
37
36
35
33
Wet/Dry Vacuums — WD1660

Ridge Tool Company/Elyria, Ohio, U.S.A. 7
29 28
27
14
25
24
22
23
1
2
3
4
5
21
20
30
19
31
18
17
26
6
7
8
9
10
16
15 14
13
14
32
11 12
11
37
35
33
41
42
40
39
38
36
34
Ref. Catalog
No. No. Description
1 73472 Float
2 73637 Filter Cage
3 72947 Pleated Paper Filter
4 12303 Plate Filter
5 47907 Filter Nut
6 12348 Drum w/Graphics
7 73737 Drain Cap
8 12388 Foot Caster
9 12293 Caster
10 12418 Caddy Accessory
11 83742 Latch Drum
12 83752 Lid
13 83767 Handle Pull
14 96542 Screw 10 x 3/4″
Ref. Catalog
No. No. Description
15 83762 Gasket Lid
16 83772 Shield Intake
17 83777 Pad Foam
18 83782 Holder Foam Pad
19 12358 Lid Assembly Small
20 86327 Nut Hex Flange 1/4″- 20
21 47872 Washer
22 73507 Blower Wheel
23 47862 Spacer
24 96552 Gasket Collector
25 12438 Foam Holder Assembly
26 83802 Diffuser Blowing
27 73632 Male-Male Adapter
28 83807 Motor & Collector w/Blower Wheel
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
29 83812 Cover Motor
30 73682 Switch
31 12473 Cord Power
32 83757 Latch Powerhead
33 72907 Utility Nozzle
34 72937 Car Nozzle
35 72892 Blower Nozzle
36 72912 Wet/Squeegee Nozzle
37 73562 Squeegee
38 72902 Extension Wand
39 83712 Adapter Hose
40 96577 Hose 21/2″x 7′Locking
41 96572 Spring Tab
42 83722 End Hose Interlock
Wet/Dry Vacuums — WD1665

Ridge Tool Company/Elyria, Ohio, U.S.A.
8
1
2
3
4
5
6
7
9
14
16
11
8
10
12
15
20
13
Ref. Catalog
No. No. Description
1 47832 Toggle Switch
2 73652 Motor Cover
3 73757 Motor
4 73602 Cord w/Plug
5 73487 Pan Head. 10 x 3/4″
6 73662 Collector
7 47857 Gasket Lid
8 47862 Spacer
9 73507 Blower Wheel
10 47872 Washer
11 47297 Hex Nut 1/4″- 20
Ref. Catalog
No. No. Description
12 73677 Lid
13 73472 Float
14 73637 Filter Cage
15 83732 Adapter Hose Lock (WD1730)
16 83737 O-Ring (WD1730)
17 72952 Stage 2 Filter VF 5000
18 47907 Filter Nut
19 73747 Dust Drum
20 83817 Adapter Hose to Dr.
21 83822 Cap
22 72907 VT 2509 Utility Hose
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
23 72932 VT 2502 Crevice Nozzle
24 72937 VT 2503 Car Nozzle
25 72912 VT 2510 Wet Nozzle
26 73562 Squeegee
27 73502 Hose Lock
28 83727 Loc Hose 21/2″x 7′(WD1730)
29 72902 VT 2508 Wands
30 83712 Adapter Hose
31 83717 Spring Tab
32 83722 End Hose Interlock
5
5
5
21
19
18
17
22
23
25 29
26
24
27
32
31
28
30
Wet/Dry Vacuums — WD1700/1730

Ridge Tool Company/Elyria, Ohio, U.S.A. 9

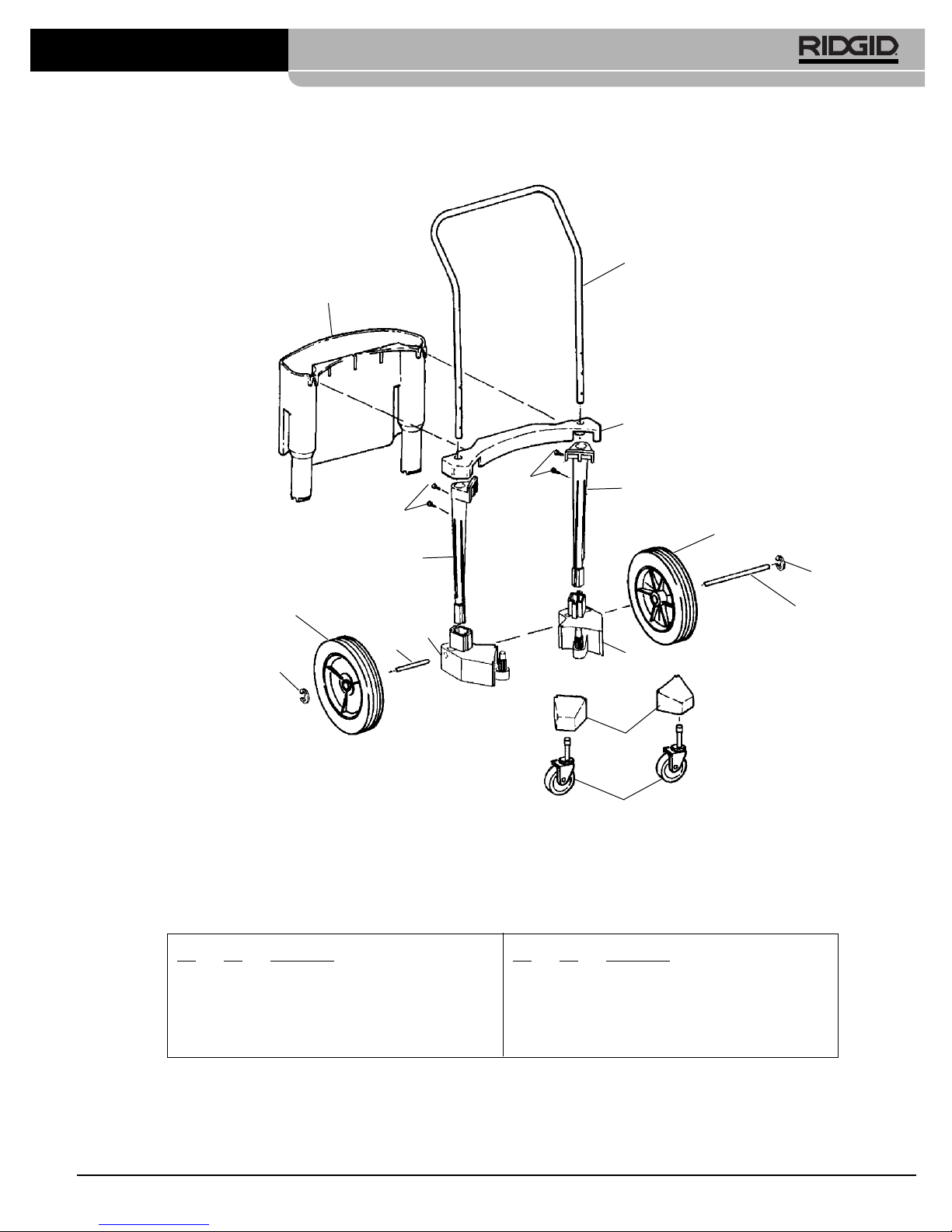

1
2
3
4
5
67
8
9
10
11
12
13
Ref. Catalog
No. No. Description
1 73547 Handle
2 73542 Handle Bracket
3 73532 Left Leg
4 34245 Retaining Ring 1/2″
5 73487 10″Wheel
6 73517 Axle
7 73522 Cradle, Left
Ref. Catalog
No. No. Description
8 73552 Caster Foot
9 73557 Caster
10 73527 Cradle, Right
11 73537 Right Leg
12 73482 Screw #10 x 3/4″
13 73452 Tote
14 73462 Hardware Kit (Not Shown)
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
12
5
6
4
Wet/Dry Vacuums — WD1700/1730

Ridge Tool Company/Elyria, Ohio, U.S.A.
10
12
3
5
18
19
20
6
21
4
7
8
8
10
9
12
14
10
15
16
17
11
13
26
29
30
28
27
22
23
24 31
25
Ref. Catalog
No. No. Description
1 12373 Cap Trim
2 12313 Toggle Switch
3 12368 Motor Cover
4 12443 Motor Assembly
5 12478 Cord Assembly
6 12328 Lead Assembly
7 12383 Lid
8 83742 Latch Drum
9 12338 Screw 10 x 11/4″
10 12333 Screw 10 x 3/4″
11 47862 Spacer
Ref. Catalog
No. No. Description
12 73507 Blower Wheel
13 47872 Washer
14 12353 Nut Hex Flange 5/16″- 18
15 12458 Collector Assembly
16 73472 Float
17 73637 Filter Cage
18 72952 2-Stage Fine Dust Filter
19 47907 Filter Nut
20 12348 Drum w/Graphics
21 73737 Drain Cap
22 72907 Utility Nozzle
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
23 72932 Crevice Tool
24 72937 Car Nozzle
25 72912 Wet/Squeegee Nozzle
26 73562 Squeegee
27 83712 Adapter Hose
28 96577 Hose 21/2″x 7’ Locking
29 96572 Spring Tab
30 83722 End Hose Interlock
31 72902 Extension Wand

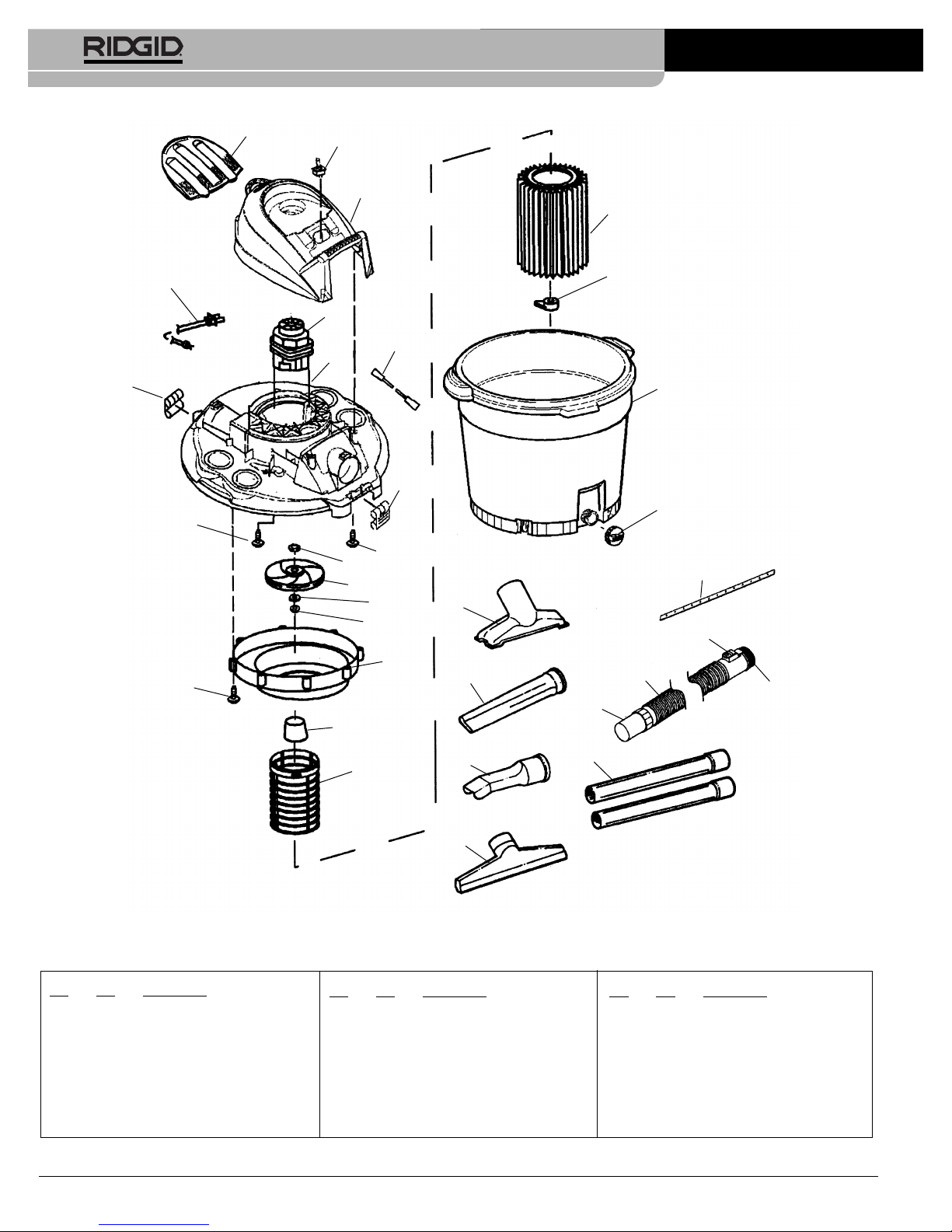

Wet/Dry Vacuums — WD1735
