Riello F20 Quick start guide

2902453 (10) - 06/2018
Installation, use and maintenance instructions
Instructions pour installation, utilisation et entretien
Single stage operation oil burner
Brûleur à huile à une allure
CODE MODEL - MODÈLE TYPE
3726512 F20 WITH HYDRAULIC JACK
F20 AVEC VÉRIN HYDRAULIQUE 265T
GB
F
RETROFIT APPLICATIONS ONLY
If this burner is being installed in a packaged unit (ie. burner comes with a boiler or furnace), follow the in-
stallation and set-up instructions supplied with the heating unit, as settings may differ from those shown in
this manual.
- The following pages contain information, descriptions and diagrams for the proper installation and wir-
ing of the burner. Please read carefully before attempting final installation.
- This manual is to remain with the final installation designation. It is the installer’s responsibility to ensure
that the burner installation and operation instructions mentioned in this manual are followed and operated
within local code authority limits.
WARNING
POUR APPLICATIONS DE MISE À NIVEAU UNIQUEMENT
Si ce brûleur doit être installé avec un autre appareil avec lequel il est livré (comme une chaudière ou un
four), il faudra suivre la notice livrée avec l'unité chauffante dans la mesure où les instructions peuvent dif-
férer de celles reportées dans ce manuel.
- Les pages qui suivent contiennent toutes les informations, descriptions et schémas permettant une ins-
tallation et un branchement approprié du brûleur. Veuillez lire attentivement ce manuel avant de procé-
der à l'installation de l'appareil.
- Ce manuel doit être conservé par l'utilisateur de l'appareil. L'installateur doit veiller à ce que les instructions
pour l'installation et le fonctionnement du brûleur reportées dans ce manuel soient respectées et appliquées
selon la loi du pays d'installation de l'appareil.
ATTENTION

2902453
GB
INSTALLLATION PRECAUTIONS
AIR FOR COMBUSTION
Do not install burner in room with insufficient air for combustion. Be sure there is an adequate air supply for
combustion if the boiler/furnace room is enclosed. It may be necessary to create a window to permit suffi-
cient air to enter the boiler/furnace room. The installer must follow local ordinances in this regard.
CANADA It is suggested that the installer follow CSA standard B139.
USA It is suggested that the installer follow NFPA manual #31.
CHIMNEY
Be sure chimney is sufficient to handle the exhaust gases. It is recommended that only the burner be con-
nected to the chimney. Be sure that it is clean and clear of obstructions.
OIL FILTER
An external oil filter is REQUIRED, even though there is an internal strainer in the pump. The filter should be
replaced at least once a year, and the filter container should be thoroughly cleaned prior to installing a new
filter cartridge.
DRAFT
Follow the instructions furnished with the heating appliance. The pressure in the combustion area should be
kept as close to zero as possible. The burner will operate with a slight draft or pressure in the chamber.
ELECTRICAL CONNECTIONS
CANADA All electrical connections should be done in accordance with the C.E.C. Part 1, and all local codes.
The system should be grounded.
USA All electrical connections should be done in accordance with the National Electrical Code, and all
local ordinances. The system should be grounded.
CONTROL BURNER OPERATION
Check out the burner and explain its operation to the homeowner. Be sure to leave the Owner’s Instruction
sheet with the homeowner.
FIRE EXTINGUISHER
If required by local codes, install an approved fire extinguisher.
ELECTRICAL CONNECTIONS
In most localities, a number 14 wire should be used inside a metal conduit. The system should be grounded.
A service switch should be placed close to the burner on a fireproof wall in an easily accessible location.
WARNING

2902453
GB
TABLE OF CONTENTS
PACKAGE CONTENTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
SERIAL NUMBER IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Burner and mounting flange dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Burner components identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Burner components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INITIAL SET-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY OF AIR TUBE TO BURNER CHASSIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
MOUNTING BURNER TO BOILER OR FURNACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Method 1-Universal Mounting Flange. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Method 2-Semi-flange Collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Method 3-Pedestal Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ELECTRICAL CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
NOZZLE PLACEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
INSTALLATION / REMOVAL OF DRAWER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ELECTRODE SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TURBULATOR SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

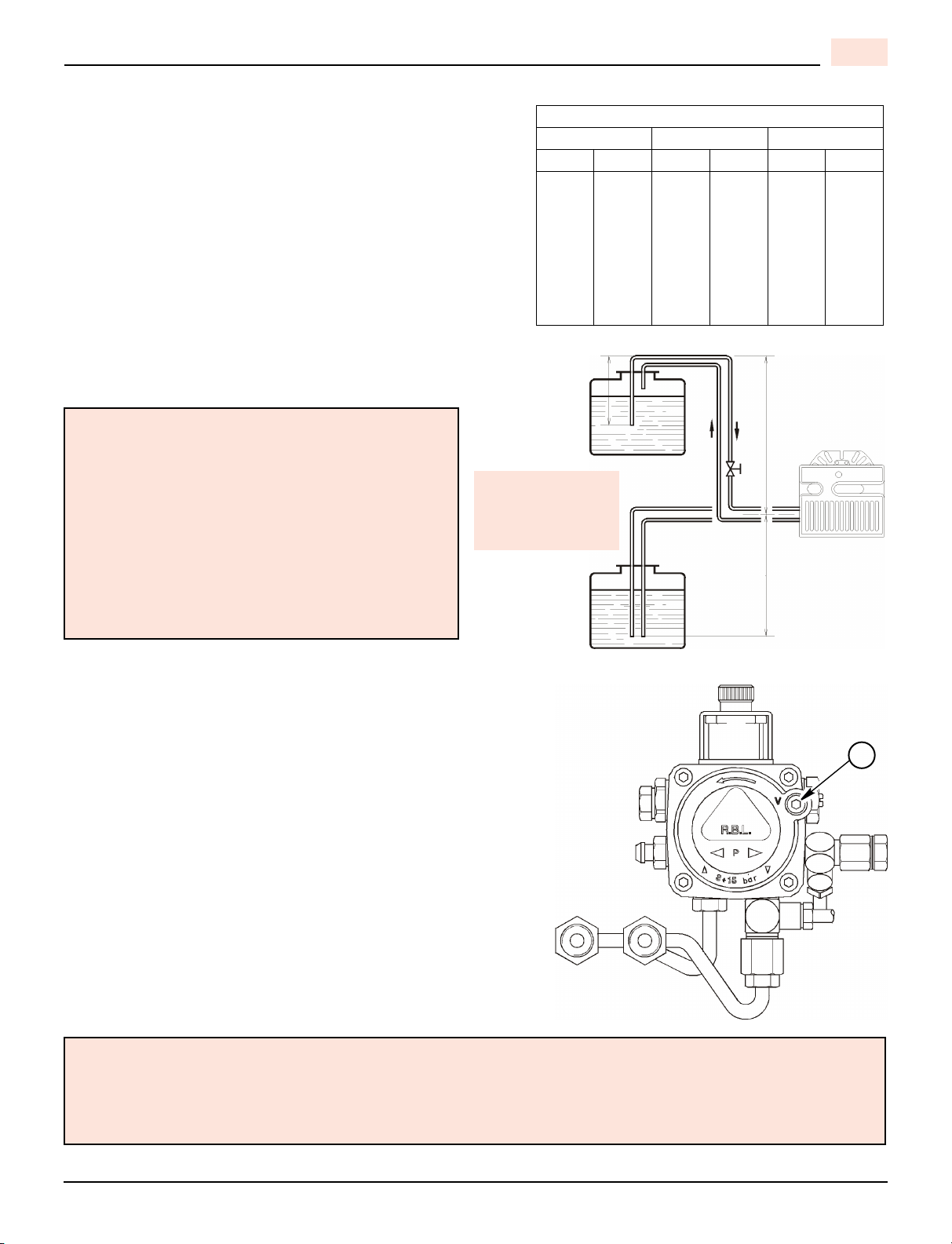

OIL LINE CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Two line (Lift system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
PUMP PURGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Two line (Gravity or lift system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
AIR SHUTTER SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Low fire Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Main Flame Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
BURNER SET-UP CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DUCTED COMBUSTION AIR INTAKE APPLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
BURNER START-UP CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
EXPLODED SPARE PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
SPARE PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
BURNER START-UP REPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

2902453 1
GB
PACKAGE CONTENTS LIST
Your Riello 40 burner should include the following parts. Please check to make sure all parts are present before begin-
ning the installation.
SERIAL NUMBER IDENTIFICATION
Your Riello burner may have been manufactured in more than one location and therefore there are two possible serial
number identification.
The Riello 9 character serial number, example,
06 01 12345, is identified as follows:
06 = Last two digits of the year of manufacture;
01 = Week of manufacture;
12345 = Increment of 1 for each burner produced – specific
to product code – reset to zero each January 1st.
The Riello 15 character serial number, example,
8511344 18 01 0003, is identified as follows:
Quantity Description Code
1 Burner chassis with cover 3726512
1 Universal mounting flange + mounting gasket 2567395
1 Parts bag 2566283
1 Parts bag 2567338
1 Installation manual 2902453
1 By-pass plug
1Separate carton - OEM burners shipped with combustion head mounted
Air Tube/Drawer Assembly
Parts bag 2566283 Parts bag 2567338
Quantity Description Quantity Description
1
1
1
1
2
2
2
Female 1/4” NPT adapter
Male 3/8” NPT adapter
Oil pump connector (supply)
Oil pump connector (return)
Mounting flange bolts (short)
Nuts
Chrome nuts
2
2
2
2
Semi-flange bolts (long)
Semi-flange
Cover screws
Nuts
8511344 Burner product code;
18 Last two digits of the year of manufac-
ture;
01 BI-week of manufacture;
0003 Increment of 1 for each burner pro-
duced – specific to product code –
reset to zero each January 1st.
(06) (01) (12345)
Year of
manufacture
Week of
manufacture Increment
Year of
manufacture Increment
Burner
product code
BI-week of
manufacture
(8511344) (18) (01) (0003)

2902453 2
GB
TECHNICAL DATA SPECIFICATIONS
BURNER AND MOUNTING FLANGE DIMENSIONS
E1: 10-inch long (254mm) tubes are also available.

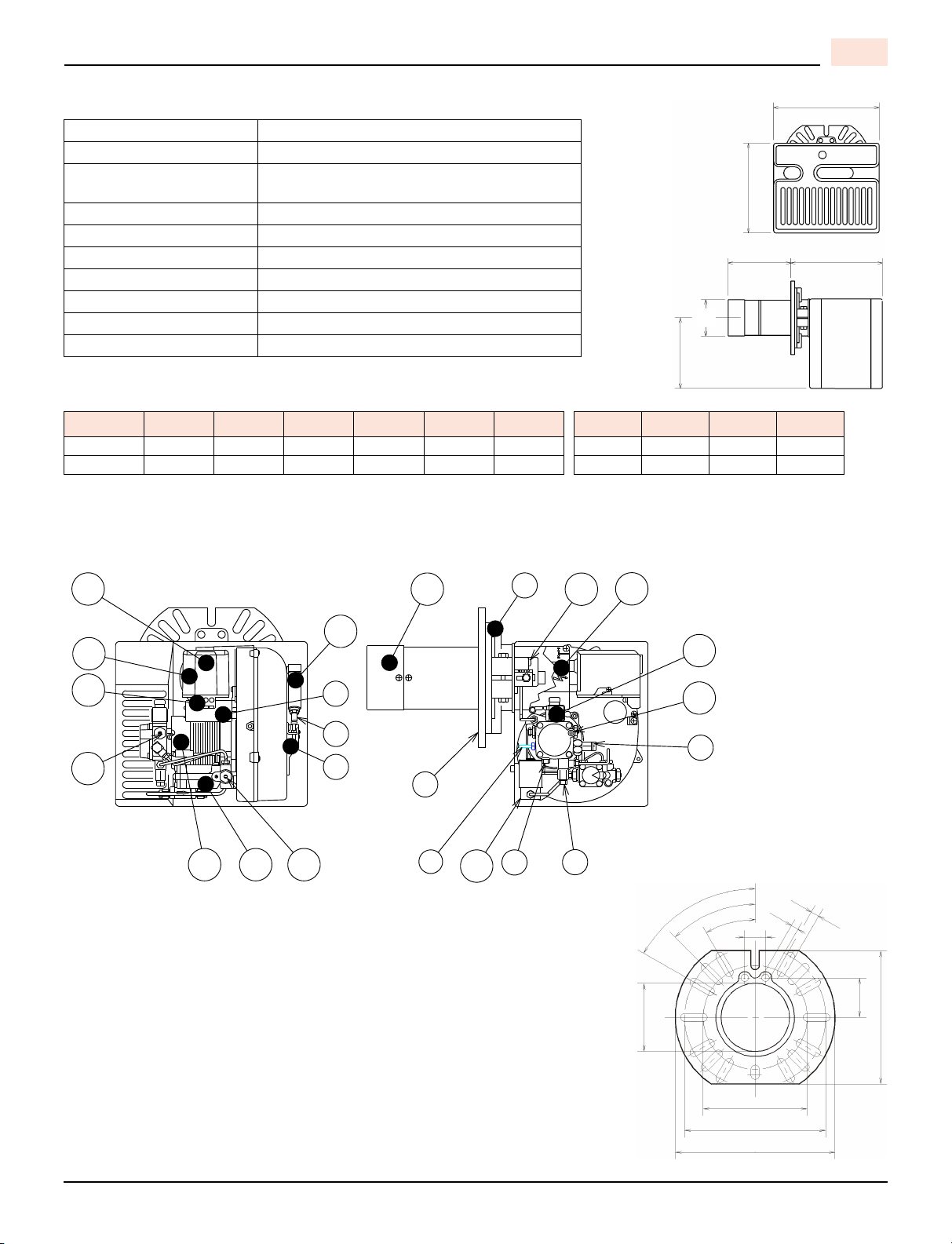

BURNER COMPONENTS IDENTIFICATION
Fuel No. 2 Fuel Oil
Firing rate 3.50 to 6.40 GPH 11.3 to 20.7 kg/h
Effective output 490,000 to 896,000 BTU/h - 143.5 to 262.5 kW
123,480 to 225,790 kcal/h
Voltage (single phase) 120V 60Hz (+ 10% - 15%)
Absorbed electrical power 465 Watts
Motor (rated) 3250 rpm Run Current 4.3 AMP
Capacitor 16 Microfarads 260V
Pump pressure 100 to 200 psi
Primary control RIELLO 530 SE/C
Ignition transformer 8kV 16mA
Model F20 A B C D E F G H I L
Inches 11 3/4 13 25/32 9 1/16 4 11/16 5 11 27/32 1 1/2 1/4 7/16 2 7/8
mm 298 350 230 119 127 301 38 6 11 73
D8860
B
A
EF
E1
C
D
15
16
14
13
12 11 10
8
7
9
17
18 519 14
21
22
1
2
3
4
6
23
BURNER COMPONENTS
1 Pressure gauge connection port
2 Return fuel line port
3 Inlet fuel line port
4 Capillary tube
5 Adjustable collar
6 Mounting flange with gasket
7 Air adjustment fixing screws
8 Hydraulic air shutter
9 Capacitor
10 Fuel pressure adjustment screw low
fire
11 Hydraulic delay valve low fire start
12 Motor
13 Pump pressure regulator adjustment
screw
14 Primary control sub-base
15 Lockout indicator lamp and reset but-
ton
16 Primary control
17 Hydraulic jack
18 End cone
19 Turbulator adjustment screw
20 Air tube cover
21 Coil
22 Vacuum gauge connection port
23 Solenoid valve
6 17/32” - 166 mm
8 1/4” - 210 mm
9 1/4” - 235 mm
7 7/8” - 200 mm
4 31/32”
126 mm
60°
45°
30°
H
I
G
L
D6000
20101926

2902453 3
GB
INITIAL SET-UP
A) Remove burner and air tube from cartons. Check parts list (inside cover) to ensure all parts are present.
B) Remove burner cover by loosing the three screws securing it. Remove control box and air tube cover.
C) Remove drawer assembly from air tube, insert nozzle and set Turbulator adjustment for specific input required, then
set aside.
D) Mount air tube to burner chassis.

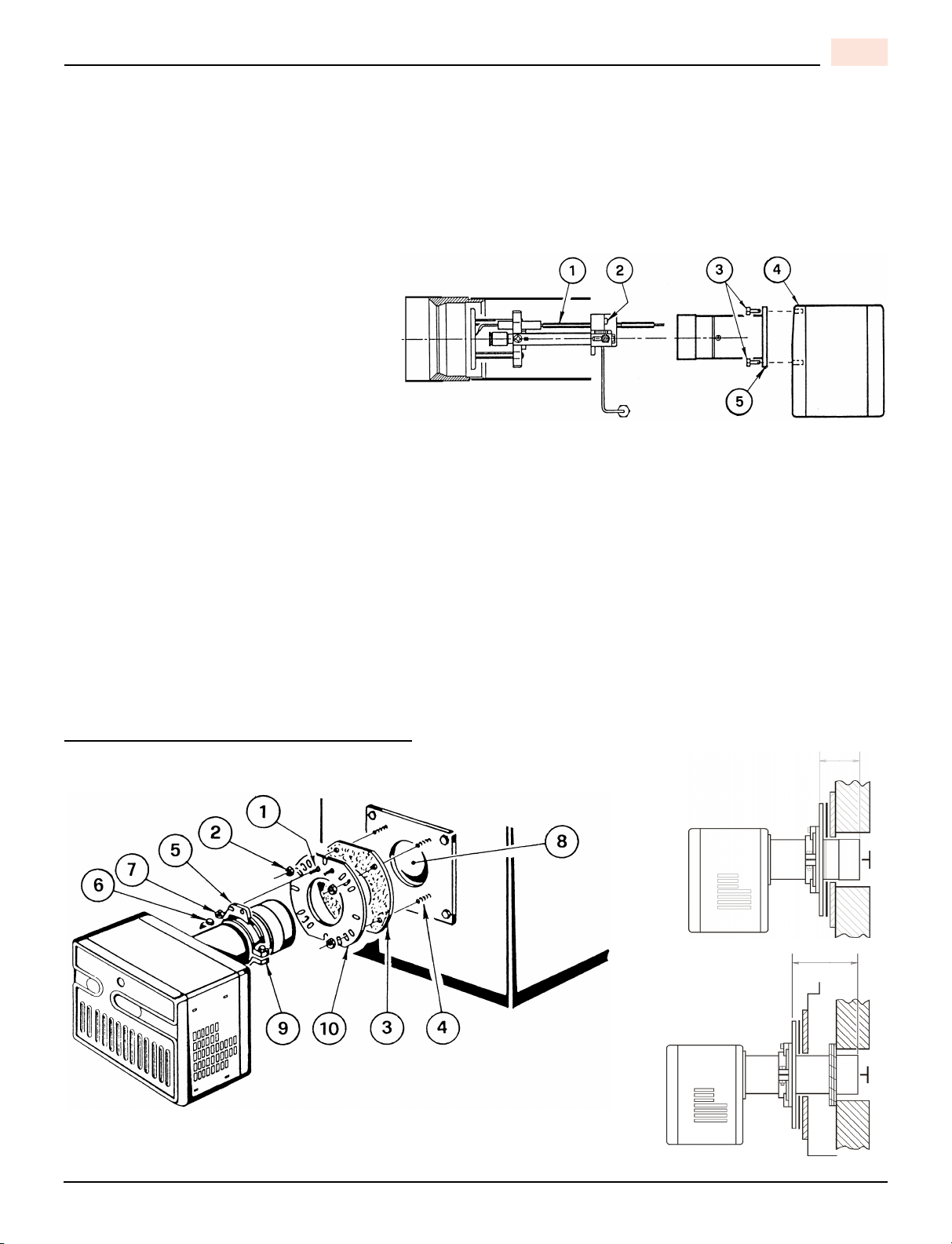

ASSEMBLY OF AIR TUBE TO BURNER CHASSIS
The air tube and drawer assembly are
shipped in a carton separate from the
burner chassis. Choose the proper air
tube length to obtain the tube insertion for
the specific installation.
A) Remove the AIR TUBE and BURNER
CHASSIS from their respective
cartons.
B) Remove the DRAWER ASSEMBLY
(1) from inside the AIR TUBE by
loosening the screw (2). Carefully pull
the DRAWER ASSEMBLY out of the AIR TUBE, install the required nozzle (see page 6) and set aside.
C) Align the two holes on the AIR TUBE HOLDING PLATE (5) with the two holes left open on the BURNER
CHASSIS FRONT PLATE (4) with the BOLTS (3) removed.
Replace the BOLTS and finger tighten only. Re-install DRAWER ASSEMBLY into AIR TUBE. Tighten SCREW
(2) securely (see page 6).
D) Tighten the two bolts (3) securely.
MOUNTING THE BURNER TO THE BOILER OR FURNACE
There are three possible methods to mount the burner, depending on the individual application. These are:
1) Universal flange bolted to Boiler/Furnace unit.
2) Semi-flange collar bolted to Boiler/Furnace unit.
3) Universal flange mounted to optional Pedestal mount, where flange mounting direct to appliance is not possible.
Pedestal kit must be ordered separately.
METHOD 1 – UNIVERSAL MOUNTING FLANGE
S7445
S7439
A
B
A
B
DRY BASE
BOILER
D6013
D6014
COMBUSTION
CHAMBER

2902453 4
GB
A) Insert the two BOLTS (1) into the UNIVERSAL MOUNTING FLANGE (10) from the flat side, ensuring the bolt
heads are flush with the flat surface. Secure in place using two special CHROME NUTS (2) provided.
B) Position the MOUNTING GASKET (3) between the flat surface of the UNIVERSAL MOUNTING FLANGE (10)
and the appliance. Line up the holes in the UNIVERSAL MOUNTING FLANGE with the STUDS (4) on the ap-
pliance mounting plate and securely bolt the UNIVERSAL MOUNTING FLANGE to the plate.
C) Secure the two semi-flanges of the ADJUSTABLE COLLAR (9) to the AIR TUBE using the two long BOLTS (6).
Be sure that the ADJUSTABLE collar is properly positioned so the outside edge of the END CONE will be at
least 1/4 inch (6.5 mm) back from the inside wall of the refractory of the combustion chamber (see dimension
B). The measured length (A), is to include MOUNTING GASKET and FLANGE, if used.
D) The burner may now be attached to the heating unit by inserting the AIR TUBE through the BURNER ACCESS
HOLE (8) and into the appliance, making sure the BOLTS (1) line up with the two HOLES (5) in the ADJUSTABLE
COLLAR. Secure the burner in place using two NUTS (7).
A visual verification of the air tube insertion into the combustion chamber of the heating unit is suggested.
Dimension B should be at least 1/4” (see drawing).
NOTE:
A suggested method for creating mounting bolt holes in the mounting gasket: Hold the gasket against the appli-
ance mounting bolts using the mounting flange for proper positioning. Lightly tap the flange with a hammer to
form the holes.
METHOD 2 – SEMI-FLANGE COLLAR
A) Follow item C from METHOD 1.
B) Align the air tube and attached adjustable collar so air tube is centered in the burner access hole of the boil-
er/furnace unit. Mark the center of the two holes in the ADJUSTABLE COLLAR on to the front plate of the
heating unit. Then drill 1/4 inch (6.5 mm) holes through the front plate of the unit, using marks as a guide.
C) Install two short BOLTS (1) through the front plate of the heating unit from the inside, and secure on the out-
side using the two special CHROME NUTS (2).
D) Follow item D from METHOD 1.
METHOD 3 – PEDESTAL MOUNT
Secure the MOUNTING FLANGE to MOUNTING PEDESTAL using the hardware provided with the pedestal.
Secure burner to MOUNTING FLANGE as in METHOD 1, items A, C and D.
NOTE:
It is suggested that the pedestal be anchored in position on the floor by installing brackets over the pedestal
tube and securing brackets to the floor.
WHEN THE COMBUSTION CHAMBER IS LINED WITH A REFRACTORY MATERIAL, IT IS
IMPERATIVE THAT THE END CONE NOT PROTRUDE INTO THE CHAMBER AREA, AS EXCESSIVE
HEAT AT BURNER SHUT DOWN WILL DAMAGE THE END CONE.
WARNING

2902453 5
GB
ELECTRICAL CONNECTIONS
It is advisable to leave the control box off the sub-base while
completing the electrical connections to the burner.
1) Wire access hole (Use BX electrical connector)
2) Earth ground conductor terminal (GREEN WIRE)
3) Hot conductor terminal (BLACK WIRE)
4) Neutral conductor terminal (WHITE WIRE)
5) Strain relief clamp
Using the appropriate diagram below, make electrical connections
to burner. All wiring must be done in accordance with existing electrical codes, both national and local.
When all electrical connections have been made, the control box may be put back in place on the sub-base.
APPLICATION FIELD WIRING
NOTE: Terminal 4 is to be used to activate a remote safety lockout circuit only. A 120V AC source is supplied to Terminal
4 upon lockout. The maximum allowable current draw for this circuit is 1 AMP.
IMPORTANT: if a neutral or ground lead is attached to Terminal 4, the control box will be damaged should lockout occur.
WARNING:
The hot (black) wire must be connected to the L terminal and the
neutral (white) wire must be connected to the N terminal or the
primary safety control will be damaged.
Do not connect wither wire to the terminal marked .
WARNING: DO NOT activate burner until proper oil line connections have been made, or failure of the pump shaft
seal may occur.
S7436
.
Green
NEUTRAL (White) HOT LINE (Black)
Blue White Black Brown
White
Blue
Brown
Black
CAPACITOR MOTOR
234567891
NL
120V
AC
LINE SAFETY
SWITCH
OPERATING
LIMIT SWITCH
SAFETY
LIMIT SWITCH
FUSE 15A
20101923
Black
White
EARTH
GROUND
SOLENOID
VALVE M
~
DIRECT LINE
VOLTAGE
FACTORY WIRED
SUB-BASE
SAFETY
VALVE

2902453 6
GB
NOZZLE PLACEMENT
A) Determine the proper firing rate for the boiler or furnace
units, considering the specific application, and then use the
Burner Setup Charts to select the proper nozzle and pump
pressure to obtain the required input from the burner.
B) Remove the NOZZLE ADAPTER (2) from the DRAWER
ASSEMBLY by loosening the SCREW (1).
C) Insert the proper NOZZLE into the NOZZLE ADAPTER and
tighten securely (Do not over tighten).
D) Replace adapter, with nozzle installed, into drawer assem-
bly and secure with screw (1).
INSTALLATION/REMOVAL
OF DRAWER ASSEMBLY
A) To remove drawer assembly,
loosen SCREW (3), then unplug
CONTROL BOX (1) by carefully
pulling it back and then up.
B) Remove the AIR TUBE COVER
PLATE (5) by loosening the two
retaining SCREWS (4).
C) Loosen SCREW (2), then slide
the complete drawer assembly
out of the combustion head as
shown.
D) To insert drawer assembly,
reverse the procedure in items A
to C above, then attach fuel line
to the pump.
ELECTRODE SETTING
IMPORTANT:
These dimensions must be observed and verified.
TURBULATOR SETTING
A) Loosen NUT (1), then turn SCREW (2) until the INDEX MARK-
ER (3) is aligned with the correct index number as per the
Burner Set-up chart.
B) Retighten the RETAINING NUT (1).
NOTE:
Zero and five are scale indicators only. From left to right, the first
line is 5 and the last line 0.
S7437
S7438
5 / 32” or 4 mm
1 / 4” to 9 / 32” or 6 to 7 mm
13 / 64”
5 mm
D6003
3
2
1
D5997

2902453 7
GB
OIL LINE CONNECTIONS
WARNING:
The burner is shipped from the factory with the pump set to operate on a TWO line system.
NOTE:
- THIS BURNER MUST BE INSTALLED WITH A TWO LINE SYSTEM TO ALLOW THE HYDRAULIC DELAY
VALVE TO OPERATE.
- Pump pressure must be set at time of burner start-up. A pressure gauge is attached to the PRESSURE PORT
(1) for pressure readings.
Two PIPE CONNECTORS (2) are supplied with the burner for connection to either a single or a two-pipe system.
Also supplied are two adapters (3), two female 1/4” NPT, to adapt oil lines to burner pipe connectors.
All pump port threads are British Parallel thread design. Direct connection of NPT threads to the pump will
damage the pump body.
Riello manometers and vacuum gauges do not require any adapters, and can be safely connected directly to pump
ports.
An NPT (metric) adapter must be used when connecting other gauge models.
NOTE:
If the pump cover (4) is removed for any reason, be sure the O-ring (5), is properly seated in the pump cover (4)
before re-attaching the pump cover to the pump housing.
5
4
1
2
3
7 6 D6180

2902453 8
GB
TWO LINE (LIFT SYSTEM)
A) The burner is shipped with the pump set to oper-
ate on a two line system. Suction and return lines
(6 & 7 in drawing on page 7) should be the same
diameter and both should extend to the same
depth inside the fuel tank.
Be sure there are no air leaks or blockages in the
piping system. Any obstructions in the return line
will cause failure of the pump shaft seal. Do not ex-
ceed the pipe lengths indicated in the table.
B) Attach the two PIPE CONNECTORS (2) to the
pump SUCTION and pump RETURN PORTS (6
and 7).
Attach the required piping to these two pipe con-
nectors using the NPT/METRIC ADAPTERS that
are supplied with the burner.
PUMP PURGE
TWO LINE (GRAVITY OR LIFT SYSTEM)
Turn off the main power source to the burner and re-
move the air tube cover. Shine a light source on the
flame sensor on the control box (now visible where the
air tube cover was removed), return power to the burn-
er and activate the burner.
With the light source in place, the burner will operate in
prepurge only.
When the pump is sufficiently purged, the hydraulic air
shutter will open.
Once the burner is purged, turn off the power source
and replace the air tube cover. Return power to the
burner. The burner is now ready to operate.
NOTE: To protect the pump gears, it is advisable to lubri-
cate the pump prior to purging a lift system.
Apply oil through the VACUUM PORT (A).
WARNING:
- Pipe dope or Teflon tapes are NOT to be used on
any direct oil connection to the fuel pump.
- The height ‘P’ in Pipe Length Charts should not
exceed 13 feet (4 m).
- The vacuum should not exceed 11.44 inches of
mercury.
IMPORTANT:
An external, appropriately listed and certified oil
filter must be placed in the fuel line between the
fuel tank and the burner pump.
ATTENTION:
It is important that the fuel line be completely sealed and free from air leaks or any internal blockages.
WARNING!
WHEN THE BYPASS PLUG IS INSTALLED, A TWO PIPE SYSTEM MUST BE USED OR FAILURE OF THE
PUMP SHAFT SEAL WILL OCCUR.
2 LINE (LIFT) SYSTEM - PIPE LENGTHS
H 3/8” OD 1/2” OD
Feet Meters Feet Meters Feet Meters
0 0.0 115 35 330 100
1 1/2 0.5 100 30 330 100
3 1.0 80 25 330 100
5 1.5 65 20 295 90
6 1/2 2.0 50 15 230 70
9 1/2 3.0 25 8 100 30
11 3.5 20 6 65 20
D6008
HP
H
ATTENTION:
do not exceed
pipe lengths
indicated in chart!
A
D6181

2902453 9
GB
AIR SHUTTER SETTING
LOW FIRE SETTING
A) Loosen PRESSURE RELEASING SCREW (1). (One turn is sufficient). This permits the fuel pressure to bleed off
to the pump return port and the burner to operate continuously at the low fire rate.
B) Loosen RETAINING NUT (2).
C) Turn the ADJUSTING SCREW (3) until the top of the air shutter (9) is correctly positioned according to the Burner
Set-up Chart, column 5, on page 10.
D) Use instruments to establish the proper settings for maximum CO2 and a smoke reading of zero.
E) Hold ADJUSTING SCREW (3) in position and secure by tightening RETAINING NUT (2).
F) Retighten PRESSURE RELEASE SCREW (1).
Note:
The low fire pressure regulator is pre-set at the factory to 100 PSI (7 bar).
To vary or regulate this pressure it is necessary to attach a pressure gauge to the PRESSURE PORT (6).
Loosen the PRESSURE RELEASE SCREW (1) as in step A above. Regulate the pressure by turning the PRESSURE
REGULATING SCREW (5).
The corresponding pressure can be read on the pressure gauge attached to the PUMP PRESSURE PORT (6).
MAIN FLAME SETTING
A) Be sure that the burner is operating at high fire.
B) Set the pump pressure by attaching a pressure gauge to the Pressure port (6) and adjust the pressure by turning
the pressure regulator adjustment screw (10).
Loosen the RETAINING NUT (7), and turn the BOLT (8) in a counterclockwise direction until about 3/4 of an inch
of thread is visible. Using the setting taken from the Burner Set-up Chart, column 5, position the air shutter (9) so
that the top of the shutter is aligned with the proper index line indicated on the air intake side of the burner housing.
Holding the shutter in this position, turn ADJUSTING BOLT (8) in a clockwise direction until a resistance is met.
C) The final position of the air adjustment plate will vary on each installation. Use instruments to establish the proper
settings for maximum CO2 and a smoke reading of zero.
NOTE:
Variations in flue gas, smoke, CO2 and temperature readings may be experienced when the burner cover is put in
place. Therefore, the burner cover must be in place when making the final combustion instrument readings, to en-
sure proper test results.
2
3
8
7
9
6
1 5
S7440
D1874
10

2902453 10
GB
BURNER SET-UP CHART
NON-RETROFIT APPLICATIONS
If this burner is being installed in a packaged unit (ie. burner comes with a boiler or furnace), follow the
installation and set-up instructions supplied with the heating unit, as settings will differ from those shown
in this manual.
NOZZLES RECCOMANDED:
Monarch R-PLP, Delavan W-B, Danfoss S-B, Steinen SS-S, Hago P.
NOTE:
A 45° degree nozzle is suggested, however, a 60° degree nozzle may be used in cases where the flame is
unstable at light-off when operated at low ambient temperatures.
1 2 3 4 5
Actual
Firing
Rate ± 5%
Nozzle
Size
Pump
Pressure Turbulator
Setting
Air Damper
Setting
GPH Kg/h GPH PSI bar Low Fire Main Flame
3.50 11.3 2.50 x 45° / 60° 190 13.0 0.0 2.3 2.8
4.00 12.9 3.00 x 45° / 60° 178 12.0 1.0 2.5 3.2
4.65 15.0 3.50 x 45° / 60° 178 12.0 2.0 2.8 3.7
5.30 17.1 4.00 x 45° / 60° 178 12.0 3.0 3.2 4.5
6.00 19.4 4.50 x 45° / 60° 178 12.0 4.0 3.5 5.0
6.40 20.7 5.00 x 45° / 60° 165 11.4 5.0 3.8 6.0

2902453 11
GB
DUCTED COMBUSTION AIR INTAKE APPLICATIONS
The “Ducted combustion air intake kit” (see P.N. 3002762 in the spare parts list - OPTIONAL), allows ducting of exter-
nal air directly into the burner. A 4” diameter air intake is provided in the kit.
The settings of the burner must be according to the BURNER SETUP CHART – AIR INTAKE APPLICATIONS below.
NOZZLES RECCOMANDED:
Monarch R-PLP, Delavan W-B, Danfoss S-B, Steinen SS-S, Hago P.
NOTE:
A 45° degree nozzle is suggested, however, a 60° degree nozzle may be used in cases where the flame is
unstable at light-off when operated at low ambient temperatures.
NOTES:
A) This kit is not suitable for direct vent applications.
B) Always try to minimize the length of the air intake pipe.
C) Reduce pipe length by 10 feet for every 90° elbow, 5 feet for every 45° elbow.
D) Reduce pipe length by 6 feet for the 4” to 6” pipe adapter (if used).
E) Air intake venting should be insulated 10 feet from air intake source with a minimum R7 foil lined insulation, to prevent
condensation or corrosion of air intake venting.
F) Use an approved type of air intake vacuum breaker and install it in the same room of the burner.
This device should be tested to prove that the vacuum breaker balancer is set correctly and, in the event of intake air
source being blocked, can provide enough combustion air for the burner. If the room where the burner is installed
cannot provide enough air or air quality is a concern, an additional air inlet source must be provided to this room.
G) On the outside of the wall, use an approved intake air hood, located above the snow line and in such way as to prevent
leaves and/or other debris from blocking the air flow. Refer to local codes for proper location of inlet.
To mount this kit on the burner, please follow the installation description given in the kit instruction sheet.
Use a 4” to 6” pipe adapter (not supplied in the kit) to use a 6” diameter pipe.
MODEL F20 BURNER SETUP CHART with 4" diameter pipe
Actual
firing
rate
GPH
Nozzle
size
Pump
pressure
PSI
Head
setting
20 Ft.
pipe length
50 Ft.
pipe length
80 Ft.
pipe length
100 Ft.
pipe length
Air setting Air setting Air setting Air setting
Low fire Main flame Low fire Main flame Low fire Main flame Low fire Main flame
3.50 2.50 x 45°/60° 195 0.5 2.3 2.9 2.3 2.9 2.3 3..0 2.5 3.0
4.00 3.00 x 45°/60° 177 2.0 2.4 3.1 2.4 3.3 2.4 3.5 2.6 3.8
4.65 3.50 x 45°/60° 176 3.5 2.9 3.9 3.0 4.2 3.0 4.5 3.5 5.0
5.16 4.00 x 45°/60° 160 5.0 3.1 4.8 3.2 5.0 3.3 5.0 3.8 5.8
MODEL F20 BURNER SETUP CHART with 6" diameter pipe
Actual
firing
rate
GPH
Nozzle
size
Pump
pressure
PSI
Head
setting
20 Ft.
pipe length
50 Ft.
pipe length
80 Ft.
pipe length
100 Ft.
pipe length
Air setting Air setting Air setting Air setting
Low fire Main flame Low fire Main flame Low fire Main flame Low fire Main flame
3.50 2.50 x 45°/60° 195 0.5 2.1 2.8 2.1 2.8 2.1 2.9 2.1 2.9
4.00 3.00 x 45°/60° 177 2.0 2.2 3.0 2.2 3.0 2.3 3.1 2.3 3.1
4.65 3.50 x 45°/60° 176 3.5 2.7 3.4 2.7 3.5 2.9 3.8 3.1 4.5
5.30 4.00 x 45°/60° 160 4.5 3.0 3.8 3.0 4.0 3.0 4.1 3.1 4.5
6.00 4.50 x 45°/60° 177 5.0 3.0 5.3 3.3 5.4 3.3 5.4 3.5 5.7

2902453 12
GB
COMBUSTION CHAMBER
Follow the instructions furnished by the boiler/furnace manufacturer. Size retrofit application according to the appropriate
installation codes (eg. CSA B139 or NFPA #31).

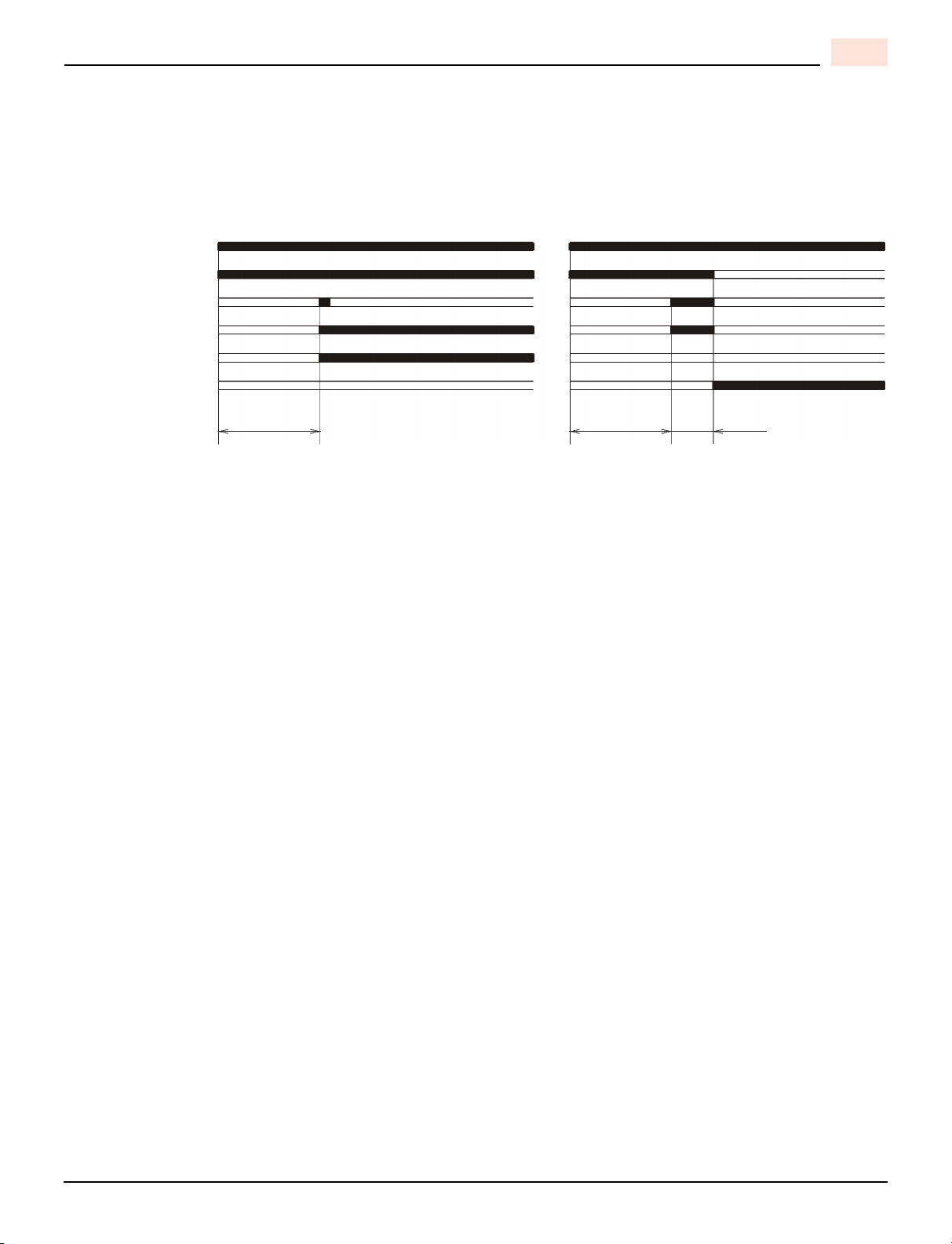

BURNER START-UP CYCLE
Normal Lock-out, due to light-failure
Thermostat
Motor
Ignition transformer
Valve
Flame
Lock-out lamp
~ 12 s ~ 12 s ~ 5 s
D5229

GB
2902453 13
EXPLODED SPARE PARTS LIST

GB
2902453 14
SPARE PARTS LIST
No. CODE DESCRIPTION No. CODE DESCRIPTION
1 3020510 BURNER BACK COVER
2 3007077 CRUSHABLE METAL WASHER
3 3005771 BANJO CORE ADAPTER - PRESSURE PORT
4 3005803 BANJO FITTING - PRESSURE PORT
5 3005804 BANJO CORE ADAPTER - RETURN LINE
6 3007079 CRUSHABLE METAL WASHER
7 3005805 BANJO FITTING - RETURN
8 3007028 O-RING - PUMP PRESSURE REGULATOR
9 3007202 REGULATOR SCREW
10 3007162 O-RING - PUMP COVER
11 3005719 PUMP SCREEN
12 3006925 VALVE STEM
13 3007203 VALVE STEM PLATE
14 3005847 1/4” NPT/ METRIC ADAPTER - FEMALE
15 3006571 3/8” NPT/METRIC ADAPTER - MALE
16 3007029 O-RING - VALVE STEM UPPER
17 3007156 O-RING - VALVE STEM LOWER
18 3006995 PIPE CONNECTOR - RETURN
19 3007893 BLEEDER
20 3006553 COIL U-BRACKET AND KNURLED NUT
21 3002279 COIL
22 3007806 PUMP
23 3006994 PIPE CONNECTOR - SUPPLY
24 3000443 PUMP DRIVE KEY
25 3005845 MOTOR
26 3005801 GASKET
27 3007318 AIR TUBE COVER
28 3006500 HI FIRE DELAY VALVE
29 3001157 PRIMARY CONTROL 530SE/C
30 3002280 FLAME SENSOR
31 3002278 PRIMARY CONTROL SUB BASE
32 3005809 OIL PRESSURE TUBE
33 3005808 OIL RETURN TUBE
34 3005849 SEMI FLANGE
35 3005851 UNIVERSAL MOUNTING FLANGE
36 3005852 MOUNTING GASKET
37 3006499 HYDRAULIC JACK
38 3008050 CAPILLARY TUBE
39 3000645 HYDRAULIC AIR SHUTTER
40 3007358 ACOUSTIC LINER
41 3005799 FAN
42 20087024 CAPACITOR 16 μF
43 3020313 OIL LINE
44 3020299 SOLENOID VALVE
45 3020304 ADAPTOR
46 3020301 OIL LINE
47 3020303 ADAPTOR AND NUT
48 3020302 BRACKET
OPTIONAL
49 3002762 DUCTED COMBUSTION AIR INTAKE KIT
50 3949271 SHORT COMBUSTION HEAD 5” (275T1)
51 3005897 TURBULATOR DISC
52 3005896 CROSS - CASTING
53 3006965 NOZZLE ADAPTER
54 3006987 NOZZLE OIL TUBE - SHORT
55 3005900 REGULATOR ASSEMBLY - SHORT
56 3005902 ELECTRODE ASSEMBLY - SHORT
57 3005869 ELECTRODE PORCELAIN
58 3005894 END CONE
59 3005892 SHORT AIR TUBE
50 3949272 LONG COMBUSTION HEAD 10” (275T2)
51 3005897 TURBULATOR DISC
52 3005896 CROSS - CASTING
53 3006965 NOZZLE ADAPTER
54 3006988 NOZZLE OIL TUBE - LONG
55 3005901 REGULATOR ASSEMBLY - LONG
56 3005903 ELECTRODE ASSEMBLY - LONG
57 3005869 ELECTRODE PORCELAIN
58 3005894 END CONE
59 3005893 LONG AIR TUBE

2902453 15
GB
BURNER START-UP REPORT
Model number: Serial number:
Project name: Start-up date:
Installing contractor: Phone number:
LIGHT OIL OPERATION
Oil supply pressure: CO2: Low Fire High Fire
Oil suction pressure: O2: Low Fire High Fire
Control Power Supply: CO: Low Fire High Fire
Burner Firing Rate: NOX: Low Fire High Fire
Low Fire Flame Signal: Net Stack Temp - Low Fire: High Fire
High Fire Flame Signal: Comb. Efficiency - Low Fire: High Fire
Low Fire Nozzle Size: Overfire Draft:
High Fire Nozzle Size: Smoke number:
CONTROL SETTINGS
Operating Setpoint: Low Oil Pressure:
High Limit Setpoint: High Oil Pressure:
Low Gas Pressure: Flame Safeguard Model
Number:
High Gas Pressure: Modulating Signal Type:
NOTES
