Riello G10D Quick start guide

2902509 (3) - 07/2014
Installation, use and maintenance instructions
Instrucciones de instalación, montaje y funcionamiento
Kerosene and light oil burners
Quemadores de kerosene y gasóleo
Two stage operation
Funcionamiento de dos llamas
CODE - CÓDIGO MODELL - MODELE - MODEL
MODELO TYP - TYPE - TIPO
3746686 G10D 716 T81
3748415 G20D 717 T81
GB
E

2509
1
GB
ENGLISH
TECHNICAL DATA
◆ Burner with CE marking in conformity with EEC Directives: Machine Directive 2006/42/EC, Low Voltage
Directive 2006/95/EC, Electromagnetic Compatibility 2004/108/EC and Efficiency 92/42/EEC.
◆ The burner meets protection level of IP 40, EN 60529.
TYPE 716 T81 717T81
Thermal power 44 / 54 – 120 kW 71 / 95 – 231 kW
Output 3.7 / 4.5 – 10 kg/h 6 / 8 – 19.5 kg/h
Fuel Kerosene, viscosity 1.6 – 6 mm
2
/s at 20 °C (Hi= 11.97 kWh/kg)
Light oil, viscosity 4 – 6 mm
2
/s at 20 °C (Hi= 11.86 kWh/kg)
Electrical supply Single phase, 220V + 10% – 15%
~
60Hz
Motor Run current 1.1A
3300 rpm – 345 rad/s Run current 2.15A 3250 rpm – 340 rad/s
Capacitor 2.5 µF 4 µF
Ignition transformer Secondary 8 kV – 16 mA
Pump Pressure: 8 – 15 bar
Absorbed electrical power 0.2 kW 0.4 kW
1– Return line
2– Suction line
3– Gauge connection
4– Pressure regulator, 2
nd
stage
5– Vacuum gauge connection
6– Hydraulic jacks with air-damper
7– Combustion head adjustment screw
8– Reset button with lock-out lamp
9– Flange with insulating gasket
10 – Regulation pressure, 1
st
stage
11 – Economizer
D8078
Fig. 1

2509
2
GB

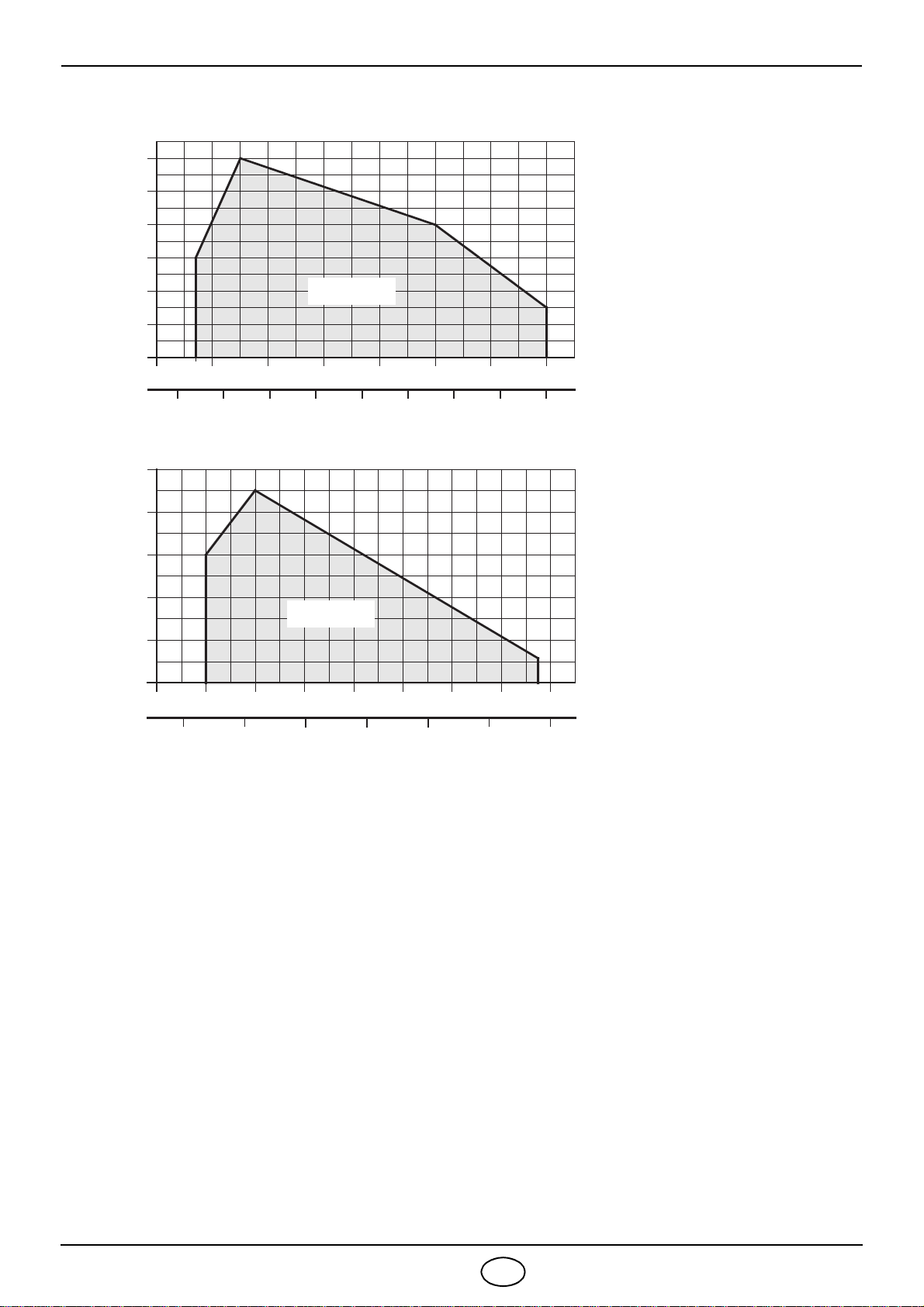

FIRING RATES (as EN 267)
0.8
0
0.4
3 4 5 Fuel output - kg/h
40 50 120 Thermal power - kW D5815 60 70 80 90 100
0.2
0.6
Pressure in the combustion
chamber – mbar
6 7 9 108
110
1.0
1.2
3.7
3.2
0
1.6
468 Fuel output - kg/h
60 90 Thermal power - kW
D6122
120 150 180 210 240
0.8
2.4
10 12 16 2014
4.0
18
716 T81
717 T81
Pressure in the combustion
chamber – mbar

2509
3
GB
OVERALL DIMENSIONS
BURNER EQUIPMENT
Quantity Description
2
1
4
1
1
1
1
Flexible pipes with nipples
Flange with insulating gasket
Screws and nuts for flange
Maintenance assembly
Screw with two nuts for flange
7 pin plug
4 pin plug
Flange Burner
305 108 261
140
=
40
45°
262
11
204
D5670
=
189
83 83
170
45°
ø
105
RIELLO 40 G10D TYPE 716T81
RIELLO 40 G20D TYPE 717T81
Flange Burner
350 118 295
160
=
41
45°
ø
125
298
11
230
D5283
=
213
99 99
190
45°

2509
4
GB
INSTALLATION
BOILER FIXING
➣ Put on the flange (1) the screw and two nuts, (see fig. 2).
➣ Widen, if necessary, the insulating gasket holes (5), (see fig. 3).
➣ Fix the flange (1) to the boiler door (4) using screws (2) and (if necessary) the nuts (3) interposing the
insulating gasket (5), (see fig. 4).
MAINTENANCE POSITION
Access to the combustion head, diffuser disc / electrodes unit and nozzle, (see fig. 5).
➣ Remove the burner out of the boiler, after loosing the fixing nut to the flange.
➣ Hook the burner to the flange (1), by removing the combustion head (6) after loosing the fixing screws (7).
➣ Remove the diffuser disc-holder assembly (9) from the nozzle-holder (8) after loosing its fixing screw.
➣ Screw the nozzle (10).
D5012
Fig. 2
1
Fig. 3
5
E9022
D8058
1
Fig. 4
43
2
2
5
1
10
9
8
7
6
Fig. 5
Fig. 6 Verify that the installed burner is lightly leaned towards the
button.
(See figure 6).
The burner is designed to allow entry of the flexible oil-lines
on either side of the burner.
D5572
D8056 D8057

2509
5
GB

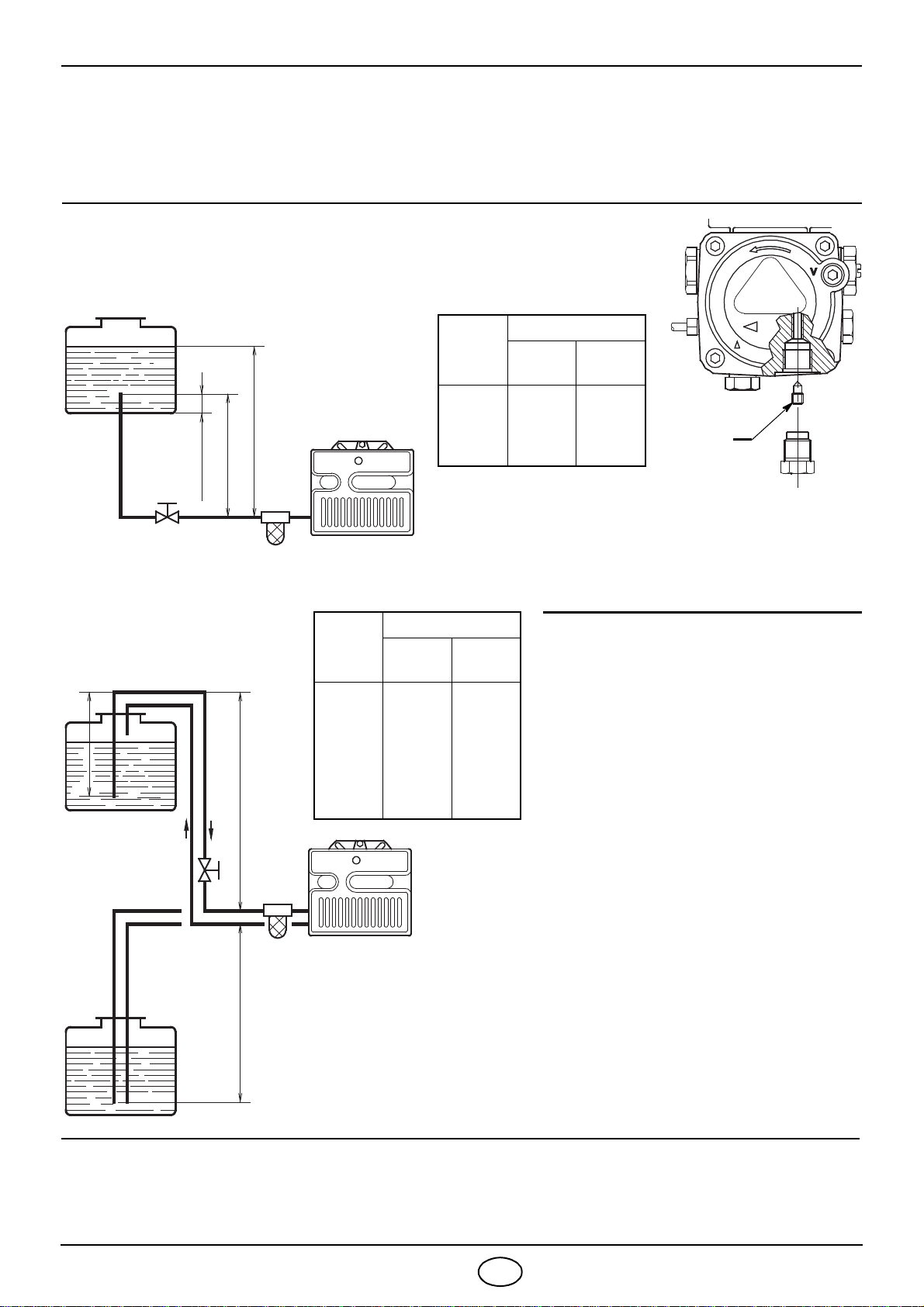

HYDRAULIC SYSTEMS
Warning: before starting the burner make sure that the return pipe-line is not clogged: any obstruc-
tion would cause the pump seals to break.
The pump vacuum should not exceed a
maximum of 0.4 bar (30 cm Hg).
Beyond this limit gas is released from
the oil.
Oil lines must be completely airtight.
The return line should terminate in
the oil tank at the same level as the
suction line; in this case a non-return
valve is not required.
When the return line arrives over the
fuel level, a non-return valve must be
used.
This solution however is less safe than
previous one, due to the possibility of
leakage of the valve.
PRIMING THE PUMP
Start the burner and wait for the priming.
Should lock-out occur prior to the arrival
of the fuel, await at least 20 seconds
before repeating the operation.
◆ Check periodically the flexible pipes conditions. Using kerosene, they have to be replaced at
least every 2 years.
◆ A metal bowl filter with replaceable micronic filter must be fitted in the oil supply pipe.
H
meters
L meters
I. D.
8 mm I.D. 10 mm
0.5
1
1.5
2
10
20
40
60
20
40
80
100
WARNING
The pump is supplied for use with a two pipe system.
For use on a one pipe system, it is necessary to remove the by-pass
screw (A), (see figure).
H
meters
L meters
I. D.
8 mm I.D. 10 mm
0
0.5
1
1.5
2
3
3.5
35
30
25
20
15
8
6
100
100
100
90
70
30
20
H max. 4 m
H
H
max. 4 m
min. 0.1 m
D5219
D5220
H= Difference of level.
L= Max. length of the
suction line.
I.D.= Internal diameter of the
oil pipes.
PRIMING THE PUMP
Loosen the plug of the vacuum gauge (5, fig. 1) and
wait until the fuel flows out.
A
D5809

2509
6
GB

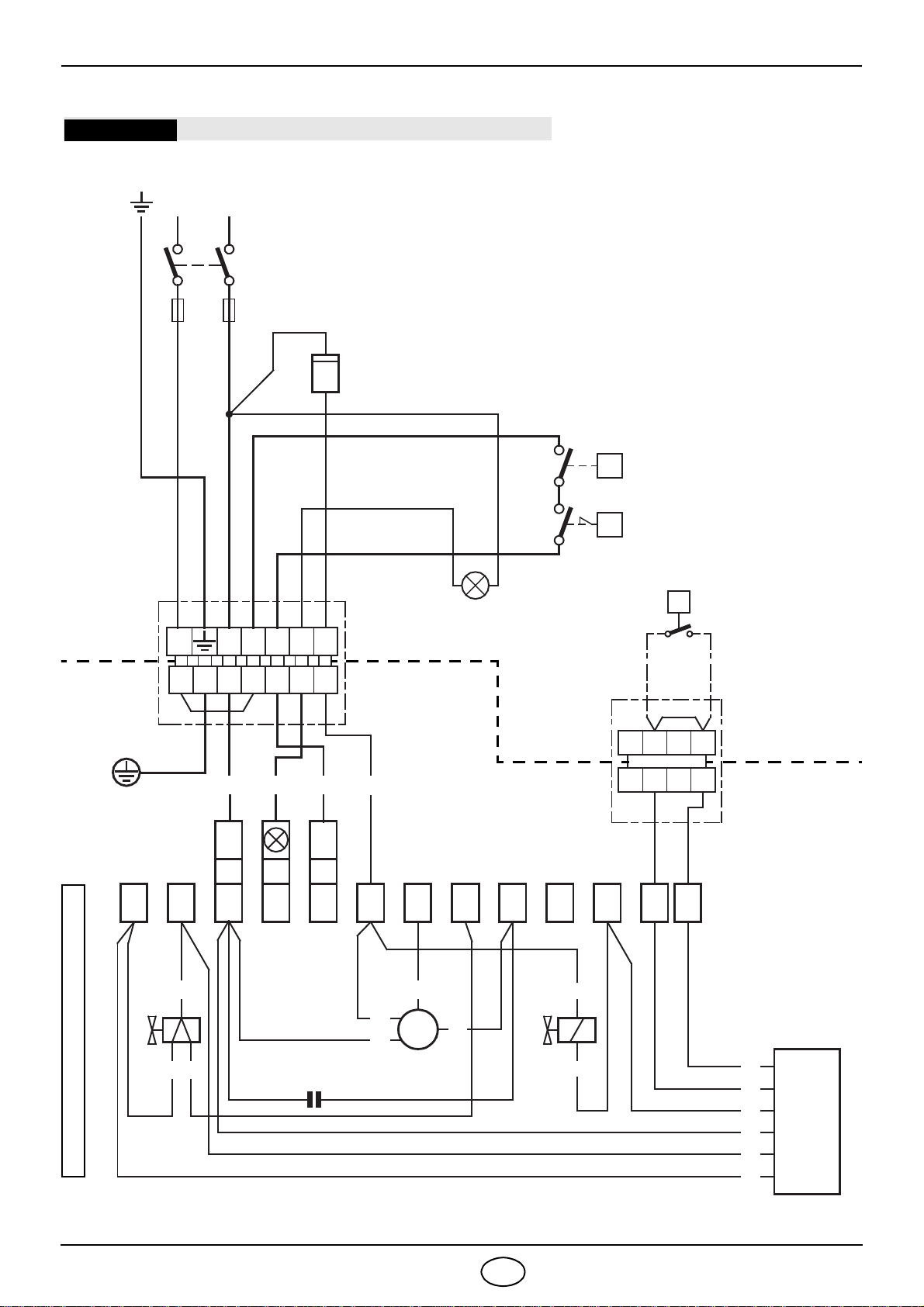

ELECTRICAL WIRING
(50V)
Motor
Capacitor
Limit thermostat
Neutral
Main switch
T6A
M
~
220V ~ 60Hz
L N
Safety thermostat
Remote lock-out signal
(230V - 0.5A max.), if required
1 N T1 T2 S3B4
1 2
T
T
D5822
CARRIED-OUT IN THE FACTORY
Burners’s
7 pole socket
3 4 5 6 7 8 9 11 12
N L
Yellow/
1
st
Valve
Hour counter
h
WARNING
DO NOT EXCHANGE THE NEUTRAL WITH THE PHASE
NOTES:
– Wires of 1 mm
2
section.
– The electrical wiring carried out by the installer must
be in compliance with the rules in force in the Country.
● Connect 2
nd
stage thermostat between clamps
T6 and T8 removing the bridge.
Boilers’s
7 pin plug
green C D A E
C
A D
C
DA
C
D
B
2
nd
Valve
Terminal block of
control-box 530SE
*
4
6
3
2
1
5
2061425
Economizer
B5 T6 T7 T8 4 pin plug
4 pole socket
T
● 2
nd
stage
thermostat
A= Brown B= White C= Blue D= Black E= Grey

2509
7
GB
CONTROL BOX (See fig. 3)
COMBUSTION ADJUSTMENT
To suit the required appliance output, fit the nozzle, the settings of the combustion head and the
air damper opening in accordance with the following schedule.
Nozzle Pump
pressure Burner output Comb. head adjustment Air damper adjustment
bar kg/h ± 4% 1
st
stage 2
nd
stage
GPH Angle 1
st
2
nd
1
st
2
nd
Set-point Set-point Set-point
1.35 60° 7 11 3.5 4.5 1.5 2.1 2.5
1.50 60° 7 11 4.2 5.2 1.5 2.5 3.1
1.75 60° 7 11 4.5 5.6 2.0 2.5 3.0
2.00 60° 7 11 5.7 7.1 3.0 2.8 3.5
2.25 60° 7 11 6.1 7.5 3.0 2.9 3.8
2.50 60° 7 11 6.5 8.2 3.5 3.0 4.2
2.75 60° 7 11 7.6 9.7 4.0 3.5 8.0
3.00 60° 7 10 8.3 10.1 6.0 3.6 8.0
NOZZLES RECOMMENDED: Monarch type R ; Delavan type B
Steinen type S - Q ; Danfoss type S
S7348
Ignition
transformer
Photoresistance
S7057
Fig. 3
To remove the control-box from the burner, loosen screw (A)
and pull towards the arrow.
RUN OF THE ELECTRICAL CABLES
1- Cable grommet
2- Cable-clamp
3- Terminal block
4- Clamps for 2
nd
stage thermostat
5- 4 pole socket for 2
nd
stage thermostat
6- 7 pole socket for burner
N- Neutral
- Lock-out lamp
L- Phase
- Burner-earth
The photoresistance is fitted directly into the
control box (underneath the ignition-transformer)
on a plug-in support.
TESTING
Check the shut-down of the burner by opening the
thermostats.
FUEL KEROSENE
RIELLO 40 G10D TYPE 716 T81
3
1
2
1

2509
8
GB

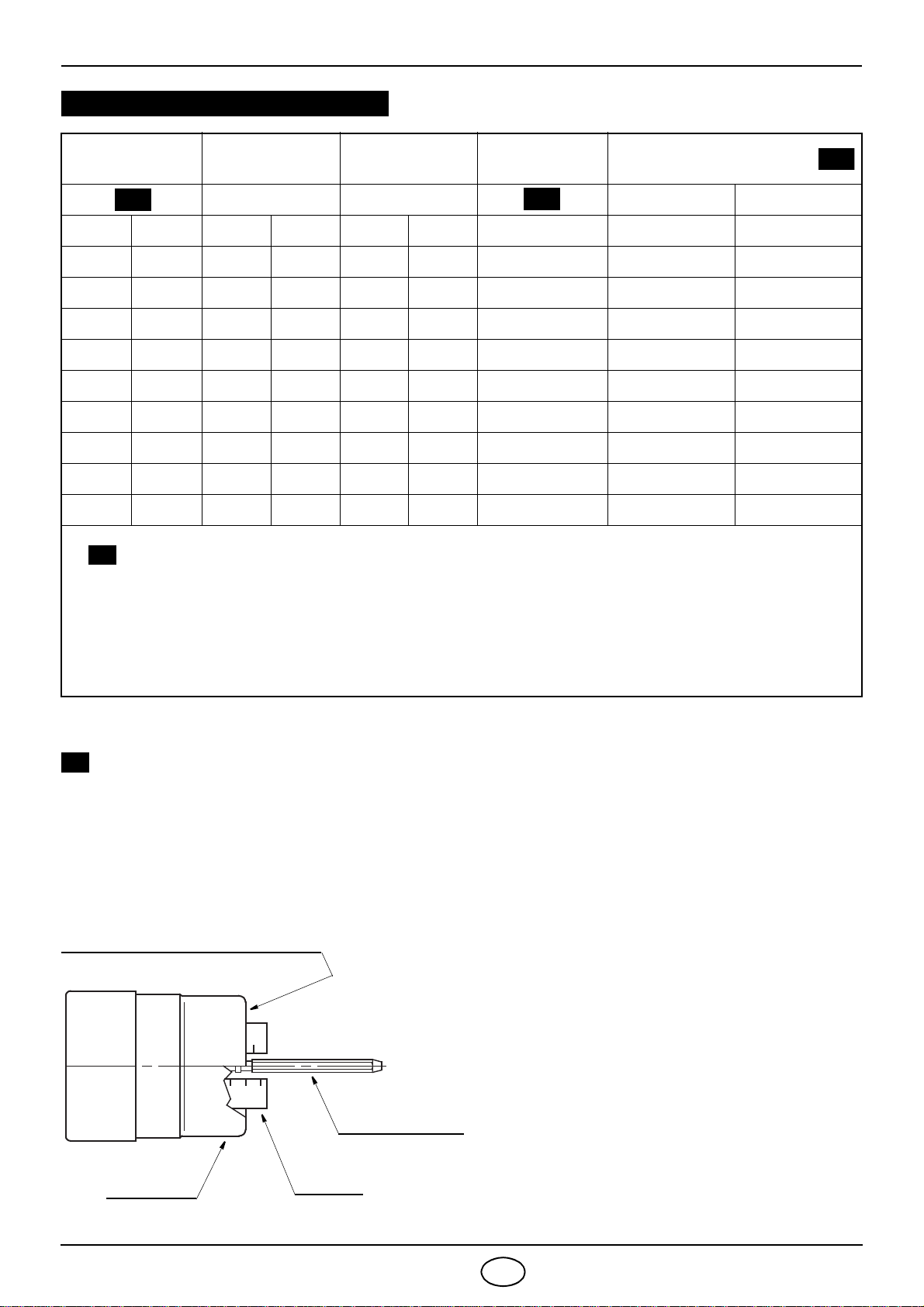

COMBUSTION HEAD SETTING :This is done when fitting the nozzle, with the blast tube
removed. It depends on the output of the burner and is
carried out by rotating the regulating rod, till the terminal
plane of the blast tube is level with the set-point, as indi-
cated in the schedule.
Nozzle Pump
pressure Burner output Comb. head adjustment Air damper adjustment
bar kg/h ± 4% 1
st
stage 2
nd
stage
GPH Angle 1
st
2
nd
1
st
2
nd
Set-point Set-point Set-point
2.25 60° 7 11 6.1 7.7 1.0 1.8 2.1
2.50 60° 7 11 6.9 8.7 1.5 2.0 2.5
2.75 60° 7 11 7.2 9.3 2.0 2.0 2.5
3.00 60° 7 11 7.9 10.0 2.5 2.1 2.7
3.50 60° 7 11 9.2 11.8 3.0 2.5 2.8
4.00 60° 7 11 11.0 14.3 3.5 2.8 3.4
4.50 60° 7 11 12.1 15.6 4.0 2.9 3.8
5.00 60°/45° 7 11 13.8 17.7 4.5 3.5 4.5
5.50 60°/45° 7 11 15.1 19.5 5.0 3.5 5.5
NOZZLES RECOMMENDED: Monarch type R - PLP ; Delavan type B
Steinen type S - SS ; Danfoss type S
Angle : 60° : in most cases. Particularly suited to avoid
flame-detachment during ignition.
45° : for narrow and long combustion-chambers.
RIELLO 40 G20D TYPE 717 T81
3
1
2
1
2
In the sketch on the left, the combustion
head is set for an output of 2.00 GPH
for type 716T81 and 3.50 GPH for type
717T81 at 7/11 bar, while the shutter is
level with set-point 3, as required by the
above schedule.
Blast tube
Regulating rod
Shutter
Terminal plane of the blast tube
D5398
2
135

2509
9
GB
Combustion head settings indicated in the schedule are valid for most cases.
The setting of the fan output according to the installation should normally be done only through the air
damper. Should one subsequently want to retouch also the setting of the combustion head, with the
burner running, operate on the rod (1) with a 6 mm spanner (2) as follows:
Turn to the right: (sign
+ ), in order to increase the
volume of air entering the combustion chamber and
thus diminishing its pressure.
There is a reduction of CO
2
and the adhesion of the
flame to the air diffuser disc improves. (Setting advisa-
ble for ignitions at low temperatures).
Turn to the left: (sign – ), in order to reduce the vol-
ume of air entering the combustion chamber and thus
increasing its pressure. The CO
2
improves and the
adhesion of the flame to the diffuser tends to reduce.
(This setting is not advisable for ignitions at low tem-
peratures).
In any case do not bring the combustion head setting
more than one point away from that indicated in the
schedule. One set-point corresponds to 3 turns of the
rod; a hole (3) at its end facilitates counting the num-
ber of turns.
AIR DAMPER ADJUSTMENT :
The settings indicated in the schedule refer to the burner with its metal cover fitted and the combustion
chamber with “zero” depression. These regulations are purely indicative.
Each installation however, has its own unpredictable working conditions: actual nozzle output; positive
or negative pressure in the combustion-chamber, the need of excess air, etc. All these conditions may
require a different air-damper setting.
It is important to take account of the fact that the
air output of the fan differs according to whether
the burner has its metal cover fitted or not.
Therefore we recommended to proceed as follows:
– adjust the air damper as indicated in the table;
– mount the cover, simply by means of the upper
screw;
– check smoke number;
– should it become necessary to modify the air out-
put, remove the cover by loosening the screw,
adjust the air damper, remount the cover and
finally recheck the smoke number.
NOTE:
When the burner works at a firing rate higher
than 9 kg/h for type 716T81 and 18 kg/h for type
717T81 remove the panel fitted inside the metal
cover. (See figure).
1
2 3
6
D8068
3
PANEL
S7350

2509
10
GB
PUMP PRESSURE AND AIR OUTPUT
The burner is provided with an hydraulic device controlled by the economizer which reduces to
approx. 70% the max. output of light oil and air.
1st STAGE ADJUSTMENT
Adjustment of air shutter: place the small plug (9) of the economizer (10) into the position I
(Item A). In this way the burner will remain permanently in the 1
st
stage.
Unloosen the nut (2), turn the screw (3) until the air shutter (1) reaches the position desired.
Then lock the nut (2).
Pressure regulation: this is set at 7 bar at the factory.
Should such pressure be reset or changed, just turn the screw (4). The pressure gauge must be
mounted in place of cap (5).
2nd STAGE ADJUSTMENT
Adjustment of air shutter: place the small plug (9) of the economizer (10) into the position II
(Item B). In this way the burner remains permanently in the 2
nd
stage.
Unloosen the nut (6), turn the screw (7) until the air shutter (1) reaches the position desired. Then
lock the nut (6).
Pressure regulation: this is set at 11 bar at the factory.
Should such pressure be reset or changed, just turn the screw (8). The pressure gauge must be
mounted in place of cap (5).
S7347
S7346
II-I
II
I
9
II-I
II
I
9
Item A Item B

2509
11
GB
ELECTRODES ADJUSTMENTS
BURNER START-UP CYCLE
ECONOMIZER
This economizer showed in fig. on the right can be wired to a
2
nd
stage thermostat; in this case it performs two functions:
1. Delay of 5 - 6 seconds in the intervention of the 2
nd
stage valve
against 1
st
stage valve.
2. In relation of the position of the plug A, it determines the type of
required operation:
4± 0.3 mm
D6120
A
A ± 0.5 mm
MOVE THE ELECTRODE
HOLDER BACKWARDS TO
THE END
Attention:
Before assembling or remov-
ing the nozzle, loosen the
screw (A) and move the elec-
trodes ahead.
TYPE 716 T81 717 T81
A4.5 6.5
Normal Lock-out, due to light-failure
Thermostat
Motor
Ignition transformer
1
st
stage valve
2
nd
stage valve
Lock-out lamp
~ 12s
D5810
~ 12s ~ 5s ~ 5s
S7355
II-I
II
I
II-I
II
I
II-I
II
I
Position I - II =Burner operation in 1
st
or 2
nd
stage on request
of the 2
nd
stage thermostat.
Position II =Burner operation only in 2
nd
stage - compulsorily.
Position
I =Burner operation only in 1
st
stage - compulsorily.
A

2509
1
E
ESPA Ñ OL
DATOS TÉCNICOS
◆ Quemador con marca CE conforme a las Directivas CEE: Directiva Máquinas 2006/42/CE, Directiva
Baja Tensión 2006/95/CE, Compatibilidad Electromagnética 2004/108/CE y Rendimientos 92/42/EEC.
◆
Nivel de protección del quemador IP 40 según EN 60529 .
TIPO 716 T81 717T81
Potencia térmica 44 / 54 ÷ 120 kW 71 / 95 ÷ 231 kW
Caudal 3,7 / 4.5 ÷ 10 kg/h 6 / 8 ÷ 19,5 kg/h
Combustible Kerosene, viscosidad 1.6
÷ 6 mm
2
/s a 20 °C (Hi= 11,97 kWh/kg)
Gasóleo, viscosidad 4 ÷ 6 mm
2
/s a 20 °C (Hi= 11,86 kWh/kg)
Alimentación eléctrica Monofásica, 220V + 10% – 15%
~
60Hz
Motor 1,1A absorbidos
3300 rpm – 345 rad/s 2,15A absorbidos 3250 rpm – 340 rad/s
Condensador 2,5 µF 4 µF
Transformador de encendido Secundario 8 kV – 16 mA
Bomba Presión: 8 ÷ 15 bar
Potencia eléctrica absorbida 0,2 kW 0,4 kW
1– Retorno
2– Aspiración
3– Conexión manómetro
4– Regulador de presión, 2
a
llama
5– Conexión vacuómetro
6– Hidráulico del aire con registro de aire
7– Tornillo de regulación del cabezal
8– Botón de rearme con señalización
de bloqueo
9– Brida con junta aislante
10 – Regulación de la presión, 1
a
llama
11 – Economizador
D8078
Fig. 1

2509
2
E
CAMPO DE TRABAJO (según EN 267)
0,8
0
0,4
345 Caudal de gasóleo - kg/h
40 50 120 Potencia térmica - kW D5815 60 70 80 90 100
0,2
0,6
Presión en la cámara de
combustión - mbar
6 7 9 108
110
1,0
1,2
3.7
3,2
0
1,6
468
Caudal de gasóleo - kg/h
60 90 Potencia térmica - kW
D6122
120 150 180 210 240
0,8
2,4
10 12 16 2014
4,0
18
716 T81
717 T81
Presión en la cámara de
combustión - mbar

2509
3
E
DIMENSIONES
MATERIAL SUMINISTRADO
Cantidad Descripción
2
1
4
1
1
1
1
Tubos flexibles con racords
Brida con junta aislante
Tornillos y tuercas para brida
Conjunto mantenimiento
Tornillo con dos tuercas para brida
Conector macho de 7 contactos
Conector macho de 7 contactos
Brida Quemador
305 108 261
140
=
40
45°
262
11
204
D5670
=
189
83 83
170
45°
ø
105
RIELLO 40 G10D TIPO 716T81
RIELLO 40 G20D TIPO 717T81
Brida Quemador
350 118 295
160
=
41
45°
ø
125
298
11
230
D5283
=
213
99 99
190
45°

2509
4
E
INSTALACIÓN
Fig. 6 Compruebe que una vez instalado el quemador quede ligera-
mente inclinado hacia abajo. (Ver fig. 6).
Es posible conectar los tubos de alimentación del gasóleo a
ambos lados del quemador.
D5572
FIJACIÓN A LA CALDERA
➣ Introduzca en la brida (1) el tornillo y las dos tuercas, (ver fig. 2).
➣ Ensanche, si es necesario, los agujeros de la protección aislante (5), (ver fig. 3).
➣ Fije a la portezuela de la caldera (4) la brida (1) mediante los tornillos (2) y (si es necesario) las tuercas
(3) interponiendo la protección aislante (5), (ver Fig. 4).
POSICIÓN DE MANTENIMIENTO
Accesibilidad al cabezal de combustión, al grupo disco estabilizador - electrodos y a la boquilla, (ver
Fig. 5).
➣ Retirar el quemador de la caldera luego de haber quitado la tuerca de fijación a la brida.
➣ Enganchar el quemador a la brida (1), sacar el cabezal de combustión (6) luego de haber aflojado los
tornillos (7).
➣ Extraer del portaboquilla (8) el grupo soporte del disco estabilizador (9) luego de haber aflojado el torni-
llo.
➣ Enroscar la boquilla (10).
D5012
Fig. 2
1
Fig. 3
5
E9022
D8058
1
Fig. 4
43
2
2
5
1
10
9
8
7
6
Fig. 5
D8056 D8057

2509
5
E
INSTALACIÓN HIDRÁULICA
Atención: antes de poner en funcionamiento el quemador hay que asegurarse de que el tubo de
retorno del combustible no esté obstruido. Una contrapresión excesiva causaría la rotura
del órgano de estanquidad de la bomba.
No hay que sobrepasar la depresión
máx. de 0,4 bar (30 cm Hg). Por encima
de este valor se produce la gasificación
del combustible.
Las tuberías deben ser perfectamente
estancas. En las instalaciones por de-
presión, la tubería de retorno debe lle-
gar a la misma altura que la de
aspiración. En este caso nose necesita
válvula de pie.
En cambio, si la tubería de retorno llega
por encima del nivel del combustible, la
válvula de pie es indispensable. Esta se-
gunda solución es menos segura que la
precedente debido a la eventual falta de
estanquidad de esta válvula.
CEBADO DE LA BOMBA
Encienda el quemador y espere el ce-
bado. Si el bloqueo del quemador se
produce antes de la llegada del com-
bustible, esperar como mínimo 20 se-
gundos e iniciar de nuevo esta
operación.
◆ Controle periódicamente las condiciones de los tubos flexibles. Cuando se utiliza kerosene estos
se deben sustituir cada 2 años.
◆ Coloque un filtro de taza de metal con filtro micrónico sustituible en el tubo de alimentación de aceite.
ATENCIÓN
La bomba está prevista para funcionar en bitubo.
Para el funcionamiento monotubo se debe quitar el tornillo de
by-pass (A), (ver la figura).
H max. 4 m
H
H
max. 4 m
min. 0.1 m
D5219
D5220
H= Diferencia del nivel .
L= Longitud máx. del tubo
de aspiración.
ø i = Diámetro interior del
tubo .
CEBADO DE LA BOMBA
Desenrosque el tapón de la conexión del vacuó-
metro (5, fig. 1) y espere que salga combustible.
A
D5809
H
metros
L metros
ø i
8 mm
ø i
10 mm
0,5
1
1,5
2
10
20
40
60
20
40
80
100
H
metros
L metros
ø i
8 mm
ø i
10 mm
0
0,5
1
1,5
2
3
3,5
35
30
25
20
15
8
6
100
100
100
90
70
30
20

2509
6
E
CONEXIONES ELÉCTRICAS
(50V)
Termóstato de regulación
Neutro
Interruptor general
T6A
M
~
220V ~ 60Hz
L N
Termóstato de seguridad
1 N T1 T2 S3 B4
1 2
T
T
D5822
EJECUTADO EN FÁBRICA
3 4 5 6 7 8 9 11 12
N L
Amarillo/
Electroválvula 1
a
llama
Cuentahoras
h
NOTAS:
– Sección de los conductores: 1 mm
2
mín.
(Salvo indicaciones diferentes de normas y leyes
locales).
– Las conexiones eléctricas efectuadas por el instala-
dor deben cumplir la normativa vigente en el país.
● Conectar el termostato 2
a
llama a los bornes T6 -
T8 eliminando el puente.
Verde
C D A E
C
A D
C
DA
C
D
B
Electroválvula 2
a
llama
Regleta de bornes
de caja de control
530SE
*
4
6
3
2
1
5
2061425
Economizador
B5 T6 T7 T8
T
● Termostato
2
a
llama
A= Marrón B= Blanco C= Azul D= Negro E= Gris
Señalización de bloqueo
a distancia (220V - 0,5A máx.)
Motor
Condensador
ATENCIÓN
NO INVERTIR EL NEUTRO CON LA FASE
Conector
Conector
7 contactos
7 contactos
macho
hembra
Conector macho
4 contactos
Conector hembra
4 contactos
