Riello G5RT MC Quick start guide

20013744 (4) - 04/2011
Installation, use and maintenance instructions
安装 , 使用以及维护说明书
Light oil burner
轻油燃烧器
CODE - 编码 MODEL - 型号 TYPE - 类型
20013624 G5RT MC 447T2
GB
CN
Three stage operation
三段火运行

20013744
GB
INFORMATION ABOUT THE INSTRUCTION MANUAL
INTRODUCTION
The instruction manual supplied with the burner:
- is an integral and essential part of the product and must not be sepa-
rated from it; it must therefore be kept carefully for any necessary
consultation and must accompany the burner even if it is transferred
to another owner or user, or to another system. If the manual is lost
or damaged, another copy must be requested from the Technical
Assistance Service of the area;
- is designed for use by qualified personnel;
- offers important indications and instructions relating to the installation
safety, start-up, use and maintenance of the burner.
DELIVERY OF THE SYSTEM AND THE INSTRUCTION MAN-
UAL
When the system is delivered, it is important that:
- The instruction manual is supplied to the user by the system manu-
facturer, with the recommendation to keep it in the room where the
heat generator is to be installed.
- The instruction manual shows:
- the serial number of the burner;
- the address and telephone number of the nearest Assistance
Centre;
- The system supplier carefully informs the user about:
- the use of the system,
- any further tests that may be necessary before the system is
started up,
- maintenance and the need to have the system checked at least
once a year by the manufacturer or another specialised techni-
cian.
To ensure a periodic check, recommends the drawing up
of a Maintenance Contract.
..................................................................................
..................................................................................
..................................................................................
..................................................................................

1 20013744
GB
TECHNICAL DATA
BURNER DESCRIPTION
BURNER EQUIPMENT
Flexible pipes with nipples. . . . . . . . . . . N. 2 Screws and nuts for flange. . . . . . . . . . . . . . N. 4
Screw with two nuts for flange. . . . . . . . N. 1 Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. 1
Insulating gasket . . . . . . . . . . . . . . . . . . N. 3
TYPE 447T2
Thermal power – output 26 / 35.5 ÷ 66.4 kW – 2.2 / 3 ÷ 5.6 kg/h
Fuel Gas oil, max. viscosity at 20 °C: 6 mm2/s (1.5°E)
Electrical supply Single phase, 230 V ± 10% ~ 50Hz
Motor Run current 0.75 A –2850 rpm – 298 rad/s
Capacitor 4 F
Ignition transformer Secondary 8 kV –16 mA
Pump Pressure: 7 ÷ 15 bar
Absorbed electrical power 0.185 kW
D8390
3
4
6
8
1
2
7
5
123
9
10
Fig. 1

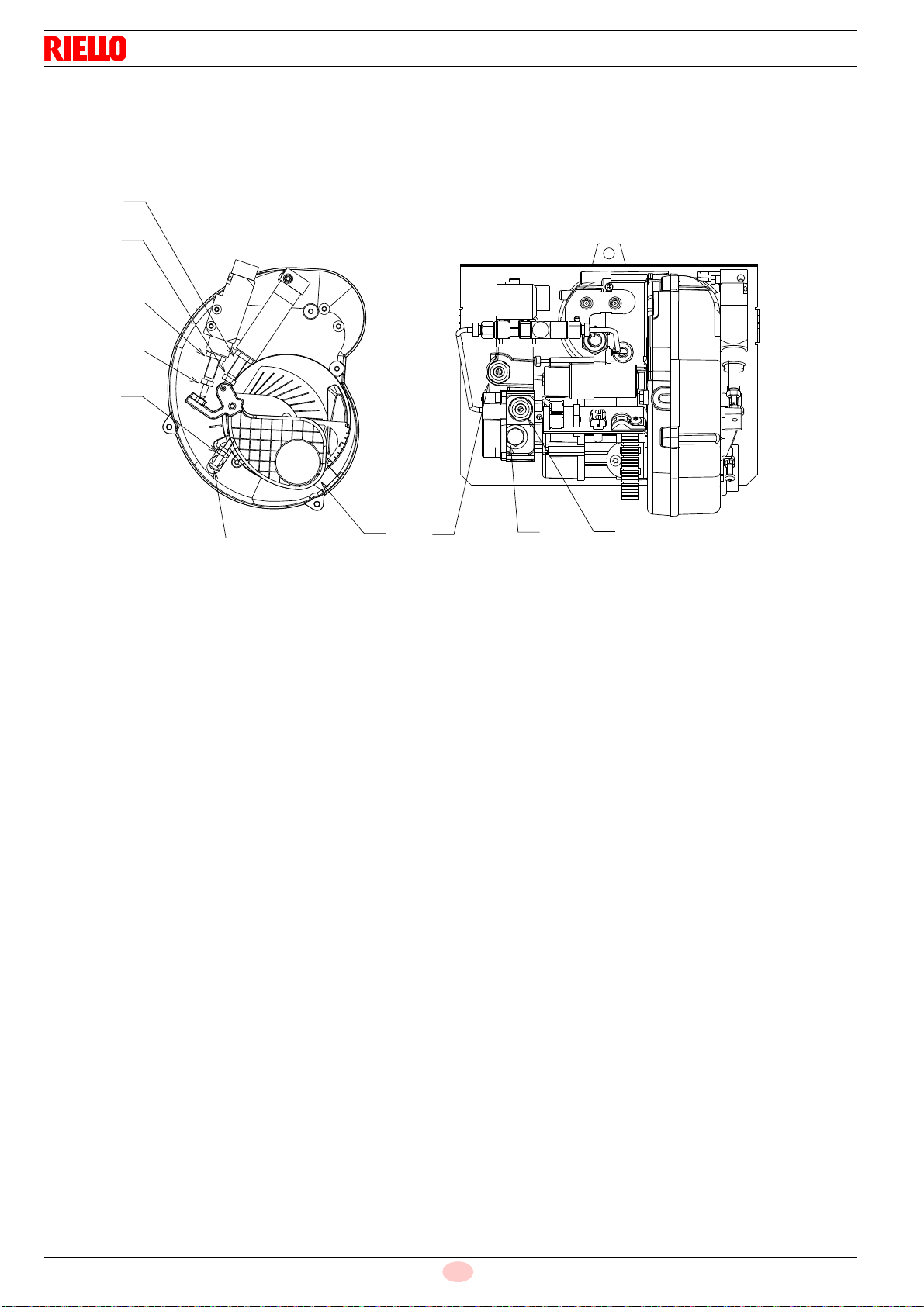

1– Return line
2– Suction line
3– Gauge connection
4– Pressure regulator, 2nd - 3rd stage
5– Vacuum gauge connection
6– Hydraulic jacks with air-damper
7– Combustion head adjustment screw
8– Lock-out lamp and reset button
9 – Regulation pressure, 1st stage
10 – Selector, 1st - 2nd - 3rd stage

20013744 2
GB

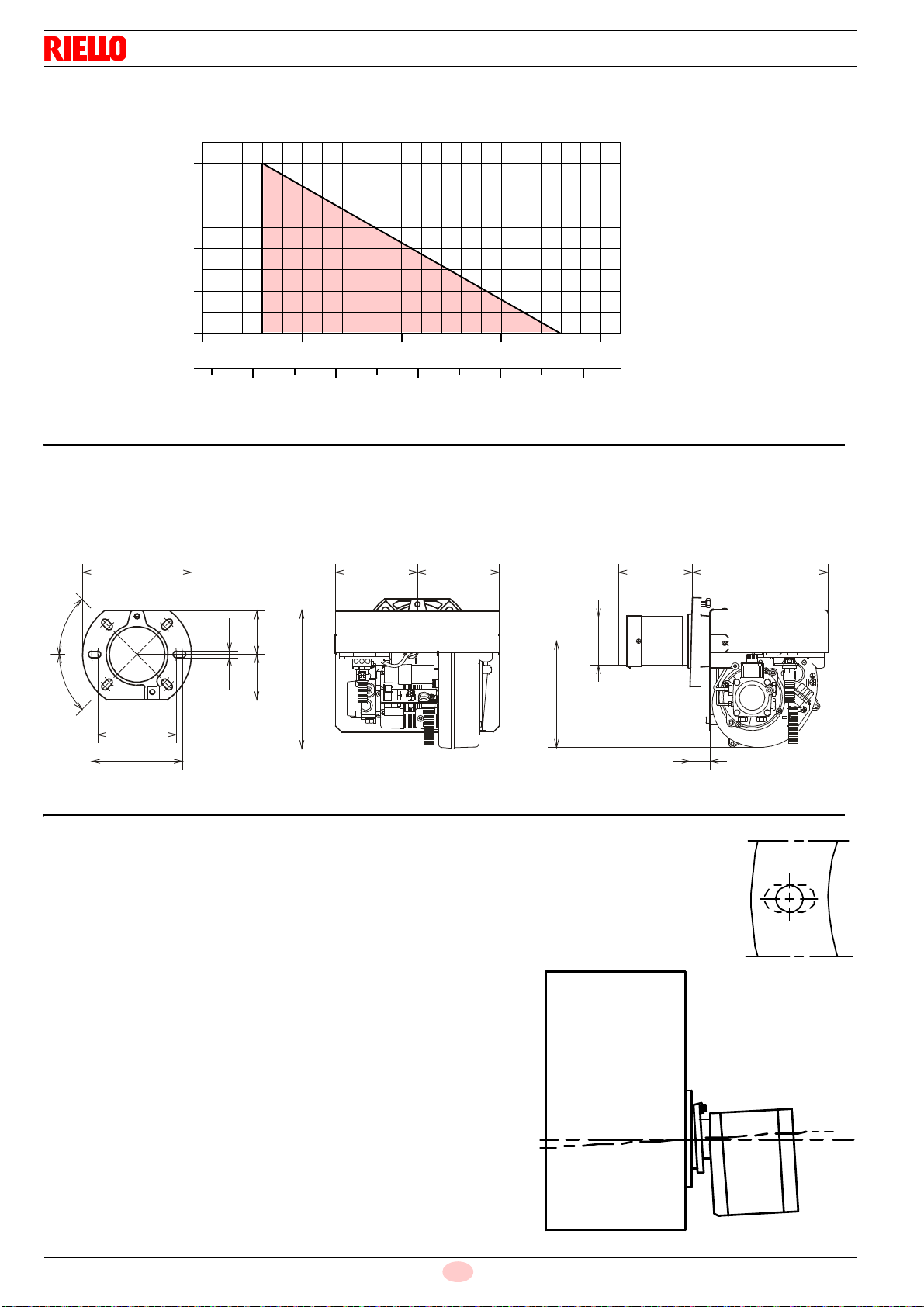

FIRING RATE
DIMENSIONS
BOILER FIXING
It is necessary that the insulating gasket is placed
between the boiler door and the burner flange.
This insulating gasket has six holes, which, if
necessary, can be modified as shown on the
drawing on the right.
Verify that the installed burner is lightly
leaned towards the button (Fig. 2).
The burner is designed to allow entry of the
flexible oil-lines on either side of the burner.
Pressure in the combustion
chamber – mbar
0.8
0
0.4
Light oil output - kg/h
40 70 Thermal power - kW
D8791
50 60
0.2
0.6
30
24563
270 122 224
130
=
33
45°
ø80
228
11
175
D4646
=
180
75 72
150
45°
Flange Burner
D5242
Fig. 2
D5572

3 20013744
GB
HYDRAULIC SYSTEMS
WARNING: before starting the burner make sure that the return pipe-line is not clogged:
any obstruction would cause the pump seals to break.
H
meters
L meters
I.D.
8 mm I.D. 10 mm
0.5
1
1.5
2
10
20
40
60
20
40
80
100

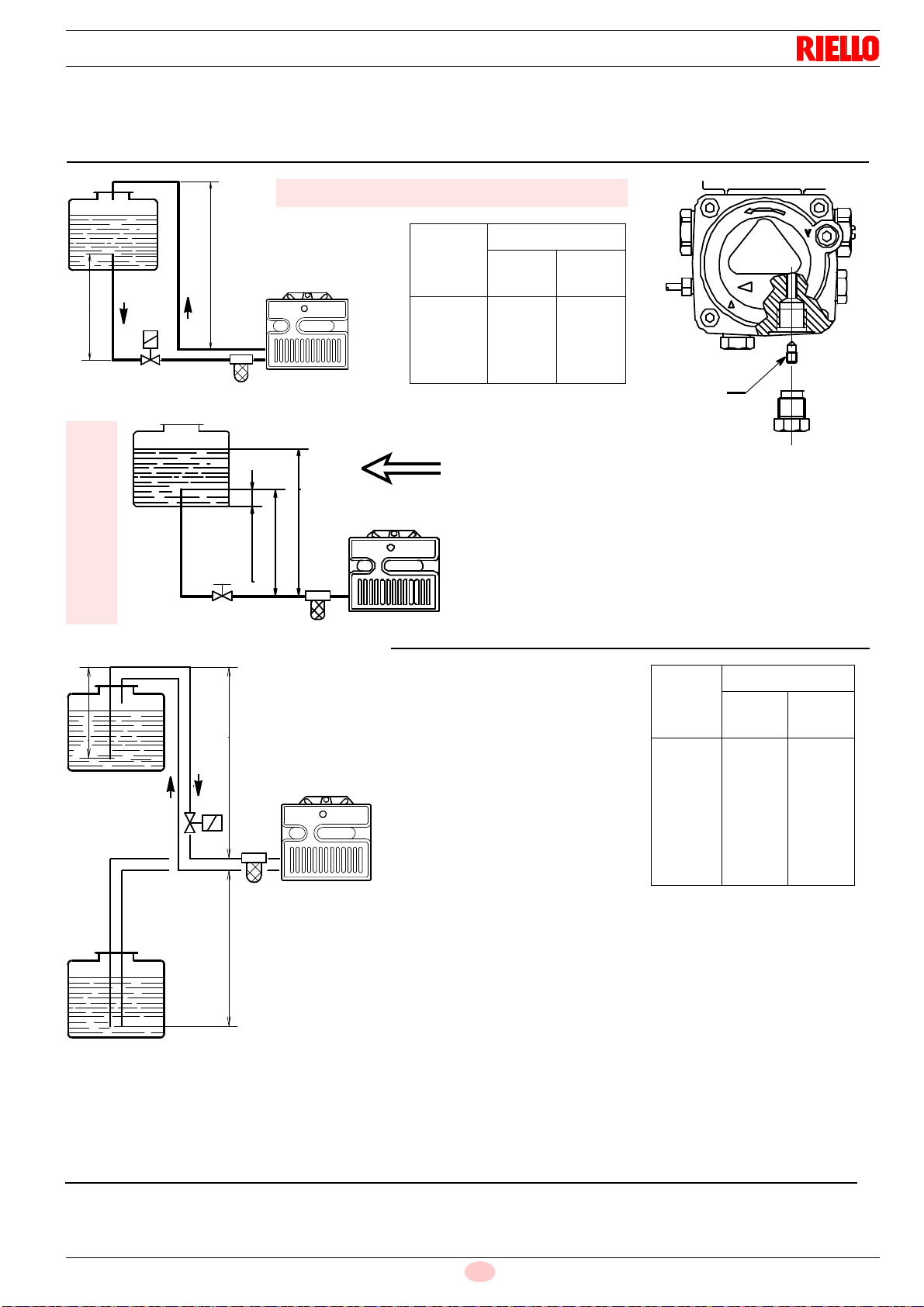

The pump vacuum should not
exceed a maximum of 0.4 bar
(30 cm Hg).
Beyond this limit gas is released
from the oil.
Oil lines must be completely
airtight. The return line should
terminate in the oil tank at the
same level as the suction line.
In this case a non-return valve is
not required.
H
meters
L meters
I.D.
8 mm I.D. 10 mm
0
0.5
1
1.5
2
3
3.5
35
30
25
20
15
8
6
100
100
100
90
70
30
20
H max. 4 m
HH
max. 4 m
D5493
D5376
H
max. 4 m
min.0.1m
D5219

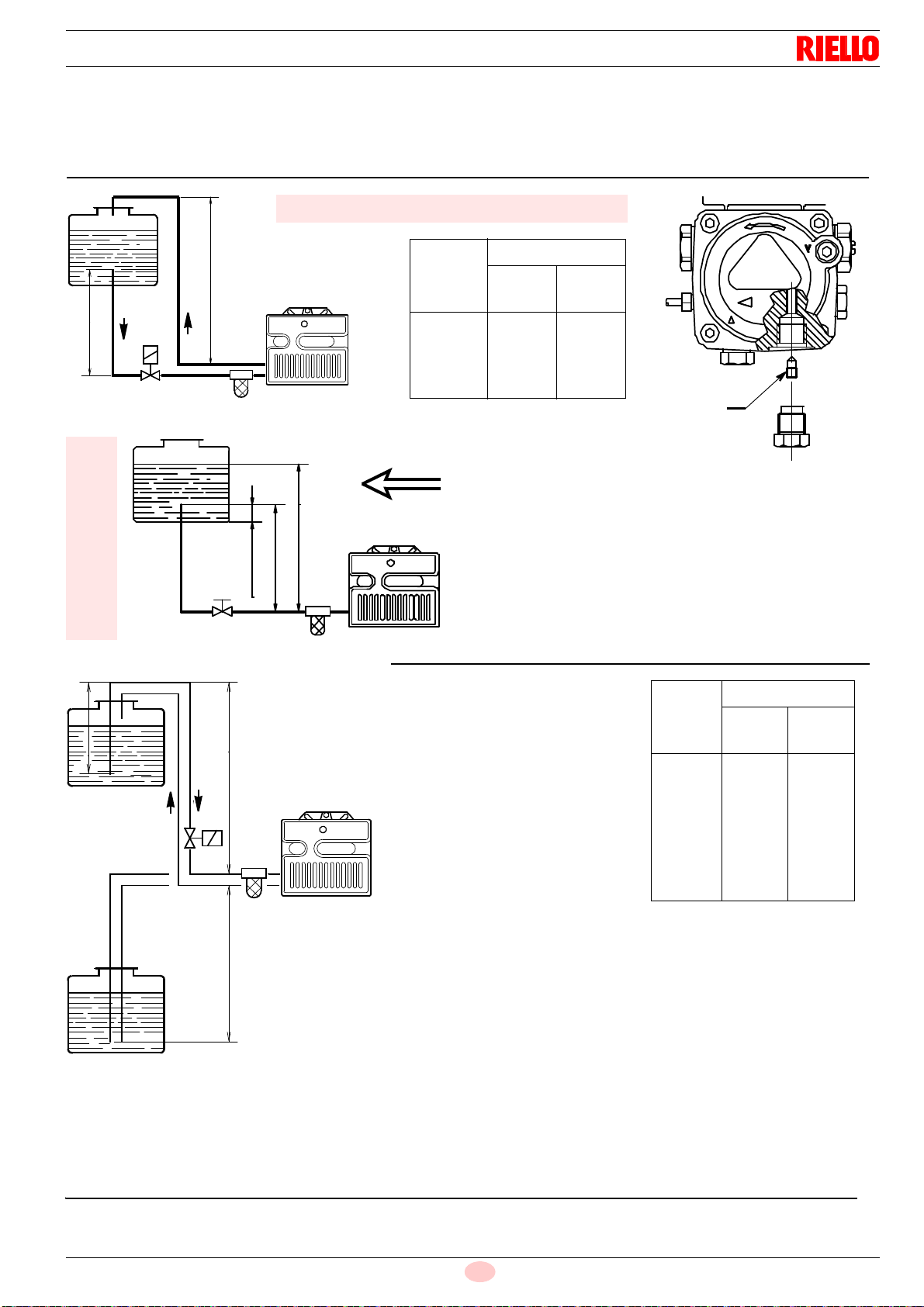

SYSTEMS NOT PERMITTED IN GERMANY
A
WARNING
The pump is supplied for use with a two pipe sys-
tem. For use on a one pipe system, it is necessary
to remove the by-pass screw (A).
Priming the pump
Loosen the plug of the vacuum gauge (5, Fig. 1,
page 1) and wait until the fuel flows out.
SYSTEM NOT
PERMITTED IN ITALY
When the return line arrives over the fuel level, a non-return
valve must be used.
This solution however is less safe than previous one, due to
the possibility of leakage of the valve.
Priming the pump
Start the burner and wait for the priming. Should lock-out
occur prior to the arrival of the fuel, await at least 20 seconds
before repeating the operation.
A filter must be installed on the suction fuel line.
H= Difference of level; L= Max. length of the suction line; ø i = Internal diameter of the oil pipes.
D5809

20013744 4
GB
HYDRAULIC CIRCUITS
KEY
S- Pump with filter and pressure regulator (high pressure)
VR1 (NO) -1
st stage oil return valve normally open
VR2 (NO) -2
nd stage oil return valve normally open
VR3 (NC) -3
rd stage oil return valve normally close
AD2 - Air damper hydraulic jack for the 2nd stage
AD3 - Air damper hydraulic jack for the 3rd stage
PR1 -1
st stage oil regulator (low pressure)
PR2 -2
nd- 3rd stage oil regulator (high pressure)
GV -ValveUnit
U1 -1
st-2nd stage nozzle
U2 -3
rd stage nozzle
VR 1
PR2
AD AD
2 3
PR1 GV
VR 2
VR 3
S
U2
U1
D9511

5 20013744
GB
ELECTRICAL WIRING
E
123 56789
10 11 12
123 123 12
4
123
AB
NL
230V ~ 50Hz
TL
TS
6A
M
1
~
V1 MV2 R
V3
NL
BN BU BK BK WH BU
BU BK
BU BN
GY BK BN
C
FR
I
II
III
D8393 CONTROL BOX
BURNER SWITCH
Fig. 3 230V ~ 50Hz NOTES
Wires of 1 mm2section.
The electrical wiring carried out by the installer
must be in compliance with the rules in force in
the Country.
The cables of the electrodes must be kept
away from the rest of the connections.

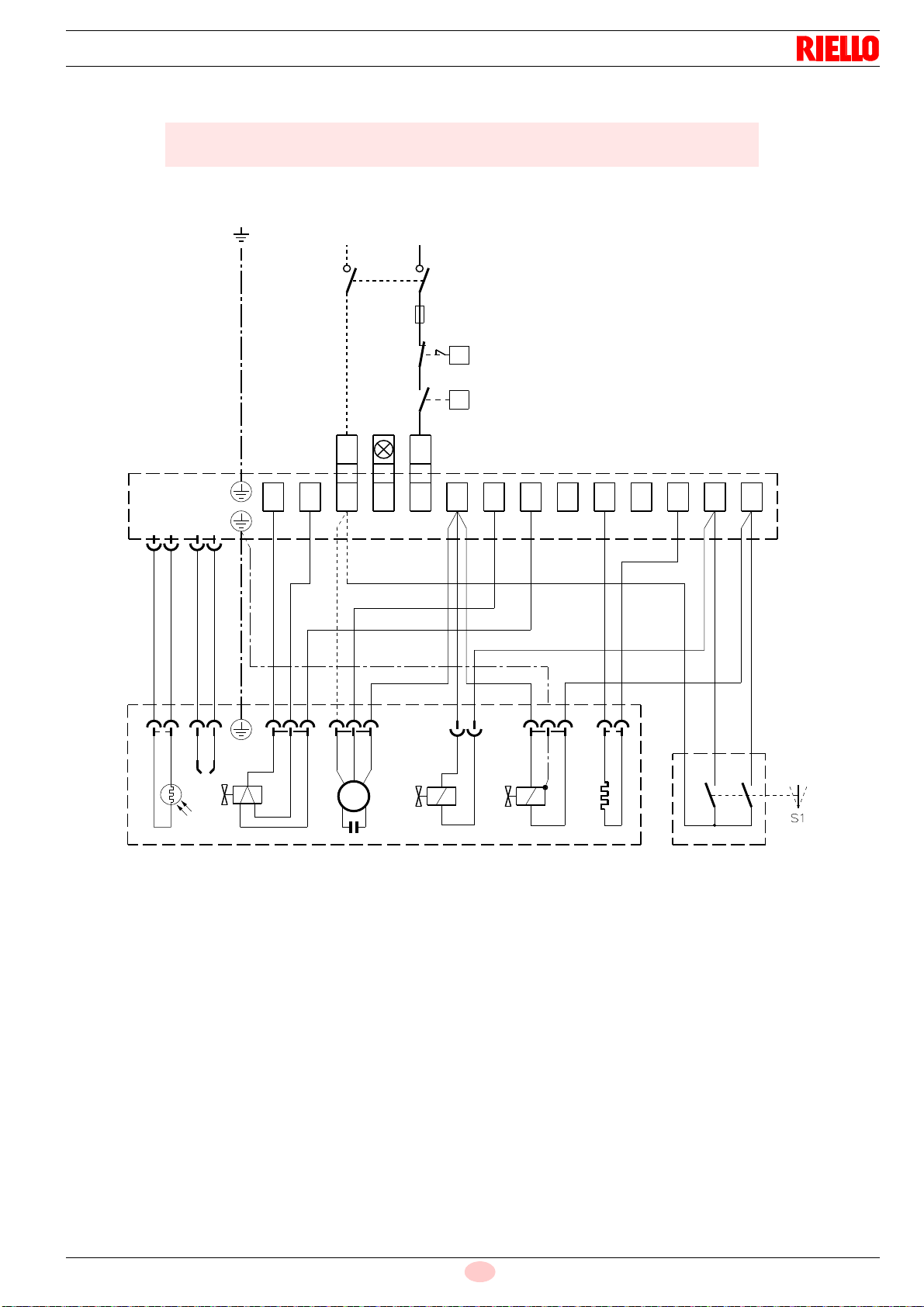

KEY (Fig. 3)
C- Capacitor
E-Electrodes
FR -Photocell
M- Motor
R- Heater
S- Selector, 1st -2nd -3rd stage
T-Thermostat
TS - Safety thermostat
V1 -1
st stage valve
V2 -2
nd stage valve
V3 -3
rd stage valve
A-B- Auxiliary clamps
BK -Black
BN -Brown
BU -Blue
GY -Grey
WH -White
WARNING: do not exchange the neutral with the phase.

20013744 6
GB
COMBUSTION ADJUSTMENT
In conformity with Efficiency Directive 92/42/EEC the application of the burner on the boiler, adjustment and
testing must be carried out observing the instruction manual of the boiler, including verification of the CO and
CO2concentration in the flue gases, their temperatures and the average temperature of the water in the
boiler.
To suit the required appliance output, fit the nozzle, the settings of the combustion head and the air damper
opening in accordance with the following schedule.
The values shown in the table are measured on a CEN boiler (as per EN 267).
They refer to 12.5% CO2at sea level and with light oil and room temperature of 20°C.
(* see Fig. 7, page 8)
NOZZLES RECOMMENDED: Monarch type R Danfoss type S
Delavan type W - E Satronic type S
Steinen type Q
COMBUSTION HEAD SETTING: This is done when fitting the nozzle, with the blast tube removed. It
depends on the output of the burner and is carried out by
rotating the regulating rod, till the terminal plane of the blast tube
is level with the set-point, as indicated in the schedule.
For this application, the head should be
fully open (at notch 6).

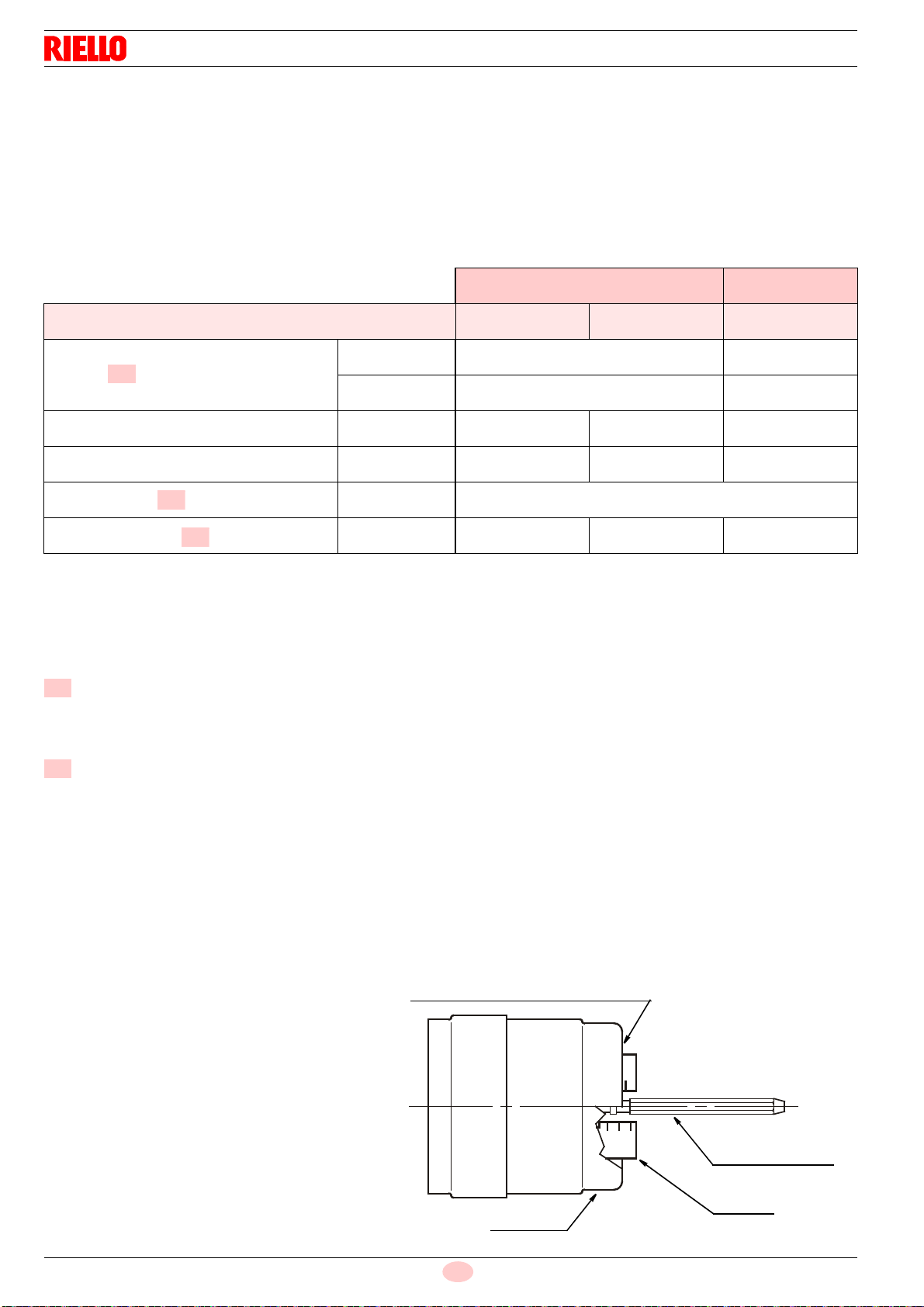

Nozzle 1* Nozzle 1* + 2*
Stage 1st 2nd 3rd
Nozzle GPH 0.65 0.65 + 0.60
Angle 60° 60°
Pump Pressure bar 10 15 15
Burner output kg/h 2.2 3.0 5.6
Comb. head adjustment Set-point 6
Air damper adjustment Set-point 2.5 3.0 8.0
1
2
3
1
2
135
D5582
Terminal plane of the blast tube
Regulating rod
Shutter
Blast tube
2
Fig. 4

7 20013744
GB
Combustion head settings indicated in the schedule are
valid for most cases.
The setting of the fan output according to the installa-
tion should normally be done only through the air
damper. Should one subsequently want to retouch also
the setting of the combustion head, with the burner run-
ning, operate on the rod (1) with a 6 mm spanner (2) as
follows:
TURN TO THE RIGHT: (SIGN +)
In order to increase the volume of air entering the com-
bustion chamber and thus diminishing its pressure.
There is a reduction of CO2and the adhesion of the
flame to the air diffuser disc improves.
(Setting advisable for ignitions at low temperatures).
TURN TO THE LEFT: (SIGN –)
In order to reduce the volume of air entering the combustion chamber and thus increasing its pressure. The
CO2improves and the adhesion of the flame to the diffuser tends to reduce. (This setting is not advisable for
ignitions at low temperatures).
In any case do not bring the combustion head setting more than one point away from that indicated in the
schedule. One set-point corresponds to 3 turns of the rod; a hole (3) at its end facilitates counting the number
of turns.
AIR DAMPER ADJUSTMENT: The settings indicated in the schedule refer to the burner with
its metal cover fitted and the combustion chamber with “zero”
depression. These regulations are purely indicative.
Each installation however, has its own unpredictable working
conditions: actual nozzle output; positive or negative
pressure in the combustion-chamber, the need of excess air,
etc. All these conditions may require a different air-damper
setting.
It is important to take account of the fact that the air output of the fan differs according to whether
the burner has its metal cover fitted or not.
Therefore we recommended to proceed as follows:
adjust the air damper as indicated in the schedule (point 3);
mount the cover, simply by means of the upper screw;
check smoke number;
should it become necessary to modify the air output, remove the cover by loosening the screw, adjust the
air damper, remount the cover and finally recheck the smoke number.
2 3
6
D5587
1
Fig. 5
3

20013744 8
GB
PUMP PRESSURE AND AIR OUTPUT (Fig. 6)
The burner is provided with an hydraulic device controlled by the economizer which reduces to approx. 70%
the max. output of gas oil and air.
1st STAGE ADJUSTMENT (with selector on Pos. 1)
Adjustment of air shutter:
Unloosen the nut (9) turn the screw (10) until the air shutter (1) reaches the position desired.
Then lock the nut (9).
Pressure regulation:
this is set at 10 bar at the factory.
Should such pressure be reset or changed, just turn the screw (4).
The pressure gauge must be mounted in place of cap (5).
2nd STAGE ADJUSTMENT (with selector on Pos. 2)
Adjustment of air shutter:
Unloosen the nut (2) turn the screw (3) until the air shutter (1) reaches the position desired.
Then lock the nut (2).
3rd STAGE ADJUSTMENT (with selector on Pos. 3)
Adjustment of air shutter:
Unloosen the nut (6) turn the screw (7) until the air shutter (1) reaches the position desired.
Then lock the nut (6).
Pressure regulation (2° - 3° stadio):
this is set at 15 bar at the factory.
Should such pressure be reset or changed, just turn the screw (8).
The pressure gauge must be mounted in place of cap (5).
1
2
3
6
7
9
10 458
D8384
Fig. 6

9 20013744
GB
FUEL HEATING
In order to obtain smooth starting and operation across its output range the burner is fitted with an electric
resistance, which heats up the gas oil in the nozzle line.
This resistance is energized when the thermostat calls for heat and after a delay of approximately two min-
utes depending on room temperature, the motor will start.
The resistance remains inserted and locks-out on the shut-down of the burner.
ATTENTION
Should you want to cut off the electric resistance (on
setting the burner or when the ambient temperature
does not require it, etc...), take the plug off the panel of
the control box and plug it into the “Resistance OFF”.
In this case the burner starts up when the thermostats
close.
NOTE
The warning light (LED) is ON but when the resistance
works. It is OFF when the resistance is disconnected or
broken.
ELECTRODES ADJUSTMENT
CONTROL BOX 531SE*
PLUG
LED
S7059
Resistance ON
Resistance OFF
±0.3mm4
NOZZLE2 NOZZLE1
A
3-3.5 mm
MEASURES MUST BE RESPECTED AND ALSO THE UPWARDS POSITION.
Before removing or assembling the nozzle, loosen the screw (A) and move the electrodes ahead (Fig. 7).
WARNING
Fig. 7
D8412

20013744 10
GB
FAILURE DETECTION ON HEATING DEVICE
NORMAL OPERATION (Fig. 8)
The plug fitted in the panel is placed in the position corresponding to “Resistance ON” .
When the remote control closes, the LED lights up and, after about two minutes, the burner starts up.
BURNER DOES NOT OPERATE
1) If the LED is OFF, the heating resistance placed in the nozzle-holder is off.
2) If the LED is ON and nevertheless the burner does not run, place the plug in the position corresponding
to “Resistance OFF” (Fig. 9).
If the motor runs, the delaying device inside the control box is out of order.
3) If the motor does not run, it means that the failure is neither in the panel nor in the resistance, but else-
where.
BURNER START-UP CYCLE
*It depends on the selector position.
CONTROL BOX 531SE
PLUG PLUG
S7060
LED
LED
Resistance OFF
Resistance ON
Fig. 8 Fig. 9
*
S7059
~120s D5814 ~120s ~12s~12s ~5s ~5s
Normal Lock-out, due to light-failure
Thermostat
Resistance
Motor
Ignition transformer
1st stage valve
2nd-3rd stage valve
Lock-out lamp
ATTENTION

11 20013744
GB
WARNINGS TO AVOID BURNOUT OR BAD COMBUSTION OF THE BURNER
– When the burner is stopped, the smoke pipe must be opened and effect a natural draught in the
combustion chamber. If the smoke pipe is closed, the burner must be drawn back till the extrac-
tion of blast tube from the furnace. Before operating in this way take the voltage off.
– The place, where the burner works, must have same openings suitable for the passage of air nec-
essary for combustion. To be sure about this, you have to control the smoke number of exhaust
gas with all the windows and doors closed.
– If in the place, where the burner works, there are air-breathings, check the existence of air-input
openings with dimensions suitable for the necessary air-exchange. In any case check that, when
the burner is stopped, the air-breathings do not draw warm smokes from pipes through the
burner.
– Turn the switch to position 1 before stopping the burner.
MAINTENANCE
The burner requires periodic maintenance carried out by a qualified and authorised technician in con-
formity with legislation and local standards.
Periodic maintenance is essential for the reliability of the burner, avoiding the excessive consump-
tion of fuel and consequent pollution.
Before carrying out any cleaning or control always first switch off the electrical supply to
the burner acting on the main switch of the system.
THE BASIC CHECKS ARE:
Check there are no occlusions or obstructions in the inlet or return pipes, in the air suction areas and
in the combustion product waste pipe.
Clean the filter in the oil suction line and in the pump.
Check for correct fuel consumption.
Check that the burner electrical connections are correct.
Replace the nozzle and check the correct position of electrodes.
Clean the combustion head in the fuel exit area.
Check that the positioning of the combustion head is correct and that it is properly fixed to the
boiler.
Check that the air damper is positioned correctly.
Let the burner run at full capacity for about ten minutes, setting all the elements correctly as explained in
this manual. Then carry out the analysis of the combustion by checking:
- Smoke index as per the Bacharach scale; - CO2percentage (%); - CO content (ppm);
- NOx content (ppm); - Smoke temperature at the chimney.

20013744
CN
说明书的相关信息
引言
说明书随燃烧器一起提供：
- 说明书是产品不可或缺的组成部分，不得将其与产品分离；因此必须
小心保存以便查阅，如果将燃烧器转给另一个用户或转移至另一个系
统，则说明书必须跟随燃烧器一起转移。如果说明书损坏或丢失，则
必须从您就近的 RIELLO Technical Assistance Centre（技术支持
中心）索取说明书的复印件；
- 说明书只能由有资格的人员使用；
- 说明书提供了有关燃烧器安装、启动、使用和维护的重要指示和安全
警告。
系统和说明书的交付
一旦交付系统：
- 系统制造商也必须将说明书交付给用户，并建议其将说明书保存在热
发生器的安装区域附近。
- 说明书上显示：
- 燃烧器的序列号；
- 最近 Assistance Centre （支持中心）的地址和电话号码；
- 系统制造商必须告知用户有关以下内容的准确信息：
- 系统的使用；
- 启动系统前需要进行的测试；
- 必需的维护和检查 （每年必须由制造商代表或别的专业技术人员至少
检查系统一次）。
要保证定期检查， 建议遵照 Maintenance Contract （维护合同）
的规定。
..............................................
..............................................
..............................................
..............................................

1 20013744
CN
技术参数
燃烧器说明
燃烧器附件
带接头的软油管 . . . . . . . . . . . . . . . . . . . . . . 2 根 螺栓和螺母. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 套
螺栓并带 2 个螺帽 . . . . . . . . . . . . . . . . . . . . 1 套盖. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 个
隔热垫 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 个
型号 447T2
燃烧器出力 26 / 35.5 ÷ 66.4 kW – 2.2 / 3 ÷ 5.6 kg/h
燃料 轻油 , 20 °C 时的最大黏度 : 6 mm2/s (1.5°E)
电源 单相 , 230V ± 10% ~ 50Hz
电机 运行电流 0.75 A –2850 rpm – 298 rad/s
电容 4 F
点火变压器 次级 8 kV –16 mA
油泵 压力 :7 ÷ 15 bar
耗电量 0.185 kW
3
4
6
8
1
2
7
5
123
9
10
D8390
1–回油管
2–进油管
3–压力表接口
4–油压调压器 , 2 - 3 段火
5–真空表接口接口
6–控制风门挡板的液压装置
7–燃烧头调整螺栓
8–复位按钮和锁定指示灯
9 – 1段火油压调节器
10 – 1-2-3段火选择开关
图. 1

20013744 2
CN
负荷图
外观尺寸
安装燃烧器
在燃烧器法兰和锅炉炉门之间必须安装隔热垫。
隔热垫有 6 个孔，如有必要可按右图图示调节这 6
个孔。
检查安装好的燃烧器，确保燃烧器如图示略微倾斜
(图. 2)。
燃烧器允许软油管从左侧或右侧进入燃烧器。
炉膛背压 -mbar
0.8
0
0.4
轻油喷油量 - kg/h
40 70 燃烧器出力 - kW
D8791
50 60
0.2
0.6
30
24563
270 122 224
130
=
33
45°
ø80
228
11
175
D4646
=
180
75 72
150
45°
法兰 燃烧器
D5242
图. 2
D5572

3 20013744
CN
油路系统
警告 :启动燃烧器前确保回油管路畅通：
回油管路堵塞可能造成油泵密封损坏。
H
米
L米
I.D.
8 mm I.D. 10 mm
0.5
1
1.5
2
10
20
40
60
20
40
80
100
油泵真空度不能超过 0.4 bar
(30 cm Hg)。
超过此限值会导致油气分离。
油管路必须密封不透气。回油管
必须插进油箱油面下，末端和进
油管在同一水平面上。
这种情况下可以不安装止回阀。
H
米
L米
I.D.
8 mm I.D. 10 mm
0
0.5
1
1.5
2
3
3.5
35
30
25
20
15
8
6
100
100
100
90
70
30
20
H最高 . 4 m
HH
最高 4 m
D5493
D5376
H
最高 . 4 m
最低 .0.1m
D5219
此系统在德国禁止使用
A
警告
油泵用于双油管系统。如要单油管运行，必须拆卸掉
旁路螺栓 (A)。
油泵首次启动
松开真空表接口上的螺栓 (5, 图.1, 第1 页)直到有
油溢出。
在意大利禁止使用此系统
回油管末端高出油面时，必须安装止回阀。
由于阀可能存在泄漏，因此此方案不如前一方案安全。
油泵注油
启动燃烧器等待油泵注油。如果油注入油泵前发生锁定，至少
等待 20 秒后再重复此操作。
进油管上必须安装过滤器。
H= 液面高度差； L= 进油管最大长度； ø i = 油管内径。
D5809

20013744 4
CN
液压系统回路
图例说明
S-油泵，带过滤器和出口压力调节器。
VR1 (NO) -1段火电磁阀 （常开）
VR2 (NO) -2段火电磁阀 （常开）
AD2 -3段火风门挡板液压装置
AD3 -2段火风门挡板液压装置
PR1 -1段火油压调节器
PR2 -3 段火油压调节器
GV -阀单元
U1 -1-2 段火喷嘴
VR3 (NC) -3段火电磁阀 （常闭）
U2 -3段火喷嘴
VR 1
PR2
AD AD
2 3
PR1 GV
VR 2
VR 3
S
U2
U1
D9511

5 20013744
CN
电气接线图
E
123 56789
10 11 12
123 123 12
4
123
AB
NL
230V ~ 50Hz
TL
TS
6A
M
1
~
V1 MV2 R
V3
NL
BN BU BK BK WH BU
BU BK
BU BN
GY BK BN
C
FR
I
II
III
D8393 控制盒
燃烧器 选择开关
图. 3 230V ~ 50Hz 注意：
使用横截面面积不小于 1mm2的电缆。
电气接线必须由有资格人员执行，必须遵守本国
现行的法规和规范。
点火电极的电缆必须和其它电缆分开。
图例说明 ( 图. 3)
C-电容
E-点火电极
FR -电眼
M-电机
R-加热器
S- 1-2-3段火选择开关
T-温控器
TS -安全温限开关
V1 -1段火电磁阀
V2 -2
段火电磁阀
V3 -3段火电磁阀
A-B-辅助接点
BK -黑
BN -棕
BU -蓝
GY -灰
WH -白
警告 :不要把零线和相线互换。

20013744 6
CN
燃烧调整
根据效率指令 92/42/EEC 对于使用在锅炉上的燃烧器，调整和测试必须根据锅炉的使用说明书来执行，包括
检验烟气中 CO 和CO2的含量，烟气温度和锅炉内热水的平均温度。
为使燃烧器达到额定的出力，首先安装好合适的喷嘴，然后根据下表对燃烧头的位置和风门挡板开度进行设
置。
下表中的值在 CEN 锅炉上测试得到 ( 根据欧盟燃油燃烧器 EN 267 标准 )。
测试条件为 CO2浓度为 12.5%，海平面高度，轻油，室温 20°C。
(* 见图 .7, 第8页)
推荐的喷嘴 :Monarch R 型Danfoss S 型
Delavan W - E 型Satronic S型
Steinen Q 型
燃烧头的设置 :安装喷嘴时设置，先拆下燃烧筒。根据燃烧器最大出力来设置
（如上表所示），通过旋转调节杆来设置，直到燃烧筒的端面与设定
值刻度对齐。
此应用中，燃烧头应完全打开 ( 在刻度 6)。
喷嘴 1* 喷嘴 1* + 2*
运行阶段 1 2 3
喷嘴 GPH 0.65 0.65 + 0.60
角度 60° 60°
油泵压力 bar 10 15 15
燃烧器出力 kg/h 2.23.05.6
燃烧头调整 设定点 6
风门挡板调整 设定点 2.53.08.0
1
2
3
1
2
135
D5582
燃烧筒端面
调节杆
内风筒
燃烧筒
2
图. 4
