Riello 40 Series Quick start guide

Installation, use and maintenance instructions
Installatie-, gebruiks- en onderhoudsvoorschriften
2902824 (1)
Instrucciones de instalación, uso y mantenimiento
Forced draught gas burner
Gasventilatorbranders
Quemador de gas de aire soplado
CODE - CÓDIGO MODEL - MODELO TYPE -TIPO
3756433 FS10 564T30
GB
NL
E
One stage operation
Eentrapsbranders
Funcionamiento de una llama

2824
1
GB
INDEX
1. BURNER DESCRIPTION
Gas burner with one stage working.
1.1 BURNER EQUIPMENT
Insulating gasket . . . . . . . . . . . . .No. 1 Screws and nuts for flange to be fixed to boiler. . . No. 4
Cable grommet . . . . . . . . . . . . . .No. 1 Screws for fixing the cover . . . . . . . . . . . . . . . . . . No. 3
Hinge. . . . . . . . . . . . . . . . . . . . . .No. 1 7 pin plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No. 1
1. BURNER DESCRIPTION . . . . . . . . . . . 1
1.1 Burner equipment . . . . . . . . . . . . . . . . . 1
2. TECHNICAL DATA . . . . . . . . . . . . . . . . 2
2.1 Technical data. . . . . . . . . . . . . . . . . . . . 2
2.2 Overall dimensions . . . . . . . . . . . . . . . . 2
2.3 Working field . . . . . . . . . . . . . . . . . . . . . 2
3. INSTALLATION. . . . . . . . . . . . . . . . . . . 3
3.1 Boiler fixing . . . . . . . . . . . . . . . . . . . . . . 3
3.2 Probe-electrode positioning. . . . . . . . . . 4
3.3 Gas feeding line . . . . . . . . . . . . . . . . . . 4
3.4 Electrical wiring. . . . . . . . . . . . . . . . . . . 5
3.4.1 Standard electrical wiring . . . . . . . . . . . 5
3.4.2 Electrical wiring with gas leak control
device . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. WORKING . . . . . . . . . . . . . . . . . . . . . . 6
4.1 Combustion adjustment . . . . . . . . . . . . . 6
4.2 Combustion head setting. . . . . . . . . . . . . 6
4.3 Air damper setting. . . . . . . . . . . . . . . . . . 7
4.4 Burner starting . . . . . . . . . . . . . . . . . . . . 7
4.5 Combustion check. . . . . . . . . . . . . . . . . . 7
4.6 Air pressure switch . . . . . . . . . . . . . . . . . 8
4.7 Burner start-up cycle. . . . . . . . . . . . . . . . 8
4.8 Start-up cycle diagnostics . . . . . . . . . . . . 8
4.9 Resetting the control box and using
diagnostics . . . . . . . . . . . . . . . . . . . . . . . 9
5. WARNINGS
to avoid burnout or bad combustion of the
burner . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6. MAINTENANCE . . . . . . . . . . . . . . . . . . . 10
7. FAULTS / SOLUTIONS . . . . . . . . . . . . . . 11
1– Air-damper
2– Screws for fixing the air-damper
3– 7 pole socket for electrical supply
and control
4– 6 pole socket for gas train
5– Cable grommet
6– Screw for fixing the cover
7– Air pressure switch
8– Control box
9– Reset button with lock-out lamp
■CE marking according to Gas Appliance Directive 90/396/EEC; PIN 0063AP6680.
According to Directives: EMC 89/336/EEC, Low Voltage 73/23/EEC and Efficiency 92/42/EEC.
■The burner meets protection level of IP X0D (IP 40), EN 60529.
■Gas train according to EN 676.
NOTES
– The cable grommet (5) supplied with the burner, must be fitted to the same side of the gas train.
– After having installed the burner verify the access to the fixing screws of the cover.
If necessary replace them with the fixing screws (6, fig. 1) supplied as equipment.
Fig. 1
D4182
6 5 3
2
1
9
8
7
4
2

2824
2
GB

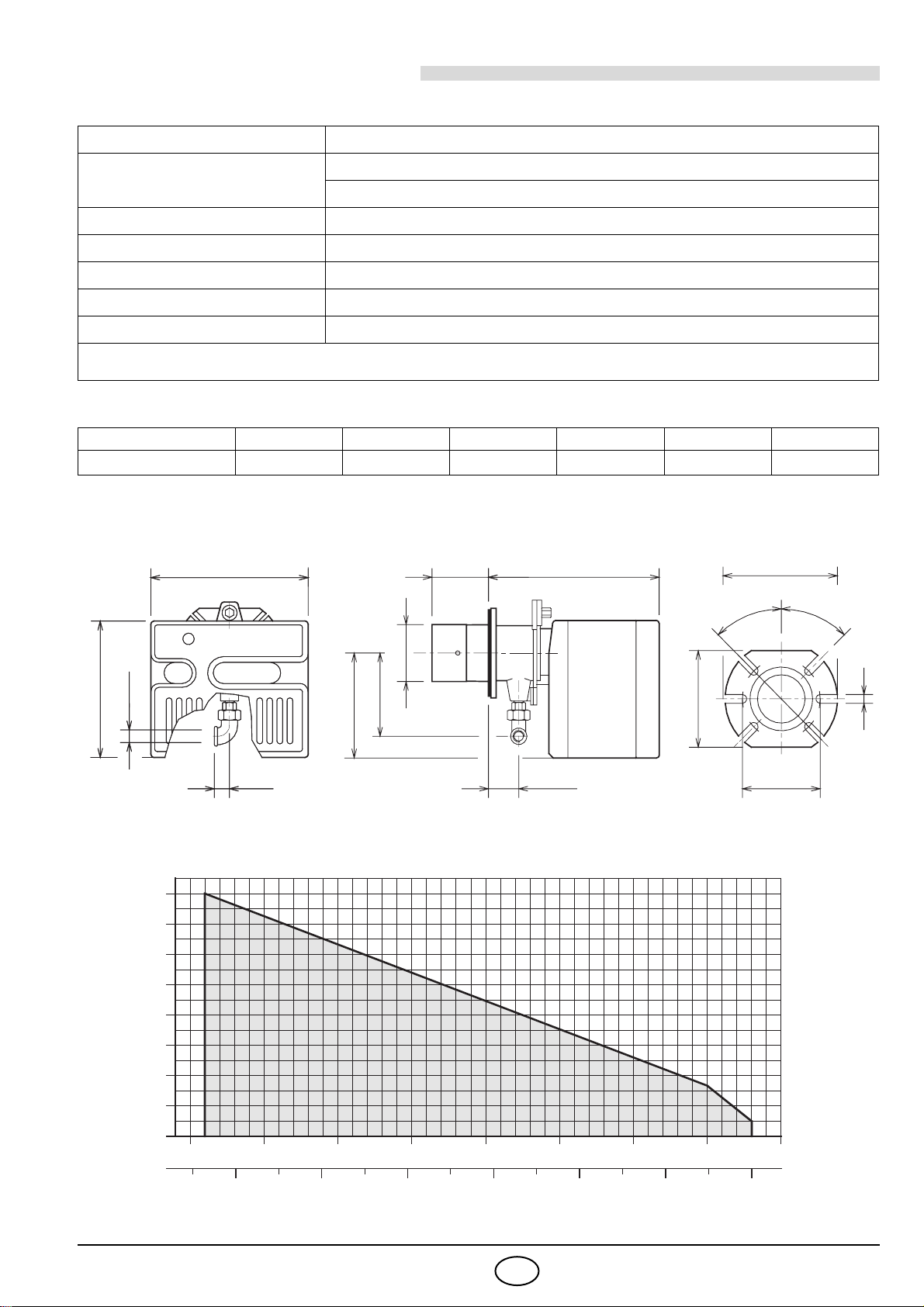

2. TECHNICAL DATA
2.1 TECHNICAL DATA
For gas family 3 (LPG) ask for separate kit.
2.2 OVERALL DIMENSIONS
2.3 WORKING FIELD
(as EN 676)
Thermal power (1) 42 – 116 kW - 36,000 – 100,000 kcal/h
Natural gas
(Family 2)
Net heat value: 8 – 12 kWh/Nm
3
-
7,000 – 10,340 kcal/Nm
3
Pressure: min. 16 mbar - max. 100 mbar
Electrical supply Single phase, 230V
±
10%
~
50Hz
Motor 230V / 0.7A
Capacitor 4
µ F
Ignition transformer
Primary 230V / 1.8A - Secondary 8 kV / 30 mA
Absorbed electrical power 0.13 kW
(1) Reference conditions:
Temp. 20°C - Barometric pressure 1013 mbar – Altitude 0 m above sea level.
COUNTRY DE IT - AT FR ES - GB-IE LU NL
GAS CATEGORY
II2ELL3B/P II2H3B/P II2Er3P II2H3P II2E3B/P II2L3B/P
■Combustion head extension, supplied separately.
FlangeBurner
305 110 346 185
33 61
45°
ø 105
262
160
Rp 3/4
204
142
■170
D4251 130
11
45°
Thermal power
D5256
0.8
0
0.2
0.4
0.6
40,000 50,000 60,000 70,000 kcal/h
1206050 70 80 kW
1.0
110
80,000
1.2
90 100
90,000
1.4
40
1.6
100,000
Pressure in the combustion
chamber – mbar

2824
3
GB
TEST BOILER
The working field has been defined according to EN 676 standard.
COMMERCIAL BOILERS
The burner-boiler matching is assured if the boiler conforms to EN 303 and the combustion chamber dimen-
sions are similar to those shown in the diagram EN 676. For applications where the boiler does not conform to
EN 303, or where the combustion chamber is much smaller than the dimensions given in EN 676, please con-
sult the manufacturers.

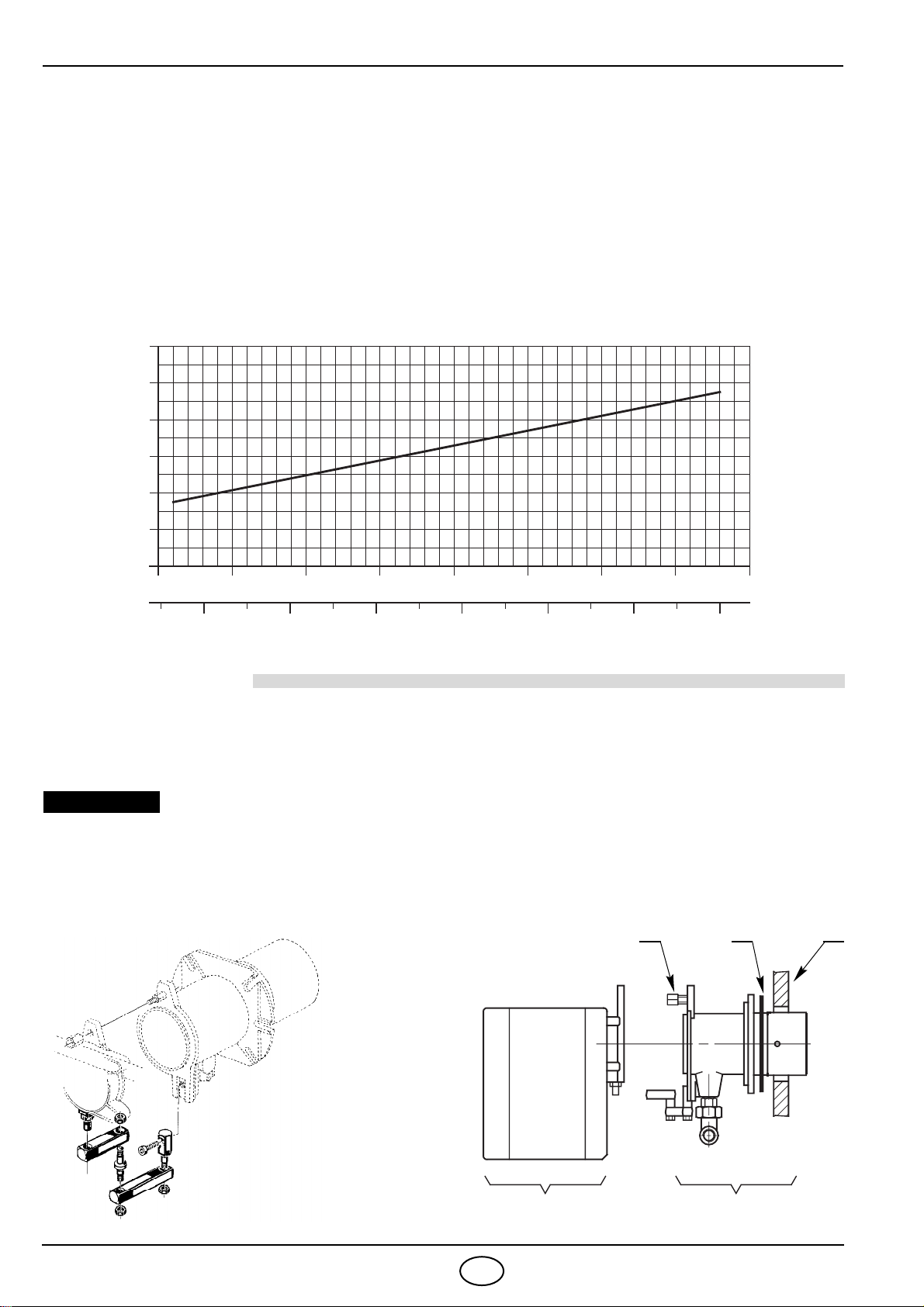

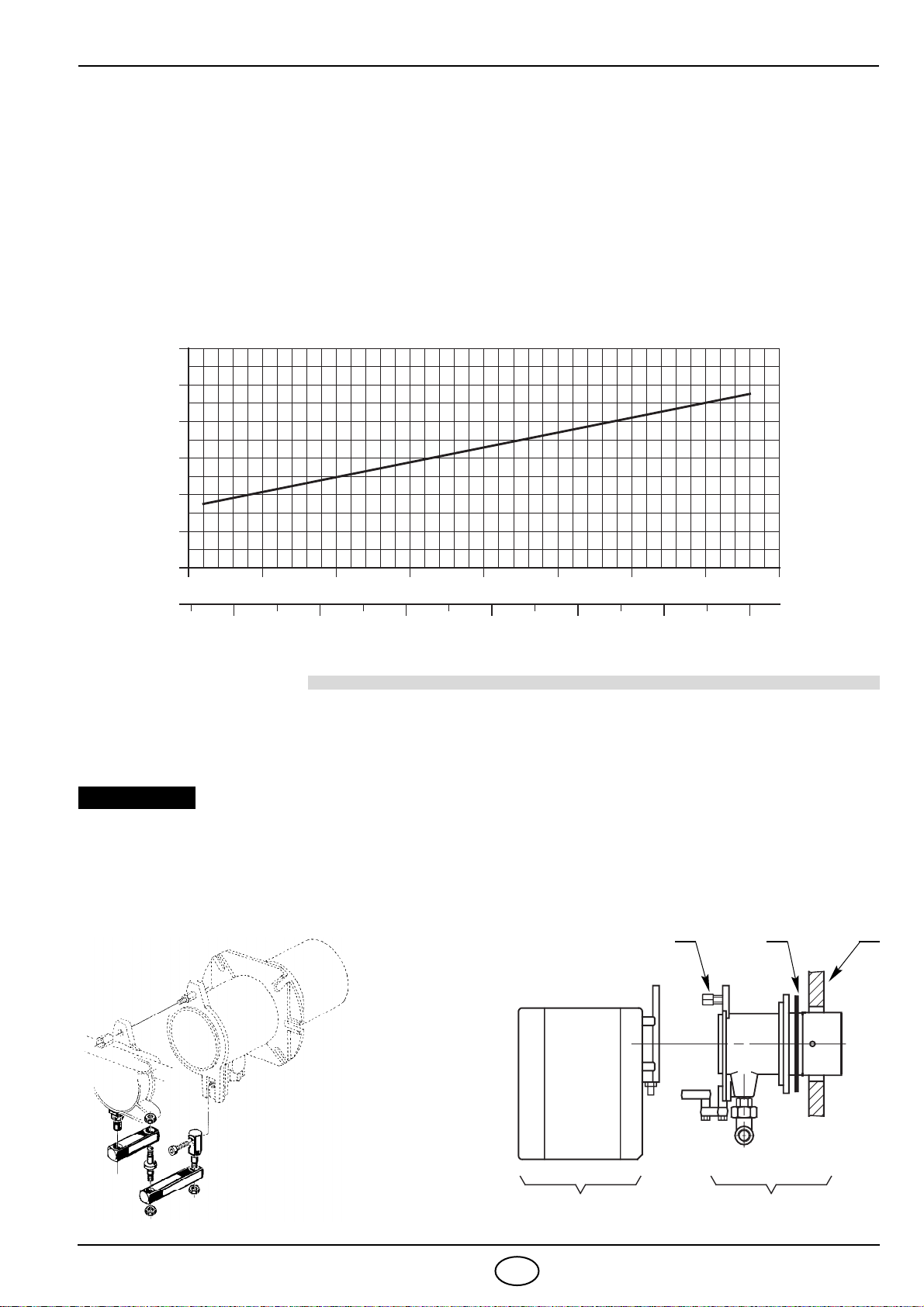

CORRELATION BETWEEN GAS PRESSURE AND BURNER OUTPUT
To obtain the maximum output, a gas head pressure of 5.8 mbar is measured ( M2 , see chapter 3.3, page 4) with
the combustion chamber at 0 mbar using gas G20 with a net heat value of 10 kWh/Nm
3
(8,570 kcal/Nm
3
).
3. INSTALLATION
THE BURNER MUST BE INSTALLED IN CONFORMITY WITH LEGISLATION AND LOCAL STANDARDS.
3.1 BOILER FIXING
4
1
2
3
5
6
7
Gas pressure in the
combustion head – mbar
40,000 50,000 60,000 70,000 kcal/h
1206050 70 80 kW
Thermal power
D5257 110
80,000
90 100
90,000
40
100,000
S7392
HINGE
ASSEMBLY
13 2
AB
D5108
Boiler door must have a max. thickness of 90 mm,
refractory lining included.
If thickness is greater (max. 150 mm), a combustion
head extension must be fitted, which is supplied
separately.
IMPORTANT ■Separate the combustion-head assembly
from the burner body by removing nut (1) and
removing group (A).
■Fix the head assembly group (B) to the boiler
(2) insert the supplied insulating gasket (3).

2824
4
GB
3.2 PROBE - ELECTRODE POSITIONING
3.3 GAS FEEDING LINE
GAS TRAIN ACCORDINGTO EN 676
The gas train is supplied separately, for its adjustment see the enclosed instructions.
GASTRAIN CONNECTIONS USE
TYPE CODE INLET OUTLET
MBDLE 405 B01 3970081 Rp 1/2 Rp 3/4 Natural gas ≤ 80 kW and LPG
MBDLE 407 B01 3970082 Rp 3/4 Rp 3/4 Natural gas and LPG
D5104
Ignition electrode
WARNING 2–3 mm
Ionization probe
Probe
Electrode
2.2
~40 mm
Diffuser
=
=
1– Gas supply pipe
2– Manual cock
(supplied by the installer)
3– Gas pressure gauge (supplied by the installer)
4– Filter
5– Gas pressure switch
6– Safety valve
7– Pressure governor
8– Adjustment valve
M1 – Gas-supply pressure test point
M2 – Pressure coupling test point
1
D5069
2 3 M1 4 5 6 7 8
M2

2824 5GB
3.4 ELECTRICAL WIRING
NOTES:
–
Do not exchange the neutral with the phase and
connect exactly the above wiring.
– Wires of min. 1 mm2section.
(Unless requested otherwise by local
standards and legislation).
– Carry out a safe earth connection.
– Verify that the burner stops by operating the boiler control thermostats
and that the burner locks out by separating the red ionisation probe lead
connector.
– The electric wiring carried out by the installer must be in compliance
with regulations in force in the Country.
Ionization probe
Electrode
Motor
Capacitor
Burner earth
230V ~50Hz
Air pressure switch
Blue
White
Black
Control box
RMG 88.620A2
Suppressor
D4275
Connector
Ignition transformer
3.4.1 STANDARD ELECTRICAL WIRING
LEGEND
XP6– 6 pole socket
XP7– 7 pole socket
X6 – 6 pin plug
X7 – 7 pin plug
B4 – Working signal
h1 – Hour counter
PG – Minimum gas pressure
switch
S3 – Remote lock-out signal
(230V - 0.5 A max.)
T6A– Fuse
TL – Limit thermostat
TS – Safety thermostat
V10 – Safety valve
V11 – Adjustment valve
CARRIED-OUT
BY THE INSTALLER
In the case of phase-phase
feed, a bridge must be fit-
ted on the control box ter-
minal board between
terminal 6 and the earth
terminal.
ATTENTION

2824 6GB

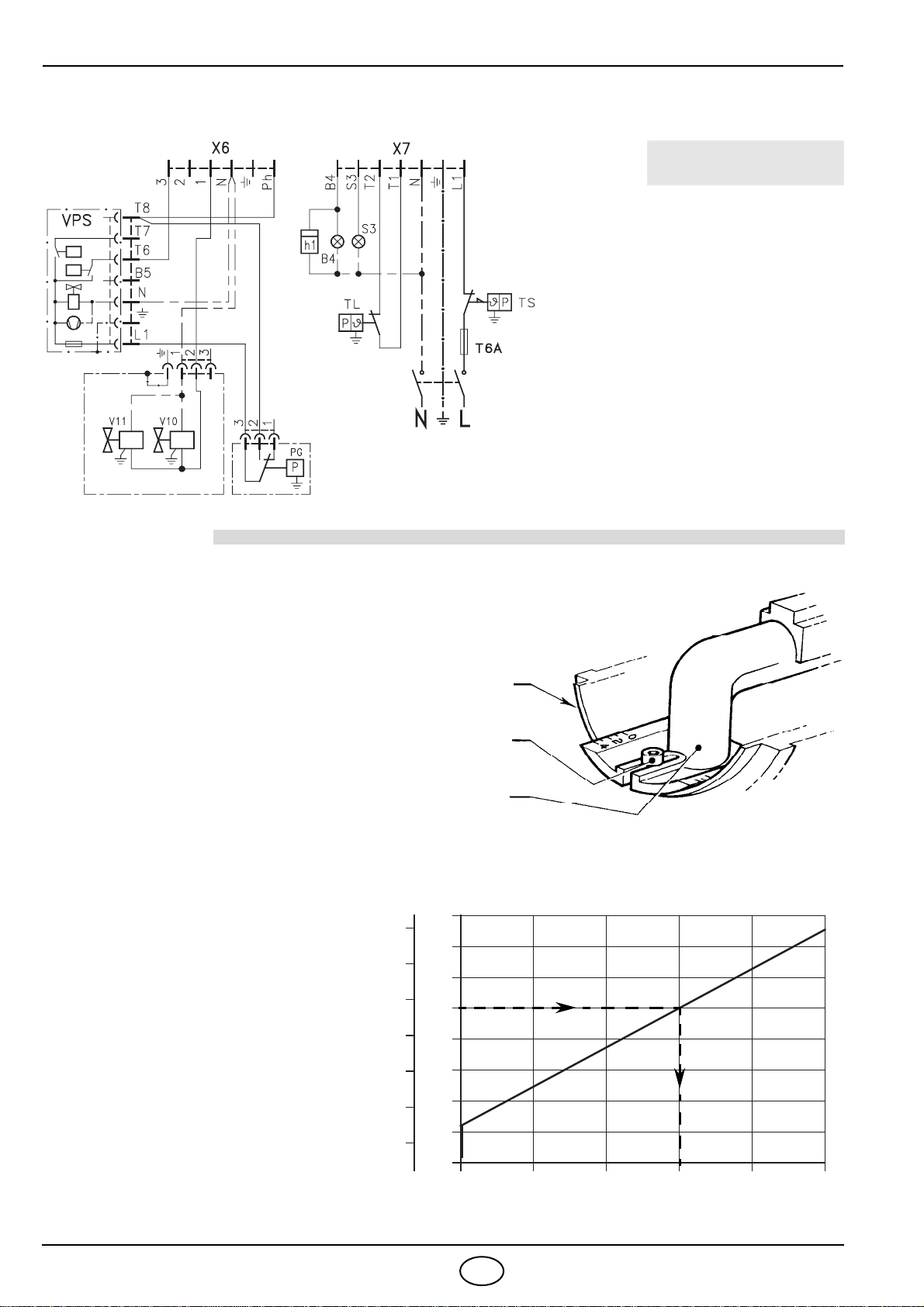

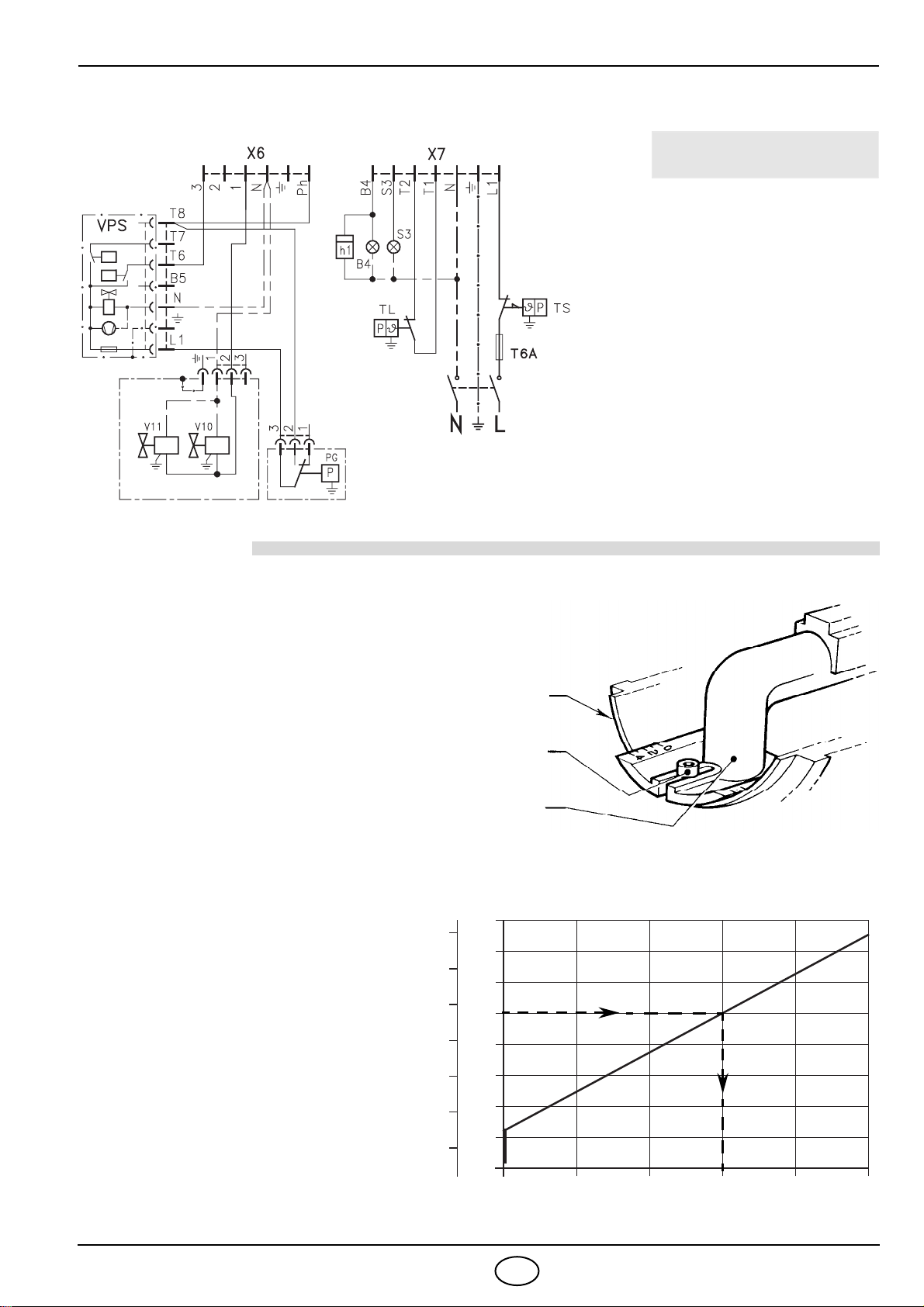

3.4.2 ELECTRICALWIRINGWITH GAS LEAK CONTROL DEVICE (DUNGSVPS 504)
4. WORKING
4.1 COMBUSTION ADJUSTMENT
In conformity with Efficiency Directive 92/42/EEC the applica-
tion of the burner on the boiler, adjustment and testing must be
carried out observing the instruction manual of the boiler,
including verification of the CO and CO2concentration in the
flue gases, their temperatures and the average temperature of
the water in the boiler.
To suit the required appliance output, choose the proper set-
ting of the combustion head, and the air damper opening.
4.2 COMBUSTION HEAD SETTING
Loose the screw (A), move the elbow (B) so that the rear
plate of the coupling (C) coincides with the set point.
Tighten the screw (A).
Example:
The burner is installed on a 81 kW
boiler with an efficiency of 90%, the
burner input is about 90 kW using the
diagram, the combustion set point is 3
.
The diagram is to be used only for initial
settings, to improve air pressure switch
operation or improve combustion, it
may be necessary to reduce this set-
ting
(set point toward position 0).
CARRIED-OUT
BY THE INSTALLER
LEGEND
X6 – 6 pin plug
X7 – 7 pin plug
B4 – Working signal
h1 – Hour counter
PG – Minimum gas pressure
switch
S3 – Remote lock-out signal
(230V - 0.5 A max.)
T6A– Fuse
TL – Limit thermostat
TS – Safety thermostat
V10 – Safety valve
V11 – Adjustment valve
230V ~50Hz
D4199
S7015
C
A
B
01 32
120
90
80
70
60
50
100
80,000
70,000
60,000
50,000
40,000
kcal/h kW
D5258
45
40
110
90,000
100,000
Set point

2824 7GB
4.3 AIR DAMPER SETTING
The regulation of the air-rate is made by adjusting the air damper (1), af-
ter loosing the screws (2).
When the optimal regulation is reached, screw tight the screws (2).
4.4 BURNER STARTING
Air evacuation: it can be obtained by opening the right screw on the
pressure test point placed at the beginning of the valves (see scheme
page 4).
REVISION OFTHE GAS OUTPUTS
In order to obtain the gas output Qn under normal conditions
(0°C - 1013 mbar), correct the output measured at the counter Qr
with a corrective factor ( f):
Example:
Output measured at the counter. . = 8 m3/h
Atmospheric pressure. . . . . . . . . = 998 mbar
Gas temperature . . . . . . . . . . . . . = 10°C
Gas pressure . . . . . . . . . . . . . . . . = 25 mbar
Corrective factor. . . . . . . . . . . . . . = 0.9742
Nominal output. . . . . . . . . . . . . . . = 7.79 m3/h
4.5 COMBUSTION CHECK
It is advisable to set the burner according to the type of gas used and following the indications of the table:
IONIZATION CURRENT
The minimum current necessary for the control
box operation is 3 µA.
The burner normally supplies a higher current
value, so that no check is needed. However, if
you want to measure the ionization current, you
must open the connector fitted to the red wire
and insert a microammeter.
EN 676 AIR EXCESS:
max. output λ≤1.2 – min. output λ≤1.3
GAS Theoretical max. CO2
0 % O2
Setting CO2% CO
mg/kWh NOx
mg/kWh
λ= 1.2 λ= 1.3
G 20 11.7 9.7 9.0 ≤100 ≤170
G 25 11.5 9.5 8.8 ≤100 ≤170
G 30 14.0 11.6 10.7 ≤100 ≤230
G 31 13.7 11.4 10.5 ≤100 ≤230
1
D5231
2
2
Qn = f .Qr
f = 0.2695 .Patm + Pgaz
273 + tgaz
Patm = atmospheric pressure (mbar)
Pgaz = gas pressure at the counter (mbar)
tgaz = temperature at the counter (°C)
(m3/h)
or:
Probe
Connector
Terminal board
of control-box
D5006
10

2824 8GB
4.6 AIR PRESSURE SWITCH
The air pressure switch is set after all other adjustments have been made. Begin with the switch at the
lowest setting. With the burner working at the minimum output, adjust the dial clockwise, increasing its
value until the burner shuts down. Now reduce the value by one set point, turning the dial anti-clockwise.
Check for reliable burner operation, if the burner shuts down, reduce the value by a half set point.
Attention:
To comply with the EN 676 standard, the air pressure switch must operate when the CO value exceeds 1%
(10,000 ppm). To check this, insert a combustion analyser in the flue, slowly reduce the burner air setting and
verify that the burner shuts down by the action of the air pressure switch before the CO value exceeds 1%.
4.7 BURNER START-UP CYCLE
When flame-failure occurs during working, shut down takes place within one second.
4.8 START-UP CYCLE DIAGNOSTICS
During start-up, indication is according to the followin table:
COLOUR CODETABLE
Sequences Colour code
Pre-purging ● ● ● ● ● ● ● ● ● ● ●
Ignition phase ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ●
Operation, flame ok ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑
Operating with weak flame signal. ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍
Electrical supply lower than ~170V ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ●
Lock-out ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲
Extraneous light ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲
Index: ❍Off ●Yellow ❑Green ▲Red
3s40s40smax. 2s max. 2s D4172
Lock-out, due to ignition failureNormal
Thermostat
Motor
Ignition transformer
Valves
Flame
Lock-out

2824 9GB
4.9 RESETTING THE CONTROL BOX AND USING DIAGNOSTICS
The control box features a diagnostics function through which any causes of malfunctioning are easily iden-
tified (indicator: RED LED).
To use this function, you must wait at least 10 seconds once it has entered the safety condition (lock-out),
and then press the reset button.
The control box generates a sequence of pulses (1 second apart), which is repeated at constant 3-second
intervals.
Once you have seen how many times the light pulses and identified the possible cause, the system must
be reset by holding the button down for between 1 and 3 seconds.
The methods that can be used to reset the control box and use diagnostics are given below.
RESETTING THE CONTROL BOX
To reset the control box, proceed as follows:
➣Hold the button down for between 1 and 3 seconds.
The burner restarts after a 2-second pause once the button is released.
If the burner does not restart, you must make sure the limit thermostat is closed.
VISUAL DIAGNOSTICS
Indicates the type of burner malfunction causing lock-out.
To view diagnostics, proceed as follows:
➣Hold the button down for more than 3 seconds once the red LED (burner lock-out) remains steadily lit.
A yellow light pulses to tell you the operation is done.
Release the button once the light pulses. The number of times it pulses tells you the cause of the mal-
function, indicated in the table below.
SOFTWARE DIAGNOSTICS
Reports the life of the burner by means of an optical link with the PC, indicating hours of operation, number
and type of lock-outs, serial number of control box etc ...
To view diagnostics, proceed as follows:
➣Hold the button down for more than 3 seconds once the red LED (burner lock-out) remains steadily lit.
A yellow light pulses to tell you the operation is done.
Release the button for 1 second and then press again for over 3 seconds until the yellow light pulses
again.
Once the button is released, the red LED will flash intermittently with a higher frequency: only now can
the optical link be activated.
Once the operations are done, the control box’s initial state must be restored using the resetting procedure
described above.
BUTTON PRESSED FOR CONTROL BOX STATUS
Between 1 and 3 seconds Control box reset without viewing visual diagnostics.
More than 3 seconds Visual diagnostics of lock-out condition:
(LED pulses at 1-second intervals).
More than 3 seconds starting from
the visual diagnostics condition Software diagnostics by means of optical interface and PC (hours of operation, malfunctions etc. can be viewed)
=== = = = = = = =
Press reset
for >3s 3sPulses Pulses
RED LED on
wait at least 10s Interval Lock-out

2824 10 GB
The sequence of pulses issued by the control box identifies the possible types of malfunction, which are
listed in the table below.
5. WARNINGS TO AVOID BURNOUT OR BAD COMBUSTION OF THE
BURNER
1– When the burner is stopped, the smoke pipe must be opened and effect a natural draught in the
combustion chamber. If the smoke pipe is closed, the burner must be drawn back till the extraction
of blast tube from the furnace. Before operating in this way take the voltage off.
2– The place, where the burner works, must have same openings suitable for the passage of air
necessary for combustion. To be sure about this, you have to control CO2and CO in the exhaust
gases with all the windows and doors closed.
3– If in the place, where the burner works, there are air-breathings, check the existence of air-input
openings with dimensions suitable for the necessary air-exchange. In any case check that, when
the burner is stopped, the air-breathings do not draw warm smokes from pipes through the burner.
6. MAINTENANCE
The burner requires periodic maintenance carried out by a qualified and authorised technician in conformity
with legislation and local standards.
Maintenance is essential for the reliability of the burner, avoiding the excessive consumption of fuel and
consequent pollution.
Before carrying out any cleaning or control always first switch off the electrical supply to the
burner acting on the main switch of the system.
THE BASIC CHECKS ARE:
Leave the burner working without interruption for 10 min., checking the right settings of all the components
stated in this manual. Then carry out a combustion check verifying:
●CO2(%) content ●Smoke temperature at the chimney ●CO content (ppm).
SIGNAL PROBABLE CAUSE
2 pulses
==
The flame does not stabilise at the end of the safety time:
– faulty ionisation probe;
– faulty or soiled gas valves;
– neutral/phase exchange;
– faulty ignition transformer
– poor burner regulation (insufficient gas).
3 pulses
===
Min. air pressure switch does not close:
– air pressure switch faulty;
– air pressure switch incorrectly regulated;
– max. air pressure switch triggered (if installed).
4 pulses
====
Min. air pressure switch does not open or light in the chamber before firing:
– air pressure switch faulty;
– air pressure switch incorrectly regulated.
7 pulses
=======
Loss of flame during operations:
– poor burner regulation (insufficient gas);
– faulty or soiled gas valves;
– short circuit between ionisation probe and earth.
10 pulses
=====
=====
– Wiring error or internal fault.

2824 11 GB
7. FAULTS / SOLUTIONS
Here below you can find some causes and the possible solutions for some problems that could cause a fail-
ure to start or a bad working of the burner. A fault usually makes the lock-out lamp light which is situated
inside the reset button of the control box (9, fig. 1, page 1).
When lock out lamp lights the burner will attempt to light only after pushing the reset button. After this if the
burner functions correctly, the lock-out can be attributed to a temporary fault.
If however the lock out continues the cause must be determined and the solution found.
BURNER STARTING DIFFICULTIES
N.B.: If problems still occur after all of the above checks have been made, check the electrical connec-
tions on the plug and sockets, the damper and burner motor, gas control wiring ignition transformer
and external interlocks, if the burner still fails to function, replace the control box.
FAULTS SOLUTIONS
The burner does not start at
the limit thermostat closing.
Gas is not supplied.
The gas pressure switch does not close its contact due to incorrect setting
or a faulty switch.
The air pressure switch has changed over to the operational position.
The burner does not pass
through the pre-purge and
locks out.
The air pressure switch does not change over: it has failed or the air pres-
sure is too low (combustion head incorrectly set).
Flame simulation exists (or the flame really lights).
The burner locks out, after the
pre-purge period, because the
flame does not ignite.
The gas valve pass too little gas (low pressure in the gas pipework).
The valves are faulty.
The ignition arc is irregular or not present.
The air has not been purged from the pipe.
The burner goes through the
normal pre-purge, the flame ig-
nites but the burner locks out
within 3 seconds after ignition.
The ionization probe is earthed or not in contact with the flame, or its wiring
to the control box is broken, or there is a fault on its insulation to earth.
The ionization current is weak (lower than 3 µA). (See chapter 4.8).
The gas pressure switch is set too close to its working-pressure.
The burner continues to re-
peat the starting cycle without
locking out.
This concerns a very particular irregularity, caused by the fact that the
pressure in the gas mains is very close to the value to which the gas pres-
sure switch has been set.
Consequently, the sudden falling off in pressure at the opening of the valves
causes the pressure switch to open, the valves immediately close and the
motor stops.
The pressure then increases, the pressure switch closes and the starting
cycle can be repeated, and so on.
This can be remedied by lowering the setting of the pressure switch.

2824
1
NL
INHOUD
1. BESCHRIJVING VAN DE BRANDER
Eentraps gasventilatorbrander.
1.1 GELEVERD MATERIAAL
Branderflens met dichting . . . . . . . Nr. 1 Bevestigingsschroeven en -moeren voor ketelflens . Nr. 4
Wartel . . . . . . . . . . . . . . . . . . . . . . Nr. 1 Schroeven voor bevestiging kap. . . . . . . . . . . . . . . . Nr. 3
Scharnier . . . . . . . . . . . . . . . . . . . Nr. 1 7-polige mannelijke stekker . . . . . . . . . . . . . . . . . . . Nr. 1
1. BESCHIJVING VAN DE BRANDER . . . 1
1.1 Geleverd materiaal . . . . . . . . . . . . . . . . 1
2. TECHNISCHE GEGEVENS. . . . . . . . . . 2
2.1 Technische gegevens . . . . . . . . . . . . . . 2
2.2 Afmetingen . . . . . . . . . . . . . . . . . . . . . . 2
2.3 Werkingsveld. . . . . . . . . . . . . . . . . . . . . 2
3. INSTALLATIE . . . . . . . . . . . . . . . . . . . . 3
3.1 Bevestiging op de ketel . . . . . . . . . . . . . 3
3.2 Stand voeler - electrode . . . . . . . . . . . . 4
3.3 Schema gastoevoer (gasstraat). . . . . . . 4
3.4 Elektrische installatie. . . . . . . . . . . . . . . 5
3.4.1 Standaard elektrische installatie . . . . . . 5
3.4.2 Elektrische installatie met controle
klepafdichting . . . . . . . . . . . . . . . . . . . . 6
4. WERKING. . . . . . . . . . . . . . . . . . . . . . . 6
4.1 Regeling van de verbranding . . . . . . . . . 6
4.2 Afstelling branderkop . . . . . . . . . . . . . . . 6
4.3 Regeling van de luchtklep . . . . . . . . . . . . 7
4.4 Inbedrijfstelling . . . . . . . . . . . . . . . . . . . . 7
4.5 Verbrandingscontrole . . . . . . . . . . . . . . . 7
4.6 Luchtdrukschakelaar. . . . . . . . . . . . . . . . 8
4.7 Startprogramma . . . . . . . . . . . . . . . . . . . 8
4.8 Diagnose startprogramma. . . . . . . . . . . . 8
4.9 Ontgrendeling controledoos en gebruik
van de diagnosefunctie. . . . . . . . . . . . . . . 9
5. MAATREGELEN
om oververhitting van de brander en een
slechte verbranding te voorkomen. . . . . . . 10
6. ONDERHOUD. . . . . . . . . . . . . . . . . . . . . 10
7. DEFECTEN / OPLOSSINGEN . . . . . . . . 11
1– Luchtklep
2– Blokkeringsschroef luchtklep
3– 7-polige vrouwelijke stekker voor
stroomtoevoer en afstandsbesturingen
4– 6-polige vrouwelijke stekker voor
gasstraat
5– Wartel
6– Schroef voor bevestiging kap
7– Luchtdrukschakelaar
8– Controle- en bedieningsdoos
9– Ontgrendelingsknop met
veiligheidsignalisatie
■CE-keur conform de richtlijn voor Gastoestellen 90/396/EEG; PIN 0063AP6680.
Conform de Richtlijnen: EMC 89/336/EEG, Laagspanning 73/23/EEG en Rendement 92/42/EEG.
■Brander conform de beschermingsgraad IP X0D (IP 40) volgens EN 60529.
■Gasstraat conform EN 676.
NOOT:
– De wartel (5), geleverd bij de brander, moet aan dezelfde zijde als de gasstraat gemonteerd worden.
– Controleer of de schroeven voor bevestiging van de kap ook nog bereikbaar zijn nadat de brander
geïnstalleerd is.Vervang ze eventueel door de schroeven (6, fig. 1) die bij de brander worden geleverd.
Fig. 1
D4182
6 5 3
2
1
9
8
7
4
2

2824
2
NL
2. TECHNISCHE GEGEVENS
2.1 TECHNISCHE GEGEVENS
Voor gas van familie 3 (LPG), kit op aanvraag.
2.2 AFMETINGEN
2.3 WERKINGSVELD
(volgens EN 676)
Thermisch vermogen (1) 42 ÷ 116 kW - 36.000 ÷ 100.000 kcal/h
Aardgas
(Familie 2)
Pci: 8 ÷ 12 kWh/Nm
3
-
7.000 ÷ 10.340 kcal/Nm
3
Druk: min. 16 mbar – max. 100 mbar
Elektrische voeding Monofasig, 230V
±
10%
~
50Hz
Motor 230V / 0,7A
Condensator 4
µ F
Ontstekingstransformator Primair 230V / 1,8A - Secundair 8 kV / 30 mA
Opgeslorpt vermogen 0,13 kW
(1) Referentiewaarden: Temperatuur
20°C
- Luchtdruk 1013 mbar - 0 m boven de zeespiegel
.
LAND DE IT - AT FR ES - GB-IE LU NL
GASCATEGORIE
II2ELL3B/P II2H3B/P II2Er3P II2H3P II2E3B/P II2L3B/P
■Verlengde branderkop op aanvraag.
FlensBrander
305 110 346 185
33 61
45°
ø 105
262
160
Rp 3/4
204
142
■170
D4251 130
11
45°
Thermisch vermogen
D5256
0,8
0
0,2
0,4
0,6
40.000 50.000 60.000 70.000 kcal/h
1206050 70 80 kW
1,0
110
80.000
1,2
90 100
90.000
1,4
40
1,6
100.000
Druk in de verbrandingskamer
mbar

2824
3
NL
TESTKETEL
Het werkingsveld werd gerealiseerd met testketels conform de norm EN 676.
KETELS IN DE HANDEL
De combinatie brander/ketel vormt geen probleem als de ketel voldoet aan de norm EN 303 en als de afmetin-
gen van de verbrandingskamer ongeveer overeenstemmen met deze voorzien in de norm EN 676.
Als de brander, daarentegen, moet worden gecombineerd, met een ketel in de handel die niet voldoet aan de
norm EN 303 of waarvan de afmetingen van de verbrandingskamer kleiner zijn dan deze opgegeven in norm
EN 676, raadpleeg dan de fabrikant..
VERHOUDING TUSSEN GASDRUK EN VERMOGEN
Om het maximale vermogen te benutten, moet men aan de mof 5,8 mbar meten ( M2 , zie hoofdstuk 3.3, blz. 4)
met de verbrandingskamer op 0 mbar en gas G20 - Pci = 10 kWh/m
3 (8.570 kcal/m 3
).
3. INSTALLATIE
DE BRANDER MOET GEÏNSTALLEERD WORDEN VOLGENS DE PLAATSELIJK GELDENDE WETTEN EN
NORMEN.
3.1 BEVESTIGING OP DE KETEL
4
1
2
3
5
6
7
Druk in mbar
aan de branderkop
40.000 50.000 60.000 70.000 kcal/h
1206050 70 80 kW
Thermisch vermogen
D5257 110
80.000
90 100
90.000
40
100.000
MONTAGE
S7392
SCHARNIER
A
13 2
AB
D5108
■Koppel de branderkop los door de moer (1)
los te draaien en het deel (A) te verwijderen.
■Maak het deel (B) vast aan de ketelplaat (2)
en voeg er de flensdichting (3), geleverd bij de
brander, tussen.
De ketelplaat mag max. 90 mm dik zijn, vuurvaste
bekleding inbegrepen.
Als hij dikker is (max. 150 mm) moet er een apart
aan te vragen verlengstuk voor de branderkop ge-
bruikt worden.
BELANGRIJK

2824
4
NL
3.2 STAND VOELER - ELECTRODE
3.3 SCHEMA GASTOEVOER
(gasstraat)
GASSTRAATVOLGENS EN 676
De gasstraat wordt apart geleverd. Zie handleiding van de gasstraat.
GASSTRAAT VERBINDINGEN TOEPASSING
TYPE CODE
TOEVOER RETOUR
MBDLE 405 B01 3970081
Rp 1/2 Rp 3/4
Aardgas ≤ 80 kW en LPG
MBDLE 407 B01 3970082 Rp 3/4 Rp 3/4 Aardgas en LPG
D5104
Ontstekingselectrode
OPGELET 2÷3 mm
Voeler
Voeler
Electrode
2,2
~40 mm
Inspuitstuk
=
=
1– Gastoevoerleiding
2– Gasafsluitkraan
(ten laste van de installateur)
3– Manometer gasdruk (ten laste van de installateur)
4– Filter
5– Gasdrukschakelaar
6– Veiligheidsventiel
7– Drukregelaar
8– Regelventiel
M1 – Controlepunt gasdruk op de toevoer-
leiding
M2 – Controlepunt druk aan de branderkop
1
D5069
2 3 M1 4 5 6 7 8
M2

2824 5NL
3.4 ELEKTRISCHE INSTALLATIE
NOOT:
–
Nulleider en fase niet omkeren en
het aangeduide schema nauwkeurig volgen.
–
Doorsnede geleiders: min. 1 mm2. (Mits anders voorgeschreven door plaat-
selijke normen en wetten).
– Een goede aarding voorzien.
– De stilstand van de brander controleren door de ketelthermostaat te ope-
nen, de vergrendeling (veiligheid) controleren door de rode draad los te
koppelen van de ionisatiesonde, buiten de controledoos.
– De elektrische aansluitingen die de installateur uitvoert, moeten voldoen
aan de in het land van kracht zijnde reglementering.
Voeler
Ontstekingselectrode
Motor
Condensator
Aarding brander
230V ~50Hz
Verliesstroomschakelaar
Blauw
Wit
Zwart
Controledoos
RMG 88.620A2
D4275
Stekker
Ontstekingstransfo
3.4.1 STANDAARD ELEKTRISCHE INSTALLATIE
LEGENDE
XP6 – 6-polige vrouwelijke stekker
XP7 – 7-polige vrouwelijke stekker
X6 – 6-polige mannelijke stekker
X7 – 7-polige mannelijke stekker
B4 – Werkingssignalisatie
h1 – Urenteller
PG – Luchtdrukschakelaar
S3 – Controlelampie vergrende-
ling (230V - 0,5A max.)
T6A – Zekering
TL – Limietthermostaat
TS – Veiligheidsthermostaat
V10 – Veiligheidsventiel
V11 – Regelventiel
Luchtdrukschakelaar
DE INSTALLATEUR
VERZORGD DOOR
In geval van fase-fase voe-
ding moet er een brug ge-
maakt worden in het
klemmenbord van de con-
troledoos tussen de klem 6
en de aardingsklem.
OPGELET

2824 6NL
3.4.2 ELEKTRISCHE INSTALLATIE MET CONTROLE KLEPAFDICHTING (DUNGSVPS 504)
4. WERKING
4.1 REGELING VAN DE VERBRANDING
Conform de Richtlijn Rendement 92/42/EEG, moeten de
montage van de brander op de ketel, de regeling en de tes-
ten worden uitgevoerd volgens de handleiding van de ketel.
Hieronder valt ook de controle van de CO en CO2in de
rookgassen, de temperatuur van de rookgassen en de ge-
middelde temperatuur van het water van de ketel.
De branderkop en de luchtklep worden afgesteld in functie
van het nodig debiet van de ketel.
4.2 AFSTELLING BRANDERKOP
Draai de schroef (A) los, de elleboog (B) zodanig verplaatsen
dat het achterste gedeelte van de mof (C) overeenstemt met
de gewenste inkeping. De schroef (A) terug vastdraaien.
Voorbeeld:
De brander is gemonteerd op een ketel
van 81 kW.
Veronderstel een rendement van 90%,
dan moet de brander een debiet geven
van ongeveer 90 kW.
Het diagram toont aan dat voor dit ver-
mogen, de regeling moet worden
uitgevoerd op inkeping 3.
Het diagram is enkel indicatief en
geldt voor de eerste regeling.
Om de goede werking van de lucht-
drukschakelaar te waarborgen, kan
het echter nodig zijn om de opening
van de branderkop te verkleinen
(inkeping richting stand 0) .
VERZORGD DOOR DE
INSTALLATEUR
LEGENDE
X6 – 6-polige mannelijke stekker
X7 – 7-polige mannelijke stekker
B4 – Werkingssignalisatie
h1 – Urenteller
PG – Luchtdrukschakelaar
S3 – Controlelampie vergrendeling
(230V - 0,5A max.)
T6A – Zekering
TL – Limietthermostaat
TS – Veiligheidsthermostaat
V10 – Veiligheidsventiel
V11 – Regelventiel
230V ~50Hz
D4199
S7015
C
A
B
01 32
120
90
80
70
60
50
100
80.000
70.000
60.000
50.000
40.000
kcal/h kW
D5258
45
40
110
90.000
100.000
Nr. inkeping

2824 7NL
4.3 REGELING VAN DE LUCHTKLEP
Het luchtdebiet wordt geregeld met behulp van de luchtklep (1). Draai
eerst de schroeven (2) los.
Zodra de afstelling optimaal is, de luchtklep blokkeren met de
schroeven (2).
4.4 INBEDRIJFSTELLING
Ontluchting: wordt bekomen door de daartoe voorziene schroef op het
drukmeetpunt, vóór de ventielen, te openen (zie schema blz. 4).
CORRECTIE GASDEBIET
Om het gasdebiet Qn te bereiken onder normale omstandigheden
(0°C - 1013 mbar), moet u het reël debiet gemeten aan de teller Qr
aanpassen met een correctiefactor ( f):
Voorbeeld:
Debiet gemeten aan de teller . . . .= 8 m3/h
Atmosferische druk . . . . . . . . . . . .= 998 mbar
Gastemperatuur . . . . . . . . . . . . . .= 10°C
Gasdruk . . . . . . . . . . . . . . . . . . . .= 25 mbar
Correctiefactor. . . . . . . . . . . . . . . .= 0,9742
Nominaal debiet . . . . . . . . . . . . . .= 7,79 m3/h
4.5 VERBRANDINGSCONTROLE
Het is aangeraden de brander af te stellen volgens de aanwijzingen in de tabel, in functie van het gebruikte
type gas:
IONISATIESTROOM
De minimum intensiteit voor een goede wer-
king van de controledoos bedraagt 3 µA.
Ook als de brander met een duidelijk hogere
intensiteit werkt, is er normaal geen controle
nodig.
Om de ionisatiestroom te meten, de stekker op
de rode kabel van de voeler openen en er een
micro-ampèremeter tussen plaatsen.
EN 676 LUCHTOVERMAAT:
max. vermogen λ≤1,2 – min. vermogen λ≤1,3
GAS CO2max. theoretisch
0 % O2
Instelling CO2% CO
mg/kWh NOx
mg/kWh
λ= 1,2 λ= 1,3
G 20 11,7 9,7 9,0 ≤100 ≤170
G 25 11,5 9,5 8,8 ≤100 ≤170
G 30 14,0 11,6 10,7 ≤100 ≤230
G 31 13,7 11,4 10,5 ≤100 ≤230
1
D5231
2
2
Qn = f .Qr
f = 0,2695 .Patm + Pgaz
273 + tgaz
Patm = atmosferische druk (mbar)
Pgaz =gasdruk aan de teller (mbar)
tgaz =gastemperatuur aan de teller (°C)
(m3/h)
of:
Stekker
Klemmenstrook
controledoos
D5006
10
Voeler
