Riello RDBS1 Quick start guide

2902768 (10) - 07/2015
Installation, use and maintenance instructions
Instructions pour installation, utilisation et entretien
Forced draught gas burner
Brûleur gaz à air soufflé
One stage operation
Fonctionnement à 1 allure
CODE MODEL - MODÈLE TYPE
3768000 RDBS1 960T
GB
F

Original instructions
Traduction des instructions d’origine

2902768
Declaration of conformity in accordance with ISO / IEC 17050-1
Manufacturer: RIELLO S.p.A.
Address: Via Pilade Riello, 7
37045 Legnago (VR)
Product: Forced draught gas burner
Model: RDBS1
These products are in compliance with the following Technical Standards:
EN 676
EN 12100
and according to the European Directives:
GAD 2009/142/EC Gas Devices Directive
MD 2006/42/EC Machine Directive
LVD 2006/95/EC Low Voltage Directive
EMC 2004/108/EC Electromagnetic Compatibility
Such products are marked as follows:
The quality is guaranteed by a quality and management system certified in accordance with UNI EN ISO 9001.
Legnago, 21.05.2015 Executive General Manager
RIELLO S.p.A. - Burner Department Research & Development Director RIELLO S.p.A. - Burner Department
Mr. U. Ferretti Mr. F. Comencini
CE-0085BM0490

2902768 1
GB
INDEX
1. BURNER DESCRIPTION
One stage gas burner.
1.1 BURNER EQUIPMENT
Flange with insulating gasket . . . . . . . . . . . . . . . . . .No. 1 90° manual gate valve . . . . . . . . . . . No. 1
4 pin plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .No. 1 Tube 1/2” . . . . . . . . . . . . . . . . . . . . . No. 1
Screws and nuts for flange to be fixed to boiler. . . . .No. 4 Flange 90° . . . . . . . . . . . . . . . . . . . . No. 1
Protection grill for CF applications. . . . . . . . . . . . . . .No. 1 Air intake . . . . . . . . . . . . . . . . . . . . . No. 1
1.2 ACCESSORY
KIT (PC INTERFACE KIT): code 3002719
1. BURNER DESCRIPTION. . . . . . . . . . . . . . 1
1.1 Burner equipment . . . . . . . . . . . . . . . . . . . 1
1.2 Accessory . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. TECHNICAL DATA . . . . . . . . . . . . . . . . . . 2
2.1 Technical data . . . . . . . . . . . . . . . . . . . . . . 2
2.2 Overall dimensions . . . . . . . . . . . . . . . . . . 2
2.3 Firing rate . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. INSTALLATION. . . . . . . . . . . . . . . . . . . . . 4
3.1 Boiler fixing . . . . . . . . . . . . . . . . . . . . . . . . 4
3.2 Burner assembly . . . . . . . . . . . . . . . . . . . . 4
3.3 Gas supply line . . . . . . . . . . . . . . . . . . . . . 5
3.4 Gas train . . . . . . . . . . . . . . . . . . . . . . . . . . 6

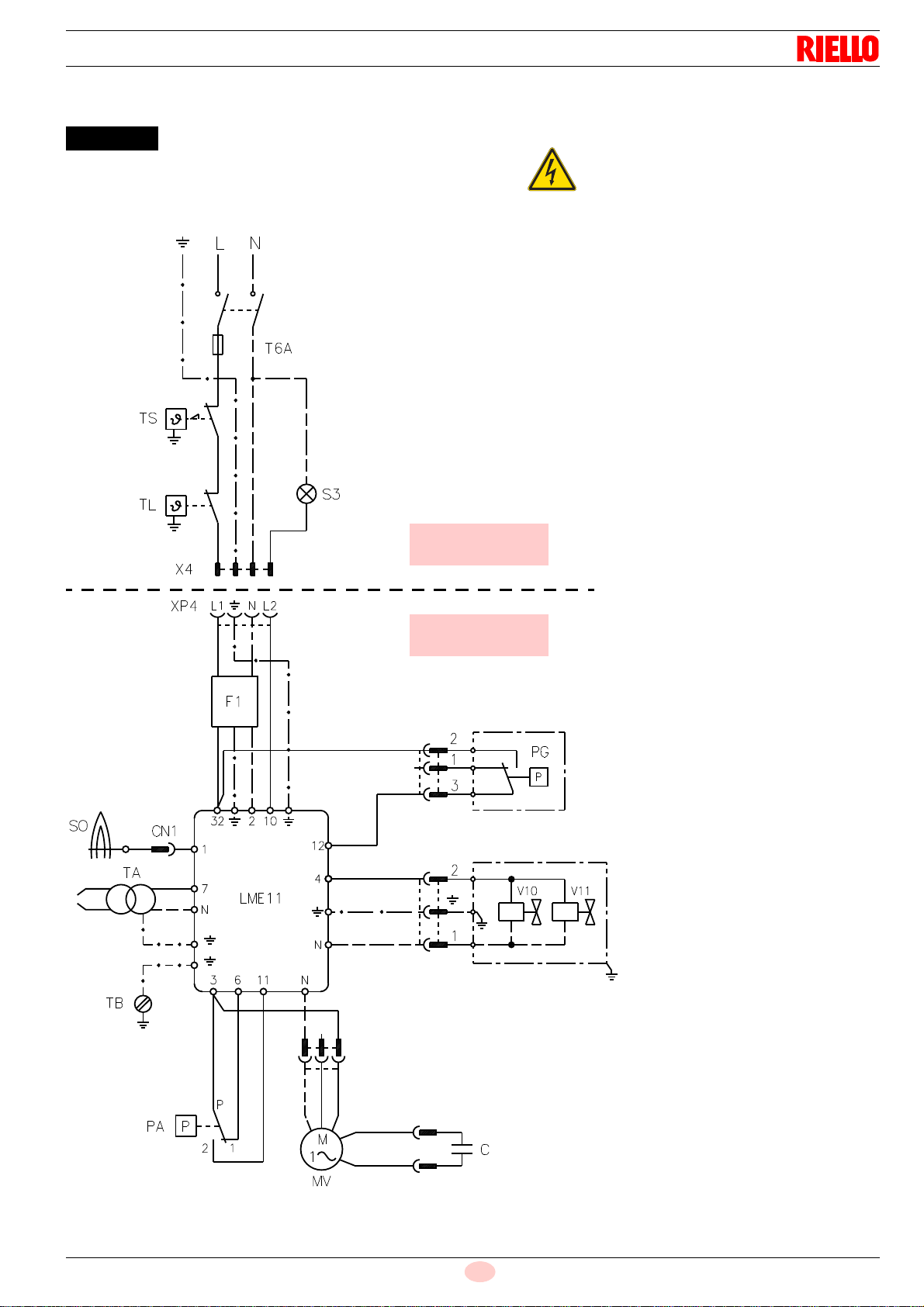

3.5 Electrical wiring . . . . . . . . . . . . . . . . . . . . . 8
3.6 Probe-electrode positioning . . . . . . . . . . . . 9
4. OPERATION . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 Combustion adjustment . . . . . . . . . . . . . . . 9
4.2 Combustion head setting . . . . . . . . . . . . . . 9
4.3 Air dampers adjustment . . . . . . . . . . . . . . . 9
4.4 Combustion check . . . . . . . . . . . . . . . . . . 10
4.5 Air pressure test point . . . . . . . . . . . . . . . 11
4.6 Air pressure switch. . . . . . . . . . . . . . . . . . 11
4.7 Burner start-up cycle . . . . . . . . . . . . . . . . 11
5. MAINTENANCE. . . . . . . . . . . . . . . . . . . . 12
6. FAULTS / SOLUTIONS . . . . . . . . . . . . . . 13
6.1 Operating fault diagnostics. . . . . . . . . . . 15
OThe burner meets protection level of IP 40, EN 60529.
OGas train according to EN 676.

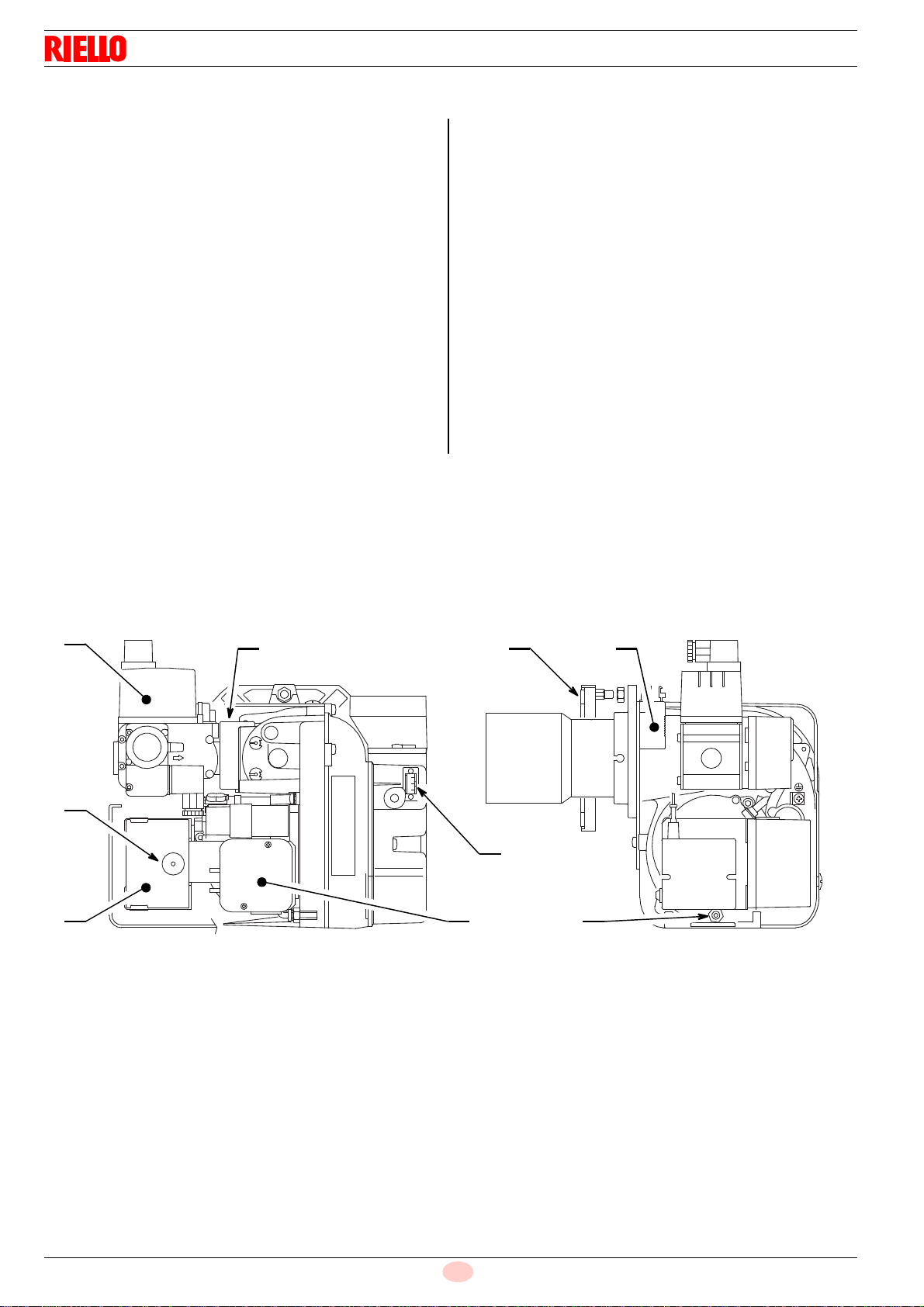

1 – Air pressure switch
2 – Gas pressure test point
3 – Air damper adjustment
4 – Control box
5 – Reset button with lock-out lamp
6 – Flange with insulating gasket
7 – 4 pole supply socket
8 – Air pressure test point
9 – Gas train
Fig. 1
D4193
92
5
4 1 8
3
6 7

2 2902768
GB
2. TECHNICAL DATA
2.1 TECHNICAL DATA
Tab. A
For gas family 3 (LPG) ask for separate kit.

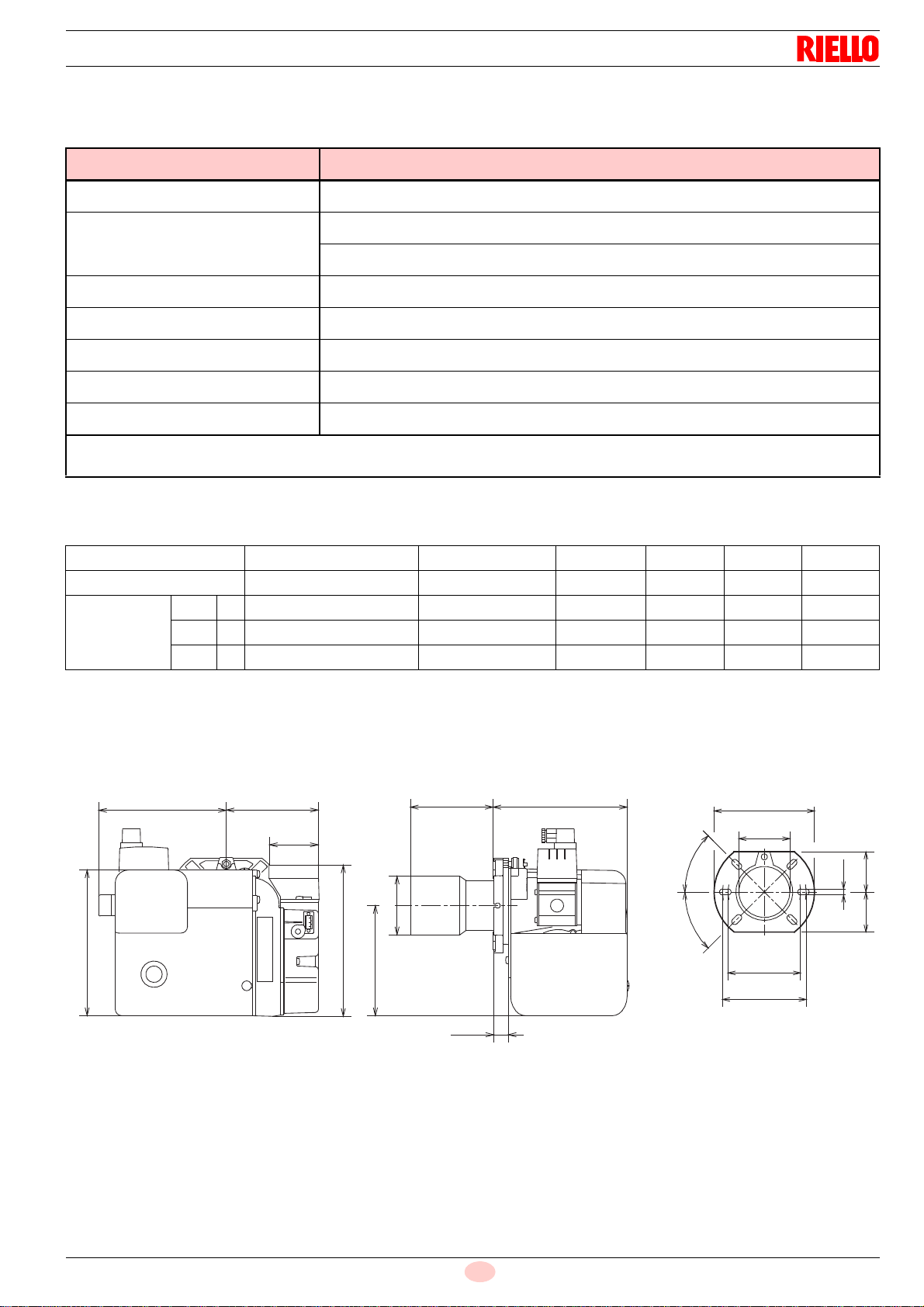

2.2 OVERALL DIMENSIONS
Type 960T
Thermal power (1) 16 – 47 kW – 13,760 – 40,420 kcal/h
Natural gas (Family 2) Net heat value: 8 – 12 kWh/Nm3= 7000 – 10,340 kcal/Nm3
Pressure: min. 20 mbar – max. 65 mbar
Electrical supply Single phase, ~50Hz 230V ±10%
Motor Run current 0.75 A - 2800 rpm - 294 rad/s
Capacitor 2 F
Ignition transformer Primary 220-240V – 50-60Hz – Secondary 15 kV - 25 mA
Absorbed electrical power 0,09 kW
(1) Reference conditions: Temp. 20°C - Barometric pressure 1013 mbar – Altitude 0 m above sea level.
COUNTRY AT - DK - IT - GR - SE GB - IE - ES - PT DE FR NL LU - PL
GAS CATEGORY II2H3B/P II2H3P II2ELL3B/P II2Er3P II2L3B/P II2E3B/P
GAS
PRESSURE
G20 H 20 20 – – –20
G25 L ––20–
25 –
G20 E – – 20 20/25 ––
FlangeBurner
195 207
20
168
ø 75
230
222
141 115
130
150
180
91
11 72
72
45
°
45
°
D4194
D4212
ø 89

2902768 3
GB
2.3 FIRING RATE (as EN 676)
TEST BOILER
The firing rate has been defined according to EN 676 standard.
COMMERCIAL BOILERS
The burner-boiler matching is assured if the boiler is according to EN 303 and the combustion chamber
dimensions are similar to those shown in the diagram EN 676.For applications where the boiler is not
according to EN 303, or where the combustion chamber dimensions differ from those shown in EN 676,
please consult the manufacturers.
CORRELATION BETWEEN GAS PRESSURE AND BURNER OUTPUT
To obtain the maximum output, a gas head pressure of 5.75 mbar is measured (M3, see chapter 3.3, page 6) with
the combustion chamber at 0 mbar using gas G20 with a net heat value of 10 kWh/Nm3(8,570 kcal/Nm3).
Thermal power
Pressure in the combustion
chamber - mbar
kW
kcal/h
D4206
Thermal power
Gas pressure in the
combustion head – mbar
kW
kcal/h
D4544

4 2902768
GB
3. INSTALLATION
3.1 BOILER FIXING
Put on the flange (1) the screw and two nuts, (see fig. 2).
Fix the flange (1) to the boiler door (4) using screws (2) and (if necessary) the nuts (3) interposing the
insulating gasket (5), (see fig. 3).
3.2 BURNER ASSEMBLY
In case of CF applications, the burner shall not operate without
protection (A) of the suction inlet.
FOR CORRECT BF APPLICATION, THE BURNER MUST BE
INSTALLED ON AN APPROPRIATE BF BOILER.
In case of BF applications an optional snorkel and gasket are
available replacing (A) with (B). This item can be supplied sepa-
rately.
The combustion air supply is through a flexible or rigid pipe con-
nected to the air intake.
Consequently, you must comply with the following requirements
and instructions:
The combustion air intake tube must be:
- fastened securely to the burner;
- made of a suitable material, with temperature characteris-
tics in the range - 30 °C to 80 °C;
- in compliance with all requirements of applicable regula-
tions in force in the country of destination.
The installation of the burner must be carried out by qualified personnel, as indicated in this manual and in
compliance with the standards and regulations of the laws in force.
ATTENZIONE
Fig. 3
Fig. 2
E9095
E9094
5
13
4
2
1
D5884
A
D5883
B
CF APPLICATION
BF APPLICATION

2902768 5
GB
The intake-tube / burner system must not allow a loss of over 2 m3/h at 0.5 mbar:
for instance, the above requirements will be met if you use flues for pressure exhaust of flue gases (the
condensation kind).
Make sure the air intake tube’s inlet is positioned so that it is not likely to be obstructed by foreign matter
and, where necessary, use suitable screens.
The temperature of the incoming air must not exceed 60 °C;
The inside diameter of the hose must be at least 80 mm.
The intake tube can be up to 6 metres in length.
Warning: length is reduced if there are bends in the intake section.
For instance, using a tube with a smooth inside surface, you must allow for the following losses:
- for each 45° bend, tube length is reduced by 0.5 m;
- for each 90° bend, tube length is reduced by 0.8 m.
BURNER INSTALLATION MUST COMPLY WITH ONE OF THE INSTALLATIONS ILLUSTRATED IN THE
FIGURES BELOW.
Under no circumstances should the air’s entry in the hose intake area be obstructed.
The hose must not be blocked in any way or feature a shutting device (valves, membranes etc.).
3.3 GAS SUPPLY LINE
ATTENTION
S7851
S7853
S7876
12 3 45 6M178 9101112M213M314
D4208

6 2902768
GB
3.4 GAS TRAIN (as EN 676)

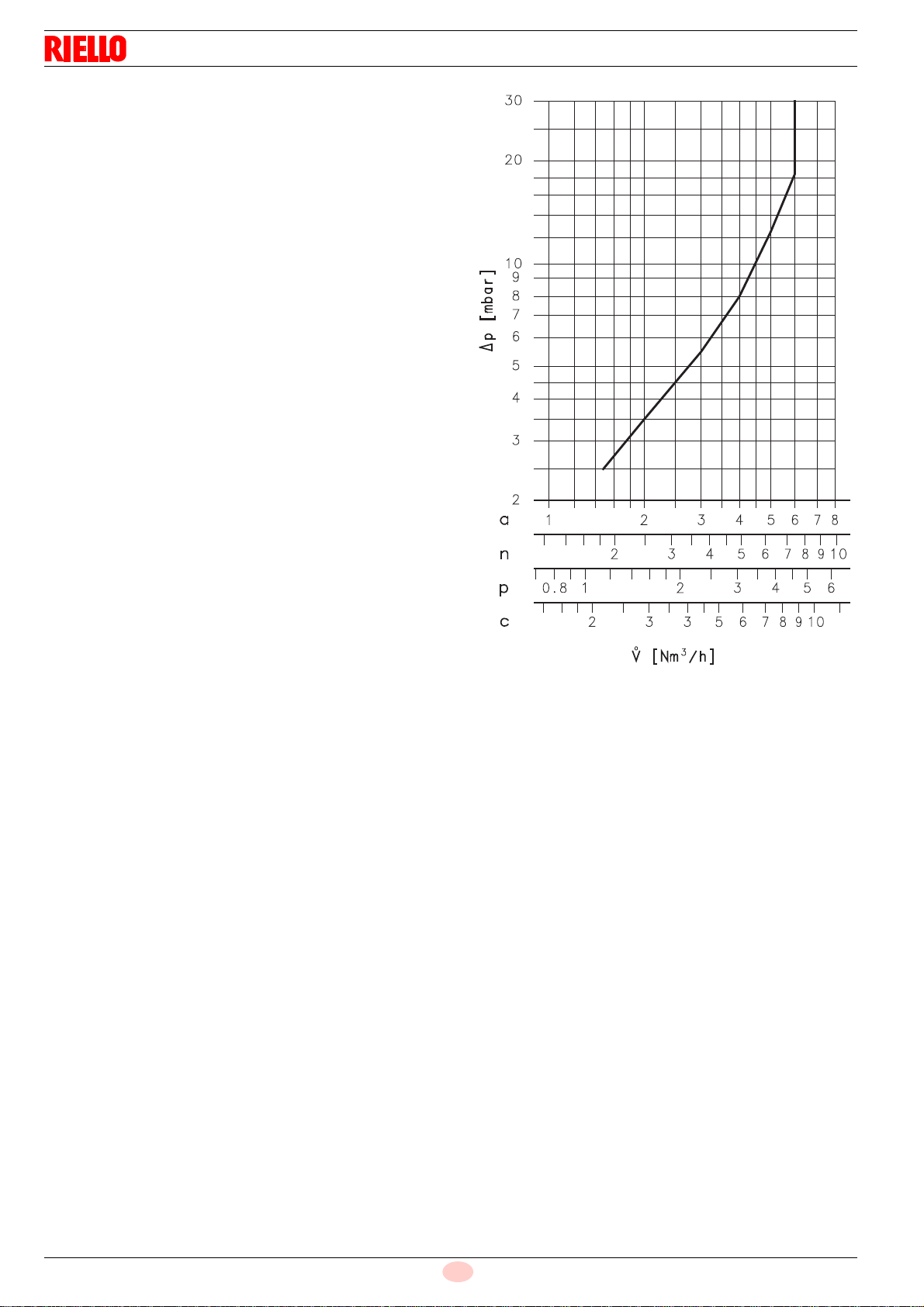

GAS TRAIN PRESSURE LOSS
The gas train pressure loss p is provided from the diagram; the scales of the volumetric output are valid
respectively for:
a=air,
n= natural gas (G20),
p= propane (G30),
c= city gas (G140), only for applications not covered by the Gas Appliances Directive.
The value indicated in the diagram will differ according to the adjustment of the pressure stabilizer.
The minimum necessary pressure in the network can be obtained by adding the pressure of the diagram to
the burner pressure losses and the back pressure of the combustion chamber (see the technical instruction of
the heat generator).

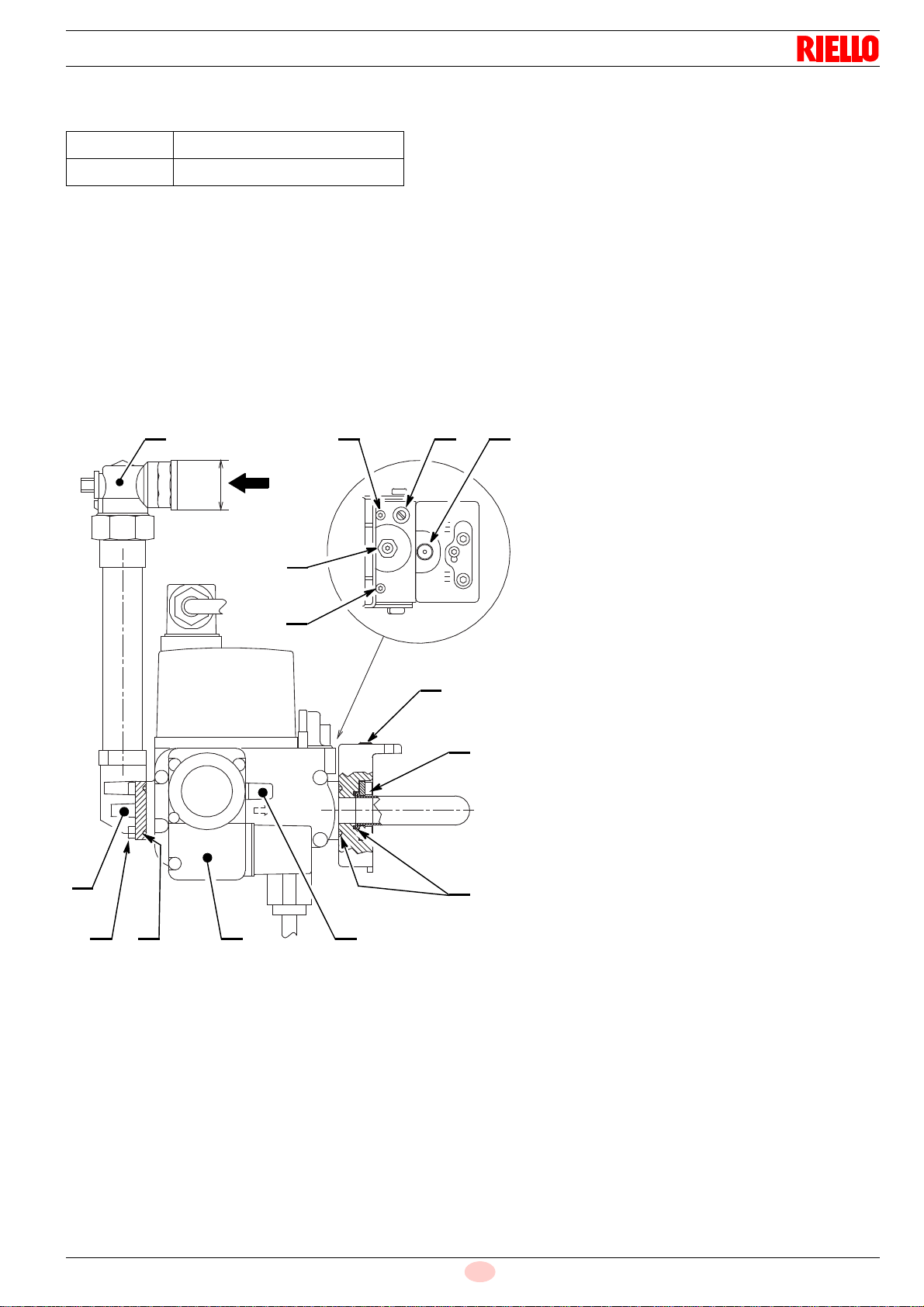

KEY TO LAY-OUT
1 - Gas supply pipe
2 - Manual cock
(Supplied by the installer)
3 - Antivibration joint
(Supplied by the installer)
4 - Gas pressure gauge
(Supplied by the installer)
5 - 90° manual gate valve
(supplied standard)
6-Filter
7 - Gas pressure switch
8 - Safety valve
9 - Adjusting valve
10 - Pressure stabilizer
11 - Brake adjustment
12 - Stabiliser adjustment
13 - Valve adjustment
14 - Valve - burner adaptor
15 - Flange 90°
16 - Flange fixing screws
17 - Sealing rings
M1- Gas-supply pressure test point
M2 - Test point for measuring pressure
after stabilising
M3 - Pressure coupling test point
COMPONENTS
The multibloc is composed by:
1-Filter
1 - Gas pressure switch
1 - Pressure stabilizer
2 - Solenoid valves:
- safety valve with fast opening.
- adjusting valve with slow opening.
Type MBDLE 055 D01
Use Natural gas and LPG
D4195
5
1/2”
7
15
16 17
1
11
12
M2 M3
M1
14
16
17
13
Fig. 4
V
°

2902768 7
GB
FILTER MAINTENANCE
If necessary the filter can be replaced; for this opera-
tion you must call the service agent.
PRESSURE STABILIZER ADJUSTMENT
By rotating the pressure regulator adjustment screw
clockwise, the gas head pressure & thus output
increases. Anti-clockwise reduces the pressure &
output.
VALVE ADJUSTMENTS
The slow opening of the valve providing reduced igni-
tion gas is adjusted by turning the screw (11, fig. 4
page 6) anti-clockwise to increase the start gas quan-
tity & clockwise to decrease it. It is possible to set the
valve to give an ignition gas rate of 80% of the maxi-
mum, however to ensure smooth ignition, we would
recommend that this value is kept to a minimum value
but that allows reliable operation. The introduction of
the main gas output is achieved through the valve
continuing to open slowly once ignition has been
achieved. The main gas throughput is set by adjusting
the screw (13, fig. 4 page 6) anti-clockwise to
increase rate & clockwise to decrease.
LOW GAS PRESSURE SWITCH ADJUSTMENT
Adjust the gas pressure switch (7, fig. 4 page 6) after
carrying out all the other adjustments of the burner
with the gas pressure switch adjusted at the beginning
of the scale.
Let the burner work at the required output. Slowly
start to close the gas isolation valve on the gas supply
manifold reducing the pressure by 5 - 6 mbar from that recorded as the normal working gas pressure measured
on your pressure gauge. Rotate the dial on the pressure switch until the dial reads just below the reduced value
now showing on your pressure gauge, the burner should shut down. Open op the isolation valve & check that the
burner starts & runs correctly.
INITIAL ADJUSTMENT OF THE GAS VALVE
ADJUSTMENT OF THE START GAS FLOW
(11, fig. 4 page 6)
Rotate the screw (11) clockwise until a resistance is felt. Rotate the screw anticlockwise for 7 turns.
This is an initial setting and may require adjusting for different outputs.
ADJUSTMENT OF THE MAIN FLOW RESTRICTOR (13, fig. 4 page 6)
Rotate the screw (13) clockwise until a resistance is felt. Rotate the screw anticlockwise for three turns.
This is an initial setting for the burner to fire and will require adjusting for different outputs.
PRESSURE GOVERNOR (12, fig. 4 page 6)
Rotate the screw (12) anticlockwise until you hear the click at the end of a full rotation at this point.
Rotate the screw clockwise by 12 turns this will set the governor at a mid position from where adjustments to the
through put can be made.
GAS PRESSURE (M3, fig. 4 page 6)
The gas head pressure is measured at the pressure test point (M3).
AIR DAMPER ADJUSTMENT
The air is adjusted by turning the screw (3, fig. 6, page 10).
D4061

8 2902768
GB
3.5 ELECTRICAL WIRING
KEY TO LAY-OUT
C–Capacitor
CN1 – Connector
F1 – Suppressor
MV – Motor
PA – Air pressure switch
PG – Min. gas pressure switch
S3 – Remote lock-out signal
(230V - 0.5A max.)
SO – Ionization probe
T6A – Fuse
TA – Ignition transformer
TB – Burner earth
TL – Limit thermostat
TS – Safety thermostat
V10 – Safety valve
V11 – Adjusting valve
X4 – 4 pin plug
XP4 – 4 pole socket
Black
White
Blue
Red
Brown
D8491
CARRIED OUT
~50Hz - 230V
DO NOT EXCHANGE NEUTRAL WITH PHASE
WARNING
IN THE FACTORY
CONTROL BOX
NOTES:
– Wires of min. 1 mm2section.
(Unless requested otherwise by local stand-
ards and legislation).
– The electrical wiring carried out by the install-
er must be in compliance with the rules in
force in the country.
TESTING:
Check that the burner shuts down when the
boiler thermostat contacts open. Also check
that the burner locks out when the connector
(CN1) fitted in the red probe lead is
disconnected.
All the installation, maintenance and
disassembly operations must be carried
out with the electricity supply
disconnected.
PERICOLO
TO BE DONE BY
THE INSTALLER

2902768 9
GB
3.6 PROBE-ELECTRODE POSITIONING
4. OPERATION
4.1 COMBUSTION ADJUSTMENT
In conformity with Efficiency Directive 92/42/EEC the application of the burner on the boiler, adjustment and test-
ing must be carried out observing the instruction manual of the boiler, including verification of the CO and CO2
concentration in the flue gases, their temperatures and the average temperature of the water in the boiler.
To suit the required appliance output, choose the proper setting of the combustion head, and the main air
damper opening in accordance with the following table.
4.2 COMBUSTION HEAD SETTING (see fig. 5)
The combustion head setting must be carried out by the
installer, and set as indicated in the table above.
To set the position of the head, proceed as follows: remove
screw (2) and release screws (1) position the combustion
head / gas valve assembly (C) to either set point 1 or 2.
Tighten screws (1) and refit screw (2).
The combustion head leaves the factory pre-set to
position (2).
4.3 AIR DAMPERS SETTING (see fig. 6, page 10)
The air setting is performed by mean of two independent
dampers.
OMAIN AIR DAMPER (A)
The main air damper can be set in either of two posi-
tions.
To set the positions of the damper, proceed as follows:
release the secondary air damper (B) loosing the screws
(1).
Loosen the screw (2) and rotate the main air damper (A) to the required position 1or 2. Re-tighten the screw
(2) and put back the secondary air damper (B). The main air damper is factory pre-set to position 2.
Burner
thermal power
Combustion
head setting Main air
damper setting
Position Position
16 – 26 kW 1 1
26 – 47 kW 2 2
WARNING 2.5 – 3.5 mm
Ignition electrodeDiffuserprobe
Probe Electrode
D4202
1.7
Ionization
Make sure that the ceramic
is behind the diffuser disc
and level with it.
Fig. 5
Pos.1Pos.2
1
2
C
E9174
E9175

10 2902768
GB
OSECONDARY AIR DAMPER (B)
The purpose of this damper is to perform a fine-tuning of the inlet air. Tuning of this device is possible acting
of the screw (3).
4.4 COMBUSTION CHECK
It is advisable to set the burner according to the type of gas used and following the indications of the table:
IONIZATION CURRENT, (see fig. 7)
The minimum current necessary for the control
box operation is 5 µA.
The burner normally supplies a higher current
value, so that no check is needed.
To measure the ionization current, open the con-
nector CN1 (see electrical scheme page 8) & in-
sert your microammeter.
EN 676 AIR EXCESS:
max. output 1.2 – min. output 1.3
GAS Theoretical max. CO2
0% O2
Setting CO2%CO
mg/kWh NOx
mg/kWh
= 1.2 = 1.3
G 20 11.7 9.7 9.0 100 170
G 25 11.5 9.5 8.8 100 170
G 30 14.0 11.6 10.7 100 230
G 31 13.7 11.4 10.5 100 230
Secondary air damper (B)Main air damper assembly (A)
Fig. 6
B
1
2
AB3
D4202
D4202
D5006
1
Fig. 7
Probe
Connector
Terminal block
of control box

2902768 11
GB
4.5 AIR PRESSURE TEST POINT
ATTENTION
Should the air pressure test point device (A)
come loose by accident, you are advised to
turn it to the correct position as illustrated in
figure 8.
Connect air pressure test point (A) to the
pressure switch (C) inlet (-).
Connect air pressure test point (B) to the
pressure switch (C) inlet (+).
NOTE
There is a gauged diaphragm inside the pipes,
located near the air pressure test points.
If pipes are replaced, reuse the above-men-
tioned diaphragms.
4.6 AIR PRESSURE SWITCH
Adjust the air pressure switch after having performed all other burner adjustments starting with the air pres-
sure switch set to the start of the scale. With the burner operating at the required power, slowly turn knob
clockwise until burner locks out. Then turn the knob anti-clockwise by about 20% of the set point and subse-
quently check to see if burner has started correctly. If the burner locks out again, turn the knob anti-clockwise
a little bit more, then obstruct the air intake and make sure the unit locks out.
NOTE
With the burner operating at minimum output, the pressure switch must be adjusted to 5 mbar and you must
obstruct the air intake and make sure the unit locks out.
Attention
As a rule, the air pressure switch must prevent the air pressure from lowering below 80% of the adjustment
value as well as preventing CO from forming in the flue gases.
Typical normal operating values would be below 100 ppm. However to check the operation of the air pres-
sure switch, the air intake can be slowly blocked off until the burner locks out. The CO concentration in the
flue gases must not exceed (1%) 10,000 ppm.
To check this, insert a combustion analyser into the chimney, slowly close the fan suction inlet (for example
with cardboard) and check that the burner locks out, before the CO in the fumes exceeds 1%.
4.7 BURNER START-UP CYCLE
Lock-out is indicated by a lamp on the control box (5, fig. 1, page 1).
When the flame-failure occurs during working, shut down takes place within one second.
D4244
Fig. 8
A
B
C
Lock-out, due to light failure
A
Normal
2,5s
D4245
2s 400 ms
37s 3s
2,5s 2s 400 ms
3s
36s
Thermostat
Ignition transformer
Motor
Valve
Flame signal
Lock-out signal
Remote reset signal
Air pressure switch
A

12 2902768
GB
5. MAINTENANCE
Notes on safety for the maintenance
The periodic maintenance is essential for the good operation, safety, yield and duration of the burner.
It allows you to reduce consumption and polluting emissions and to keep the product in a reliable state over time.
Before carrying out any maintenance, cleaning or checking operations:
- Disconnect the electrical supply from the burner by means of the main system switch.
- Close the fuel interception tap.
- Wait for the components in contact with heat sources to cool down completely.
THE BASIC CHECKS ARE:
Leave the burner working without interruptions for 10 min. set correctly all the components stated in this
manual.
Then carry out a combustion check verifying:
•Content of CO2(%)
•Content of CO (ppm)
•Flue gas temperatures.
The maintenance interventions and the calibration of the burner must only be carried out by qualified,
authorised personnel, in accordance with the contents of this manual and in compliance with the
standards and regulations of current laws.
WARNING

2902768 13
GB
6. FAULTS / SOLUTIONS
Below are some examples of causes & possible solutions that could result in the burner failing to operate or
that result in it working incorrectly. A fault usually makes the lock-out lamp light which is situated inside the
reset button of the control box (5, fig. 1, page 1). When lock out lamp lights the burner will attempt to light only
after pushing the reset button. After this if the burner functions correctly, the lock-out can be attributed to a
temporary fault. If however the lock out continues the cause must be determined and the solution found.
BURNER STARTING DIFFICULTIES
FAULTS POSSIBLE CAUSES SOLUTION
The burner will not start
when the adjustment
thermostat closes.
Lack of electrical supply.
Check presence of voltage in the L1-N
clamps of the 4 pin plug.
Check the condition of the fuses.
Check that the boiler high limit thermo-
stat has not operated.
Lack of gas.
Check that the manual gas isolation
valve is open.
Check that the burner gas valves are
wired correctly & that they are opening &
passing gas once energized (Verify this
by using your gas pressure gauge).
The gas pressure switch does not
close its contact. Adjust the gas pressure switch to its cor- rect setting.
The connections in the control box are
wrongly inserted. Check and connect all the plugs.
The air pressure switch contact is in
the run position when the burner is at
rest. Replace the air pressure switch.
The burner runs normal-
ly in the prepurge and ig-
nition cycle and locks
out after about 3 sec-
onds.
Phase and neutral connection is in-
verted. Connect them correctly.
Check that the burner earth connec-
tions are well made. Connect them correctly.
The ionization probe is earthed or not
in contact with the flame, or its wiring
to the control box is broken, or there is
a fault on its insulation to the earth.
Check the right position and if necessary
set it according to the instructions of this
manual.
Reset the electrical connection.
Replace the faulty connection.
The burner starts with an
ignition delay.
The ignition electrodes is wrongly po-
sitioned. Adjust it according to the instructions of this manual.
The air setting is to high for the burner
output. Set the air output according to the in- structions of this manual.
The start gas is insufficient. Increase the start gas volume.
The burner locks out af-
ter the prepurge phase
due to flame-failure.
The solenoid valves is passing too lit-
tle gas.
Check the supply pressure from the net-
work & adjust the gas multibloc valve ac-
cording to the instructions.
The solenoid valves are defective. Replace the valve bloc.
The ignition arc is irregular or has
failed.
Check the right insertion of the connec-
tors.
Check the right position of the electrode
according to the instructions of this man-
ual.
The gas supply pipe and/or the valve
bloc has not been purged of air. Purge the air in accordance with the gas safety in use regulations.

14 2902768
GB
Tab. B
The burner locks out dur-
ing the prepurge phase.
The air pressure switch does not
change over to the operational posi-
tion.
The pressure switch is faulty, change it.
The developed air pressure is to low,
check the burner head setting.
The flame exists. Faulty valves: replace them.
The pressure test point (8, fig. 1, page
1) is badly positioned.
Place it in the right position according to
the instructions of this manual on page 1,
chapter 1.
The burner continues to
repeat the starting cycle
without going on lock-
out.
The pressure in the gas supply is
close to the setting of the pressure
switch.
When the valve opens the pressure in
the supply drops & the gas pressure
switch stops the burner working.
Once the burner valve closes the
pressure in the supply increase &
makes the pressure switch again, and
the cycle continues.
Set the pressure switch according to the
manual.
FAULTS POSSIBLE CAUSES SOLUTION

2902768 15
GB
6.1 OPERATING FAULT DIAGNOSTICS
The control box has a self-diagnostic system, which easily allows identifying the operating faults (RED LED
signal). To use this function, wait at least ten seconds from the safety lock out, and then press the reset but-
ton for a minimum of 3 seconds. After releasing the button, the RED LED starts flashing as shown in the dia-
gram below.
The LED gives of a blink code every 3 seconds.
The blink codes give the information about the possible faults, as follows:
Tab. C
BLINK CODE POSSIBLE CAUSE
2 blinks

The flame does not stabilize at the end of the safety time:
– faulty or soiled ionization probe;
– faulty or soiled fuel valves;
– neutral/phase exchange;
– poor burner regulation.
3 blinks

Minimum air pressure switch does not close:
– air pressure switch faulty;
– air pressure switch incorrectly regulated;
– fan motor does not run.
4 blinks
 Extraneous light during pre-purging, or control box faulty.
5 blinks

Minimum air pressure switch does not open:
– air pressure switch faulty;
– air pressure switch incorrectly adjusted.
7 blinks

Loss of flame during operation:
– poor burner regulation;
– faulty or soiled fuel valves;
– short circuit between ionization probe and earth.
10 blinks
 Control box faulty.
 
Press reset
for >3s intervalBlink code Blink code
RED LED on
wait at least 10s 3s

2902768
Déclaration de conformité d'après ISO / IEC 17050-1
Fabricant: RIELLO S.p.A.
Adresse: Via Pilade Riello, 7
37045 Legnago (VR)
Produit: Brûleur gaz à air soufflé
Modèle: RDBS1
Ces produits sont conformes aux Normes Techniques suivantes:
EN 676
EN 12100
et conformément aux dispositions des Directives Européennes:
GAD 2009/142/EC Directive Appareils à Gaz
MD 2006/42/CE Directive Machines
LVD 2006/95/CE Directive Basse Tension
EMC 2004/108/CE Compatibilité Électromagnétique
Ces produits sont marqués comme indiqué par la suite:
La qualité est garantie grâce à un système de qualité et de gestion certifié conforme à UNI EN ISO 9001.
Legnago, 21.05.2015 Directeur Général
RIELLO S.p.A. - Direction Brûleurs Directeur Recherche et Développement RIELLO S.p.A. - Direction Brûleurs
Ing. U. Ferretti Ing. F. Comencini
CE-0085BM0490

2902768 1
F
SOMMAIRE
1. DESCRIPTION DU BRULEUR
Brûleur gaz fonctionnement à une allure.
1.1 MATÉRIEL FOURNI
Bride avec joint isolant . . . . . . . . . . . . . . . . . . . . . . . .N. 1 Clapet de fermeture manuelle 90°. . . . N. 1
Fiche 4 pôles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .N. 1 Tube 1/2” . . . . . . . . . . . . . . . . . . . . . . N. 1
Vis et écrous fixation bride sur la chaudière . . . . . . . .N. 4 Bride 90° . . . . . . . . . . . . . . . . . . . . . . N. 1
Grille de protection pour applications CF . . . . . . . . . .N. 1 Prise d'air . . . . . . . . . . . . . . . . . . . . . . N. 1
1.2 ACCESSOIRE
KIT (KIT INTERFACE DE PC): code 3002719
1. DESCRIPTION DU BRULEUR . . . . . . . . . 1
1.1 Matériel fourni . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Accessoire. . . . . . . . . . . . . . . . . . . . . . . . . 1
2. DONNEES TECHNIQUES . . . . . . . . . . . . . 2
2.1 Données techniques. . . . . . . . . . . . . . . . . . 2
2.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 2
2.3 Plage de travail . . . . . . . . . . . . . . . . . . . . . 3
3. INSTALLATION. . . . . . . . . . . . . . . . . . . . . 4
3.1 Fixation à la chaudière. . . . . . . . . . . . . . . . 4
3.2 Montage du brûleur . . . . . . . . . . . . . . . . . . 4
3.3 Schéma alimentation du gaz . . . . . . . . . . . 5
3.4 Rampe gaz . . . . . . . . . . . . . . . . . . . . . . . . 6
3.5 Installation électrique. . . . . . . . . . . . . . . . . 8
3.6 Positionnement sonde - électrode . . . . . . . 9
4. FONCTIONNEMENT . . . . . . . . . . . . . . . . . 9
4.1 Réglage de la combustion . . . . . . . . . . . . . 9
4.2 Réglage tête de combustion . . . . . . . . . . . . 9
4.3 Réglage volets d’air . . . . . . . . . . . . . . . . . . 9
4.4 Contrôle de la combustion . . . . . . . . . . . . 10
4.5 Prise de pression air . . . . . . . . . . . . . . . . 11
4.6 Pressostat air. . . . . . . . . . . . . . . . . . . . . . 11
4.7 Cycle de démarrage. . . . . . . . . . . . . . . . . 11
5. ENTRETIEN. . . . . . . . . . . . . . . . . . . . . . . 12
6. ANOMALIES / REMEDES . . . . . . . . . . . . 13
6.1 Diagnostic mauvais fonctionnement . . . . 15
OBrûleur conforme au degré de protection IP 40 selon EN 60529.
ORampe gaz conforme à EN 676.
1 – Pressostat air
2 – Prise de pression gaz
3 – Réglage volet d'air
4 – Boîte de commande et contrôle
5 – Bouton de réarmement avec
signalisation de sécurité
6 – Bride avec joint isolant
7 – Prise 4 pôles pour l’alimentation
8 – Prise de pression air
9 – Rampe gaz
Fig. 1
D4193
92
5
4 1 8
3
6 7
