Rigel Medical SafeTest 99 User manual

rigelmedical.com
SafeTest 99
USER MANUAL

RIGEL MEDICAL SafeTest 99 USER MANUAL
1
Limited Warranty & Limitation of Liability
Rigel Medical, guarantees this product for a period of 2 years. The period of warranty will
be effective at the day of delivery.
To activate your 2-year warranty, register your product at the below link. Terms and
conditions apply.
www.rigelmedical.com/register
Calibration Statement
The Rigel SafeTest 99 hand-held electrical safety analyzer is fully calibrated and found to
be within the specified performance and accuracy at the time of production. The Seaward
Group provides its products through a variety of channels; therefore, it may be possible
that the calibration date on the provided certificate may not represent the actual date of
first use.
Experience has indicated that the calibration of this instrument is not affected by storage
prior to receipt by the user. We therefore recommend that the recalibration period be
based on a 12-month interval from the first date the unit is placed into service.
For information on service or calibration please go to the link below.
www.rigelmedical.com/calibration
Date received into service; / / .
© Copyright 2021
All rights reserved. Nothing from this edition may be reproduced, or made public in any
form, either electronically, mechanically, by photocopying, recording, or in any manner,
without prior written consent from Rigel Medical. This also applies to accompanying
drawings and diagrams.
Due to a policy of continuous development Rigel Medical reserves the right to alter the
equipment specification and description outlined in this publication without prior notice
and no part of this publication shall be deemed to be part of any contract for the
equipment unless specifically referred to as an inclusion within such contract.

RIGEL MEDICAL SafeTest 99 USER MANUAL
2
Disposal of old product
The Rigel SafeTest 99 has been designed and manufactured with high quality materials
and components, which can be recycled and reused.
Please familiarise yourself with the appropriate local separate collection system for
electrical and electronic products or contact your local supplier for further information.
Please dispose of this product according to local regulations. Do not dispose of this
product along with normal waste material. By offering your old products for recycling, you
will help prevent potential negative consequences for the environment and human
health.
User Notes
These operating instructions are intended for the use of adequately trained personnel.
Warning of electrical danger!
Indicates instructions must be followed to avoid danger to persons.
Important, follow the documentation! This symbol indicates that the operating
instructions must be adhered to in order to avoid danger.
Environmental Conditions
The SafeTest 99 has been designed to be operated for indoor use in a dry environment, at
a temperature of 0 to 40 degrees C without moisture condensation, and at an operating
altitude 0 2000m.
The SafeTest 99 has a protection rating of IP40 and is rated for operation at pollution
degree 2 according to IEC 60529.
The following symbols are used in these operating instructions and on the Rigel SafeTest
99.

RIGEL MEDICAL SafeTest 99 USER MANUAL
3
Safety Notes
If the SafeTest 99 is used in a manner not specified by these operating
instructions, then the protection provided may be impaired.
Only accessories recommended or approved by the manufacturer should be used
with the SafeTest 99.
Do not connect the SafeTest 99 to electrical circuits with nominal voltage greater
than CAT II 300 V AC/DC.
Do not touch test probes beyond the hand barrier on the test probe.
The SafeTest 99 may apply high voltage or mains power to the appliance under
test. Do not touch conductive parts of the appliance while tests are active.
Do not open the SafeTest 99, no user serviceable parts
Do not operate the SafeTest 99 in an explosive gas or dust environment.
The SafeTest 99 and all associated cables and leads must be checked for signs of
damage before equipment is operated. Do not use if there are signs of damage.
Where safe operation of the SafeTest 99 is no longer possible it should be
immediately shut down and secured to prevent accidental operation
It must be assumed that safe operation is no longer possible:
•if the instrument or leads show visible signs of damage or
•the instrument does not function or
•after long periods of storage under adverse environmental conditions.
To verify the correct operation of the unit, perform test functions using a known
appliance or checkbox or return the unit to an approved agent for service.
When testing multiple applied parts, only the SafeTest 99 Applied Parts
Connection Box should be used.
This symbol is also used for tips and guidance notes in the manual

RIGEL MEDICAL SafeTest 99 USER MANUAL
4
1. Introduction 5
1.1. Key Features 5
1.2. Rigel SafeTest 99 Includes: 5
1.3. Interfaces 6
1.4. Optional Accessories 7
1.5. Unique use of ICONS 7
2. Getting Started 9
2.1. Setting your Language 9
2.2. Displaying the SafeTest 99 Device Information 10
2.3. Accessing the SafeTest 99 Functions 10
3. Ground Continuity Measurement 12
4. NFPA-99 Ground Leakage Measurement 14
5. NFPA-99 Chassis Leakage (Touch Current) Measurement 16
6. NFPA-99 Patient Lead Leakage Measurement 18
7. Displaying Line Voltage Supply Characteristics 20
8. Point to Point Measurement 21
9. Warning Messages 23
10. Maintaining the SafeTest 99 24
10.1. Cleaning the Analyzer 24
10.2. User Maintenance 24
10.3. Calibration or Repair. 24
14. Technical Specifications 25
14.1. General Specifications 26
14.2. Environmental Conditions 26
14.3. Applied Parts Connection Box 26
Appendix A NFPA 99 Pass / Fail Limits 27
Appendix B NFPA 99 (2021) Body Model and Frequency Response 27

RIGEL MEDICAL SafeTest 99 USER MANUAL
5
1. Introduction
The SafeTest 99 is a dedicated medical safety analyzer, ideal for testing high volumes of
basic medical and laboratory equipment. A robust and reliable design ensures that the
SafeTest 99 can withstand a busy schedule of testing medical equipment.
With a large color display and a color
tests with a single key press, while a fast step-through of the test routine makes the
testing process speedy and dependable. Though physically small, the SafeTest 99 includes
a range of safety tests to enable compliance to the NFPA 99-2015 safety standard,
including leakage and ground continuity testing.
Full manual control offers the benefit of executing only those specific tests that are
required and provide the user with full control of the power cycles, making testing simple,
easy, and fast. An automatic warning of secondary ground paths ensures users are made
aware when invalid readings are made, thus ensuring correct and accurate test results first
time, every time.
1.1. Key Features
•Compact, robust and portable design
•Fast step-through of test routines with minimised power cycles
•Manual control of fault conditions
•Tests to standard NFPA 99-2015
•Large, highly visible color display
•Secondary earth warnings to ensure valid test setup
•Accurate high current, low energy ground bond testing
•Supplied with free, protective carry case
•Multi voltage - operates on any mains supply between 90-264V / 48-64Hz
1.2. Rigel SafeTest 99 Includes:
1. Rigel SafeTest 99
2. AC Power Supply
3. Ground Continuity Test
Probe with Clip
4. ECG Snap Adapters
(pack of 10)
5. Calibration Certificate
6. Applied Parts
Connector Box
7. SafeTest 99 Carry Case

RIGEL MEDICAL SafeTest 99 USER MANUAL
6

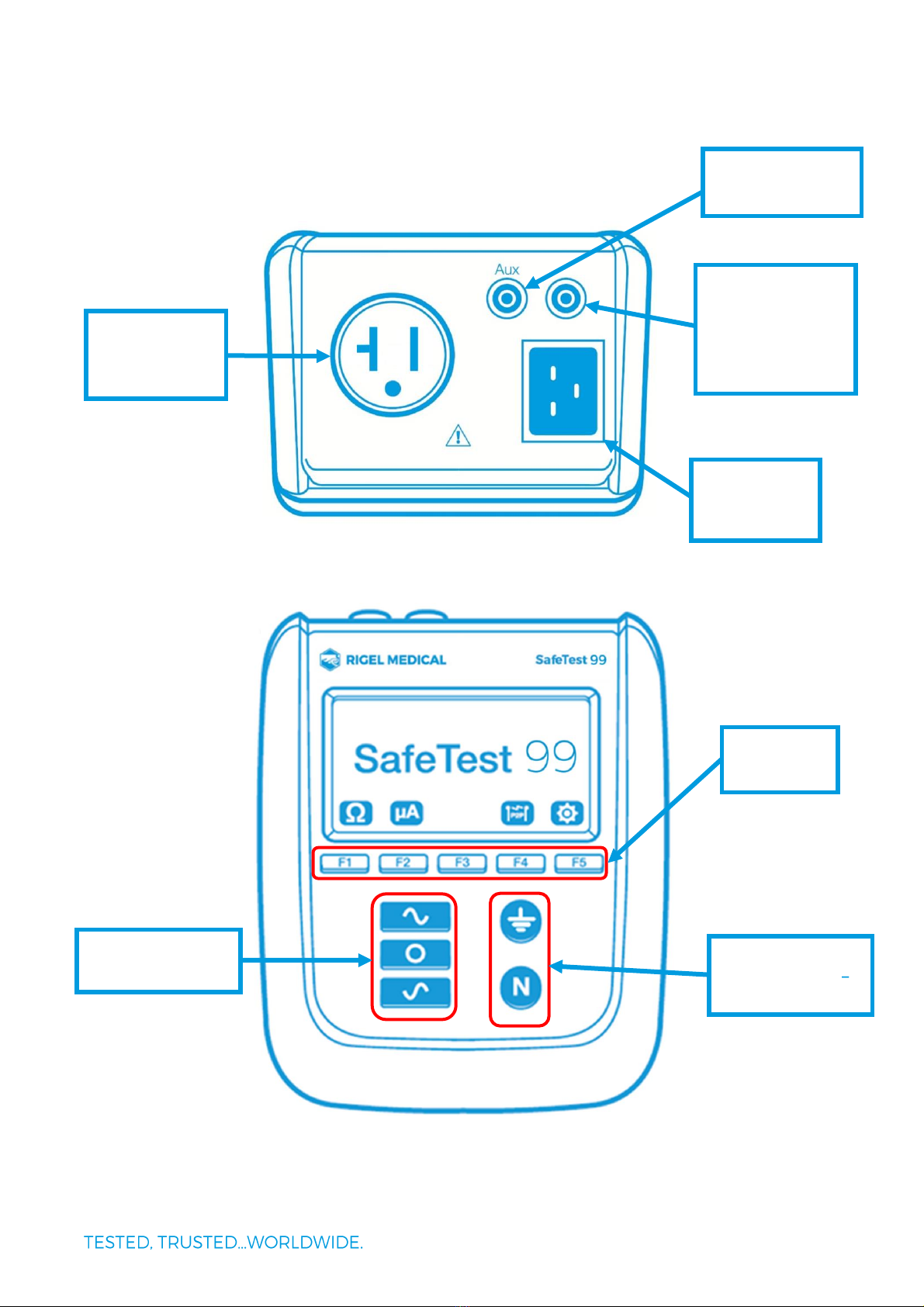

1.3. Interfaces
Point to point
auxiliary probe
Ground
continuity and
leakage probe
(Applied Parts
Connector Box)
EUT socket,
90-264 VAC,
48-64Hz
Line inlet
90-264 VAC
48-64Hz
Function
keys F1-F5
Single Fault
Open Ground
Open Neutral
Line Start, Stop,
Reversed keys

RIGEL MEDICAL SafeTest 99 USER MANUAL
7
1.4. Optional Accessories
Ground continuity cable 44B154
Mains lead 48531
Replacement Carry Case 410A950
Applied Parts Connector Box 417A911
Applied Part Adaptors 404A951
1.5. Unique use of ICONS

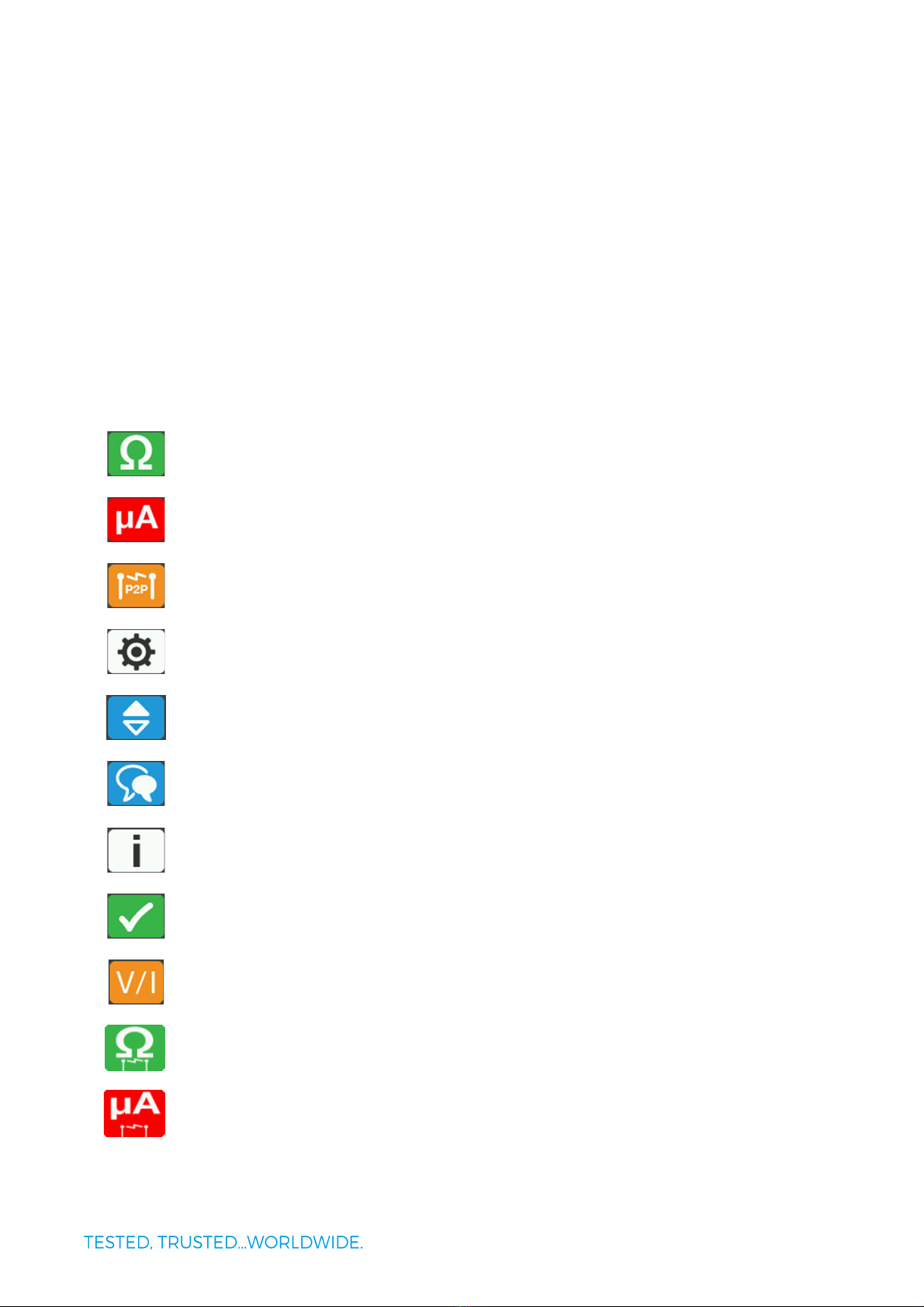

The Rigel SafeTest 99 features a high resolution color graphic back lit display provides a
unique user experience and to help guide the user through the different test steps.
Below are of some of the icons used in the Rigel SafeTest 99:
Select Ground Bond Testing
Select Leakage Testing
Select Point to Point Testing (Ground Continuity and Leakage)
Select Settings menu (change Language and Test Standard)
Select to the required standard
Change to the required language
Product information, serial number
Confirm / OK
Display Line voltage, frequency and load current
Point to point Ground continuity test selection
Point to point Leakage test selection

RIGEL MEDICAL SafeTest 99 USER MANUAL
8
Applies normal mains to EUT
Applies reversed mains to the EUT
Interrupts mains to EUT
Warning, EUT socket live
Select Ground leakage
Select Chassis leakage
Patient Lead Leakage selection
Open Ground single fault condition key
Open Neutral single fault condition key
Ground bond test lead compensated
Test running (note; not used on all tests)
Go to Home screen

RIGEL MEDICAL SafeTest 99 USER MANUAL
9
2. Getting Started
The SafeTest 99 can perform electrical safety tests in accordance with NFPA 99-2015. To
get started, simply follow these instructions;
Switch ON:
To switch on the SafeTest 99, please insert the mains cable to the power inlet, the
SafeTest 99 will automatically power up to the Home screen.

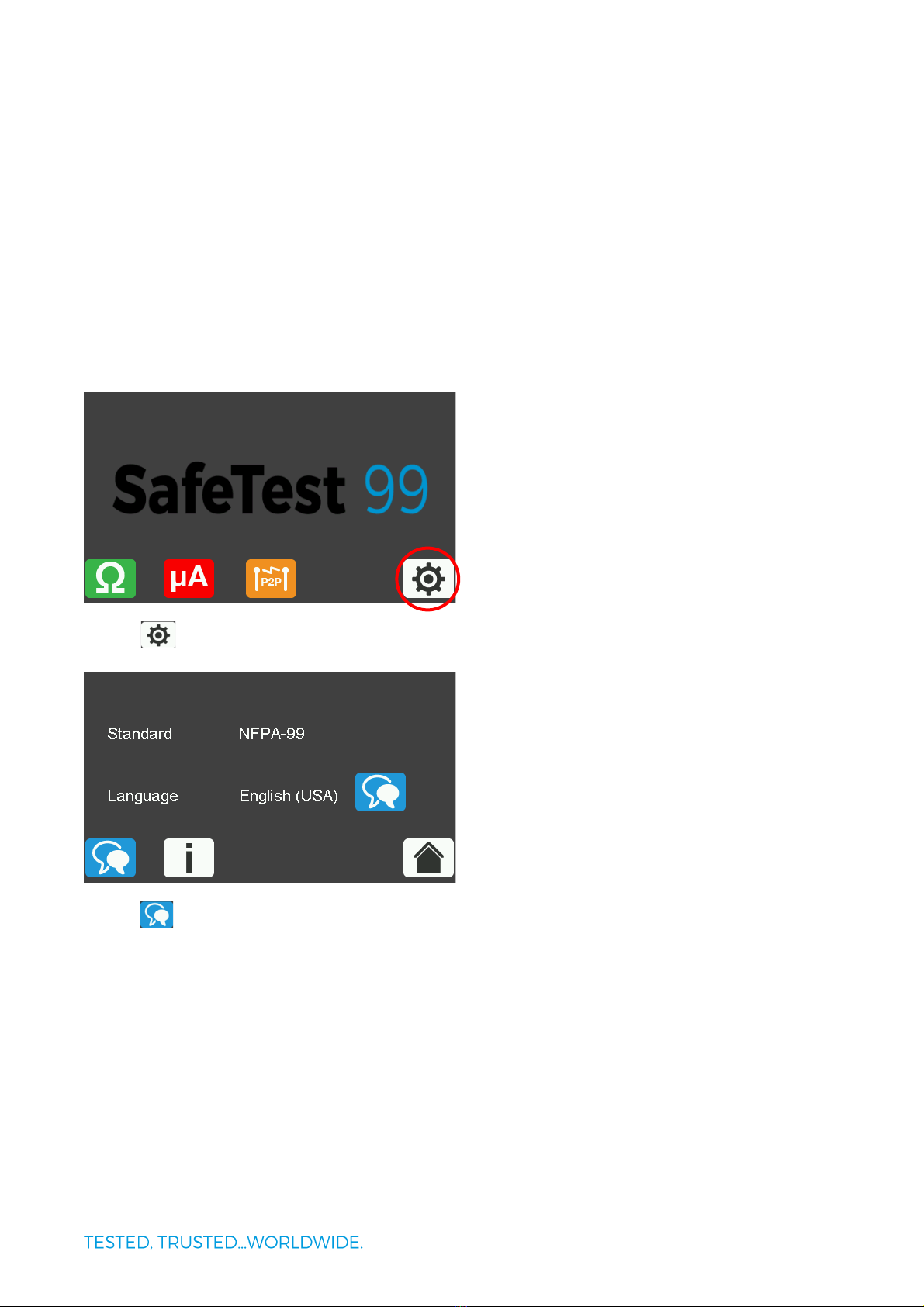

2.1. Setting your Language
Press from Home screen to enter Settings menu;
Select (F1) to change the language

RIGEL MEDICAL SafeTest 99 USER MANUAL
10
2.2. Displaying the SafeTest 99 Device Information
From the Home screen, select (F5) to enter the settings menu.
Select (F2) to view the SafeTest 99 information
•Serial Number
•Hardware version
•Firmware version
•Last calibration date
2.3. Accessing the SafeTest 99 Functions
From the SafeTest 99 Home screen, select the required test;
Select (F1) to enter the Ground Continuity test menu.
Please see section 3.0 for further information on performing a Ground Continuity test.
Select (F2) to enter the Leakage test menu.
Please see section 4.0 to 7.0 for further information on performing Ground, Chassis (Touch
Current) Patient Leakage test, and displaying mains voltage.
Select (F3) to enter the Point-to-point test menu.

RIGEL MEDICAL SafeTest 99 USER MANUAL
11
Please see section 8.0 for further information on point-to-point Ground Continuity and
point to point Leakage testing.
Select (F5) to enter the Settings menu.
Please see section 2.0 for product information such as serial number, hardware, firmware
and calibration date.
In any of the above test menus, use (F5) to return to the Home screen.

RIGEL MEDICAL SafeTest 99 USER MANUAL
12
3. Ground Continuity Measurement

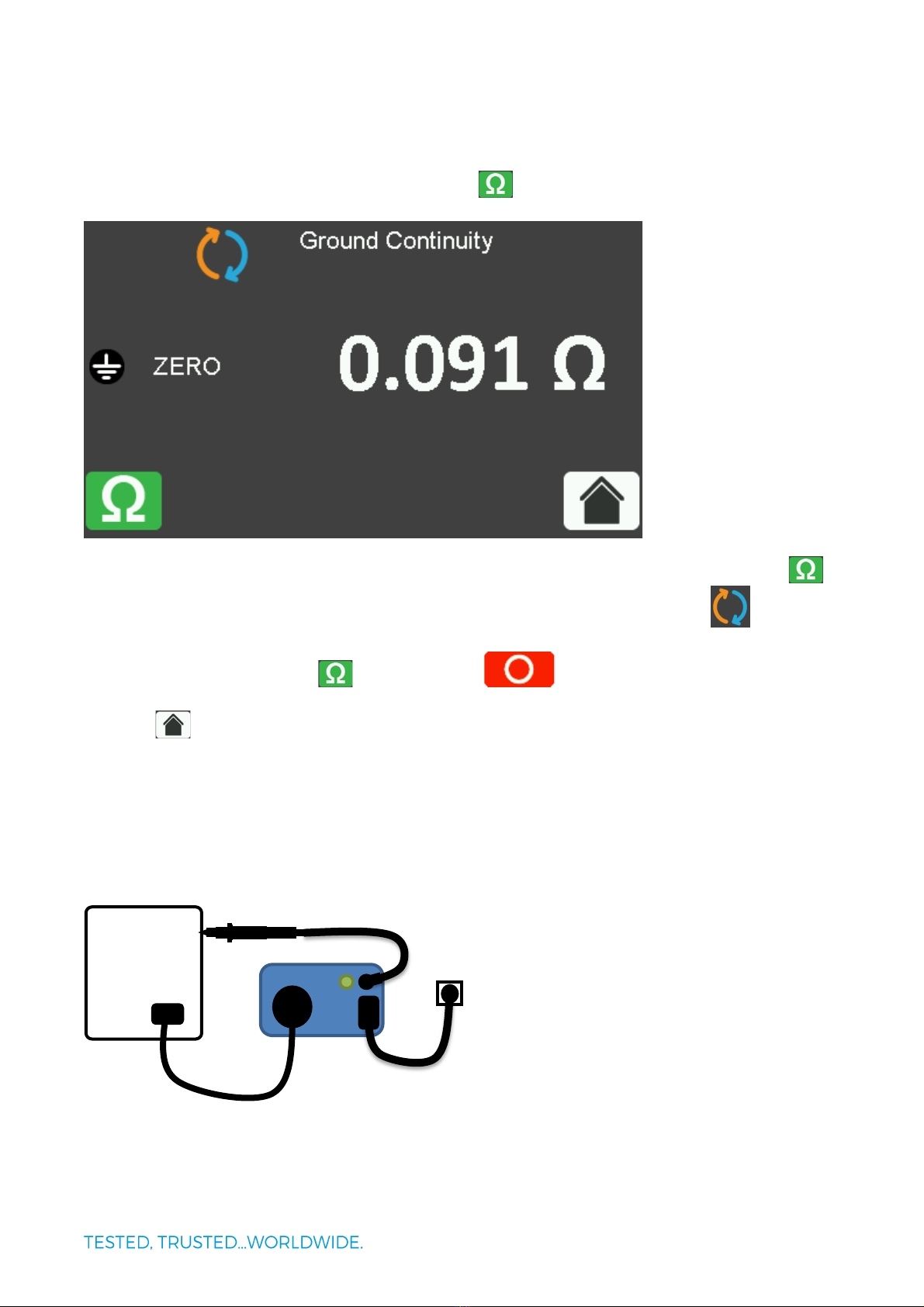

To perform a Ground continuity test, select the (F1) icon from the Home screen.
The SafeTest 99 will automatically start measuring when the Ground continuity test,
(F1), is selected from the Home screen. When testing the Test running icon, , is
displayed.
The test will run until either (F1) or the stop button is selected.
If Home (F5) is selected, then the test is stopped and the instrument returns to the
Home screen.

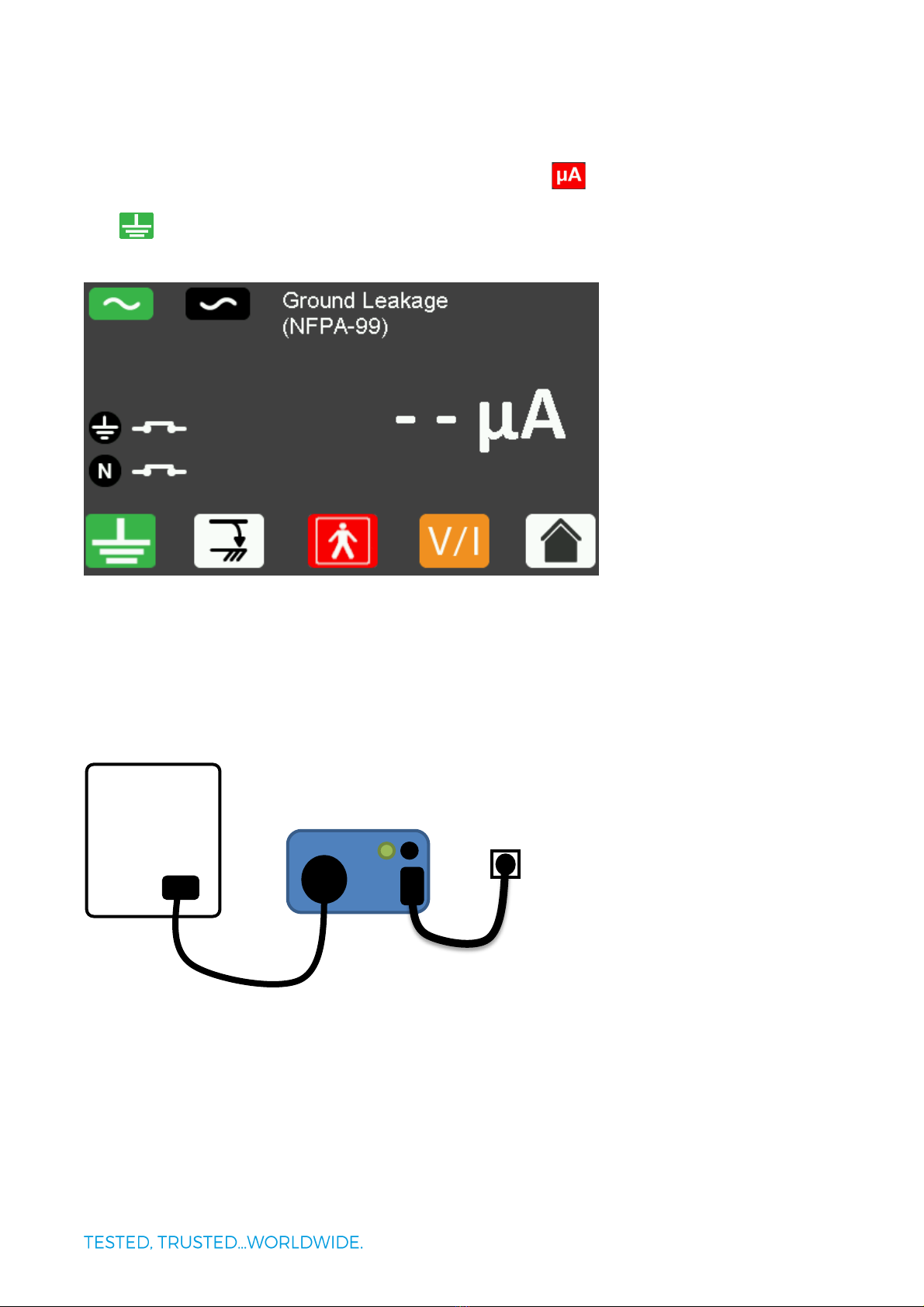

Connection between EUT and SafeTest 99;
Ground Continuity Testing
M
M

RIGEL MEDICAL SafeTest 99 USER MANUAL
13
Each time the ground bond probe is placed on a new test point, the zap circuit will
be reactivated, ensuring accurate readings at every measurement point.
Do not exceed the maximum permitted voltage of 30 V AC/DC with respect to
ground potential! Electric Shock danger!
To compensate for the test cable resistance, connect the test cable between the black
ground bond socket and the EUT ground, then select the button on the front panel.
When the lead compensation is activated, the icon will appear on the screen.
To remove the lead compensation, remove the cable and select the button.
When different ground bond cables are used, the NULL function must be repeated
for each different cable.
Switching off the SafeTest 99 will not

RIGEL MEDICAL SafeTest 99 USER MANUAL
14
4. NFPA-99 Ground Leakage Measurement
To perform a NFPA 99-2015 Ground leakage test, select (F2) from the Home screen, to
enter the Leakage test menu.
Use (F1), to select the Ground Leakage test menu. Note in the Leakage menu, you can
switch between Leakage tests and the SafeTest 99 will alter internal settings accordingly.
Connection between EUT and SafeTest 99;
Ground Leakage NFPA 99-2015
M
M

RIGEL MEDICAL SafeTest 99 USER MANUAL
15
To apply mains voltage in normal polarity, and start the test, select the button on
the front panel. The test will run until the button is pressed.
To apply mains voltage in reversed polarity, and start the test, select the button
on the front panel. The test will run until the button is pressed.
The EUT socket live icon, , will appear on the screen when the DUT socket is
activated.
To activate single fault conditions, use the button on the front panel, this opens the
neutral fault condition relay. Note: Opening the Neutral will cause the Device under Test
to power off.

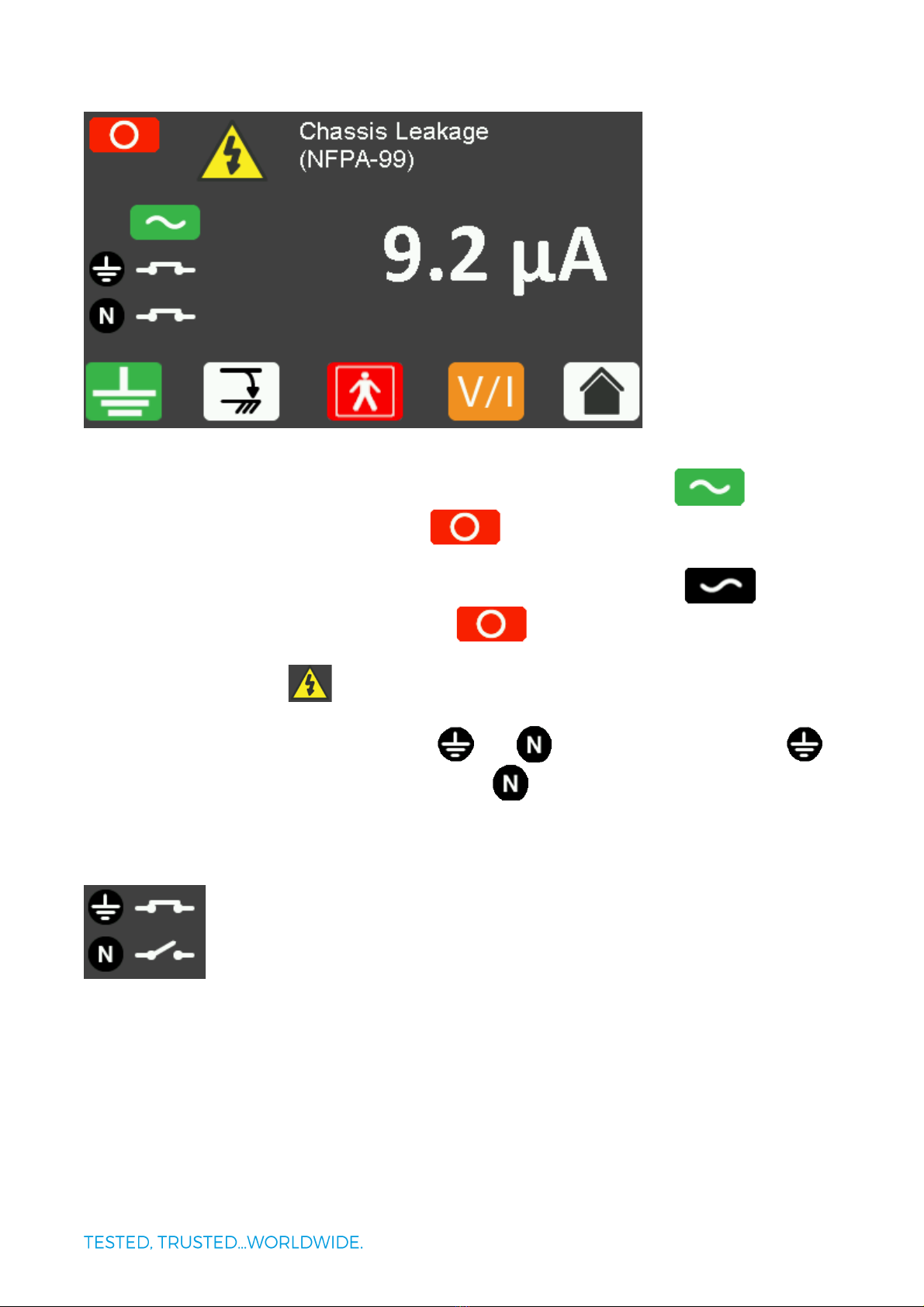

The leakage screen will indicate the current state of the selected fault conditions;

RIGEL MEDICAL SafeTest 99 USER MANUAL
16
5. NFPA-99 Chassis Leakage (Touch Current) Measurement
To perform a NFPA 99-2015 Chassis leakage (Touch Current) test, select (F2) from the
Home screen, to enter the Leakage test menu.
Use (F2), to select the Chassis Leakage (Touch Current) test menu. Note in the
Leakage menu, you can switch between Leakage tests and the SafeTest 99 will alter
internal settings accordingly.
Connection between EUT and SafeTest 99;
Chassis Leakage (Touch Current) NFPA 99-2015
M
M

RIGEL MEDICAL SafeTest 99 USER MANUAL
17
To apply mains voltage in normal polarity, and start the test, select the button on
the front panel. The test will run until the button is pressed.
To apply mains voltage in reversed polarity, and start the test, select the button
on the front panel. The test will run until the button is pressed.
The EUT socket live icon, , will appear on the screen when the DUT socket is activated.
To activate single fault conditions, use the and buttons on the front panel.
opens the ground fault condition relay while the opens the neutral fault condition
relay.
The leakage screen will indicate the current state of the selected fault conditions;

RIGEL MEDICAL SafeTest 99 USER MANUAL
18
6. NFPA-99 Patient Lead Leakage Measurement
To perform a NFPA 99-2015 Patient Lead leakage test, select (F2) from the Home
screen, to enter the Leakage test menu.
Use (F3), to select the Patient Lead Leakage test menu. Note in the Leakage menu,
you can switch between Leakage tests and the SafeTest 99 will alter internal settings
accordingly.
Connection between EUT and SafeTest 99;
Patient Lead Leakage NFPA 99-2015

RIGEL MEDICAL SafeTest 99 USER MANUAL
19
To apply mains voltage in normal polarity, and start the test, select the button on
the front panel. The test will run until the button is pressed.
To apply mains voltage in reversed polarity, and start the test, select the button
on the front panel. The test will run until the button is pressed.
The EUT socket live icon, , will appear on the screen when the DUT socket is
activated.
To activate single fault conditions, use the button on the front panel, this opens the
ground fault condition relay.
The leakage screen will indicate the current state of the selected fault conditions;
