DP800A Quick Guide I
Guaranty and Declaration
Copyright
© 2012 RIGOL Technologies, Inc. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL Technologies, Inc.
Publication Number
QGH03102-1110
Notices
RIGOL products are protected by patent law in and outside of P.R.C.
RIGOL reserves the right to modify or change parts of or all the specifications
and pricing policies at company’s sole decision.
Information in this publication replaces all previously corresponding material.
RIGOL shall not be liable for losses caused by either incidental or consequential
in connection with the furnishing, use or performance of this manual as well as
any information contained.
Any part of this document is forbidden to be copied or photocopied or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees this product conforms to the national and industrial standards in
China as well as the ISO9001:2008 standard and the ISO14001:2004 standard.
Other international standard conformance certification is in progress.
Contact Us
If you have any problem or requirement when using our products, please contact
RIGOL Technologies, Inc. or your local distributors, or visit: www.rigol.com.

RIGOL
II DP800A Quick Guide
Safety Requirement
General Safety Summary
Please review the following safety precautions carefully before putting the
instrument into operation so as to avoid any personal injuries or damages to the
instrument and any product connected to it. To prevent potential hazards, please use
the instrument only specified by this manual.
Use Proper Power Cord.
Only the power cord designed for the instrument and authorized by local country
could be used.
Ground The Instrument.
The instrument is grounded through the Protective Earth lead of the power cord. To
avoid electric shock, it is essential to connect the earth terminal of power cord to the
Protective Earth terminal before any inputs or outputs.
Observe All Terminal Ratings.
To avoid fire or shock hazard, observe all ratings and markers on the instrument and
check your manual for more information about ratings before connecting.
Use Proper Overvoltage Protection.
Make sure that no overvoltage (such as that caused by a thunderstorm) can reach
the product, or else the operator might expose to danger of electrical shock.
Do Not Operate Without Covers.
Do not operate the instrument with covers or panels removed.
Use Proper Fuse.
Please use the specified fuses.
Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and components when the unit is powered.
Do Not Operate With Suspected Failures.
If you suspect damage occurs to the instrument, have it inspected by qualified
service personnel before further operations. Any maintenance, adjustment or
replacement especially to circuits or accessories must be performed by RIGOL
authorized personnel.
Keep Well Ventilation.
Inadequate ventilation may cause increasing of temperature or damages to the
device. So please keep well ventilated and inspect the intake and fan regularly.

RIGOL
DP800A Quick Guide III
Do Not Operate in Wet Conditions.
In order to avoid short circuiting to the interior of the device or electric shock, please
do not operate in a humid environment.
Do Not Operate in an Explosive Atmosphere.
In order to avoid damages to the device or personal injuries, it is important to
operate the device away from an explosive atmosphere.
Keep Product Surfaces Clean and Dry.
To avoid the influence of dust and/or moisture in air, please keep the surface of
device clean and dry.
Electrostatic Prevention.
Operate in an electrostatic discharge protective area environment to avoid damages
induced by static discharges. Always ground both the internal and external
conductors of the cable to release static before connecting.
Handling Safety.
Please handle with care during transportation to avoid damages to buttons, knob
interfaces and other parts on the panels.

RIGOL
IV DP800A Quick Guide
Safety Terms and Symbols
Terms in this Manual. These terms may appear in this manual:
WARNING
Warning statements indicate the conditions or practices that could result in
injury or loss of life.
CAUTION
Caution statements indicate the conditions or practices that could result in
damage to this product or other property.
Terms on the Product. These terms may appear on the Product:
DANGER
indicates an injury or hazard may immediately happen.
WARNING
indicates an injury or hazard may be accessible potentially.
CAUTION
indicates a potential damage to the instrument or other property might
occur.
Symbols on the Product. These symbols may appear on the product:
Hazardous
Voltage
Safety
Warning
Protective
Earth
Terminal
Chassis
Ground
Test
Ground

RIGOL
DP800A Quick Guide V
General Care and Cleaning
General Care:
Do not store or leave the instrument in where the instrument will be exposed to
direct sunlight for long periods of time.
Cleaning:
Clean the instrument regularly according to its operating conditions. To clean the
exterior surface, perform the following steps:
1. Disconnect the instrument from all power sources.
2. Clean the loose dust on the outside of the instrument with a lint- free cloth (with
a mild detergent or water). When cleaning the LCD, take care to avoid scarifying
it.
CAUTION
To avoid damages to the instrument, do not expose them to liquids which
have causticity.
WARNING
To avoid injury resulting from short circuit, make sure the instrument is
completely dry before reconnecting to a power source.
Environmental Considerations
The following symbol indicates that this product complies with the applicable
European Union requirements according to Directives 2002/96/EC on waste electrical
and electronic equipment (WEEE) and batteries.
Product End-of-Life Handling
The equipment may contain substances that could be harmful to the environment or
human health. In order to avoid release of such substances into the environment and
harm to human health, we encourage you to recycle this product in an appropriate
system that will ensure that most of the materials are reused or recycled
appropriately. Please contact your local authorities for disposal or recycling
information.

RIGOL
VI DP800A Quick Guide
Document Overview
This manual is used to guide users to quickly understand the front panel, rear panel,
user interface and basic operating methods of DP800A series programmable linear
DC power supply. You can download the newest version of this manual from
www.rigol.com.
Format Conventions in this Manual
1Buttons
The function key at the front panel is denoted by the format of “Button Name
(Bold) + Text Box” in the manual, for example, Utility denotes the “System
Auxiliary Function Setting” key.
2Menu
The menu item is denoted by the format of “Menu Word (Bold) + Character
Shading” in the manual, for example, SysInfo denotes the “System
Information” item under Utility.
3Operation Steps
The next step of the operation is denoted by an arrow “” in the manual. For
example, Utility System denotes pressing Utility at the front panel and
then pressing System.
Content Conventions in this Manual
DP800A series programmable linear DC power supply includes the following models.
In this manual, DP831A is taken as an example to illustrate the functions and
operating methods of DP800A series.
Model
Channel
Channel Output Voltage/Current
DP831A
3
8V/5A, 30V/2A, -30V/2A
DP832A
3
30V/3A, 30V/3A, 5V/3A

RIGOL
DP800A Quick Guide VII
Contents
Guaranty and Declaration.........................................................................I
Safety Requirement................................................................................II
General Safety Summary...........................................................................II
Safety Terms and Symbols .......................................................................IV
General Care and Cleaning........................................................................V
Environmental Considerations....................................................................V
Document Overview............................................................................... VI
Quick Start...............................................................................................1
General Inspection ................................................................................... 1
Appearance and Dimensions...................................................................... 2
Front Panel.............................................................................................. 3
Rear Panel..............................................................................................10
To Connect to Power................................................................................11
Power-on Inspection................................................................................11
To Replace the Fuse ................................................................................12
Display Mode..........................................................................................13
User Interface.........................................................................................16
To Use the Built-in Help System ................................................................17
Troubleshooting..................................................................................... 18

RIGOL
DP800A Quick Guide 1
Quick Start
General Inspection
1. Inspect the shipping container for damage
Keep the damaged shipping container or cushioning material until the contents
of the shipment have been checked for completeness and the instrument has
passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to instrument resulting
from shipment. RIGOL would not be responsible for free maintenance/rework
or replacement of the unit.
2. Inspect the instrument
In case of any damage, or defect, or failure, notify your RIGOL sales
representative.
3. Check the accessories
Please check the accessories according to the packing lists. If the accessories
are incomplete or damaged, please contact your RIGOL sales representative.

RIGOL
2 DP800A Quick Guide
Appearance and Dimensions

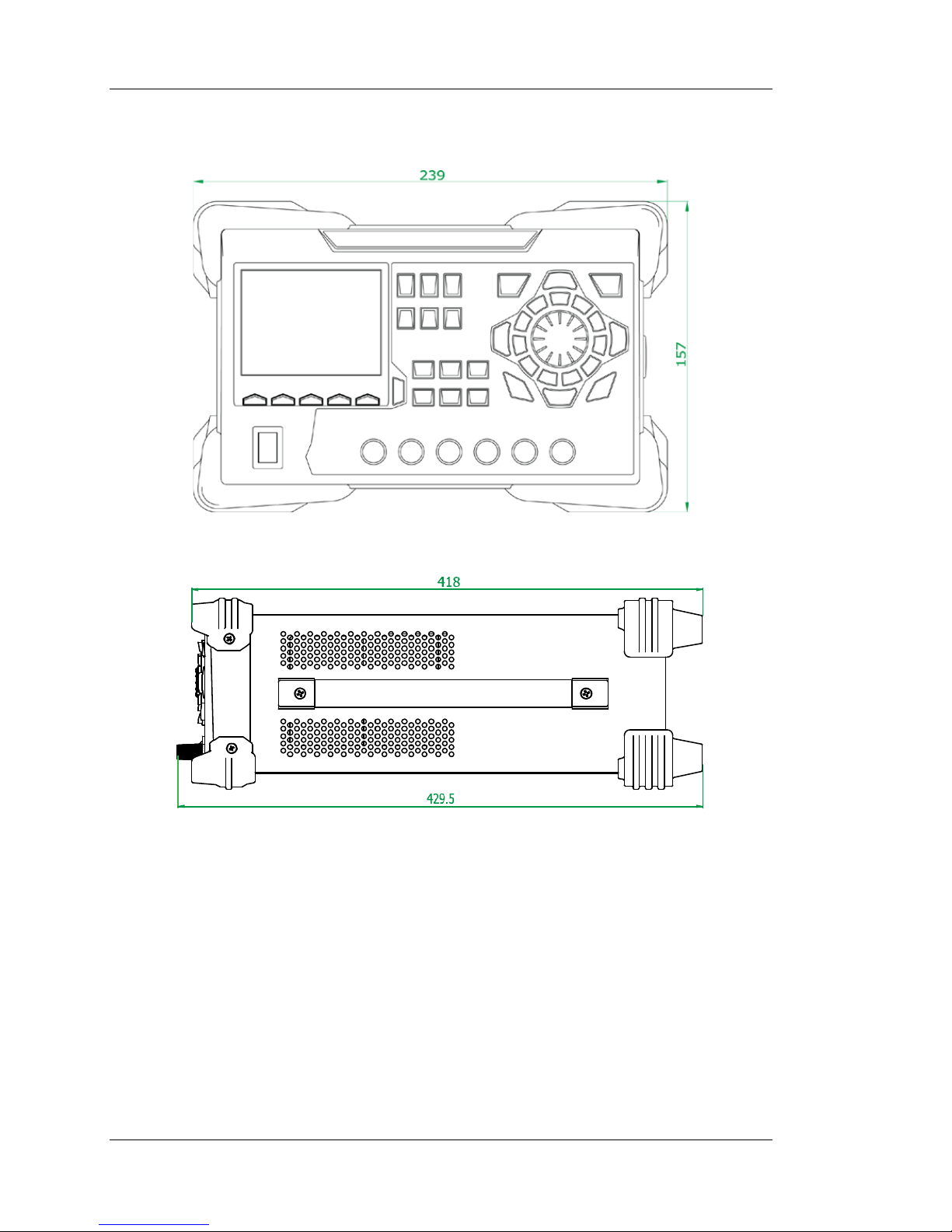

Figure 1 Front View Unit: mm
Figure 2 Side View Unit: mm

RIGOL
DP800A Quick Guide 3
Front Panel

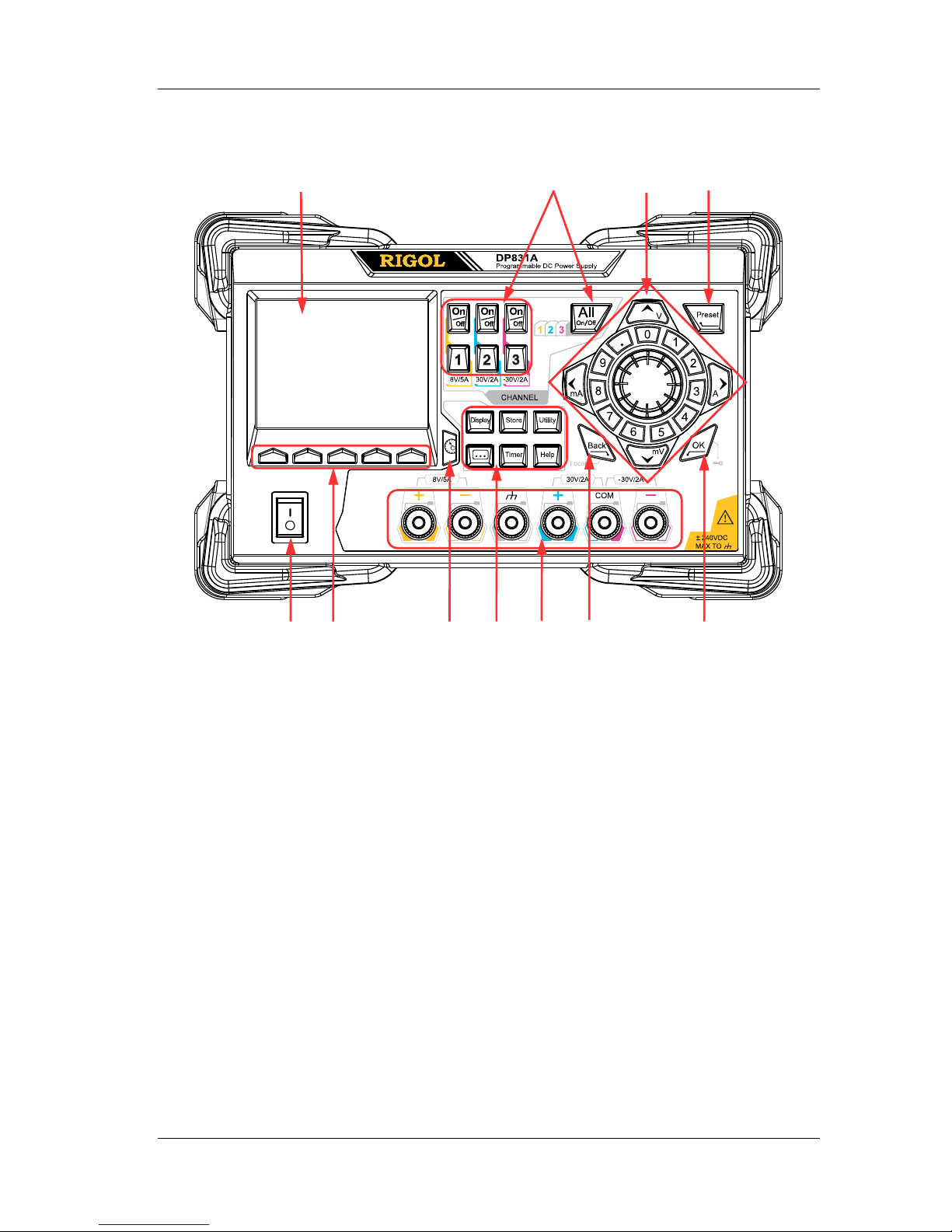

Figure 3 DP831A Front Panel
1 2 3 4
11 10 98 7 6 5

RIGOL
4 DP800A Quick Guide
1. LCD
3.5 inches TFT display. It is used to display system parameter settings, system
output state, menu options, prompt messages, etc.
2. Channel Selection and Output Switch
Press this key to select CH1 and set the parameters of this channel,
such as voltage, current and overvoltage/overcurrent protection.
Press this key to select CH2 and set the parameters of this channel,
such as voltage, current and overvoltage/overcurrent protection.
Press this key to select CH3 and set the parameters of this channel,
such as voltage, current and overvoltage/overcurrent protection.
Press this key to enable or disable the output of the corresponding
channel.
Press this key to enable or disable the outputs of all the channels.

RIGOL
DP800A Quick Guide 5
3. Parameter Input Area
The parameter input area is as shown in the figure below. This area includes the
direction keys (unit selection keys), numeric keyboard and knob.
(1) Direction keys and unit selection keys
Direction keys: move the cursor.
Unit selection keys: when using the numeric keyboard to input parameters,
the keys are used to enter the voltage units V and mV and the current units
A and mA.
(2) Numeric Keyboard
Ring-type numeric keyboard: include numbers 0-9 and the decimal point.
Press the corresponding key to input the number.
(3) Knob
When setting parameters, rotate the knob to increase or decrease the value
of the digit at the cursor.
When browsing the setting objects (timing parameters, delay parameters,
filename input, etc), rotate the knob to quickly move the cursor.

RIGOL
6 DP800A Quick Guide

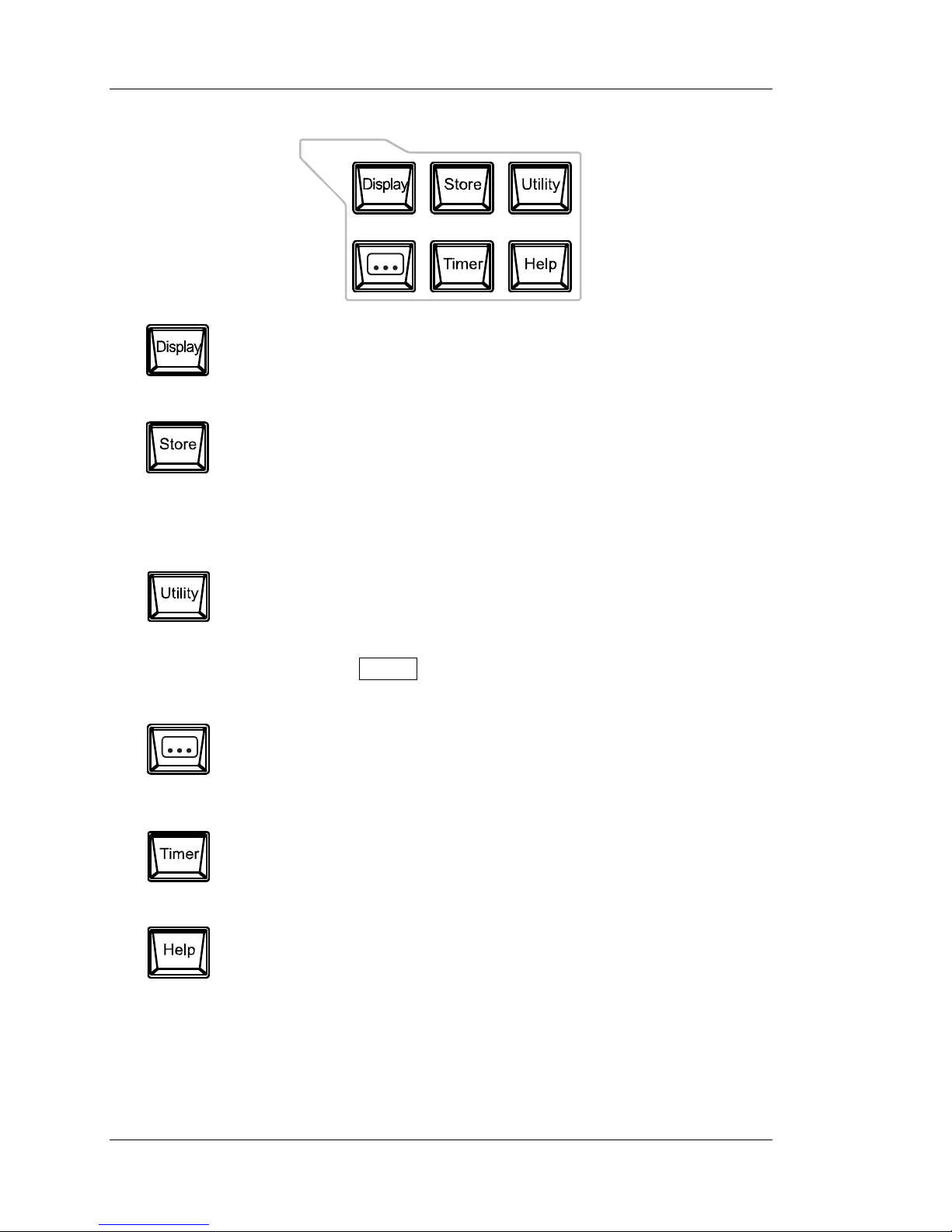

4. Preset
Restore all the settings of the instrument to default values or recall
the user-defined channel voltage/current configurations.
5. OK
Confirm the parameter setting.
P
ress and hold this key to lock the front panel keys; at this point,
the front panel keys are not available. Press and hold this key
again to unlock the front panel keys. When the keyboard lock
password is enabled,users need to input the correct password
(2012) to unlock the front panel keys.
6. Back
Delete the character currently before the cursor.
When the instrument is in remote mode, press this key to return
to local mode.

RIGOL
DP800A Quick Guide 7
7. Output Terminals
(1) (2) (3) (4)
(1) Output the voltage and current of CH1.
(2) This terminal is connected to the instrument chassis and ground wire (power
cord ground terminal) and is in grounded state.
(3) Output the voltage and current of CH2.
(4) Output the voltage and current of CH3.
Connection methods of the output terminal:
Method 1:
Connect the test lead to A of the output terminal.
Method 2:
Rotate the outer nut of the output terminal counterclockwise and connect the
test lead to B of the output terminal; then, rotate the outer nut of the output
terminal clockwise. This connection method can eliminate the error caused by
the resistance of the output terminal.
Note: Connect the positive terminal of the test lead with the (+) terminal of the
channel output and connect the negative terminal of the test lead with the (-)
terminal of the channel output.
A
B

RIGOL
8 DP800A Quick Guide
8. Function Menu Area
Press this key to enter the display parameter setting interface.
Users can set the luminosity, contrast and display mode.
Press this key to enter the file store and recall interface. You can
save, read, delete, copy and paste files. The file types available for
storage include state file, record file, timer file and delayer file. The
instrument supports internal and external storage and recall.
Wherein, external storage supports FAT32 file management
system.
Press this key to enter the system auxiliary function setting
interface. Users can set the remote interface parameters, system
parameters and print parameters. Besides, users can also calibrate
the instrument, view system information and define the recall
configuration of Preset.
Press this key to enter the advanced function setting interface.
Users can set the recorder, analyzer, monitor and trigger
parameters.
Press this key to enter the timer setting interface. Users can set the
timer and delayer parameters.
Press this key to open the built-in help system and press the
desired key to get the corresponding help information. For detailed
introductions, refer to “To Use the Built-in Help System”.

RIGOL
DP800A Quick Guide 9
9. Display Mode Switch Key
Switch between the current display (normal or waveform) mode
and dial display mode.
10. Menu Keys
The menu keys correspond to the menus above them. Press any
menu key to select the corresponding menu.
11. Power Switch Key
Turn on or off the instrument.

RIGOL
10 DP800A Quick Guide
Rear Panel
Figure 4 DP831A Rear Panel
Table 1 DP831A Rear Panel Explanation
No.
Name
Explanation
1
LAN Interface
Connect to the local network via the RJ45 interface
2 USB DEVICE
Connect the instrument (as “slave” device) to
external USB device (such as, PC)
3 USB HOST
Connect the instrument (as “host” device) to external
USB device (such as, USB storage device)
4
Digital I/O
Digital I/O interface
5
RS232 Interface
Serial communication interface
6 Voltage Selector
Select the specification of the input voltage (100V,
115V, 230V)
7
Power Socket
AC power input interface
8 Fuse
For different models of instrument or when different
input voltages are selected, the specifications of the
fuses are different
9
Fan
10
Input Power
Requirement
Corresponding relations of the input power
frequency, voltage and fuse
1 2 3 4 5 6
10 9 8 7
