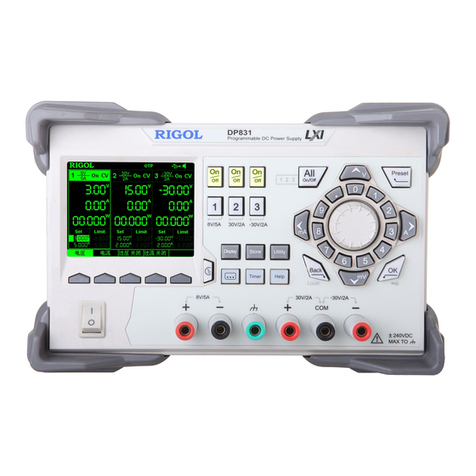

Rigol DP831A Installation and operation manual

RIGOL
Performance Verification Manual
DP800 Series
Programmable Linear DC Power Supply
Mar. 2014
RIGOL Technologies, Inc.

RIGOL
DP800 Performance Verification Manual
I
Guaranty and Declaration
Copyright
© 2014 RIGOL Technologies, Inc. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL Technologies, Inc.
Publication Number
PVH03101-1110
Notices
RIGOL products are protected by patent law in and outside of P.R.C.
RIGOL reserves the right to modify or change parts of or all the specifications
and pricing policies at company’s sole decision.
Information in this publication replaces all previously corresponding material.
RIGOL shall not be liable for losses caused by either incidental or consequential
in connection with the furnishing, use or performance of this manual as well as
any information contained.
Any part of this document is forbidden to be copied or photocopied or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees this product conforms to the national and industrial standards in
China as well as the ISO9001:2008 standard and the ISO14001:2004 standard.
Other international standard conformance certification is in progress.
Contact Us
If you have any problem or requirement when using our products or this manual,
please contact RIGOL.
E-mail: [e-mail]
Website: www.rigol.com

RIGOL
DP800 Performance Verification Manual
II
General Safety Summary
Please review the following safety precautions carefully before putting the
instrument into operation so as to avoid any personal injury or damage to the
instrument and any product connected to it. To prevent potential hazards, please use
the instrument only specified by this manual.
Use Proper Power Cord.
Only the power cord designed for the instrument and authorized for use within the
local country could be used.
Ground the Instrument.
The instrument is grounded through the Protective Earth lead of the power cord. To
avoid electric shock, it is essential to connect the earth terminal of power cord to the
Protective Earth terminal before any inputs or outputs.
Connect the Probe Correctly.
If a probe is used, do not connect the ground lead to high voltage since it has the
isobaric electric potential as ground.
Observe All Terminal Ratings.
To avoid fire or shock hazard, observe all ratings and markers on the instrument and
check your manual for more information about ratings before connecting.
Use Proper Overvoltage Protection.
Make sure that no overvoltage (such as that caused by a thunderstorm) can reach
the product, or else the operator might expose to danger of electrical shock.
Do Not Operate Without Covers.
Do not operate the instrument with covers or panels removed.
Do Not Insert Anything into the Holes of Fan.
Do not insert anything into the holes of the fan to avoid damaging the instrument.
Use Proper Fuse.
Please use the specified fuses.
Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and components when the unit is powered.

RIGOL
DP800 Performance Verification Manual
III
Do Not Operate With Suspected Failures.
If you suspect damage occurs to the instrument, have it inspected by qualified
service personnel before further operations. Any maintenance, adjustment or
replacement especially to circuits or accessories must be performed by RIGOL
authorized personnel.
Keep Well Ventilation.
Inadequate ventilation may cause increasing of temperature or damages to the
device. So please keep well ventilated and inspect the intake and fan regularly.
Do Not Operate in Wet Conditions.
In order to avoid short circuiting to the interior of the device or electric shock, please
do not operate in a humid environment.
Do Not Operate in an Explosive Atmosphere.
In order to avoid damages to the device or personal injuries, it is important to
operate the device away from an explosive atmosphere.
Keep Product Surfaces Clean and Dry.
To avoid the influence of dust and/or moisture in air, please keep the surface of
device clean and dry.
Electrostatic Prevention.
Operate in an electrostatic discharge protective area environment to avoid damages
induced by static discharges. Always ground both the internal and external
conductors of the cable to release static before connecting.
Proper Use of Battery.
If a battery is supplied, it must not be exposed to high temperature or in contact with
fire. Keep it out of the reach of children. Improper change of battery (note: lithium
battery) may cause explosion. Use RIGOL specified battery only.
Handling Safety.
Please handle with care during transportation to avoid damages to buttons, knob
interfaces and other parts on the panels.
Do Not Provide Power for the Active Load.
In order to avoid the anti-irrigation current which leads to the power control loop out
of control and damage to the powered device, this power supply can only provide
power for the pure load without the current output function.

RIGOL
DP800 Performance Verification Manual
IV
Allgemeine Sicherheits Informationen
Überprüfen Sie diefolgenden Sicherheitshinweise
sorgfältigumPersonenschädenoderSchäden am Gerätundan damit verbundenen
weiteren Gerätenzu vermeiden. Zur Vermeidung vonGefahren, nutzen Sie bitte das
Gerät nur so, wiein diesem Handbuchangegeben.
Um Feuer oder Verletzungen zu vermeiden, verwenden Sie ein
ordnungsgemäßes Netzkabel.
Verwenden Sie für dieses Gerät nur das für ihr Land zugelassene und genehmigte
Netzkabel.
Erden des Gerätes.
Das Gerät ist durch den Schutzleiter im Netzkabel geerdet. Um Gefahren durch
elektrischen Schlag zu vermeiden, ist es unerlässlich, die Erdung durchzuführen. Erst
dann dürfen weitere Ein- oder Ausgänge verbunden werden.
Anschluss einesTastkopfes.
Die Erdungsklemmen der Sonden sindauf dem gleichen Spannungspegel des
Instruments geerdet. SchließenSie die Erdungsklemmen an keine hohe Spannung
an.
Beachten Sie alle Anschlüsse.
Zur Vermeidung von Feuer oder Stromschlag, beachten Sie alle Bemerkungen und
Markierungen auf dem Instrument. Befolgen Sie die Bedienungsanleitung für weitere
Informationen, bevor Sie weitere Anschlüsse an das Instrument legen.
Verwenden Sie einen geeigneten Überspannungsschutz.
Stellen Sie sicher, daß keinerlei Überspannung (wie z.B. durch Gewitter verursacht)
das Gerät erreichen kann. Andernfallsbestehtfür den Anwender die
GefahreinesStromschlages.
Nicht ohne Abdeckung einschalten.
Betreiben Sie das Gerät nicht mit entfernten Gehäuse-Abdeckungen.
Betreiben Sie das Gerät nicht geöffnet.
Der Betrieb mit offenen oder entfernten Gehäuseteilen ist nicht zulässig. Nichts in
entsprechende Öffnungen stecken (Lüfter z.B.)
Passende Sicherung verwenden.
Setzen Sie nur die spezifikationsgemäßen Sicherungen ein.
Vermeiden Sie ungeschützte Verbindungen.
Berühren Sie keine unisolierten Verbindungen oder Baugruppen, während das Gerät
in Betrieb ist.

RIGOL
DP800 Performance Verification Manual
V
Betreiben Sie das Gerät nicht im Fehlerfall.
Wenn Sie am Gerät einen Defekt vermuten, sorgen Sie dafür, bevor Sie das Gerät
wieder betreiben, dass eine Untersuchung durch qualifiziertes Kundendienstpersonal
durchgeführt wird. Jedwede Wartung, Einstellarbeiten oder Austausch von Teilen am
Gerät, sowie am Zubehör dürfen nur von RIGOL autorisiertem Personal
durchgeführt werden.
Belüftung sicherstellen.
Unzureichende Belüftung kann zu Temperaturanstiegen und somit zu thermischen
Schäden am Gerät führen. Stellen Sie deswegen die Belüftung sicher und
kontrollieren regelmäßig Lüfter und Belüftungsöffnungen.
Nicht in feuchter Umgebung betreiben.
Zur Vermeidung von Kurzschluß im Geräteinneren und Stromschlag betreiben Sie das
Gerät bitte niemals in feuchter Umgebung.
Nicht in explosiver Atmosphäre betreiben.
Zur Vermeidung von Personen- und Sachschäden ist es unumgänglich, das Gerät
ausschließlich fernab jedweder explosiven Atmosphäre zu betreiben.
Geräteoberflächen sauber und trocken halten.
Um den Einfluß von Staub und Feuchtigkeit aus der Luft auszuschließen, halten Sie
bitte die Geräteoberflächen sauber und trocken.
Schutz gegen elektrostatische Entladung (ESD).
Sorgen Sie für eine elektrostatisch geschützte Umgebung, um somit Schäden und
Funktionsstörungen durch ESD zu vermeiden. Erden Sie vor dem Anschluß immer
Innen- und Außenleiter der Verbindungsleitung, um statische Aufladung zu entladen.
Die richtige Verwendung desAkku.
Wenneine Batterieverwendet wird, vermeiden Sie hohe Temperaturen bzw. Feuer
ausgesetzt werden. Bewahren Sie es außerhalbder Reichweitevon Kindern auf.
UnsachgemäßeÄnderung derBatterie (Anmerkung:Lithium-Batterie)kann zu einer
Explosion führen. VerwendenSie nur von RIGOLangegebenenAkkus.
Sicherer Transport.
Transportieren Sie das Gerät sorgfältig (Verpackung!), um Schäden an
Bedienelementen, Anschlüssen und anderen Teilen zu vermeiden.
Vermeiden Sie das einprägen von Strom und Spannung an den
Testklemmen.
Das DP800 Power Supply kann hierdurch zerstört werden, keine akive Last. Das
DP800 kann nur Strom und Spannungen leifern.

RIGOL
DP800 Performance Verification Manual
VI
Document Overview
DP800 series is a high-performance programmable DC power supply. This manual
introduces the performance verification test methods of DP800 series. The
performance verification test mainly verifies whether DP800 series programmable
linear DC power supply can work normally and is within specifications.
Main topics of this manual
Chapter 1 Test Overview
This chapter introduces the test preparations, the recommended test devices, the
test precautions as well as the test result record and so on.
Chapter 2 Constant Voltage Tests
This chapter introduces the specification test methods of DP800 under constant
voltage (CV) mode.
Chapter 3 Constant Current Tests
This chapter introduces the specification test methods of DP800 under constant
current (CC) mode.
Appendix
Provide the test result record forms and the performance specifications of all models
of DP800 series programmable linear DC power supply.
Content Conventions in this Manual
DP800 series programmable linear DC power supply includes the following models.

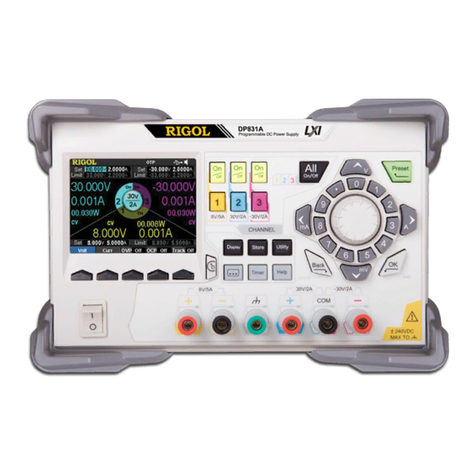

Unless specified otherwise in this manual, DP831A is taken as an example to
illustrate the performance verification test methods of DP800 series.
Model Channel Output Voltage/Current
DP831A 3 8V/5A, 30V/2A, -30V/2A

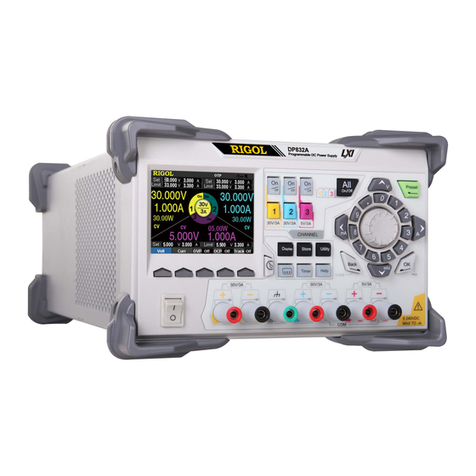

DP832A/DP832 3 30V/3A, 30V/3A, 5V/3A
DP821A 2 60V/1A, 8V/10A
DP811A 1 20V/10A (Range 1), 40V/5A (Range 2)

Contents RIGOL
DP800 Performance Verification Manual
VII
Contents
Guaranty and Declaration.........................................................................I
General Safety Summary ........................................................................II
Allgemeine Sicherheits Informationen................................................... IV
Document Overview............................................................................... VI
Chapter 1 Test Overview ....................................................................1-1
Test Preparations................................................................................... 1-2
Voltage and Current Values .................................................................... 1-4
Recommended Test Devices ................................................................... 1-5
Test Precautions.................................................................................... 1-6
Test Result Record................................................................................. 1-6
Chapter 2 Constant Voltage Tests ......................................................2-1
Preparations ......................................................................................... 2-2
CV Load Regulation Rate (CV Load Effect) ............................................... 2-4
CV Linear Regulation Rate (CV Source Effect)........................................... 2-7
CV Ripple and Noise .............................................................................2-11
Transient Response Time ......................................................................2-16
CV Programming and Readback Accuracy ...............................................2-20
Chapter 3 Constant Current Tests.......................................................3-1
Preparations ......................................................................................... 3-2
CC Load Regulation Rate (CC Load Effect) ............................................... 3-4
CC Linear Regulation Rate (CC Source Effect)........................................... 3-7
CC Ripple and Noise (Normal Mode).......................................................3-11
CC Programming and Readback Accuracy ...............................................3-14
Appendix..................................................................................................1
Appendix A: Test Result Record Forms........................................................ 1
DP831A Performance Verification Test Record Form............................... 1
DP832A Performance Verification Test Record Form............................... 5
DP832 Performance Verification Test Record Form ................................ 9
DP821A Performance Verification Test Record Form..............................13
DP811A Performance Verification Test Record Form..............................17
Appendix B: Specifications .......................................................................21

Chapter 1 Test Overview RIGOL
DP800 Performance Verification Manual
1-1
Chapter 1 Test Overview
Topics of this chapter:
Test Preparations
Voltage and Current Values
Recommended Test Devices
Test Precautions
Test Result Record

RIGOL Chapter 1 Test Overview
DP800 Performance Verification Manual
1-2
Test Preparations
You need to finish the following preparations before performing the performance
verification test.
1. Perform self-test to make sure that the instrument can work normally.
Connect the instrument to AC power supply using the power cord provided with
the accessories. Press the power switch key at the front panel; the instrument
starts and performs self-test. You can press Utility Test/Cal after power-on
to examine the self-test information (including the top board, bottom board, fan
and temperature). If the self-test fails, please turn off and then turn on the
instrument to perform the self-test again and examine the self-test information.
If the self-test still fails, please contact RIGOL. Make sure that the reason that
results in the self-test failure are found and solved. Perform the performance
verification test only after the instrument passes the self-test.
Notes:
Before connecting the power, make sure that the setting of the voltage
selector at the rear panel of the power supply matches the AC power supply
to be connected and the fuse currently installed matches the input voltage.
The input voltages supported by DP800 series and the matching fuses are
as shown in the table below.
DP831A/DP821A
100
115
230
100Vac ± 10%, 50Hz to 60Hz, T5A fuse
115Vac ± 10%, 50Hz to 60Hz, T5A fuse
230Vac ± 10% (maximum 250Vac), 50Hz to 60Hz, T2.5A fuse
DP832A/DP832/DP811A
100
115
230
100Vac ± 10%, 50Hz to 60Hz, T6.3A fuse
115Vac ± 10%, 50Hz to 60Hz, T6.3A fuse
230Vac ± 10% (maximum 250Vac), 50Hz to 60Hz, T3.15A fuse
Note: The upper limit of the input voltage supported by DP800 series is
250Vac.
Before performing the self-test, make sure that there is no connection at
the front and rear panel terminals of the power supply.
2. Make sure that the power supply is within the calibration period (1 year). If
calibration is required, please contact RIGOL.
3. Run the instrument for at least 30 minutes.

Chapter 1 Test Overview RIGOL
DP800 Performance Verification Manual
1-3
4. Make sure that the environment temperature is between 20℃and 30℃and the
relative humidity is less than 80%.
5. The test connecting wires used should be as short as possible. For the channels
that support the Sense function, please short-circuit the (S+) and (+) terminals,
(S-) and (-) terminals (as shown in Figure 2-2 or Figure 3-2) of the channels
respectively and turn on the Sense function of the corresponding channel before
performing the test.
Note:
The tests introduced in this manual should be performed by professionals. During
the tests, there might be dangerous voltage at the output terminals of the power
supply as well as certain test devices.

RIGOL Chapter 1 Test Overview
DP800 Performance Verification Manual
1-4
Voltage and Current Values
During the test, you need to set the voltage and current of the output channels
(output ranges) of the power supply to specified values. The rated output values and
maximum output values of the voltage and current of each channel of various models
of DP800 series are listed in Table 1-1.
Table 1-1 Voltage and Current Values of the Channels (Ranges) of DP800 Series
Channel
(Range) Rated Output Voltage Max Output Voltage Rated Output Current Max Output Current
DP831A
CH1 8V 8.4V 5A 5.3A
CH2 30V 32V 2A 2.1A
CH3 -30V -32V 2A 2.1A
DP832A/DP832
CH1 30V 32V 3A 3.2A
CH2 30V 32V 3A 3.2A
CH3 5V 5.3V 3A 3.2A
DP821A
CH1 60V 63V 1A 1.05A
CH2 8V 8.4V 10A 10.5A
DP811A
Range1 20V 21V 10A 10.5A
Range2 40V 42V 5A 5.3A

Chapter 1 Test Overview RIGOL
DP800 Performance Verification Manual
1-5
Recommended Test Devices
It is recommended that you use the test devices listed in the table below or other test
devices whose performance specifications satisfy the “Performance Requirement”
listed in the table below to test the performance specifications of the DP800 series.
Table 1-2 Recommended Test Devices
Device Performance Requirement
Recommended
Instrument
Use
Digital
Oscilloscope
Bandwidth: ≥20MHz
Minimum Vertical Scale: ≤2mV/div
Bandwidth Limit: ≤20MHz
RIGOL
DS1102E
Measure ripple and
noise, transient
response time
Digital
Multimeter
Readout Resolution: 6½ RIGOL DM3068 Measure dc voltage
RMS
Voltmeter
Sensitivity: 1mV
Bandwidth: ≥10MHz
Measure rms ripple
and noise
Electronic
Load
Voltage Range: 80Vdc
Current Range: 60Adc
Maximum Power: 300W
Dynamic frequency: 1kHz
Chroma 63103A
Measure load
regulation rate, linear
regulation rate,
transient response
time
AC Power
Supply
Regulation Rate: >1% Chroma 61602 __
Resistive
Load RL
0.8Ω(200W)
1.6Ω(100W)
2Ω(400W)
8Ω(400W)
10Ω(200W)
15Ω(200W)
60Ω(200W)
__ Measure ripple and
noise
Current
Sampling
Resistor RM
0.022Ω
(5W, temperature drift: 10ppm) __
Measure load
regulation rate, linear
regulation rate,
programming
accuracy and
readback accuracy
Multimeter
Test Probe
__ __ __
USB Cable
USB Device to USB Host, for
connecting the power supply and PC
__ __
Short Circuit
Device (2) __ __
Short-circuit the (S+)
and (+) terminals,
(S-) and (-) terminals
of the channel that
supports the Sense
function

RIGOL Chapter 1 Test Overview
DP800 Performance Verification Manual
1-6
Test Precautions
The output terminal of the power supply is as shown in Figure 1-1. The output
terminal is a metal conductor with certain contact resistance (
r
∆
) and when the
output current of the power supply is
I
, the voltage of this terminal is
IrV ×∆=
e
.
Therefore, during the test process, the voltage test point is always located at A to
reduce the error caused by the terminal voltage as far as possible. Besides, the
contact resistance between this terminal and the power output wire/the voltage
feedback wire inside the instrument chassis can also cause error (about 2mV, called
offset
U
).
When testing the load regulation rate, voltage peak-peak value and transient
response time, the test devices are connected to the output terminal via A and the
load resistor is connected to the output terminal via B.
Figure 1-1 Output Terminal
During the test, please pay attention to shield the effect of the environmental space
radiation noise on the test effectively.
Test Result Record
Record and keep the test results of each test item. The test result record forms,
which provide all the test items and the corresponding performance specification
limits as well as spaces for users to record the test results, of all models of DP800
series programmable linear DC power supply are provided in “Appendix A: Test
Result Record Forms” of this manual.
B
A

Chapter 1 Test Overview RIGOL
DP800 Performance Verification Manual
1-7
Tip:
It is recommended that you photocopy the desired test result record form before
each test. During the test process, record the test results on the copies so that the
forms can be used repeatedly.

Chapter 2 Constant Voltage Tests RIGOL
DP800 Performance Verification Manual 2-1
Chapter 2 Constant Voltage Tests
Topics of this chapter:
Preparations
CV Load Regulation Rate (CV Load Effect)
CV Linear Regulation Rate (CV Source Effect)
CV Ripple and Noise
Transient Response Time
CV Programming and Readback Accuracy

RIGOL Chapter 2 Constant Voltage Tests
DP800 Performance Verification Manual
2-2
Preparations
When the power supply is in CV state, the main parameters to be tested include CV
load regulation rate, CV linear regulation rate, CV ripple and noise, transient
response time, CV programming and readback accuracy.
Before performing the tests, select the appropriate voltage via the “voltage selector”
at the rear panel of the power supply according to the AC line voltage of the country
(230V is taken as an example in all the tests in this manual). Under normal
temperature (about 25℃), make connections according to Figure 2-1 or Figure 2-2
using the devices recommended in “Recommended Test Devices”. During the
test process, please set the voltage of the AC power supply according to the voltage
selected of the “voltage selector” at the rear panel of the power supply.
DP800
Electronic Load/
Resistive Load
AC Power
Supply
Multimeter/
Oscilloscope/
RMS Voltmeter
+-
-+
+
-
+ -
Figure 2-1 CV Test Connections
DP800
Electronic Load/
Resistive Load
AC Power
Supply
Multimeter/
Oscilloscope/
RMS Voltmeter
+ -
-+
+
-
S+ + - S-
+-
Figure 2-2 CV Test Connections (Sense)
Short Circuit Devices
