Rigol MSO8000 Series User manual

RIGOL
Service Guide

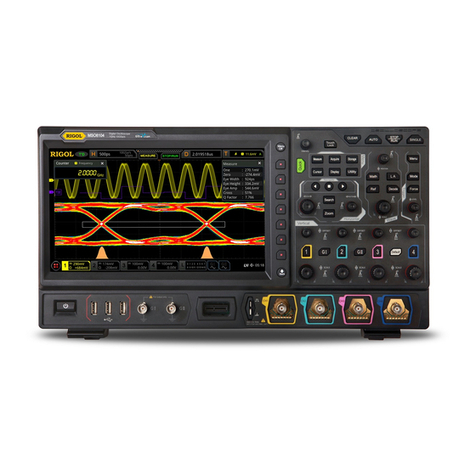

MSO8000 Series Digital Oscilloscope
Jul. 2019
RIGOL (SUZHOU) TECHNOLOGIES INC.

RIGOL
MSO8000 Service Guide I
Guaranty and Declaration
Copyright
© 2019 RIGOL (SUZHOU) TECHNOLOGIES INC. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL (SUZHOU) TECHNOLOGIES INC.
Publication Number
SGA26101-1110
Notices
RIGOL products are covered by P.R.C. and foreign patents, issued and pending.
RIGOL reserves the right to modify or change parts of or all the specifications and pricing
policies at the company’s sole decision.
Information in this publication replaces all previously released materials.
Information in this publication is subject to change without notice.
RIGOL shall not be liable for either incidental or consequential losses in connection with the
furnishing, use, or performance of this manual, as well as any information contained.
Any part of this document is forbidden to be copied, photocopied, or rearranged without prior
written approval of RIGOL.
Product Certification
RIGOL guarantees that this product conforms to the national and industrial standards in China as well
as the ISO9001:2015 standard and the ISO14001:2015 standard. Other international standard
conformance certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or this manual, please contact
RIGOL.
E-mail: [e-mail]
Website: www.rigol.com

RIGOL
II MSO8000 Service Guide
Safety Requirement
General Safety Summary
Please review the following safety precautions carefully before putting the instrument into operation
so as to avoid any personal injury or damage to the instrument and any product connected to it. To
prevent potential hazards, please follow the instructions specified in this manual to use the instrument
properly.
Use Proper Power Cord.
Only the exclusive power cord designed for the instrument and authorized for use within the local
country could be used.
Ground the Instrument.
The instrument is grounded through the Protective Earth lead of the power cord. To avoid electric
shock, connect the earth terminal of the power cord to the Protective Earth terminal before connecting
any input or output terminals.
Connect the Probe Correctly.
If a probe is used, the probe ground lead must be connected to earth ground. Do not connect the
ground lead to high voltage. Improper way of connection could result in dangerous voltages being
present on the connectors, controls or other surfaces of the oscilloscope and probes, which will cause
potential hazards for operators.
Observe All Terminal Ratings.
To avoid fire or shock hazard, observe all ratings and markers on the instrument and check your
manual for more information about ratings before connecting the instrument.
Use Proper Overvoltage Protection.
Ensure that no overvoltage (such as that caused by a bolt of lightning) can reach the product.
Otherwise, the operator might be exposed to the danger of an electric shock.
Do Not Operate Without Covers.
Do not operate the instrument with covers or panels removed.
Do Not Insert Objects Into the Air Outlet.
Do not insert anything into the holes of the fan to avoid damaging the instrument.
Use Proper Fuse.
Please use the specified fuses.
Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and components when the unit is powered on.
Do Not Operate With Suspected Failures.
If you suspect that any damage may occur to the instrument, have it inspected by RIGOL authorized
personnel before further operations. Any maintenance, adjustment or replacement especially to
circuits or accessories must be performed by RIGOL authorized personnel.
Provide Adequate Ventilation.
Inadequate ventilation may cause an increase of temperature in the instrument, which would cause
damage to the instrument. So please keep the instrument well ventilated and inspect the air outlet and
the fan regularly.

RIGOL
MSO8000 Service Guide III
Do Not Operate in Wet Conditions.
To avoid short circuit inside the instrument or electric shock, never operate the instrument in a humid
environment.
Do Not Operate in an Explosive Atmosphere.
To avoid personal injuries or damage to the instrument, never operate the instrument in an explosive
atmosphere.
Keep Product Surfaces Clean and Dry.
To avoid dust or moisture from affecting the performance of the instrument, keep the surfaces of the
instrument clean and dry.
Prevent Electrostatic Impact.
Operate the instrument in an electrostatic discharge protective environment to avoid damage induced
by static discharges. Always ground both the internal and external conductors of cables to release
static before making connections.
Use the Battery Properly.
Do not expose the battery (if available) to high temperature or fire. Keep it out of the reach of children.
Improper change of a battery (lithium battery) may cause an explosion. Use the RIGOL specified
battery only.
Handle with Caution.
Please handle with care during transportation to avoid damage to keys, knobs, interfaces, and other
parts on the panels.

RIGOL
IV MSO8000 Service Guide
Safety Notices and Symbols
Safety Notices in this Manual:
WARNING
Indicates a potentially hazardous situation or practice which, if not avoided, will result in
serious injury or death.
CAUTION
Indicates a potentially hazardous situation or practice which, if not avoided, could result
in damage to the product or loss of important data.
Safety Terms on the Product:
DANGER
It calls attention to an operation, if not correctly performed, could result in injury or
hazard immediately.
WARNING
It calls attention to an operation, if not correctly performed, could result in potential
injury or hazard.
CAUTION
It calls attention to an operation, if not correctly performed, could result in damage
to the product or other devices connected to the product.
Safety Symbols on the Product:
Hazardous Voltage
Safety Warning
Protective Earth
Terminal
Chassis Ground
Test Ground

RIGOL
MSO8000 Service Guide V
Document Overview
Format Conventions in this Manual
1. Key
The key on the front panel is denoted by the format of "Key Name (Bold) + Text Box" in the
manual. For example, Utility denotes the "Utility" key.
2. Menu
The menu items are denoted by the format of "Menu Word (Bold) + Character Shading". For
example, System denotes the "System" menu item under Utility.
3. Operation Procedures:
denotes the next step of operation. For example, Utility System denotes that first press
Utility, and then press the System softkey.
Content Conventions in this Manual
MSO8000 series includes the following models. Unless otherwise specified, this manual takes
MSO8104 (installed with the function/arbitrary waveform generator option) as an example to illustrate
the disassembly and assembly of the MSO8000 series.
Model
Analog
Bandwidth
No. of Analog
Channels
No. of Channels of
Function/AWG
No. of Digital
Channels
MSO8064
600 MHz
4
2 (option)
16
MSO8104
1 GHz
4
2 (option)
16
Manuals of this Product
The manuals of this product mainly include Quick Guide, User Guide, Programming Guide, Data Sheet,
and etc. For the latest version of this manual, download it from the official website of RIGOL
(www.rigol.com).

RIGOL Contents
VI MSO8000 Service Guide
Contents
Guaranty and Declaration.................................................................................................I
Safety Requirement........................................................................................................ II
General Safety Summary................................................................................................... II
Safety Notices and Symbols ..............................................................................................IV
Document Overview........................................................................................................ V
Chapter 1 Disassembly and Assembly........................................................................1-1
Notices to Disassembly and Assembly ..............................................................................1-1
Exploded View Drawing ..................................................................................................1-2
Disassemble the Rear Panel Components..........................................................................1-4
Disassemble the Front Bracket ........................................................................................1-5
Disassemble the Metal Rear Panel Components................................................................. 1-6
Disassemble the Fan Components....................................................................................1-8
Disassemble the Power Supply Shield............................................................................... 1-9
Disassemble the Power Supply Board............................................................................. 1-10
Disassemble the Metal Front Panel................................................................................. 1-11
Disassemble the Main Board.......................................................................................... 1-12
Disassemble the Knob .................................................................................................. 1-13
Disassemble the Keypad Board...................................................................................... 1-14
Disassemble the LCD.................................................................................................... 1-15
Disassemble the Power Key........................................................................................... 1-16
Assembly Procedures.................................................................................................... 1-17
Chapter 2 Troubleshooting&Maintenance..................................................................2-1
Basic Troubleshooting.....................................................................................................2-1
Maintenance..................................................................................................................2-2
System Maintenance................................................................................................2-2
Warranty ................................................................................................................2-2
Care and Cleaning ...................................................................................................2-3
Environmental Considerations...................................................................................2-3

Chapter 1 Disassembly and Assembly RIGOL
MSO8000 Service Guide 1-1
Chapter 1 Disassembly and Assembly
Notices to Disassembly and Assembly
Notices:
Do not disassemble the instrument unless for working requirement.
Only authorized personnel are allowed to disassemble the instrument.
Cut off the power supply before disassembling the instrument.
Please wear anti-static wrist strap or make other anti-static precaution when disassembling the
instrument.
Please use proper tools and follow the correct steps.
Take care not to deform the metal structure or get hurt when disassembling the metal structures.
To avoid causing damage to the instrument due to improper operation and to save your time, we
recommend you to follow the disassembly steps and methods in this guide manual.
Required Tools:
Phillips screwdriver T10
BNC socket wrench
WARNING
Ensure that the power supply is cut off before disassembling the instrument. Only
well-trained professional personnel or qualified personnel are allowed to disassemble
the instrument.

RIGOL Chapter 1 Disassembly and Assembly
1-2 MSO8000 Service Guide
Exploded View Drawing
You need to get a basic understanding of the main parts of the instrument before disassembling and
assembling the instrument. When disassembling or assembling the instrument, please follow the
procedures and take care not to scratch the surfaces of the instrument. This manual mainly introduces
the disassembly and assembly methods for the MSO8000 series digital oscilloscope. The exploded
view drawing of MSO8000 (installed with the function/arbitrary waveform generator option) is shown
in Figure 1-1. For the replacement parts list, refer to Table1-1.
Figure 1-1 Exploded View Drawing of MSO8000 (Installed with the Function/AWG Option)

Chapter 1 Disassembly and Assembly RIGOL
MSO8000 Service Guide 1-3
Table1-1 Replacement Parts List
No.
Part No.
Qty.
Name/Description
1
1020004447 (MSO8064)
1020004448 (MSO8104)
1
Front Label
2
1010005810
1
LCD (Touch Screen Included)
3
1020003979
1
LCD Shield
4
1020000573
30
M3x8 Torx Pan Head Combination Screw
5
1020000571
13
M3x6 Torx Pan Head Combination Screw
6
1010005842
8
BeCu Fingerstock
7
2010004397
1
Main Board (MB_BOARD)
8
1020003981
1
Power Supply Shield
9
1020003988
1
Metal Rear Panel
10
1010005841
3
BeCu Fingerstock (Slot Mount)
11
2010003934
1
Power Supply Board
12
2010003933
1
Rubber Fan Sleeve
13
1020004108
1
Dustproof Mesh
14
2010003941
1
Rear Panel
15
2010003929
1
Handle
16
1020004004
1
BNC Back Label
17
1020004003
1
LAN Interface Back Label
18
1020004002
1
HDMI Rear Label
19
1020004001
1
Authentication Back Label
20
2010000322
2
Rear Bracket
21
2010003927
2
Main Rear Support Leg
22
2010003928
2
Auxiliary Rear Bracket
23
2010000183
4
Bracket Shaft
24
2010000324
2
Bracing Shaft Restrain Block
25
1010003552
1
Fuse
26
1010002562
1
Power Socket
27
1020000563
1
M4x8 Torx Pan Head Combination Screw
28
1020003467
1
Fan
29
1020003987
1
Metal Front Panel
30
1020000648
9
Lock Washer
31
1020000619
9
BNC Nut
32
2010004101
1
Keypad Board
33
1020003991
1
Main Key
34
2010003942
1
Panel
35
2010001009
2
Front Bracket
36
1020004032
1
BNC Label
37
1020004000
1
Controls Film
38
2010003945
6
Large Knob
39
2010003947
8
Small Knob
40
1020003999
1
Front Panel Interface/Connector Label
41
1020003967
1
Power Key
The recommended disassembly procedures are as follows:
Disassemble the Rear Panel Components Disassemble the Front Bracket Disassemble the Metal
Rear Panel Components Disassemble the Fan Components Disassemble the Power Supply Shield
Disassemble the Power Supply Board Disassemble the Metal Front Panel Disassemble the
Main Board Disassemble the Knob Disassemble the Keypad Board Disassemble the LCD
 Disassemble the Power Key

RIGOL Chapter 1 Disassembly and Assembly
1-4 MSO8000 Service Guide
Disassemble the Rear Panel Components
Figure 1-2 Disassemble the Rear Panel Components
Part Description:
①2 screws (M3x8 torx pan head combination screw, used for fastening the handle)
②2 screws (M3x8 torx pan head combination screw, used for fastening the rear panel at the
bottom)
Disassembly Steps:
1. Use the T10 screwdriver to remove 2 screws (①) that secure the handle.
2. Use the T10 screwdriver to remove 2 screws (②) at the bottom of the rear panel.
3. Remove the rear panel components in the arrow direction (as shown in the figure above).
①
①
②
②
Rear Panel Components
Handle

Chapter 1 Disassembly and Assembly RIGOL
MSO8000 Service Guide 1-5
Disassemble the Front Bracket
Figure 1-3 Disassemble the Front Bracket
Part Description:
①2 front brackets
Disassembly Step:
Take off the front brackets gently.
①

RIGOL Chapter 1 Disassembly and Assembly
1-6 MSO8000 Service Guide
Disassemble the Metal Rear Panel Components
Figure 1-4 Disassemble the Metal Rear Panel Components
Part Description:
①8 screws (M3x6 torx pan head combination screw, used for fastening the metal front panel and
the metal rear panel components)
②3 BNC nuts
③3 lock washers
①
①
①
①
①
①
②
②
③
③
①
①
Metal Rear Panel Components

Chapter 1 Disassembly and Assembly RIGOL
MSO8000 Service Guide 1-7
Disassembly Steps:
1. Use the BNC socket wrench to remove the 3 BNC nuts and 3 lock washers at the BNC connectors
of the metal rear panel components.
2. Use the T10 screwdriver to remove 8 screws (①) that fasten the front metal panel and the metal
rear panel components.
3. Disconnect the power cable and the fan cable from the main board.
4. Remove the metal rear panel components gently.
Tip
Before disconnecting the power cable and the fan cable from the main board, pay attention to the
connecting positions of the cables to avoid incorrect connection or incomplete connection when
assembling the cables.

RIGOL Chapter 1 Disassembly and Assembly
1-8 MSO8000 Service Guide
Disassemble the Fan Components
Figure 1-5 Disassemble the Fan Components
Disassembly Steps:
1. Remove the fan cable from the power supply shield.
2. Disengage the 4 tabs of the rubber fan sleeve from the metal rear panel components.
3. Remove the fan components (fan+rubber fan sleeve) from the metal rear panel components.
4. Take off the fan gently.
Tip
When disassembling the fan, pay attention to the installation position of the fan and the direction
of the fan cable outlet to avoid any improper assembly operation.
Fan
Rubber Fan Sleeve

Chapter 1 Disassembly and Assembly RIGOL
MSO8000 Service Guide 1-9
Disassemble the Power Supply Shield
Figure 1-6 Disassemble the Power Supply Shield
Part Description:
①4 screws (M3x8 torx pan head combination screw, used for fastening the power supply shield)
Disassembly Steps:
1. Use the T10 screwdriver to remove 4 screws (①) that secure the power supply shield.
2. Take off the power supply shield gently.
①
①
①
①

RIGOL Chapter 1 Disassembly and Assembly
1-10 MSO8000 Service Guide
Disassemble the Power Supply Board
Figure 1-7 Disassemble the Power Supply Board
Part Description:
①4 screws (M3x8 torx pan head combination screw, used for fastening the power supply board)
Disassembly Steps:
1. Remove the AC line from the power supply board.
2. Use the T10 screwdriver to remove 4 screws (①) that secure the power supply board.
3. Take off the power supply board gently.
Tip
Before disconnecting the cables from the power supply board, pay attention to the connecting
positions of the cables to avoid incorrect connection or incomplete connection when assembling
the cables.
①
①
①
①

Chapter 1 Disassembly and Assembly RIGOL
MSO8000 Service Guide 1-11
Disassemble the Metal Front Panel
Figure 1-8 Disassemble the Metal Front Panel
Part Description:
①4 screws (M3x8 torx pan head combination screw, used for fastening the metal front panel)
Disassembly Steps:
1. Use the T10 screwdriver to remove 4 screws (①) that secure the metal front panel.
2. Remove the keyboard cable, active probe power cable, and LCD screen cable from the metal front
panel.
3. Disengage the 9 tabs from the metal front panel.
4. Take off the metal front panel gently.
Tip
Before disconnecting the cables from the metal front panel, pay attention to the connecting
positions of the cables to avoid incorrect connection or incomplete connection when assembling the
cables.
Metal Front Panel
①
①
①
①

RIGOL Chapter 1 Disassembly and Assembly
1-12 MSO8000 Service Guide
Disassemble the Main Board
Figure 1-9 Disassemble the Main Board
Part Description:
①11 screws (M3x8 torx pan head combination screw, used for fastening the main board)
②6 BNC nuts
Disassembly Steps:
1. Use the BNC socket wrench to remove the 6 BNC nuts (②) at the BNC connectors of the main
board.
2. Use the T10 screwdriver to remove 11 screws (①) that secure the main board.
3. Take off the main board gently.
Tip
After disassembling the metal front panel, take off the 8 BeCu fingerstocks. While assembling the
BeCu fingerstocks, ensure that the slope side faces upward and make a proper installation.
BeCu Fingerstock
Main Board
①
①
①
①
①
①
①
①
①
①
①
②
