Bms Bulut Makina BMS 200-RBOV Quick start guide

BMS 200-RBOV
ROCKWELL, BRINELL&VICKERS
HARDNESS TESTER
BMS Bulut Makina Sanayi Ve Ticaret Ltd. Şti.
İkitelli Organize Sanayi Bölgesi Dolapdere Sanayi Sitesi
Ada 4 No : 7-9 Başakşehir / İSTANBUL-TURKEY
Phone : [phone] Fax : [phone]
web : www.bulutmak.com e-mail : [e-mail]
OPERATIONAL MANUAL

BMS 200-RBOV
Operation
Rev:00 2 / 13
Manual
1Technical Features......................................................................................................................................4
2Standart Accessories...................................................................................................................................4
2.1 Optional Accessories ...............................................................................................................................4
3Unpacking Of Equipment...........................................................................................................................5
4Setting into Operation for Rockwell Hardness Testing..............................................................................5
5Testing ........................................................................................................................................................5
6Adjusting Loading Speed ...........................................................................................................................5
7Rockwell Hardness Testing (EN 6508-1,ASTM E18) ................................................................................5
8Brinell Hardness Testing (EN 6506-1, ASTM E10)....................................................................................7
9Setting into Operation for Brinell Hardness Testing ..................................................................................7
9.1 Sample of reading indentation.............................................................................................................7
10 Vickers Hardness Testing (EN-6507-1, ASTM E-92) .............................................................................7
11 Setting into Operation for Vickers Hardness Testing .............................................................................8
12 Samples of Readings...............................................................................................................................9
13 Test Method ..........................................................................................................................................10
14 Brinell HB Ø 2, 5..................................................................................................................................11

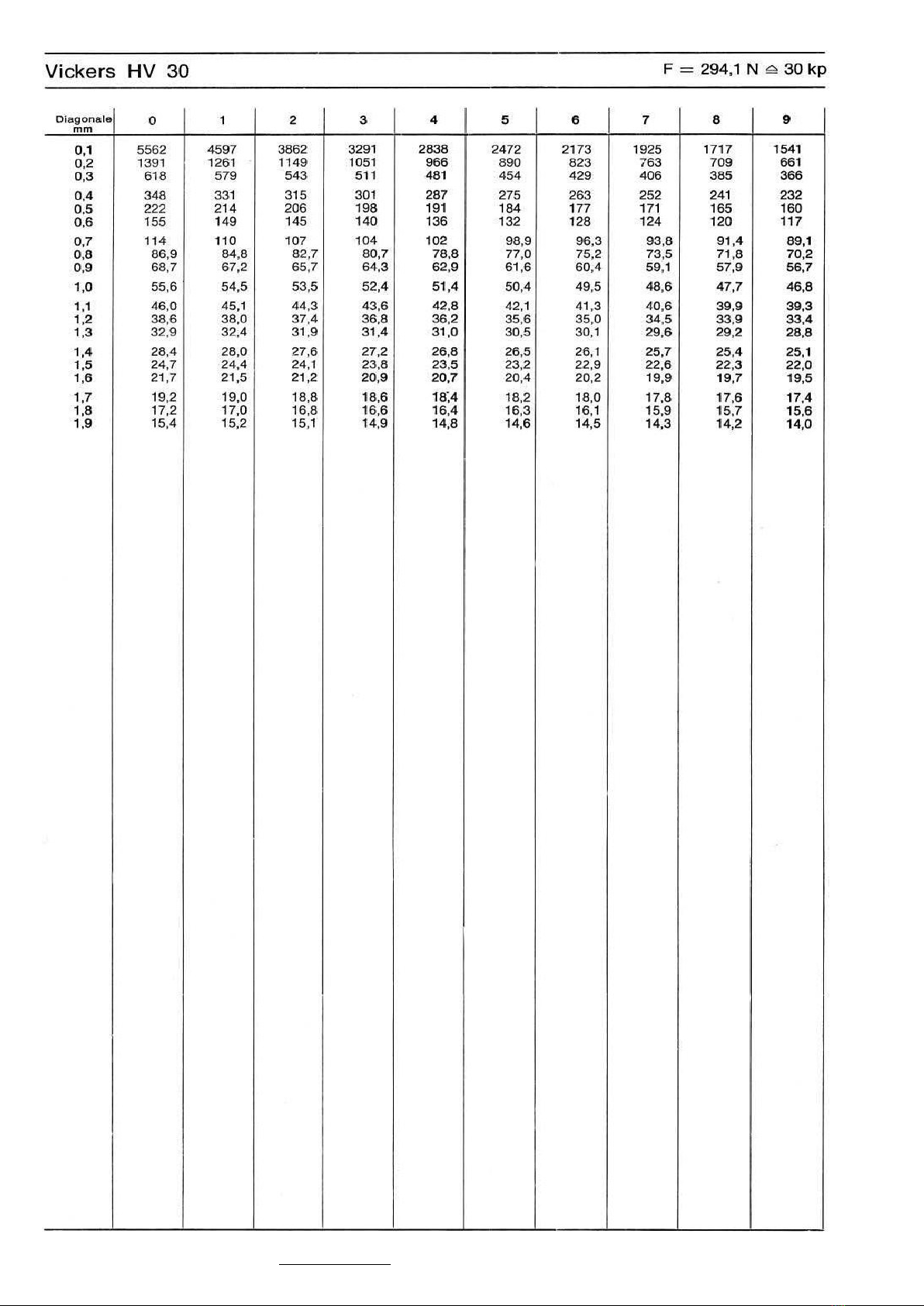

15 Vickers HV 30 ......................................................................................................................................12

BMS 200-RBOV
Operation
Rev:00 3 / 13
Manual

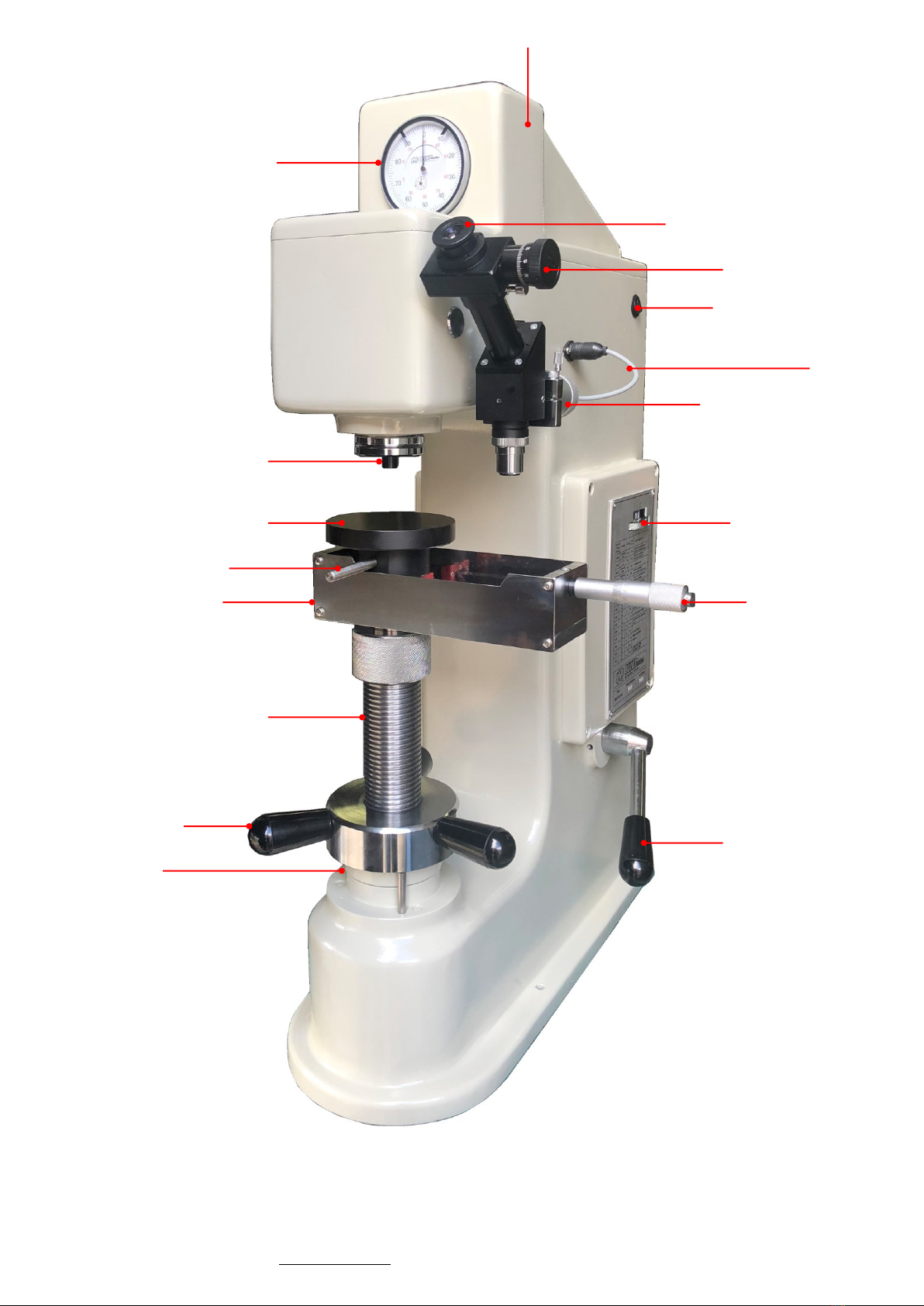

TOP COVER
EYEPIECE
MICROMETER
OF EYEPIECE
OPTICAL SYSTEM
BULB (24 VOLT
5 WATT)
ON/OFF BUTTON FOR
ILLUMINATION
DIAL GAUGE
INDENTER
TESTING TABLE
LOAD SELECTOR
MICROMETER OF
SILIDING TABLE
LEVER OF
SILIDING TABLE
ELEVATING
SCREW
ARM
SLIDING TABLE
LOAD APPLICATION
LEVER
QUICK LIFT LEVER

BMS 200-RBOV
Operation
Rev:00 4 / 13
Manual
1 Technical Features
Pre-load (kgf)
10
Test Loads (kgf)
60, 100, 150 (Rockwell),
62.5, 187.5 (Brinell),
30 (Vickers).
Load Selection
By load selector disc
Test Method
Rockwell, Brinell, Vickers
Load Application
Hydraulic
Magn.of measuring microscope
75xBrinell
150xVickers
Max Test Height
With sliding table 140 mm
Without sliding table 240 mm
Depth of Throat
145 mm
Machine Dimensions
780x490x170 mm
Case Dimensions
950x700x350 mm
Weight (net/gross)
95 / 125 kg
Power Supply
220V, 50HZ
2 Standart Accessories
Rockwell Diamond Indenter : 1
Vickers Pyramid Indenter : 1
1/16" Ball Indentor : 1
2,5mm Ball Indentor : 1
HRC Test Block : 1
HRB Test Block : 1
HB 2,5/187,5 Test Block : 1
Flat Testing Table : 1
V Testing Table : 1
Hardness Conversion Table : 1
Case for Accessories : 1
Allen Spanner : 1
Instruction Manual : 1
Calibration Certificate : 1
2.1 Optional Accessories
1/8”, 1/4”, 1/2" ball indenters
250,200,130, 100 mm test tables
Spot testing anvil
Spring loaded clamping device

BMS 200-RBOV
Operation
Rev:00 5 / 13
Manual
3 Unpacking Of Equipment
Unscrew fixing steel sheet plates of upper side to wooden base of case and hold up upper side of
wooden case by means of carrying handles. Take out two M8 bolts fastening equipment to lower
wooden case. Locate equipment on a special table(see drawing of table enclosed) and fasten two
M8 bolts by means of eye bull putting on flat testing table.
Open left cover. Take out wooden safety parts. Take out also 3 off M6 bolts of top cover by means
of 5 mm special alyen key which is in accessory box. Hold top cover up with care. Pay attention
not to touch Rockwell Dial gauge. Take out plastic safety parts. Equipment is now ready for
testing.
4 Setting into Operation for Rockwell Hardness Testing
Before starting to test load application lever (KL2) (8) has to be in starting position (see drawing
and picture). Locate part to be tested on testing table, Insert indenter to holder (ML3) (5) and
choose load by means of load selector disc (VL1) (14) (according to testing method in attached
table)
5 Testing
As soon as indenter touches on part, actuating main spindle (ML1)) (12) by means of arms (SM1)
(13) Rockwell dial gauge pointers start movement. Keep going until big pointers at “0” and small
pointer at 3 in red dot. Now Pre –load is applied. (If big pointer is exceeded by ±3 points start to
test again) Then apply total load application lever
(KL2) (8) to forward (see drawing) and follow movement of big pointer until it stops. Wait 3-5 sec.
more. Then take back lever (KL2) (8) to starting position. And read value on display. Black
numbers on dial gauge for HRA, HRC and HRD with diamond indenter. Red values for HRB, HRE,
HRF etc. with ball indenters.

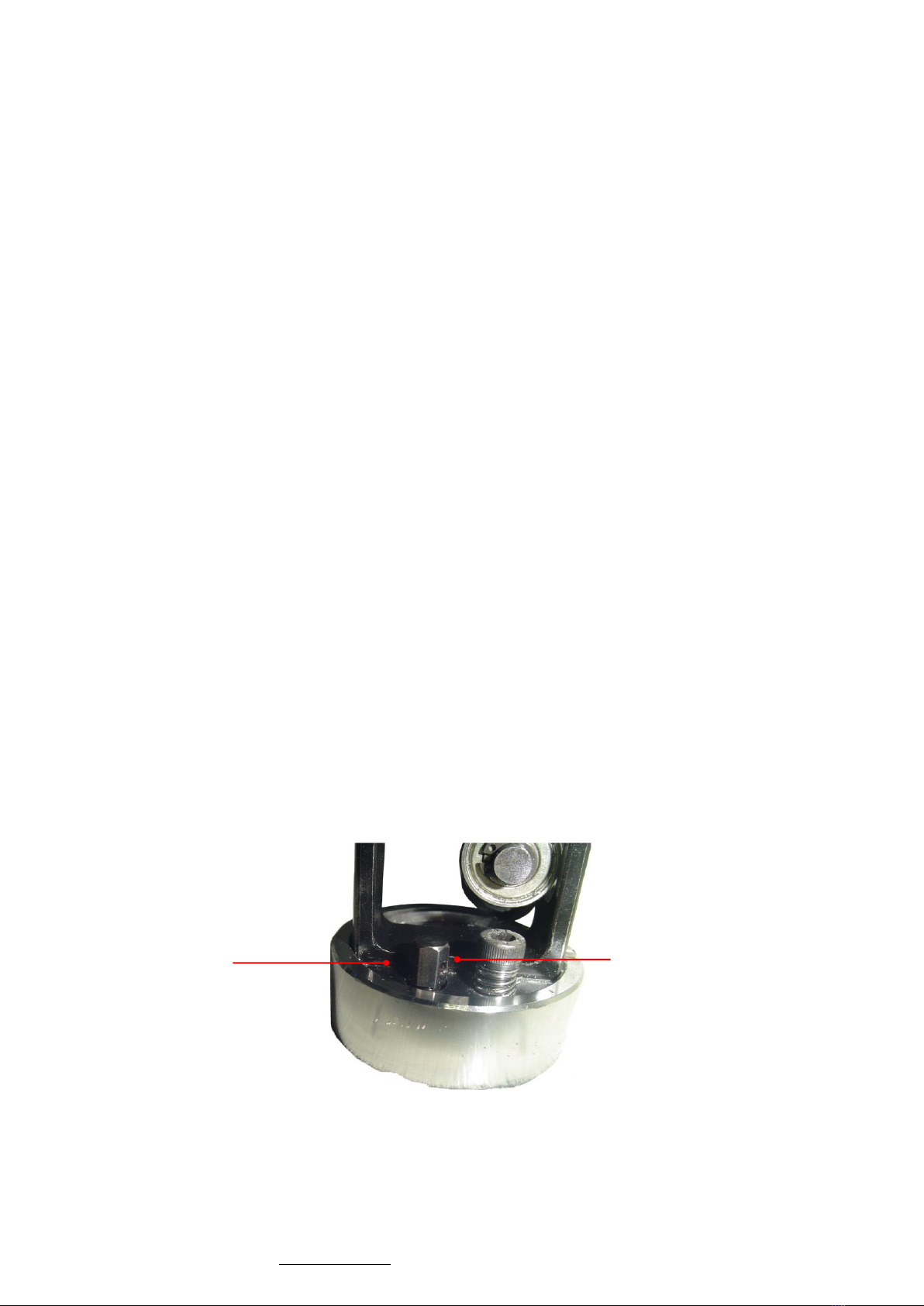

6 Adjusting Loading Speed
Load application is adjusted by hydraulic system. Hydraulic oil is filled at our works and hydraulic
application speed is adjusted at our works. (But, working at extremely high temperatures or during
transportation due to wrong handling if oil is reduced you may add some oil again. To do this,
open left cover. There are two bolts on hydraulic piston (PS1) Take out bolt on the left (A1). Add
some oil (Tellus 37 or similar) While adding oil, you can use load application lever (KL2) (8)
forward and backward. This helps oil to settle down easily. You can adjust hydraulic speed, by
allen bolt on the right (B1). If you turn this bolt clockwise load application speed is decreased, if
you turn anti clockwise it is increased.
7 Rockwell Hardness Testing (EN 6508-1,ASTM E18)
Rockwell Hardness testing method is evaluated from penetration depth of 120°diamond cone or
ball indenter with different dias (please refer to table enclosed).
(B1)
(A1)

BMS 200-RBOV
Operation
Rev:00 6 / 13
Manual
Below application shows working procedures using Rockwell diamond cone (HRC-HRA etc)
Nr
Symbol
Description
1
0
120° Diamond cone
2
0
Radius of diamond tip= 0,2 mm
3
F0
Pre-Load
4
F1
Additional Load
5
F
Total load F0+ F1
6
t0
Depth of penetration under pre-load, mm
7
t1
Depth of penetration under additional load, mm
8
tb
Increase in depth of penetration from F1 to F0, mm
9
e
Equality as of 0,002 mm increase of depth of penetration e= tb / 0,002
10
0
Rockwell hardness = 100-e
Below application shows working procedures using 1/16” ball indenter (HRB etc)
Nr
Symbol
Description
1
D
Ball dia=1/16“ =1,5875 mm
3
F0
Pre-load
4
F1
Additional load
5
F
Total load =F0+F1
6
t0
Depth of penetration under pre-load, mm
7
t1
Depth of penetration under additional load, mm
8
tb
Increase in depth of penetration from F1 to F0, mm
9
e
Equality as of 0,002 mm increase of depth of penetration e= tb / 0,002
10
HRB/HRF
Rockwell hardness= 130-e
Surface of test specimen
Reference
point
Hardness
Surface of test
specimen
Reference point

BMS 200-RBOV
Operation
Rev:00 7 / 13
Manual
8 Brinell Hardness Testing (EN 6506-1, ASTM E10)
Brinell hardness testing method is made by different balls depending (for BMS 200-RBOV only 2,
5 mm ball) on material type, thickness and loads applied. Diameters of ball indentations can be
evaluated by optical system built-in hardness tester.
Relations with thickness of specimen, ball dia and material shown in related the table
Thickness of material (mm)
Ball dia (mm)
P=30D2
Steel, iron, cast iron
P=10D2
Brass, Bronze, Cupper, Aluminum
P=D2 Soft cupper
P=5D2 Lead
6 mm and up
10
3.000 kgf
1.000 kgf
500 kgf
250 kgf
3 mm and up
5
750 kgf
250 kgf
125 kgf
62,5 kgf
1,2 mm and up
2,5
187,5 kgf
62,5 kgf
31,25 kgf
15,625 kgf
0,5 mm and up
1
30 kgf
10 kgf
5 kgf
-
9 Setting into Operation for Brinell Hardness Testing
Locate 5X objective (16) on optical system
Before starting to test, load application lever (KL2) (8) has to be in starting position (see drawing
and picture) Locate part to be tested on testing table (10), Moving lever of sliding table (11) to
the left , assure testing table (10) to touch stopping bolt.
Insert 2, 5 mm ball indenter to holder (ML3) (5) and choose load by means of load selector disc
(VL1) (14) (according to table shown above)
IMPORTANT: For Brinell and Vickers tests quick lift lever (7) always must be in forward
position touching the stop pin.
Apply pre-load and total load as described in Rockwell testing.
Follow movement of big pointer until it stops. Wait 3-5 sec.more.Then take back lever (KL2) (8) to
starting position. Move quick lift lever (7) from right to left until it touches stop pin.
Move quick lift lever (7) from right to left until it touches stopping pin.(in this case indenter to be
separated from the surface of the part to be tested)
In this case, move the lever of sliding table to the right carefully (11) until testing table touches
micrometer.
Observe, ball indentation as per shown in eyepiece of microscope (OP-1)
9.1 Sample of reading indentation
Drawing: OP-2
Adjust, measuring moving line by means of micrometer of eyepiece (2) until it touches leftist side
of indentation. Then move, measuring line from left to right until it touches rightest side of
indentation. Than calculate value.
For example, value shown in OP-2 can be calculated as follows.
Every single line is 100 unit. (In Brinell testing total magnification is 75X when 5X objective is
used) One line of eyepiece micrometer is 0,002 mm.
100X6 = 600, Plus 24 unit shown on micrometer.
Total = 600 + 24 = 624 .Total value = 624 X 0,002 = 1.248
From the related table 145 HB 2, 5 / 187, 5 obtained.
10 Vickers Hardness Testing (EN-6507-1, ASTM E-92)
Vickers Hardness testing method is made by 136° Vickers pyramid indenter. Vickers indentation
can be evaluated by optical system built-in hardness tester.
(For this method, only 30kgf available with BMS 200-RBOV)

BMS 200-RBOV
Operation
Rev:00 8 / 13
Manual
11 Setting into Operation for Vickers Hardness Testing
Locate 10X objective (16) on optical system
Assure all points same as Brinell test before start to operation.
Insert Vickers diamond indenter to holder (ML3) (5) and choose 30 kgf load by means of load
selector disc (VL1) (14)
Actuate Vickers test using same steps as per mentioned for Brinell test.
Observe, pyramid indentation as per shown in eyepiece of microscope (OP-1)
Sample of reading indentation
Drawing: OP-3
Adjust, measuring moving line by means of micrometer of eyepiece (2) until it touches leftist side
of indentation. Then, move, measuring line from left to right until it touches rightest side of
indentation. Than calculate value.
For example, value shown in OP-3 can be calculated as follows.
Every single line is 100 unit. (In Vickers testing total magnification is 150X when 10 X objective is
used) One line of eyepiece micrometer is 0,001 mm.
100X3 = 300, Plus 45 unit shown on micrometer.
Total = 300 + 45 =345.Total value = 345 X 0,001 = 0,345
From the related table 467 HV30 obtained.

BMS 200-RBOV
Operation
Rev:00 9 / 13
Manual
12 Samples of Readings

BMS 200-RBOV
Operation
Rev:00 10 / 13
Manual
13 Test Method
Test Method
Indenter
Pre-
load
(kgf
Total
load
(kgf)
Field of application
HRA
Diamond
cone
10
60
Surface hardened parts with thin cases (≥0,4 mm)
HRB
1/16" ball
10
100
Non ferrous metals,unhardened steels
HRC
Diamond
cone
10
150
Hardnened steels
HRD
Diamond
cone
10
100
Surface hardnened parts with medium cases
HRE
1/8" ball
10
100
Aluminium amd magnesium alloys,antifriction
metals,synetic
metals
HRF
1/16" ball
10
60
Annealed cupper alloys,thin sheet metals (≥ 0,6 mm)
HRG
1/16" ball
10
150
Phospor-bronze,melleable iron of medium hardness
HRH
1/8" ball
10
60
Aluminium,zinc,lead,grinding stones
HRK
1/8" ball
10
150
Antifriction and other metals of very low hardness
HRL
1/4" ball
10
60
As HRK and hard rubber
HRM
1/4" ball
10
100
As HRK and HRL,laminated wood
HRP
1/4" ball
10
150
HRR
1/2" ball
10
60
HRK,HRL or HRM and syntetic materials
HRS
1/2" ball
10
100
HRV
1/2" ball
10
150
As HRK,HRL,HRM,HRP,HRR or HRS
HR 15 N
HR 30 N
HR 45 N
Diamond
cone
3
15
30
45
As HRA,HRC or HRD ,but especially thin case depth
(≥ 0,18 mm )
HR15T
HR30T
HR45T
1/16" ball
3
15
30
45
As HRB,HRF or HRG but especially for thin sheet metals
(≥ 0,25 mm )
HR15W
HR30W
HR45W
1/8" ball
3
15
30
45
HR15X
HR30X
HR45X
1/4" ball
3
15
30
45
For metals with very low hardness and for very thin
cases,for example thin linings of antifriction metals,HRX
and HRY especially for sintered metals
HR15Y
HR30Y
HR45Y
1/2" ball
3
15
30
45

BMS 200-RBOV
Operation
Rev:00 11 / 13
Manual
14 Brinell HB Ø 2, 5

BMS 200-RBOV
Operation
Rev:00 12 / 13
Manual
15 Vickers HV 30
18.1 Vickers HV 30

BMS 200-RBOV
Operation
Rev:00 13 / 13
Manual
